EXTStoria V4
€1,100 EU RRP, spring sold separately (listed as 1100,00 €/$)
- Type
- Coil, piggyback
- Adjustments
- LSC, HSC, LSR, HBC + LOK 2.0
- Mounts
- Metric standard / trunnion
- Shaft
- Ø14 mm DLC-coated steel
- Weight
- 397 g (no spring)
- Weight
- 397 g210×55 mm, standard mount, without spring, claimed
Overview
EXT Storia V4: 4-way adjustable coil enduro shock with LOK 2.0, adjustable HBC and PSR, 397 g without spring, priced at EUR 1,100 (spring sold separately).
The Storia V4 is EXT's analog coil enduro shock, refining the V3 while keeping its mid-body damper characteristics, hydraulic bottom-out circuit and high-speed control. New for V4 are PSR (Position Sensitive Rebound) hydraulic top-out, frequency-dependent damping, an externally adjustable HBC (Hydraulic Bottom-out Control) and a DLC-coated 14 mm steel shaft, in a stronger and quieter package.
The shock is 4-way adjustable (LSC, HSC, LSR, HBC) and adds the LOK 2.0 independent pedalling-support circuit, with a large-volume bladder reservoir run at just 55 psi and EV2S fluid. It is offered in metric standard and trunnion sizes; EXT recommends E-Storia or Vecta for MTBs and e-MTBs with a yoke linkage.
- 4-way adjustable: LSC, HSC, LSR and external HBC
- LOK 2.0 independent pedalling-support circuit
- PSR hydraulic top-out and frequency-dependent valve
- DLC-coated 14 mm chrome-moly shaft; 55 psi bladder reservoir
- 397 g (210×55, without spring); EUR 1,100

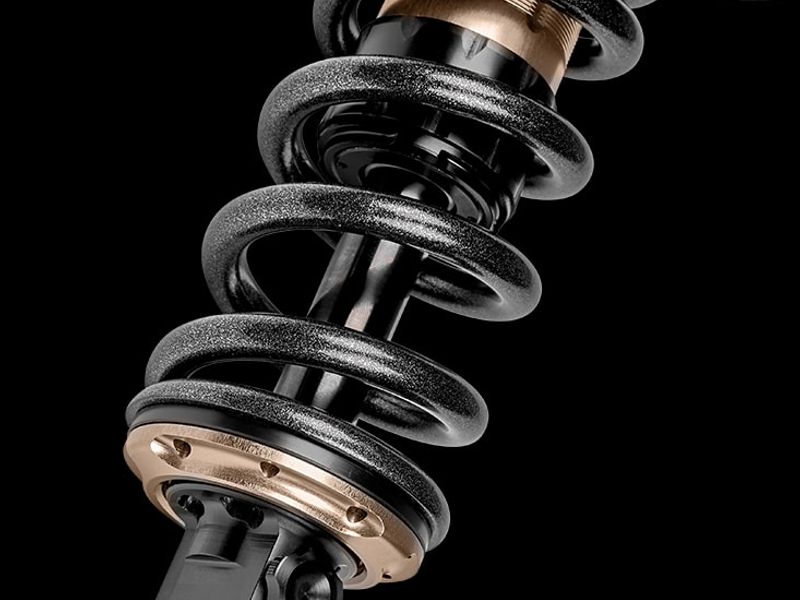

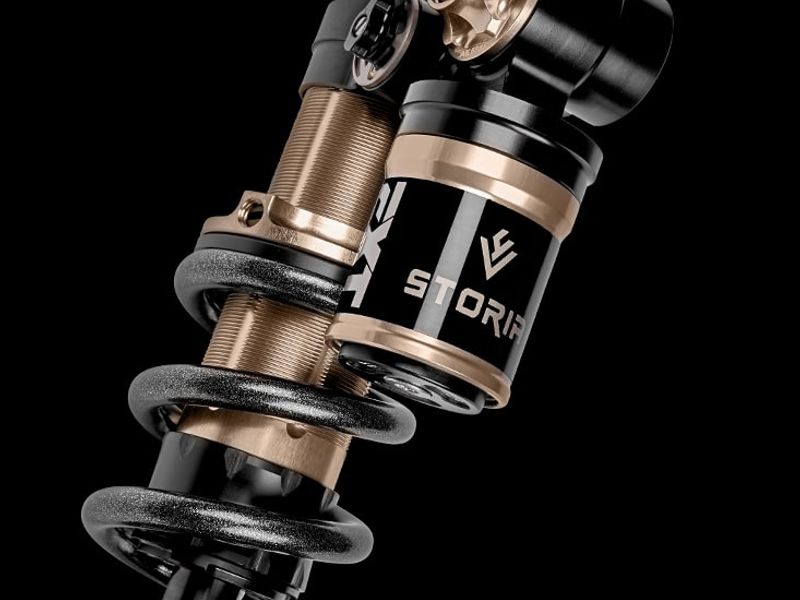

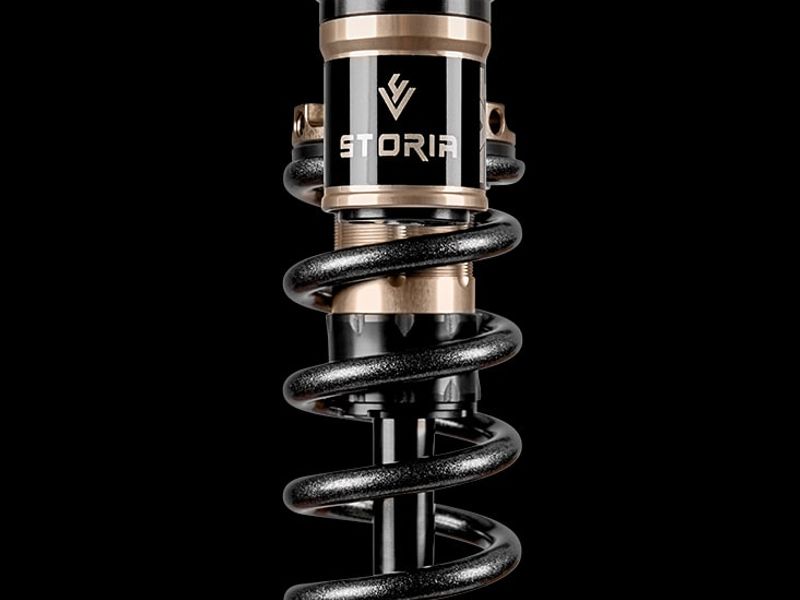

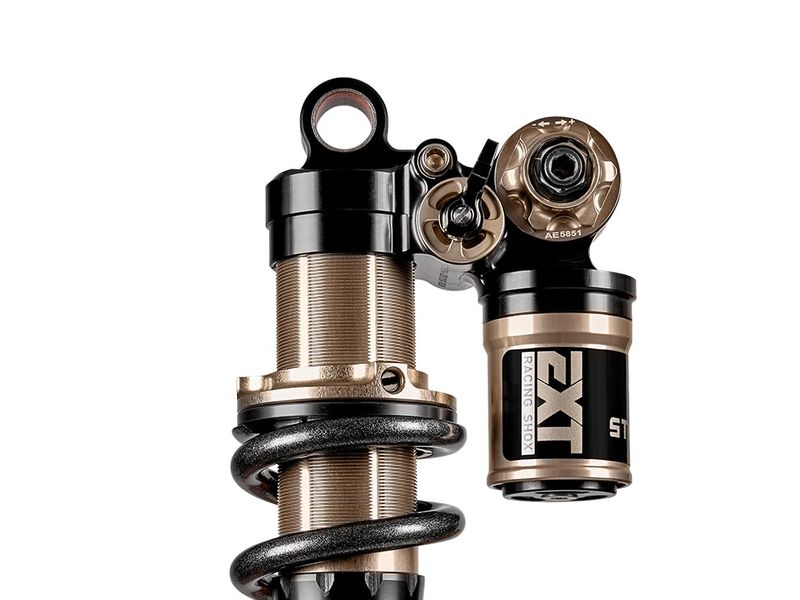

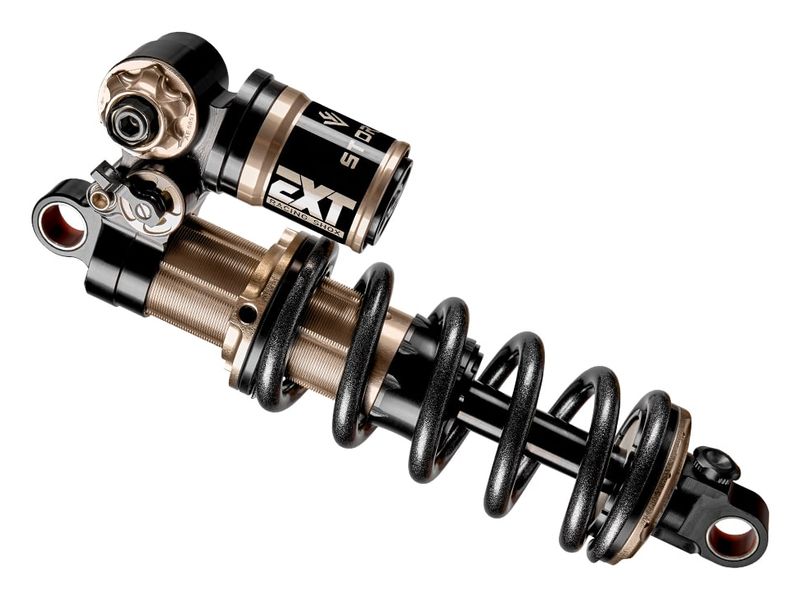

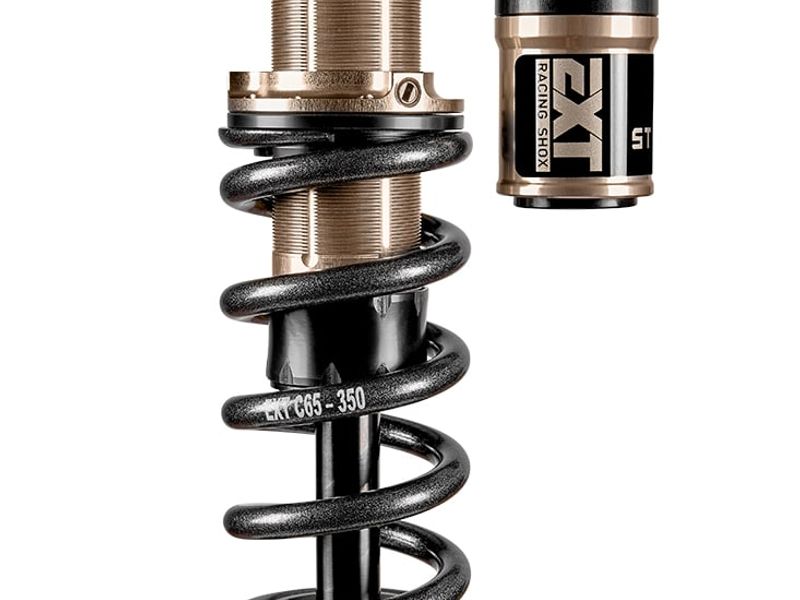

Gallery
Full specifications
Damper
- Adjustments
- 4-way (LSC, HSC, LSR, HBC); Allen-key adjusters for high and low compression
- Top-out
- PSR position-sensitive rebound (patent pending)
- Bottom-out
- Externally adjustable HBC
- Lockout
- LOK 2.0
- Valving
- High turbulent flow valves; frequency-dependent 1-way valve
- Fluid
- EV2S high viscosity index fluid
- Reservoir
- Large-volume bladder, 55 psi
Chassis
- Shaft
- Ø14 mm chrome steel, DLC ultra-low friction coating
Spring
- Spring
- Coil, sold separately; 30% lighter steel spring (Superlight), tested over 500,000 cycles
- Spring bearings
- Spring thrust bearings
Compatibility
- Metric standard
- 210/47.5–55, 230/57.5–65, 250/67.5–75 mm (2.5 mm steps)
- Metric trunnion
- 185/47.5–55, 205/57.5–65, 225/67.5–75 mm (2.5 mm steps)
- Yoke linkages
- EXT recommends E-Storia or Vecta for MTBs/e-MTBs with a yoke
General
- Warranty
- 5 years (2-year legal + 3-year Fiveplus extension)
Manufacturer specification — EXT. Specs and prices can change; check with the brand or your dealer.
EXT Storia versions compared
| Storia V4 | E-Storia | |
|---|---|---|
| Price | €1,100 | €1,100 |
| Type | Coil, piggyback | Coil, integrated reservoir |
| Adjustments | LSC, HSC, LSR, HBC + LOK 2.0 | LSC, HSC, LSR, LOK + HBC |
| Mounts | Metric standard / trunnion | Metric standard / trunnion |
| Shaft | Ø14 mm DLC-coated steel | — |
| Weight | 397 g (no spring) | 800 g incl. spring |
| E-bike rated | — | Yes (e-bike dedicated) |
| Weight | 397 g | 800 g |
EXT Storia V4: FAQ
How much does the EXT Storia V4 cost?
€1,100 (EU RRP, spring sold separately (listed as 1100,00 €/$)). Prices vary by country and retailer.
How much does the EXT Storia V4 weigh?
EXT quotes 397 g (210×55 mm, standard mount, without spring, claimed).
Is the EXT Storia V4 suitable for e-bikes?
EXT does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the EXT Storia V4?
Type: Coil, piggyback; Adjustments: LSC, HSC, LSR, HBC + LOK 2.0; Mounts: Metric standard / trunnion; Shaft: Ø14 mm DLC-coated steel; Weight: 397 g (no spring).
What other versions of the EXT Storia are there?
E-Storia (€1,100).
