YT IndustriesDecoy SN 29 Core 3
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 480 WhFazua Ride 60 battery, integrated
- Travel F / R
- 160 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.4 kgManufacturer figure (smallest size, tubeless, without pedals)
Overview

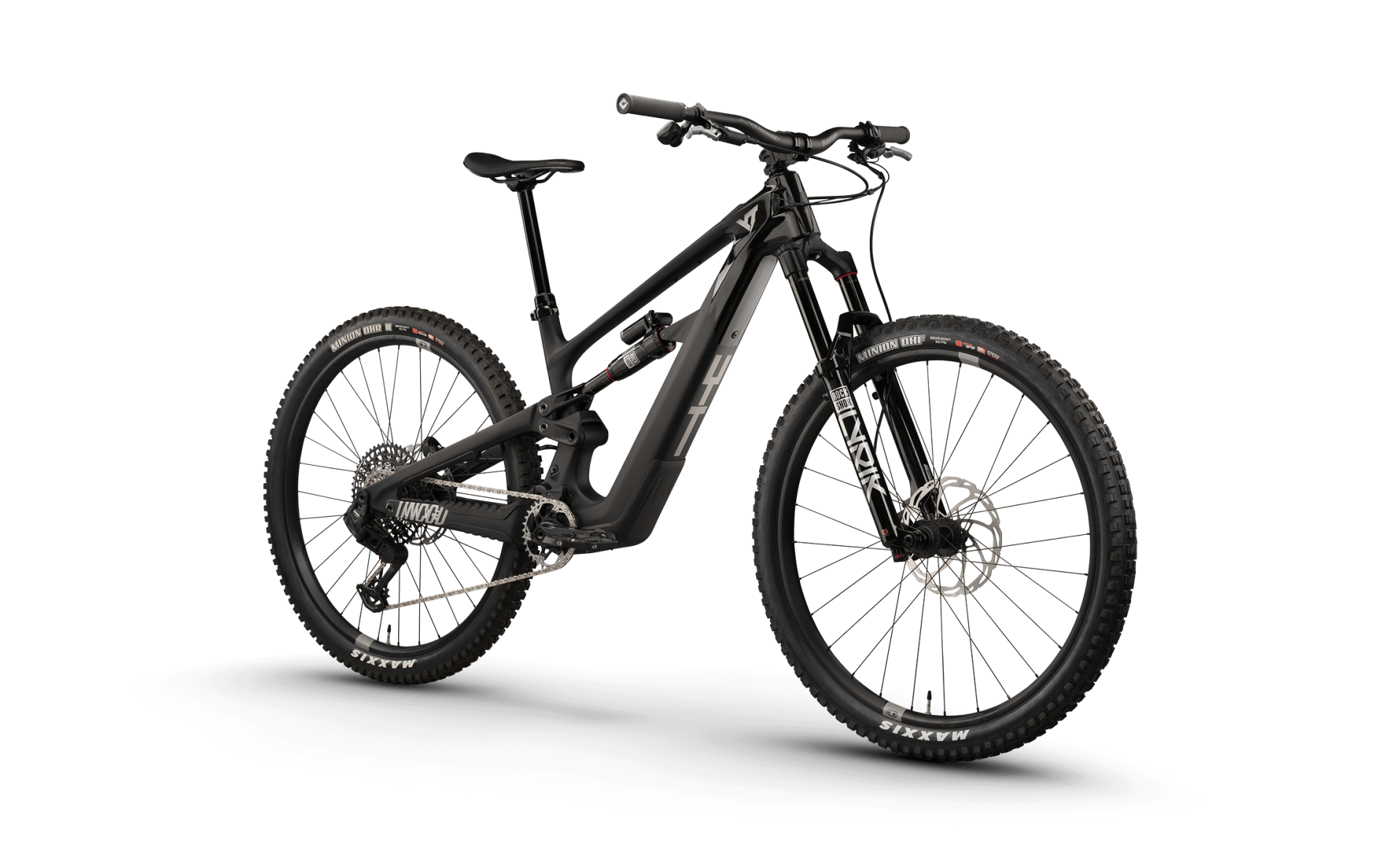

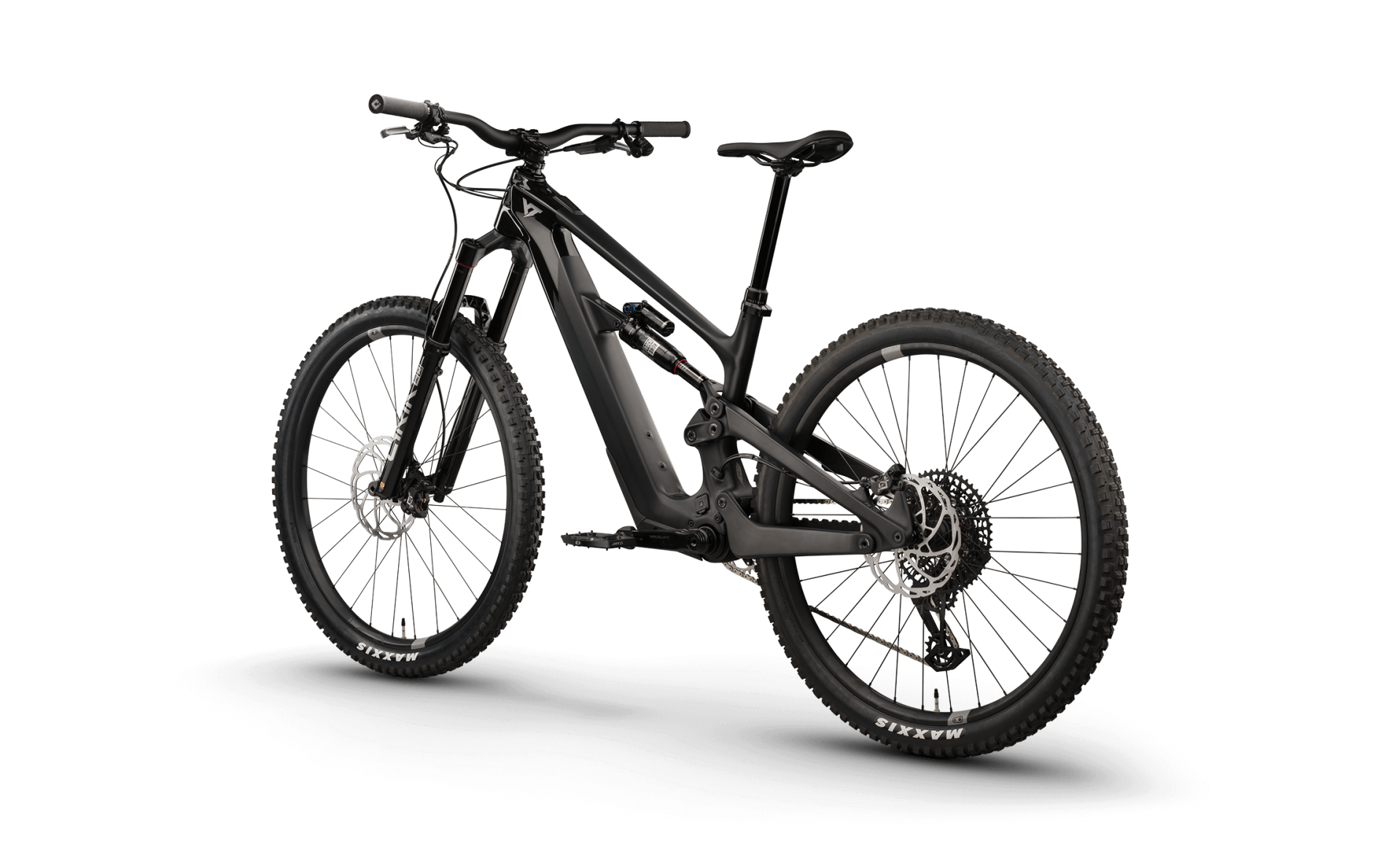

The YT Industries Decoy SN 29 Core 3 (€7,499) is a mid-range build of the Decoy SN 29: Fazua Ride 60 (60 Nm) with 480 Wh, RockShox Lyrik Ultimate fork, RockShox SDLX Ultimate shock, SRAM S1000 Eagle Transmission and Hayes Dominion A4 brakes. Claimed weight is 20.4 kg (size S).
The Decoy SN 29 is the 29-inch, shorter-travel version of YT's light Decoy SN: a carbon frame with 140 mm of V4L rear travel and a 160 mm fork, aimed at all-mountain and trail riding.
It uses the Fazua Ride 60 motor (60 Nm, 450 W peak with boost) with an integrated 480 Wh battery and a REGULAR/LOW flip chip. Claimed weights are 19.2 to 20.4 kg in size S. YT notes that Fazua/Porsche eBike Performance is closing and says it will keep supporting owners for parts, service and warranty.
- Fazua Ride 60: 60 Nm, 450 W peak
- 480 Wh integrated battery
- 160 mm fork / 140 mm rear, 29-inch wheels
- Carbon frame, from 19.2 kg
Gallery
Photos: YT Industries
Full specifications
Frame & suspension
- Frame
- Ultra Modulus Carbon frame
- Sizes
- S, M, L, XL, XXL
- Colours
- Teal Blue, Black Magic Bolt
- Fork

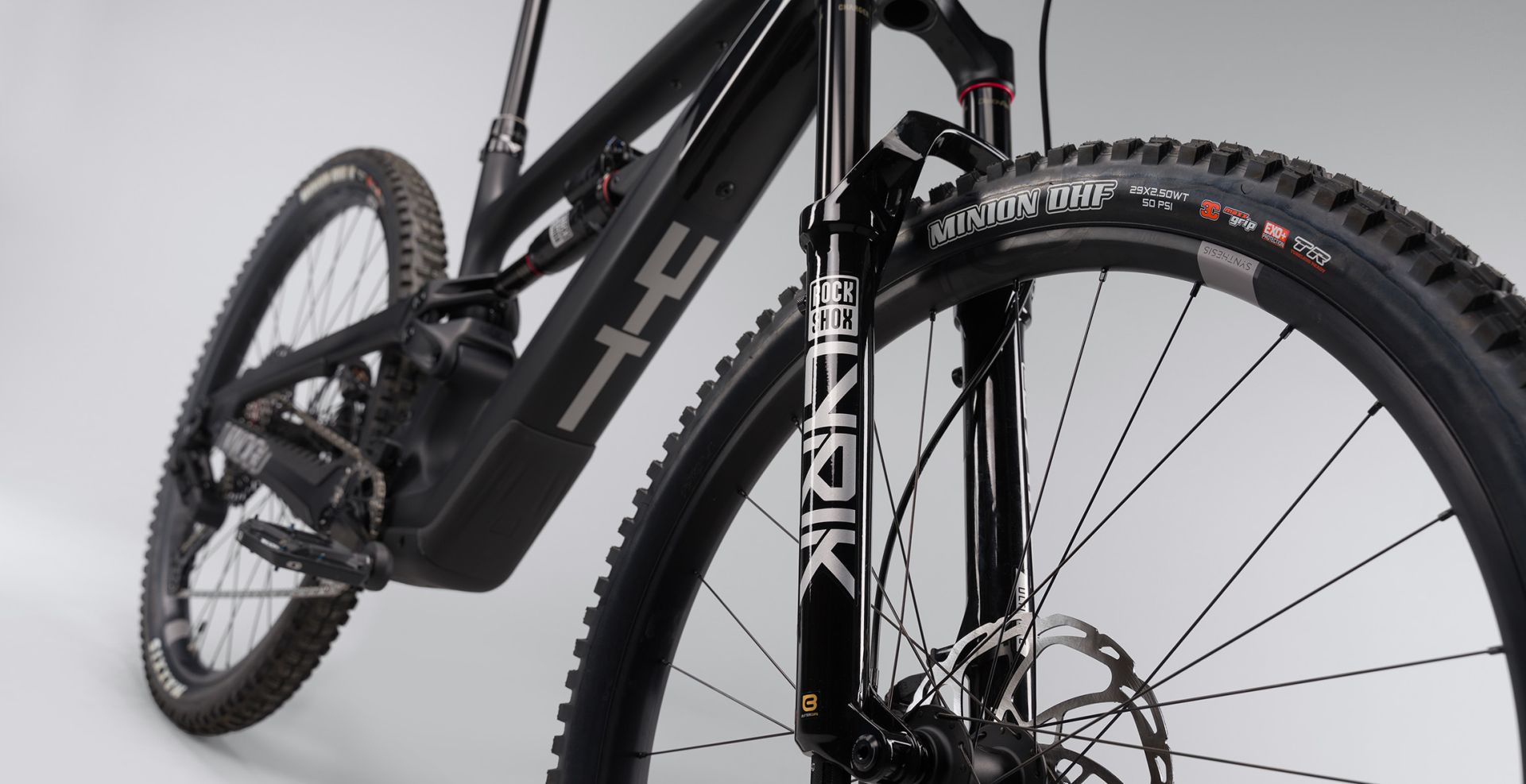

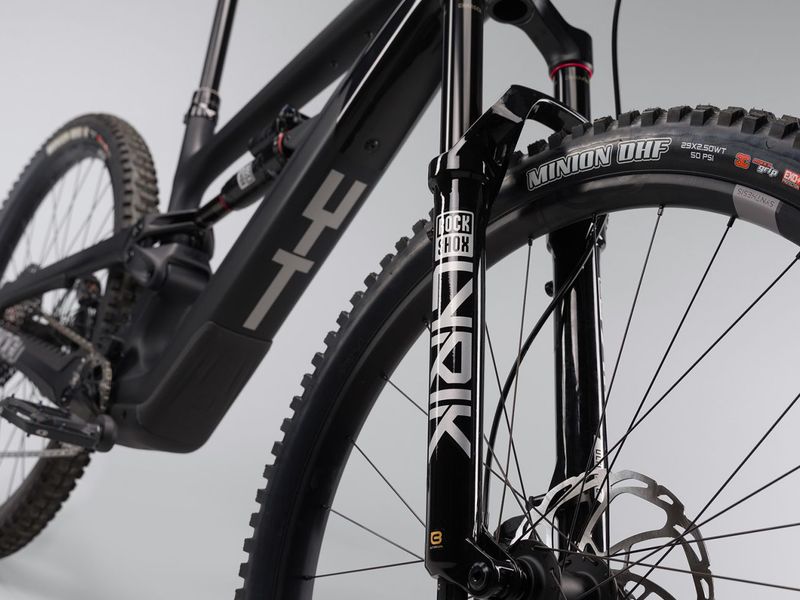

- ROCKSHOX LYRIK ULTIMATE – 29" | 160mm | Charger 3.1 | 15 x 110mm | 44mm Offset
- Rear shock

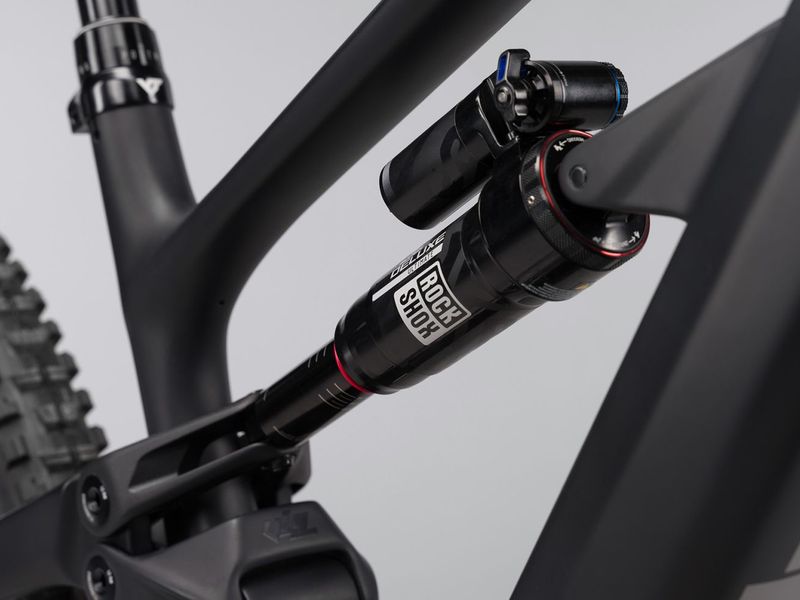

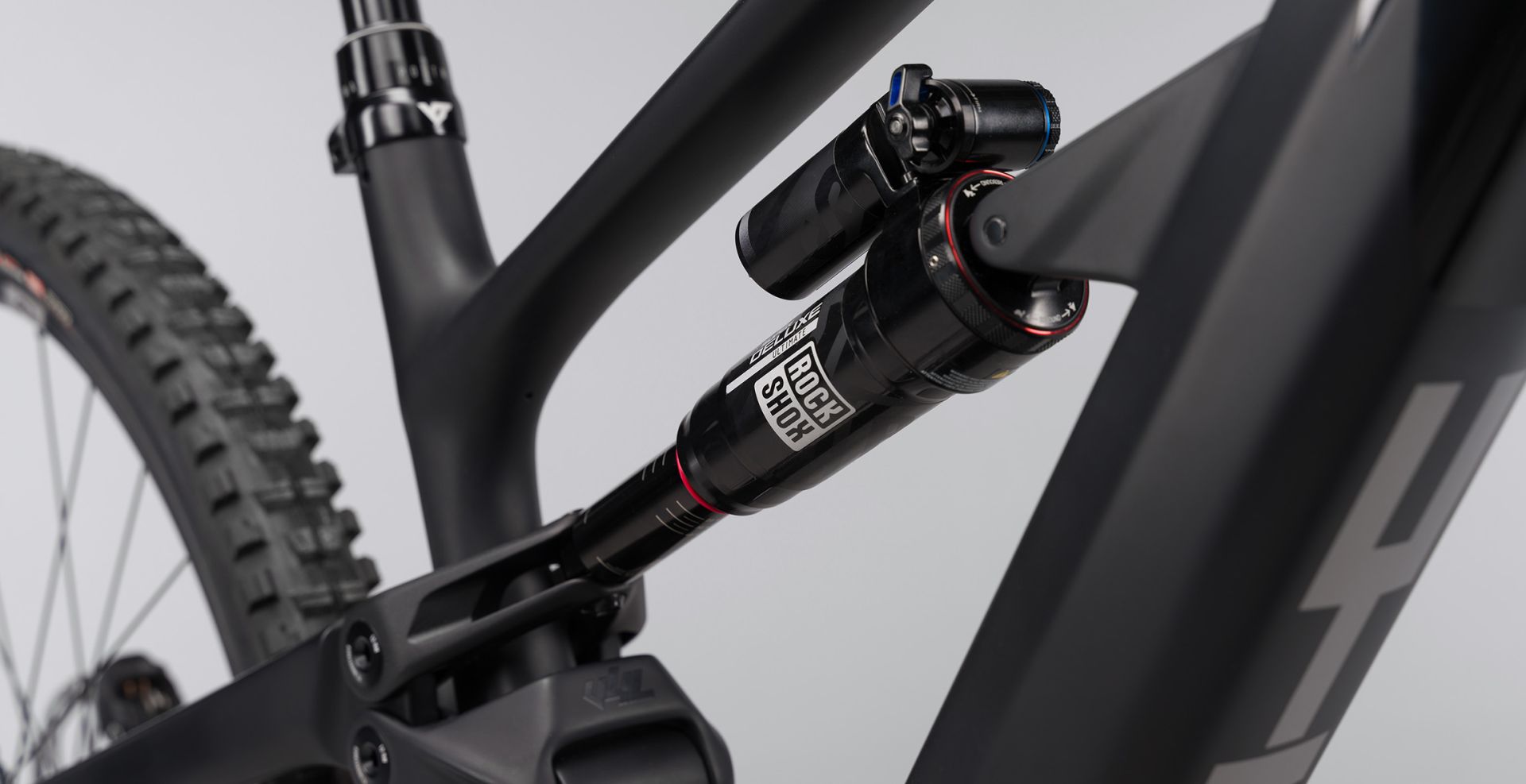

- ROCKSHOX SDLX ULTIMATE – Shock Length: 230mm | Shock Stroke: 57.5mm | 140mm Travel | RC2T | 0L1 Volume Reducer
E-system
- Display

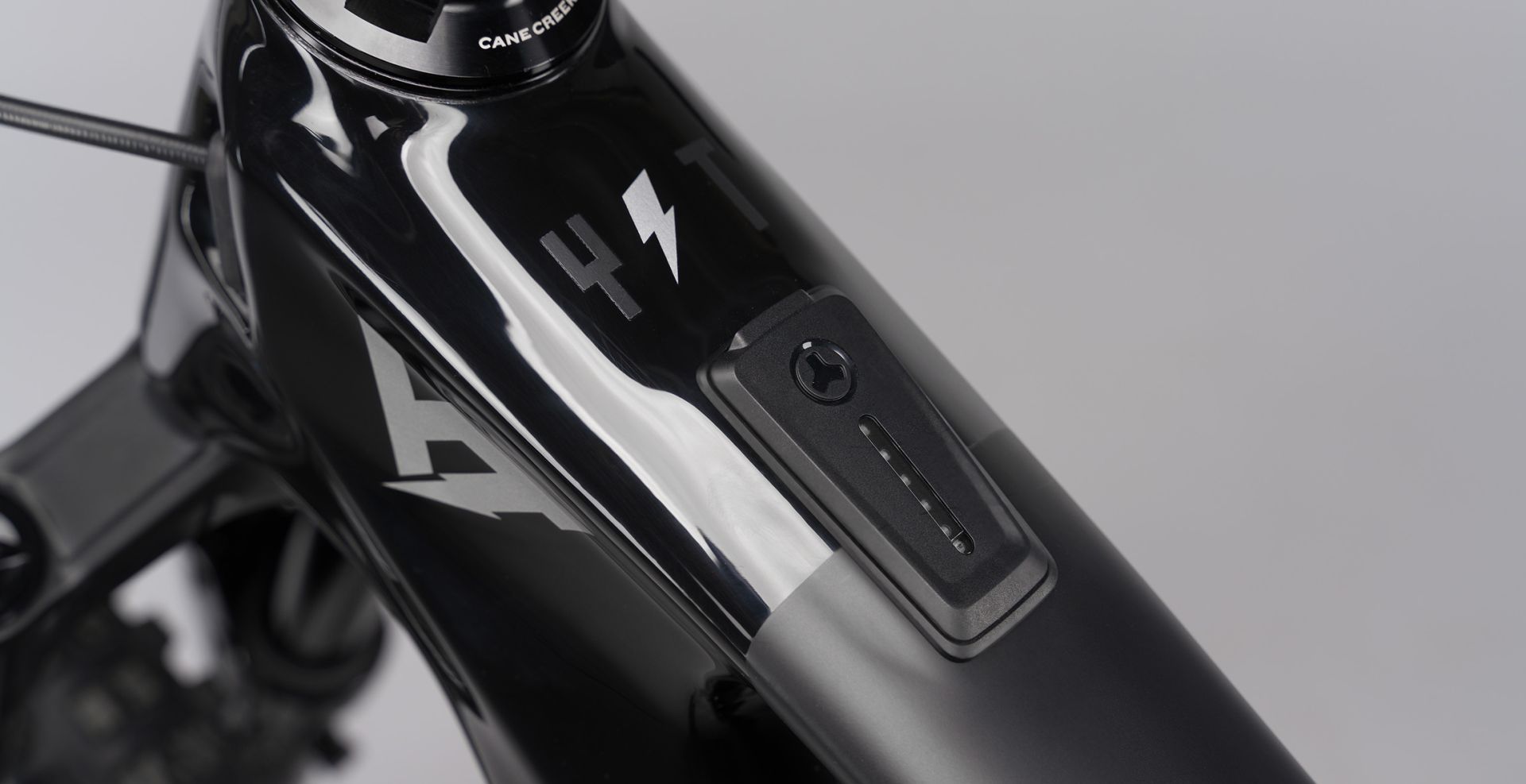

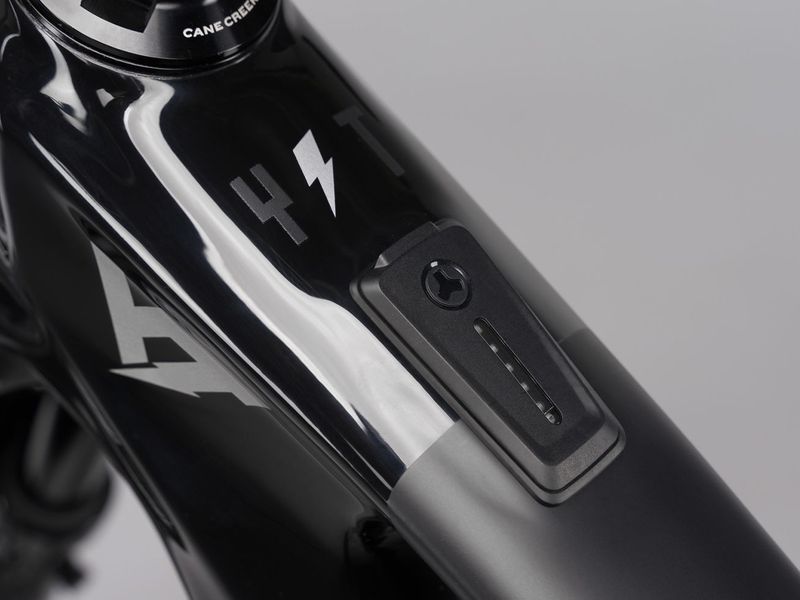

- FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP
- Motor
- FAZUA RIDE 60 – Torque 60Nm | 450 W Peak Power w/ Boost function
- Battery
- FAZUA RIDE 60 – Integrated | 480 Wh | 43 V | 3A Charger
Drivetrain
- Crankset
- E13 HELIX RACE E*SPEC – Crank Arm Length 160 mm
- Cassette
- SRAM GX EAGLE TRANSMISSION – 10-52T | XS-1275 Black | T-Type | 12-speed
- Rear derailleur
- SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type
- Chainring
- SRAM EAGLE TRANSMISSION XX – 32 T | Direct Mount | T-Type
- Shifter
- SRAM POD CONTROLLER – 12-Speed | 2 Button | Discrete Clamp
- Chain guide
- MRP SL Custom – SL Slider | 32 - 36 T
Brakes
- Brakes
- HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm
Wheels & tyres
- Wheelset
- CRANKBROTHERS SYNTHESIS ENDURO ALLOY E-MTB – Front: 29" | 31.5mm | 110 x 15mm | 6-Bolt | Rear: 29" | 31.5mm | 148 x 12mm | 6-Bolt | XD
- Tyres
- FRONT: MAXXIS MINION DHF | REAR: MAXXIS MINION DHR II – FRONT: MAXXIS MINION DHF | REAR: MAXXIS MINION DHR II
Cockpit
- Headset
- CANE CREEK SERIES 40 – ZS56 ZS56 | High Cap | 2 Spacer 5mm
- Stem
- RENTHAL APEX 35 – Length 50mm | 35mm Clamp | Rise +/-6° | Black/Black
- Handlebar
- RENTHAL FATBAR AL 35 – Width 800mm | Rise 40mm | 7° Back Sweep | 5° Up Sweep | Custom Black
- Grips
- ODI ELITE MOTION V2.1 – Lock On
- Seatpost
- YT POSTMAN V2 – Ø 34.9mm | MMX-Remote | Adjustable drop 20/10/5mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
- Saddle
- SDG BEL AIR V3 OVERLAND – YT Custom | Width 140 mm | Lux-Alloy Rail
Other
- Bottle
- Thirstmaster 6000 – 620ml bottle and cage included | BPA free | easy to clean
- Weight
- 20,40 KG / 44,97 LBS (Average weight for the smallest size available, set up tubeless, with no pedals or bottle.)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Decoy SN 29 geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Top tube | 564 mm / 565 mm | 586 mm / 587 mm | 608 mm / 609 mm | 630 mm / 631 mm | 652 mm / 653 mm |
| Reach | 437 mm / 434 mm | 457 mm / 454 mm | 477 mm / 474 mm | 497 mm / 494 mm | 517 mm / 514 mm |
| Stack | 631 mm / 633 mm | 638 mm / 640 mm | 646 mm / 648 mm | 653 mm / 655 mm | 660 mm / 662 mm |
| Seat tube | 390 mm | 400 mm | 420 mm | 440 mm | 460 mm |
| Chainstay | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm |
| Head angle | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° |
| Seat angle (effective) | 78.7° / 78.4° | 78.6° / 78.3° | 78.5° / 78.3° | 78.5° / 78.2° | 78.5° / 78.2° |
| BB drop | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm |
| Wheelbase | 1217 mm / 1218 mm | 1241 mm / 1242 mm | 1264 mm / 1265 mm | 1288 mm / 1289 mm | 1311 mm / 1312 mm |
| Head tube | 100 mm | 108 mm | 116 mm | 124 mm | 132 mm |
| BB height | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm |
| Standover height | 752 mm / 749 mm | 749 mm / 746 mm | 745 mm / 742 mm | 742 mm / 739 mm | 741 mm / 738 mm |
Where two values are given: REGULAR / LOW flip-chip position. Source: YT Industries.
Decoy SN 29: builds compared
Decoy SN 29 range →| Decoy SN 29 Core 1 | Decoy SN 29 Core 2 | Decoy SN 29 Core 3 | Decoy SN 29 Core 4 | |
|---|---|---|---|---|
| Price | €5,499 | €6,499 | €7,499 | €8,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | MARZOCCHI BOMBER Z1 – 29" | 160mm | RAIL 2.0 | 15x110mm | 44mm Offset | FOX 36 FLOAT PERFORMANCE – 29" | 160mm | GRIP | 15 x 110mm | 44mm Offset | ROCKSHOX LYRIK ULTIMATE – 29" | 160mm | Charger 3.1 | 15 x 110mm | 44mm Offset | FOX 36 FLOAT FACTORY – 29" | 160 mm | GRIP X2 | 15 x 110mm | 44 mm Offset |
| Shock | MARZOCCHI BOMBER AIR – 230 x 57.5mm | Sweep Adjust | Custom Tune | 0.2 Spacer | FOX FLOAT X PERFORMANCE – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer | ROCKSHOX SDLX ULTIMATE – Shock Length: 230mm | Shock Stroke: 57.5mm | 140mm Travel | RC2T | 0L1 Volume Reducer | FOX FLOAT X FACTORY – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer |
| Derailleur | SHIMANO DEORE RD-M6100 – 12-Speed | Shadow+ | SHIMANO SLX RD-M7100 – 12-Speed | Shadow+ | SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type | SRAM X0 EAGLE TRANSMISSION – 12-speed | T-Type |
| Brakes | SRAM DB8 – Maxima Mineral Oil | Centerline 200mm | 200mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm |
| Display | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP |
| Weight | 20.4 kg | 20.4 kg | 20.4 kg | 19.2 kg |
Decoy SN 29 Core 3: FAQ
How much does the YT Industries Decoy SN 29 Core 3 cost?
€7,499 (RRP Germany (YT EU web store), VAT incl. Reduced to €4,499 at time of capture.). The Decoy SN 29 range runs from €5,499 (Decoy SN 29 Core 1) to €8,999 (Decoy SN 29 Core 4). Prices vary by country and dealer.
How much does the YT Industries Decoy SN 29 Core 3 weigh?
YT Industries quotes 20.4 kg. The lightest Decoy SN 29 build is the Decoy SN 29 Core 4 at 19.2 kg.
What motor and battery does the YT Industries Decoy SN 29 Core 3 have?
Fazua Ride 60 (60 Nm; 450 W peak). 480 Wh battery — fazua Ride 60 battery, integrated.
How much suspension travel does the YT Industries Decoy SN 29 Core 3 have?
160 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the YT Industries Decoy SN 29 Core 3 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Decoy SN 29 Core 3 and the Decoy SN 29 Core 4?
They share the Decoy SN 29 frame platform and motor; the differences are in the parts — fork: ROCKSHOX LYRIK ULTIMATE – 29" | 160mm | Charger 3.1 | 15 x 110mm | 44mm Offset vs FOX 36 FLOAT FACTORY – 29" | 160 mm | GRIP X2 | 15 x 110mm | 44 mm Offset; shock: ROCKSHOX SDLX ULTIMATE – Shock Length: 230mm | Shock Stroke: 57.5mm | 140mm Travel | RC2T | 0L1 Volume Reducer vs FOX FLOAT X FACTORY – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer; derailleur: SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type vs SRAM X0 EAGLE TRANSMISSION – 12-speed | T-Type; claimed weight: 20.4 kg vs 19.2 kg; price: €7,499 vs €8,999.
