YT IndustriesDecoy SN 29 Core 4
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 480 WhFazua Ride 60 battery, integrated
- Travel F / R
- 160 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 19.2 kgManufacturer figure (smallest size, tubeless, without pedals)
Overview

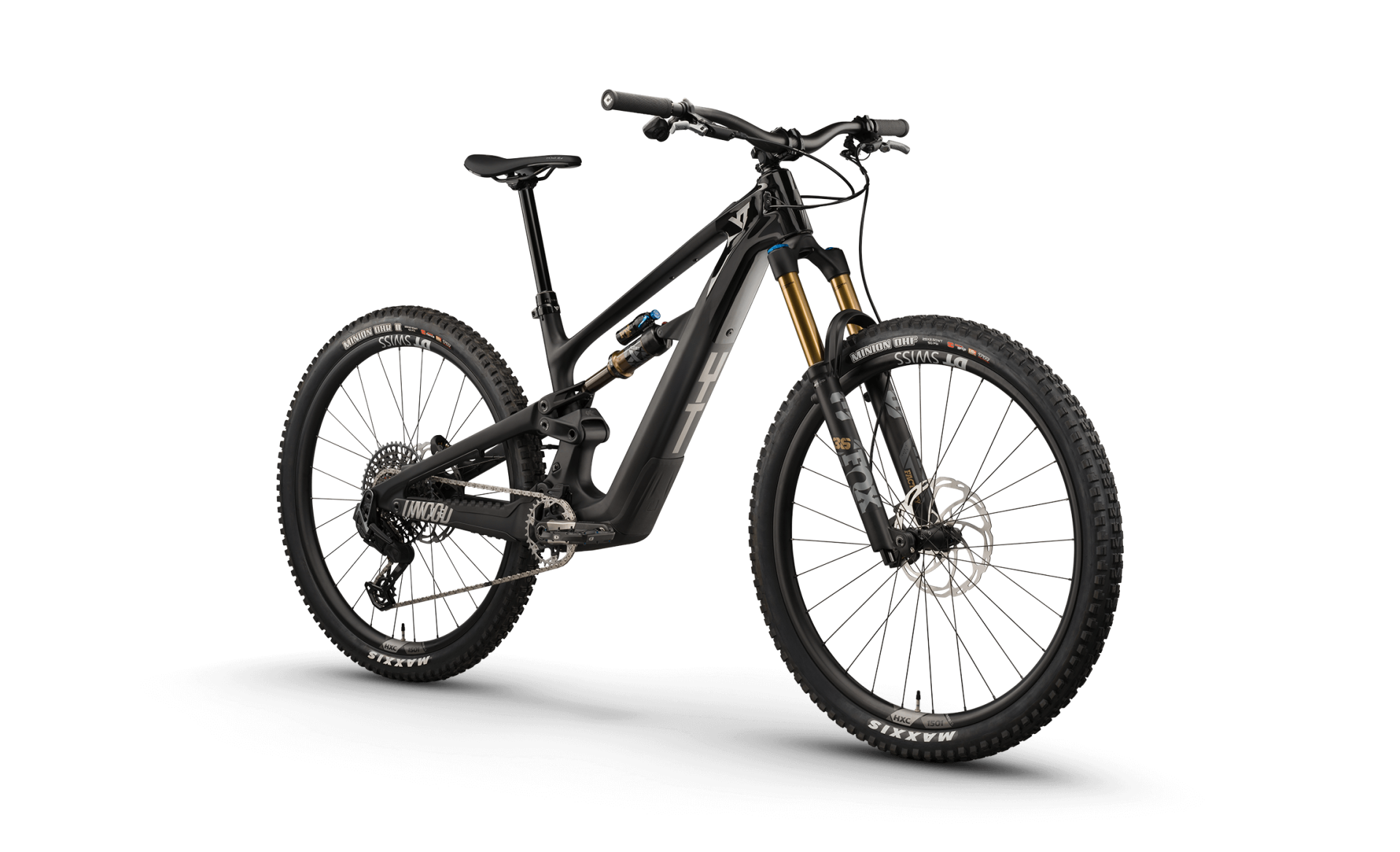

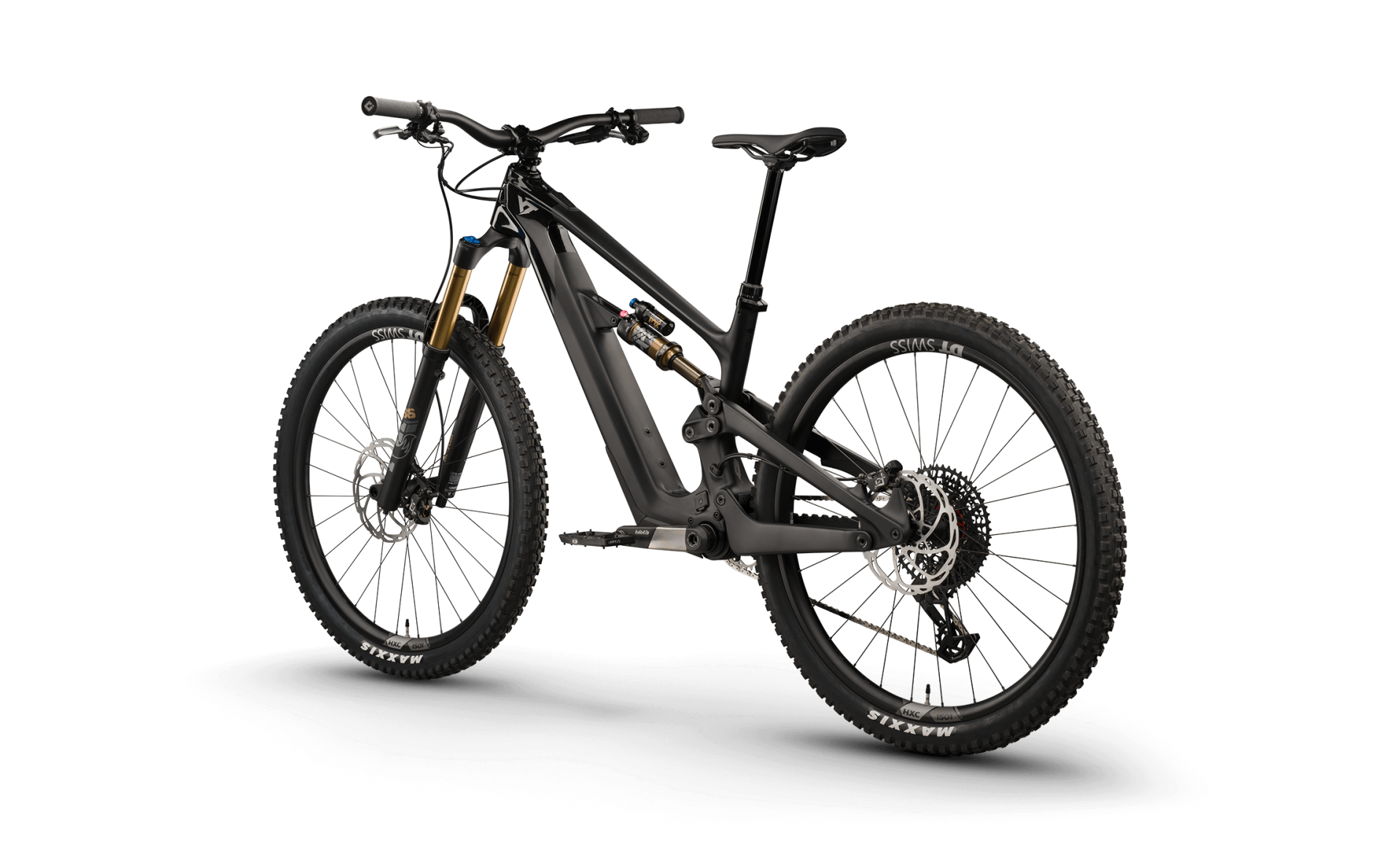

The YT Industries Decoy SN 29 Core 4 (€8,999) is the top build of the Decoy SN 29: Fazua Ride 60 (60 Nm) with 480 Wh, FOX 36 Float Factory fork, FOX Float X Factory shock, SRAM X0 Eagle Transmission and Hayes Dominion A4 brakes. Claimed weight is 19.2 kg (size S).
The Decoy SN 29 is the 29-inch, shorter-travel version of YT's light Decoy SN: a carbon frame with 140 mm of V4L rear travel and a 160 mm fork, aimed at all-mountain and trail riding.
It uses the Fazua Ride 60 motor (60 Nm, 450 W peak with boost) with an integrated 480 Wh battery and a REGULAR/LOW flip chip. Claimed weights are 19.2 to 20.4 kg in size S. YT notes that Fazua/Porsche eBike Performance is closing and says it will keep supporting owners for parts, service and warranty.
- Fazua Ride 60: 60 Nm, 450 W peak
- 480 Wh integrated battery
- 160 mm fork / 140 mm rear, 29-inch wheels
- Carbon frame, from 19.2 kg
Gallery
Photos: YT Industries
Full specifications
Frame & suspension
- Frame
- Ultra Modulus Carbon frame
- Sizes
- S, M, L, XL, XXL
- Colours
- Royal Blue, Black Magic Bolt
- Fork

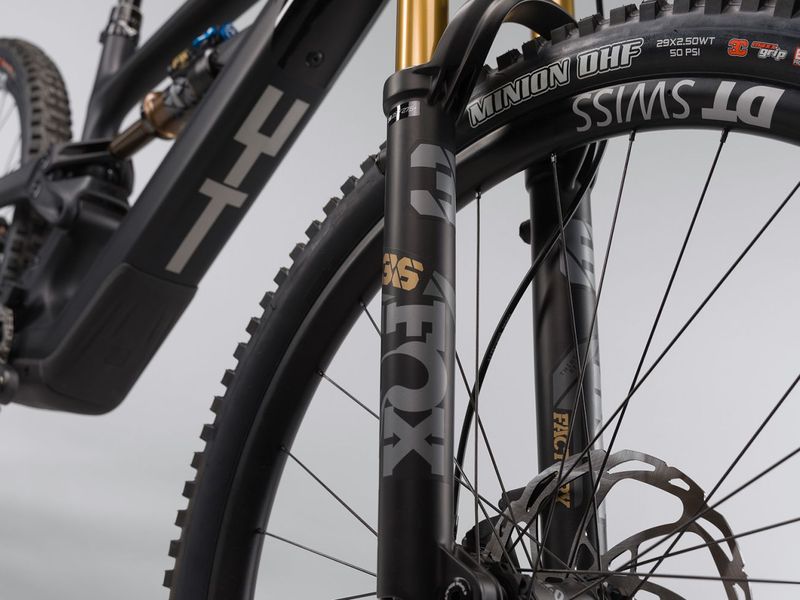

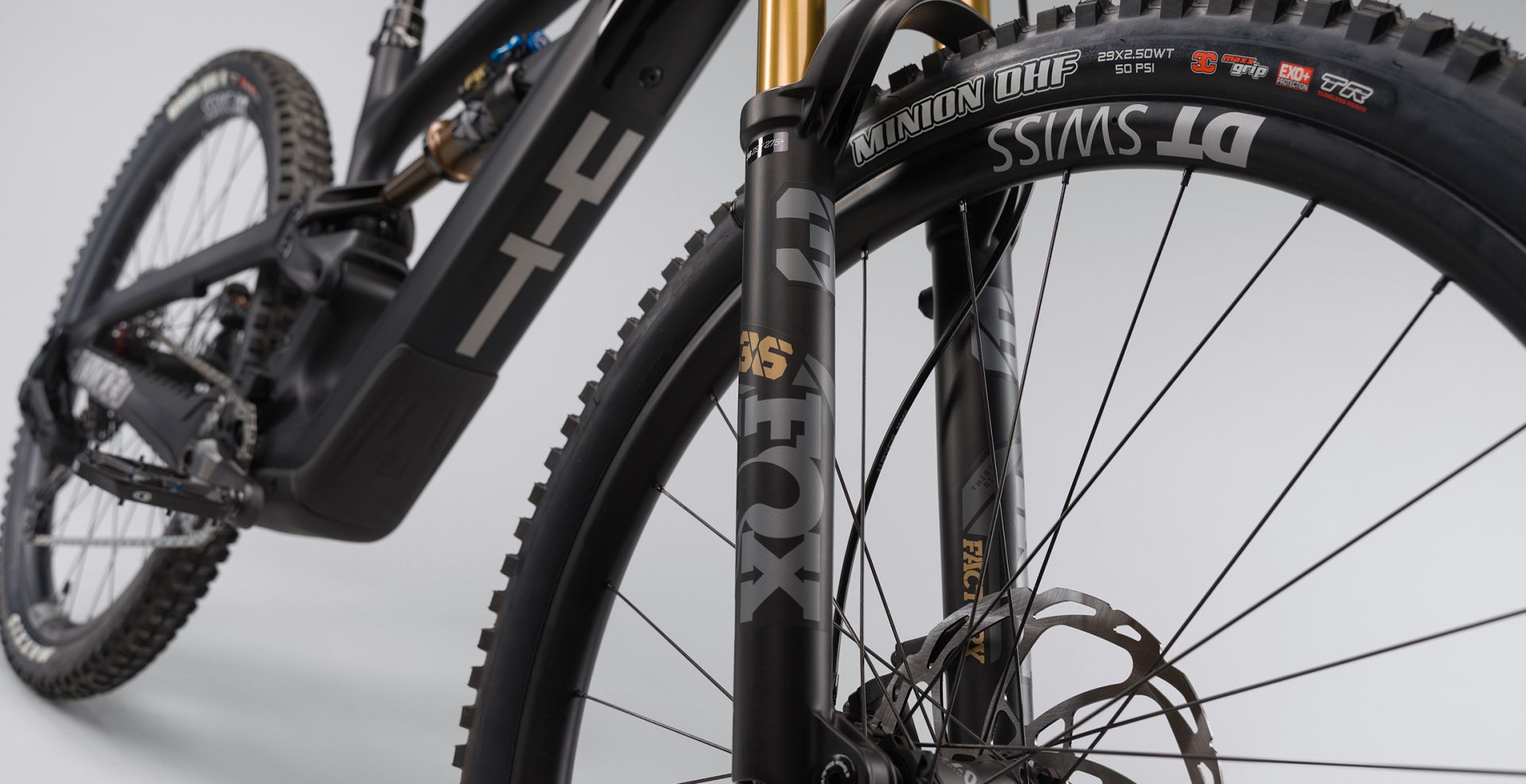

- FOX 36 FLOAT FACTORY – 29" | 160 mm | GRIP X2 | 15 x 110mm | 44 mm Offset
- Rear shock

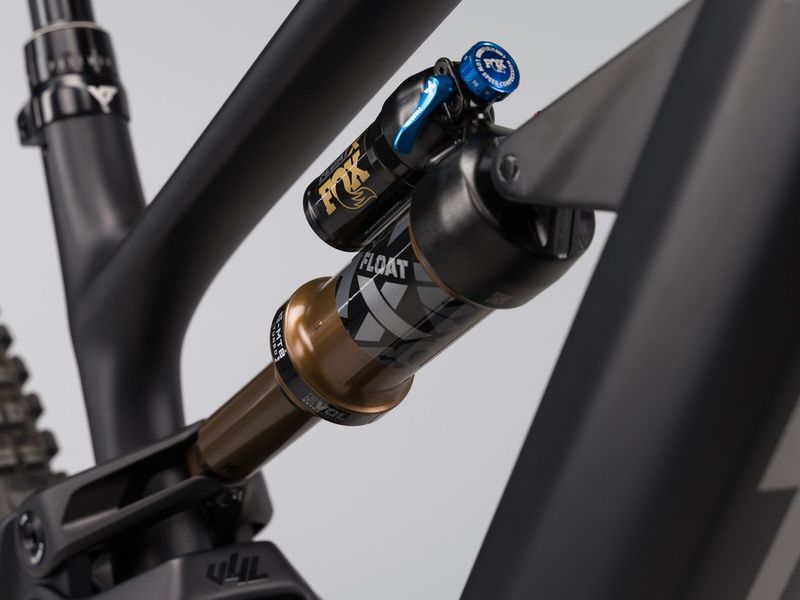

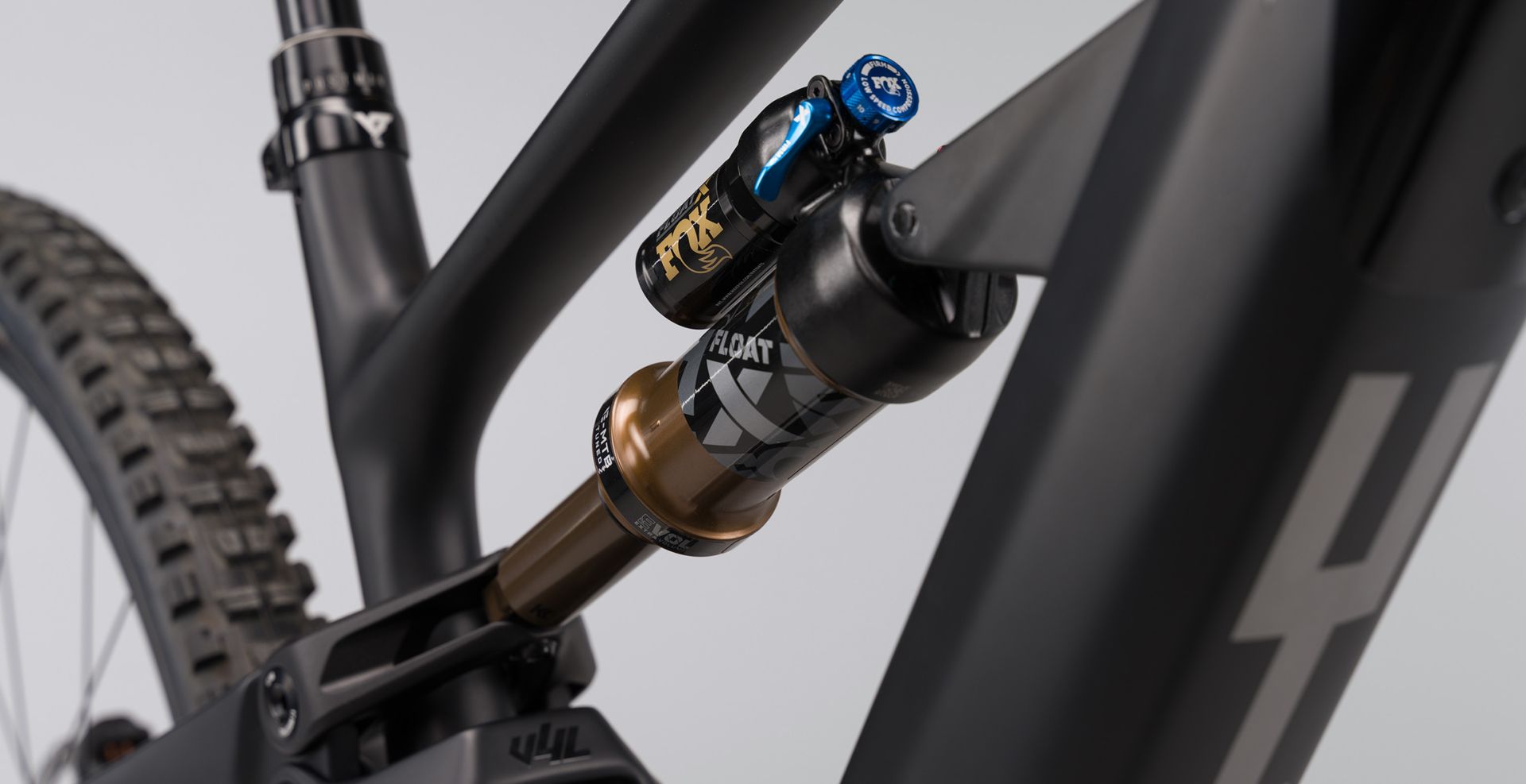

- FOX FLOAT X FACTORY – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer
E-system
- Display

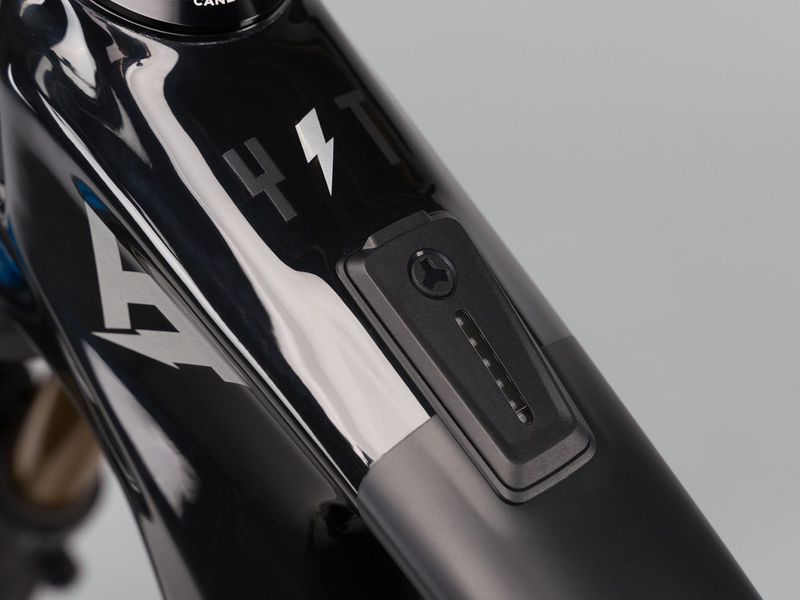

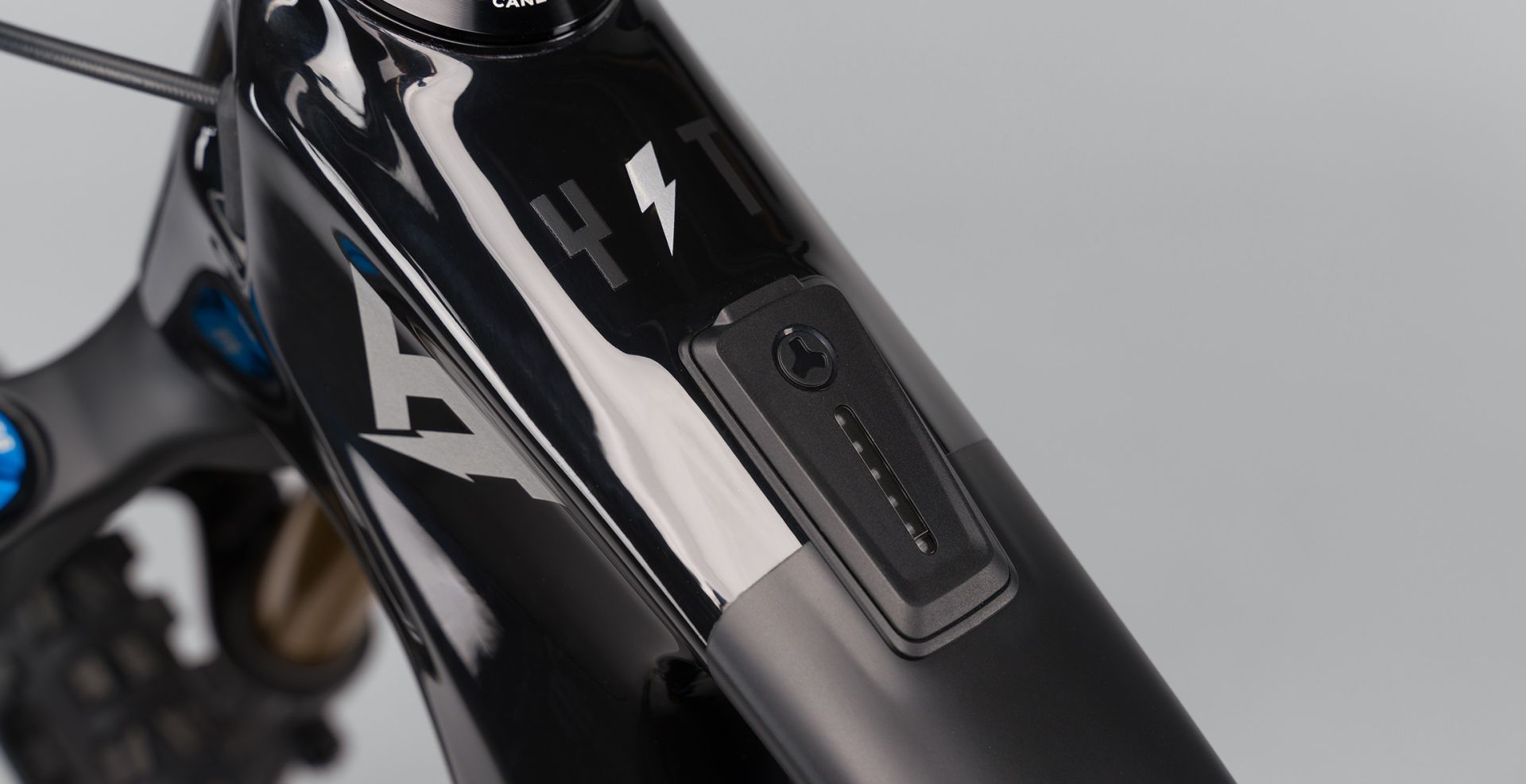

- FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP
- Motor
- FAZUA RIDE 60 – Torque 60Nm | 450 W Peak Power w/ Boost function
- Battery
- FAZUA RIDE 60 – Integrated | 480 Wh | 43 V | 3A Charger
Drivetrain
- Crankset
- RACEFACE ERA CARBON – Crank Arm Length 160 mm | E-Tor | Black
- Cassette
- SRAM X0 1295 TRANSMISSION – 10-52T | T-Type | 12-speed
- Rear derailleur
- SRAM X0 EAGLE TRANSMISSION – 12-speed | T-Type
- Chainring
- SRAM EAGLE TRANSMISSION XX – 32 T | Direct Mount | T-Type
- Shifter
- SRAM POD ULTIMATE CONTROLLER – 12-Speed | 2 Button Concave | Discrete Clamp
- Chain guide
- MRP SL Custom – SL Slider | 32 - 36 T
Brakes
- Brakes
- HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm
Wheels & tyres
- Wheelset
- DT SWISS HXC 1501 – Front: Carbon Rim | 29" | 30mm | 110 x 15mm | 6-Bolt // Rear: Carbon Rim | 29" | 30mm | 148 x 12mm | 240 Ratchet EXP | 6-Bolt | XD
- Tyres
- FRONT: MAXXIS MINION DHF | REAR: MAXXIS MINION DHR II – Front: 29" x 2.5 WT | 3C MaxxGrip | EXO+ | TR | Rear: 29" x 2.4 WT | 3C MaxxTerra | EXO+ | TR
Cockpit
- Headset
- CANE CREEK SERIES 40 – ZS56 ZS56 | High Cap | 2 Spacer 5mm
- Stem
- RACEFACE TURBINE R 35 – Length 50mm | 35mm Clamp | Rise +/-0° | Black
- Handlebar
- RACEFACE ERA CARBON 35 – Width 800mm | Rise 40mm | 8° Back Sweep | 5° Up Sweep | GL Tune | Stealth Black
- Grips
- ODI ELITE MOTION V2.1 – Lock On
- Seatpost
- YT POSTMAN V2 – Ø 34.9mm | MMX-Remote | Adjustable drop 20/10/5mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
- Saddle
- SDG BEL AIR V3 OVERLAND – YT Custom | Width 140 mm | Lux-Alloy Rail
Other
- Bottle
- Thirstmaster 6000 – 620ml bottle and cage included | BPA free | easy to clean
- Weight
- 19,20 KG / 42,37 LBS (Average weight for the smallest size available, set up tubeless, with no pedals or bottle.)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Decoy SN 29 geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Top tube | 564 mm / 565 mm | 586 mm / 587 mm | 608 mm / 609 mm | 630 mm / 631 mm | 652 mm / 653 mm |
| Reach | 437 mm / 434 mm | 457 mm / 454 mm | 477 mm / 474 mm | 497 mm / 494 mm | 517 mm / 514 mm |
| Stack | 631 mm / 633 mm | 638 mm / 640 mm | 646 mm / 648 mm | 653 mm / 655 mm | 660 mm / 662 mm |
| Seat tube | 390 mm | 400 mm | 420 mm | 440 mm | 460 mm |
| Chainstay | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm | 447 mm / 448 mm |
| Head angle | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° | 64.4° / 64.1° |
| Seat angle (effective) | 78.7° / 78.4° | 78.6° / 78.3° | 78.5° / 78.3° | 78.5° / 78.2° | 78.5° / 78.2° |
| BB drop | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm | 39 mm / 43 mm |
| Wheelbase | 1217 mm / 1218 mm | 1241 mm / 1242 mm | 1264 mm / 1265 mm | 1288 mm / 1289 mm | 1311 mm / 1312 mm |
| Head tube | 100 mm | 108 mm | 116 mm | 124 mm | 132 mm |
| BB height | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm | 337 mm / 333 mm |
| Standover height | 752 mm / 749 mm | 749 mm / 746 mm | 745 mm / 742 mm | 742 mm / 739 mm | 741 mm / 738 mm |
Where two values are given: REGULAR / LOW flip-chip position. Source: YT Industries.
Decoy SN 29: builds compared
Decoy SN 29 range →| Decoy SN 29 Core 1 | Decoy SN 29 Core 2 | Decoy SN 29 Core 3 | Decoy SN 29 Core 4 | |
|---|---|---|---|---|
| Price | €5,499 | €6,499 | €7,499 | €8,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | MARZOCCHI BOMBER Z1 – 29" | 160mm | RAIL 2.0 | 15x110mm | 44mm Offset | FOX 36 FLOAT PERFORMANCE – 29" | 160mm | GRIP | 15 x 110mm | 44mm Offset | ROCKSHOX LYRIK ULTIMATE – 29" | 160mm | Charger 3.1 | 15 x 110mm | 44mm Offset | FOX 36 FLOAT FACTORY – 29" | 160 mm | GRIP X2 | 15 x 110mm | 44 mm Offset |
| Shock | MARZOCCHI BOMBER AIR – 230 x 57.5mm | Sweep Adjust | Custom Tune | 0.2 Spacer | FOX FLOAT X PERFORMANCE – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer | ROCKSHOX SDLX ULTIMATE – Shock Length: 230mm | Shock Stroke: 57.5mm | 140mm Travel | RC2T | 0L1 Volume Reducer | FOX FLOAT X FACTORY – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer |
| Derailleur | SHIMANO DEORE RD-M6100 – 12-Speed | Shadow+ | SHIMANO SLX RD-M7100 – 12-Speed | Shadow+ | SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type | SRAM X0 EAGLE TRANSMISSION – 12-speed | T-Type |
| Brakes | SRAM DB8 – Maxima Mineral Oil | Centerline 200mm | 200mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm | HAYES DOMINION A4 – Stealth black/grey | Rotor Front 203mm / Rear 203mm |
| Display | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB / MODE CONTROL – USB-C | ANT+ Bluetooth | CONNECTED APP |
| Weight | 20.4 kg | 20.4 kg | 20.4 kg | 19.2 kg |
Decoy SN 29 Core 4: FAQ
How much does the YT Industries Decoy SN 29 Core 4 cost?
€8,999 (RRP Germany (YT EU web store), VAT incl. Reduced to €4,999 at time of capture.). The Decoy SN 29 range runs from €5,499 (Decoy SN 29 Core 1) to €8,999 (Decoy SN 29 Core 4). Prices vary by country and dealer.
How much does the YT Industries Decoy SN 29 Core 4 weigh?
YT Industries quotes 19.2 kg. It is the lightest build of the Decoy SN 29.
What motor and battery does the YT Industries Decoy SN 29 Core 4 have?
Fazua Ride 60 (60 Nm; 450 W peak). 480 Wh battery — fazua Ride 60 battery, integrated.
How much suspension travel does the YT Industries Decoy SN 29 Core 4 have?
160 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the YT Industries Decoy SN 29 Core 4 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Decoy SN 29 Core 4 and the Decoy SN 29 Core 3?
They share the Decoy SN 29 frame platform and motor; the differences are in the parts — fork: FOX 36 FLOAT FACTORY – 29" | 160 mm | GRIP X2 | 15 x 110mm | 44 mm Offset vs ROCKSHOX LYRIK ULTIMATE – 29" | 160mm | Charger 3.1 | 15 x 110mm | 44mm Offset; shock: FOX FLOAT X FACTORY – Shock Length: 230 mm | Shock Stroke: 57.5 mm | 140 mm Travel | 2-Pos Lever | Custom Tune | 0.1 Spacer vs ROCKSHOX SDLX ULTIMATE – Shock Length: 230mm | Shock Stroke: 57.5mm | 140mm Travel | RC2T | 0L1 Volume Reducer; derailleur: SRAM X0 EAGLE TRANSMISSION – 12-speed | T-Type vs SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type; claimed weight: 19.2 kg vs 20.4 kg; price: €8,999 vs €7,499.
