WhyteELyte EVO RS
- Motor
- Bosch Performance Line CX100 Nm; 600 W peak (750 W via software update)
- Battery
- 400 WhBosch CompactTube 400 internal + 250 Wh PowerMore range extender included (650 Wh combined)
- Travel F / R
- 150 / 142 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 20.9 kgManufacturer figure (size M, with innertubes + without pedals or PowerMore)
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
£5,699 buys the lighter ELyte EVO with Bosch CX (100 Nm) and a 400 Wh battery, RockShox Lyrik Select+ and Deluxe Select+ RT, SRAM Eagle 90 T-Type and DB8 brakes. Claimed 20.9 kg.
The ELyte EVO RS is one of 2 builds of the Whyte ELyte EVO. About the ELyte EVO range and all its builds →

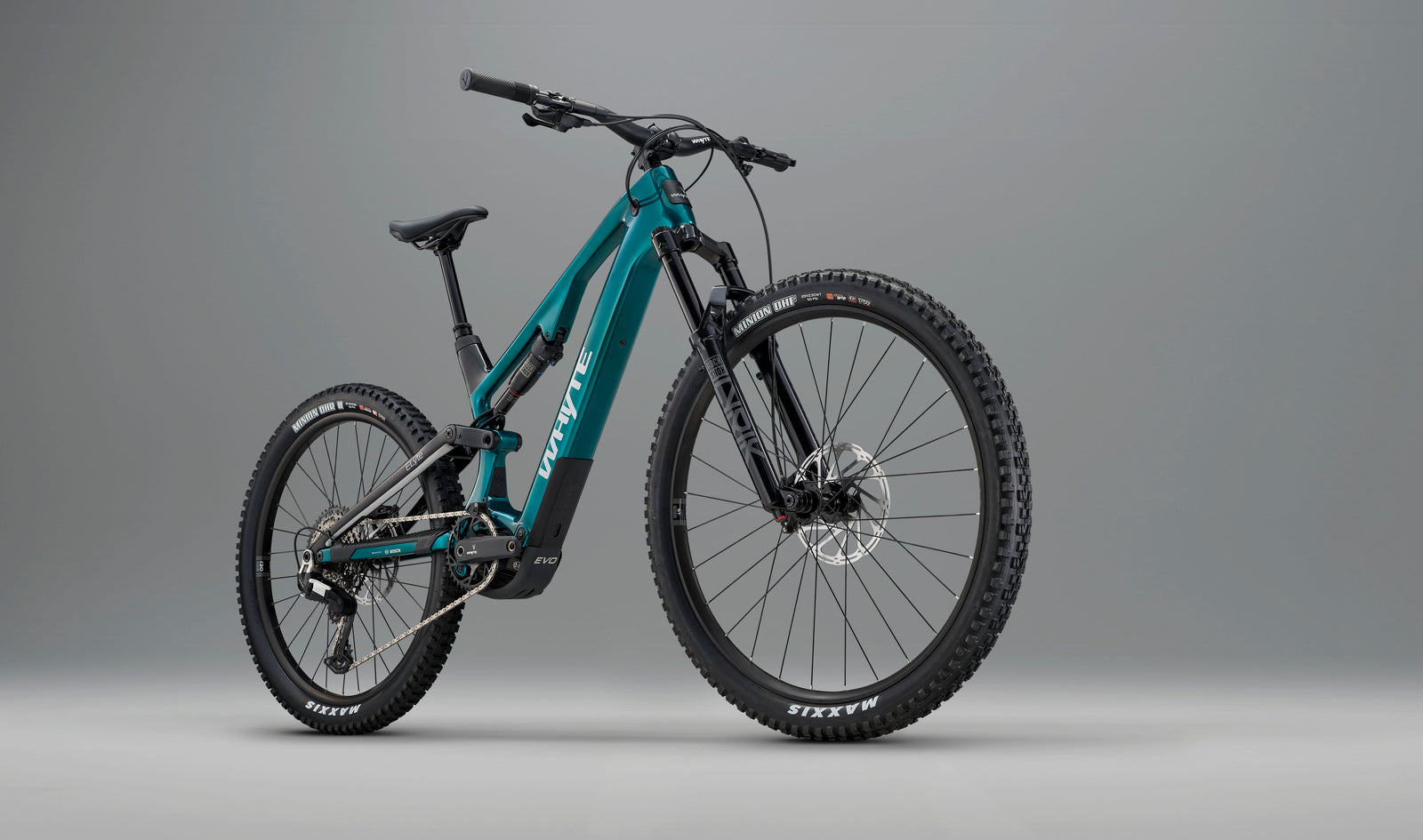

Gallery
Photos: Whyte
Full specifications
Frame & suspension
- Colour
- Aquamarine (gloss)
- Frame
- Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
- Fork
- RockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 damper, Fast Black coating, tapered steerer, 110 x 15mm Boost

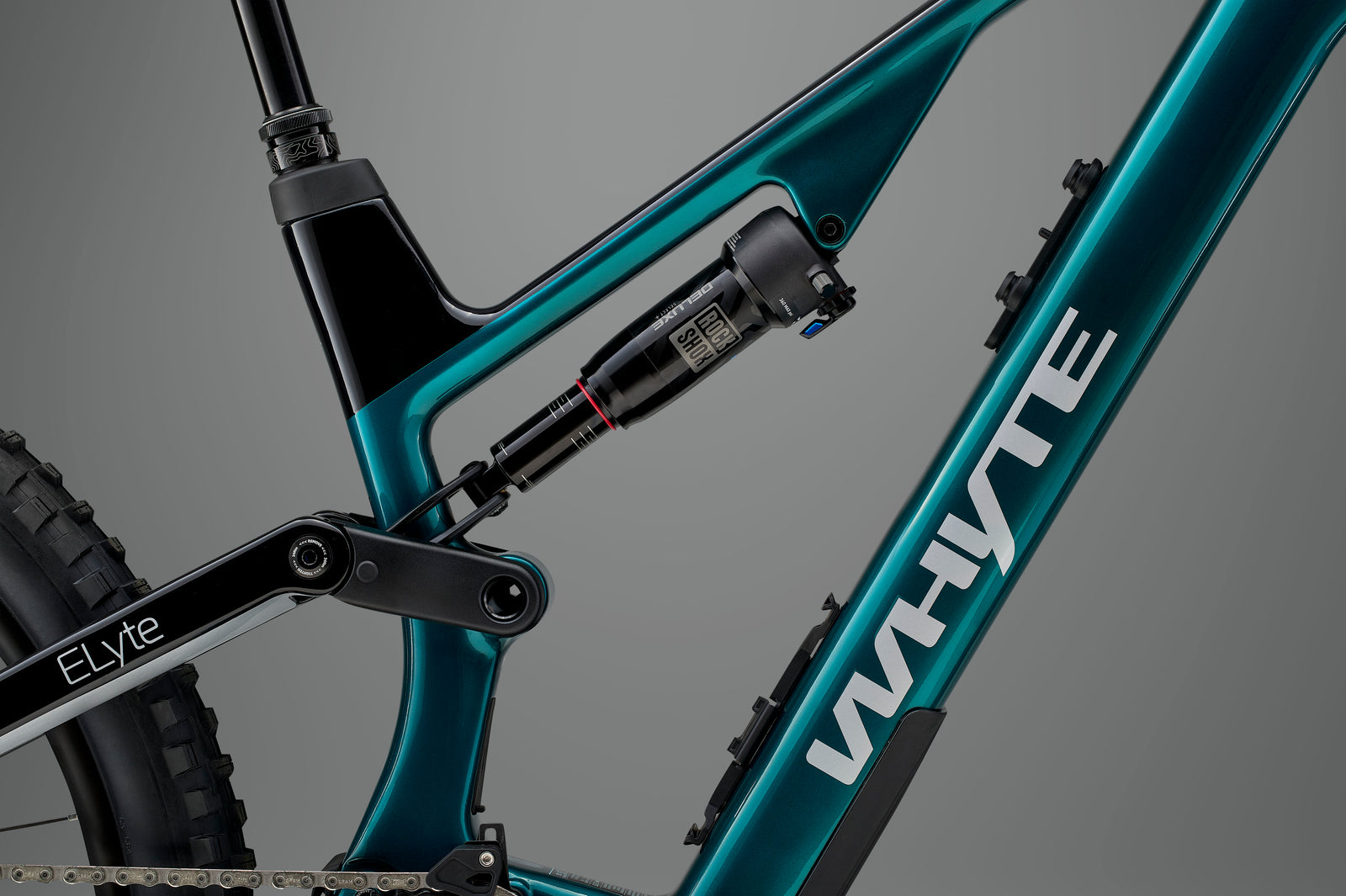

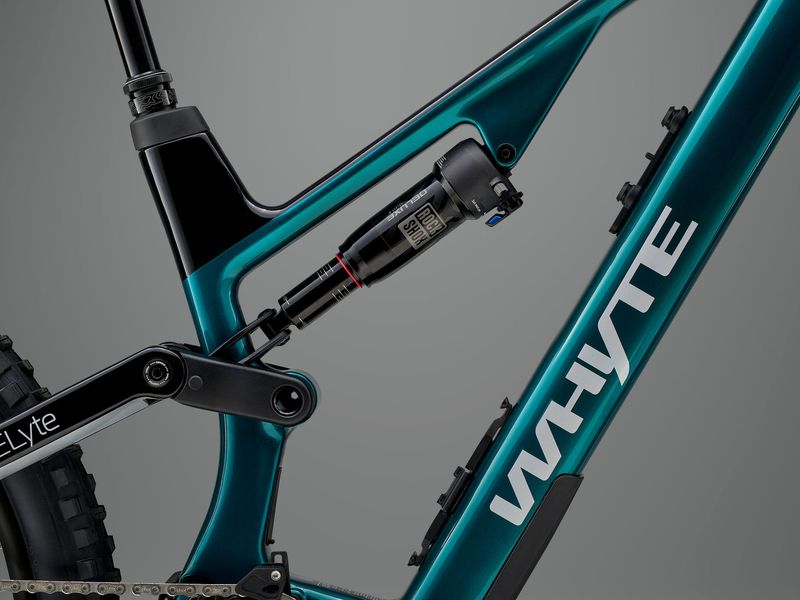

- Rear shock
- RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, 210 x 50mm, custom tuned for Whyte
- Headset
- FSA No. 55R, 1-1/8in upper and 1.5in lower
E-system
- Motor
- Bosch Performance Line CX (Smart System) drive unit with 100Nm maximum torque, 600W of peak power (rising to 750W in October 2025 via a software update) and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+.
- Battery
- Bosch Compact PowerTube 400Wh, integrated within the downtube of the frame at the lowest point for stability and control. Also comes with the external, removable 250Wh PowerMore range extender to deliver a combined 650Wh of battery capacity.
- Display

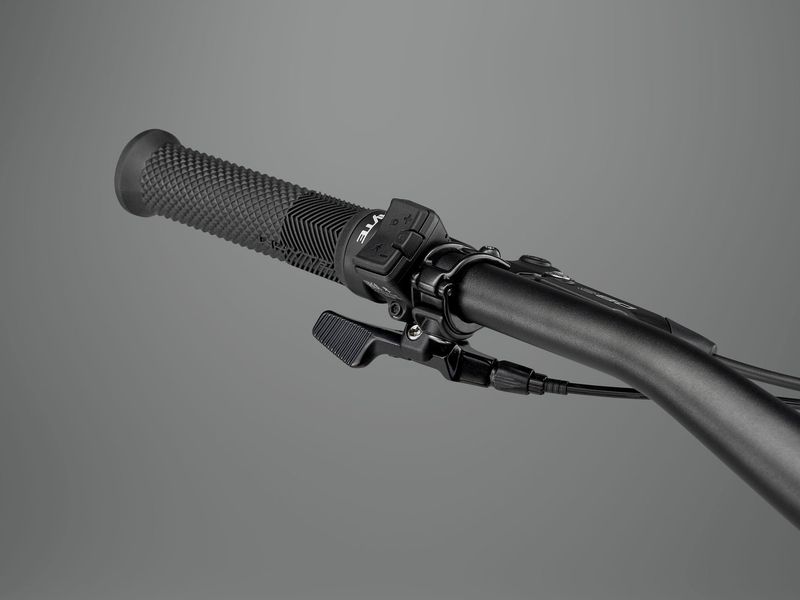

- Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
- Charger
- Charger 4A (230V)

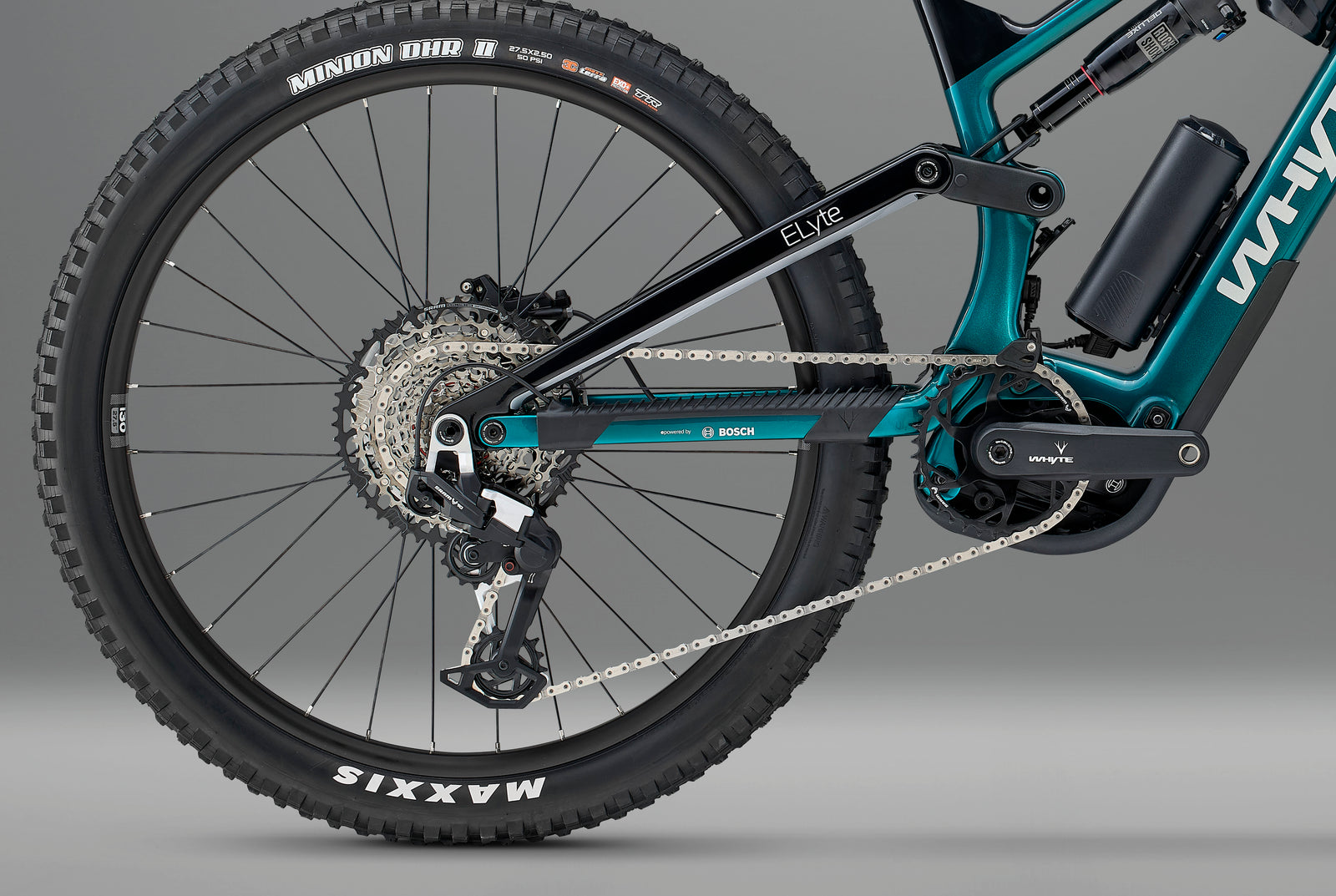

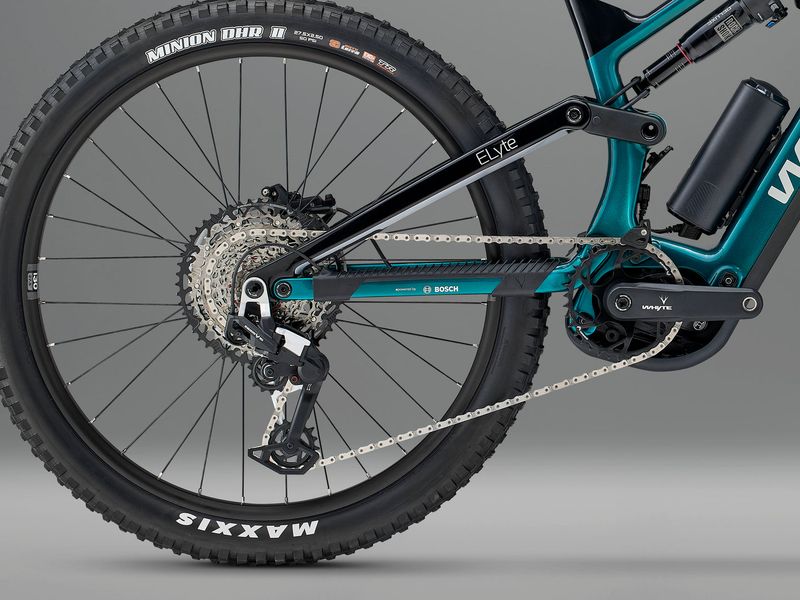

Drivetrain
- Cassette
- SRAM XS 1270, T-Type, 10-52T, 12 speed
- Chain
- SRAM GX T-Type, 12 speed
- Crankset
- Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
- Shifter
- SRAM Eagle 90 mechanical, 12 speed
- Rear derailleur
- SRAM Eagle 90 T-Type mechanical, 12 speed
Brakes
- Front brake
- SRAM DB8, four piston hydraulic disc brake, 200mm rotor
- Rear brake
- SRAM DB8, four piston hydraulic disc brake, 200mm rotor

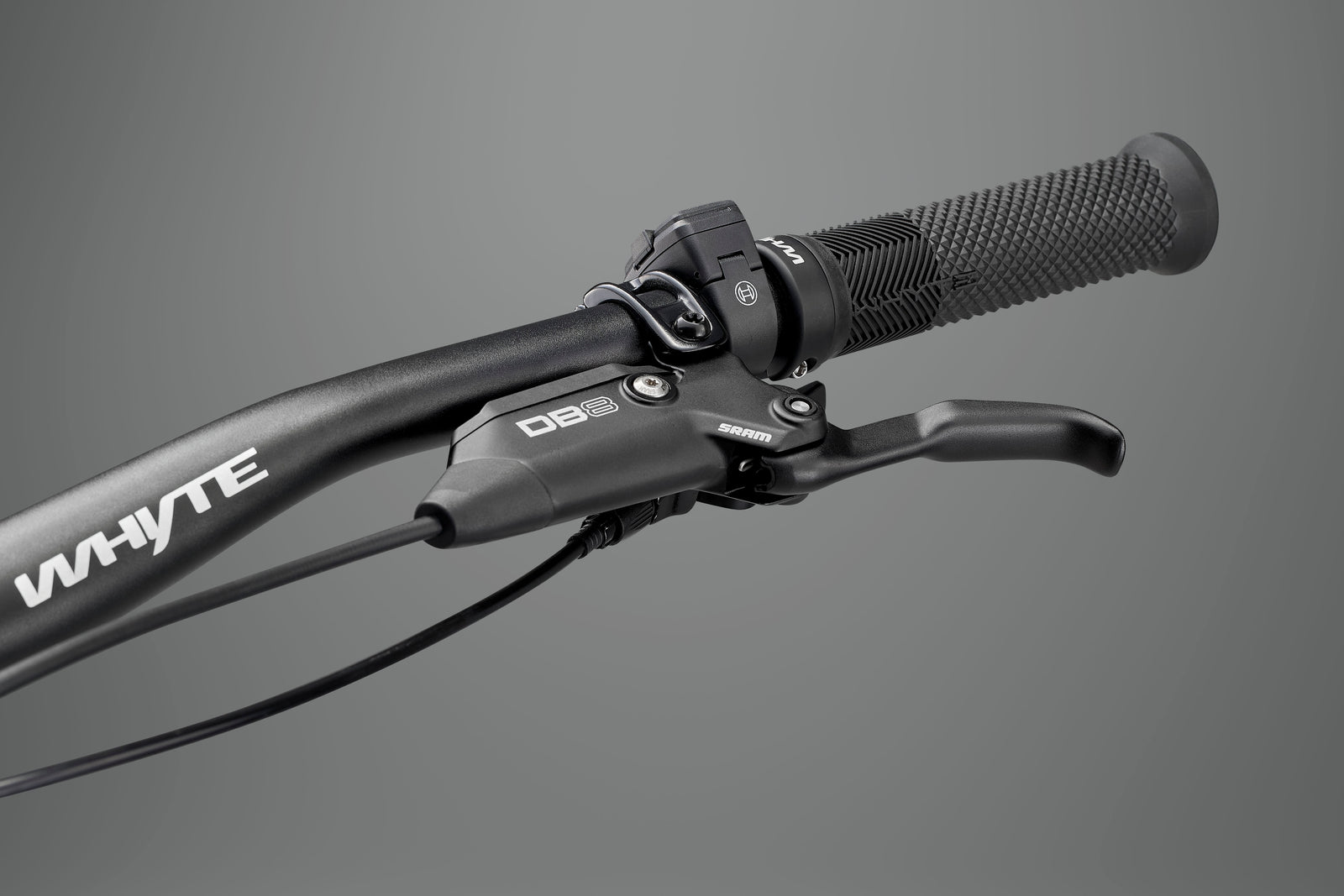

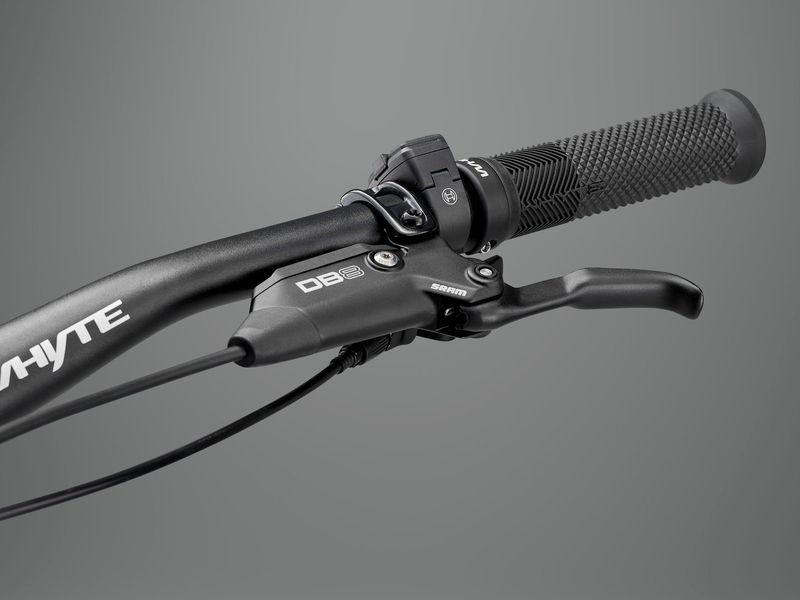

- Brake levers
- SRAM DB8
Wheels & tyres
- Rear hub
- Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole
- Front hub
- Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole
- Spokes
- DT Swiss Elemental
- Rims
- WTB ST Tough 29in (front), HTZ Trail 27.5in (rear), 30mm internal width
- Tyres
- Maxxis Minion DHF, EXO TR MaxxGrip 29 x 2.5in (front); Maxxis Minion DHR II, EXO+ TR MaxxTerra 27.5 x 2.5in (rear)
Cockpit

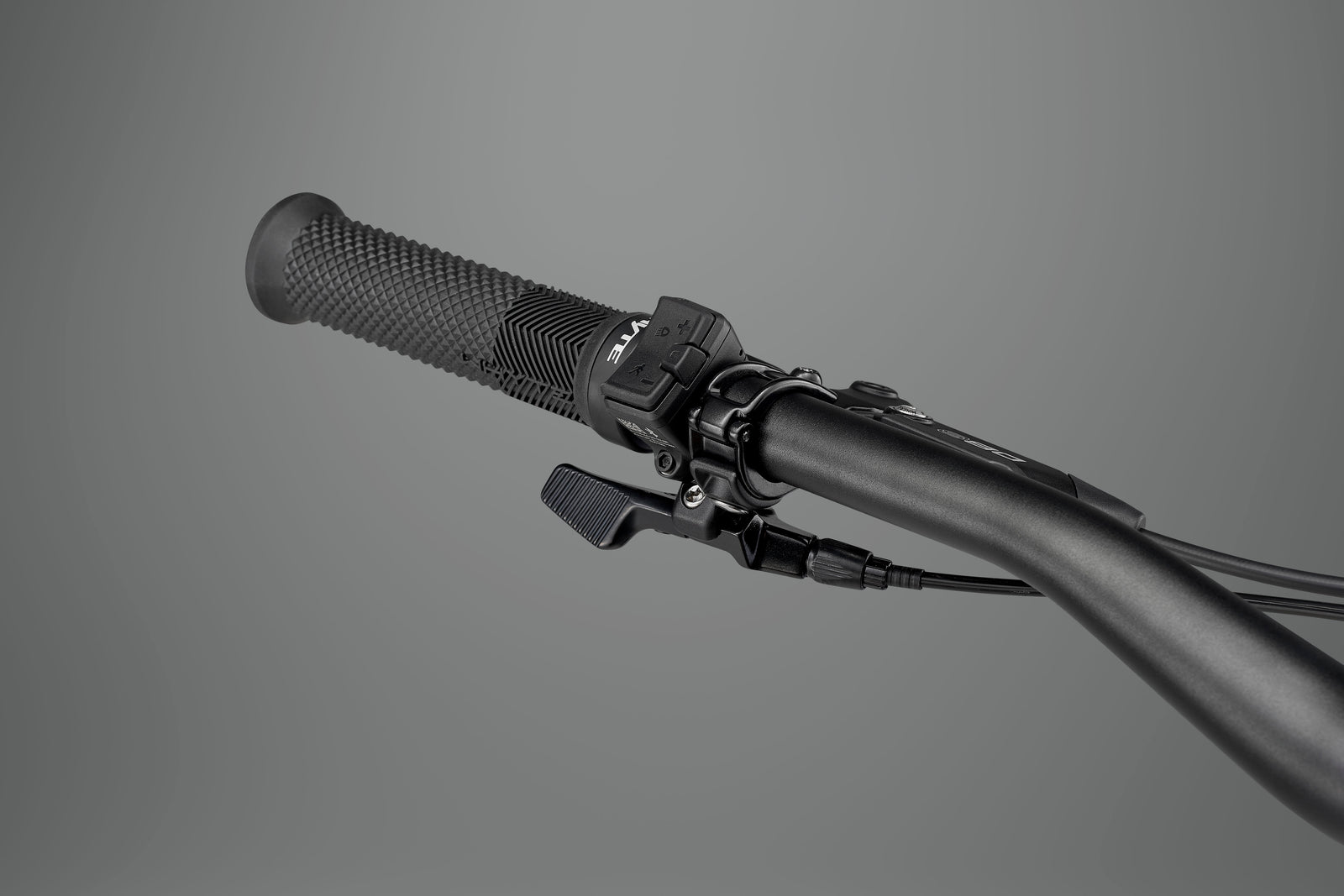

- Seatpost
- TranzX +RAD adjustable dropper post, 30.9mm, frame size specific drop (size S 125mm drop; size M 150mm drop; size L 170mm drop; size XL 200mm drop)
- Saddle
- Whyte Custom
- Handlebar
- Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
- Stem
- Whyte Trail, 35mm extension, 35mm bar bore
- Grips
- Whyte Enduro lock-on
- Pedals
- Fibre reinforced composite platform
Other
- Weight
- 20.9kg (size M, with innertubes + without pedals or PowerMore)
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
ELyte EVO geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AReach | 431 mm | 456 mm | 481 mm | 506 mm |
| BStack | 628.7 mm | 640.5 mm | 652.3 mm | 663.2 mm |
| CHead angle | 64.6° / 64° | 64.6° / 64° | 64.6° / 64° | 64.6° / 64° |
| DSeat angle | 77.5° | 77.3° | 77.1° | 76.9° |
| EBB height | 341.9 mm / 333.9 mm | 341.9 mm / 333.9 mm | 341.9 mm / 333.9 mm | 341.9 mm / 333.9 mm |
| FWheelbase | 1211.6 mm | 1242.1 mm | 1272.6 mm | 1302.7 mm |
| GRear centre | 450.4 mm | 450.4 mm | 450.4 mm | 450.4 mm |
| HStandover height | 741 mm | 741 mm | 741 mm | 741 mm |
| ISeat tube length | 395 mm | 420 mm | 445 mm | 470 mm |
| JHead tube length | 114 mm | 127 mm | 140 mm | 152 mm |
Where two values are given: standard / alternative geometry-adjustment setting (as listed by Whyte). Source: Whyte.
ELyte EVO: builds compared
ELyte EVO range →| ELyte EVO RS | ELyte EVO Stag Works | |
|---|---|---|
| Price | £5,699 | £8,999 |
| Frame | Carbon | Carbon |
| Fork | RockShox Lyrik Select+, 150mm travel | 2026 Fox Float 36 Factory 29in, 150mm travel |
| Shock | RockShox Deluxe Select + RT | Fox Float X Factory Series |
| Derailleur | SRAM Eagle 90 T-Type mechanical | SRAM XO T-Type AXS |
| Brakes | SRAM DB8 | Hope EVO GR4 |
| Wheels | WTB ST Tough 29in (front), HTZ Trail 27.5in (rear) | DT HX531, 30mm internal width |
| Display | Bosch System controller mounted within the top tube | Bosch Kiox 400C LCD display mounted within the top tube |
| Weight | 20.9 kg | 20.8 kg |
ELyte EVO RS: FAQ
What is the difference between the ELyte EVO RS and the ELyte EVO Stag Works?
They share the ELyte EVO frame platform and motor; the differences are in the parts: fork: RockShox Lyrik Select+ vs 2026 Fox Float 36 Factory 29in; shock: RockShox Deluxe Select + RT vs Fox Float X Factory Series; derailleur: SRAM Eagle 90 T-Type mechanical vs SRAM XO T-Type AXS; brakes: SRAM DB8 vs Hope EVO GR4; claimed weight: 20.9 kg vs 20.8 kg; price: £5,699 vs £8,999.
