TransitionRelay
- Price
- €7,999 – €9,999
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua Energy 430, removable (tool-free)
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Weight
- 19.6 kg – 22.6 kg
Overview
The Relay is Transition's lightweight long-travel e-MTB with a Fazua Ride 60 motor (60 Nm, 450 W peak, 1.96 kg) and a 430 Wh battery that can be removed without tools, so the bike can also be ridden unpowered.
The Relay and Relay PNW share one frame (carbon or alloy) that can run 160 or 170 mm of travel with dual 29-inch or mixed wheels via a flip chip on the lower shock mount. The Relay Carbon is set up with 29-inch wheels and 160 mm; the PNW builds use mixed wheels, 170 mm and coil shocks.
- Fazua Ride 60: 60 Nm, 450 W peak
- 430 Wh tool-free removable battery
- 160/170 mm, 29" or mixed wheels
- Carbon or alloy frame, rideable unpowered
Transition Relay builds
Relay builds compared

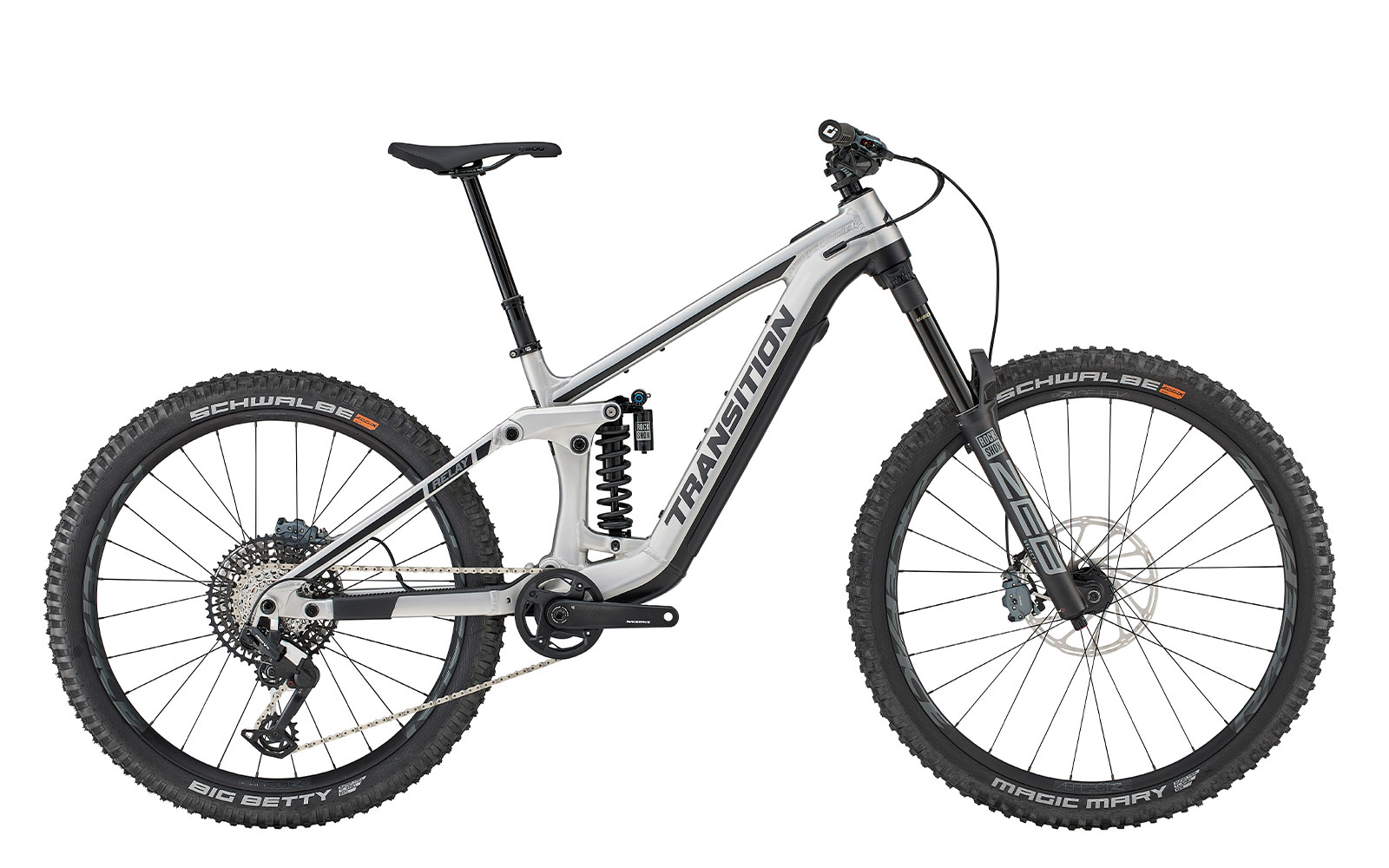

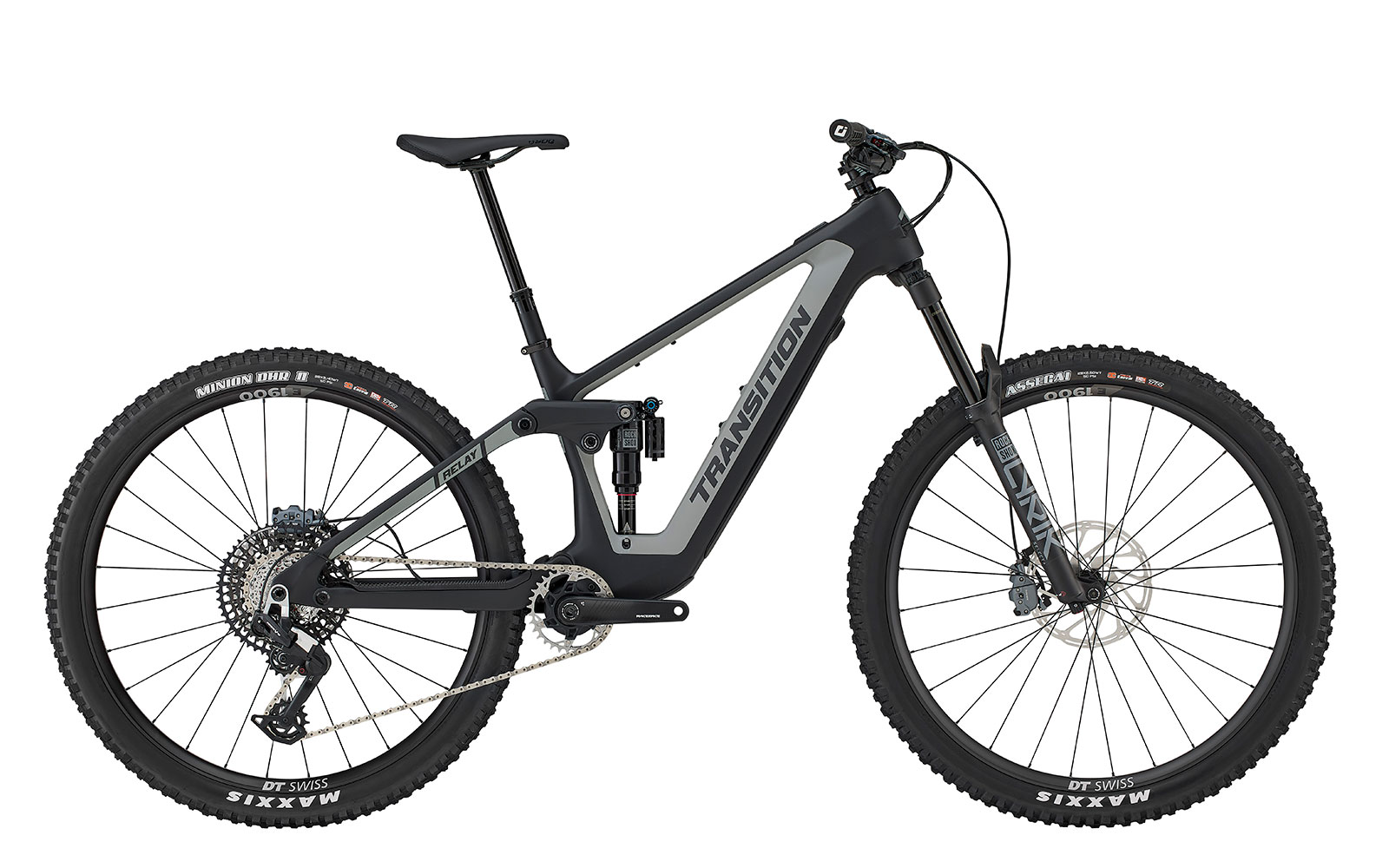

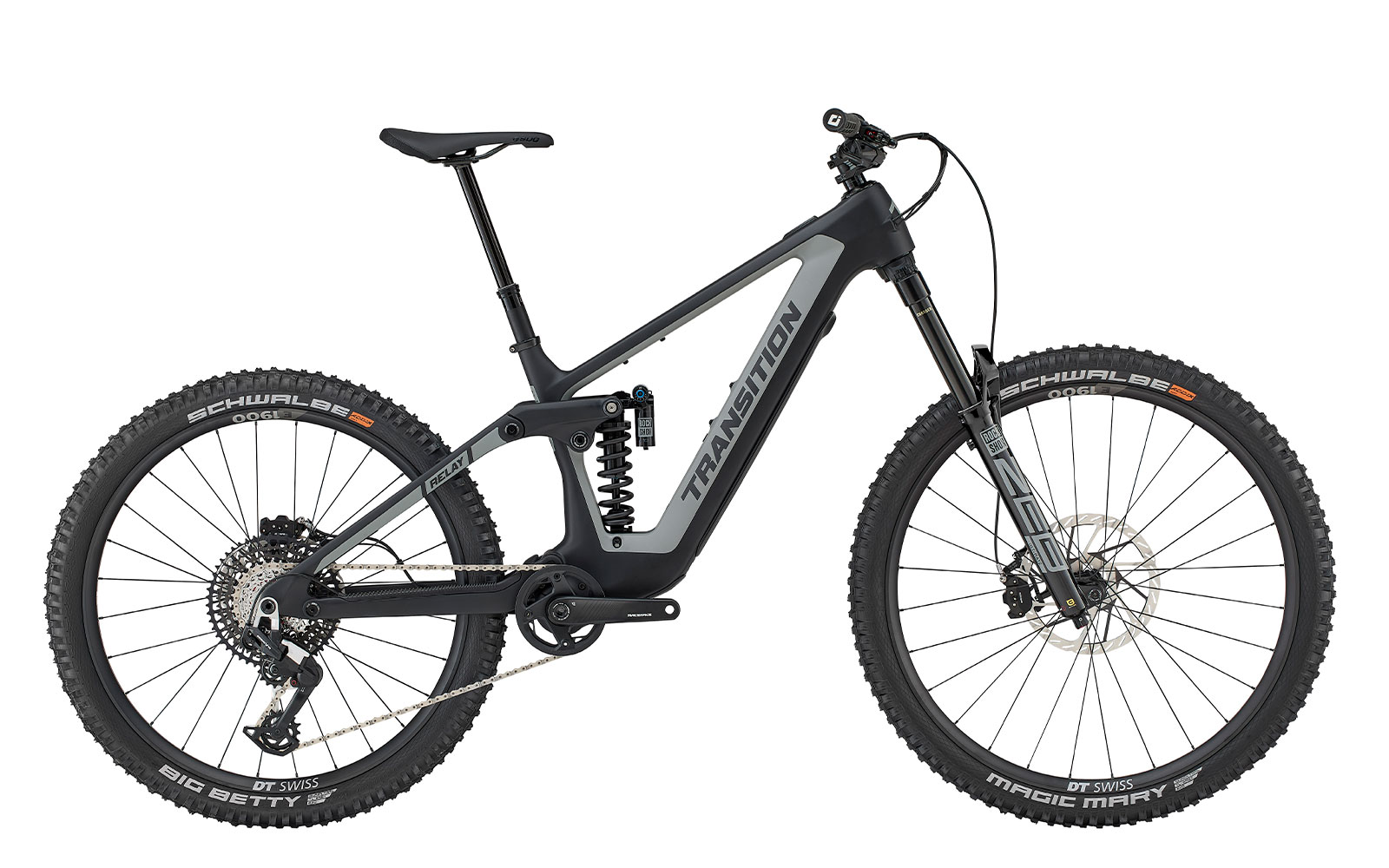

| Relay PNW Alloy Eagle 90 | Relay Carbon Eagle 90 | Relay PNW Carbon Eagle 90 | |
|---|---|---|---|
| Price | €7,999 | €9,299 | €9,999 |
| Frame | Alloy | Carbon | Carbon |
| Fork | RockShox ZEB Select+ (170mm) | RockShox Lyrik Select+ (160mm) | RockShox ZEB Ultimate (170mm) |
| Shock | RockShox Vivid Coil Select+ (205x65mm) | RockShox Super Deluxe Select+ (205x60mm) | RockShox Vivid Coil Ultimate (205x65mm) |
| Derailleur | SRAM Eagle 90 | SRAM Eagle 90 | SRAM Eagle 90 |
| Brakes | SRAM Maven Bronze | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 |
| Display | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub |
| Weight | 22.6 kg | 19.6 kg | 20.2 kg |
Relay geometry
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| AReach | 405 mm | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| BStack | 593 mm | 620 mm | 634 mm | 643 mm | 652 mm | 661 mm |
| CEffective Top Tube Length | 532 mm | 564 mm | 597 mm | 631 mm | 665 mm | 696 mm |
| DSeat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| EEffective Seat Tube Angle | 79.3° | 78.4° | 77.7° | 77.1° | 76.6° | 76.3° |
| Saddle Height For Effective Seat Tube Angle | 560° | 600° | 660° | 720° | 780° | 820° |
| Actual Seat Tube Angle | 70.6° | 70.3° | 70.3° | 70.3° | 70.3° | 70.4° |
| Seat Tube Offset At Bottom Bracket | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| FHead Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| GHead Tube Angle | 63.6° | 63.3° | 63.3° | 63.3° | 63.4° | 63.4° |
| HChainstay Length | 436 mm | 440 mm | 440 mm | 446 mm | 446 mm | 446 mm |
| IWheelbase | 1172 mm | 1211 mm | 1247 mm | 1282 mm | 1312 mm | 1341 mm |
| JBottom Bracket Drop | 11 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| KEstimated Bottom Bracket Height | 343 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
Relay PNW (mixed-wheel) geometry column; alloy stack/seat-tube values. XS uses 27.5-inch wheels. Source: Transition.
Transition Relay: FAQ
How much does the Transition Relay cost?
€7,999 – €9,999 depending on the build (Relay PNW Alloy Eagle 90 €7,999, Relay Carbon Eagle 90 €9,299, Relay PNW Carbon Eagle 90 €9,999); RRP Germany (transitionbikes.com EU store), VAT incl..
How many Transition Relay builds are there?
3: Relay PNW Alloy Eagle 90, Relay Carbon Eagle 90, Relay PNW Carbon Eagle 90. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
How much does the Transition Relay weigh?
Claimed weights range from 19.6 kg (Relay Carbon Eagle 90) to 22.6 kg (Relay PNW Alloy Eagle 90).
What motor and battery does the Transition Relay use?
Fazua Ride 60 (60 Nm; 450 W peak) with a 430 Wh battery (fazua energy 430, removable (tool-free)).
How much travel does the Transition Relay have?
170 mm fork and 170 mm rear travel on mullet 29" / 27.5" wheels.
