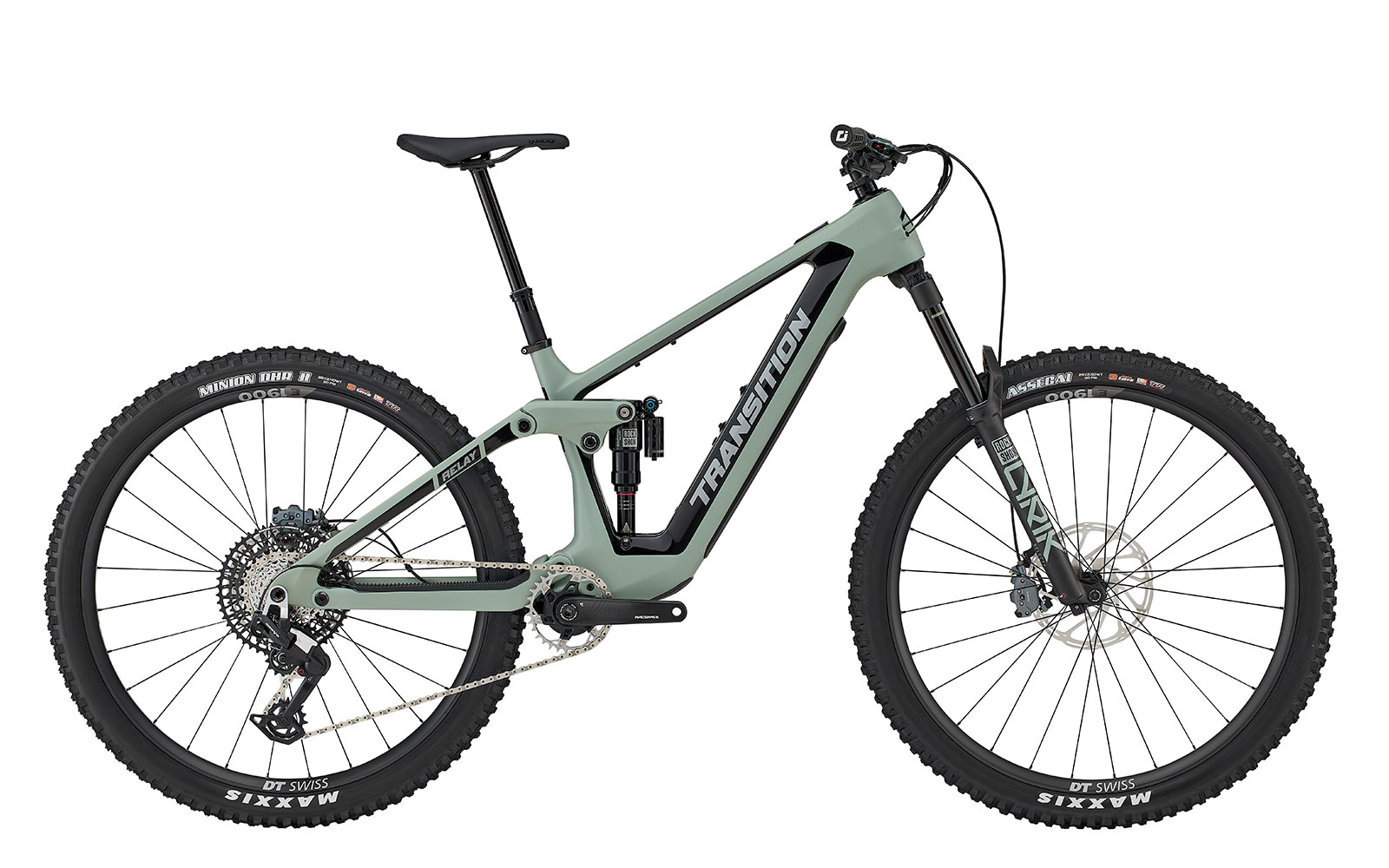

TransitionRelay Carbon Eagle 90
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua Energy 430, removable (tool-free)
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 19.6 kgManufacturer figure (size M), including battery
Overview
The Transition Relay Carbon Eagle 90 (€9,299) is a mid-range build of the Relay: Fazua Ride 60 with 430 Wh, RockShox Lyrik Select+ fork, RockShox Super Deluxe Select+ shock, SRAM Eagle 90 and SRAM Maven Bronze brakes. Claimed weight is 19.55 kg.
The Relay is Transition's lightweight long-travel e-MTB with a Fazua Ride 60 motor (60 Nm, 450 W peak, 1.96 kg) and a 430 Wh battery that can be removed without tools, so the bike can also be ridden unpowered.
The Relay and Relay PNW share one frame (carbon or alloy) that can run 160 or 170 mm of travel with dual 29-inch or mixed wheels via a flip chip on the lower shock mount. The Relay Carbon is set up with 29-inch wheels and 160 mm; the PNW builds use mixed wheels, 170 mm and coil shocks.
- Fazua Ride 60: 60 Nm, 450 W peak
- 430 Wh tool-free removable battery
- 160/170 mm, 29" or mixed wheels
- Carbon or alloy frame, rideable unpowered
Gallery
Photos: Transition
Full specifications
Frame & suspension
- Frame
- Relay Carbon 160mm
- Wheel size
- 29" (X-Small 27.5")
- Rear shock
- RockShox Super Deluxe Select+ (205x60mm)
- Fork
- RockShox Lyrik Select+ (160mm)
- Headset
- FSA No.55R
E-system
- Motor
- Fazua Ride 60
- Battery
- Fazua Energy 430 Take Out
- Display
- Fazua Top Tube LED Hub
- Remote
- Fazua Ring Control
Drivetrain
- Shifter
- SRAM Eagle 90 MMX Single Click
- Rear derailleur
- SRAM Eagle 90
- Cassette
- SRAM XS 1275 (10-52t)
- Chain
- SRAM GX Eagle Transmission
- Crankset
- RaceFace Aeffect ETOR (165mm, X-Small 160mm)
- Chainring
- SRAM XX Direct Mount (32t)
Brakes
- Brakes
- SRAM Maven Bronze
- Rotors
- SRAM Centerline (200mm)
Wheels & tyres
- Rims
- DT Swiss E 1900 Spline 30
- Spokes
- DT Swiss Champion
- Hubs
- DT Swiss 370 Ratchet LN
- Front tyre
- Maxxis Assegai 3C EXO+ (2.5)
- Rear tyre
- Maxxis Minion DHRII 3C EXO+ (2.4)
Cockpit
- Stem
- ANVL Swage (40mm)
- Handlebar
- ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD/LG(800x30mm) XL/XXL (800x40mm)
- Grips
- ODI Elite Flow Lock-On
- Saddle
- SDG Bel Air 3 LUX
- Seatpost
- OneUp Dropper Post XS (120mm) SM (150mm) MD (190mm) LG (210mm) XL/XXL (240mm)
Other
- Included
- Fazua Charger Tubeless Valves & Sealant
- Weight
- 43.10 lbs / 19.55 kg (Size MD, Including Battery) 38.10 lbs / 17.28 kg (Size MD, Excluding Battery)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Relay geometry
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| AReach | 410 mm | 430 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| BStack | 590 mm | 615 mm | 628 mm | 637 mm | 646 mm | 655 mm |
| CEffective Top Tube Length | 523 mm | 553 mm | 586 mm | 614 mm | 642 mm | 671 mm |
| DSeat Tube Length | 380 mm | 390 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| EEffective Seat Tube Angle | 79.7° | 79.1° | 78.4° | 77.8° | 77.3° | 77° |
| Saddle Height For Effective Seat Tube Angle | 560° | 600° | 660° | 720° | 780° | 820° |
| Actual Seat Tube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| Seat Tube Offset At Bottom Bracket | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| FHead Tube Length | 100 mm | 100 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| GHead Tube Angle | 64° | 64° | 64° | 64° | 64° | 64° |
| HChainstay Length | 436 mm | 442 mm | 442 mm | 448 mm | 448 mm | 448 mm |
| IWheelbase | 1167 mm | 1208 mm | 1244 mm | 1280 mm | 1309 mm | 1338 mm |
| JBottom Bracket Drop | 15 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| KEstimated Bottom Bracket Height | 340 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
Relay (29-inch) geometry column; carbon stack/seat-tube values. XS uses 27.5-inch wheels. Source: Transition.
Relay: builds compared
Relay range →| Relay PNW Alloy Eagle 90 | Relay Carbon Eagle 90 | Relay PNW Carbon Eagle 90 | |
|---|---|---|---|
| Price | €7,999 | €9,299 | €9,999 |
| Frame | Alloy | Carbon | Carbon |
| Fork | RockShox ZEB Select+ (170mm) | RockShox Lyrik Select+ (160mm) | RockShox ZEB Ultimate (170mm) |
| Shock | RockShox Vivid Coil Select+ (205x65mm) | RockShox Super Deluxe Select+ (205x60mm) | RockShox Vivid Coil Ultimate (205x65mm) |
| Derailleur | SRAM Eagle 90 | SRAM Eagle 90 | SRAM Eagle 90 |
| Brakes | SRAM Maven Bronze | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 |
| Display | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub |
| Weight | 22.6 kg | 19.6 kg | 20.2 kg |
Relay Carbon Eagle 90: FAQ
How much does the Transition Relay Carbon Eagle 90 cost?
€9,299 (RRP Germany (transitionbikes.com EU store), VAT incl.). The Relay range runs from €7,999 (Relay PNW Alloy Eagle 90) to €9,999 (Relay PNW Carbon Eagle 90). Prices vary by country and dealer.
How much does the Transition Relay Carbon Eagle 90 weigh?
Transition quotes 19.6 kg. It is the lightest build of the Relay.
What motor and battery does the Transition Relay Carbon Eagle 90 have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua Energy 430, removable (tool-free).
How much suspension travel does the Transition Relay Carbon Eagle 90 have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Transition Relay Carbon Eagle 90 come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Relay Carbon Eagle 90 and the Relay PNW Carbon Eagle 90?
They share the Relay frame platform and motor; the differences are in the parts — fork: RockShox Lyrik Select+ (160mm) vs RockShox ZEB Ultimate (170mm); shock: RockShox Super Deluxe Select+ (205x60mm) vs RockShox Vivid Coil Ultimate (205x65mm); claimed weight: 19.6 kg vs 20.2 kg; price: €9,299 vs €9,999.
