TransitionRepeater PT AXS
- Motor
- SRAM Eagle Powertrain90 Nm
- Battery
- 720 WhSRAM Eagle Powertrain full-size battery
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Transition Repeater PT AXS (€6,699) is the only build of the Repeater PT: SRAM Eagle Powertrain with 720 Wh, RockShox ZEB Base fork, RockShox SuperDeluxe Base shock, SRAM S1000 AXS T-Type and SRAM Maven Base brakes.
The Repeater PT is Transition's carbon long-travel e-MTB with 170 mm of travel front and rear, built around SRAM Eagle Powertrain: a 90 Nm motor made by Brose, a 720 Wh SRAM battery and T-Type AXS Transmission with auto shift and coast shift.
The bike ships with mixed wheels but is 29-inch rear compatible via a geo chip. Controls are two AXS pod controllers and the AXS Bridge top-tube display, with Range and Rally power modes; the derailleur is powered from the main battery.
- SRAM Eagle Powertrain: 90 Nm, auto shift
- 720 Wh battery
- 170 mm travel front and rear
- Mixed wheels, 29" rear compatible

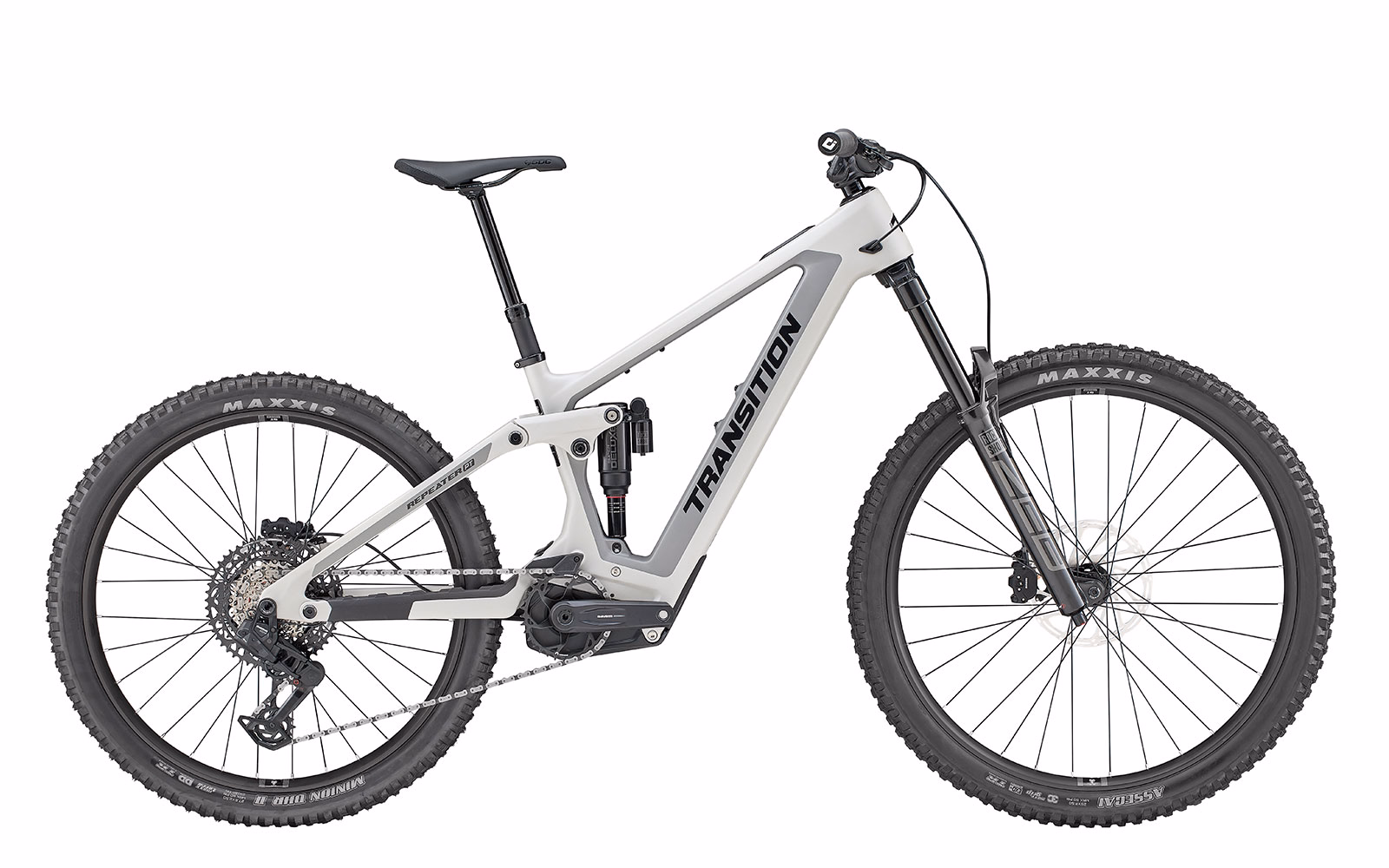

Gallery
Photos: Transition
Full specifications
Frame & suspension
- Frame
- Repeater PT Carbon 170mm
- Wheel size
- Mixed
- Rear shock
- RockShox SuperDeluxe Base (205x65mm)
- Fork
- RockShox ZEB Base (170mm)
- Headset
- FSA NO.55R/44
E-system
- Motor
- SRAM Eagle Powertrain Drive Unit
- Battery
- SRAM Eagle Powertrain Full-Size Battery (720wh)
- Display
- SRAM Eagle Powertrain AXS Bridge Display
- Remote
- SRAM AXS Stealth Controller
Drivetrain
- Shifter
- SRAM AXS POD Controller
- Rear derailleur
- SRAM S1000 AXS T-Type
- Cassette
- SRAM XS 1270 T-Type (10-52t)
- Chain
- SRAM Eagle 70 Transmission
- Crankset
- SRAM S1000 (150mm)
- Chainring
- SRAM T-Type Direct Mount (34t)
- Chainguide
- Transition Integrated Top Guide
Brakes
- Brakes
- SRAM Maven Base
- Rotors
- SRAM Centerline (200mm)
Wheels & tyres
- Rims
- WTB ST Tough i30
- Spokes
- Pillar Straight Gauge
- Hubs
- Novatech D791SB/D902SB
- Front tyre
- Maxxis Assegai 3C MaxxGrip EXO+ (2.5)
- Rear tyre
- Maxxis Minion DHRII 3C MaxxTerra DD (2.5)
Cockpit
- Stem
- RaceFace Aeffect R (40mm)
- Handlebar
- RaceFace Chester 35 SM(780x20mm) MD/LG/XL(780x35mm)
- Grips
- ODI Longneck V2.1 Lock-On
- Saddle
- SDG Bel Air 3
- Seatpost
- SDG Tellis SM(150mm) MD(170mm) LG(200mm) XL(230mm)
Other
- Included
- SRAM Eagle Powertrain Charger Tubeless Valves & Sealant
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Repeater PT geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AReach | 421 mm | 451 mm | 476 mm | 506 mm |
| BStack | 633 mm | 637 mm | 646 mm | 656 mm |
| CEffective Top Tube Length | 551 mm | 584 mm | 615 mm | 654 mm |
| DSeat Tube Length | 380 mm | 400 mm | 440 mm | 470 mm |
| EEffective Seat Tube Angle | 78.8° | 78.1° | 77.8° | 77.1° |
| Saddle Height For Effective Seat Tube Angle | 600° | 660° | 720° | 780° |
| Actual Seat Tube Angle | 71.6° | 71.6° | 71.6° | 71.6° |
| Seat Tube Offset At Bottom Bracket | 79 mm | 79 mm | 79 mm | 79 mm |
| FHead Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| GHead Tube Angle | 63.1° | 63.1° | 63.1° | 63.2° |
| HChainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| IWheelbase | 1228 mm | 1261 mm | 1290 mm | 1325 mm |
| JBottom Bracket Drop (Front) | 30 mm | 30 mm | 30 mm | 30 mm |
| JBottom Bracket Drop (Rear) | 10 mm | 10 mm | 10 mm | 10 mm |
| KEstimated Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Standover Height | 710 mm | 720 mm | 730 mm | 740 mm |
Source: Transition.
Repeater PT AXS: FAQ
How much does the Transition Repeater PT AXS cost?
€6,699 (RRP Germany (transitionbikes.com EU store), VAT incl.). Prices vary by country and dealer.
What motor and battery does the Transition Repeater PT AXS have?
SRAM Eagle Powertrain (90 Nm). 720 Wh battery — sRAM Eagle Powertrain full-size battery.
How much suspension travel does the Transition Repeater PT AXS have?
170 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Transition Repeater PT AXS come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
