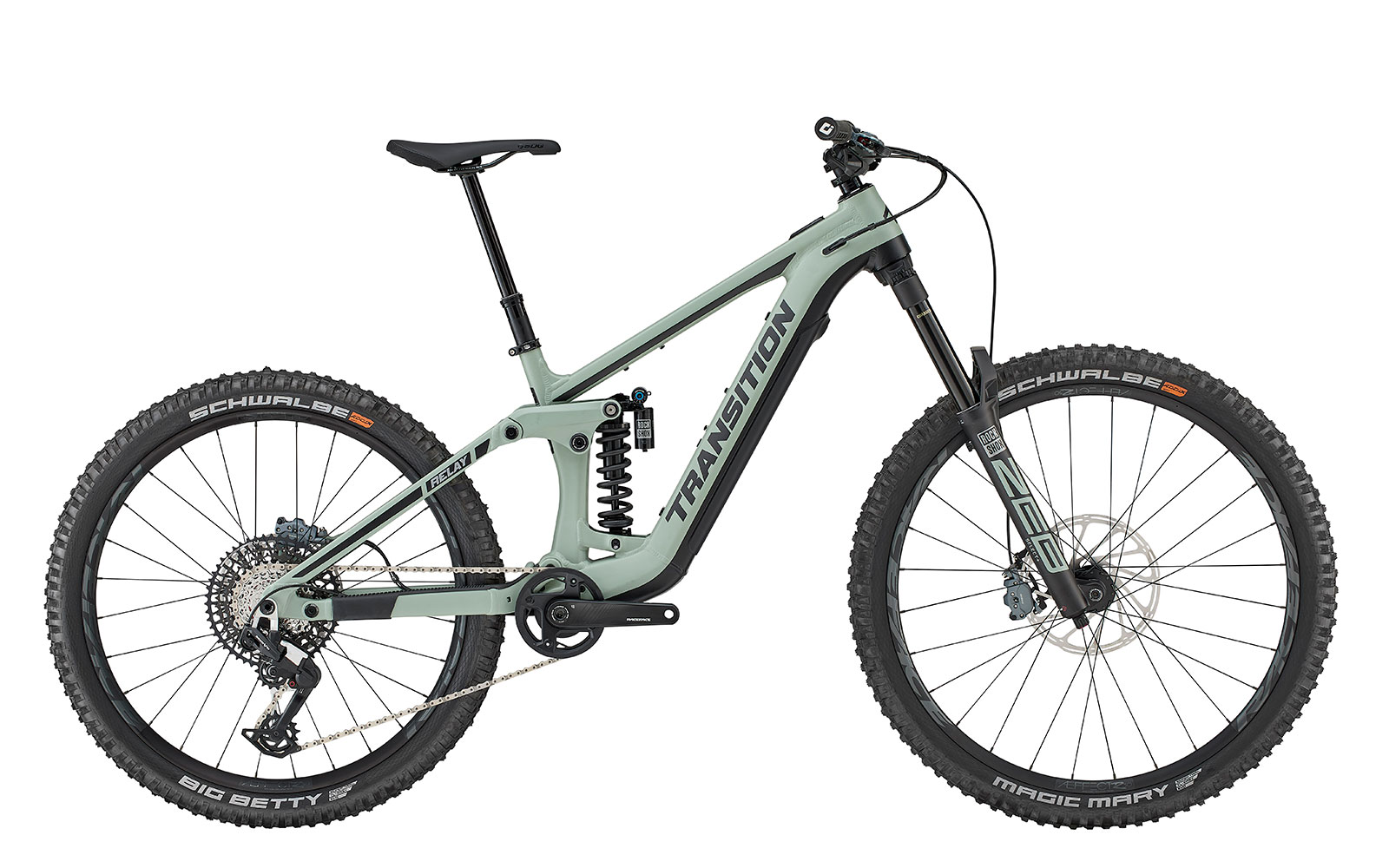

TransitionRelay PNW Alloy Eagle 90
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua Energy 430, removable (tool-free)
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 22.6 kgManufacturer figure (size M), including battery
Overview
The Transition Relay PNW Alloy Eagle 90 (€7,999) is the entry build of the Relay: Fazua Ride 60 with 430 Wh, RockShox ZEB Select+ fork, RockShox Vivid Coil Select+ shock, SRAM Eagle 90 and SRAM Maven Bronze brakes. Claimed weight is 22.63 kg.
The Relay is Transition's lightweight long-travel e-MTB with a Fazua Ride 60 motor (60 Nm, 450 W peak, 1.96 kg) and a 430 Wh battery that can be removed without tools, so the bike can also be ridden unpowered.
The Relay and Relay PNW share one frame (carbon or alloy) that can run 160 or 170 mm of travel with dual 29-inch or mixed wheels via a flip chip on the lower shock mount. The Relay Carbon is set up with 29-inch wheels and 160 mm; the PNW builds use mixed wheels, 170 mm and coil shocks.
- Fazua Ride 60: 60 Nm, 450 W peak
- 430 Wh tool-free removable battery
- 160/170 mm, 29" or mixed wheels
- Carbon or alloy frame, rideable unpowered
Gallery
Photos: Transition
Full specifications
Frame & suspension
- Frame
- Relay Alloy 170mm
- Wheel size
- Mixed (X-Small 27.5")
- Rear shock
- RockShox Vivid Coil Select+ (205x65mm)
- Fork
- RockShox ZEB Select+ (170mm)
- Headset
- FSA No.55R
E-system
- Motor
- Fazua Ride 60
- Battery
- Fazua Energy 430 Take Out
- Display
- Fazua Top Tube LED Hub
- Remote
- Fazua Ring Control
Drivetrain
- Shifter
- SRAM Eagle 90 MMX Single Click
- Rear derailleur
- SRAM Eagle 90
- Cassette
- SRAM XS 1275 (10-52t)
- Chain
- SRAM GX Eagle Transmission
- Crankset
- RaceFace Aeffect ETOR (165mm, X-Small 160mm)
- Chainring
- Transition Bash Spider w/ SRAM Eagle Alloy E-Ring (32t)
Brakes
- Brakes
- SRAM Maven Bronze
- Rotors
- SRAM Centerline XS (200mm) SM-XXL (220/200mm)
Wheels & tyres
- Rims
- DT Swiss E 1900 Spline 30
- Spokes
- DT Swiss Champion
- Hubs
- DT Swiss 370 Ratchet LN
- Front tyre
- Schwalbe Magic Mary Super Trail, Soft (2.4)
- Rear tyre
- Schwalbe Big Betty, Super Trail, Soft (2.4)
Cockpit
- Stem
- ANVL Swage (40mm)
- Handlebar
- ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD (800x30mm) LG/XL/XXL (800x40mm)
- Grips
- ODI Elite Flow Lock-On
- Saddle
- SDG Bel Air 3
- Seatpost
- OneUp Dropper Post XS (120mm) SM (150mm) MD (190mm) LG (210mm) XL/XXL (240mm)
Other
- Included
- Fazua Charger Tubeless Valves & Sealant
- Weight
- 49.9 lbs / 22.63 kg (Size MD, Including Battery) 44.9 lbs / 20.36 kg (Size MD, Excluding Battery)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Relay geometry
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| AReach | 405 mm | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| BStack | 593 mm | 620 mm | 634 mm | 643 mm | 652 mm | 661 mm |
| CEffective Top Tube Length | 532 mm | 564 mm | 597 mm | 631 mm | 665 mm | 696 mm |
| DSeat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| EEffective Seat Tube Angle | 79.3° | 78.4° | 77.7° | 77.1° | 76.6° | 76.3° |
| Saddle Height For Effective Seat Tube Angle | 560° | 600° | 660° | 720° | 780° | 820° |
| Actual Seat Tube Angle | 70.6° | 70.3° | 70.3° | 70.3° | 70.3° | 70.4° |
| Seat Tube Offset At Bottom Bracket | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| FHead Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| GHead Tube Angle | 63.6° | 63.3° | 63.3° | 63.3° | 63.4° | 63.4° |
| HChainstay Length | 436 mm | 440 mm | 440 mm | 446 mm | 446 mm | 446 mm |
| IWheelbase | 1172 mm | 1211 mm | 1247 mm | 1282 mm | 1312 mm | 1341 mm |
| JBottom Bracket Drop | 11 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| KEstimated Bottom Bracket Height | 343 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
Relay PNW (mixed-wheel) geometry column; alloy stack/seat-tube values. XS uses 27.5-inch wheels. Source: Transition.
Relay: builds compared
Relay range →| Relay PNW Alloy Eagle 90 | Relay Carbon Eagle 90 | Relay PNW Carbon Eagle 90 | |
|---|---|---|---|
| Price | €7,999 | €9,299 | €9,999 |
| Frame | Alloy | Carbon | Carbon |
| Fork | RockShox ZEB Select+ (170mm) | RockShox Lyrik Select+ (160mm) | RockShox ZEB Ultimate (170mm) |
| Shock | RockShox Vivid Coil Select+ (205x65mm) | RockShox Super Deluxe Select+ (205x60mm) | RockShox Vivid Coil Ultimate (205x65mm) |
| Derailleur | SRAM Eagle 90 | SRAM Eagle 90 | SRAM Eagle 90 |
| Brakes | SRAM Maven Bronze | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 | DT Swiss E 1900 Spline 30 |
| Display | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub |
| Weight | 22.6 kg | 19.6 kg | 20.2 kg |
Relay PNW Alloy Eagle 90: FAQ
How much does the Transition Relay PNW Alloy Eagle 90 cost?
€7,999 (RRP Germany (transitionbikes.com EU store), VAT incl.). The Relay range runs from €7,999 (Relay PNW Alloy Eagle 90) to €9,999 (Relay PNW Carbon Eagle 90). Prices vary by country and dealer.
How much does the Transition Relay PNW Alloy Eagle 90 weigh?
Transition quotes 22.6 kg. The lightest Relay build is the Relay Carbon Eagle 90 at 19.6 kg.
What motor and battery does the Transition Relay PNW Alloy Eagle 90 have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua Energy 430, removable (tool-free).
How much suspension travel does the Transition Relay PNW Alloy Eagle 90 have?
170 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Transition Relay PNW Alloy Eagle 90 come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Relay PNW Alloy Eagle 90 and the Relay Carbon Eagle 90?
They share the Relay frame platform and motor; the differences are in the parts — frame: alloy vs carbon; fork: RockShox ZEB Select+ (170mm) vs RockShox Lyrik Select+ (160mm); shock: RockShox Vivid Coil Select+ (205x65mm) vs RockShox Super Deluxe Select+ (205x60mm); claimed weight: 22.6 kg vs 19.6 kg; price: €7,999 vs €9,299.
