SimplonCure :e Core
- Motor
- Bosch Performance Line PX Gen585 Nm (90 Nm via eBike Flow app)
- Battery
- 540 WhBosch PowerTube, removable; 250 Wh range extender optional
- Travel F / R
- 120 / – mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.7 kgManufacturer figure (size M, Core Selection spec sheet)
Overview
The Simplon Cure :e Core (€4,699) is the entry build of the Cure :e: Bosch Performance Line PX Gen5 (85 Nm) with 540 Wh, RockShox Recon Silver RL fork, SRAM Eagle 70 transmission and Magura Louise Elite brakes. Claimed weight is 20.7 kg.
The Cure :e is Simplon's carbon e-MTB hardtail for tours and trail riding: 29-inch wheels with 2.6-inch-capable clearance, a 120 mm fork, a 66.5° head angle (66° in size S) and a low standover height. The Bosch System Controller sits in the top tube.
The Core build uses the Bosch Performance Line PX Gen5 with a 540 Wh battery; Core+ and Expert get the Performance Line CX Gen5 with 800 Wh. A range extender or DualBattery setup adds capacity, and the system weight limit is 150 kg.
- Carbon e-MTB hardtail
- 120 mm fork, 29" wheels
- Bosch PX (540 Wh) or CX (800 Wh)
- Low standover height

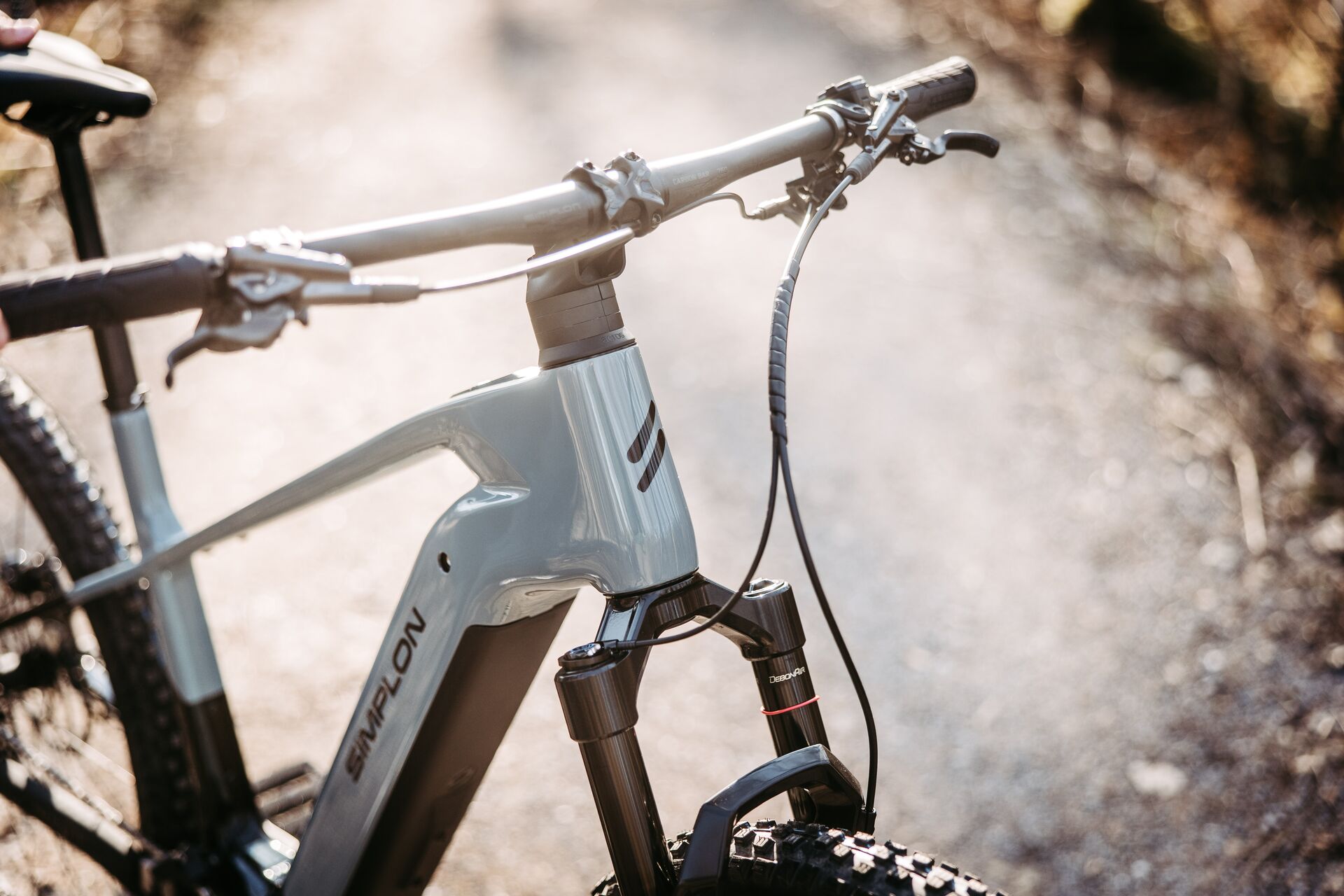

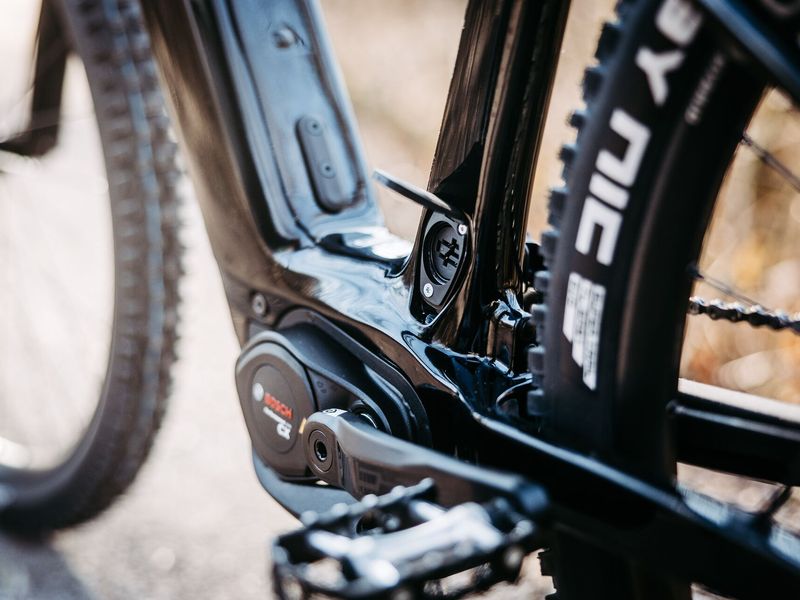

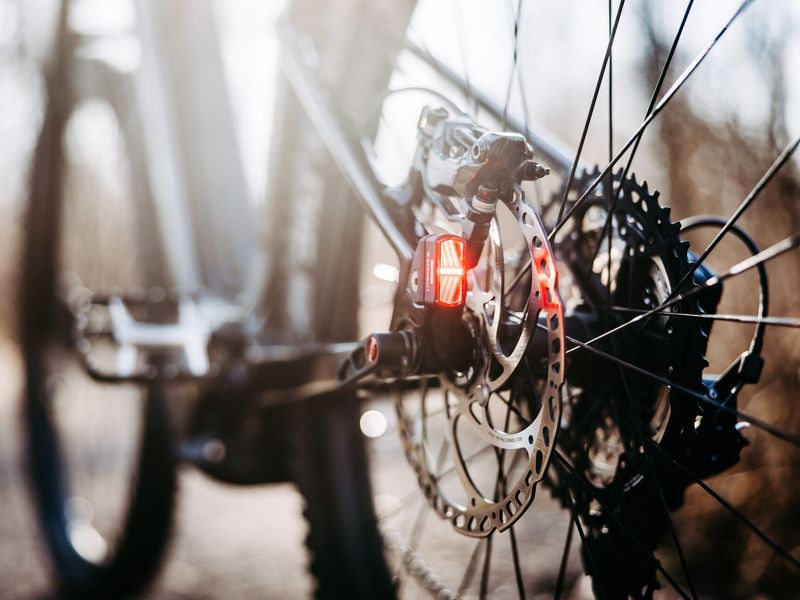

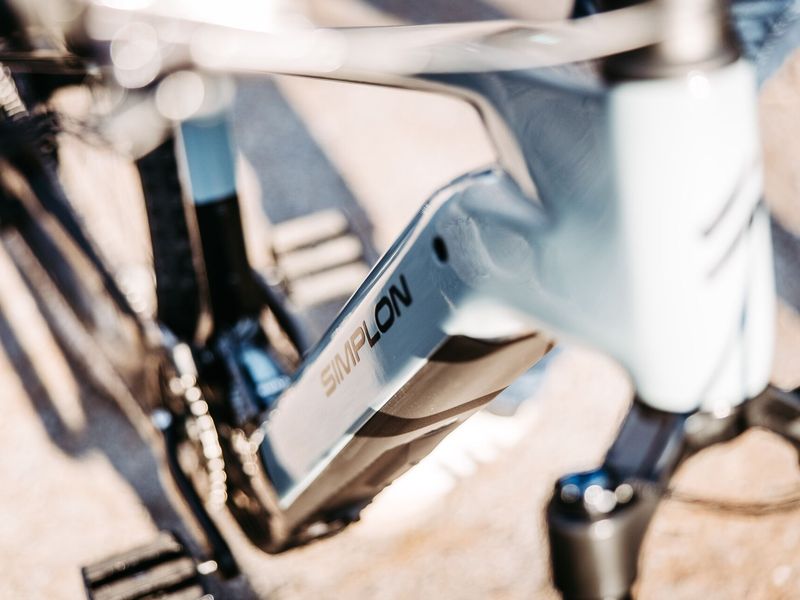

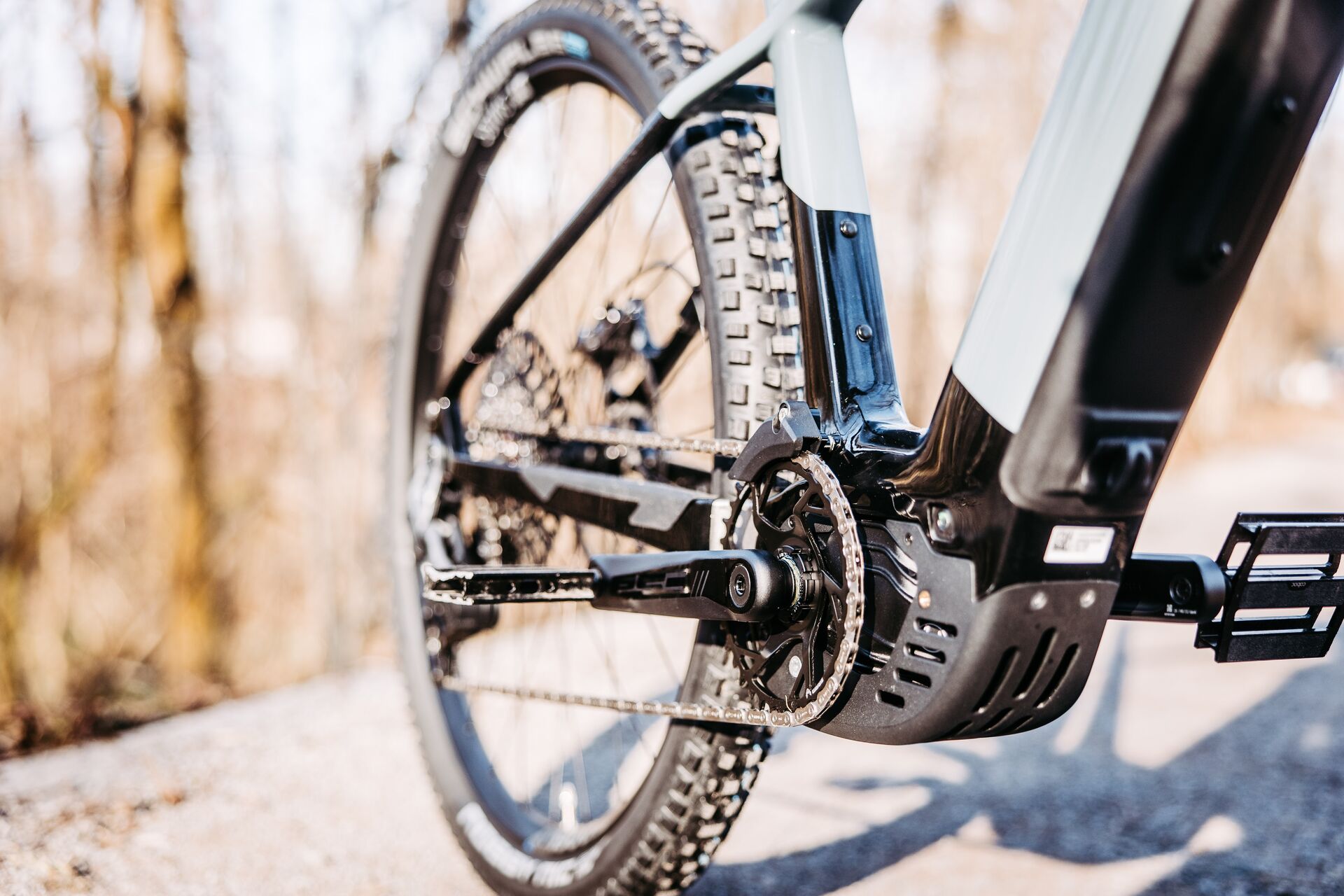

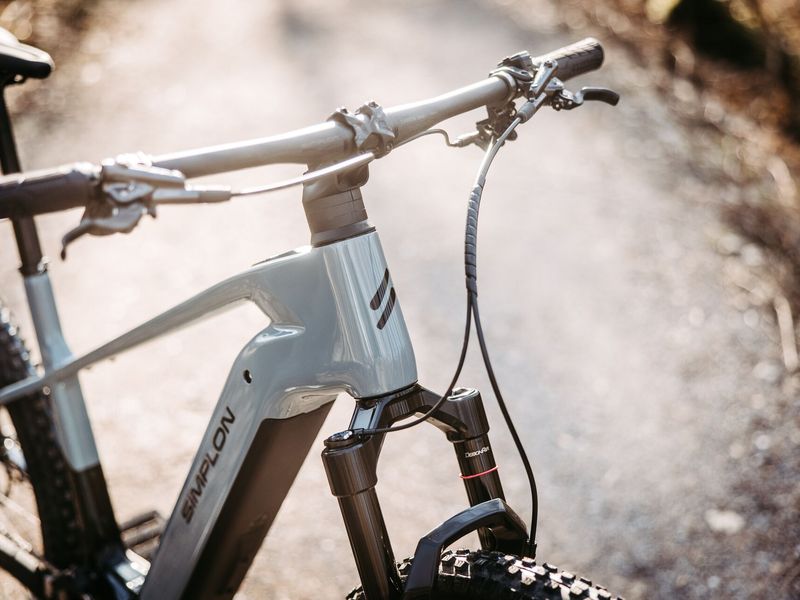

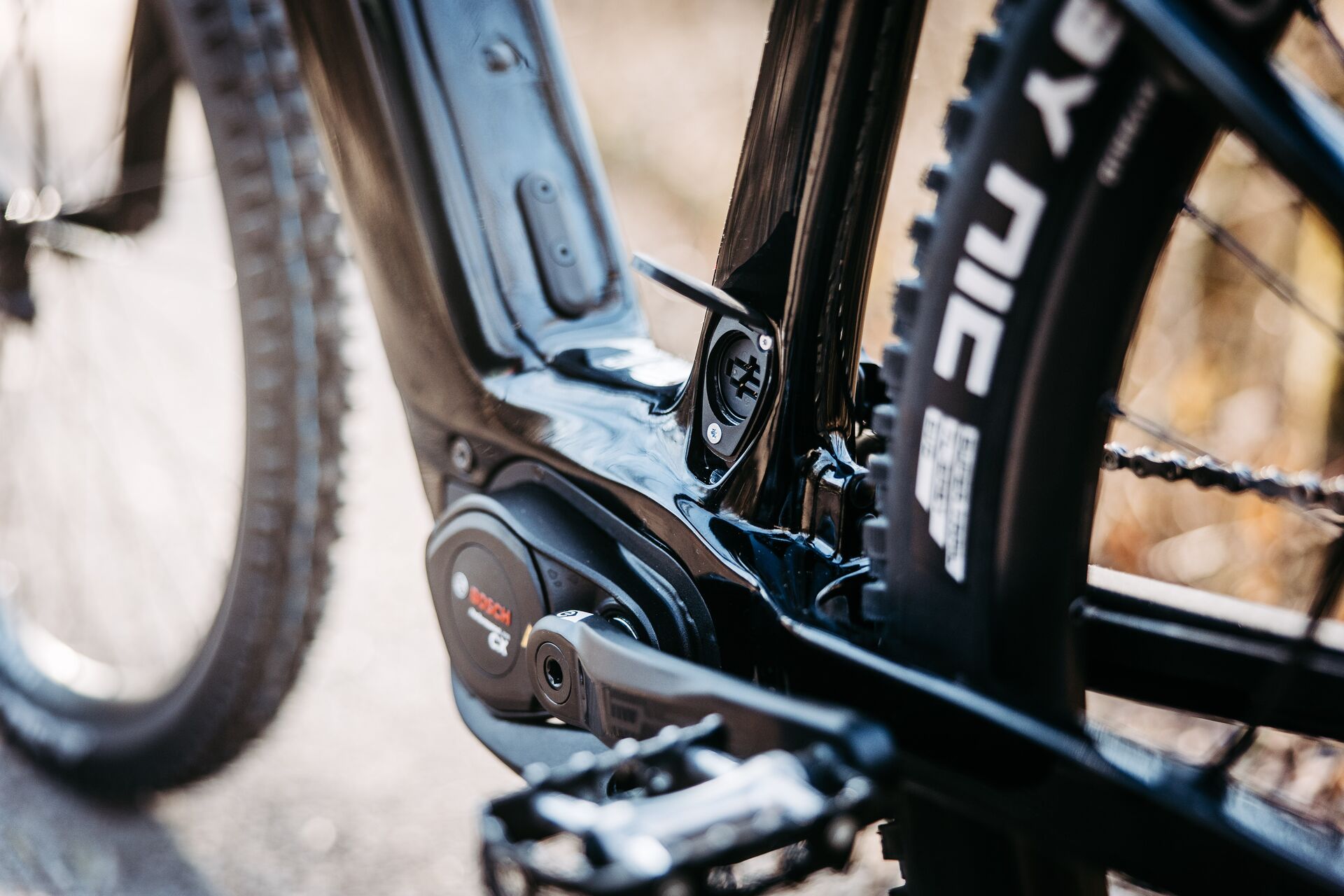

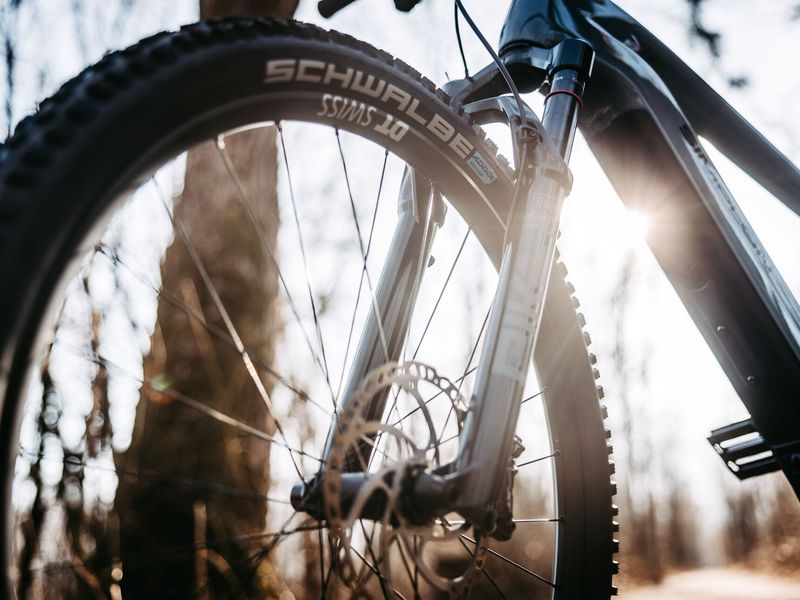

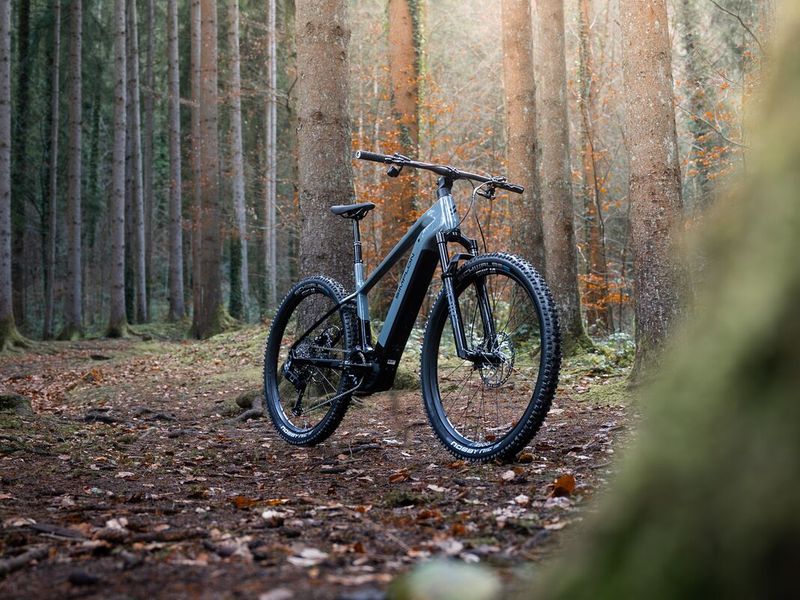

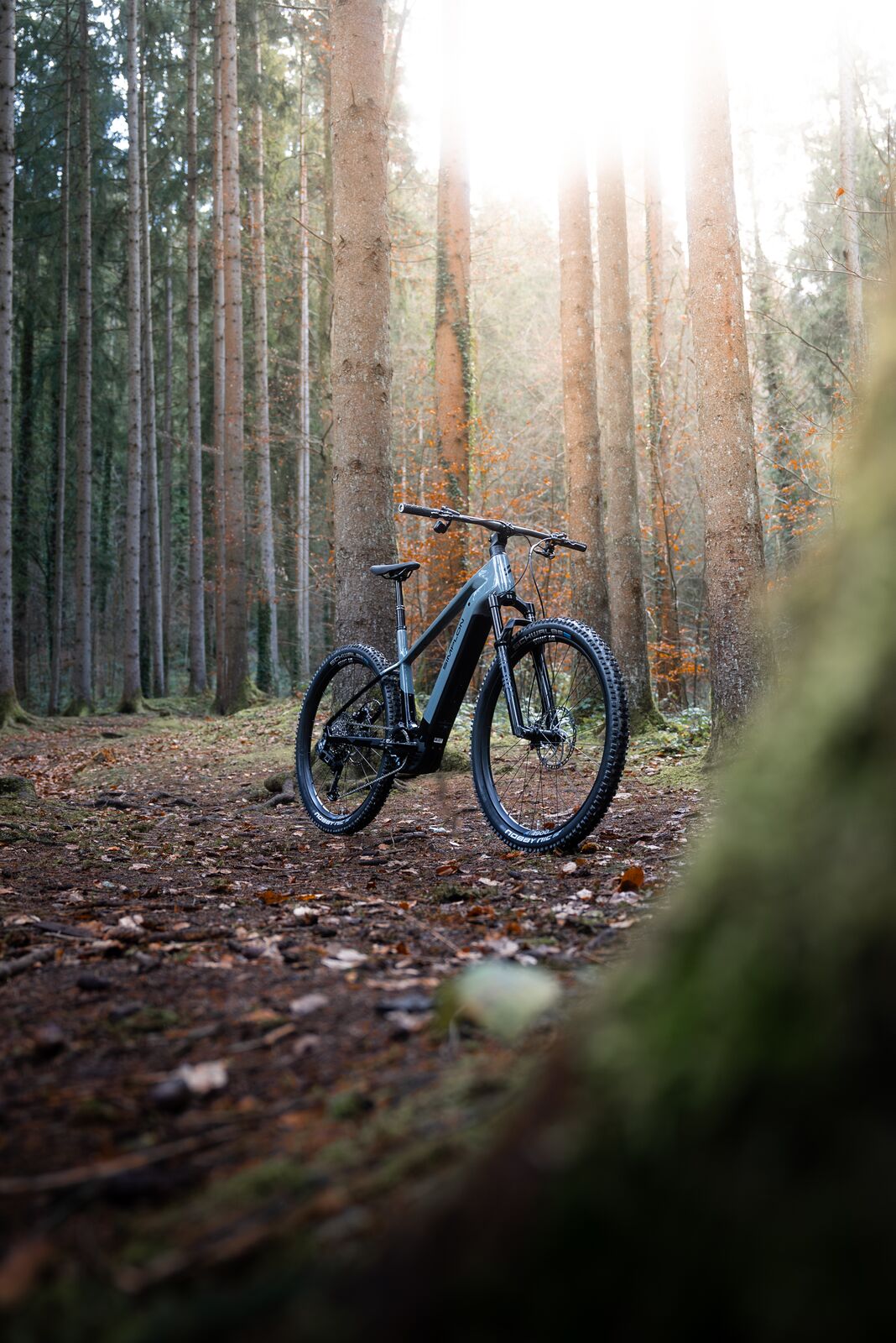

Gallery
Photos: Simplon
Full specifications
Frame & suspension

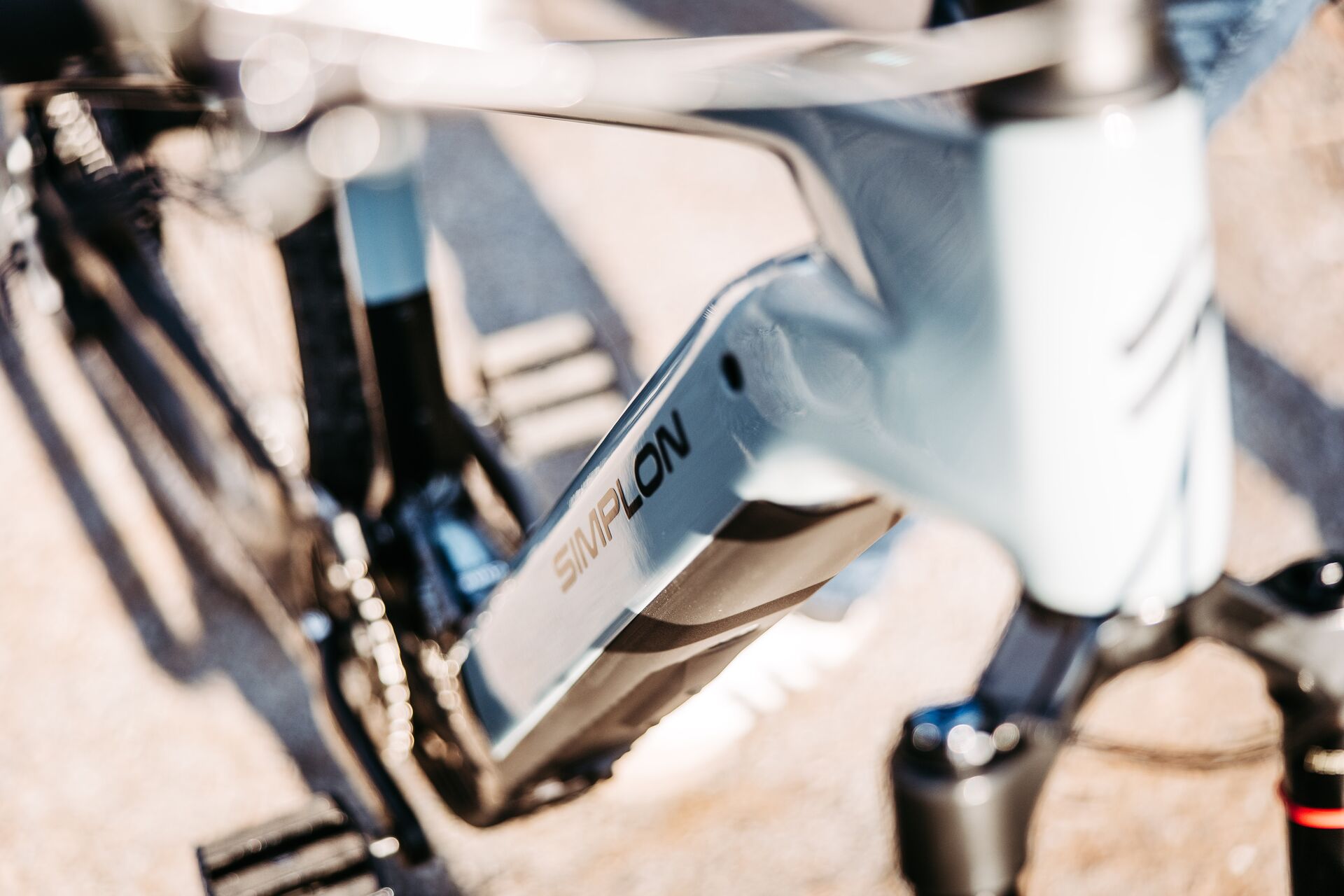

- Frame
- CURE :e, carbon
- Headset
- Acros AZX-298
- Fork
- Rockshox Recon Silver RL | 29" | Motion Control | 2pos.rem. | 120mm
E-system
- Battery
- Bosch Powertube 540
- Motor
- Bosch Performance Line PX BDU3470
- Display
- Bosch System Controller | mini remote
Drivetrain

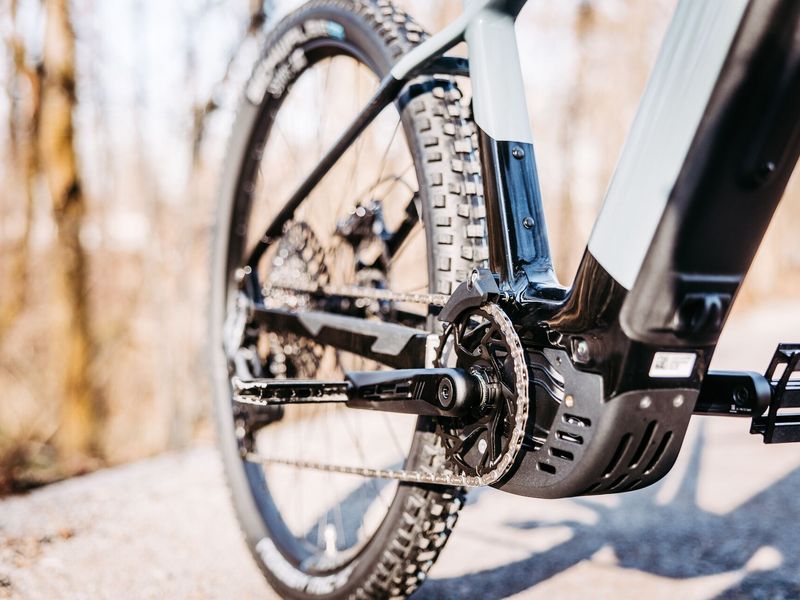

- Crankset
- FSA CK-745 alloy | 160mm
- Rear derailleur
- Sram Eagle 70 transmission | 1x12
Brakes

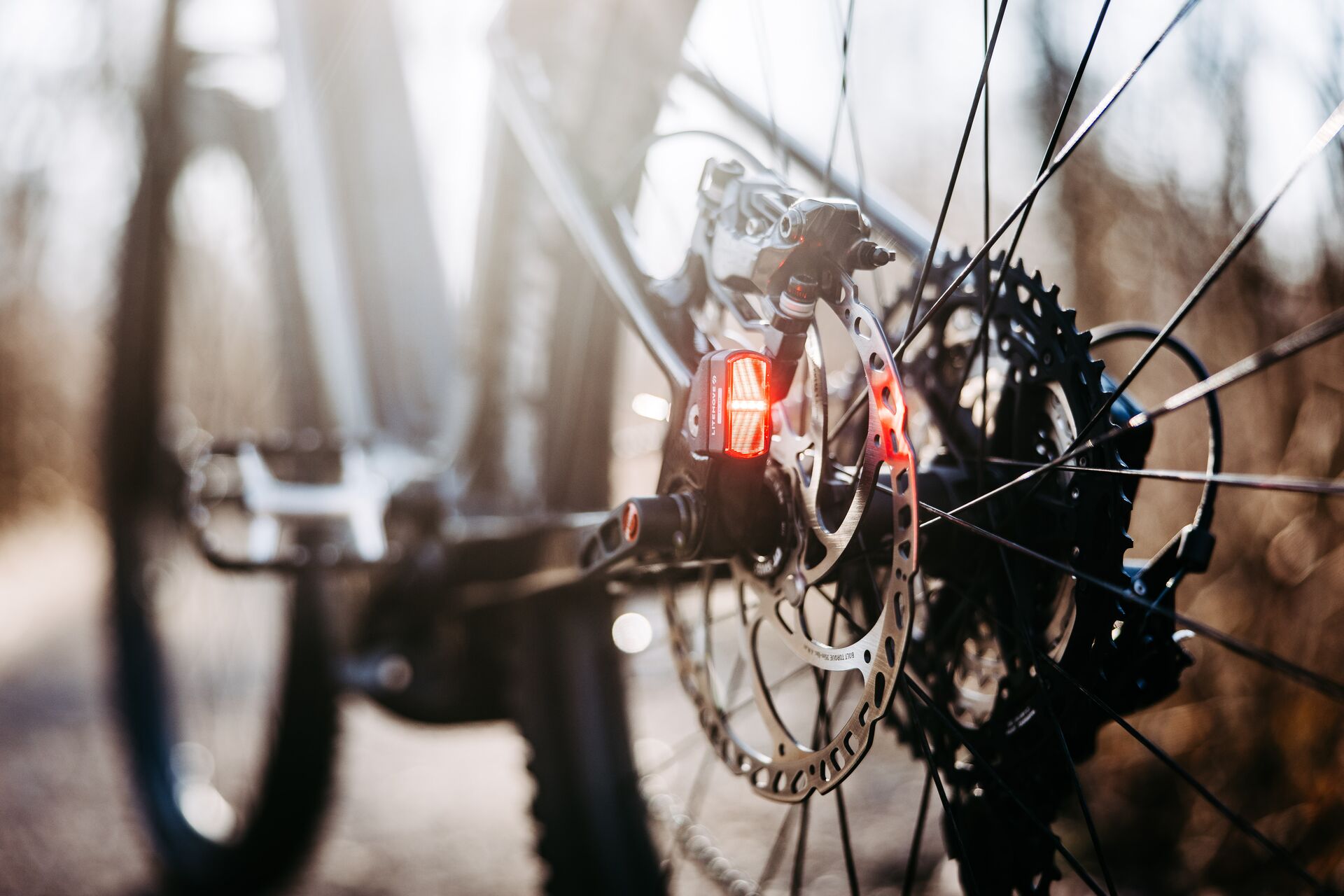

- Brakes
- Magura Louise Elite, 4/4 pistons, 203mm, 203mm
Wheels & tyres
- Tyres

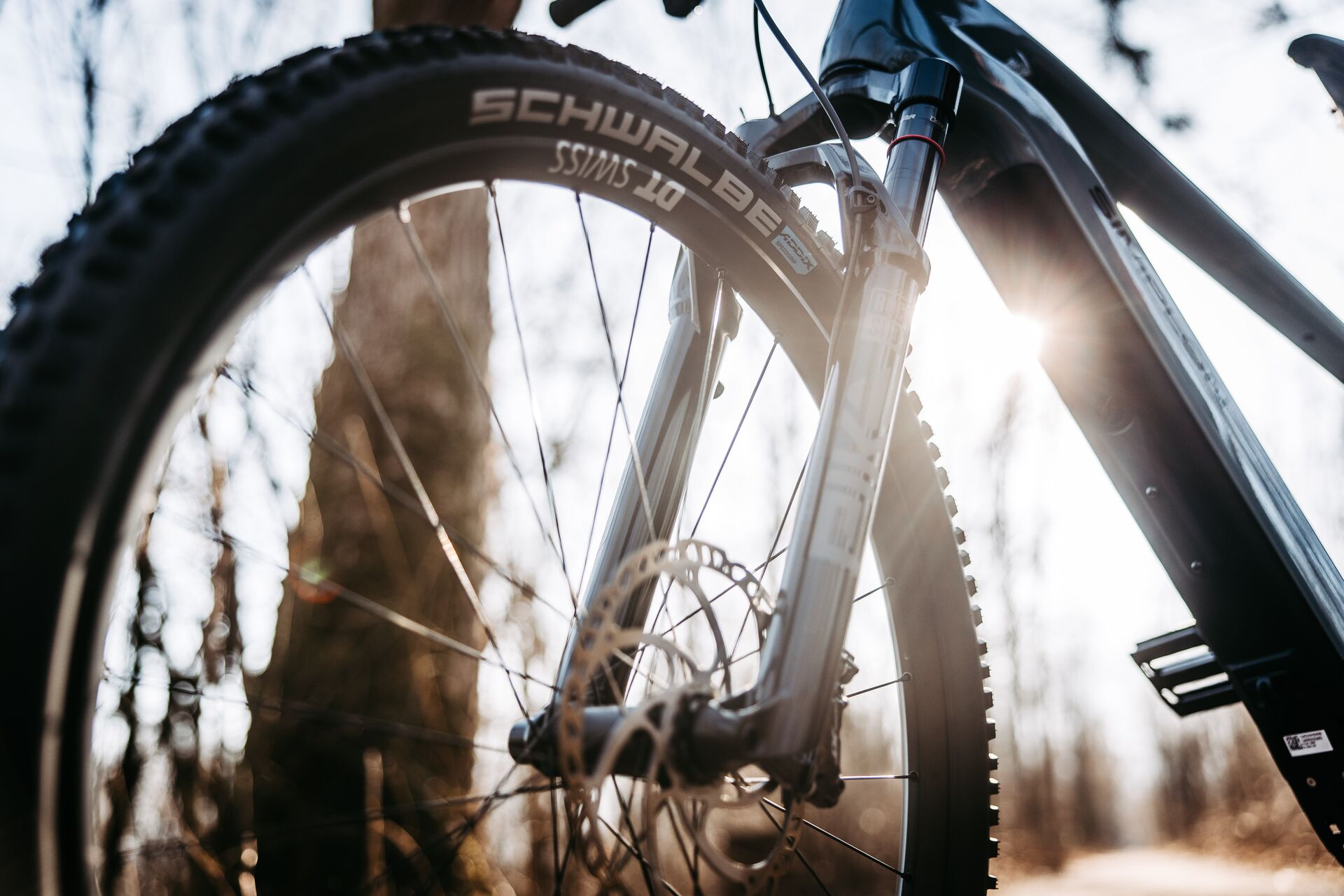

- Schwalbe, Nobby Nic, black, Speed grip, 62-622
- Wheelset
- DT Swiss | Hybrid LN | IW:30
Cockpit
- Stem
- Simplon Zero III 80mm x 12°
- Grips
- Ergon GE10 EVO
- Saddle
- Selle Italia X-BOW 145 boost | manganese rail
- Spacers
- 30mm spacer
- Seatpost
- Simplon Alu SP 31.6 x 400 mm

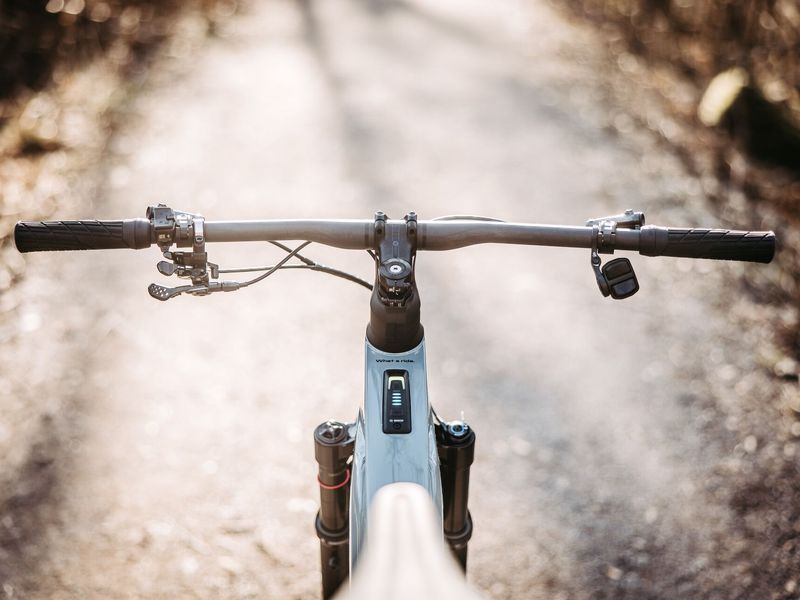

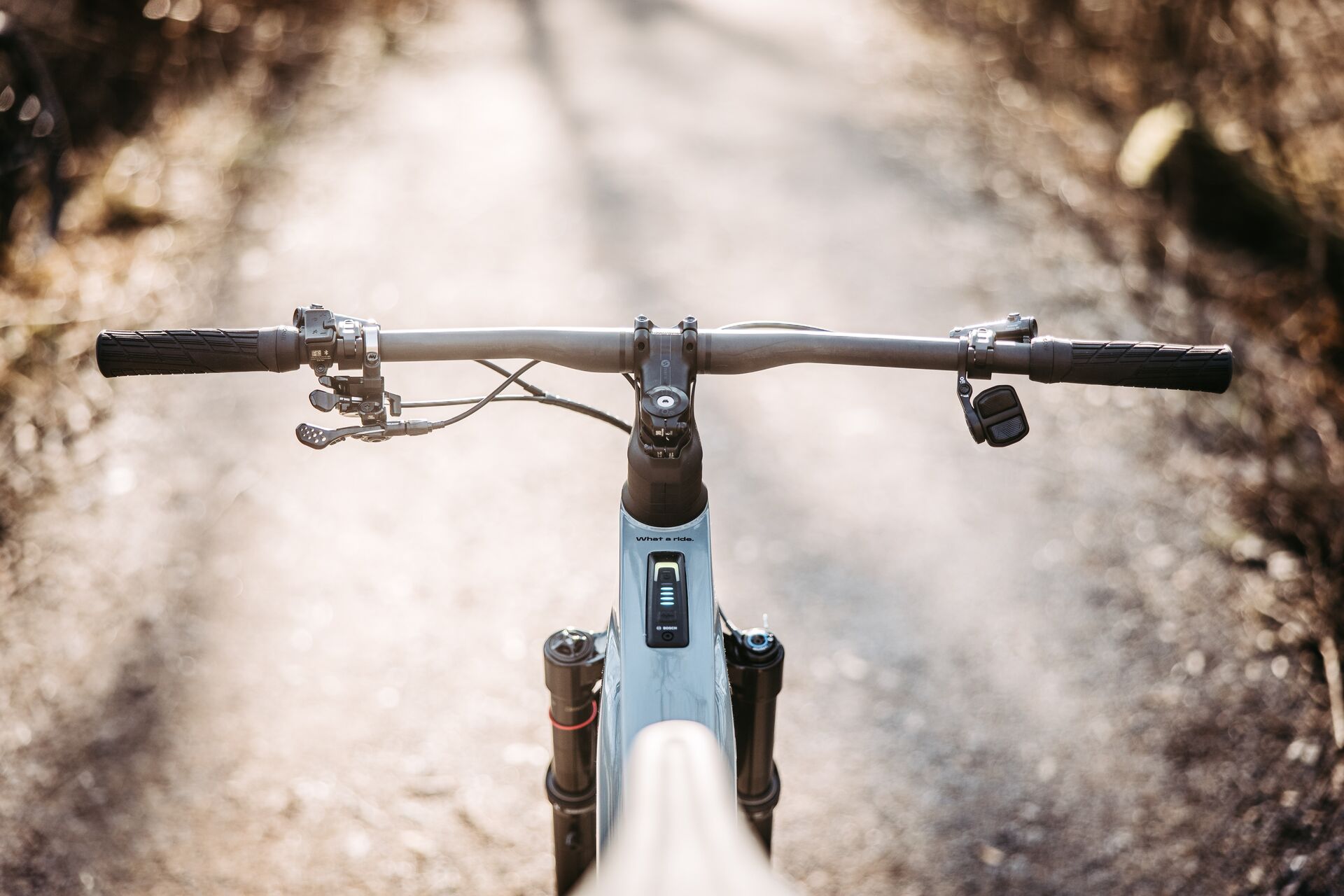

- Handlebar
- Simplon Flat BAR | AL | 760 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Cure :e geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 380 mm | 420 mm | 480 mm | 530 mm |
| BTop tube (horizontal) | 593 mm | 615 mm | 636 mm | 662 mm |
| CHead tube angle | 66° | 66.5° | 66.5° | 66.5° |
| DSeat tube angle (effective) | 74° | 74° | 74° | 74° |
| D1Seat tube angle (actual) | 74° | 74° | 74° | 74° |
| D2Saddle rail height (reference) | 665 mm | 705 mm | 750 mm | 795 mm |
| EHead tube length | 131 mm | 137 mm | 141 mm | 162 mm |
| FChainstay length | 465 mm | 465 mm | 465 mm | 465 mm |
| GWheelbase | 1182 mm | 1199 mm | 1221 mm | 1249 mm |
| HBottom bracket drop | 50 mm | 50 mm | 50 mm | 50 mm |
| IFork length | 531 mm | 531 mm | 531 mm | 531 mm |
| KFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStandover | 735 mm | 735 mm | 735 mm | 735 mm |
| RReach | 410 mm | 430 mm | 450 mm | 470 mm |
| SStack | 637 mm | 645 mm | 649 mm | 668 mm |
| STRStack to reach | 1.55 | 1.5 | 1.44 | 1.42 |
| HtRider height | 150-172 cm | 170-183 cm | 180-192 cm | 190-200 cm |
| ISInseam | 72-81 cm | 77-86 cm | 83-92 cm | 89-99 cm |
Source: Simplon. Rider height and inseam in cm. Head angle values are printed without unit on the site.
Cure :e: builds compared
Cure :e range →| Cure :e Core | Cure :e Core+ | Cure :e Expert | |
|---|---|---|---|
| Price | €4,699 | €5,339 | €6,839 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rockshox Recon Silver RL | 29" | Motion Control | 2pos.rem, | 120mm | Rockshox Recon Silver RL | 29" | Motion Control | 2pos.rem, | 120mm | Rock Shox Pike Select + | 29 | 3pos.rem, | 120mm |
| Derailleur | Sram Eagle 70 transmission | 1x12 | Sram Eagle 70 transmission | 1x12 | Shimano XT-12 Di2 |
| Brakes | Magura Louise Elite | Magura Louise Elite | Shimano BR-M8220 |
| Display | Bosch System Controller | mini remote | Bosch System Controller | mini remote | Bosch System Controller | mini remote |
| Weight | 20.7 kg | 21.6 kg | 20.6 kg |
Cure :e Core: FAQ
How much does the Simplon Cure :e Core cost?
€4,699 (RRP Germany (EUR), VAT incl.; Simplon Core Selection fixed price). The Cure :e range runs from €4,699 (Cure :e Core) to €6,839 (Cure :e Expert). Prices vary by country and dealer.
How much does the Simplon Cure :e Core weigh?
Simplon quotes 20.7 kg. The lightest Cure :e build is the Cure :e Expert at 20.6 kg.
What motor and battery does the Simplon Cure :e Core have?
Bosch Performance Line PX Gen5 (85 Nm (90 Nm via eBike Flow app)). 540 Wh battery — bosch PowerTube, removable; 250 Wh range extender optional.
How much suspension travel does the Simplon Cure :e Core have?
120 mm at the fork, on 29" wheels.
What sizes does the Simplon Cure :e Core come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Cure :e Core and the Cure :e Core+?
They share the Cure :e frame platform; the differences are in the parts — claimed weight: 20.7 kg vs 21.6 kg; price: €4,699 vs €5,339.
