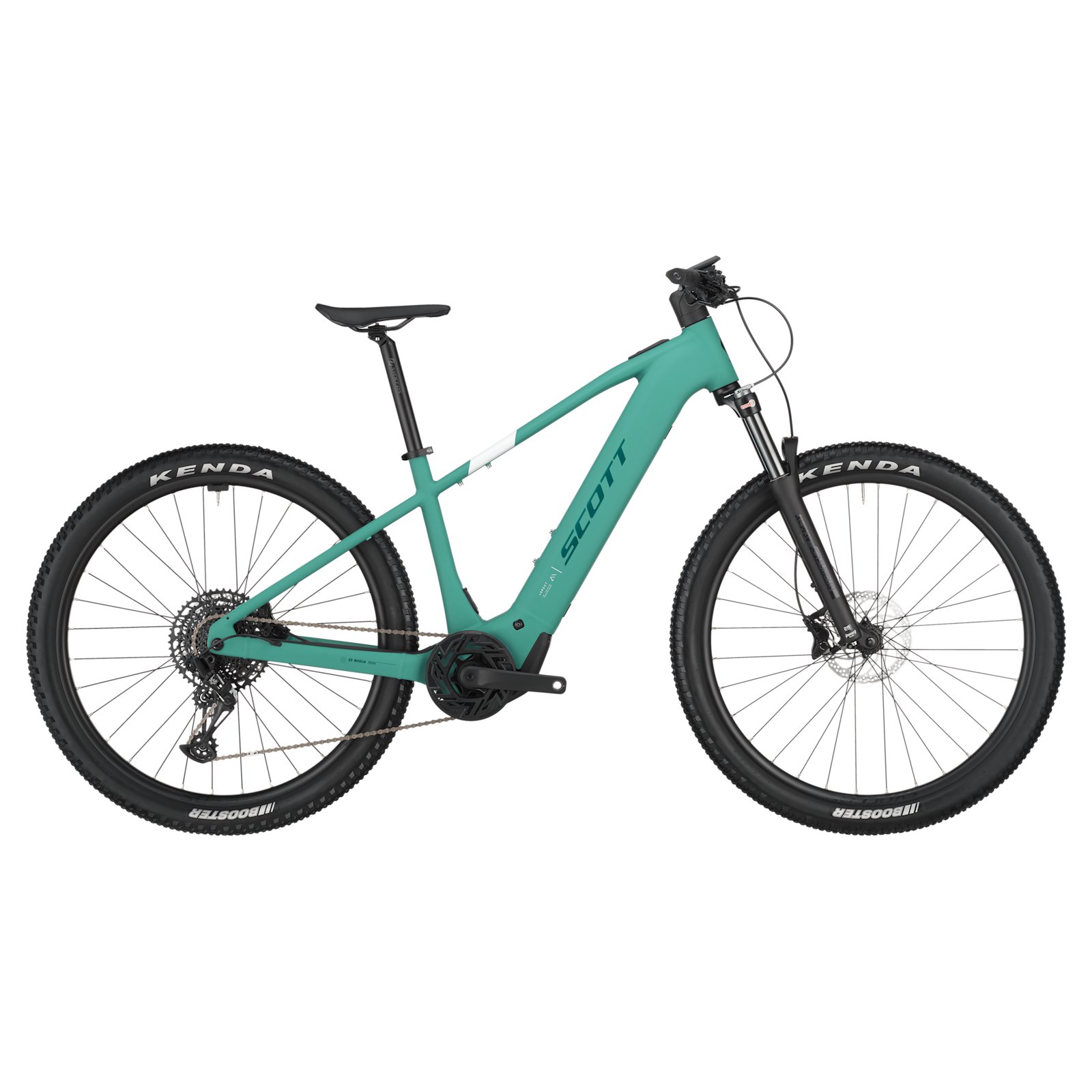

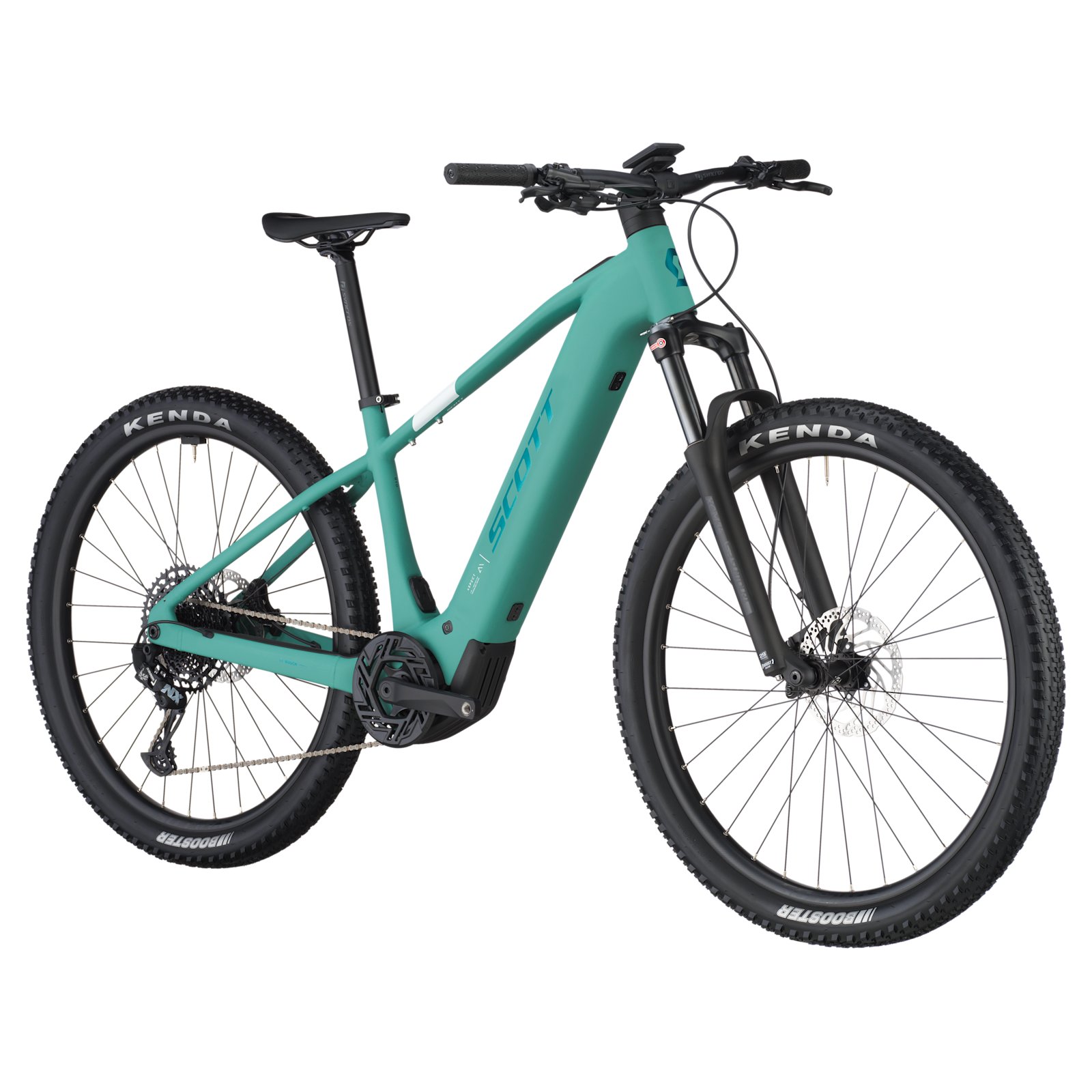

ScottAspect eRIDE 910
- Motor
- Bosch Performance Line CXUp to 100 Nm
- Battery
- 600 WhPowerTube
- Travel F / R
- 120 / – mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 25.8 kgManufacturer figure
Overview
The Scott Aspect eRIDE 910 (£3,499) is the only build of the Aspect eRIDE: Bosch Performance Line CX with 600 Wh, SR Suntour XCM34 RL Coil fork, SRAM NX Eagle and Shimano BR-MT420 brakes. Claimed weight is 25.8 kg.
The Aspect eRIDE is Scott's entry-level e-MTB hardtail: an aluminium frame with 29-inch wheels, a 120 mm coil fork and the Bosch Performance Line CX with a 600 Wh PowerTube.
- Aluminium hardtail
- 120 mm coil fork
- Bosch CX, 600 Wh
- Lights pre-wired
Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Alloy XS-XL=29", 6061 Alloy custom butted tubing; Side extraction battery; UDH Interface, 12x148mm with 52mm Chainline
- Travel
- 120mm
- Fork
- SR Suntour XCM34 RL Coil, Tapered 120mm Travel, 15x110 bolt Axle, Remote Lock Out
- Remote
- SR Suntour Remote
E-system
- Motor
- Bosch Performance Line CX (BDU384Y); EU: 25kmh
- Battery
- PowerTube 600Wh
- Display
- Bosch System Controller; Intuvia 100; Mini Remote
- Charger
- 2A Charger
- Lights
- Bosch Light Cable pre-installed F&R
Drivetrain
- Rear derailleur
- SRAM NX Eagle, 12 Speed
- Shifters
- SRAM SX Eagle Single Click Trigger
- Crankset
- FSA CK-220; 165mm
- Chainring
- SRAM CR T-Type 36T DM w/Chain Guard
- Chain
- SRAM SX Eagle
- Cassette
- SRAM PG1210, 11-50
Brakes
- Brakes
- Shimano BR-MT420 Disc Brakes
- Rotor
- Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula CL-148S, 148x12mm
- Spokes
- Stainless Black
- Rims
- Cross X19, 32H, 30mm, Pin Joint
- Front tyre
- Kenda Booster 29x2.6", 30TPI
- Rear tyre
- Kenda Booster 29x2.6", 30TPI
Cockpit
- Handlebar
- Syncros 3.0 720mm, 31.8mm, 9°, 12mm rise; Syncros Comfort lock-on grips
- Stem
- Syncros AM2.0, 6061 Alloy; 31.8mm, 0°
- Seatpost
- Syncros M3.0, 31.6mm; 350mm
- Saddle
- Syncros Tofino E 2.0
- Headset
- Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm
Other
- Max system weight
- 130kg
- Weight
- 25.8 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Aspect eRIDE geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| AHead tube angle | 66° | 66° | 67° | 67° | 67° |
| BHead tube length | 130 mm | 130 mm | 130 mm | 140 mm | 150 mm |
| CTop tube horizontal | 580 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| DStandover height | 776.1 mm | 791.2 mm | 792.3 mm | 829.6 mm | 864.4 mm |
| EBB offset | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| FBB height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| GWheel base | 1213.1 mm | 1213.1 mm | 1221.1 mm | 1242.7 mm | 1264.3 mm |
| IBB center to top of seattube | 370 mm | 400 mm | 440 mm | 490 mm | 540 mm |
| JSeat angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
| KChainstay | 482 mm | 482 mm | 482 mm | 482 mm | 482 mm |
| LReach | 412.2 mm | 412.2 mm | 430.8 mm | 448.5 mm | 466.2 mm |
| MStack | 663 mm | 663 mm | 668.6 mm | 677.8 mm | 687 mm |
| NStem length | 50 mm | 50 mm | 50 mm | 60 mm | 60 mm |
| OTrail | 112.5 mm | 112.5 mm | 105 mm | 105 mm | 105 mm |
Source: Scott.
Aspect eRIDE 910: FAQ
How much does the Scott Aspect eRIDE 910 cost?
£3,499 (UK RRP, VAT incl.). Prices vary by country and dealer.
How much does the Scott Aspect eRIDE 910 weigh?
Scott quotes 25.8 kg.
What motor and battery does the Scott Aspect eRIDE 910 have?
Bosch Performance Line CX (Up to 100 Nm). 600 Wh battery — powerTube.
How much suspension travel does the Scott Aspect eRIDE 910 have?
120 mm at the fork, on 29" wheels.
What sizes does the Scott Aspect eRIDE 910 come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
