LapierreOvervolt TR 7.8
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 140 / – mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Lapierre Overvolt TR 7.8 (€5,699) is the top build of the Overvolt TR: Bosch Performance Line CX with 800 Wh, Rockshox Psylo Gold Isolator RC fork, Lapierre Shock 185x50 mm shock, Shimano Deore RD-M6260-12s and Shimano Deore BR-MT420 brakes.
The Overvolt TR is Lapierre's aluminium full-suspension trail e-MTB, with 29-inch wheels, a 140 mm RockShox Psylo fork and a 185x50 mm trunnion shock.
All builds use the Bosch Performance Line CX motor. The 7.8 and 6.8 come with an 800 Wh PowerTube and the 4.6 with 600 Wh. Drivetrains are Shimano Deore 12-speed on the 7.8 and Shimano CUES on the 6.8 and 4.6.
- Aluminium trail full-suspension
- 140 mm fork, 29-inch wheels
- Bosch Performance Line CX
- 800 or 600 Wh battery

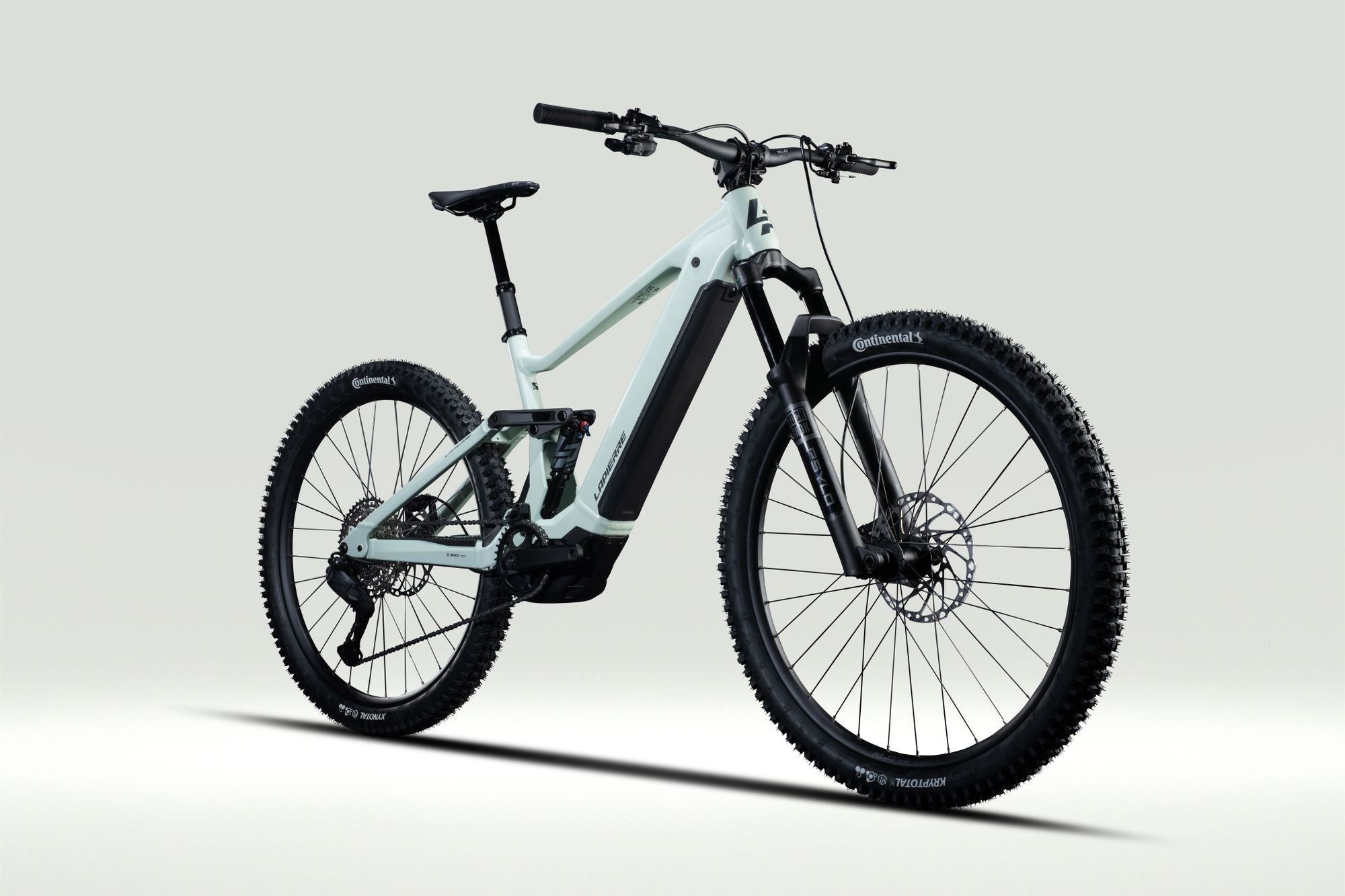

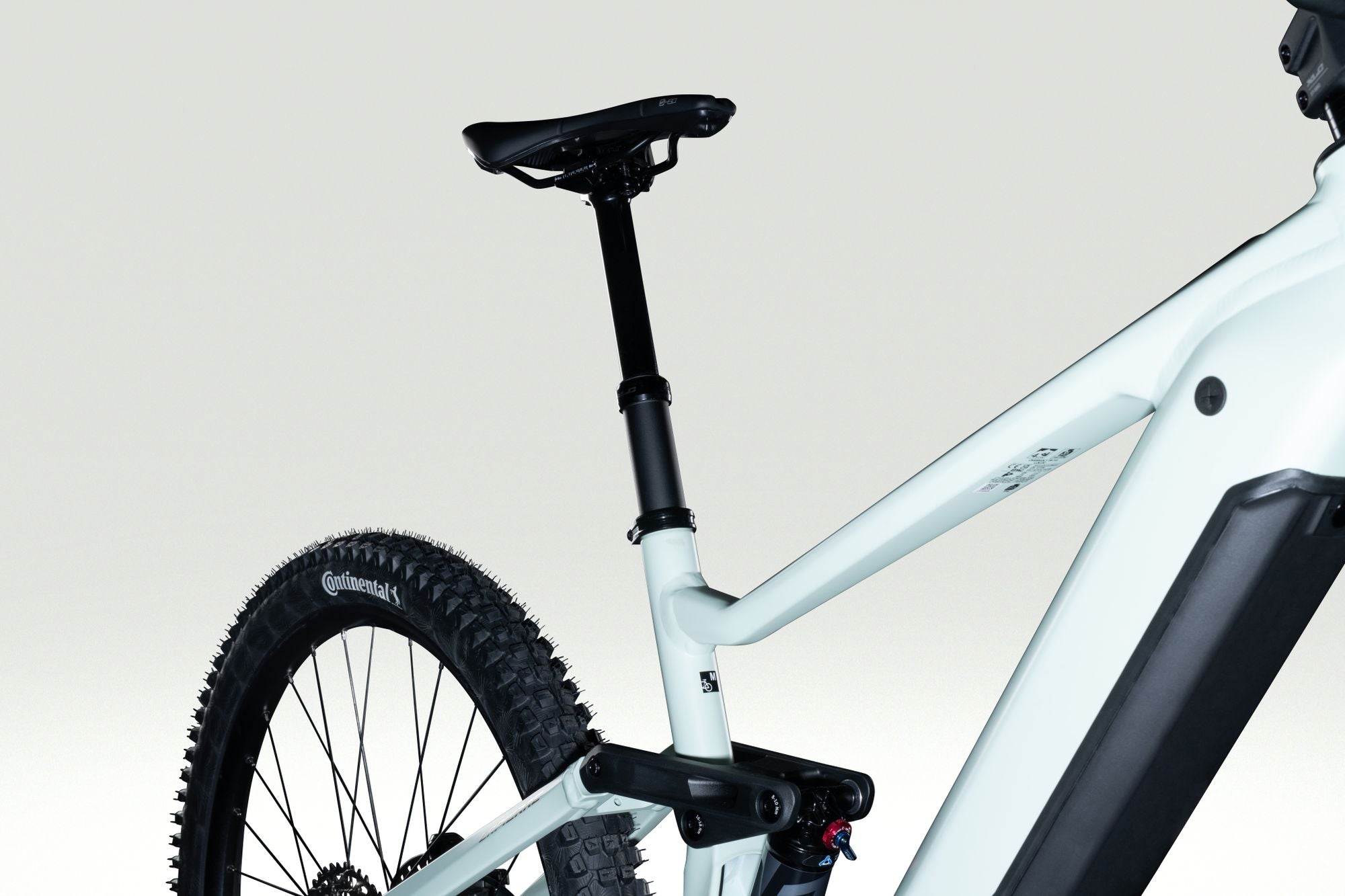

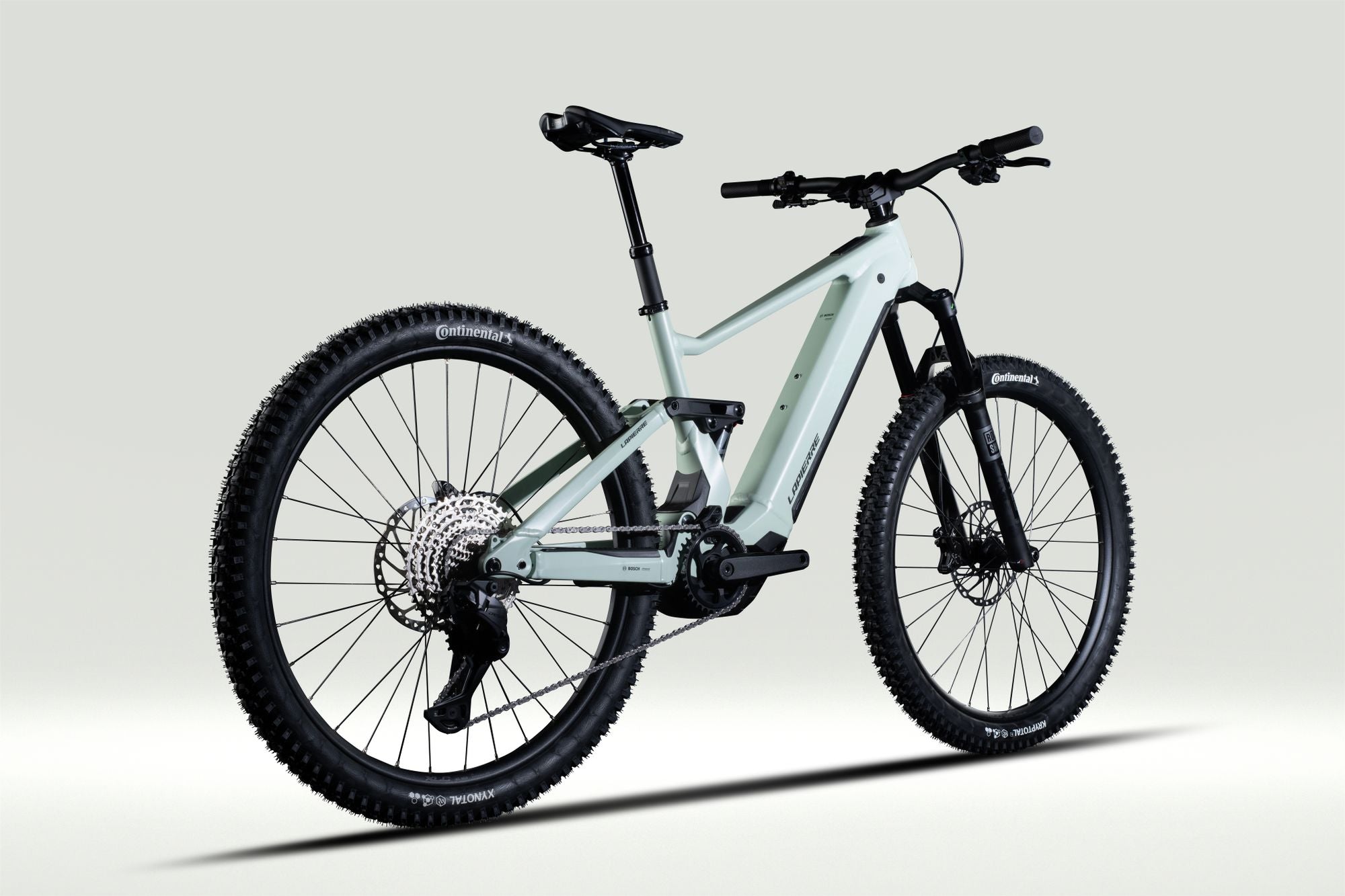

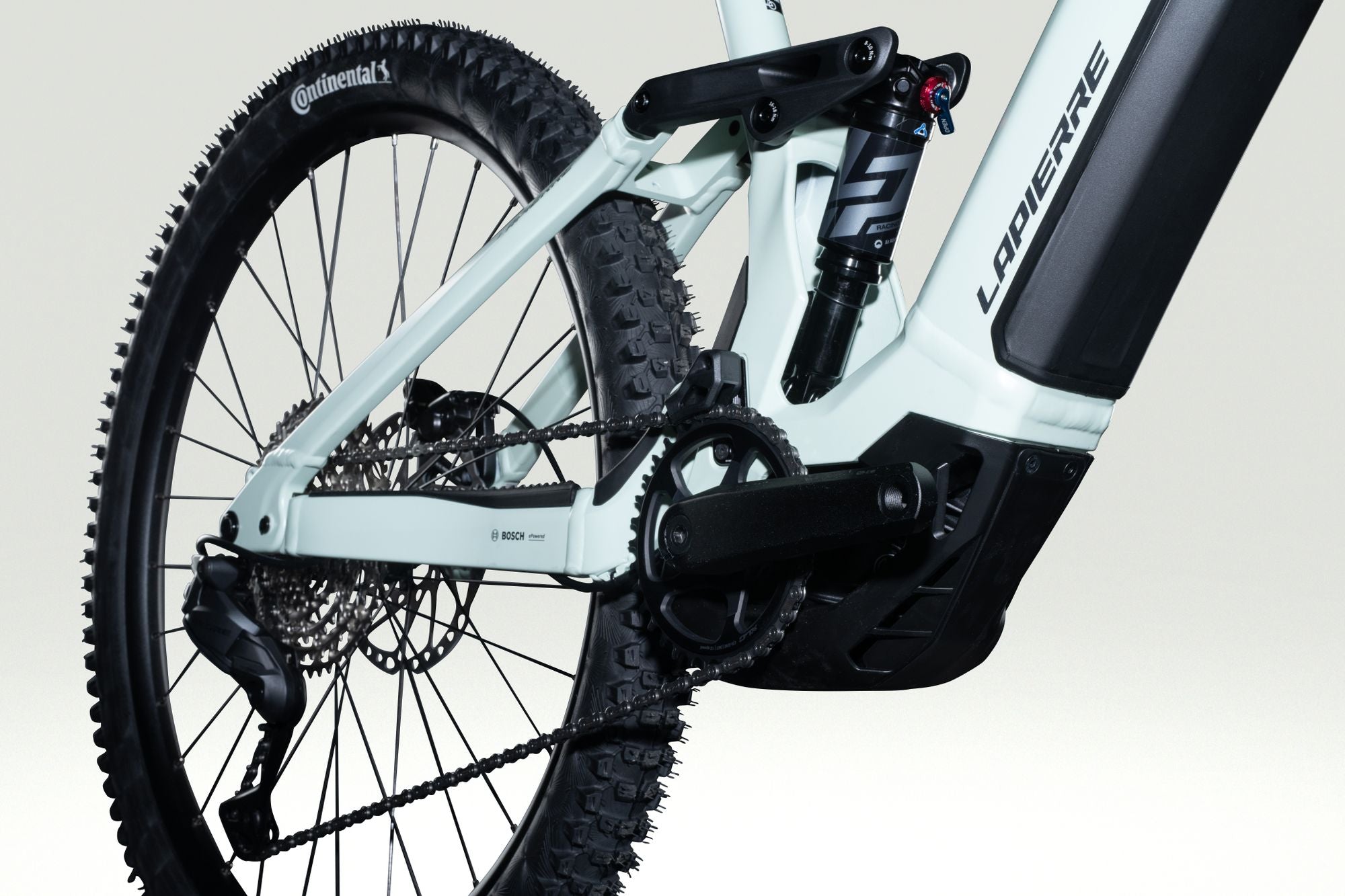

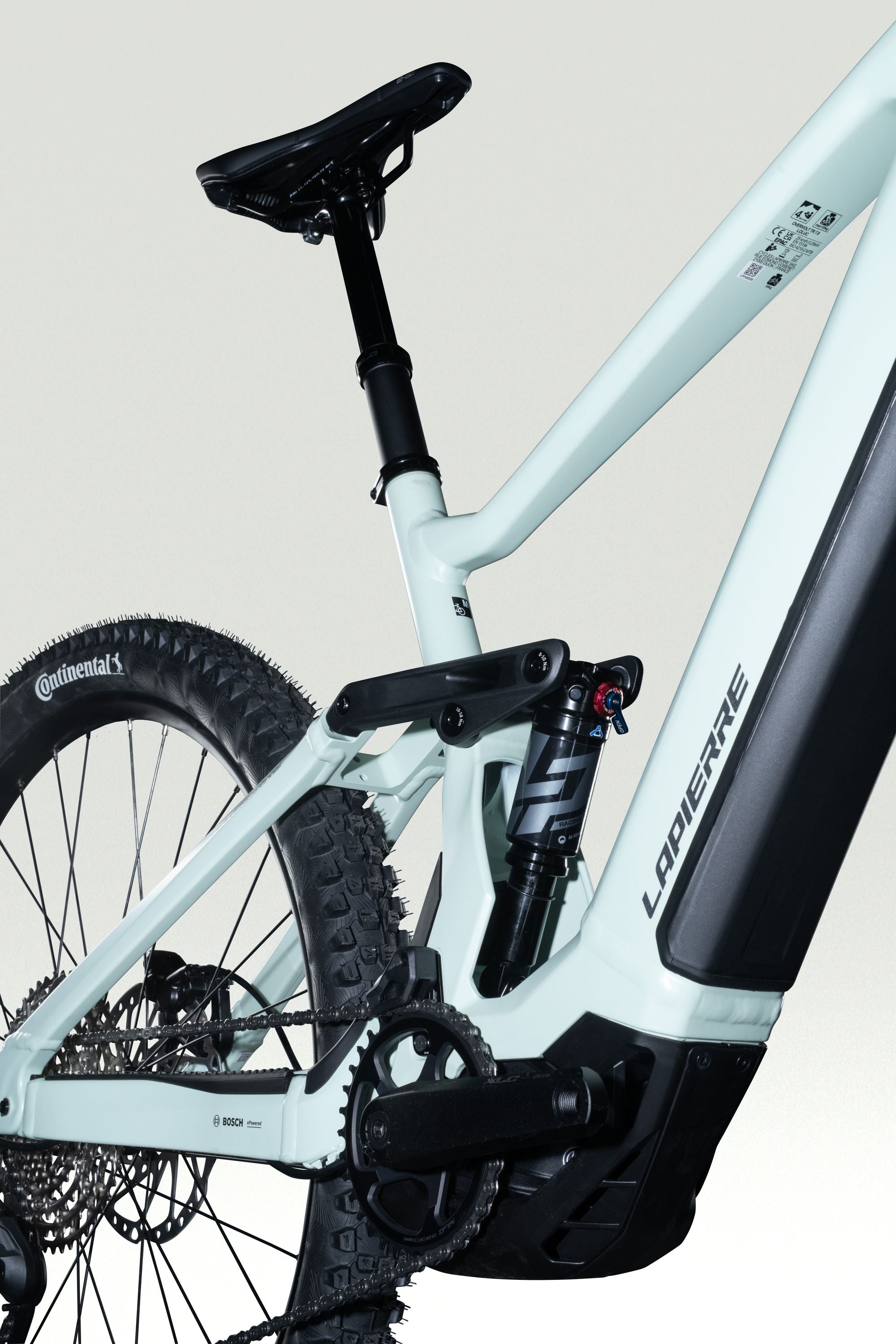

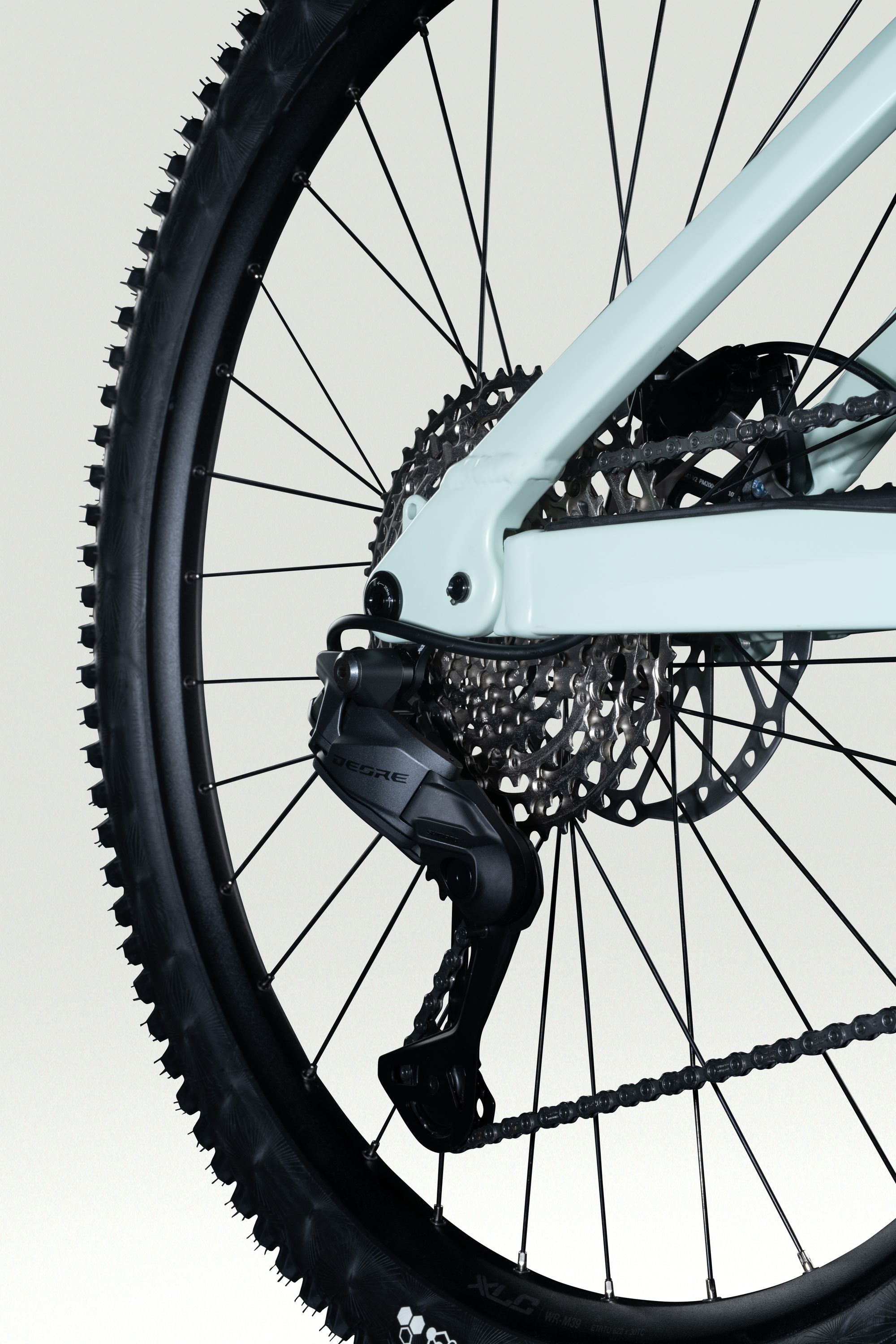

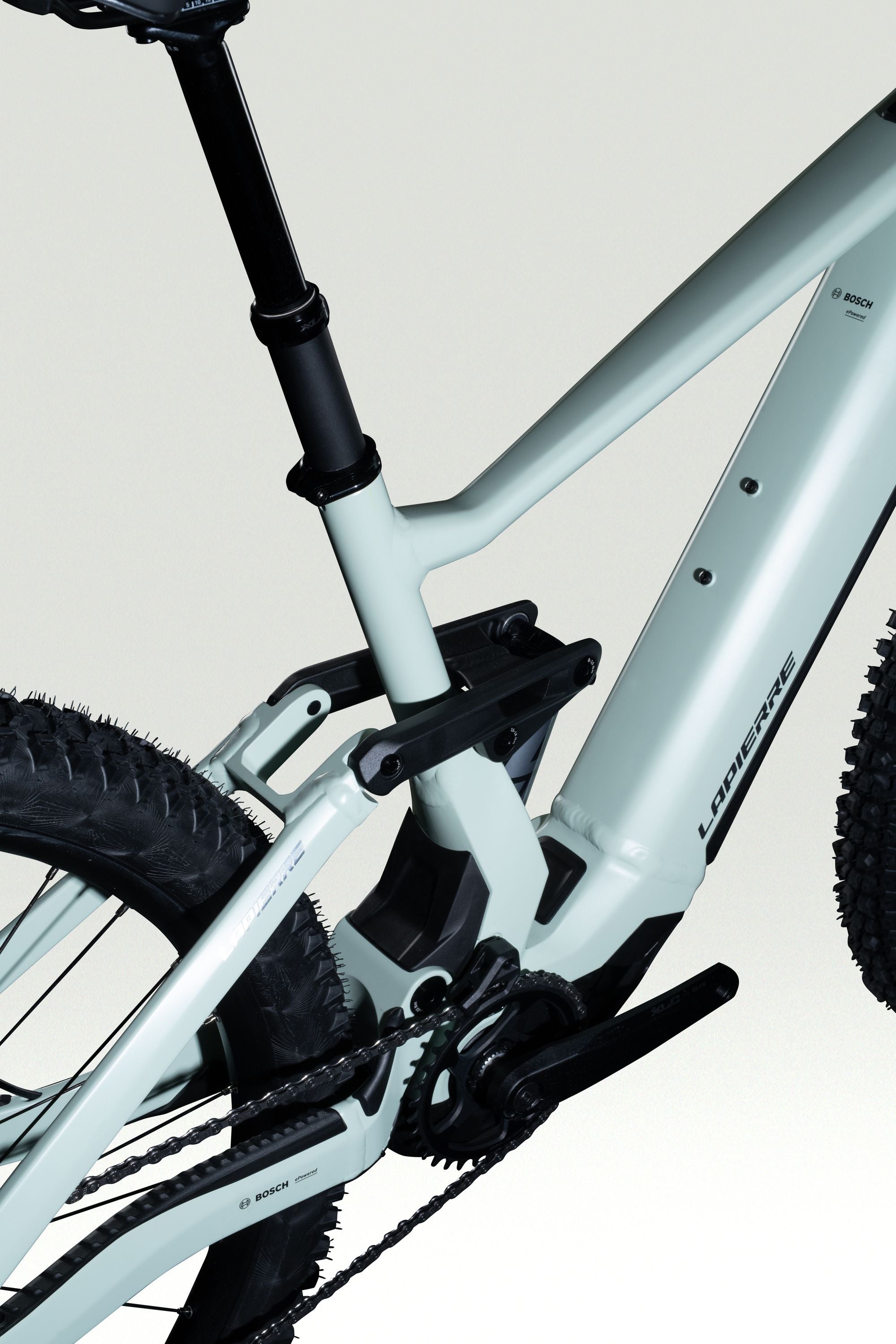

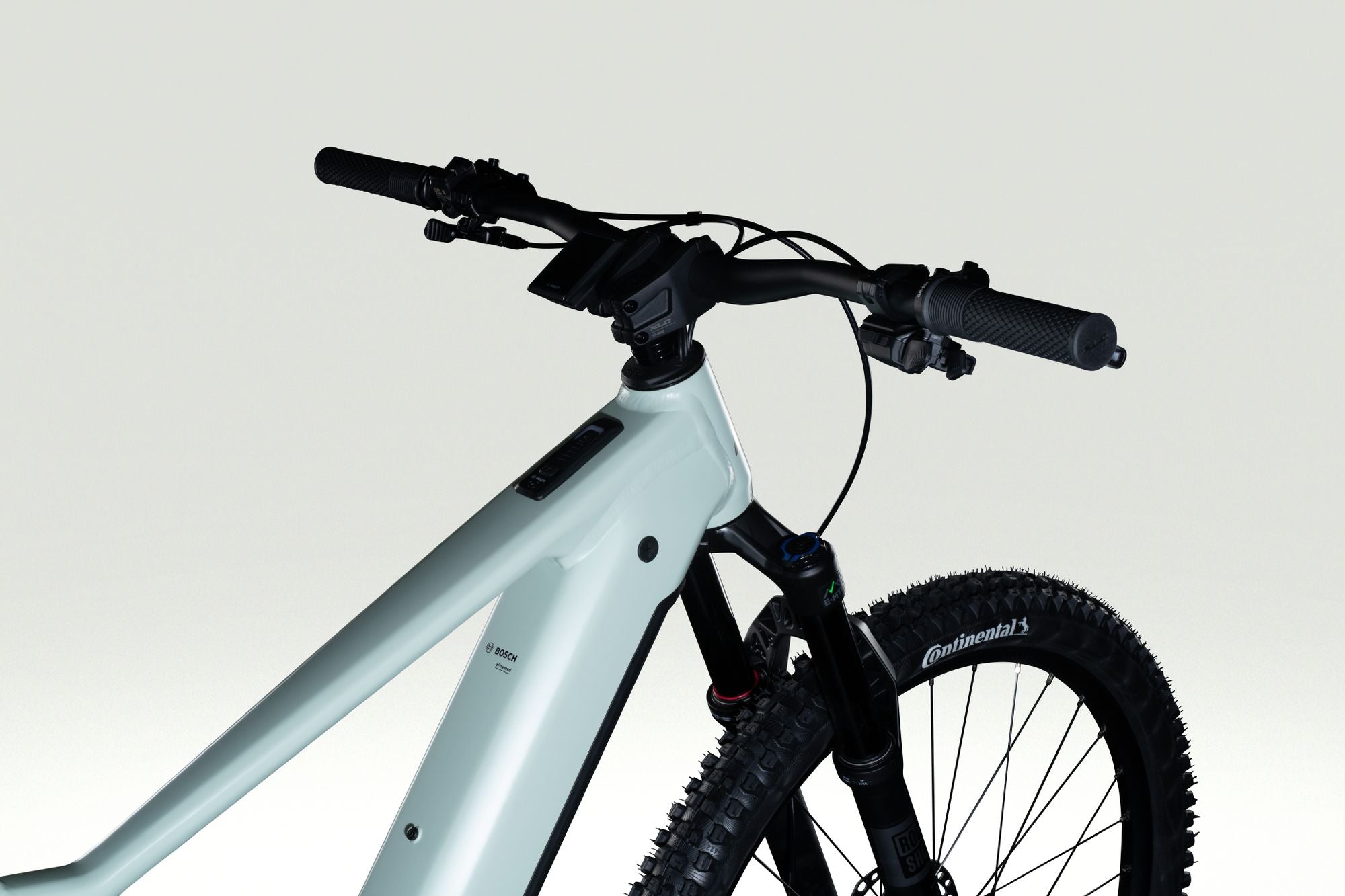

Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Uni
- Max system weight
- 120 kg
- Fork
- Rockshox Psylo Gold Isolator RC, Crown Adj, 140 mm
- Rear shock
- Lapierre Shock 185x50 mm, Trunnion
E-system
- Battery
- Bosch Powertube 800 Wh
- Charger
- Bosch Charger 4A, 230V
- Display
- Bosch Kiox 300 + Mini Remote
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Shimano Deore CS-M6100-12, MICRO SPLINE
- Chain
- Shimano CN-M6100 12s
- Crankset
- CR-E18 Cranks 160 mm + Chainring E40
- Rear derailleur
- Shimano Deore RD-M6260-12s, Shadow
- Number of gears
- 12
- Shifter
- Shimano Triggershift Deore SW-M6250-IR, wireless SL
Brakes
- Front Brake
- Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Rims
- XLC WR-M39 Disc 30/622, 32H, 6,5 mm Valve
- Tyres
- Continental Kryptotal-F Enduro Soft foldable skin SL 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- XLC Flat bar HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
- Pedals
- XLC PD-M29 Flat w. Reflector
- Saddle
- Prologo MTB Proxim W450 Steel
- Seatpost
- XLC Dropperpost SP-T21, Dia. 31.6 mm, Travel: 125 mm 416 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt TR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 581 mm | 604 mm | 628 mm | 658 mm |
| CHead tube length | 110 mm | 120 mm | 140 mm | 160 mm |
| DHead Tube Angle | 65.5° | 66° | 66° | 66° |
| ESeat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| FChain stay length | 460 mm | 460 mm | 460 mm | 460 mm |
| GWheelbase | 1211 mm | 1230 mm | 1258 mm | 1292 mm |
| HStack | 597 mm | 609 mm | 627 mm | 646 mm |
| IReach | 438 mm | 458 mm | 477 mm | 503 mm |
| KBottom bracket drop | 15 mm | 15 mm | 15 mm | 15 mm |
Source: Lapierre.
Overvolt TR: builds compared
Overvolt TR range →| Overvolt TR 4.6 | Overvolt TR 6.8 | Overvolt TR 7.8 | |
|---|---|---|---|
| Price | €4,499 | €4,999 | €5,699 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver R 15x110 29 140 mm | Rockshox Psylo Silver RC 15x110 29 140 mm | Rockshox Psylo Gold Isolator RC, Crown Adj |
| Shock | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm |
| Derailleur | Shimano CUES U6000 10/11s Shadow+ | Shimano CUES U6000 10/11s Shadow+ | Shimano Deore RD-M6260-12s |
| Brakes | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake Deore BR-MT420 |
| Wheels | Ryde Disc30 32H, 30-622 Black Anodized | Ryde Disc30 32H, 30-622 Black Anodized | XLC WR-M39 Disc 30/622, 32H |
| Display | Bosch Kiox 300 | Bosch Kiox 300 | Bosch Kiox 300 + Mini Remote |
Overvolt TR 7.8: FAQ
How much does the Lapierre Overvolt TR 7.8 cost?
€5,699 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt TR range runs from €4,499 (Overvolt TR 4.6) to €5,699 (Overvolt TR 7.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt TR 7.8 have?
Bosch Performance Line CX (100 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Lapierre Overvolt TR 7.8 have?
140 mm at the fork, on 29" wheels.
What sizes does the Lapierre Overvolt TR 7.8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt TR 7.8 and the Overvolt TR 6.8?
They share the Overvolt TR frame platform and motor; the differences are in the parts — fork: Rockshox Psylo Gold Isolator RC vs Rockshox Psylo Silver RC 15x110 29 140 mm; shock: Lapierre Shock 185x50 mm vs Lapierre Shock 185x50 mm Trunnion/15x8 mm; derailleur: Shimano Deore RD-M6260-12s vs Shimano CUES U6000 10/11s Shadow+; brakes: Shimano Hydraulic Disc brake Deore BR-MT420 vs Shimano Hydraulic Disc brake M4100 4 pistons; price: €5,699 vs €4,999.
