LapierreOvervolt TR 4.6
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 600 WhBosch PowerTube (horizontal)
- Travel F / R
- 140 / – mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Lapierre Overvolt TR 4.6 (€4,499) is the entry build of the Overvolt TR: Bosch Performance Line CX with 600 Wh, Rockshox Psylo Silver R 15x110 29 140 mm fork, Lapierre Shock 185x50 mm Trunnion/15x8 mm shock, Shimano CUES U6000 10/11s Shadow+ and Shimano M4100 4 pistons brakes.
The Overvolt TR is Lapierre's aluminium full-suspension trail e-MTB, with 29-inch wheels, a 140 mm RockShox Psylo fork and a 185x50 mm trunnion shock.
All builds use the Bosch Performance Line CX motor. The 7.8 and 6.8 come with an 800 Wh PowerTube and the 4.6 with 600 Wh. Drivetrains are Shimano Deore 12-speed on the 7.8 and Shimano CUES on the 6.8 and 4.6.
- Aluminium trail full-suspension
- 140 mm fork, 29-inch wheels
- Bosch Performance Line CX
- 800 or 600 Wh battery

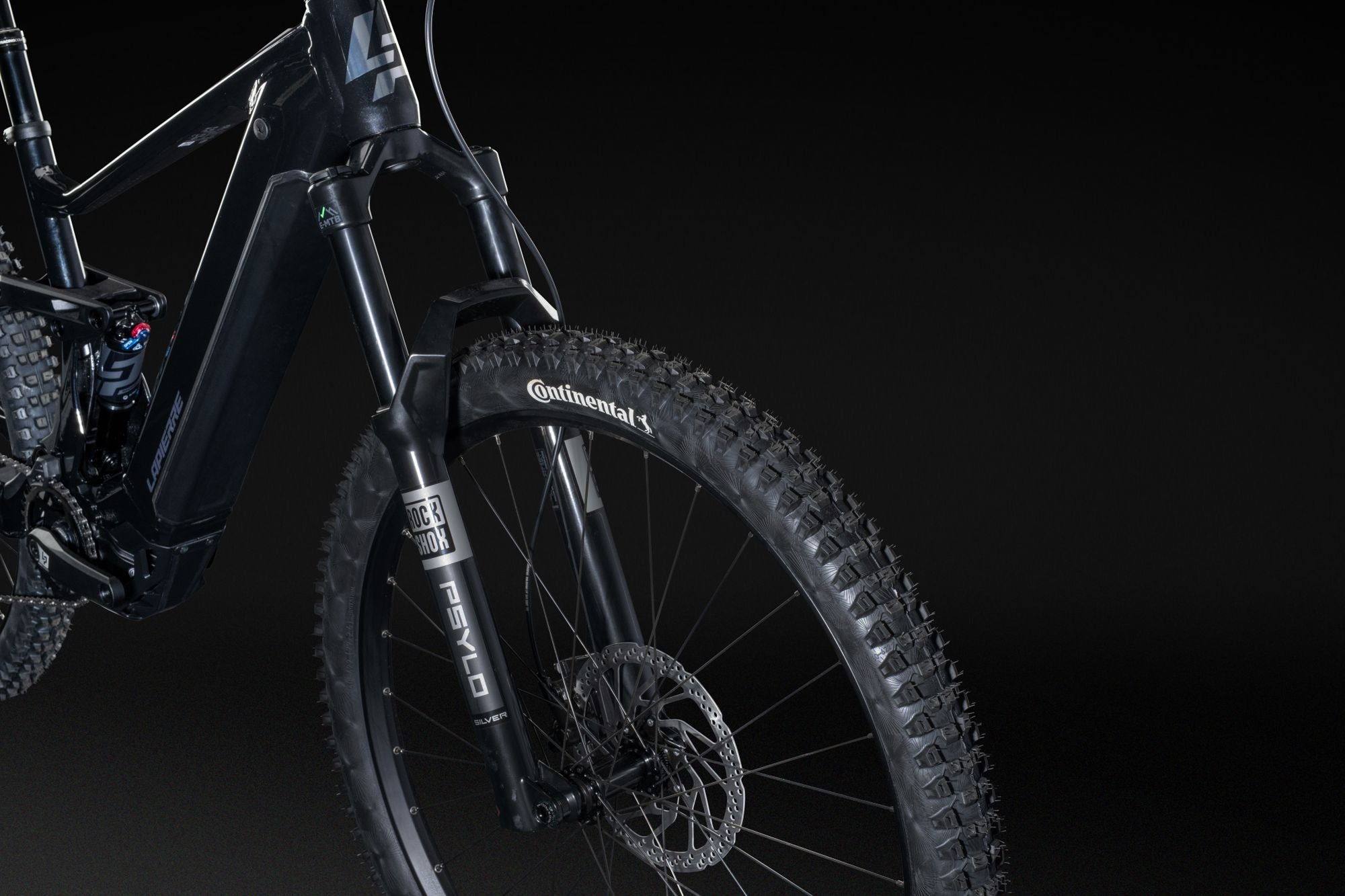

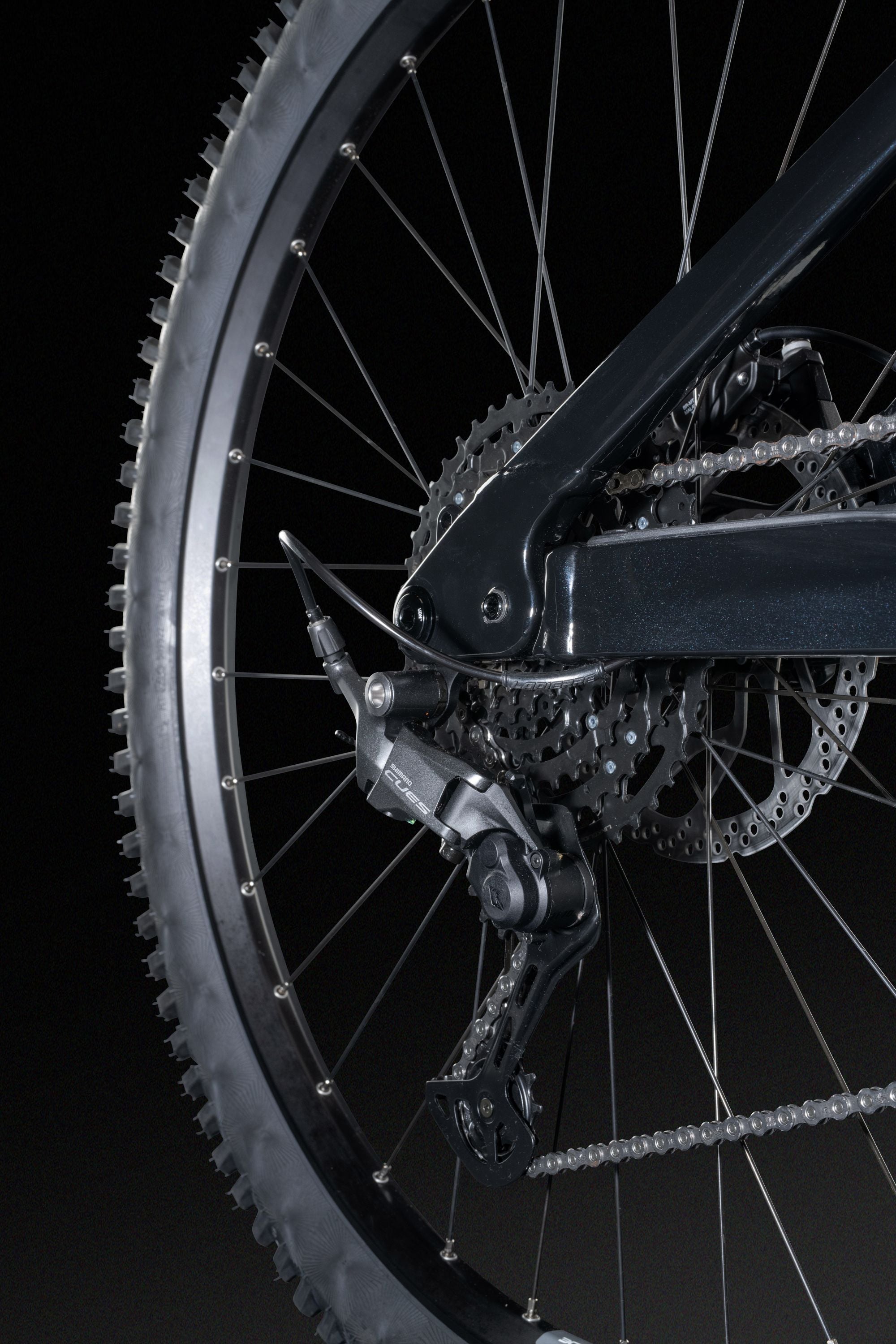

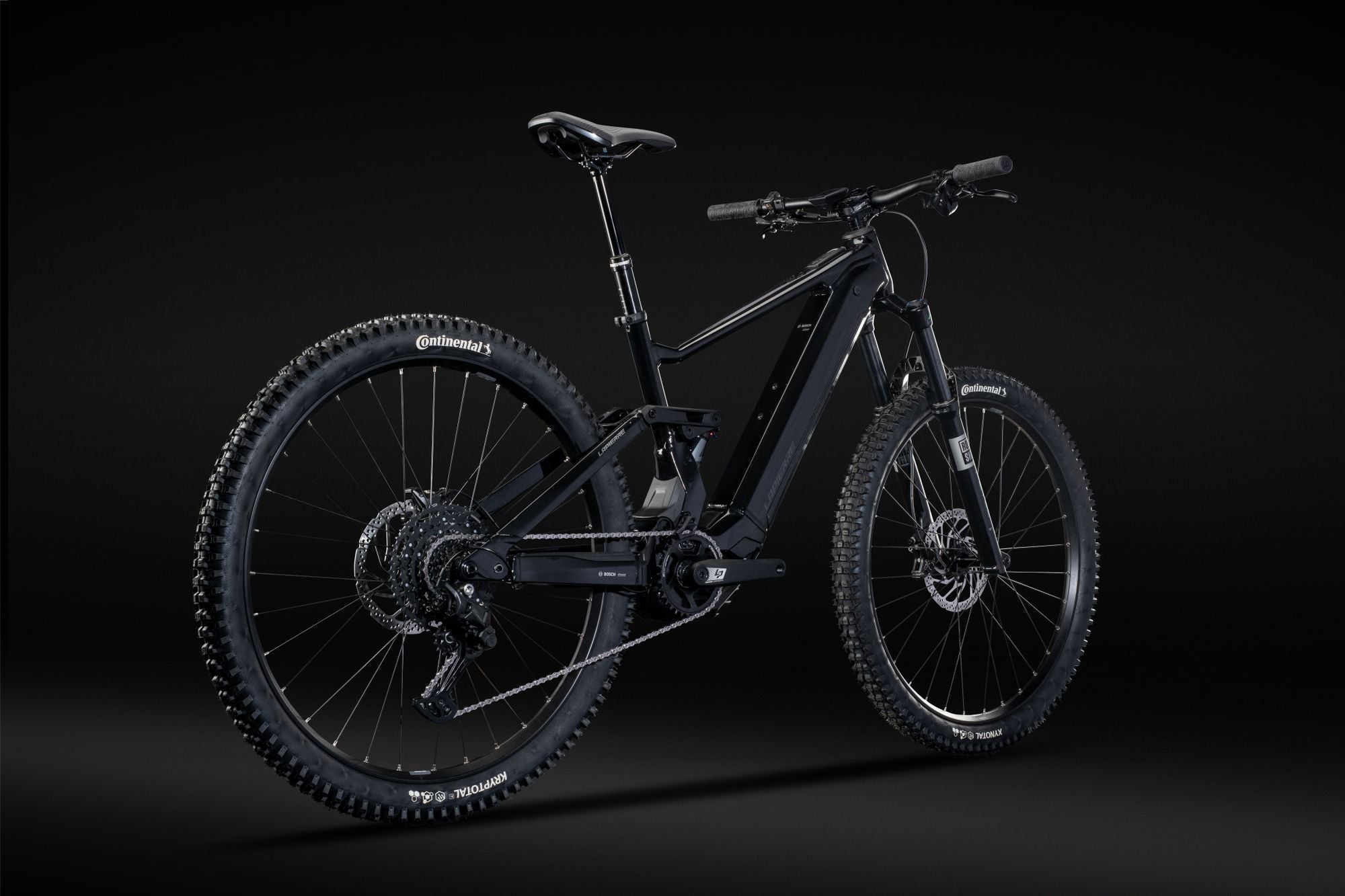

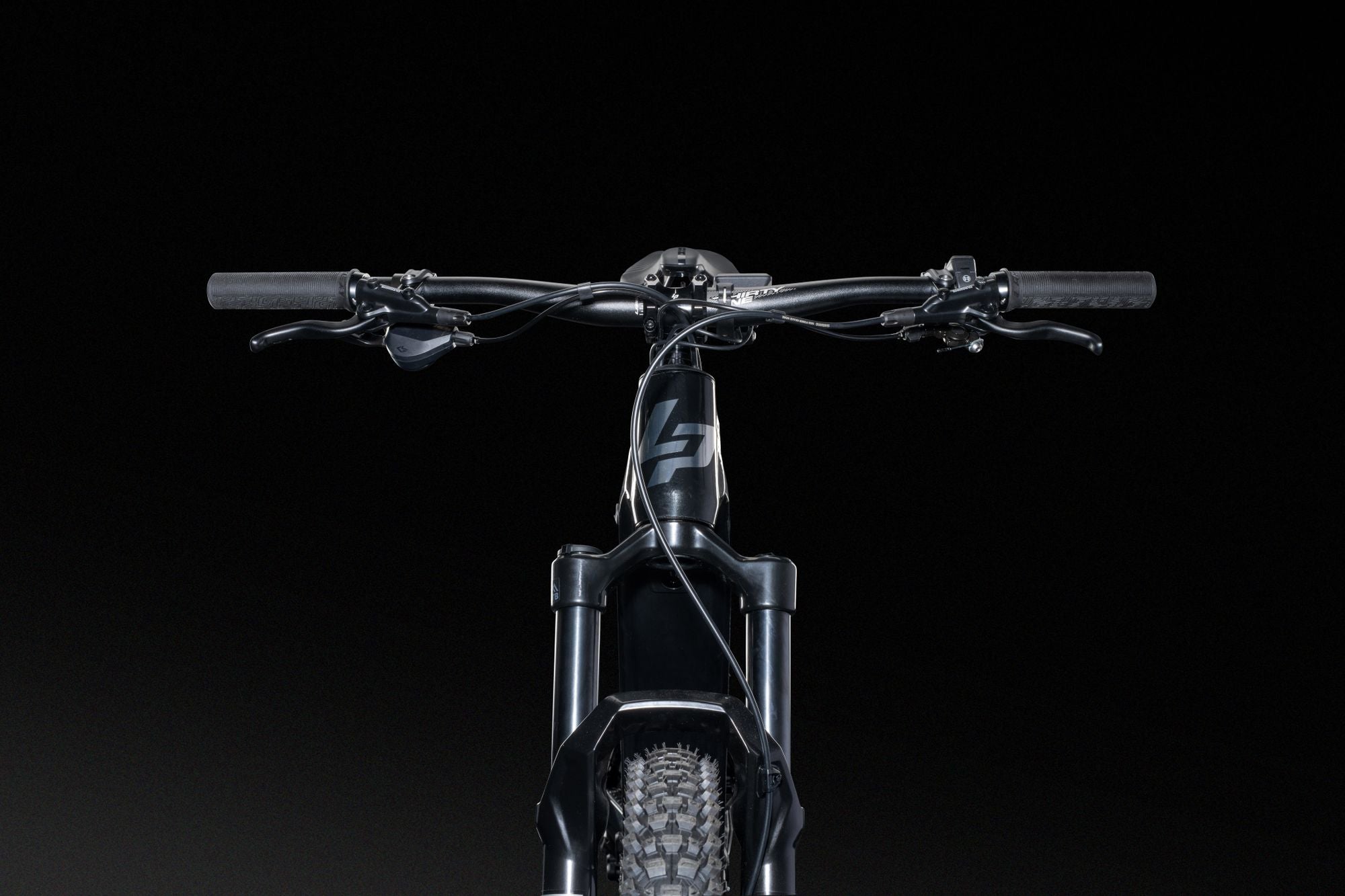

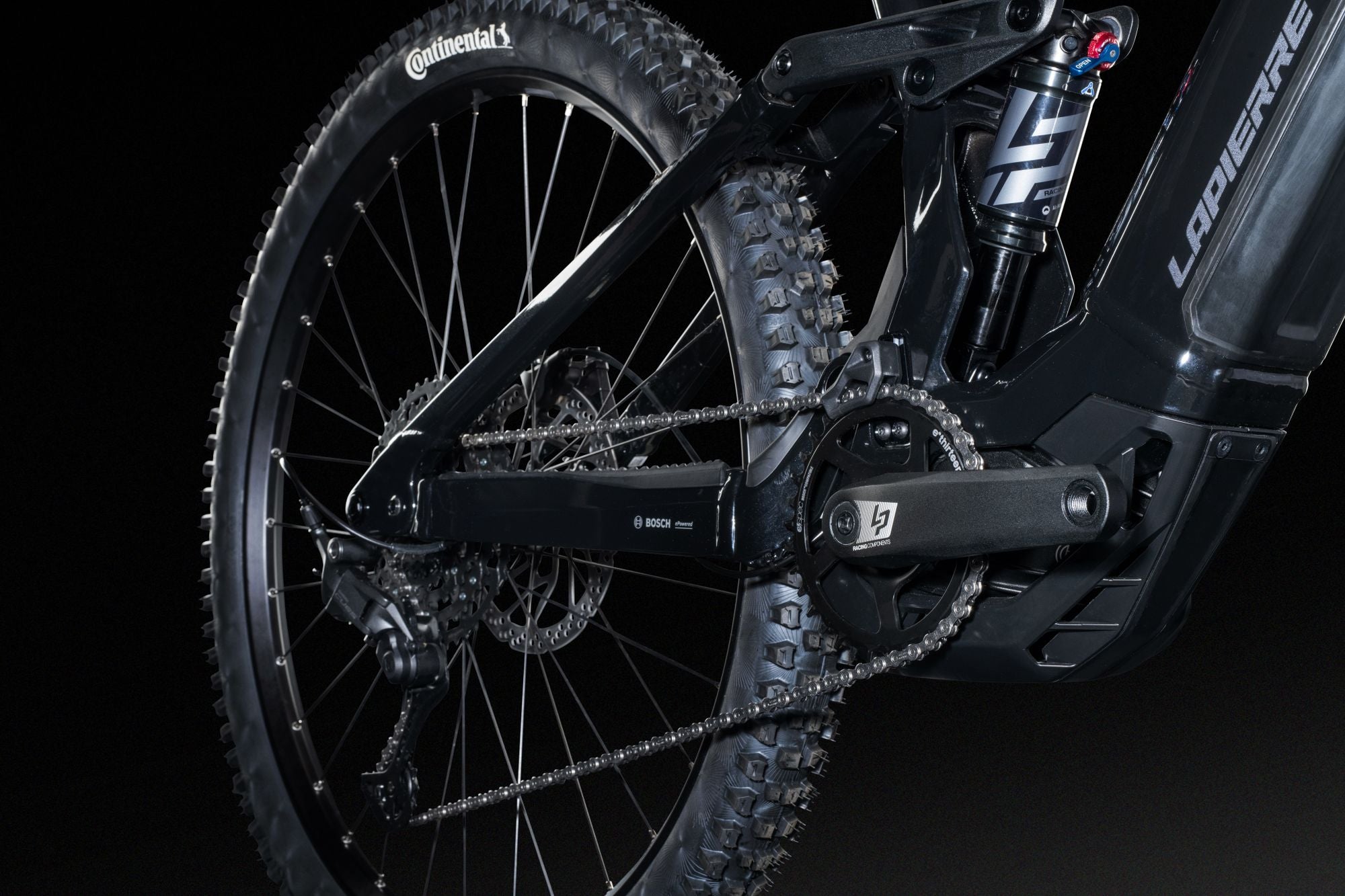

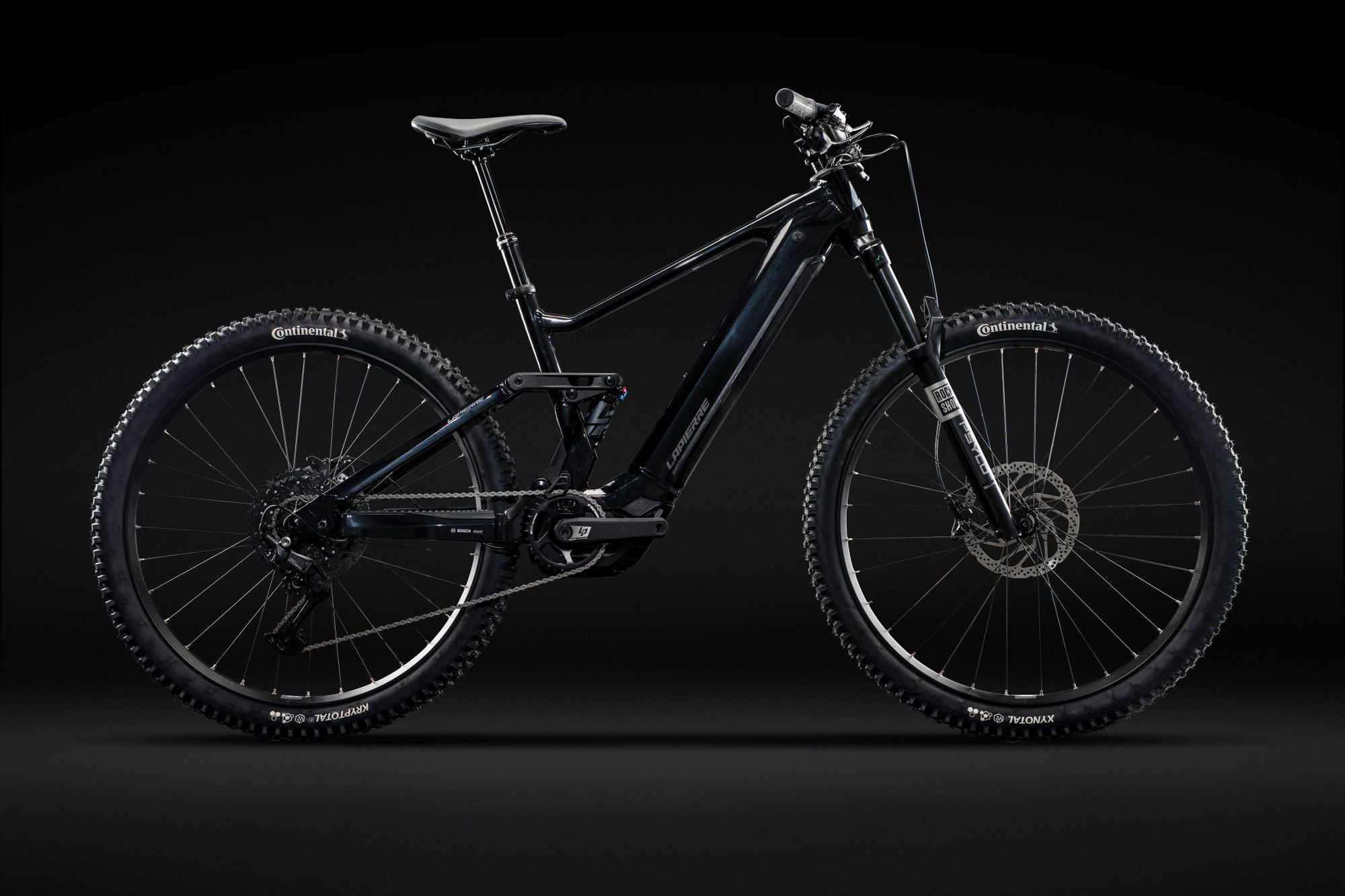

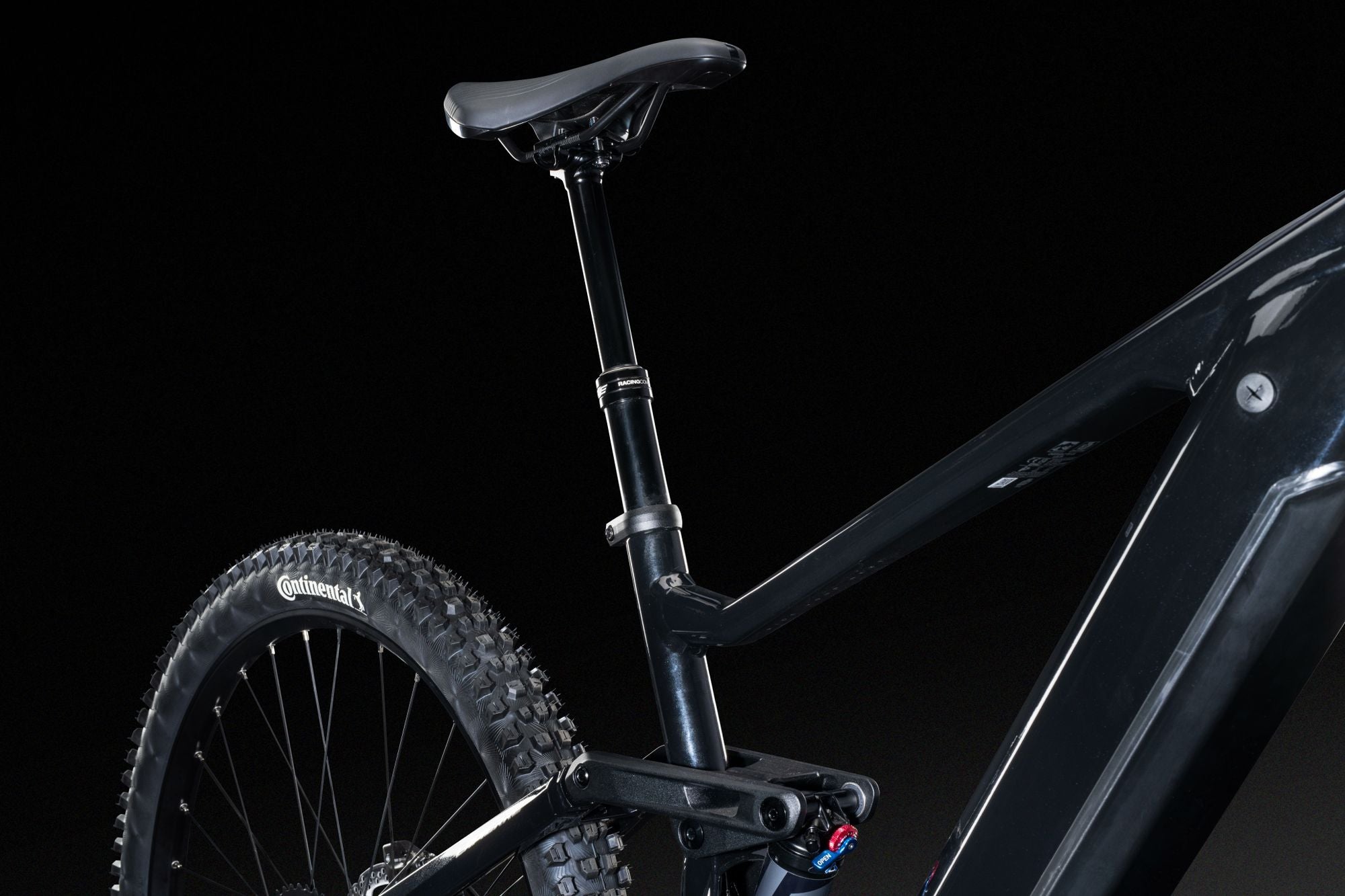

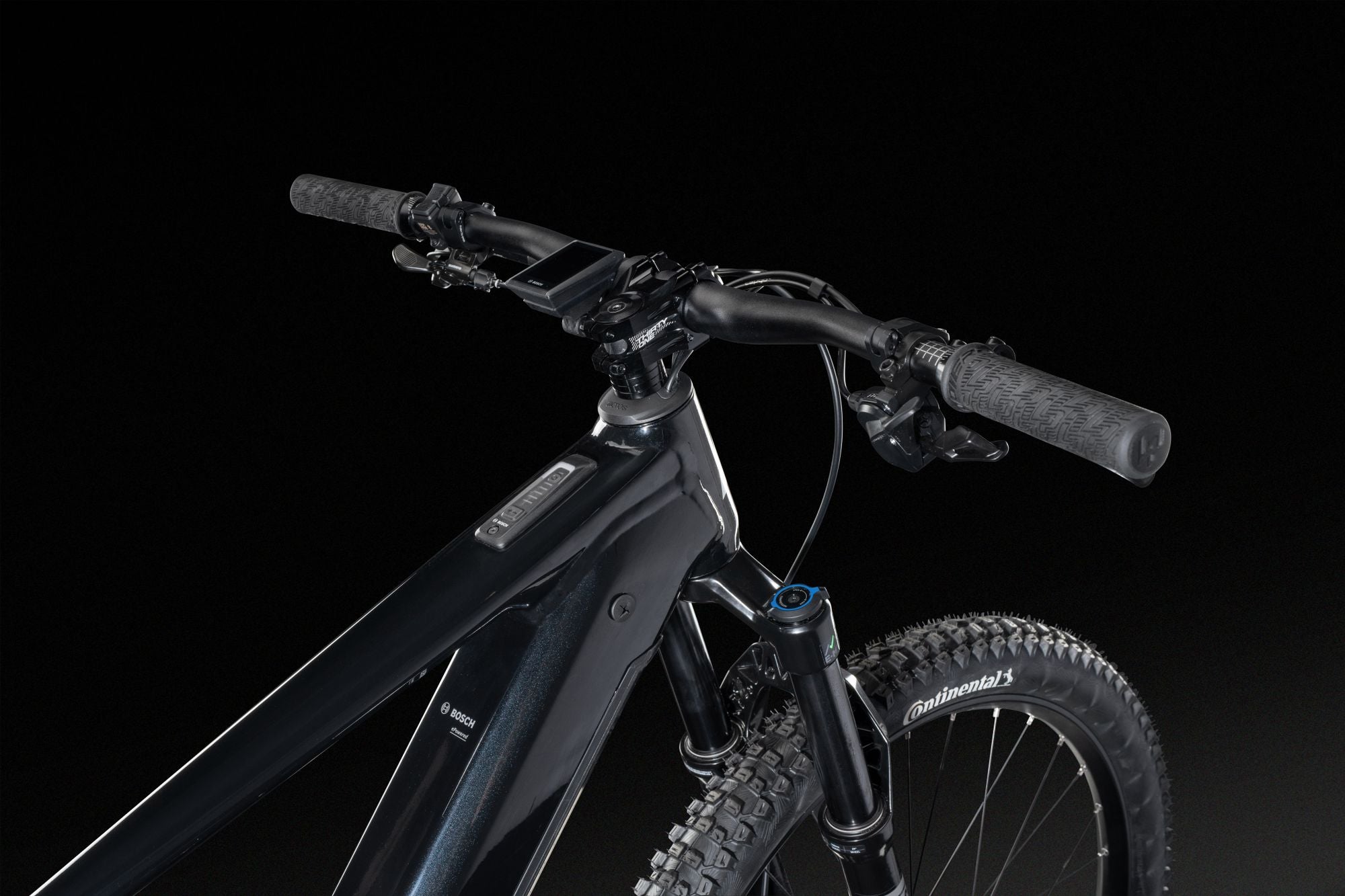

Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Gents
- Max system weight
- 120 kg
- Fork
- Rockshox Psylo Silver R 15x110 29 140 mm
- Rear shock
- Lapierre Shock 185x50 mm Trunnion/15x8 mm
E-system
- Battery
- Bosch Powertube Horizontal 600Wh
- Charger
- Bosch Quick Charger Charger 4A
- Display
- Bosch Kiox 300
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Shimano Cassette CUES CS-LG300-10, HG
- Chain
- Shimano Chain CUES LG500 9/10/11s
- Crankset
- EC40-F13-ISIS + E13 Helix Core steel chainring 55CL
- Rear derailleur
- Shimano CUES U6000 10/11s Shadow+
- Number of gears
- 10
- Shifter
- Shimano Triggershift CUES SL-U6000-10R
Brakes
- Front Brake
- Shimano Hydraulic Disc brake M4100 4 pistons, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake M4100 2 pistons, 203 mm
Wheels & tyres
- Rims
- Ryde Disc30 32H, 30-622 Black Anodized
- Tyres
- Continental Kryptotal F Enduro Soft 60-622
Cockpit
- Grips
- Lapierre grips small diameter
- Handlebar
- Lapierre Flat bar Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
- Pedals
- XLC by VP
- Saddle
- Selle Royal MTB Vivo
- Seatpost
- JD Dropperpost YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt TR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 583 mm | 606 mm | 630 mm | 660 mm |
| CHead tube length | 110 mm | 120 mm | 140 mm | 160 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 76° | 76° | 76° | 76° |
| FChain stay length | 460 mm | 460 mm | 460 mm | 460 mm |
| GWheelbase | 1211 mm | 1230 mm | 1257 mm | 1291 mm |
| HStack | 603 mm | 615 mm | 633 mm | 651 mm |
| IReach | 430 mm | 450 mm | 470 mm | 495 mm |
| KBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
Source: Lapierre.
Overvolt TR: builds compared
Overvolt TR range →| Overvolt TR 4.6 | Overvolt TR 6.8 | Overvolt TR 7.8 | |
|---|---|---|---|
| Price | €4,499 | €4,999 | €5,699 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver R 15x110 29 140 mm | Rockshox Psylo Silver RC 15x110 29 140 mm | Rockshox Psylo Gold Isolator RC, Crown Adj |
| Shock | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm |
| Derailleur | Shimano CUES U6000 10/11s Shadow+ | Shimano CUES U6000 10/11s Shadow+ | Shimano Deore RD-M6260-12s |
| Brakes | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake Deore BR-MT420 |
| Wheels | Ryde Disc30 32H, 30-622 Black Anodized | Ryde Disc30 32H, 30-622 Black Anodized | XLC WR-M39 Disc 30/622, 32H |
| Display | Bosch Kiox 300 | Bosch Kiox 300 | Bosch Kiox 300 + Mini Remote |
Overvolt TR 4.6: FAQ
How much does the Lapierre Overvolt TR 4.6 cost?
€4,499 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt TR range runs from €4,499 (Overvolt TR 4.6) to €5,699 (Overvolt TR 7.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt TR 4.6 have?
Bosch Performance Line CX (100 Nm). 600 Wh battery — bosch PowerTube (horizontal).
How much suspension travel does the Lapierre Overvolt TR 4.6 have?
140 mm at the fork, on 29" wheels.
What sizes does the Lapierre Overvolt TR 4.6 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt TR 4.6 and the Overvolt TR 6.8?
They share the Overvolt TR frame platform and motor; the differences are in the parts — fork: Rockshox Psylo Silver R 15x110 29 140 mm vs Rockshox Psylo Silver RC 15x110 29 140 mm; price: €4,499 vs €4,999.
