LapierreOvervolt TR 6.8
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhBosch PowerTube (horizontal)
- Travel F / R
- 140 / – mm
- Wheels
- 29"
- Frame
- Alloy
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
Spend €500 more than the 4.6 and the TR 6.8 gets an 800 Wh battery and a Psylo Silver RC fork; the rest stays the same. The better buy for long rides.
The Overvolt TR 6.8 is one of 3 builds of the Lapierre Overvolt TR. About the Overvolt TR range and all its builds →

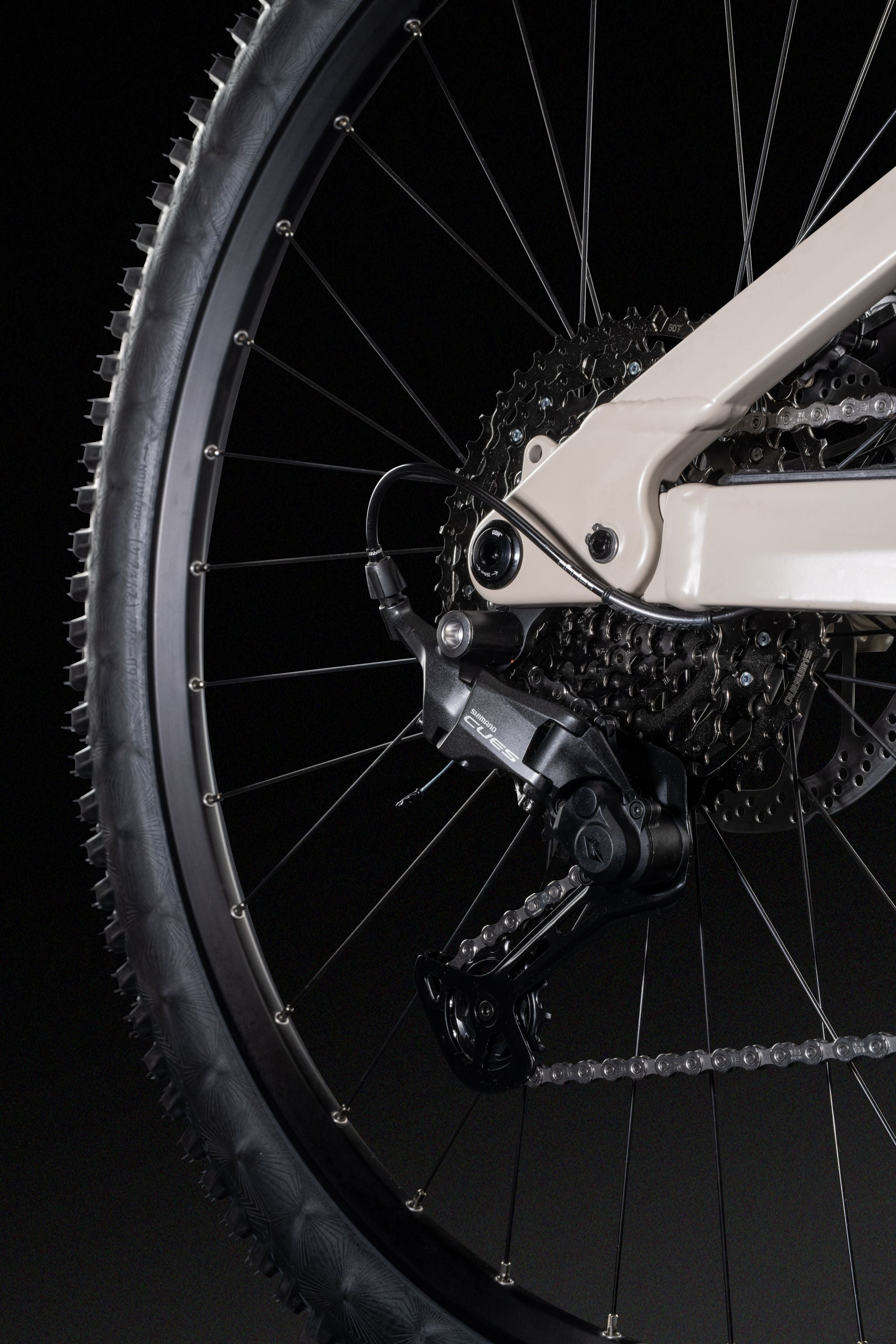

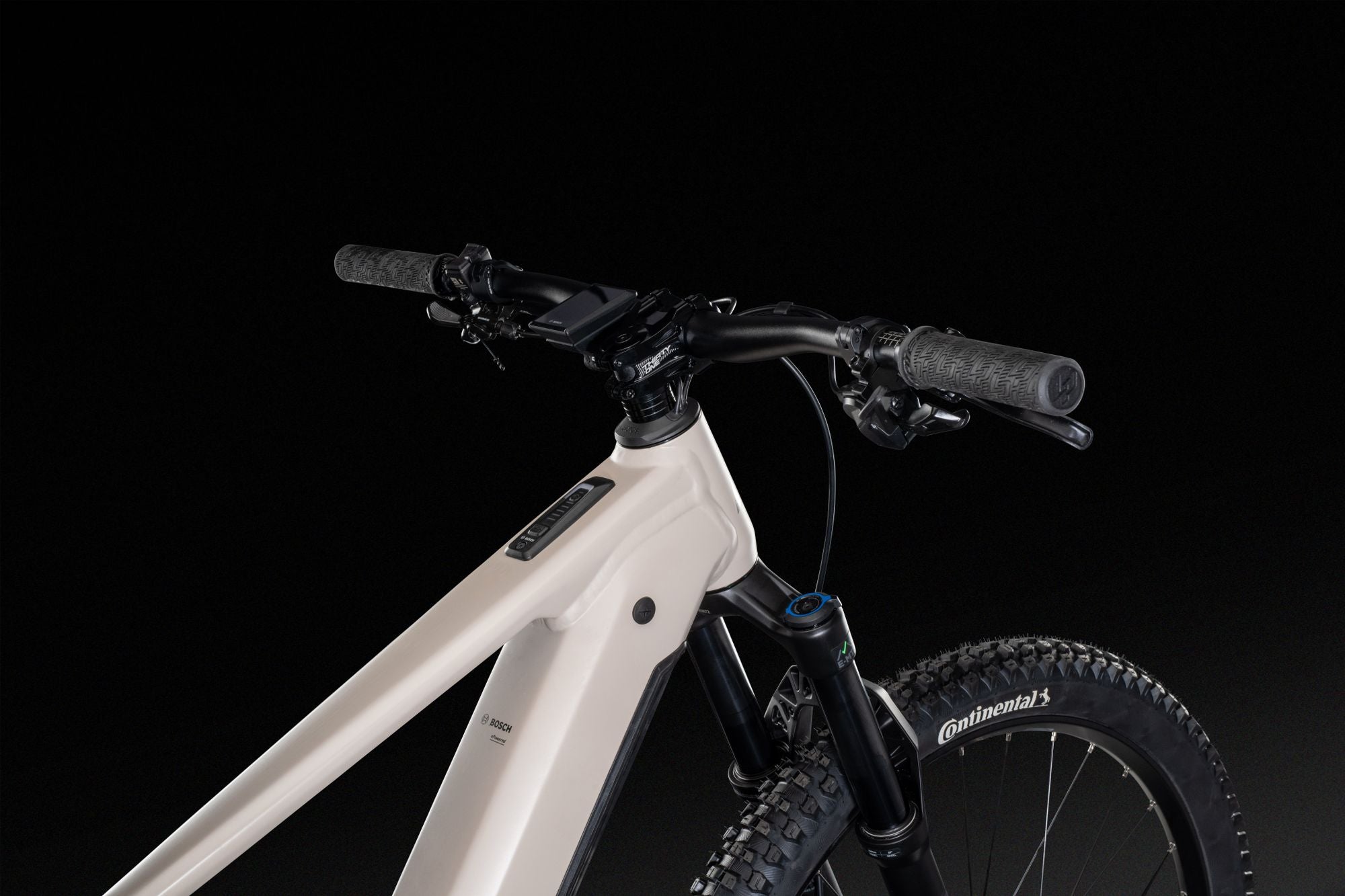

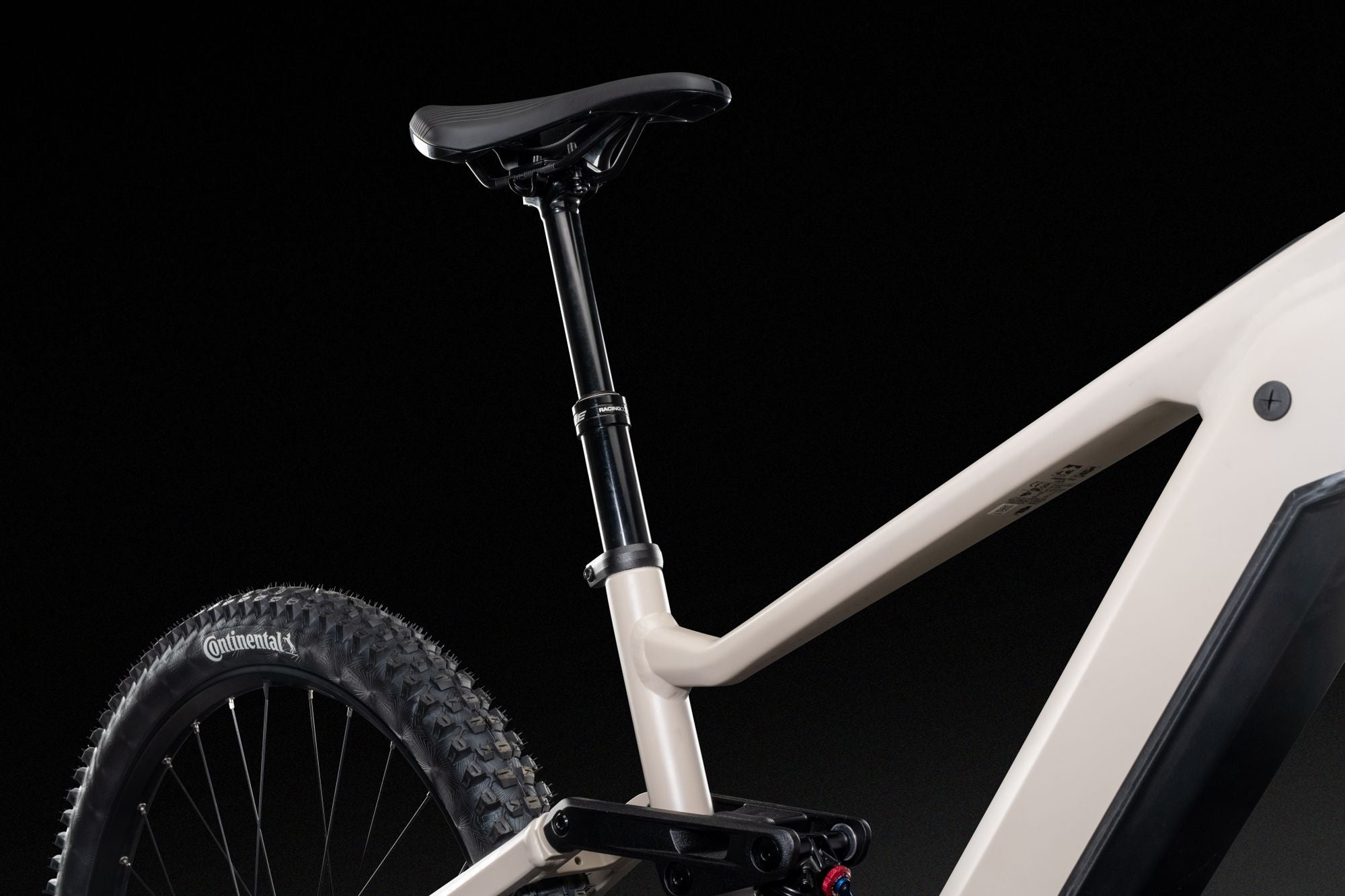

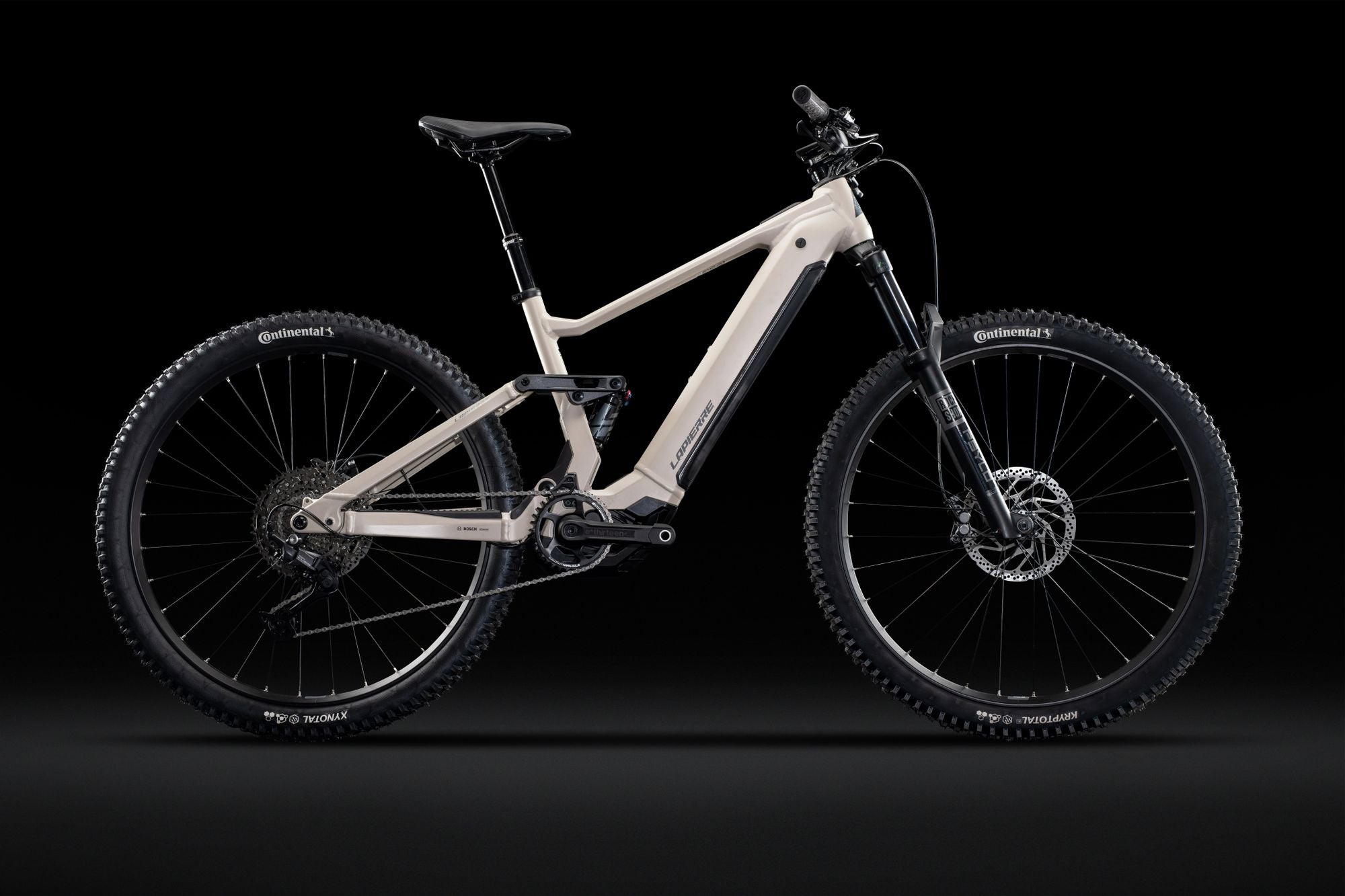

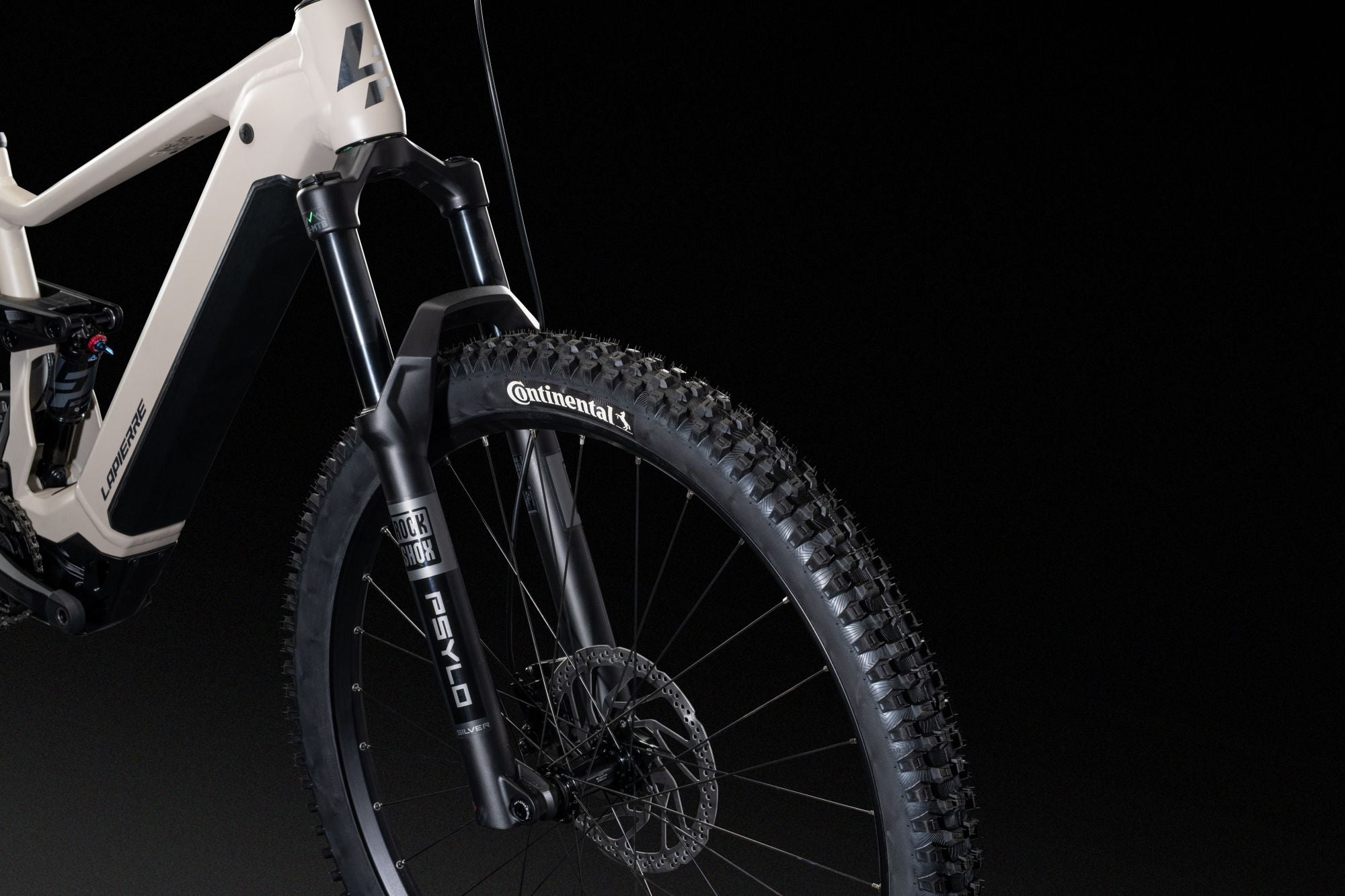

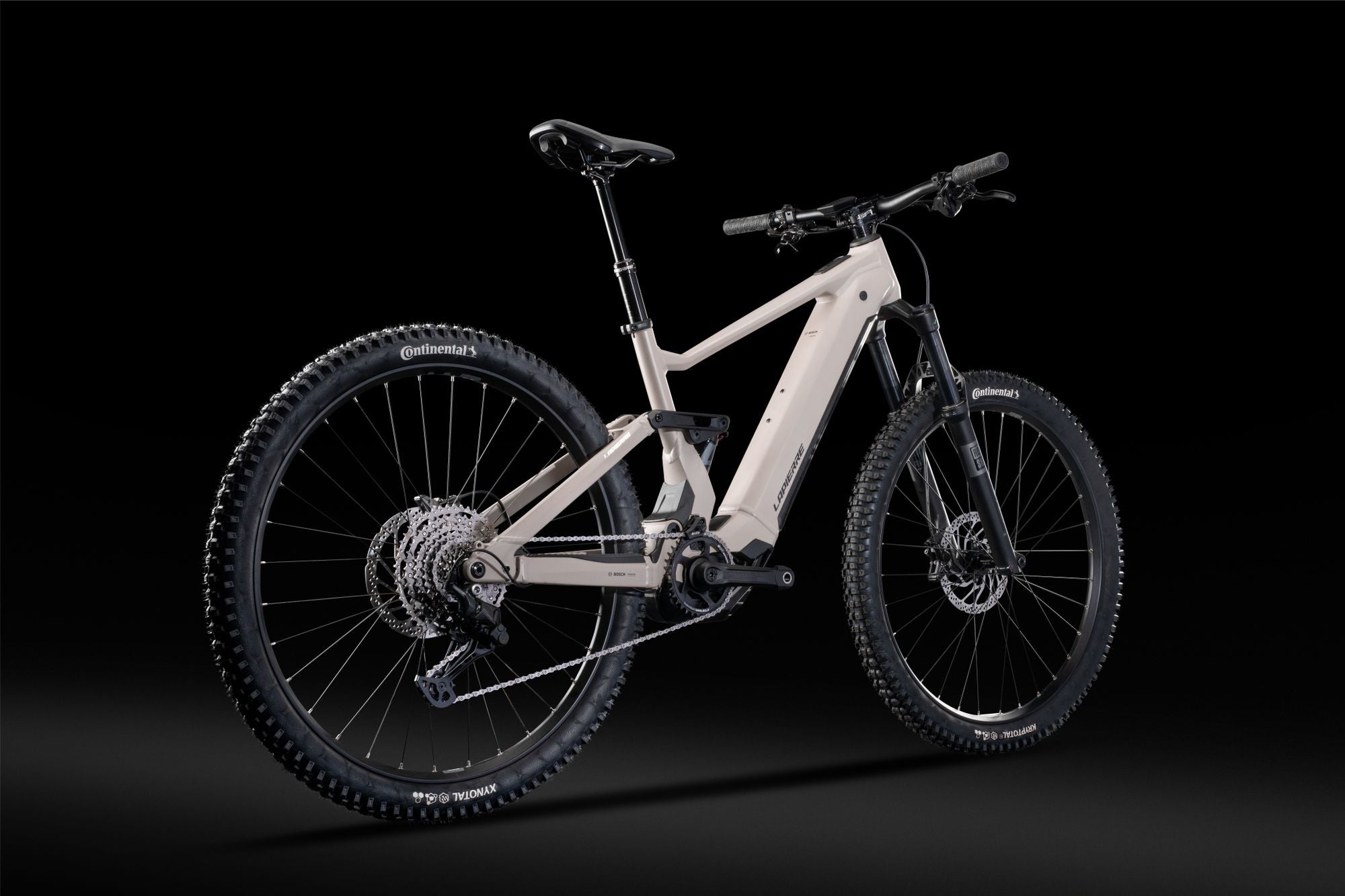

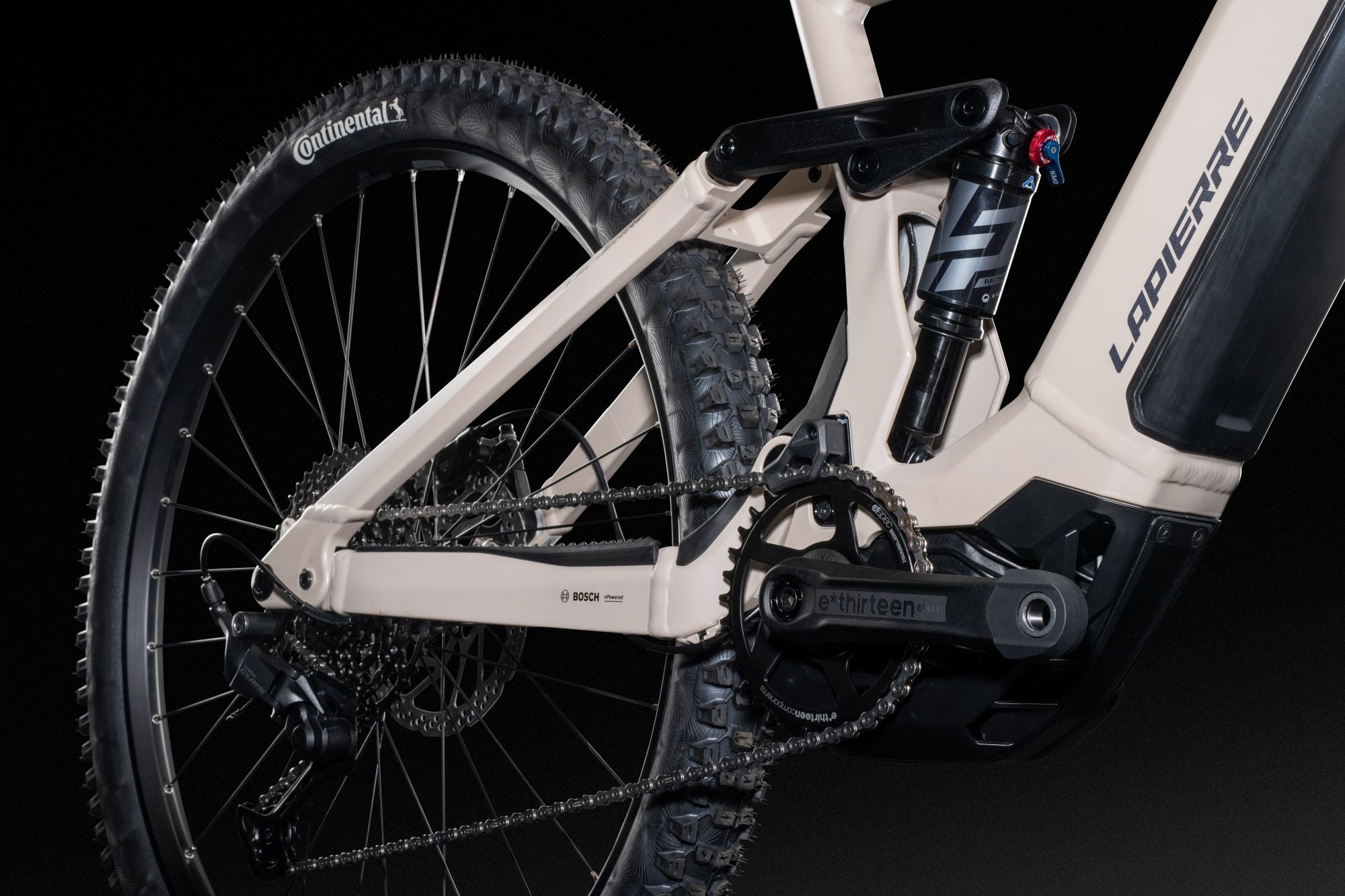

Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Gents
- Max system weight
- 120 kg
- Fork
- Rockshox Psylo Silver RC 15x110 29 140 mm
- Rear shock
- Lapierre Shock 185x50 mm Trunnion/15x8 mm
E-system
- Battery
- Bosch Powertube Horizontal 800Wh
- Charger
- Bosch Quick Charger Charger 4A
- Display
- Bosch Kiox 300
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Shimano Cassette CUES CS-LG400-11, HG
- Chain
- Shimano Chain CUES LG500 9/10/11s
- Crankset
- Helix Core + E13 Helix Core steel chainring 55CL
- Rear derailleur
- Shimano CUES U6000 10/11s Shadow+
- Number of gears
- 11
- Shifter
- Shimano Triggershift CUES SL-U6000-11R
Brakes
- Front Brake
- Shimano Hydraulic Disc brake M4100 4 pistons, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake M4100 2 pistons, 203 mm
Wheels & tyres
- Rims
- Ryde Disc30 32H, 30-622 Black Anodized
- Tyres
- Continental Kryptotal F Enduro Soft 60-622
Cockpit
- Grips
- Lapierre grips small diameter
- Handlebar
- Lapierre Flat bar Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
- Pedals
- XLC by VP
- Saddle
- Selle Royal MTB Vivo
- Seatpost
- JD Dropperpost YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Overvolt TR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 583 mm | 606 mm | 630 mm | 660 mm |
| CHead tube length | 110 mm | 120 mm | 140 mm | 160 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 76° | 76° | 76° | 76° |
| FChain stay length | 460 mm | 460 mm | 460 mm | 460 mm |
| GWheelbase | 1211 mm | 1230 mm | 1257 mm | 1291 mm |
| HStack | 603 mm | 615 mm | 633 mm | 651 mm |
| IReach | 430 mm | 450 mm | 470 mm | 495 mm |
| KBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
Source: Lapierre.
Overvolt TR: builds compared
Overvolt TR range →| Overvolt TR 4.6 | Overvolt TR 6.8 | Overvolt TR 7.8 | |
|---|---|---|---|
| Price | €4,499 | €4,999 | €5,699 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver R 15x110 29 140 mm | Rockshox Psylo Silver RC 15x110 29 140 mm | Rockshox Psylo Gold Isolator RC, Crown Adj |
| Shock | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm Trunnion/15x8 mm | Lapierre Shock 185x50 mm |
| Derailleur | Shimano CUES U6000 10/11s Shadow+ | Shimano CUES U6000 10/11s Shadow+ | Shimano Deore RD-M6260-12s |
| Brakes | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake Deore BR-MT420 |
| Wheels | Ryde Disc30 32H, 30-622 Black Anodized | Ryde Disc30 32H, 30-622 Black Anodized | XLC WR-M39 Disc 30/622, 32H |
| Display | Bosch Kiox 300 | Bosch Kiox 300 | Bosch Kiox 300 + Mini Remote |
Overvolt TR 6.8: FAQ
What is the difference between the Overvolt TR 6.8 and the Overvolt TR 7.8?
They share the Overvolt TR frame platform and motor; the differences are in the parts: fork: Rockshox Psylo Silver RC 15x110 29 140 mm vs Rockshox Psylo Gold Isolator RC; shock: Lapierre Shock 185x50 mm Trunnion/15x8 mm vs Lapierre Shock 185x50 mm; derailleur: Shimano CUES U6000 10/11s Shadow+ vs Shimano Deore RD-M6260-12s; brakes: Shimano Hydraulic Disc brake M4100 4 pistons vs Shimano Hydraulic Disc brake Deore BR-MT420; price: €4,999 vs €5,699.
