LapierreOvervolt AM CF 6.8
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

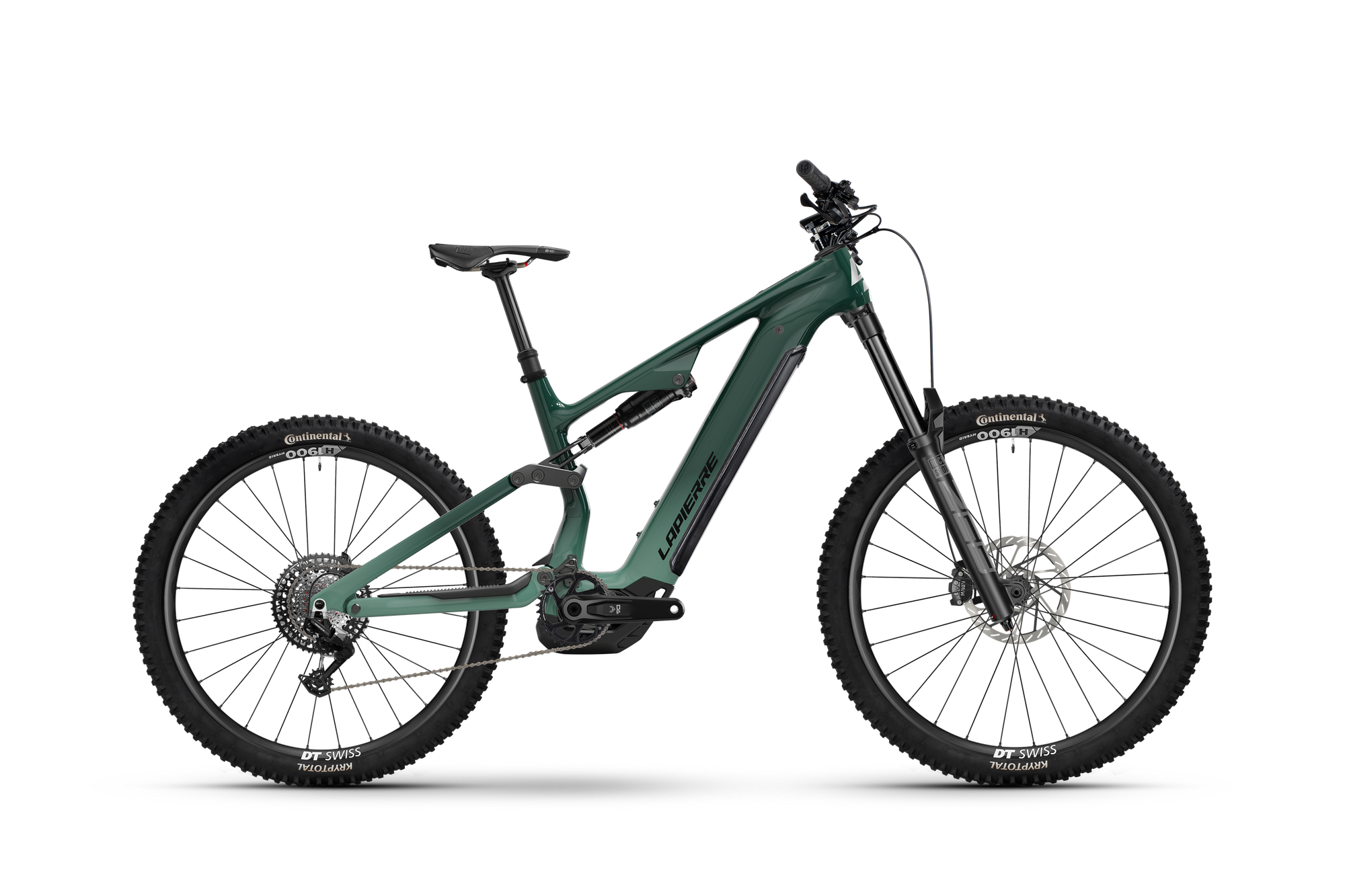

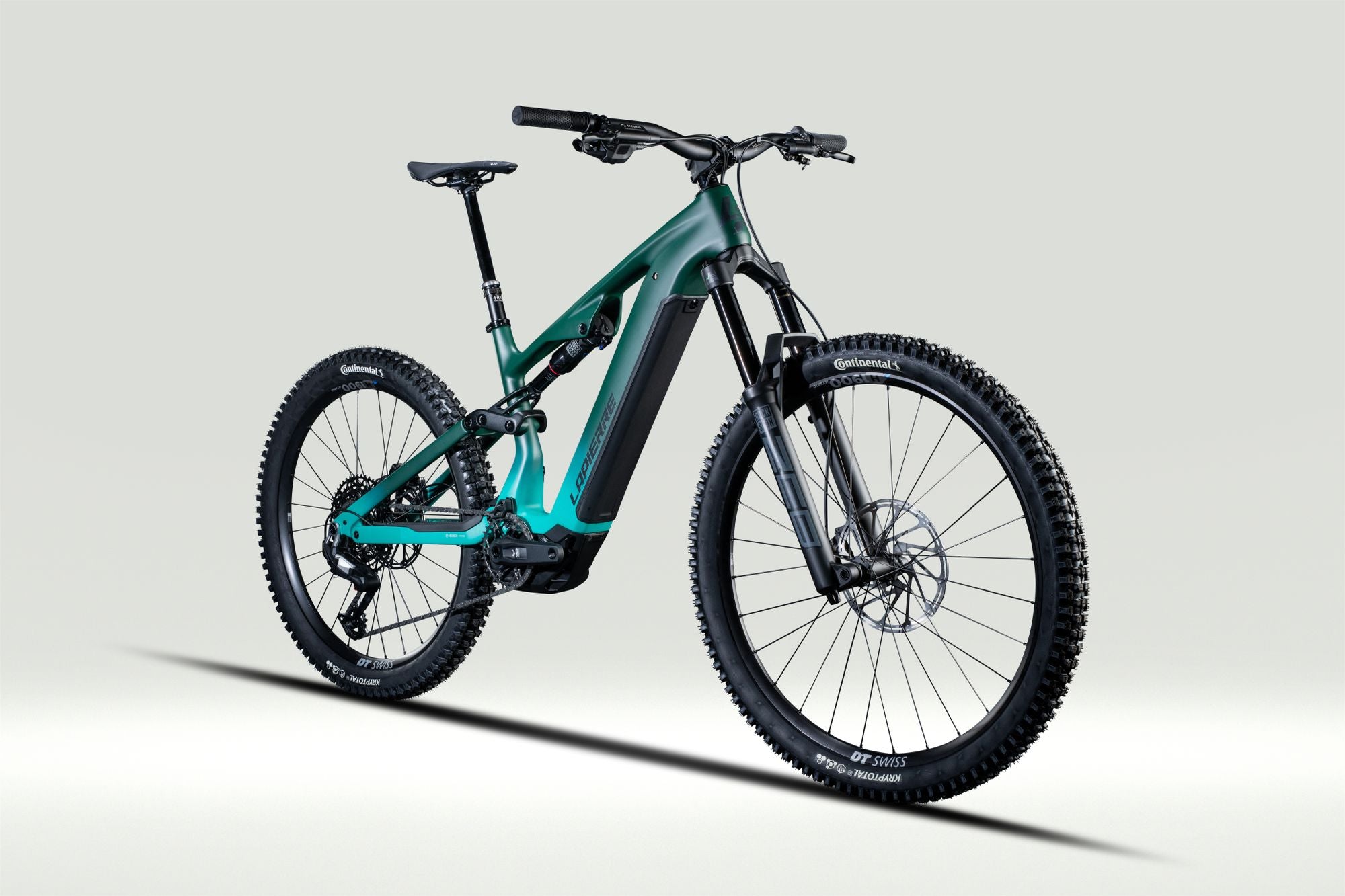

The Lapierre Overvolt AM CF 6.8 (€6,999) is the entry build of the Overvolt AM CF: Bosch Performance Line CX with 800 Wh, Rockshox ZEB Base Rush RC Boost fork, Rockshox Deluxe Select+ 205x60 mm shock, Sram Eagle 90 T-Type 12s and Sram Maven BSE SJ brakes.

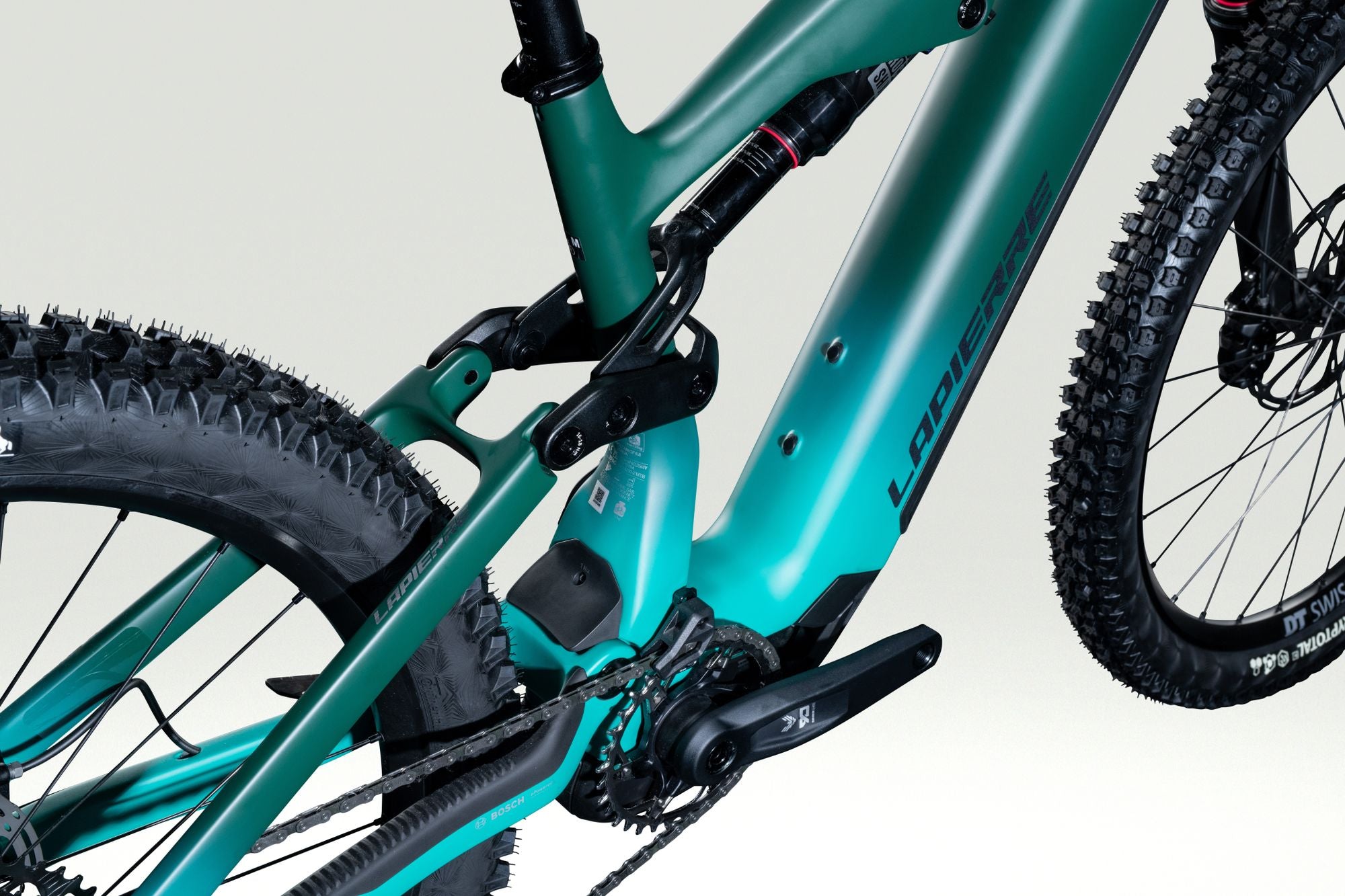

The Overvolt AM CF is Lapierre's new full-carbon all-mountain e-MTB, which Lapierre describes as combining its GLP III race bike and the Overvolt AM. The frame mixes Mitsubishi 24T and 40T fibres, weighs a claimed 2.9 kg (size M, without shock), uses a horizontal shock layout and internal cable routing, and offers 170 mm of travel up front and 165 mm at the rear.
All builds use the Bosch Smart System with an 800 Wh PowerTube battery: the Performance Line CX on the 6.8 and 7.8, the CX-R on the 10.8. Wheels are mullet as standard (29-inch front, 27.5-inch rear), and a flip chip converts the bike to full 29 or full 27.5. Jérôme Gilloux won the 2025 UCI E-MTB World Championship on it.
- Full carbon frame, 2.9 kg claimed (M, no shock)
- 170 mm fork / 165 mm rear travel
- Bosch CX or CX-R, 800 Wh
- Mullet with flip chip for full 29 or 27.5
Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Carbon Uni
- Max system weight
- 120 kg
- Fork

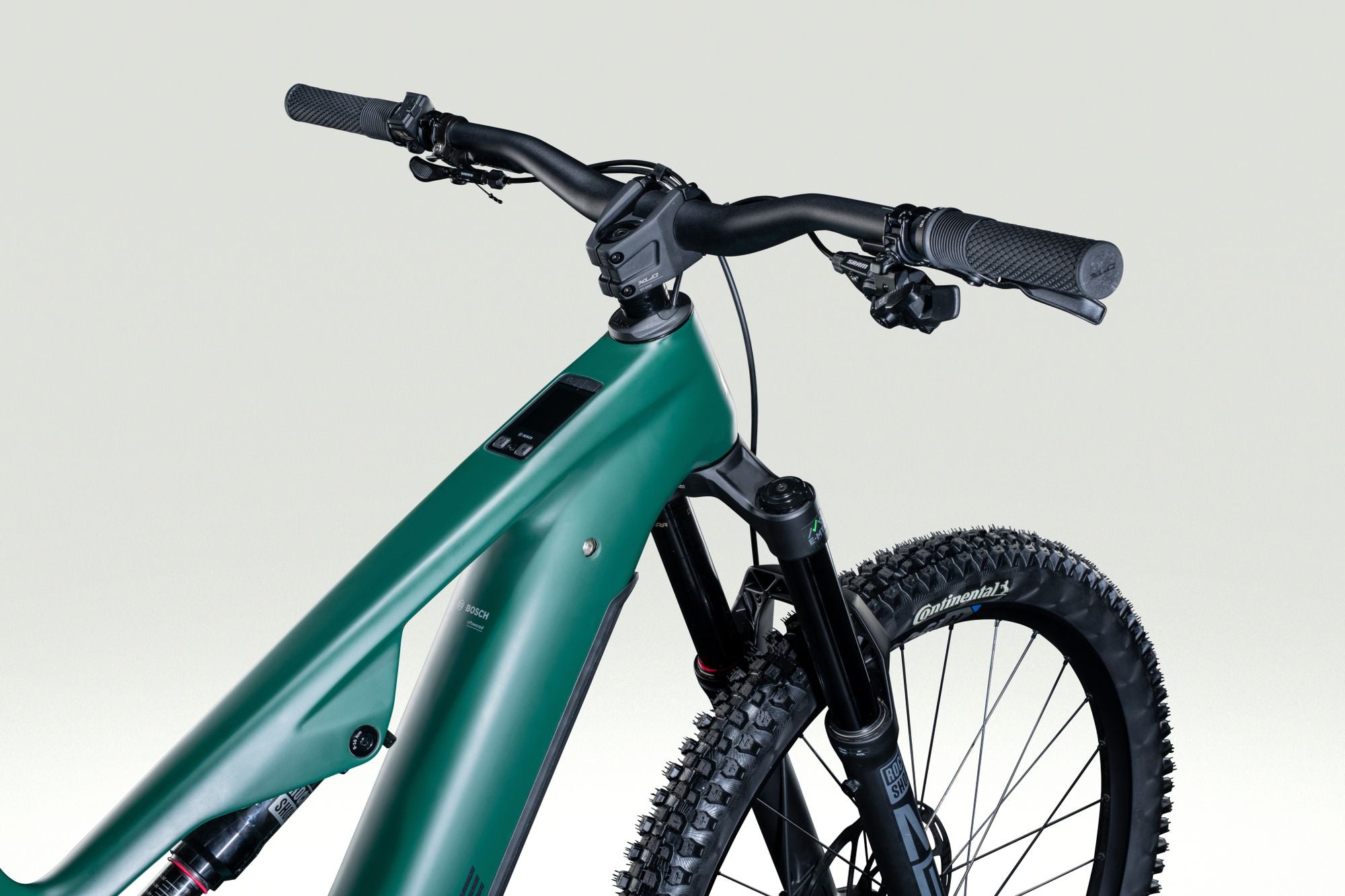

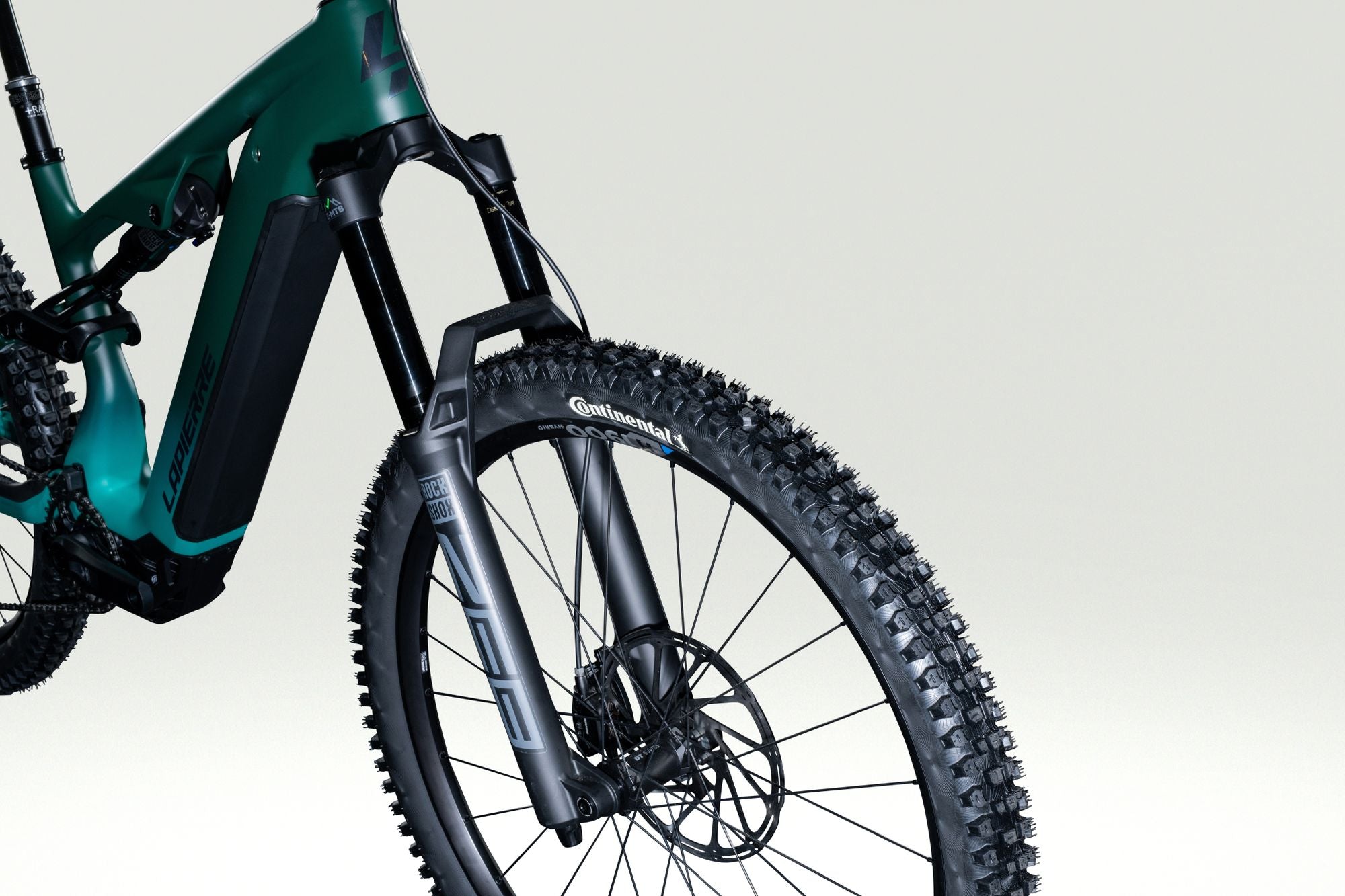

- Rockshox ZEB Base Rush RC Boost, 170 mm
- Rear shock

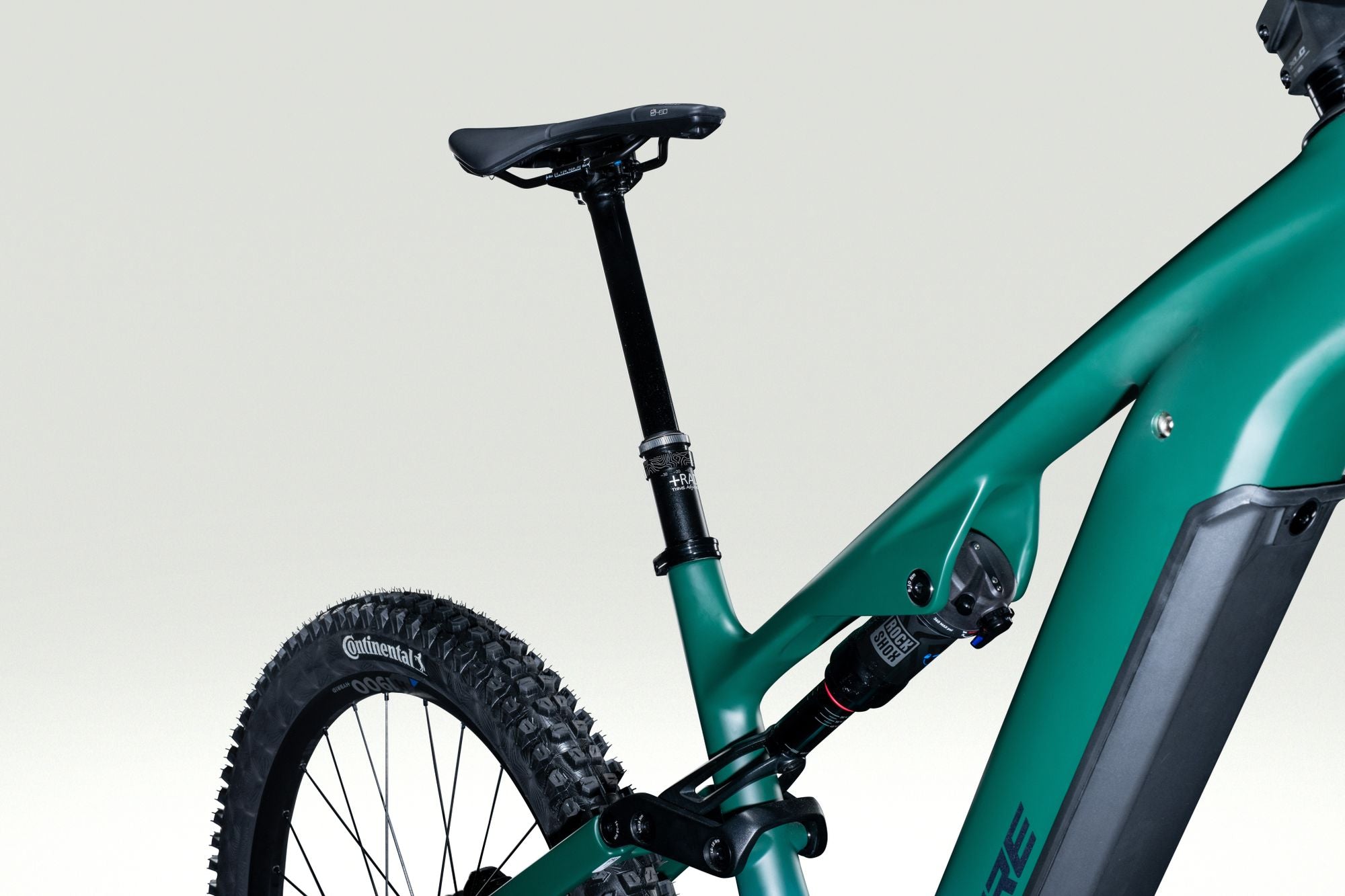

- Rockshox Deluxe Select+ 205x60 mm, Trunnion
E-system
- Battery
- Bosch Powertube 800 Wh
- Charger
- Bosch Charger 4A, 230V
- Display
- Bosch Kiox 400C + USB Port + Mini Remote
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Sram XS-1270 Eagle T-Type, HG
- Chain
- Sram Eagle 70 T-Type 12s
- Crankset

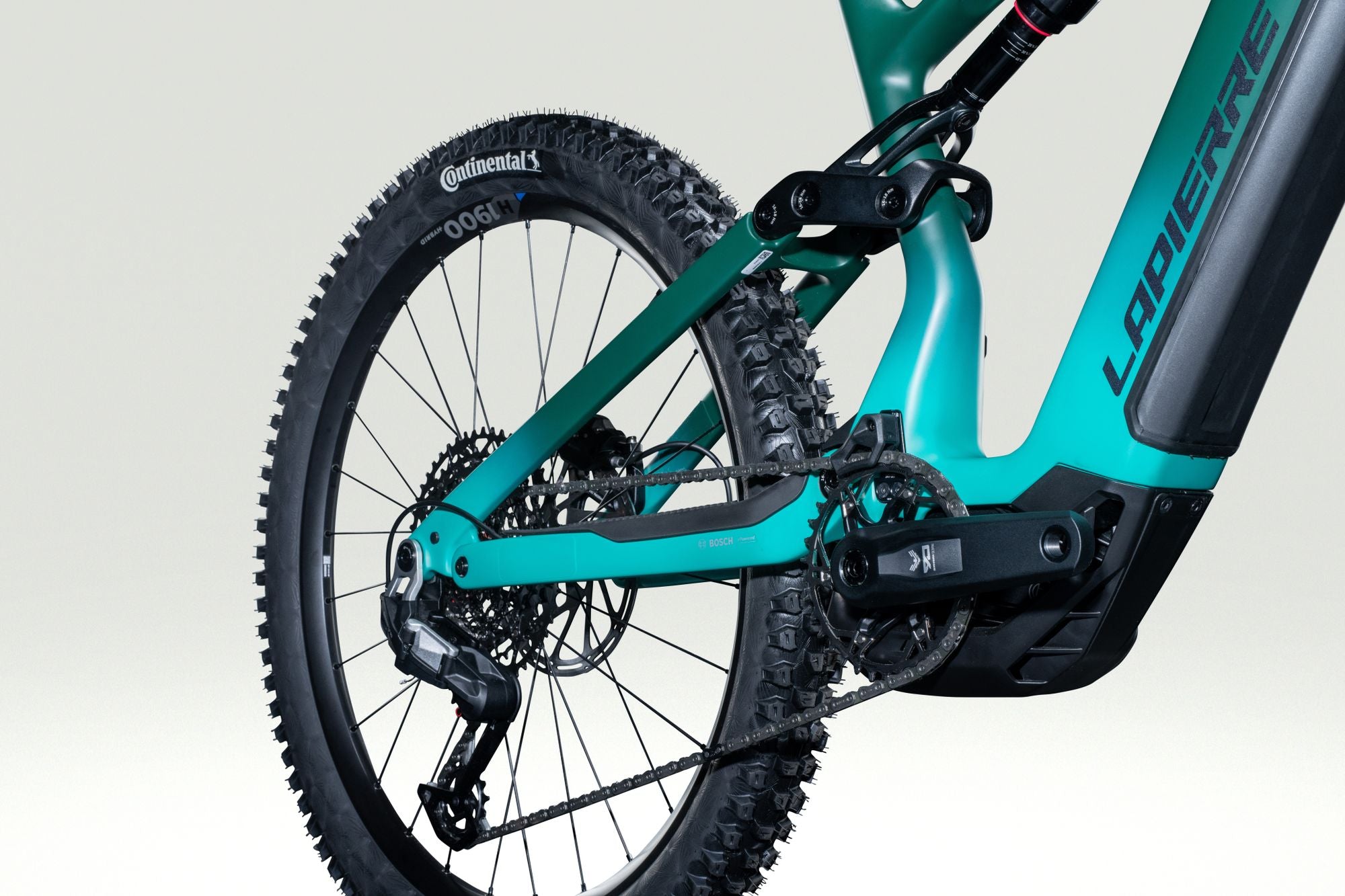

- Eagle 90 ISIS 160mm+CR XX EagleBosch DU38DM T-Type
- Rear derailleur

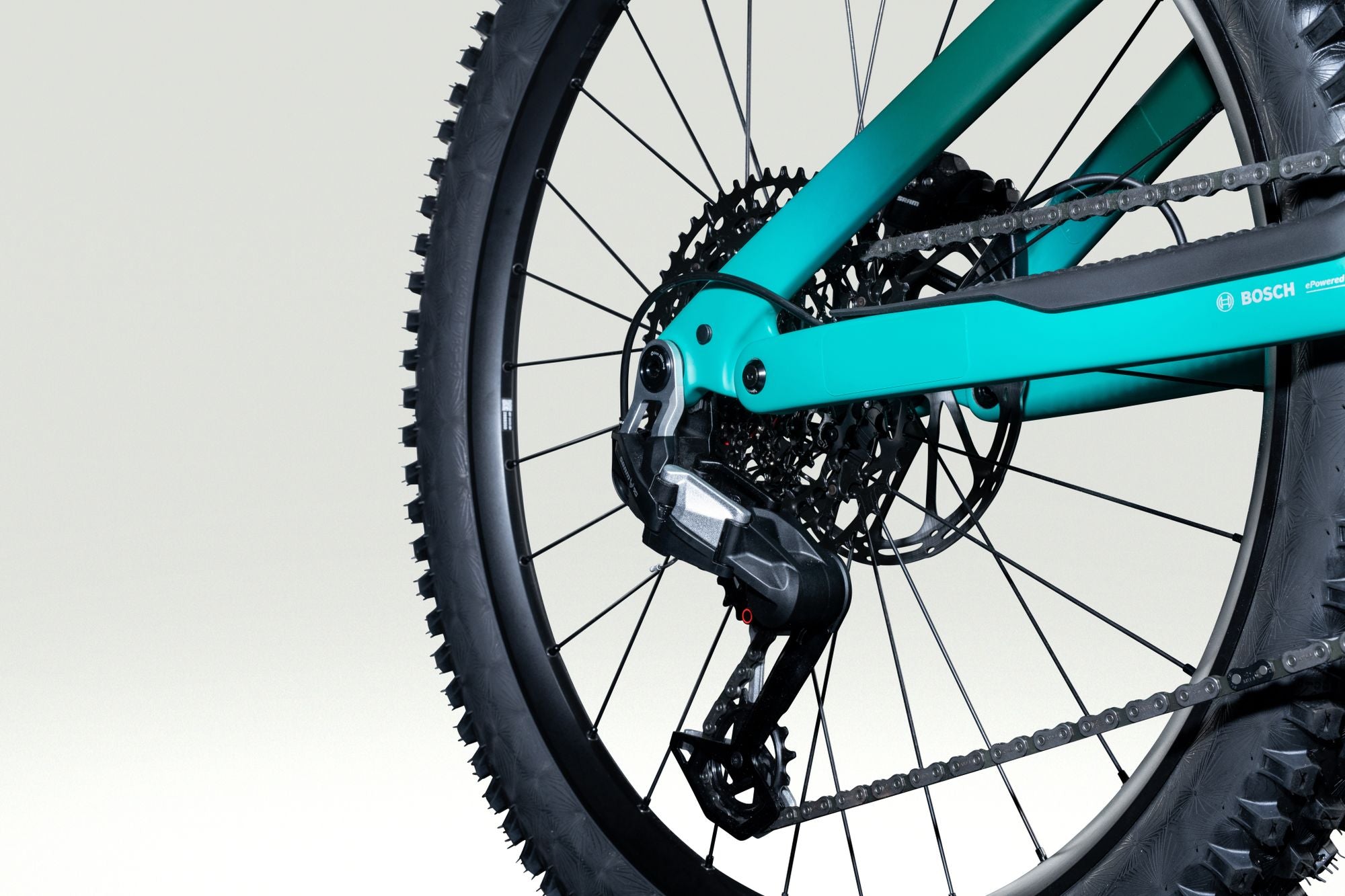

- Sram Eagle 90 T-Type 12s
- Number of gears
- 12
- Shifter
- Sram Triggershift Eagle 90 T-Type Single Click
Brakes
- Front Brake
- Sram Hydraulic Disc brake DB Maven BSE SJ, 4 pistons, organic pad, 220 mm
- Rear Brake
- Sram Hydraulic Disc brake DB Maven BSE SJ, 4 pistons, organic pad, 220 mm
Wheels & tyres
- Wheelset
- DT Swiss H 1900 Spline, 30 mm, 15x110 mm, 6 bolt Disc
- Tyres
- Continental Kryptotal-F Enduro SuperSoft foldable skin SL 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- XLC Flat bar HB-M34, Dia. 35 mm, Rise: 30 mm, backsweep 9°
- Pedals
- XLC PD-M29 Flat w. Reflector
- Saddle
- Prologo MTB Proxim W450 Steel
- Seatpost
- JD Dropperpost YSI05, Dia. 31.6 mm, Travel: 125 mm 405 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt AM CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 583 mm | 608 mm | 630 mm | 660 mm |
| CHead tube length | 100 mm | 110 mm | 125 mm | 140 mm |
| DHead Tube Angle | 64.5° | 65° | 65° | 65° |
| ESeat Tube Angle | 77° | 77° | 77° | 77° |
| FChain stay length | 456 mm | 456 mm | 456 mm | 456 mm |
| GWheelbase | 1228 mm | 1250 mm | 1275 mm | 1308 mm |
| HStack | 628 mm | 640 mm | 654 mm | 667 mm |
| IReach | 438 mm | 460 mm | 479 mm | 506 mm |
| KBottom bracket drop | 17 mm | 29 mm | 17 mm | 17 mm |
Source: Lapierre. Values for the standard mullet setting.
Overvolt AM CF: builds compared
Overvolt AM CF range →| Overvolt AM CF 6.8 | Overvolt AM CF 7.8 | Overvolt AM CF 10.8 | |
|---|---|---|---|
| Price | €6,999 | €8,499 | €10,000 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rockshox ZEB Base Rush RC Boost, 170 mm | Rockshox ZEB Select Charger RC, 170 mm | Rockshox ZEB Ultimate Charger 3.1 RC2, Boost |
| Shock | Rockshox Deluxe Select+ 205x60 mm | Rockshox Super Deluxe Select RT 205x60 mm | Rockshox Super Deluxe Ultimate RC2T 205x60mm |
| Derailleur | Sram Eagle 90 T-Type 12s | Sram GX Eagle AXS T-Type 12s | Shimano XTR RD-M9260 12s |
| Brakes | Sram Hydraulic Disc brake DB Maven BSE SJ | Sram Hydraulic Disc brake DB Maven BRZ SJ | Shimano Hydraulic Disc brake XTR BR-M9220 |
| Display | Bosch Kiox 400C + USB Port + Mini Remote | Bosch Kiox 400C + USB Port + Mini Remote | Bosch Kiox 400C + Mini Remote |
Overvolt AM CF 6.8: FAQ
How much does the Lapierre Overvolt AM CF 6.8 cost?
€6,999 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt AM CF range runs from €6,999 (Overvolt AM CF 6.8) to €10,000 (Overvolt AM CF 10.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt AM CF 6.8 have?
Bosch Performance Line CX (100 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Lapierre Overvolt AM CF 6.8 have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Lapierre Overvolt AM CF 6.8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt AM CF 6.8 and the Overvolt AM CF 7.8?
They share the Overvolt AM CF frame platform and motor; the differences are in the parts — fork: Rockshox ZEB Base Rush RC Boost vs Rockshox ZEB Select Charger RC; shock: Rockshox Deluxe Select+ 205x60 mm vs Rockshox Super Deluxe Select RT 205x60 mm; derailleur: Sram Eagle 90 T-Type 12s vs Sram GX Eagle AXS T-Type 12s; brakes: Sram Hydraulic Disc brake DB Maven BSE SJ vs Sram Hydraulic Disc brake DB Maven BRZ SJ; price: €6,999 vs €8,499.
