LapierreOvervolt AM CF 10.8
- Motor
- Bosch Performance Line CX-R100 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Lapierre Overvolt AM CF 10.8 (€10,000) is the top build of the Overvolt AM CF: Bosch Performance Line CX-R with 800 Wh, Rockshox ZEB Ultimate Charger 3.1 RC2 fork, Rockshox Super Deluxe Ultimate RC2T 205x60mm shock, Shimano XTR RD-M9260 12s and Shimano XTR BR-M9220 brakes.
The Overvolt AM CF is Lapierre's new full-carbon all-mountain e-MTB, which Lapierre describes as combining its GLP III race bike and the Overvolt AM. The frame mixes Mitsubishi 24T and 40T fibres, weighs a claimed 2.9 kg (size M, without shock), uses a horizontal shock layout and internal cable routing, and offers 170 mm of travel up front and 165 mm at the rear.
All builds use the Bosch Smart System with an 800 Wh PowerTube battery: the Performance Line CX on the 6.8 and 7.8, the CX-R on the 10.8. Wheels are mullet as standard (29-inch front, 27.5-inch rear), and a flip chip converts the bike to full 29 or full 27.5. Jérôme Gilloux won the 2025 UCI E-MTB World Championship on it.
- Full carbon frame, 2.9 kg claimed (M, no shock)
- 170 mm fork / 165 mm rear travel
- Bosch CX or CX-R, 800 Wh
- Mullet with flip chip for full 29 or 27.5
Gallery

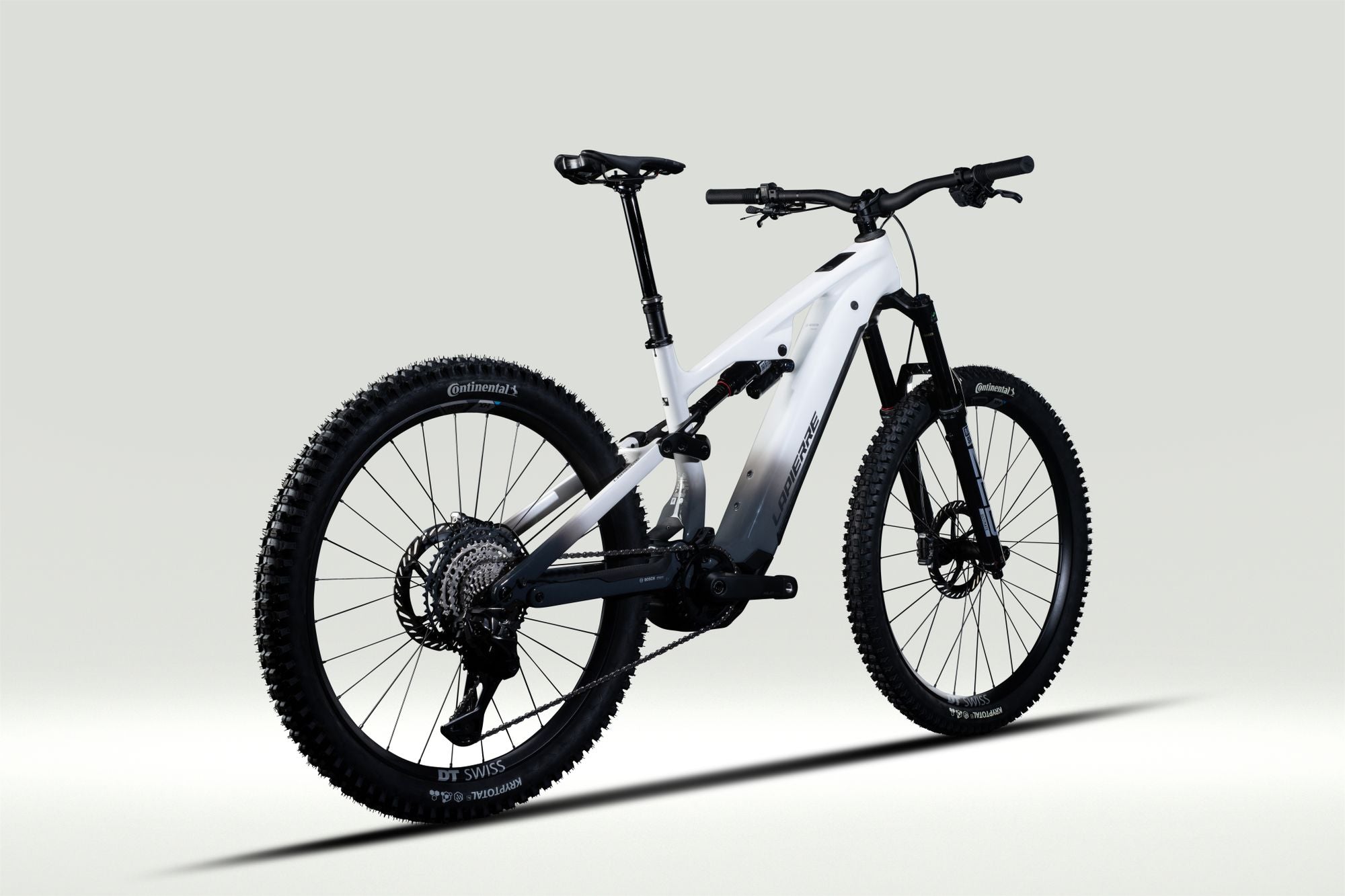

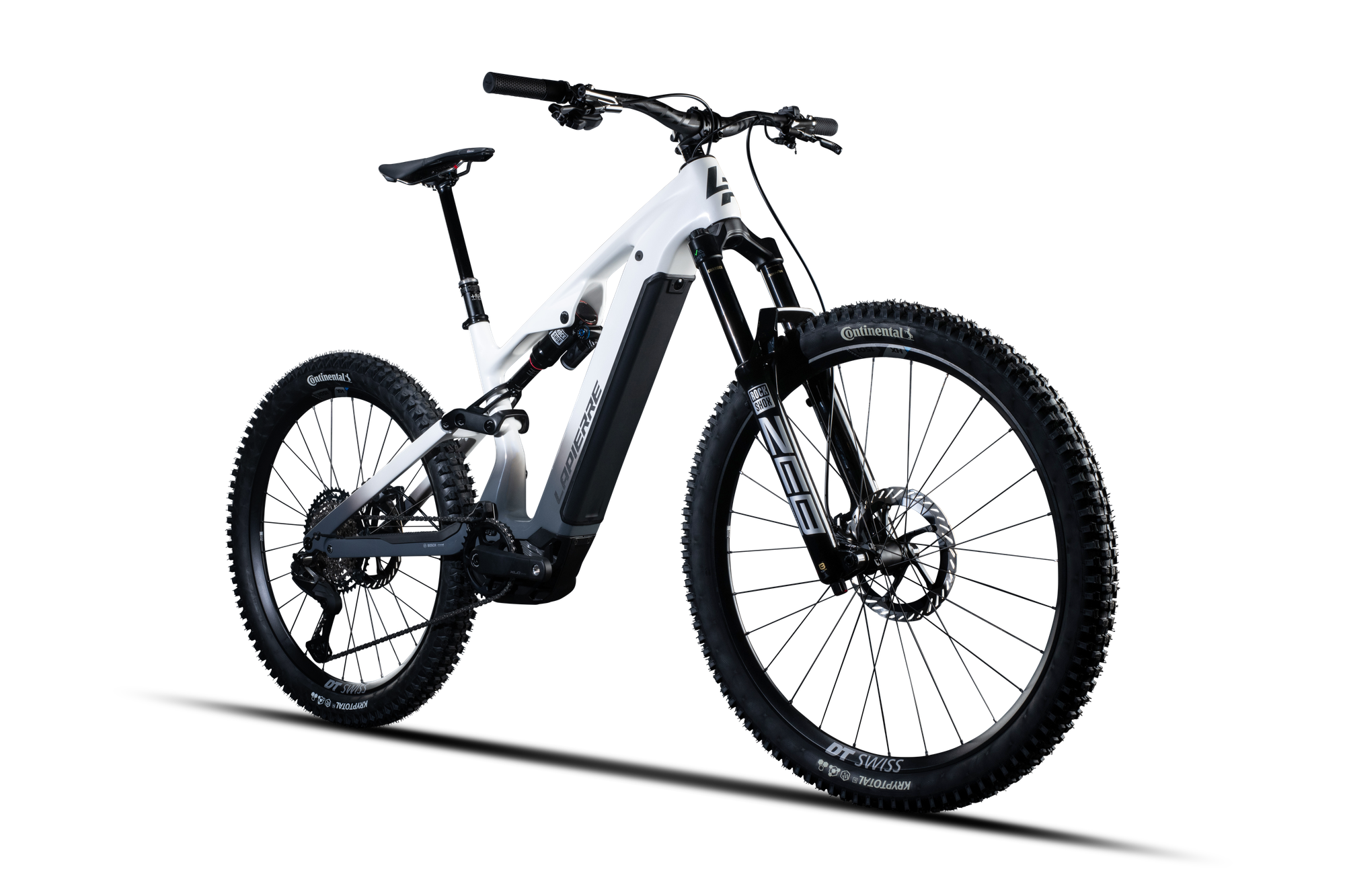

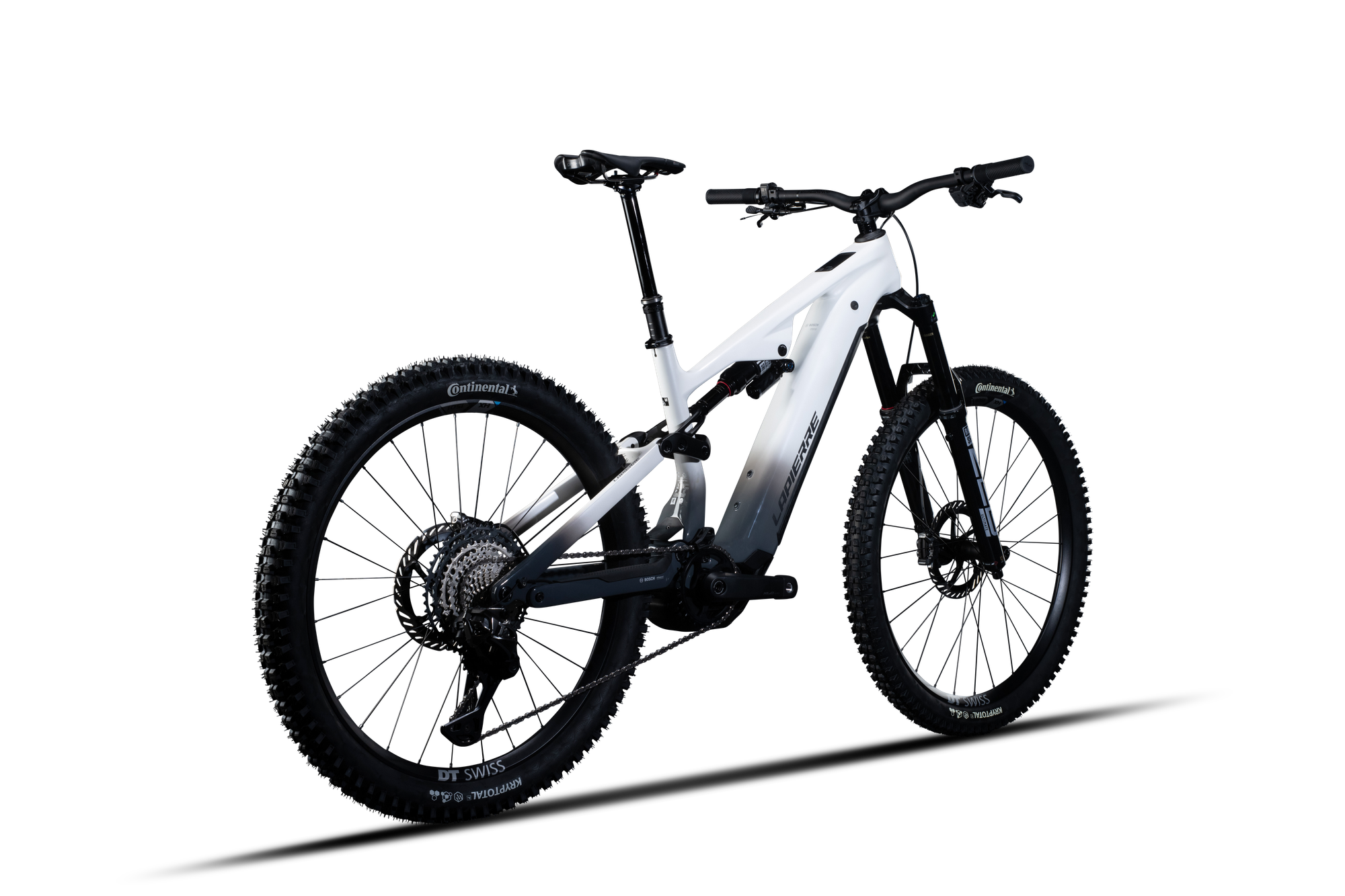

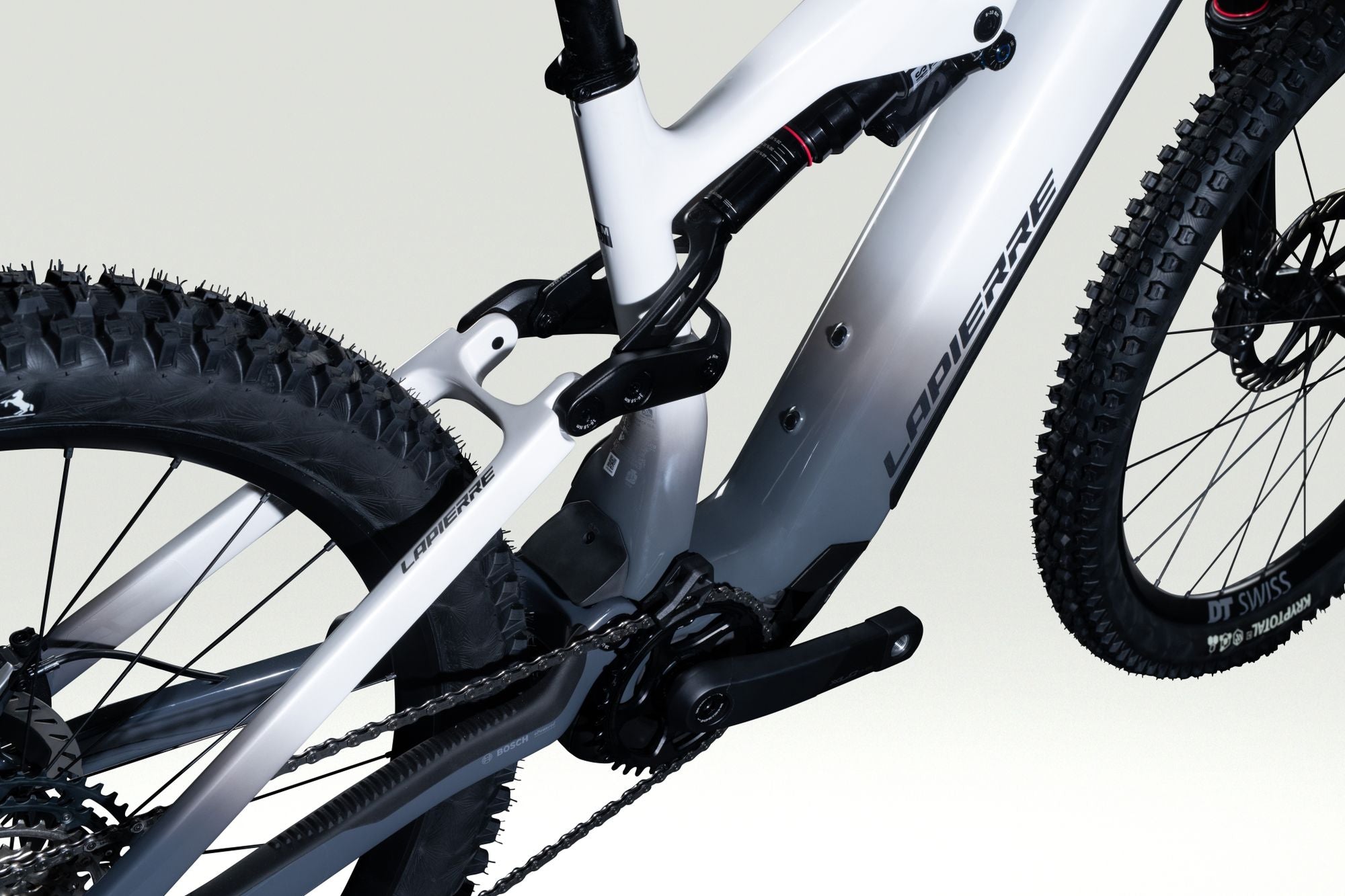

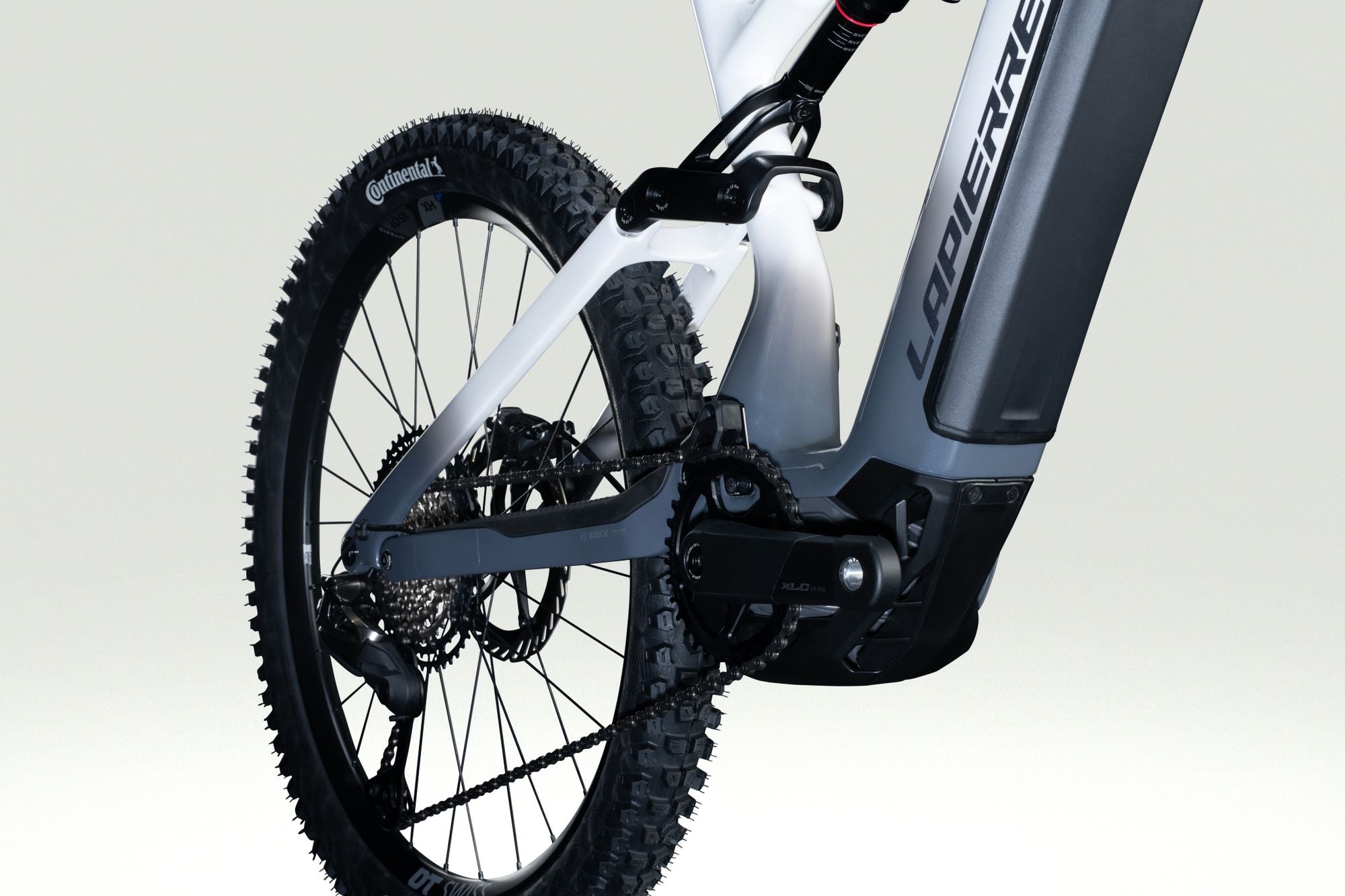

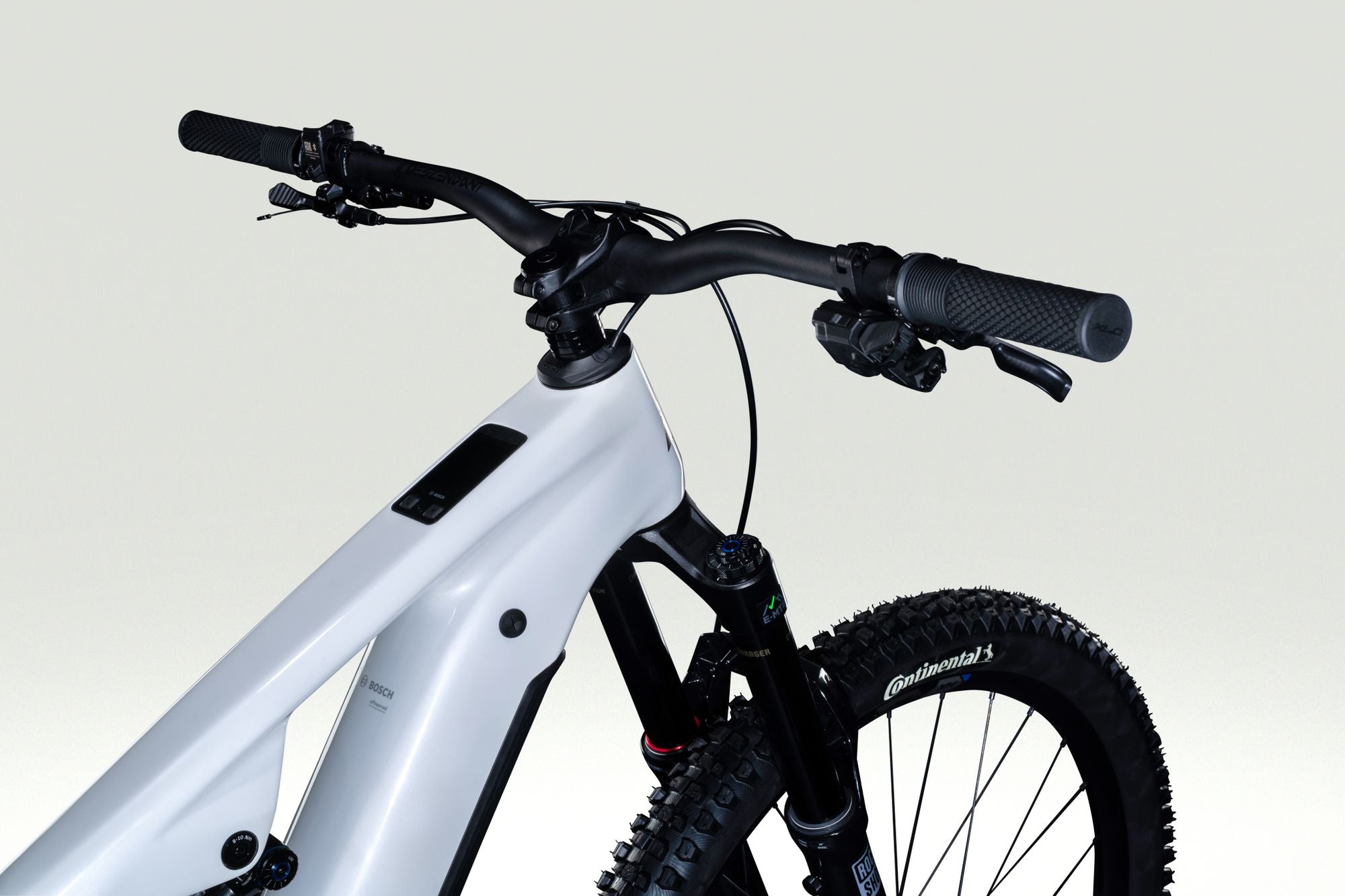

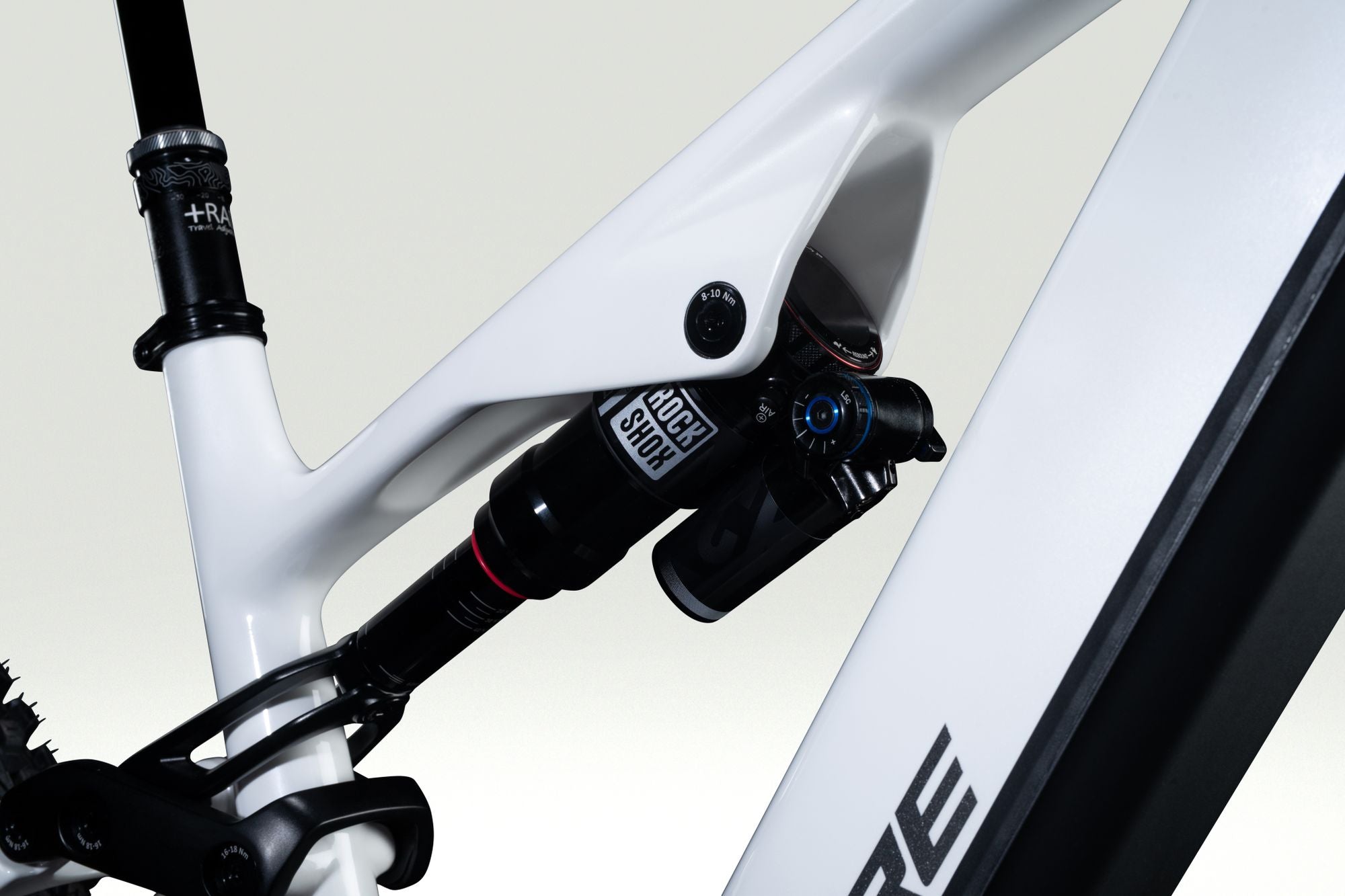

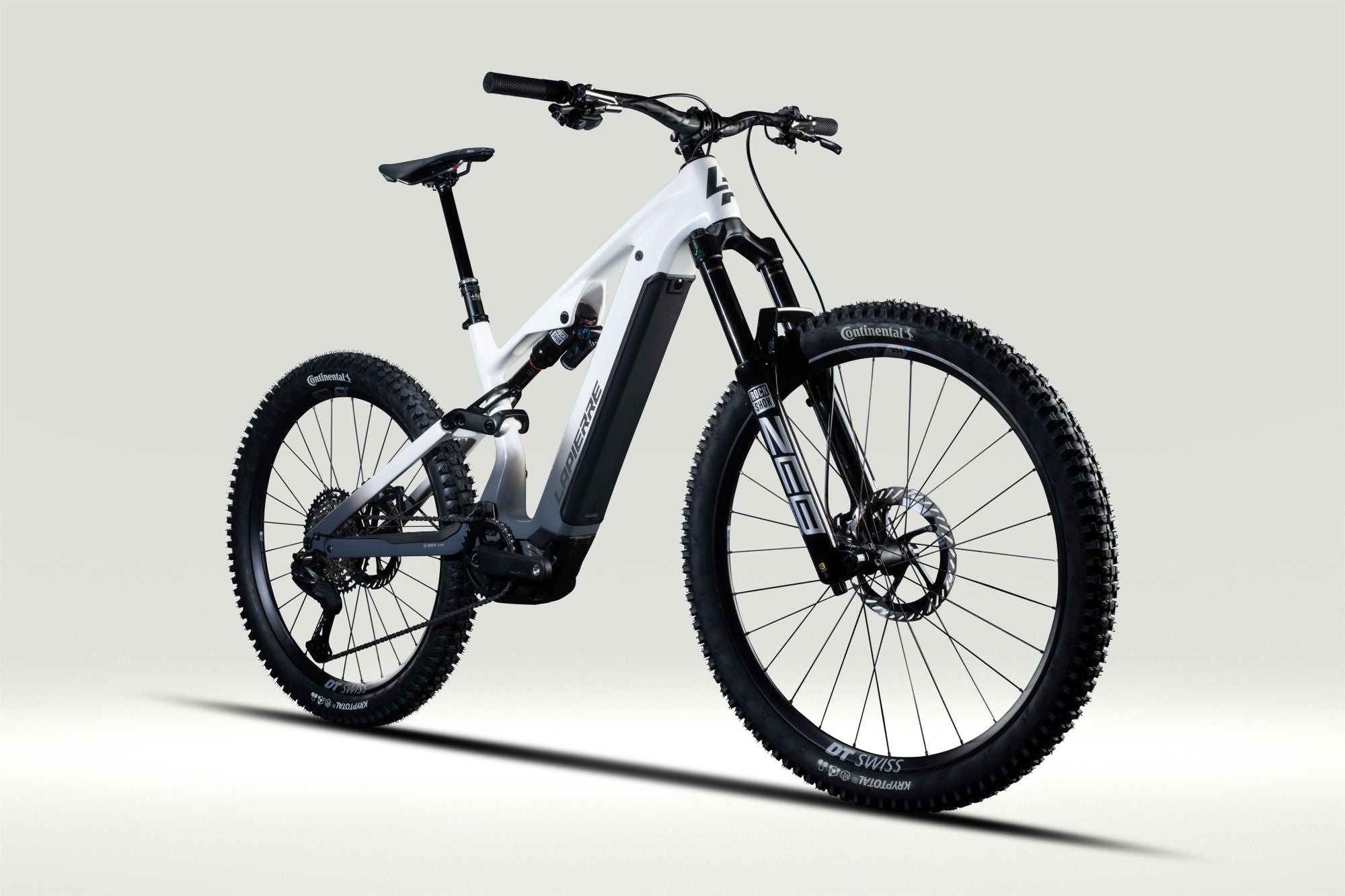

Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Carbon Uni
- Max system weight
- 120 kg
- Fork
- Rockshox ZEB Ultimate Charger 3.1 RC2, Boost, DebonAir 170 mm
- Rear shock
- Rockshox Super Deluxe Ultimate RC2T 205x60mm, Trunnion
E-system
- Battery
- Bosch PowerTube 800 Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 400C + Mini Remote
- Motor
- Bosch Performance Line CX-R
Drivetrain
- Cassette
- Shimano Deore XT CS-M8200-12, MICRO SPLINE
- Chain
- Shimano Deore XT CN-M8100 12s
- Crankset
- CR-E52 Cranks 160 mm + CR-E40 DM Chainring BDU38
- Rear derailleur
- Shimano XTR RD-M9260 12s, Shadow
- Number of gears
- 12
- Shifter
- Shimano Triggershift XTR SW-M9250-IR, wireless SL
Brakes
- Front Brake
- Shimano Hydraulic Disc brake XTR BR-M9220, 4 pistons, resin pad, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake XTR BR-M9220, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Wheelset
- DT Swiss HX 1501 Spline One, 30 mm, 15x110 mm, CL
- Tyres
- Continental Kryptotal-F Enduro SuperSoft foldable skin SL 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- Truvativ Riser Bar Descendant Riser DH Dia. 35 mm, Rise: 25 mm
- Pedals
- XLC PD-M29 Flat w. Reflector
- Saddle
- Prologo MTB Proxim W650 Tirox
- Seatpost
- JD Dropperpost YSI05, Dia. 31.6 mm, Travel: 150 mm 456 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt AM CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 583 mm | 608 mm | 630 mm | 660 mm |
| CHead tube length | 100 mm | 110 mm | 125 mm | 140 mm |
| DHead Tube Angle | 64.5° | 65° | 65° | 65° |
| ESeat Tube Angle | 77° | 77° | 77° | 77° |
| FChain stay length | 456 mm | 456 mm | 456 mm | 456 mm |
| GWheelbase | 1228 mm | 1250 mm | 1275 mm | 1308 mm |
| HStack | 628 mm | 640 mm | 654 mm | 667 mm |
| IReach | 438 mm | 460 mm | 479 mm | 506 mm |
| KBottom bracket drop | 17 mm | 29 mm | 17 mm | 17 mm |
Source: Lapierre. Values for the standard mullet setting.
Overvolt AM CF: builds compared
Overvolt AM CF range →| Overvolt AM CF 6.8 | Overvolt AM CF 7.8 | Overvolt AM CF 10.8 | |
|---|---|---|---|
| Price | €6,999 | €8,499 | €10,000 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rockshox ZEB Base Rush RC Boost, 170 mm | Rockshox ZEB Select Charger RC, 170 mm | Rockshox ZEB Ultimate Charger 3.1 RC2, Boost |
| Shock | Rockshox Deluxe Select+ 205x60 mm | Rockshox Super Deluxe Select RT 205x60 mm | Rockshox Super Deluxe Ultimate RC2T 205x60mm |
| Derailleur | Sram Eagle 90 T-Type 12s | Sram GX Eagle AXS T-Type 12s | Shimano XTR RD-M9260 12s |
| Brakes | Sram Hydraulic Disc brake DB Maven BSE SJ | Sram Hydraulic Disc brake DB Maven BRZ SJ | Shimano Hydraulic Disc brake XTR BR-M9220 |
| Display | Bosch Kiox 400C + USB Port + Mini Remote | Bosch Kiox 400C + USB Port + Mini Remote | Bosch Kiox 400C + Mini Remote |
Overvolt AM CF 10.8: FAQ
How much does the Lapierre Overvolt AM CF 10.8 cost?
€10,000 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt AM CF range runs from €6,999 (Overvolt AM CF 6.8) to €10,000 (Overvolt AM CF 10.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt AM CF 10.8 have?
Bosch Performance Line CX-R (100 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Lapierre Overvolt AM CF 10.8 have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Lapierre Overvolt AM CF 10.8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt AM CF 10.8 and the Overvolt AM CF 7.8?
They share the Overvolt AM CF frame platform; the differences are in the parts — fork: Rockshox ZEB Ultimate Charger 3.1 RC2 vs Rockshox ZEB Select Charger RC; shock: Rockshox Super Deluxe Ultimate RC2T 205x60mm vs Rockshox Super Deluxe Select RT 205x60 mm; derailleur: Shimano XTR RD-M9260 12s vs Sram GX Eagle AXS T-Type 12s; brakes: Shimano Hydraulic Disc brake XTR BR-M9220 vs Sram Hydraulic Disc brake DB Maven BRZ SJ; price: €10,000 vs €8,499.
