LapierreOvervolt AM AL 5.8
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhBosch PowerTube (horizontal)
- Travel F / R
- 170 / – mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Lapierre Overvolt AM AL 5.8 (€4,999) is the entry build of the Overvolt AM: Bosch Performance Line CX with 800 Wh, Rockshox Domain Gold Isolator R 15x110 29 170 mm fork, Lapierre Shock 205x60 mm Trunnion/30x8 mm shock, Shimano CUES U6000 10/11s Shadow+ and Shimano M4100 4 pistons brakes.
The aluminium Overvolt AM is Lapierre's all-mountain e-MTB, with handling that Lapierre says borders on enduro. It runs mullet wheels (29-inch front, 27.5-inch rear) and a 170 mm fork.
All three builds use the Bosch Performance Line CX motor with an 800 Wh PowerTube battery. The 9.8 and 7.8 come with Fox Factory or RockShox Select suspension; the AL 5.8 is the budget version, with a RockShox Domain fork, Lapierre's own shock and a Shimano CUES 11-speed drivetrain.
- Aluminium all-mountain frame
- 170 mm fork, mullet wheels
- Bosch Performance Line CX, 800 Wh
- Fox, RockShox or budget suspension builds

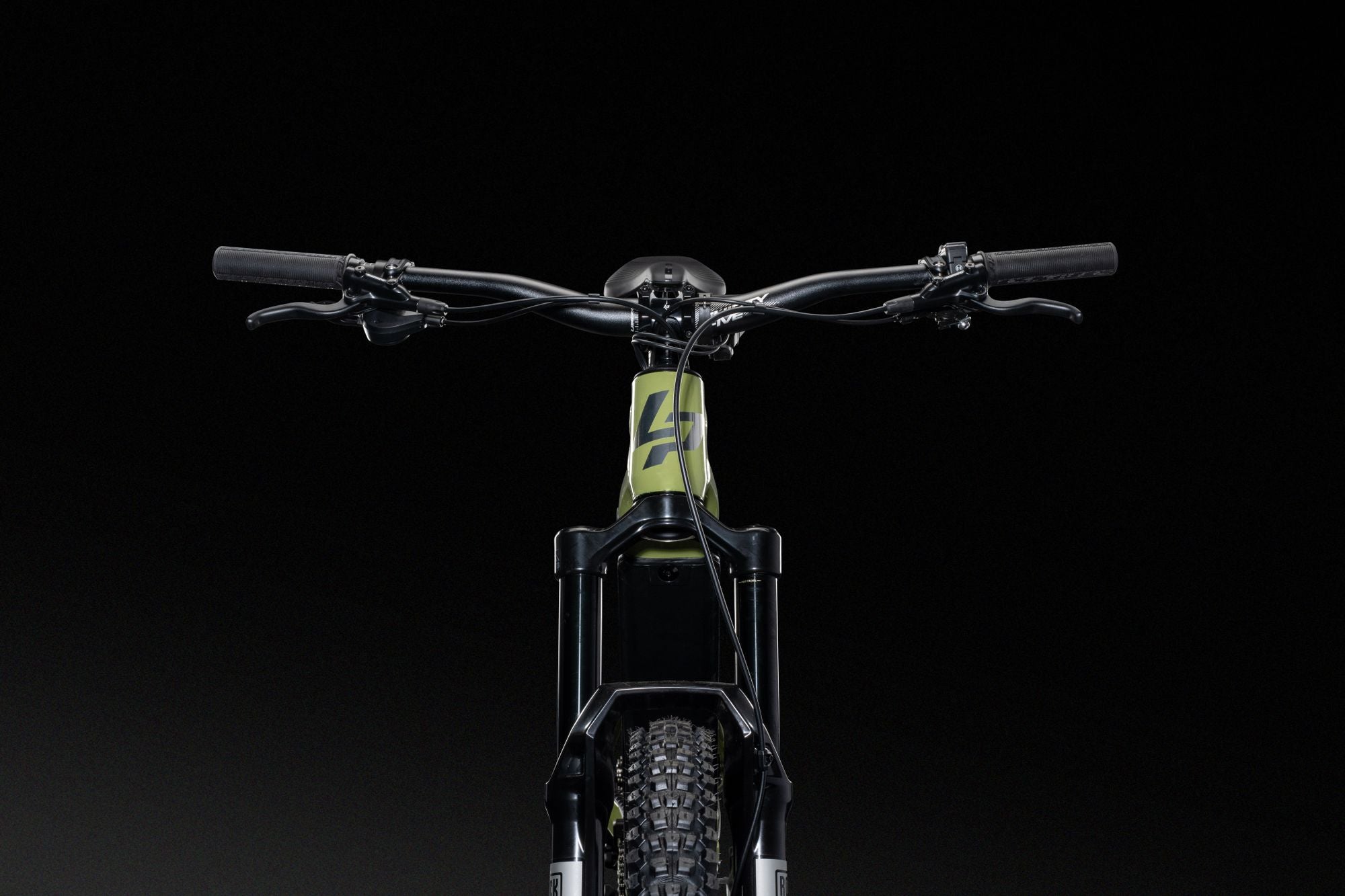

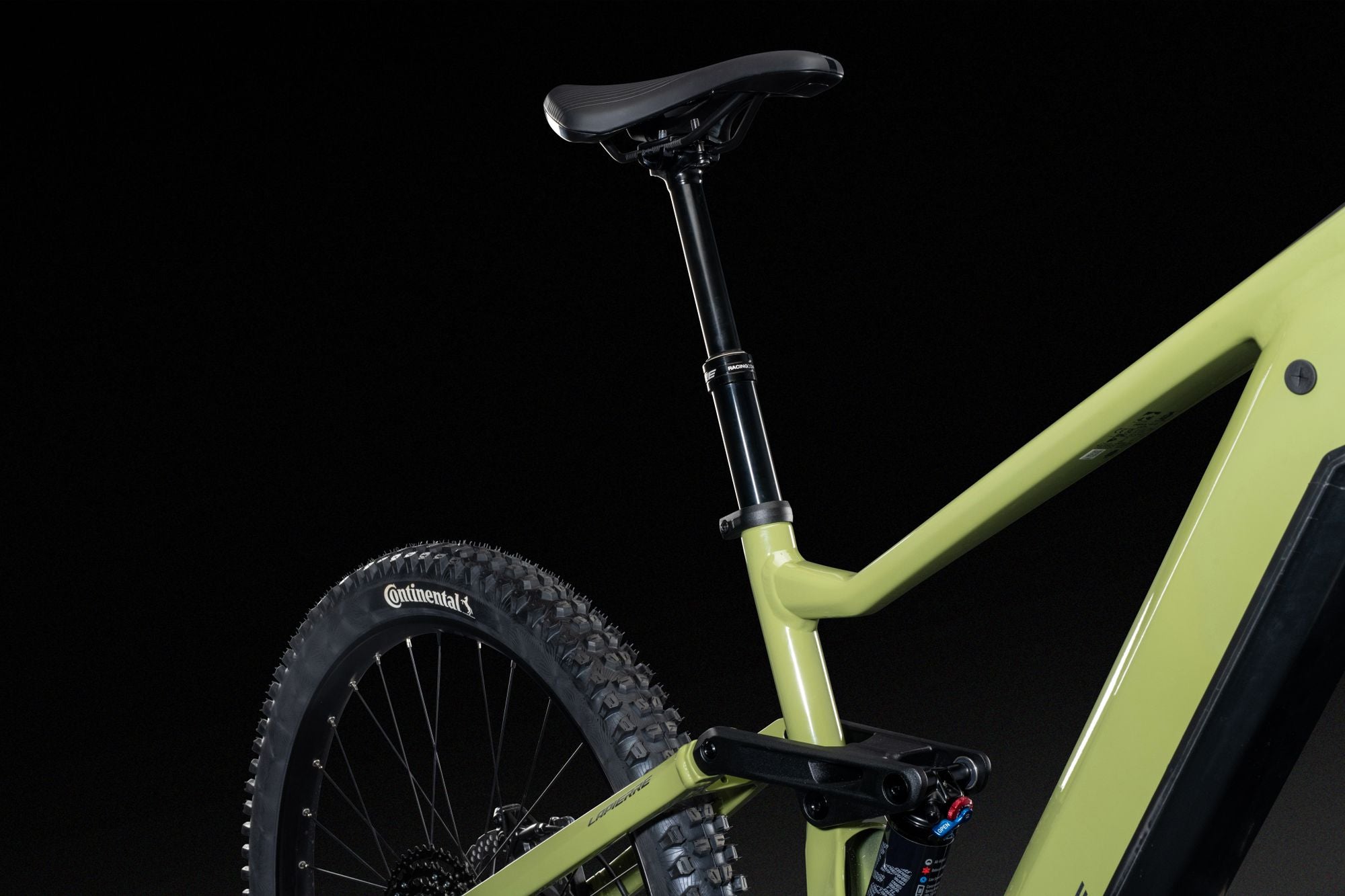

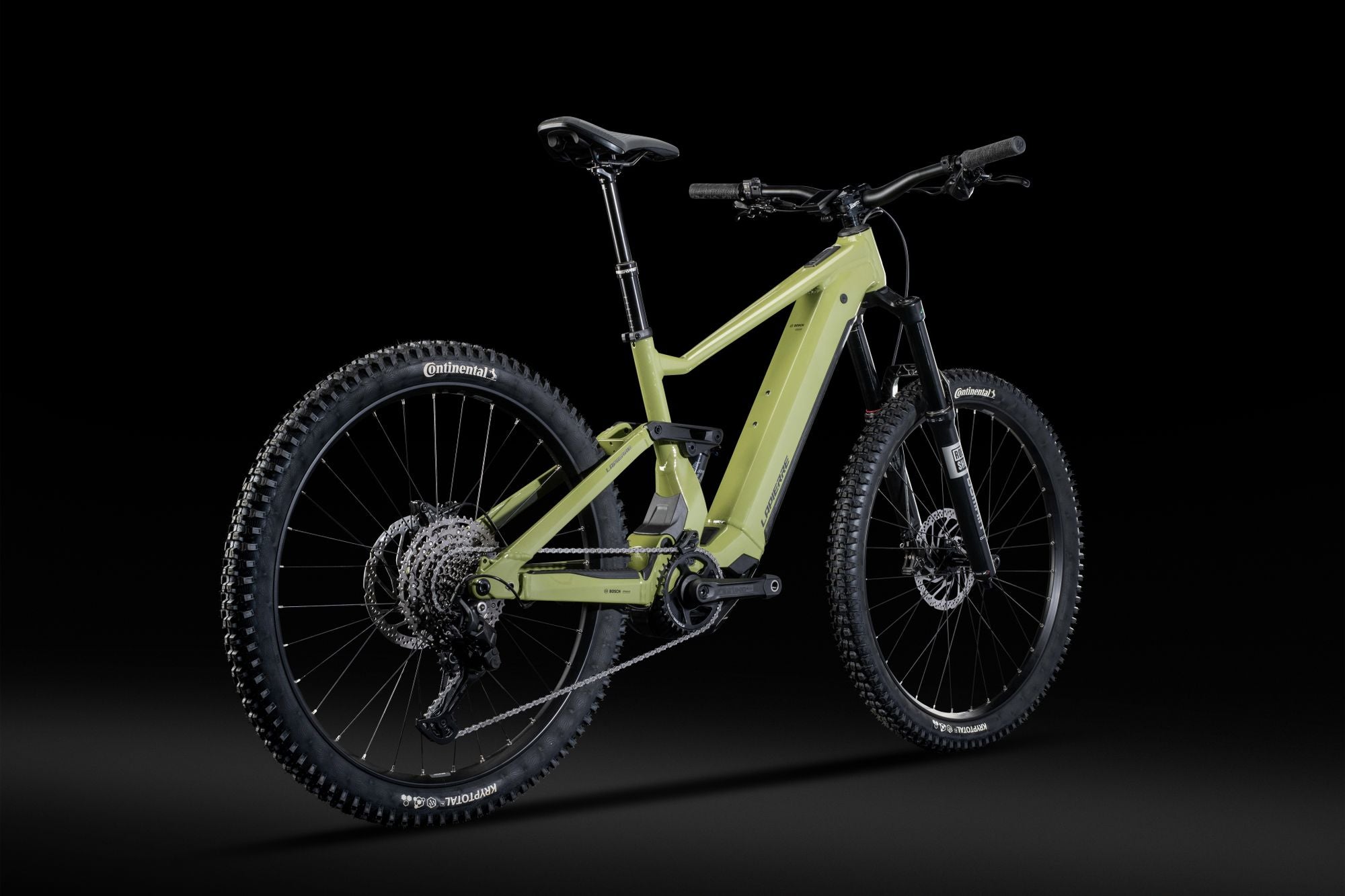

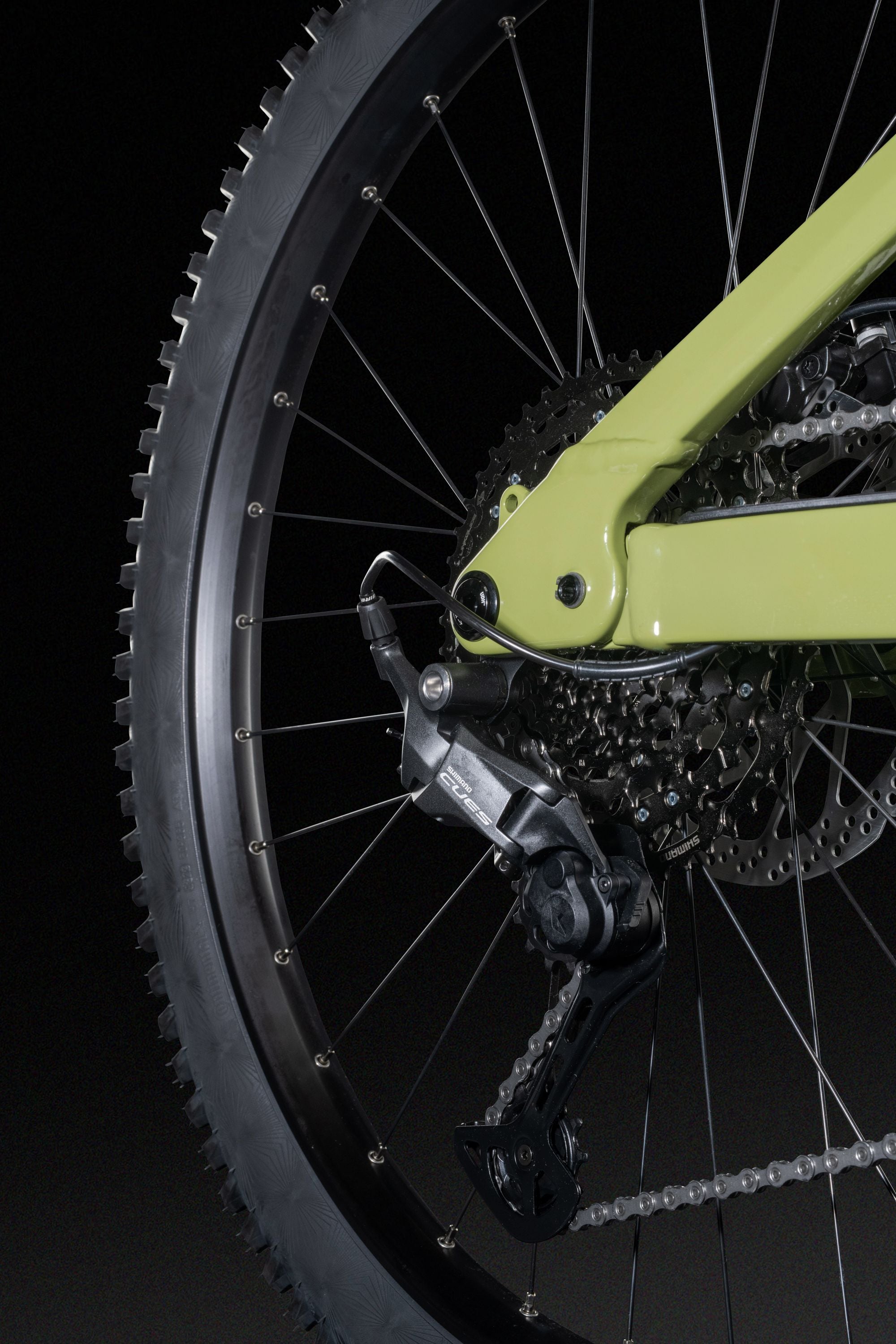

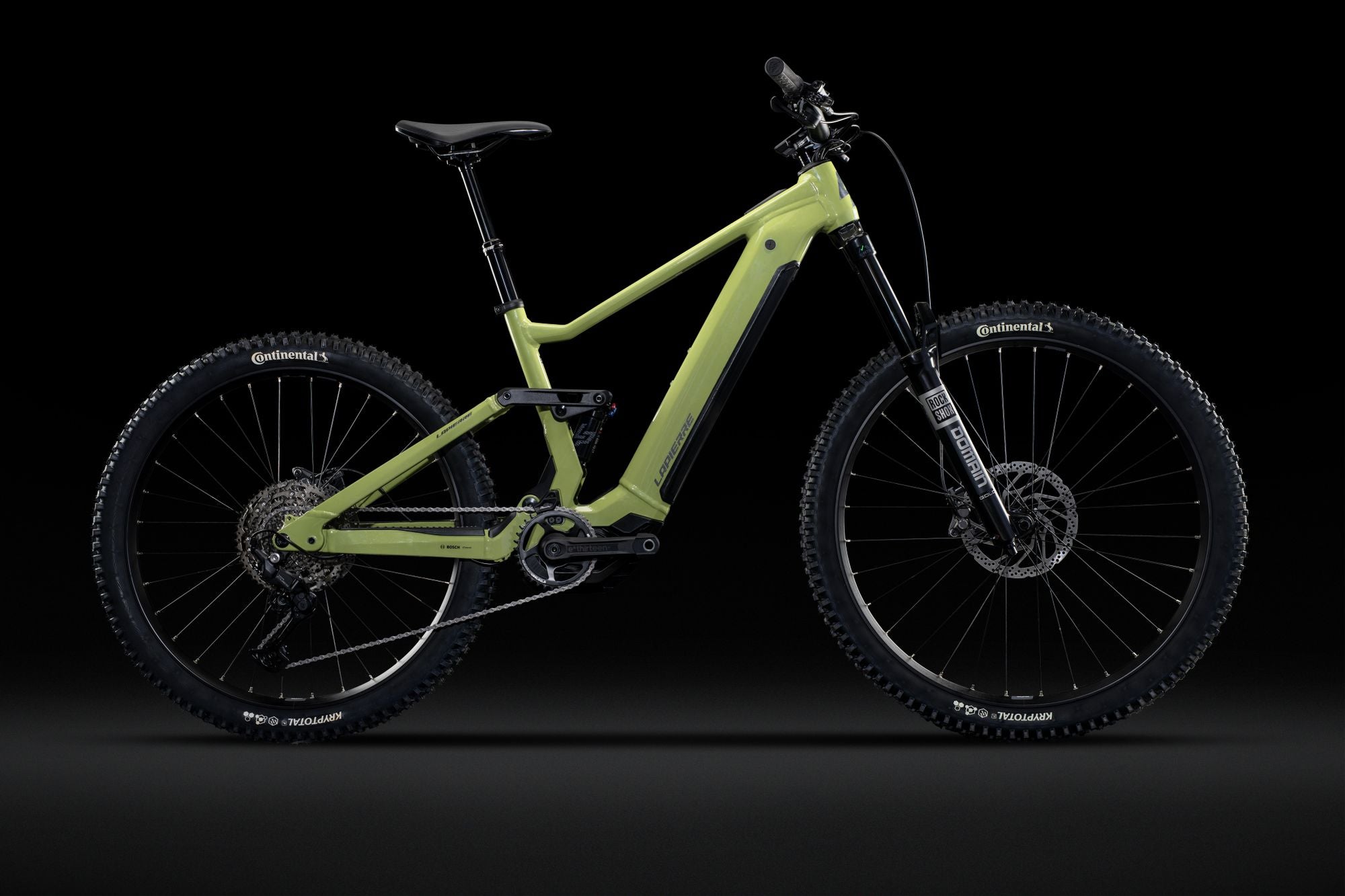

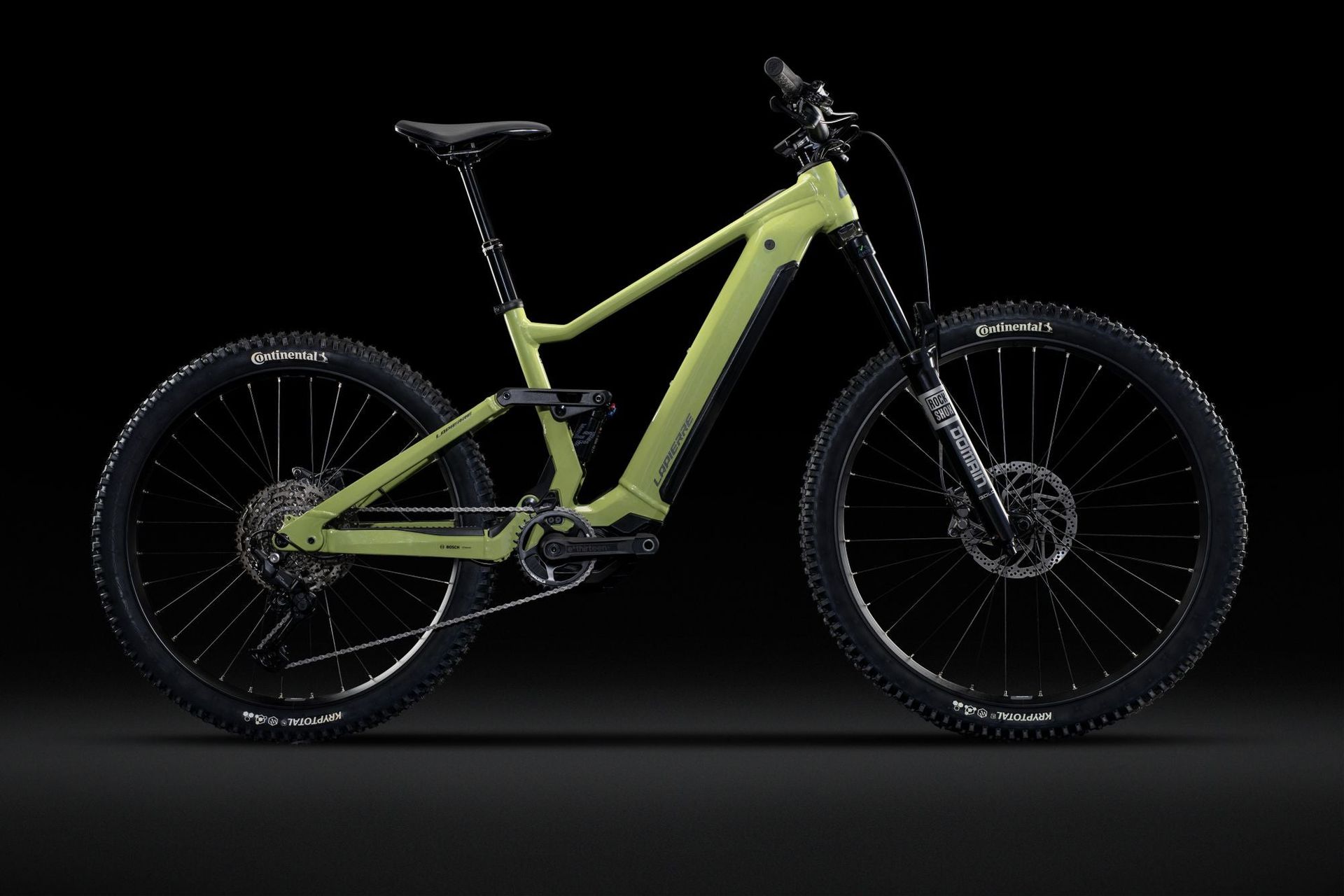

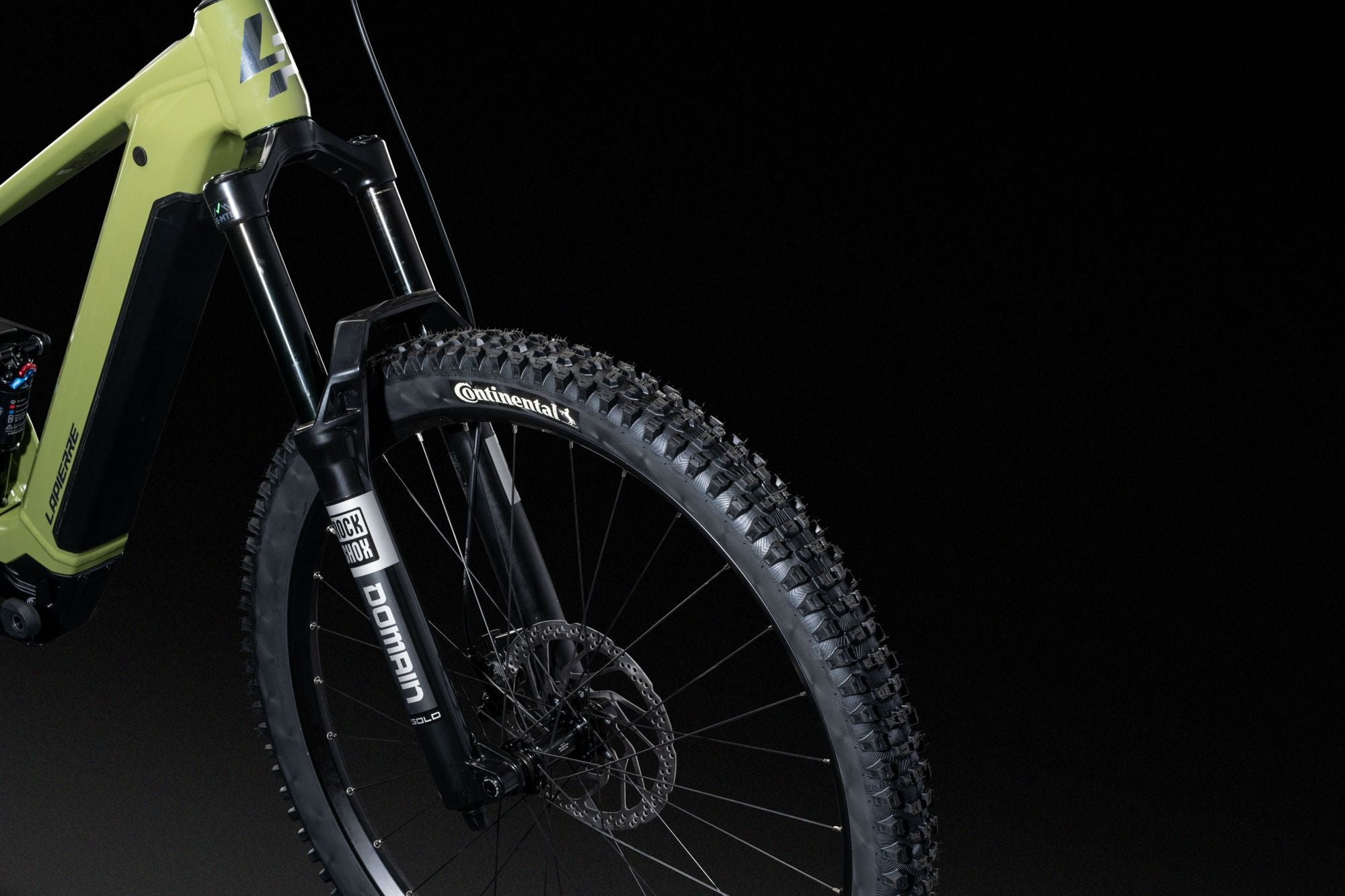

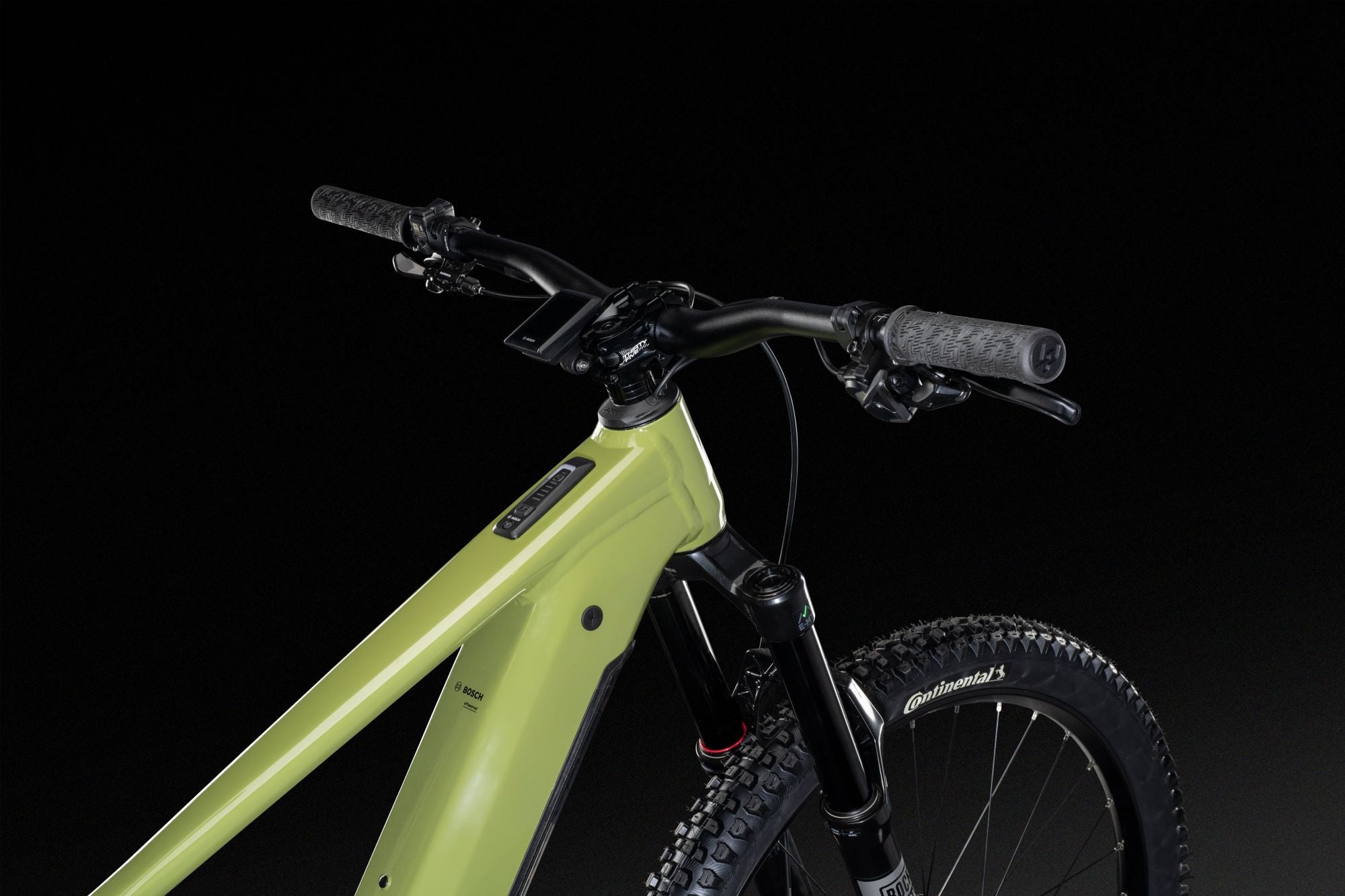

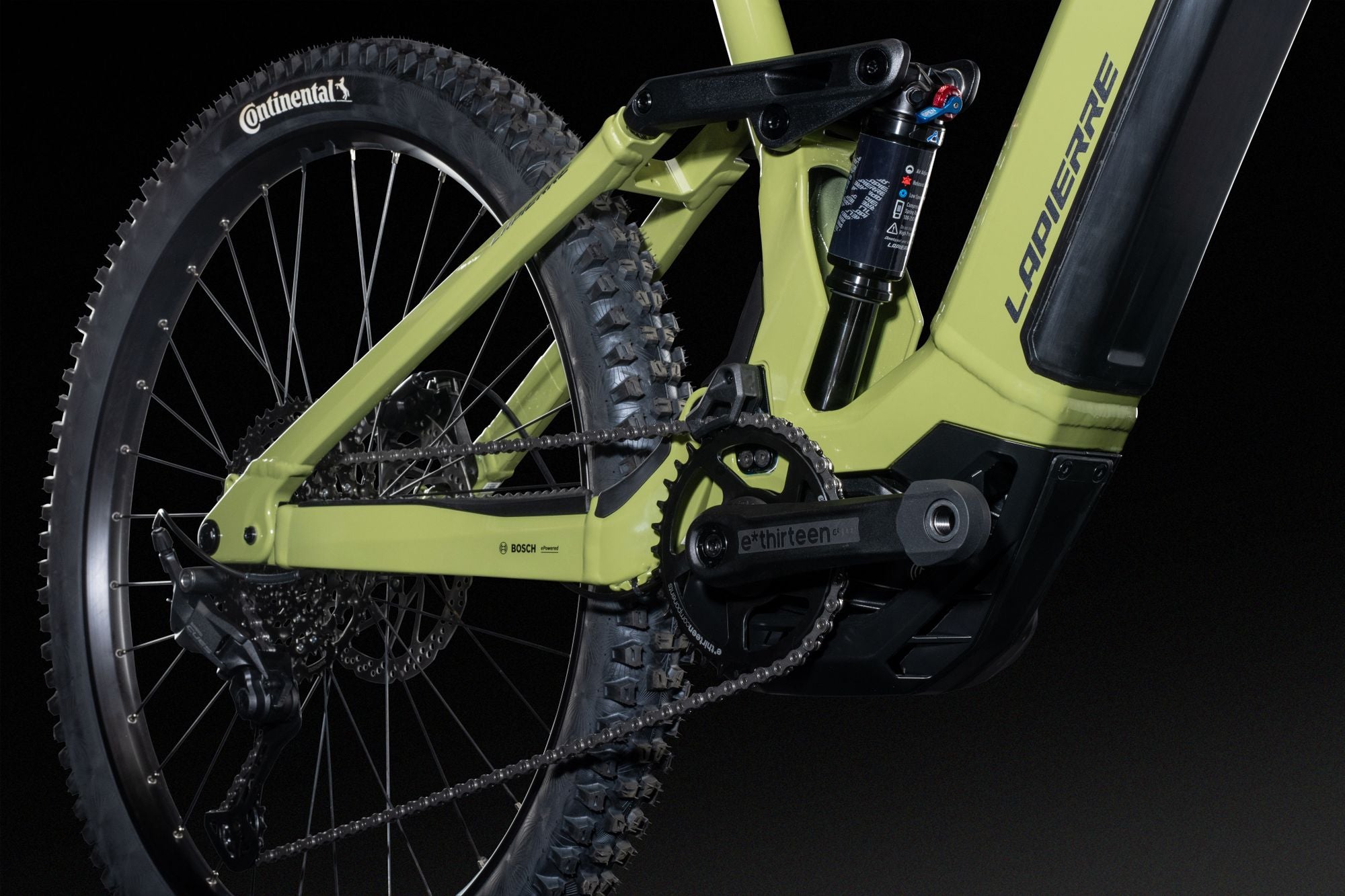

Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Gents
- Max system weight
- 120 kg
- Fork
- Rockshox Domain Gold Isolator R 15x110 29 170 mm
- Rear shock
- Lapierre Shock 205x60 mm Trunnion/30x8 mm
E-system
- Battery
- Bosch Powertube Horizontal 800Wh
- Charger
- Bosch Quick Charger Charger 4A
- Display
- Bosch Kiox 300
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Shimano Cassette CUES CS-LG400-11, HG
- Chain
- Shimano Chain CUES LG500 9/10/11s
- Crankset
- Helix Core + E13 Helix Core steel chainring 55CL
- Rear derailleur
- Shimano CUES U6000 10/11s Shadow+
- Number of gears
- 11
- Shifter
- Shimano Triggershift CUES SL-U6000-11R
Brakes
- Front Brake
- Shimano Hydraulic Disc brake M4100 4 pistons, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake M4100 4 pistons, 203 mm
Wheels & tyres
- Rims
- Ryde Disc30 32H, 30-622 Black Anodized
- Tyres
- Continental Kryptotal F Enduro Soft 60-622
Cockpit
- Grips
- Lapierre grips small diameter
- Handlebar
- Lapierre Flat bar Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
- Pedals
- XLC by VP
- Saddle
- Selle Royal MTB Vivo
- Seatpost
- JD Dropperpost YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt AM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 430 mm | 460 mm | 490 mm |
| BTop Tube length | 586 mm | 609 mm | 633 mm | 663 mm |
| CHead tube length | 110 mm | 110 mm | 130 mm | 150 mm |
| DHead Tube Angle | 64.5° | 65° | 65° | 65° |
| ESeat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| FChain stay length | 460 mm | 460 mm | 460 mm | 460 mm |
| GWheelbase | 1231 mm | 1248 mm | 1276 mm | 1311 mm |
| HStack | 638 mm | 641 mm | 659 mm | 678 mm |
| IReach | 433 mm | 455 mm | 475 mm | 500 mm |
| KBottom bracket drop | 30 mm | 30 mm | 30 mm | 30 mm |
Source: Lapierre. Values for the standard mullet setting.
Overvolt AM: builds compared
Overvolt AM range →| Overvolt AM AL 5.8 | Overvolt AM 7.8 | Overvolt AM 9.8 | |
|---|---|---|---|
| Price | €4,999 | €5,999 | €7,499 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Domain Gold Isolator R 15x110 29 170 mm | Rockshox ZEB Select Charger RC Boost, 170 mm | FOX Factory 38 Float F-S E-Optimized, Grip X |
| Shock | Lapierre Shock 205x60 mm Trunnion/30x8 mm | Rockshox Super Deluxe Select RT 205x60 mm | FOX Factory Float X Factory Series |
| Derailleur | Shimano CUES U6000 10/11s Shadow+ | Shimano Deore RD-M6260-12s | Shimano Deore XT RD-M8260-SGS 12s |
| Brakes | Shimano Hydraulic Disc brake M4100 4 pistons | Shimano Hydraulic Disc brake Deore BR-M6120 | Shimano Hydraulic Disc brake Deore XT BR-M8220 |
| Wheels | Ryde Disc30 32H, 30-622 Black Anodized | — | — |
| Display | Bosch Kiox 300 | Bosch Kiox 300 + Mini Remote | Bosch Kiox 300 + Mini Remote |
Overvolt AM AL 5.8: FAQ
How much does the Lapierre Overvolt AM AL 5.8 cost?
€4,999 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt AM range runs from €4,999 (Overvolt AM AL 5.8) to €7,499 (Overvolt AM 9.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt AM AL 5.8 have?
Bosch Performance Line CX (100 Nm). 800 Wh battery — bosch PowerTube (horizontal).
How much suspension travel does the Lapierre Overvolt AM AL 5.8 have?
170 mm at the fork, on mullet 29" / 27.5" wheels.
What sizes does the Lapierre Overvolt AM AL 5.8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt AM AL 5.8 and the Overvolt AM 7.8?
They share the Overvolt AM frame platform and motor; the differences are in the parts — fork: Rockshox Domain Gold Isolator R 15x110 29 170 mm vs Rockshox ZEB Select Charger RC Boost; shock: Lapierre Shock 205x60 mm Trunnion/30x8 mm vs Rockshox Super Deluxe Select RT 205x60 mm; derailleur: Shimano CUES U6000 10/11s Shadow+ vs Shimano Deore RD-M6260-12s; brakes: Shimano Hydraulic Disc brake M4100 4 pistons vs Shimano Hydraulic Disc brake Deore BR-M6120; price: €4,999 vs €5,999.
