KTMMacina Lycan Exonic CX-R Di2
- Motor
- Bosch Performance Line CX-R120 Nm
- Battery
- 800 WhBosch PowerTube, removable upwards (PTTL)
- Travel F / R
- 140 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 23.5 kgManufacturer figure (size L / 48 cm, as listed on the product page)
Overview
The KTM Macina Lycan Exonic CX-R Di2 (€7,699) is the top build of the Macina Lycan: Bosch Performance Line CX-R with 800 Wh, FOX 36E FLOAT 29" Factory 140mm 15x110 fork, FOX FLOAT Performance 2P-Lockout 230x65 shock and Shimano XTR Di2 M9260-12 ShadowES rear derailleur. Claimed weight is 23.5 kg.
The Macina Lycan is KTM's 140 mm trail e-MTB with Straight-Line-Link (SLL) suspension. For the 2027 model year it is offered with a new carbon frame alongside the existing aluminium models. A size-split concept puts size S on 27.5-inch wheels and sizes M to XL on 29-inch wheels.
Carbon models use the Bosch Performance Line CX-R, aluminium models the Performance Line CX. All builds have an 800 Wh PowerTube that is removed upwards from the down tube via KTM's Power Tube Top Loader (PTTL).
- 140 mm travel, SLL suspension
- New carbon frame (CX-R) plus alloy (CX)
- 800 Wh PowerTube with top-loader removal
- Size-split: S on 27.5", M-XL on 29"

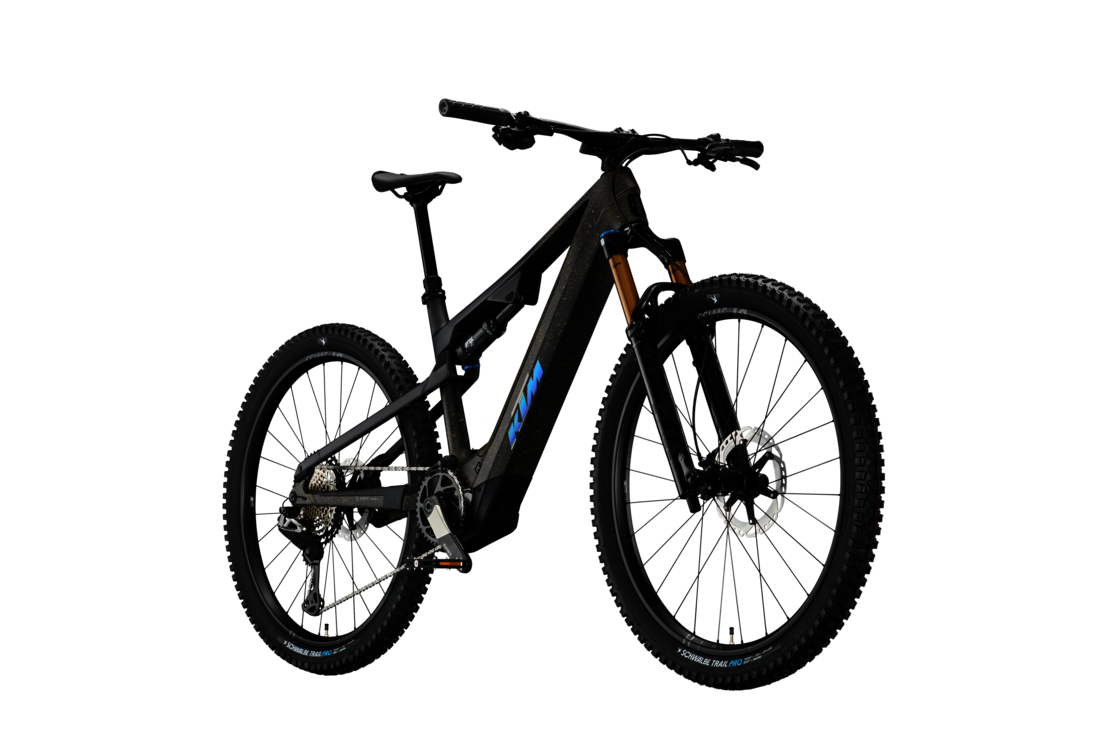

Gallery
Photos: KTM
Full specifications
Frame & suspension
- Frame
- Macina Lycan PERFORMANCE CARBON 140|PT800 Bosch BDU38/M7220
- Fork
- FOX 36E FLOAT 29" Factory 140mm 15x110
- Rear shock
- FOX FLOAT Performance 2P-Lockout 230x65
E-system
- Motor
- Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
- Display
- Bosch PURION 400 Display
- Battery
- Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
- Charger
- Bosch STANDARD Charger 4A
Drivetrain
- Rear derailleur
- Shimano XTR Di2 M9260-12 ShadowES
- Shifter
- Front: Shimano MT800-L SP-Lever - Rear: Shimano XTR Di2 M9250 Controller
- Crankset
- RACE FACE ERA-E165
- Chain
- Shimano M8100-12
Wheels & tyres
- Wheelset
- Front: DT HXC 1700 Spline Carbon CL 110/15TA|622x30TSS TLR - Rear: DT HXC 1700 Spline Carbon CL 148/12TA|622x30TSS MS DEG TLR
- Front tyre
- Schwalbe Romy Trail Pro Soft TLR 63-622
- Rear tyre
- Schwalbe Romy Trail Pro Mid TLR 63-622
Cockpit
- Grips
- Ergon GE10
- Handlebar
- KTM TEAM Trail35 rizer15 780mm
- Stem
- KTM TEAM Trail35
- Headset
- Acros AICR intern 1.1/8"-1.5" angle lim
- Saddle
- KTM TEAM TRAIL Cr-Mo Rails
- Seatpost
- KTM COMP II dropper internal 34.9 T:150
Other
- Pedals
- MTB-Pedal nylon VP-539 flat
- Max. system weight
- 140 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Macina Lycan geometry
| Size | M (43 cm) | L (48 cm) | XL (53 cm) |
|---|---|---|---|
| Seat tube length | 430 mm | 450 mm | 480 mm |
| Top tube length | 600 mm | 620 mm | 640 mm |
| Seat angle | 76.5° (74.9°) | 76.5° (74.6°) | 76.5° (75°) |
| Head angle | 65.5° | 65.5° | 65.5° |
| Head tube length | 100 mm | 115 mm | 130 mm |
| Chainstay length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1225 mm | 1248 mm | 1271 mm |
| Stack | 610 mm | 623 mm | 637 mm |
| Reach | 454 mm | 470 mm | 487 mm |
| Standover height | 815 mm | 823 mm | 831 mm |
| BB drop | 30 mm | 30 mm | 30 mm |
Source: KTM. Seat angle: second value in brackets as published by KTM.
Macina Lycan: builds compared
Macina Lycan range →| Macina Lycan 892 | Macina Lycan 891 L | Macina Lycan Elite CX-R | Macina Lycan Master CX-R | Macina Lycan Master CX-R Di2 | Macina Lycan Prime CX-R Di2 | Macina Lycan Exonic CX-R Di2 | |
|---|---|---|---|---|---|---|---|
| Price | €3,999 | €4,399 | €4,399 | €4,799 | €5,199 | €5,899 | €7,699 |
| Frame | Alloy | Alloy | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Suntour XCR34 Air 27" 2CR 140mm 15x110 | FOX 34E FLOAT 27" Rhythm 140mm 15x110 | Suntour XCR36X Air 29" 2CR 140mm 15x110 | FOX 36E FLOAT 29" AWL HD 140mm 15x110 | FOX Float 36E HD AWL 29" 140mm 15x110 | FOX 36E FLOAT 29" AWL HD 140mm 15x110 | FOX 36E FLOAT 29" Factory 140mm 15x110 |
| Shock | Suntour EDGE-X R 230x65 | FOX Float Rhythm R 230x65 | Suntour EDGE-X R 230x65 | FOX Float Rhythm R 230x65 | FOX Float Rhythm R 230x65 | FOX Float Rhythm R 230x65 | FOX FLOAT Performance 2P-Lockout 230x65 |
| Derailleur | Shimano DEORE M6100-12 SGS Shadow+ | Shimano DEORE XT M8100-12 SGS Shadow+ | Shimano DEORE XT M8100-12 SGS Shadow+ | Shimano DEORE XT M8100-12 SGS Shadow+ | Shimano DEORE Di2 M6260-12 ShadowES | Shimano DEORE XT Di2 M8260-12 ShadowES | Shimano XTR Di2 M9260-12 ShadowES |
| Display | — | Bosch PURION 200 Display & Remote | — | Bosch PURION 200 Display & Remote | Bosch PURION 200 Display & Remote | Bosch PURION 400 Display | Bosch PURION 400 Display |
| Weight | 26.6 kg | 25.9 kg | 24.8 kg | 25 kg | 25.3 kg | 24.6 kg | 23.5 kg |
Macina Lycan Exonic CX-R Di2: FAQ
How much does the KTM Macina Lycan Exonic CX-R Di2 cost?
€7,699 (KTM SRP (ktm-bikes.at, EUR), VAT incl.). The Macina Lycan range runs from €3,999 (Macina Lycan 892) to €7,699 (Macina Lycan Exonic CX-R Di2). Prices vary by country and dealer.
How much does the KTM Macina Lycan Exonic CX-R Di2 weigh?
KTM quotes 23.5 kg. It is the lightest build of the Macina Lycan.
What motor and battery does the KTM Macina Lycan Exonic CX-R Di2 have?
Bosch Performance Line CX-R (120 Nm). 800 Wh battery — bosch PowerTube, removable upwards (PTTL).
How much suspension travel does the KTM Macina Lycan Exonic CX-R Di2 have?
140 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the KTM Macina Lycan Exonic CX-R Di2 come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Macina Lycan Exonic CX-R Di2 and the Macina Lycan Prime CX-R Di2?
They share the Macina Lycan frame platform and motor; the differences are in the parts — fork: FOX 36E FLOAT 29" Factory 140mm 15x110 vs FOX 36E FLOAT 29" AWL HD 140mm 15x110; shock: FOX FLOAT Performance 2P-Lockout 230x65 vs FOX Float Rhythm R 230x65; derailleur: Shimano XTR Di2 M9260-12 ShadowES vs Shimano DEORE XT Di2 M8260-12 ShadowES; claimed weight: 23.5 kg vs 24.6 kg; price: €7,699 vs €5,899.
