FocusJAM² SL

Price: €6,299 – €11,499
Motor: Fazua Ride 6060 Nm; 450 W peak
Battery: 430 WhFazua 36 V, integrated, removable
Travel F / R: 160 / 150 mm
Wheels: 29"
Weight: 17.9 kg – 20.2 kg

Overview

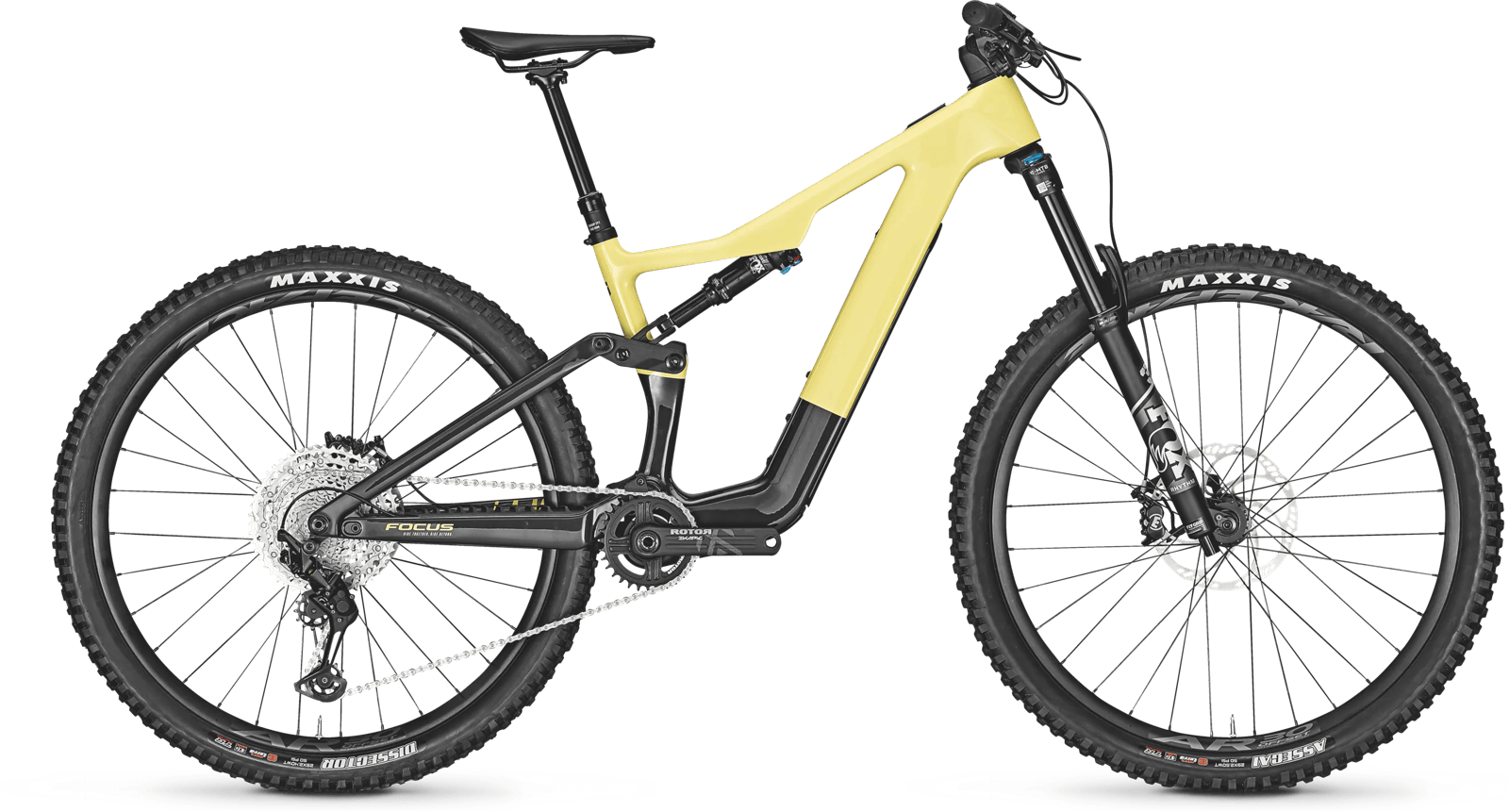

The JAM² SL is Focus's light carbon e-MTB: a carbon frame (MAX carbon on the 9-series) with 150 mm of F.O.L.D. GEN3 rear travel, a 160 mm fork and 29-inch wheels, powered by the Fazua Ride 60 (60 Nm, 450 W peak) with a 430 Wh battery fully integrated in the down tube.

The head angle (65.5° or 64.5°) and chainstay length (440 or 447 mm) are adjustable via flip chips. Claimed weights run from 17.9 kg (JAM² SL 9.0) to 20.2 kg (JAM² SL 8.7). These builds are from the 2023 model year and are still listed on Focus's German site.

Light carbon e-MTB, 150 mm / 160 mm
Fazua Ride 60: 60 Nm, 450 W peak
430 Wh integrated battery
Adjustable head angle and chainstay

Focus JAM² SL builds

TrailJAM² SL 8.7Fazua Ride 60 · 430 Wh · 160 / 150 mm€6,299

TrailJAM² SL 8.8Fazua Ride 60 · 430 Wh · 160 / 150 mm€6,999

TrailJAM² SL 9.9Fazua Ride 60 · 430 Wh · 160 / 150 mm€8,999

TrailJAM² SL 9.0Fazua Ride 60 · 430 Wh · 160 / 150 mm€11,499

JAM² SL builds compared

	JAM² SL 8.7	JAM² SL 8.8	JAM² SL 9.9	JAM² SL 9.0
Price	€6,299	€6,999	€8,999	€11,499
Frame	Carbon	Carbon	Carbon	Carbon
Fork	DVO Diamond E3, 110x15 mm	FOX 36 Float Rhythm 29 E-Bike, Grip	FOX 36 Float Performance Elite 29, Grip 2	FOX 36 Float Factory 29, Grip 2
Shock	Rock Shox Deluxe Select+	FOX Float DPS	FOX Float X Performance	FOX Float DPS Factory
Derailleur	SRAM NX Eagle	Shimano Deore XT M8100	Shimano Deore XT M8100	SRAM XO1 Eagle AXS
Brakes	SRAM DB8	Magura MT5 (front and rear)	Shimano XT M8120	SRAM G2 Ultimate (front and rear)
Wheels	RaceFace AR30 Offset (front and rear)	RaceFace AR30 Offset (front and rear)	—	—
Display	Fazua LED Hub + Ring Control	Fazua LED Hub + Ring Control	Fazua LED Hub + Ring Control	Fazua LED Hub + Ring Control
Weight	20.2 kg	19.7 kg	19.2 kg	17.9 kg

JAM² SL geometry

Size	S	M	L	XL
Handlebar width	800 mm	800 mm	800 mm	800 mm
Stem length	50 mm	50 mm	50 mm	50 mm
Crank length	165 mm	165 mm	165 mm	165 mm
Seatpost length	390 mm	440 mm	480 mm	480 mm
ASeat tube length	390 mm	420 mm	440 mm	460 mm
BTop tube length	578 mm	607 mm	637 mm	672 mm
CHead angle	64.5° / 64.5° / 65.5° / 65.5°	64.5° / 64.5° / 65.5° / 65.5°	64.5° / 64.5° / 65.5° / 65.5°	64.5° / 64.5° / 65.5° / 65.5°
DSeat angle	76.5°	76.5°	76.5°	76.5°
EChainstay length	440 mm / 447 mm / 440 mm / 447 mm	440 mm / 447 mm / 440 mm / 447 mm	440 mm / 447 mm / 440 mm / 447 mm	440 mm / 447 mm / 440 mm / 447 mm
FBottom bracket drop	25 mm	25 mm	25 mm	30 mm
GHead tube length	100 mm	100 mm	120 mm	140 mm
HFork length	571 mm	571 mm	571 mm	571 mm
IFork offset	44 mm	44 mm	44 mm	44 mm
JWheelbase	1194 mm / 1205 mm / 1201 mm / 1212 mm	1219 mm / 1230 mm / 1226 mm / 1237 mm	1252 mm / 1264 mm / 1259 mm / 1271 mm	1285 mm / 1297 mm / 1292 mm / 1304 mm
KStack	614 mm	614 mm	632 mm	650 mm
LReach	430 mm	460 mm	485 mm	515 mm
MStandover height	790 mm	790 mm	790 mm	792 mm

Where several values are given, they correspond to the positions: head angle slack, chainstay short / head angle slack, chainstay long / head angle steep, chainstay short / head angle steep, chainstay long. Source: Focus.
