FocusVAM² SL 9.9
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua 36 V, integrated, removable
- Travel F / R
- 130 / 125 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 17.6 kgManufacturer figure (size M, 430 Wh battery, without pedals)
Watching this bike? Get new models and updates on Telegram →
Overview
FOX Performance Elite suspension, Shimano XT and XT brakes for €8,699, at a claimed 17.6 kg. The VAM² SL 9.9 is for riders who want lighter and better without the flagship price.
The VAM² SL 9.9 is one of 4 builds of the Focus VAM² SL. About the VAM² SL range and all its builds →

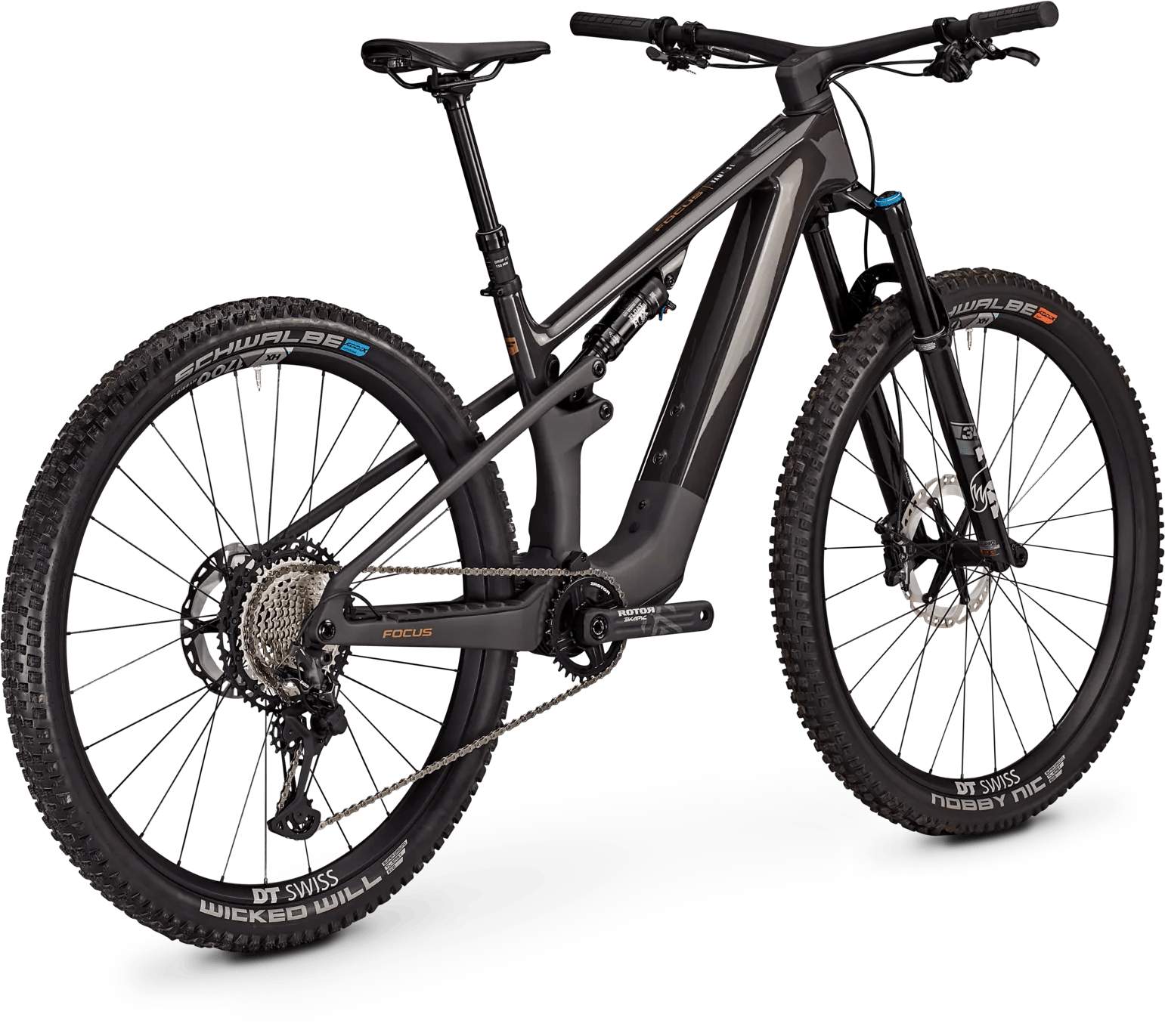

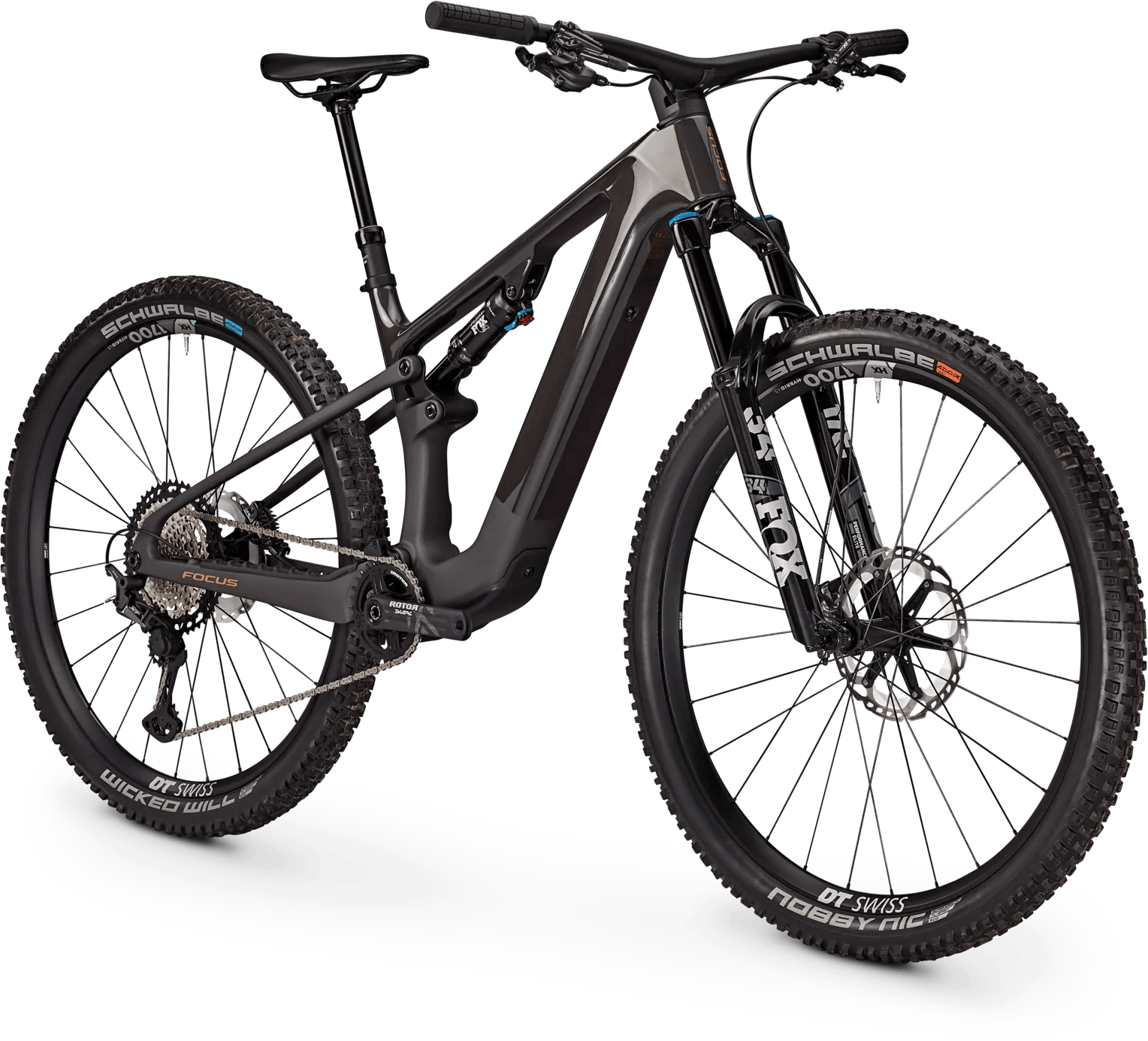

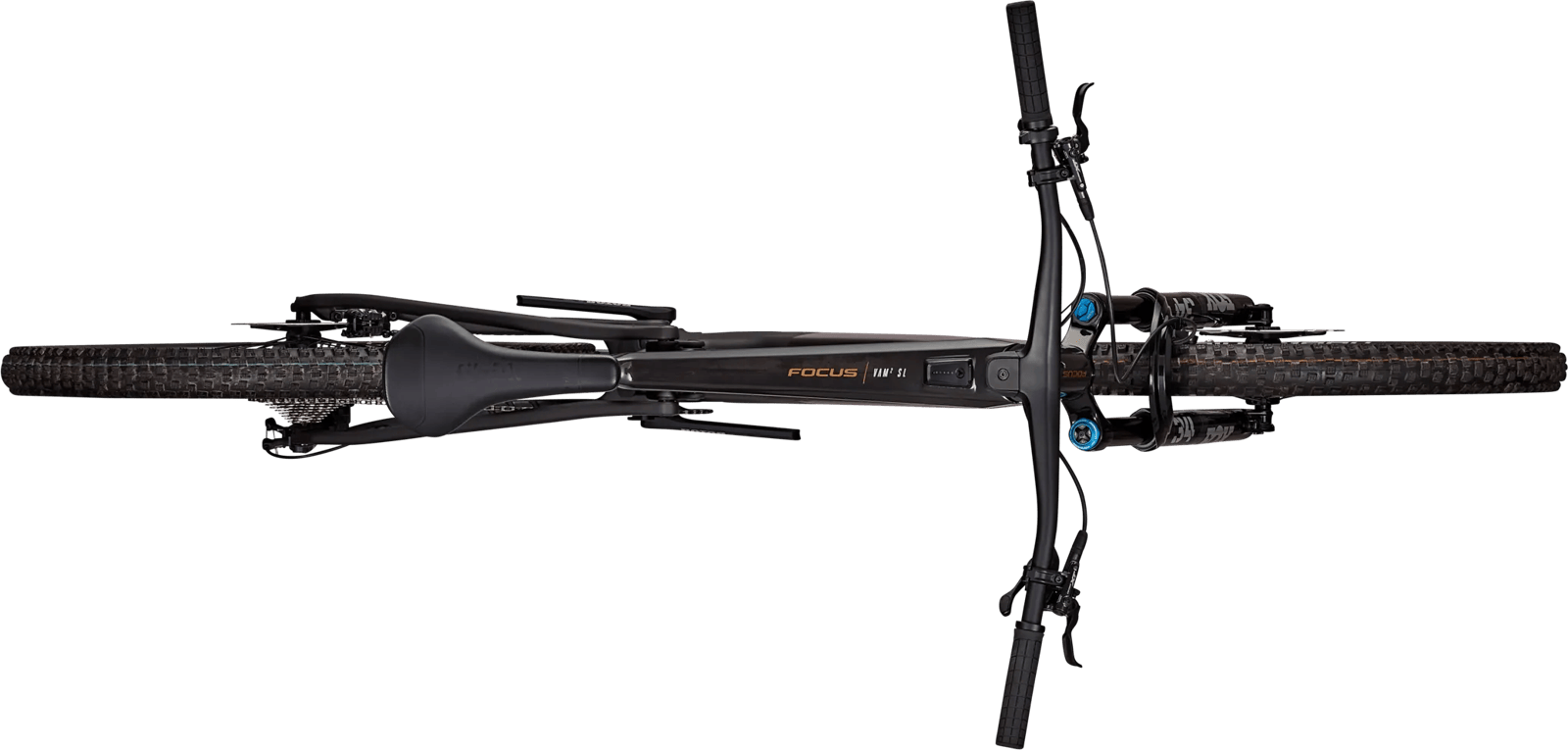

Gallery
Photos: Focus
Full specifications
Frame & suspension
- Frame
- MAX Carbon technology frame, 125mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
- Fork
- FOX 34 Float Performance Elite 29, 110x15 mm, 51 mm rake
- Fork travel
- 130 mm
- Rear shock
- FOX Float Performance , 2-position lever, 210/50 mm, hardware: 25.0 x 8.0 mm, no Bushing
- Sizes
- S, M, L, XL
- Colours
- Black
E-system
- Motor
- Ride60
- Battery
- Fazua 36V (430Wh)
- Display
- Fazua LED Hub + Ring Control
Drivetrain
- Shifter
- Shimano Deore XT M8100, 12-speed
- Rear derailleur
- Shimano Deore XT M8100, 12-speed
- Cassette
- Shimano Deore XT M8100, 12-speed
- Chain
- Shimano SLX CN-M7100, 12-speed
- Crankset
- Rotor eKAPIC RF Link 29
- Gearing
- front: 32, rear: 10-51
- Chainring
- Shimano
- Bottom bracket
- Integrated in Drive Unit
Brakes
- Brakes
- Shimano XT M8120, 4 piston (front and rear)
- Front rotor
- 203 mm
- Rear rotor
- 180 mm
Wheels & tyres
- Wheelset
- DT Swiss HX1700 LS, 30-622, 110x15 mm / 12x148 mm
- Tyres
- front: Schwalbe Nobby Nic 2.4 SuperGround SpeedGrip; rear: Schwalbe Wicked Will 2.4, SuperGround SpeedGrip
Cockpit
- Handlebar
- FOCUS C.I.S. One Piece SL Cockpit, 800 mm, rise: 25 mm, Stem length: 50 mm
- Grips
- VP VPG-122A
- Headset
- ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
- Saddle
- fi'zi:k Taiga
- Seatpost
- Post Moderne dropper post PM-MT171, 31.6 mm
Other
- Weight
- 17.6 kg (430 Wh) (size M, without pedals)
- Max system weight
- 135 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
VAM² SL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Handlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 165 mm |
| Seatpost length | 390 mm | 440 mm | 480 mm | 480 mm |
| ASeat tube length | 390 mm | 420 mm | 440 mm | 460 mm |
| BTop tube length | 576 mm | 606 mm | 635 mm | 670 mm |
| CHead angle | 65.5° / 66.5° | 65.5° / 66.5° | 65.5° / 66.5° | 65.5° / 66.5° |
| DSeat angle | 75.5° | 75.5° | 75.5° | 75.5° |
| EChainstay length | 440 mm | 440 mm | 440 mm | 440 mm |
| FBottom bracket drop | 35 mm | 35 mm | 35 mm | 35 mm |
| GHead tube length | 100 mm | 100 mm | 120 mm | 140 mm |
| HFork length | 541 mm | 541 mm | 541 mm | 541 mm |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1155 mm / 1166 mm | 1196 mm / 1185 mm | 1229 mm / 1218 mm | 1267 mm / 1256 mm |
| KStack | 602 mm | 602 mm | 620 mm | 639 mm |
| LReach | 420 mm | 450 mm | 475 mm | 505 mm |
| MStandover height | 790 mm | 790 mm | 790 mm | 790 mm |
Where several values are given, they correspond to the positions: head angle slack / head angle steep. Source: Focus.
VAM² SL: builds compared
VAM² SL range →| VAM² SL 8.7 | VAM² SL 9.8 | VAM² SL 9.9 | VAM² SL 9.0 | |
|---|---|---|---|---|
| Price | €5,799 | €6,899 | €8,699 | €10,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | SR Suntour Raidon 34, 110x15 mm | FOX 34 Float Rhythm 29, 110x15 mm | FOX 34 Float Performance Elite 29, 110x15 mm | FOX 34 Float Factory 29, 110x15 mm |
| Shock | Rock Shox Deluxe Select+ | FOX Float DPS | FOX Float Performance | FOX Float Factory |
| Derailleur | Shimano Deore M6100 | Shimano Deore XT M8100 | Shimano Deore XT M8100 | SRAM X0 Eagle Transmission |
| Brakes | front: Magura MT Trail | front: Magura MT Trail | Shimano XT M8120 | SRAM Level Ultimate Stealth |
| Wheels | RaceFace ARC27, 622-27 | RaceFace ARC27, 622-27 | — | — |
| Display | Fazua LED Hub + Ring Control | Fazua LED Hub + Ring Control | Fazua LED Hub + Ring Control | Fazua LED Hub + Ring Control |
| Weight | 19.1 kg | 18.4 kg | 17.6 kg | 16.3 kg |
VAM² SL 9.9: FAQ
What is the difference between the VAM² SL 9.9 and the VAM² SL 9.0?
They share the VAM² SL frame platform and motor; the differences are in the parts: fork: FOX 34 Float Performance Elite 29 vs FOX 34 Float Factory 29; shock: FOX Float Performance vs FOX Float Factory; derailleur: Shimano Deore XT M8100 vs SRAM X0 Eagle Transmission; claimed weight: 17.6 kg vs 16.3 kg; price: €8,699 vs €10,999.
