Full-power eMTBEnduro
Model range · 1 buildCubeAMS Hybrid 177
- Price
- €7,499
- Motor
- Bosch Performance Line CX-RUp to 120 Nm
- Battery
- 600 WhPowerTube 600
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Weight
- 21.9 kg
Overview

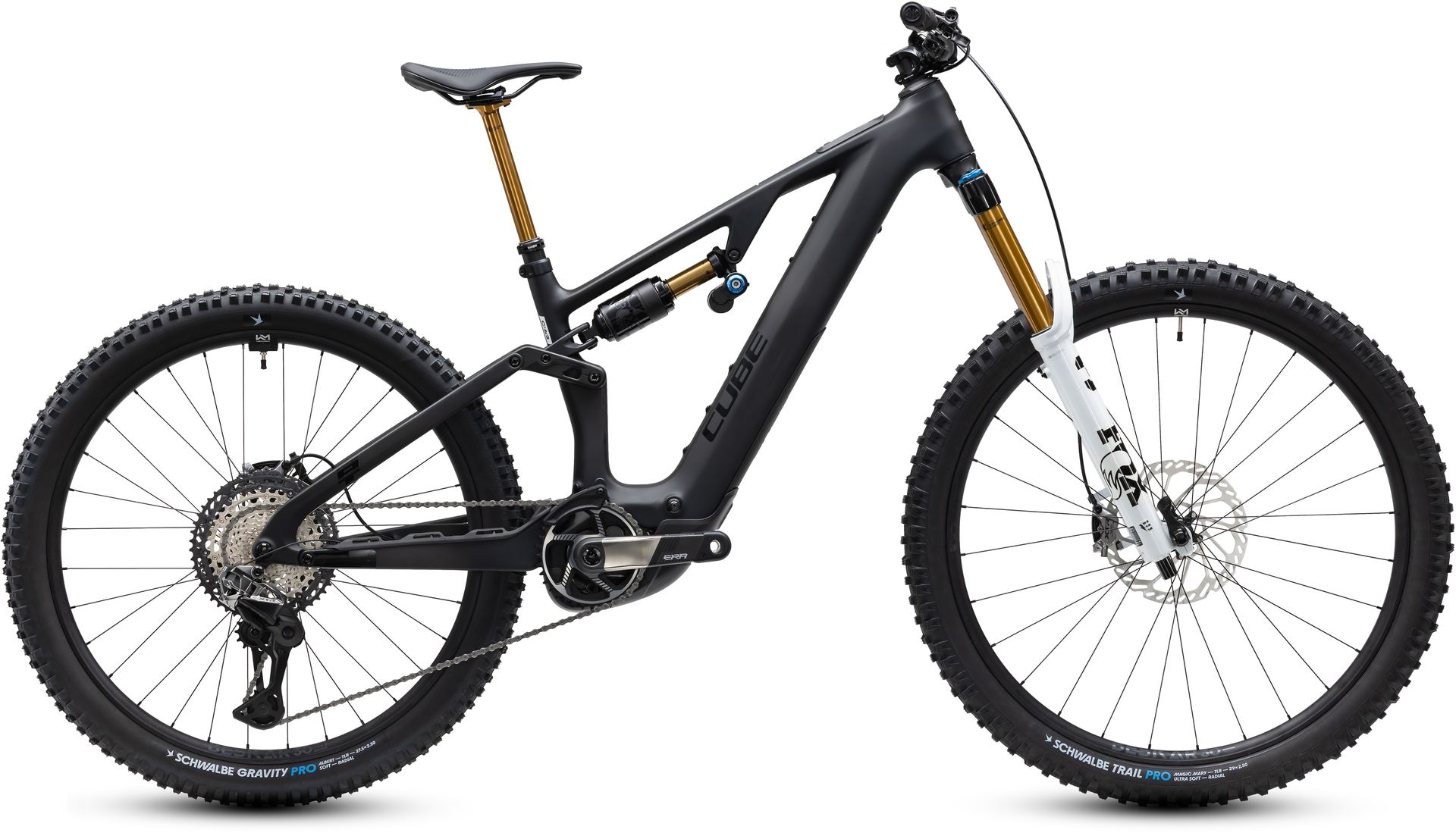

The AMS Hybrid 177 is a long-travel carbon e-MTB from Cube: 170 mm of travel front and rear, a mullet wheel setup, and the Bosch Performance Line CX-R motor with a PowerTube 600, at a claimed 21.9 kg.
- 170 mm travel front and rear
- Bosch CX-R
- PowerTube 600
- 21.9 kg claimed
Cube AMS Hybrid 177 builds
AMS Hybrid 177 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 571 / 572 mm | 596 / 597 mm | 622 / 624 mm | 658 / 659 mm |
| Seat angle | 77.2° / 76.9° | 77.1° / 76.9° | 77.1° / 76.9° | 77° / 76.8° |
| Head angle | 63.6° / 64.2° | 63.6° / 64.2° | 63.6° / 64.2° | 63.6° / 64.2° |
| Chainstay | 443 mm | 443 mm | 443 mm | 443 mm |
| Head tube | 105 mm | 105 mm | 111 mm | 131 mm |
| Wheelbase | 1218 / 1210 mm | 1243 / 1235 mm | 1271 / 1263 mm | 1310 / 1302 mm |
| BB offset (to hub axle) | 7 / 6 mm | 7 / 6 mm | 7 / 6 mm | 7 / 6 mm |
| Standover (-80 mm) | 786 mm | 782 mm | 781 mm | 781 mm |
| Reach | 427 / 425 mm | 452 / 450 mm | 477 / 475 mm | 507 / 505 mm |
| Stack | 631 / 632 mm | 631 / 632 mm | 636 / 638 mm | 654 / 656 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
Cube AMS Hybrid 177: FAQ
How much does the Cube AMS Hybrid 177 cost?
€7,499 depending on the build (AMS Hybrid 177 C:62 AT 600X €7,499); RRP Germany (UVP), VAT incl..
How much does the Cube AMS Hybrid 177 weigh?
Claimed weights range from 21.9 kg (AMS Hybrid 177 C:62 AT 600X) to 21.9 kg (AMS Hybrid 177 C:62 AT 600X).
What motor and battery does the Cube AMS Hybrid 177 use?
Bosch Performance Line CX-R (Up to 120 Nm) with a 600 Wh battery (powertube 600).
How much travel does the Cube AMS Hybrid 177 have?
170 mm fork and 170 mm rear travel on mullet 29" / 27.5" wheels.
