CubeAMS Hybrid 177 C:62 AT 600X
- Motor
- Bosch Performance Line CX-RUp to 120 Nm
- Battery
- 600 WhPowerTube 600
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 21.9 kgManufacturer figure
Overview

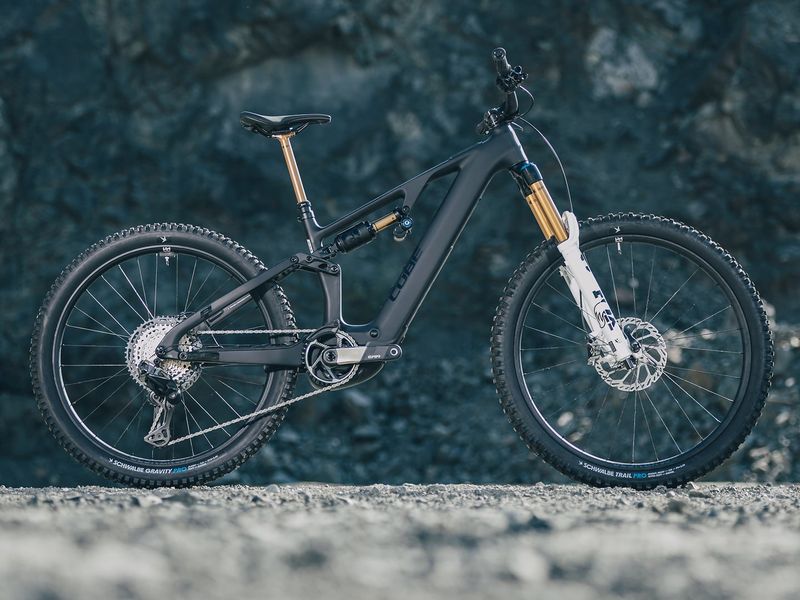

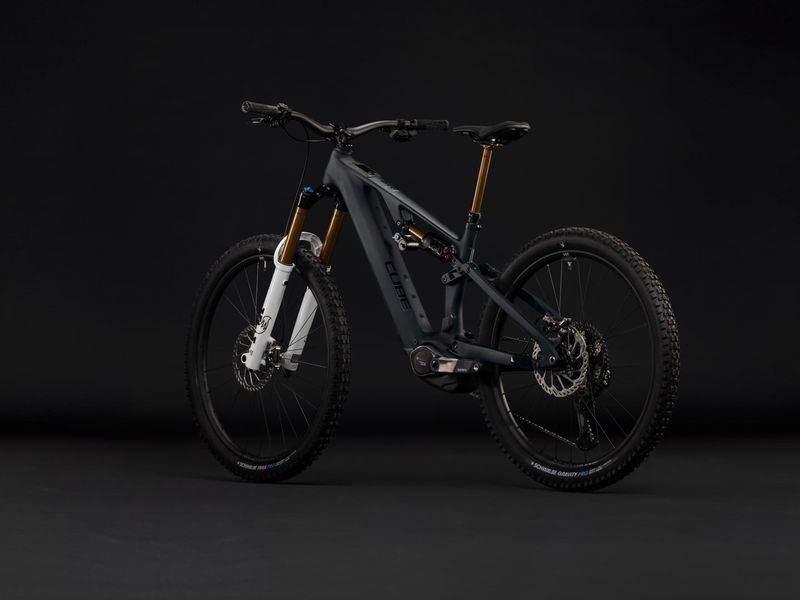

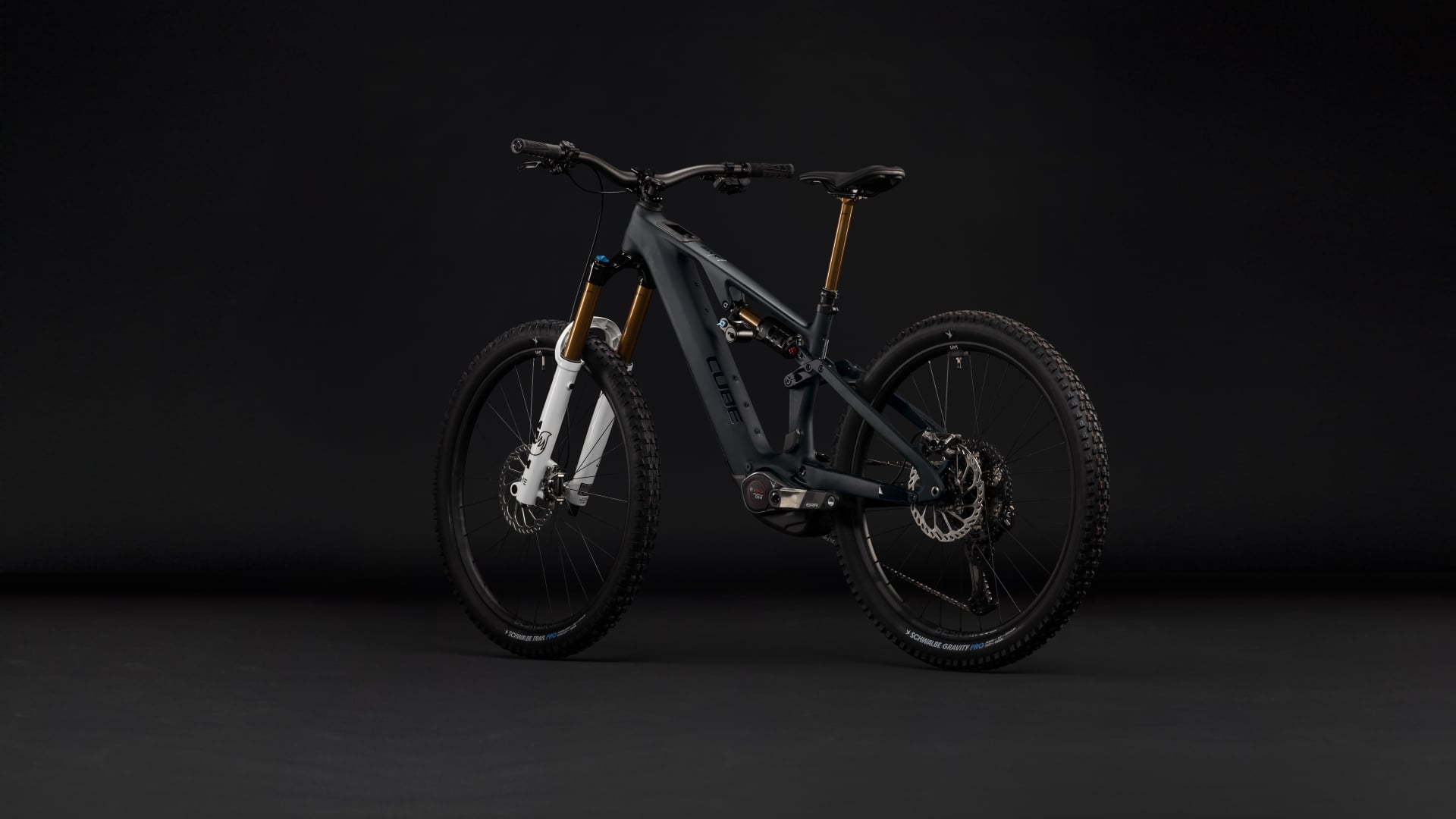

The Cube AMS Hybrid 177 C:62 AT 600X (€7,499) is the only build of the AMS Hybrid 177: Bosch Performance Line CX-R with 600 Wh, Fox 38 Float Factory GRIPX2 fork, Fox Float X2 Factory shock, Shimano XTR Di2 RD-M9260 and Shimano XTR BR-M9220 brakes. Claimed weight is 21.9 kg.
The AMS Hybrid 177 is a long-travel carbon e-MTB from Cube: 170 mm of travel front and rear, a mullet wheel setup, and the Bosch Performance Line CX-R motor with a PowerTube 600, at a claimed 21.9 kg.
- 170 mm travel front and rear
- Bosch CX-R
- PowerTube 600
- 21.9 kg claimed

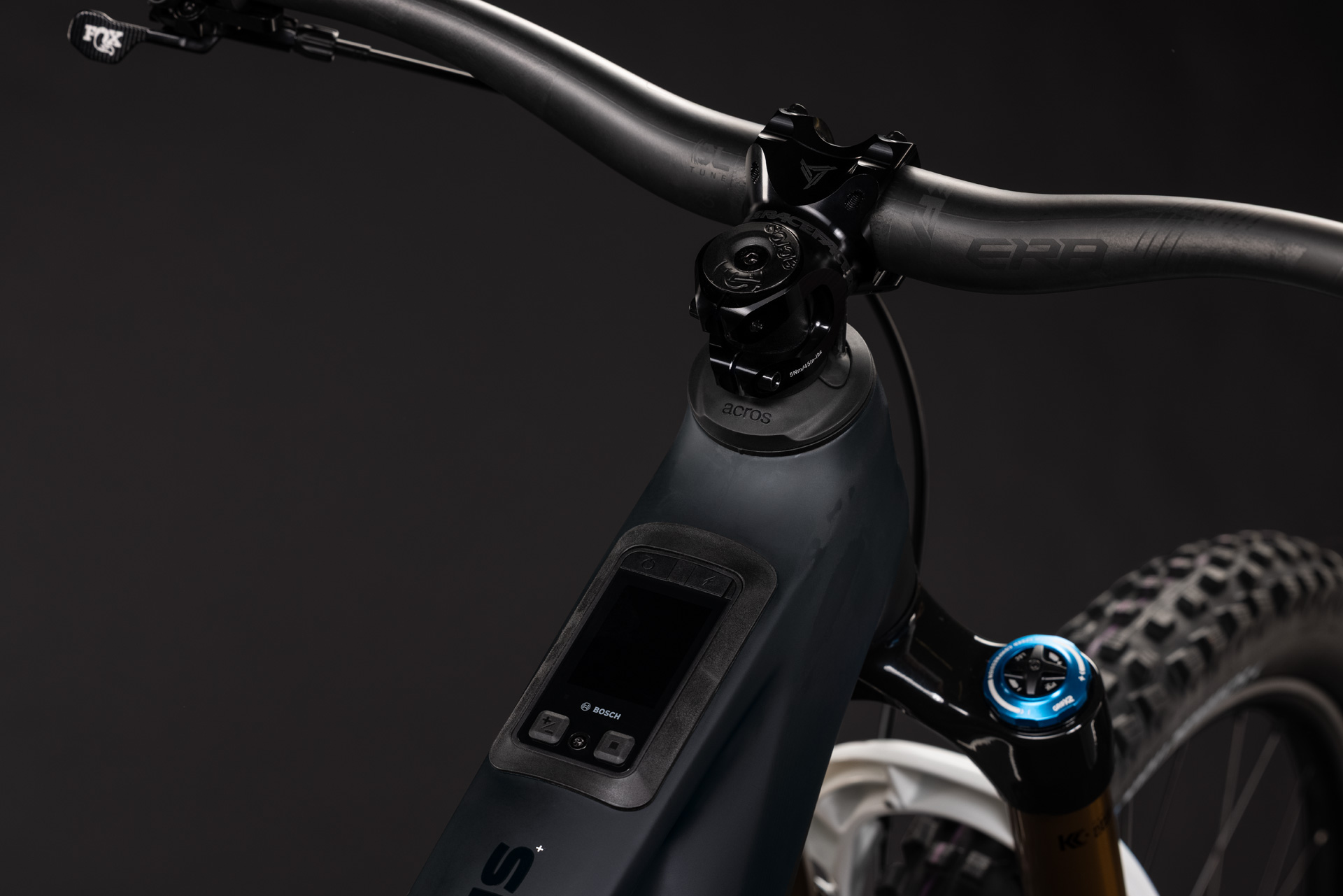

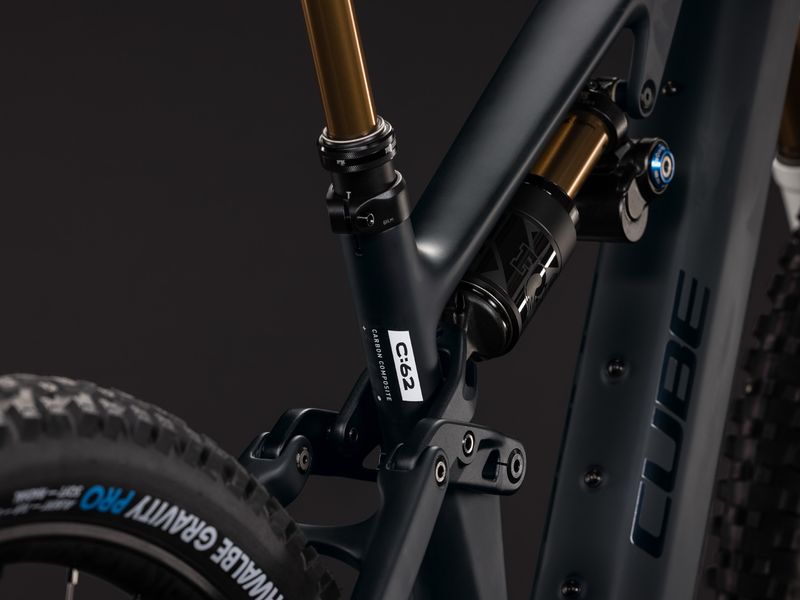

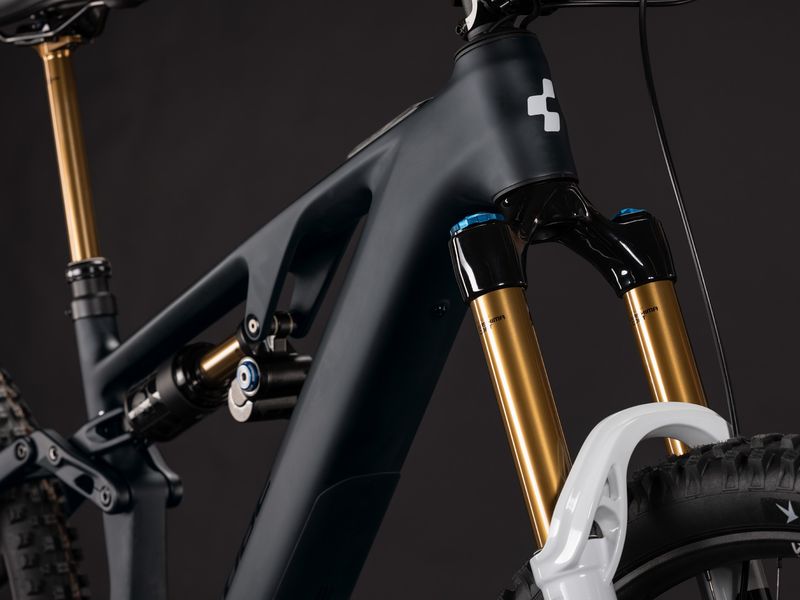

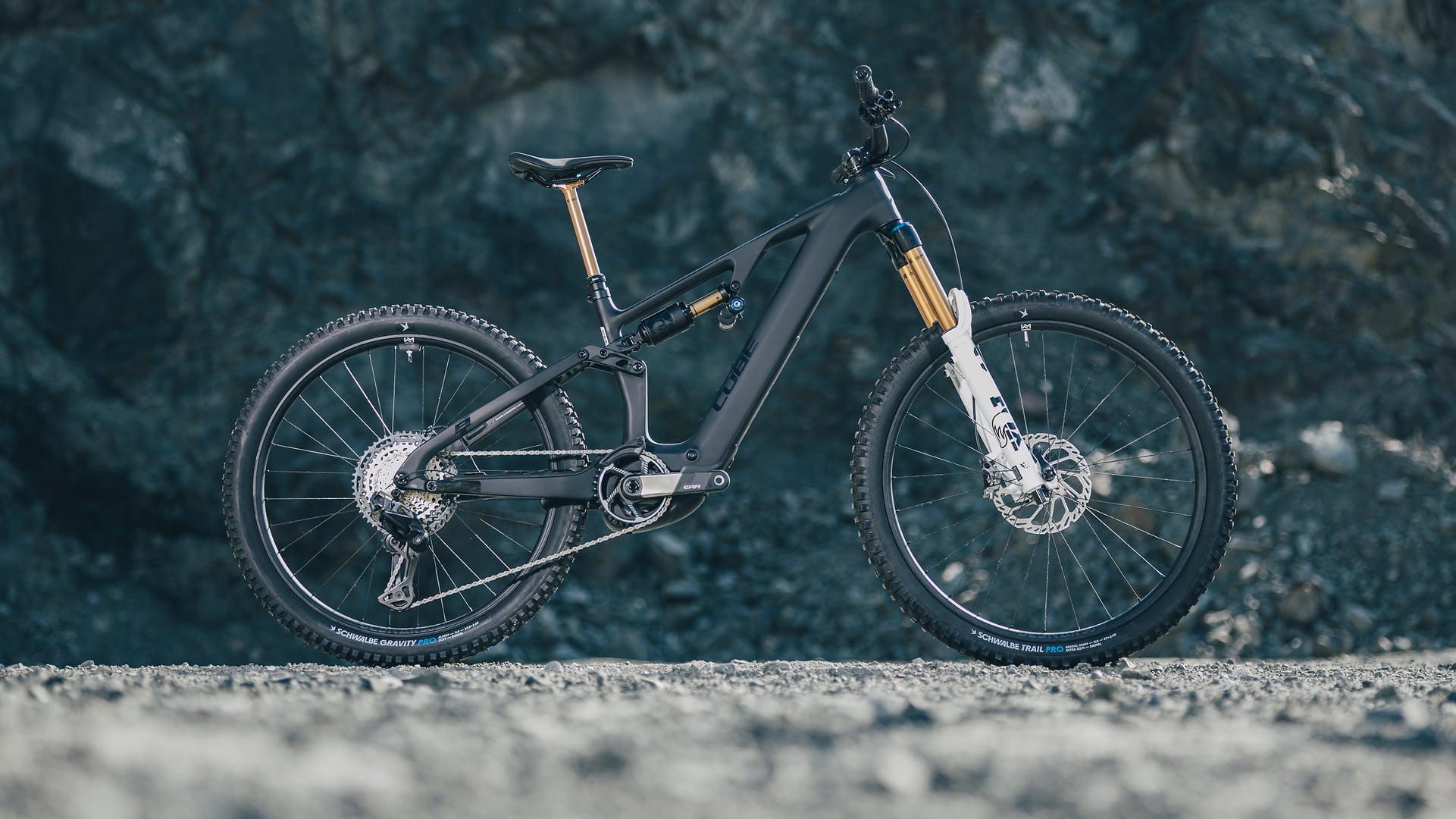

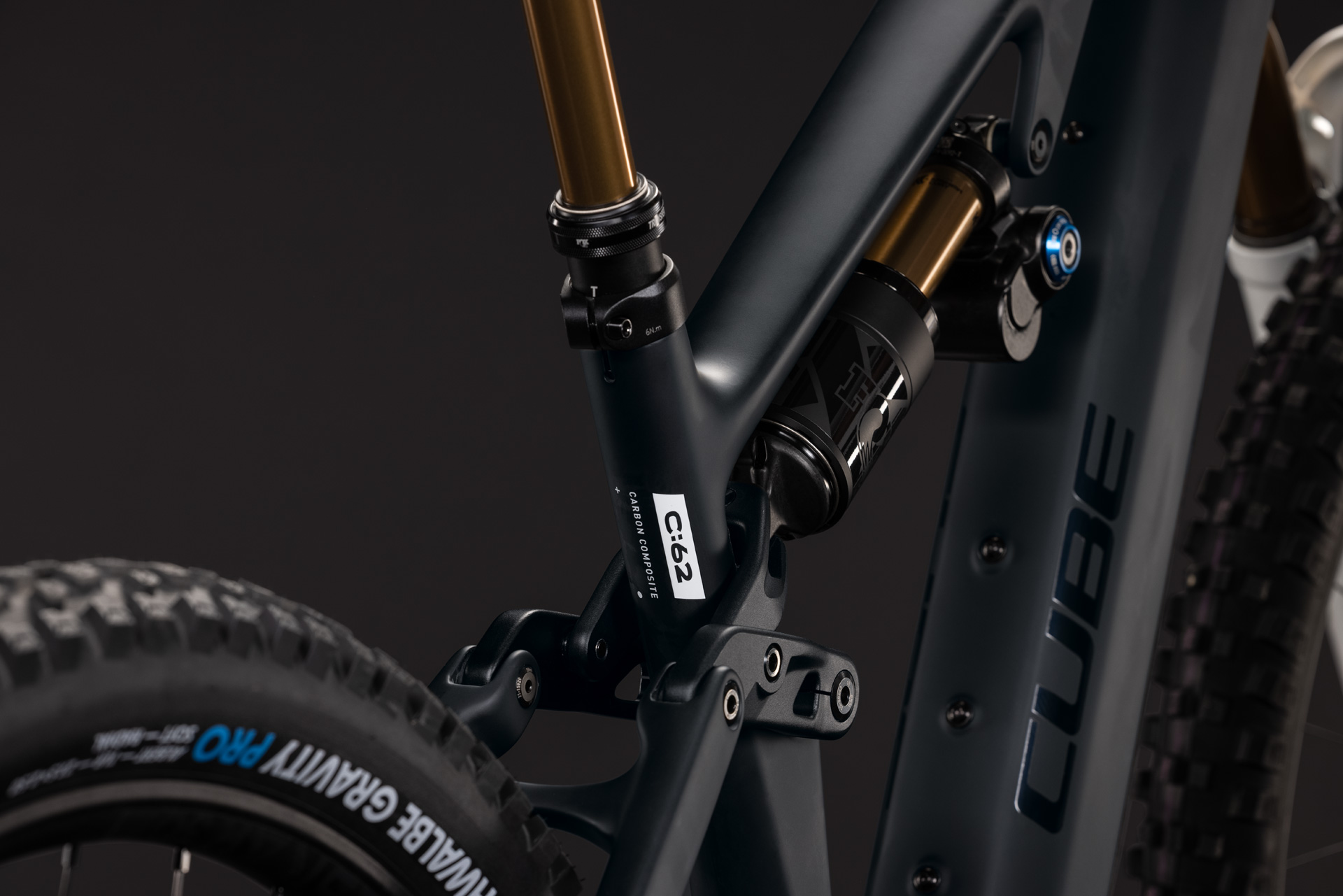

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
- Sizes
- S, M, L, XL
- Fork

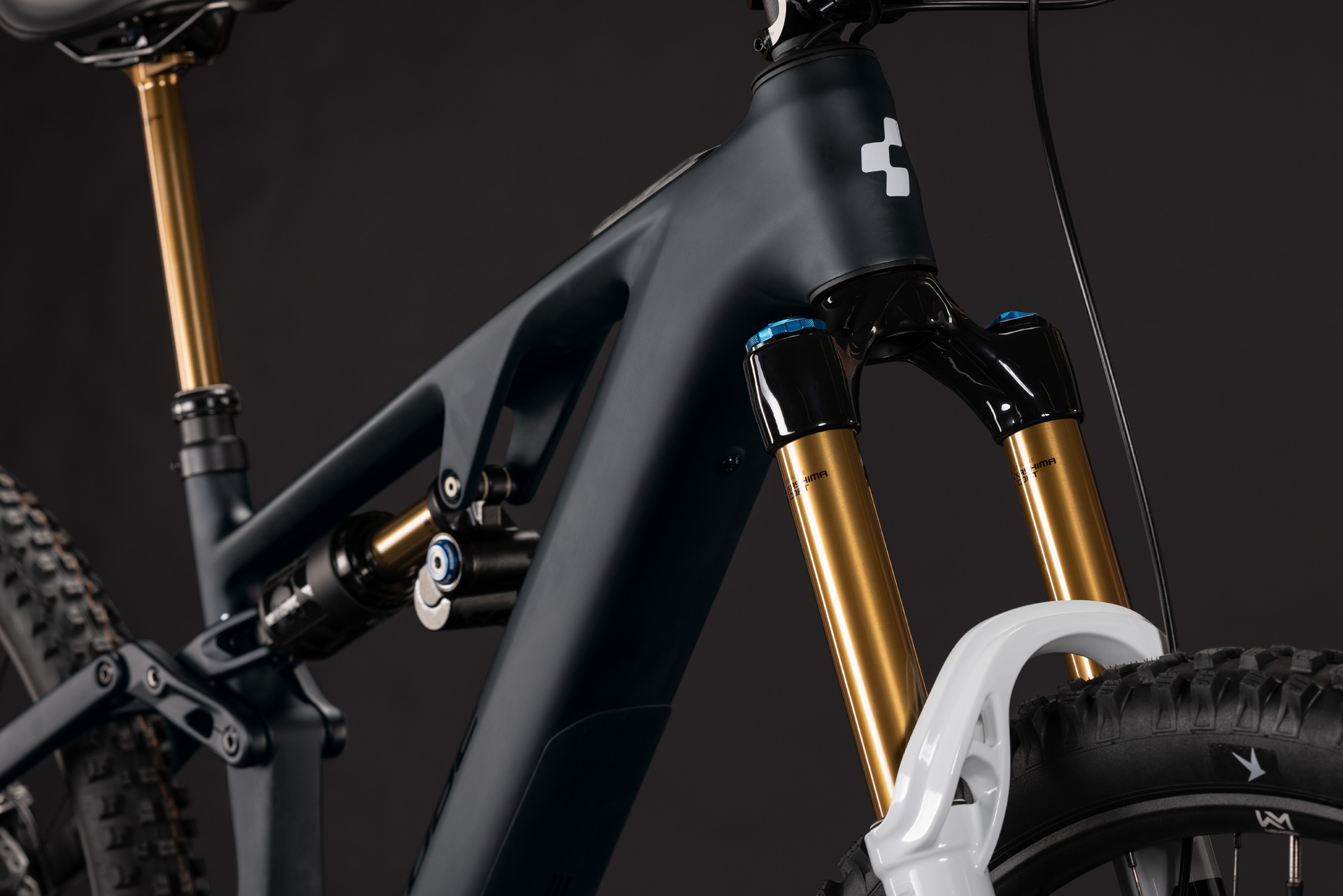

- Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

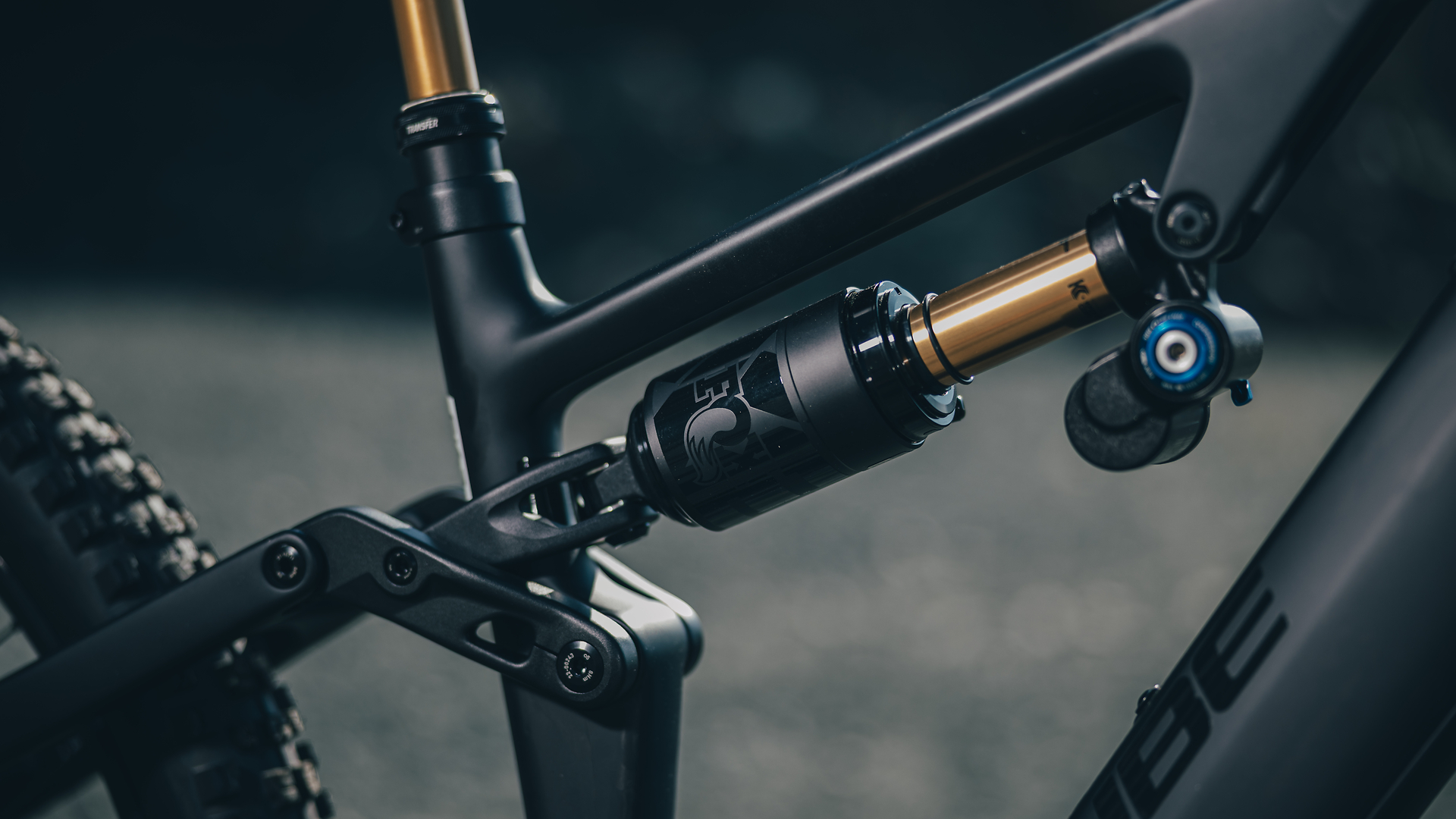

- Shock

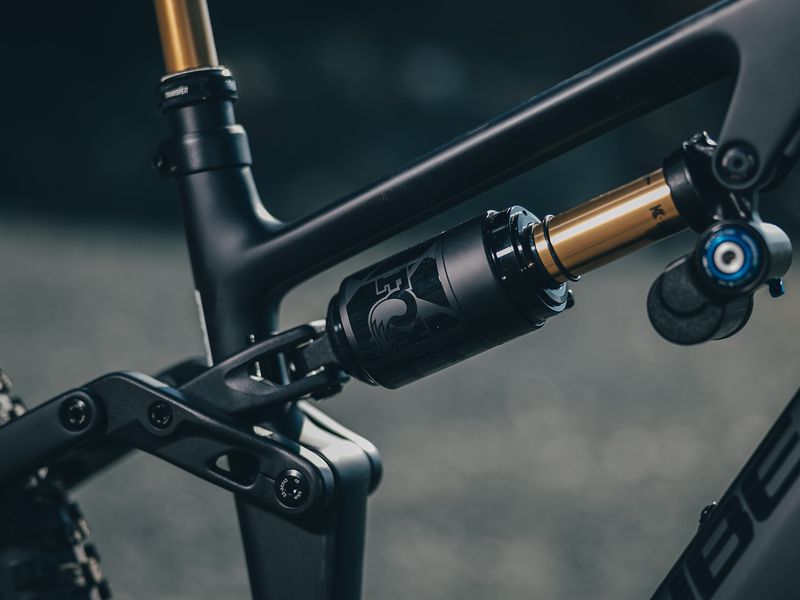

- Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
- Shock hardware
- Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
E-system
- Motor
- Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)
- Remote
- Bosch Mini Remote
- Battery
- Bosch PowerTube 600
- Display

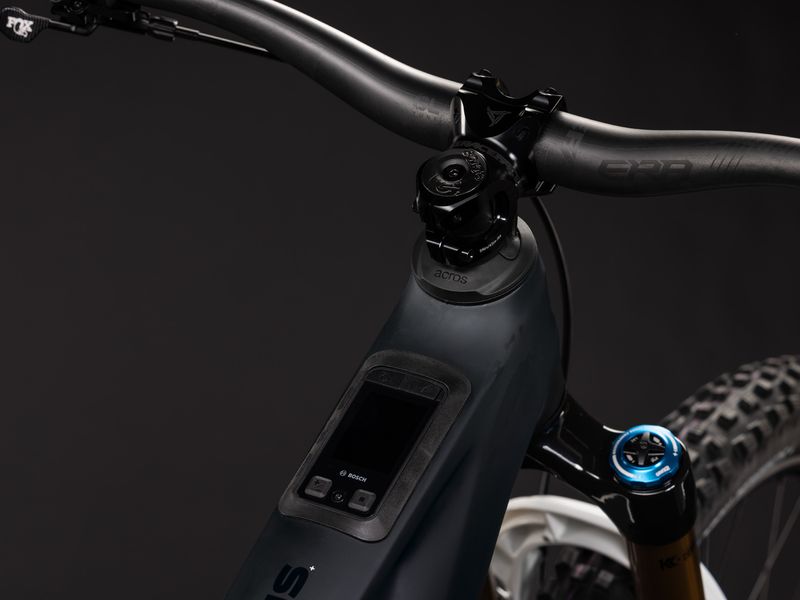

- Bosch Kiox 400C
- Charger
- Bosch 4A
Drivetrain
- Brakes
- Shimano XTR BR-M9220, Hydr. Disc Brake (200/200)
- Rear derailleur
- Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
- Shifter
- Shimano XTR Di2 SW-M9250-I, Direct Attach
- Crankset
- Race Face ERA E-MTB, 36T
- Cassette
- Shimano XT CS-M8200, 10-51T
- Chain
- Shimano XT CN-M8100
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Front tyre
- Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
- Rear tyre
- Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Cockpit
- Headset
- Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem
- Race Face Turbine R 35
- Handlebar
- Race Face ERA 35
- Grips
- ACID Disrupt
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- Fox Transfer Factory 31.6mm, Kashima Coated
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
AMS Hybrid 177 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 571 / 572 mm | 596 / 597 mm | 622 / 624 mm | 658 / 659 mm |
| Seat angle | 77.2° / 76.9° | 77.1° / 76.9° | 77.1° / 76.9° | 77° / 76.8° |
| Head angle | 63.6° / 64.2° | 63.6° / 64.2° | 63.6° / 64.2° | 63.6° / 64.2° |
| Chainstay | 443 mm | 443 mm | 443 mm | 443 mm |
| Head tube | 105 mm | 105 mm | 111 mm | 131 mm |
| Wheelbase | 1218 / 1210 mm | 1243 / 1235 mm | 1271 / 1263 mm | 1310 / 1302 mm |
| BB offset (to hub axle) | 7 / 6 mm | 7 / 6 mm | 7 / 6 mm | 7 / 6 mm |
| Standover (-80 mm) | 786 mm | 782 mm | 781 mm | 781 mm |
| Reach | 427 / 425 mm | 452 / 450 mm | 477 / 475 mm | 507 / 505 mm |
| Stack | 631 / 632 mm | 631 / 632 mm | 636 / 638 mm | 654 / 656 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
AMS Hybrid 177 C:62 AT 600X: FAQ
How much does the Cube AMS Hybrid 177 C:62 AT 600X cost?
€7,499 (RRP Germany (UVP), VAT incl.). Prices vary by country and dealer.
How much does the Cube AMS Hybrid 177 C:62 AT 600X weigh?
Cube quotes 21.9 kg.
What motor and battery does the Cube AMS Hybrid 177 C:62 AT 600X have?
Bosch Performance Line CX-R (Up to 120 Nm). 600 Wh battery — powerTube 600.
How much suspension travel does the Cube AMS Hybrid 177 C:62 AT 600X have?
170 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Cube AMS Hybrid 177 C:62 AT 600X come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
