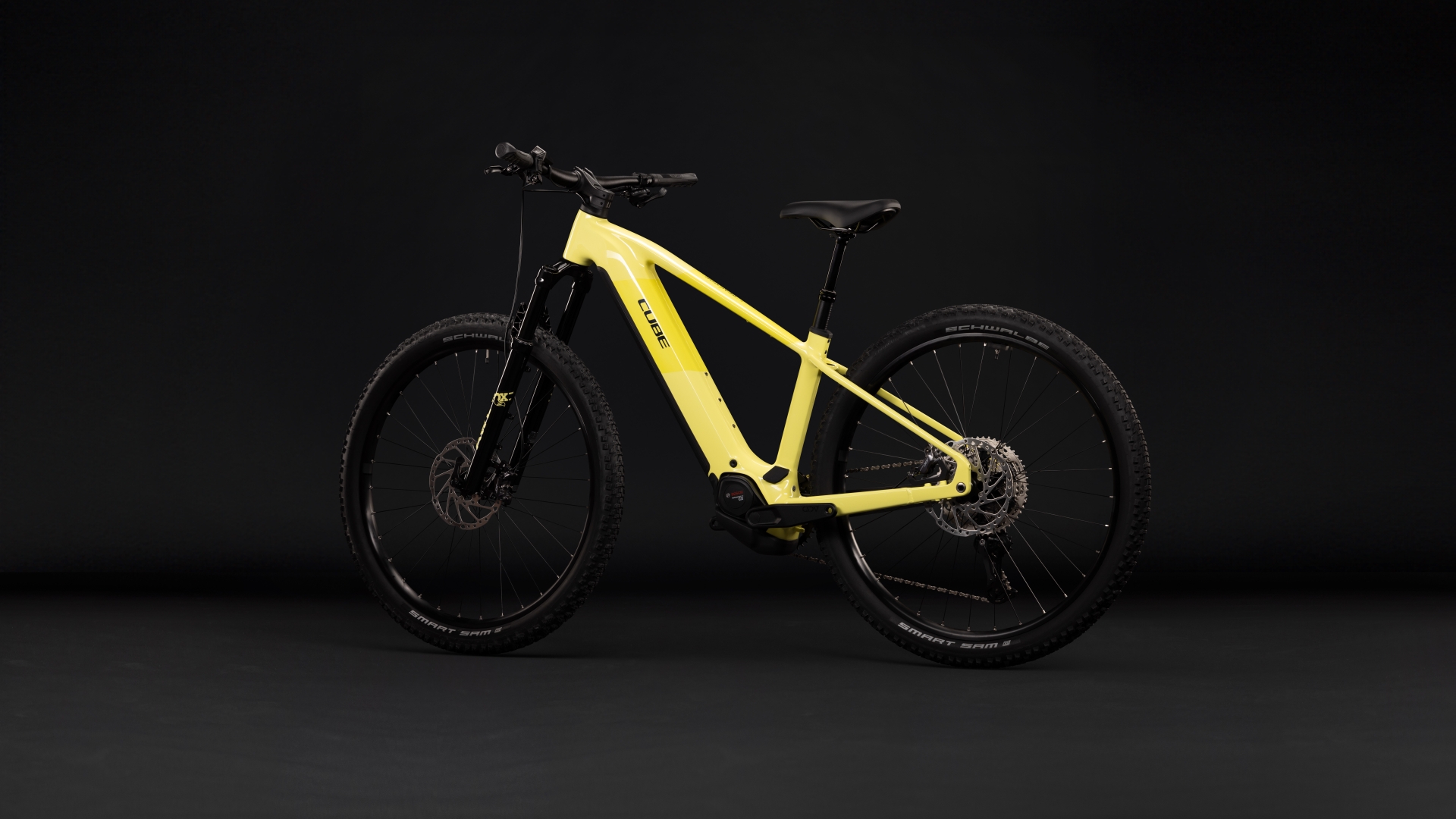

CubeReaction Hybrid Race 800
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 120 / – mm
- Wheels
- 29" (S: 27.5")
- Frame
- Alloy
- Weight
- 24.3 kgManufacturer figure
Overview

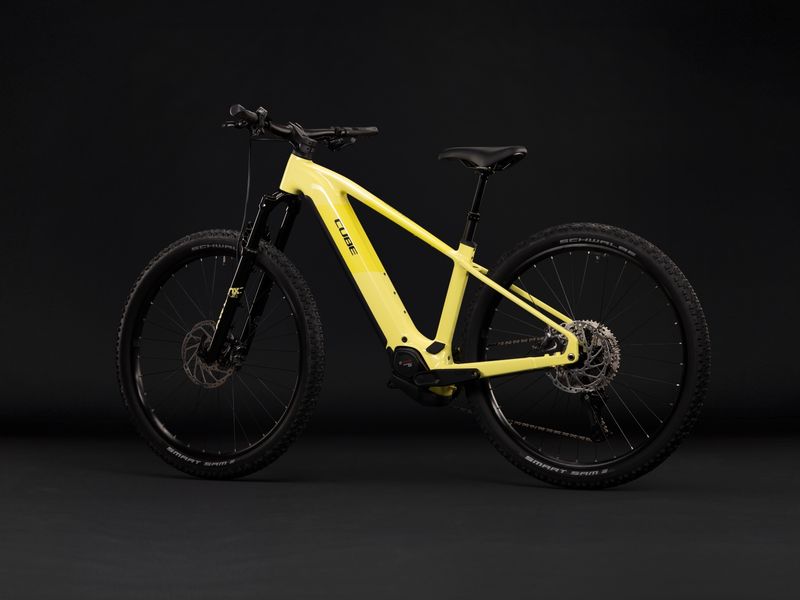

The Cube Reaction Hybrid Race 800 (€3,699) is a mid-range build of the Reaction Hybrid: Bosch Performance Line CX with 800 Wh, Fox 34 Float AWL fork, Shimano XT RD-M8200-SGS and Shimano XT BR-M8120 brakes. Claimed weight is 24.3 kg.
The Reaction Hybrid is Cube's e-MTB hardtail: an aluminium frame with a 120 mm fork (100 mm on 27.5-inch size S), 29-inch wheels on M–XXL, and Bosch power — the Performance Line CX on most builds — with 720 or 800 Wh batteries.
- Aluminium hardtail
- 120 mm fork
- Bosch Performance Line CX on most builds
- 720 or 800 Wh battery
Gallery
Photos: Cube
Full specifications
Frame & suspension

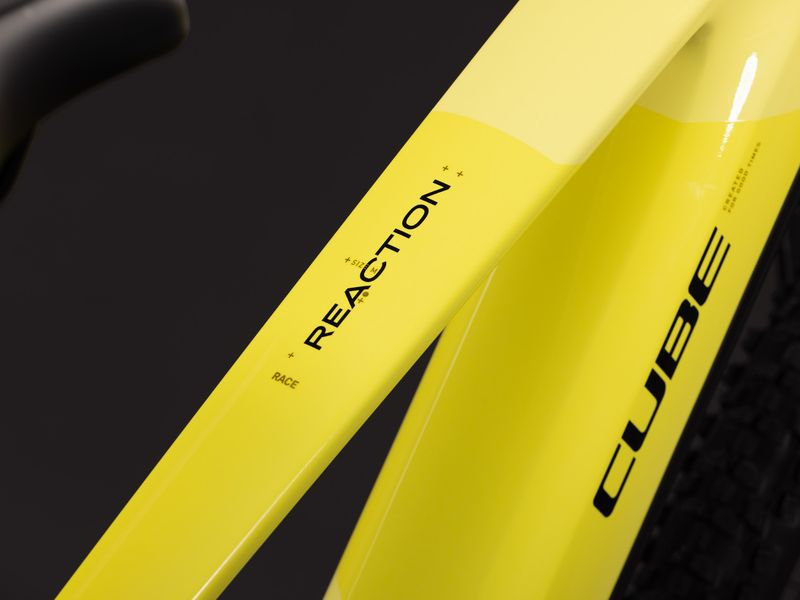

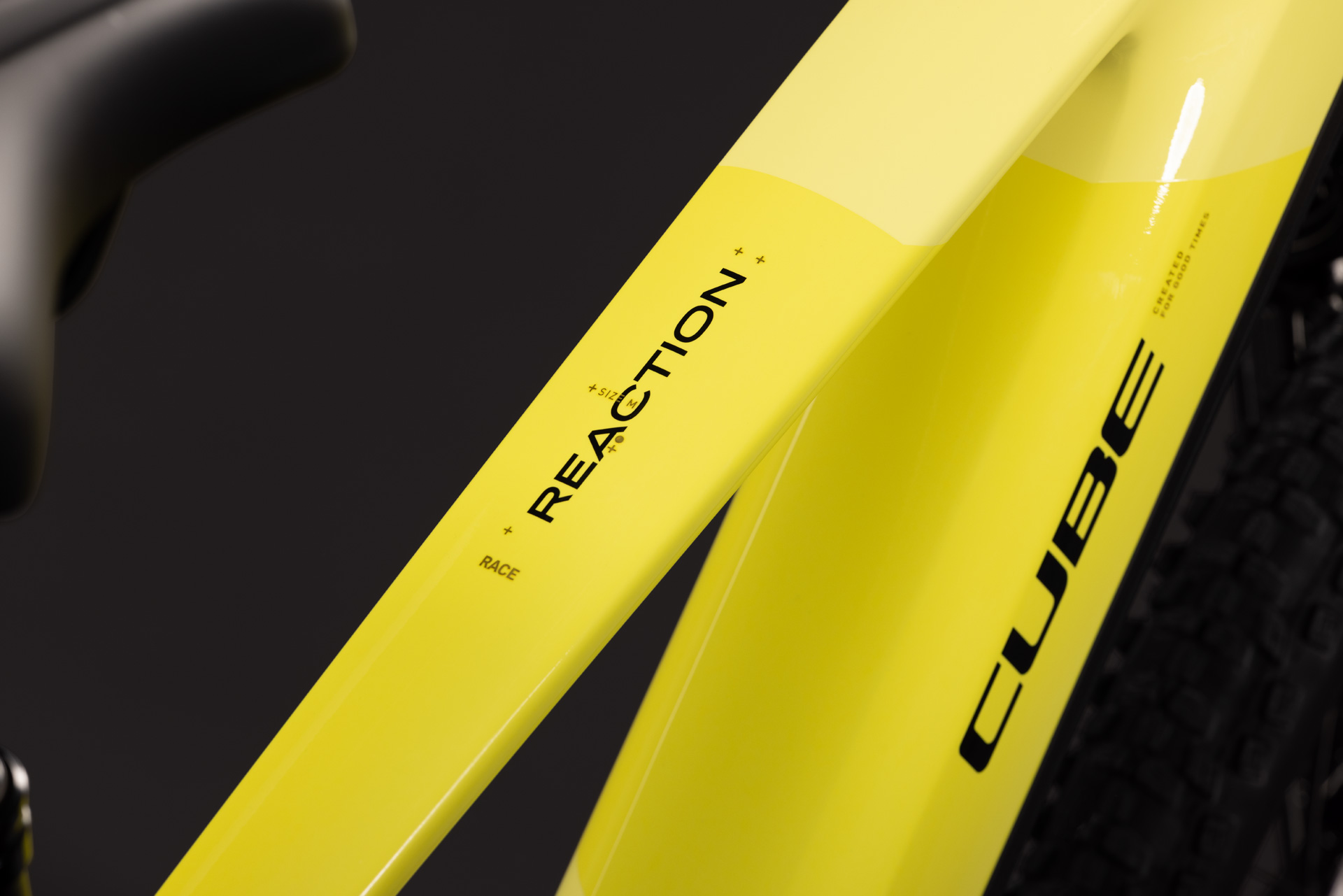

- Frame
- Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points
- Sizes
- Classic: Size Split: 27.5: S // 29: M, L, XL, XXL
- Fork

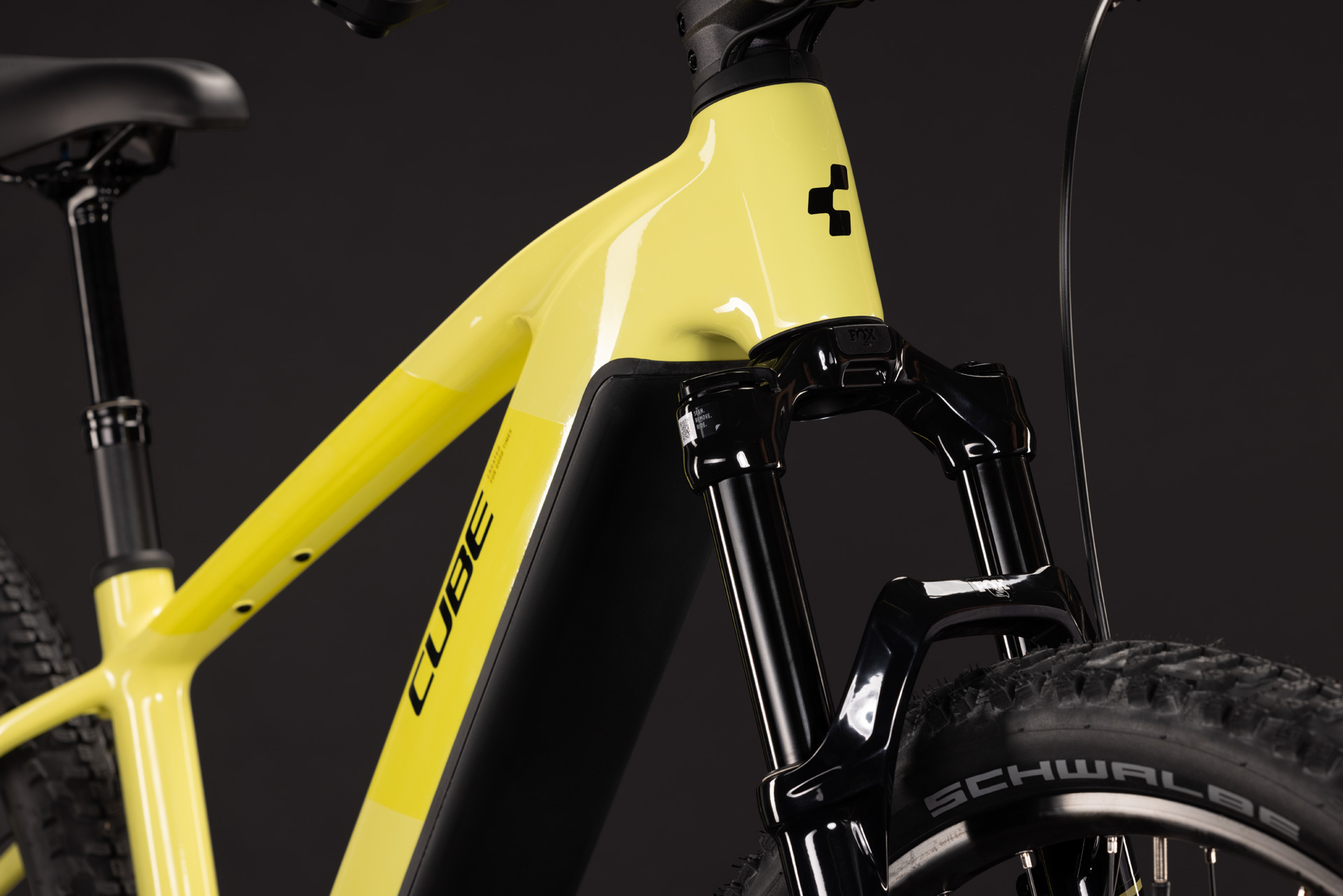

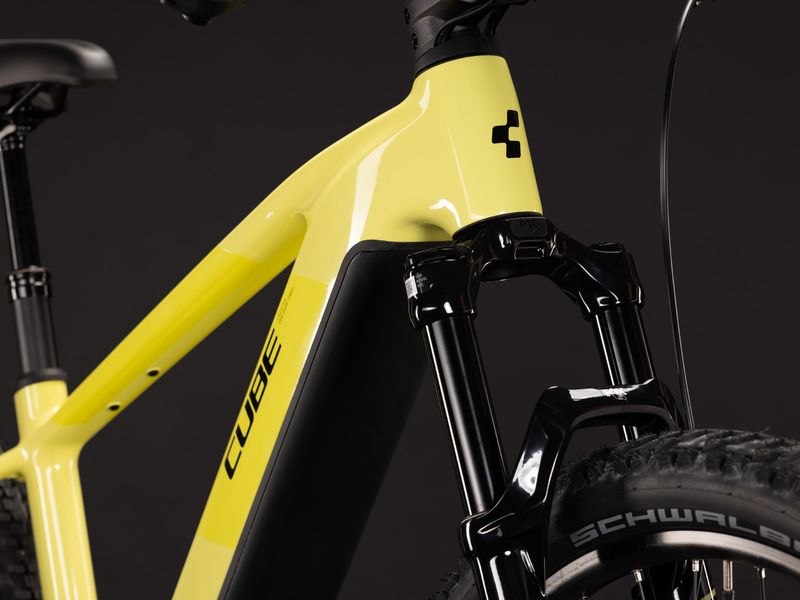

- Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (27.5: 100mm)
E-system

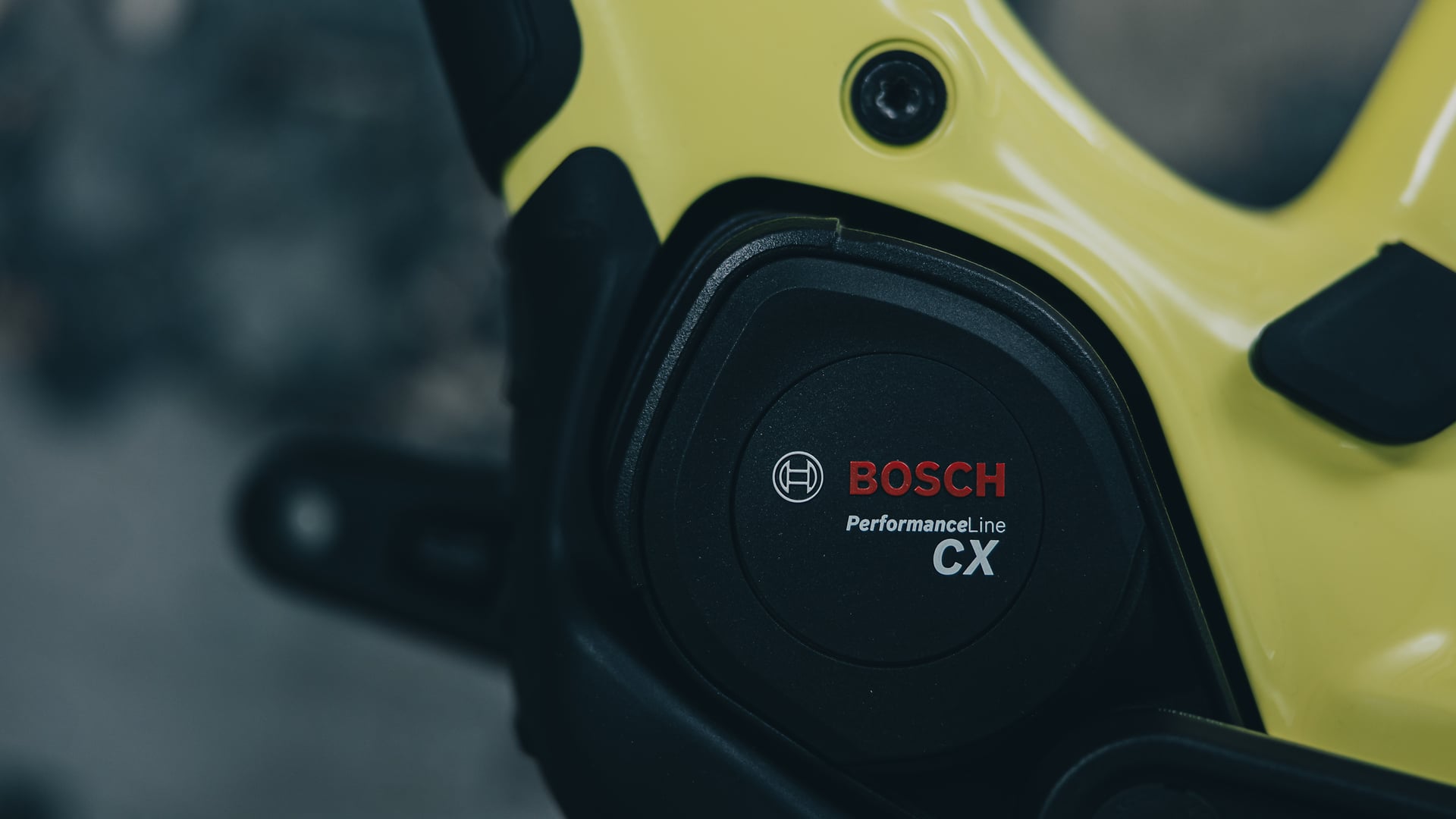

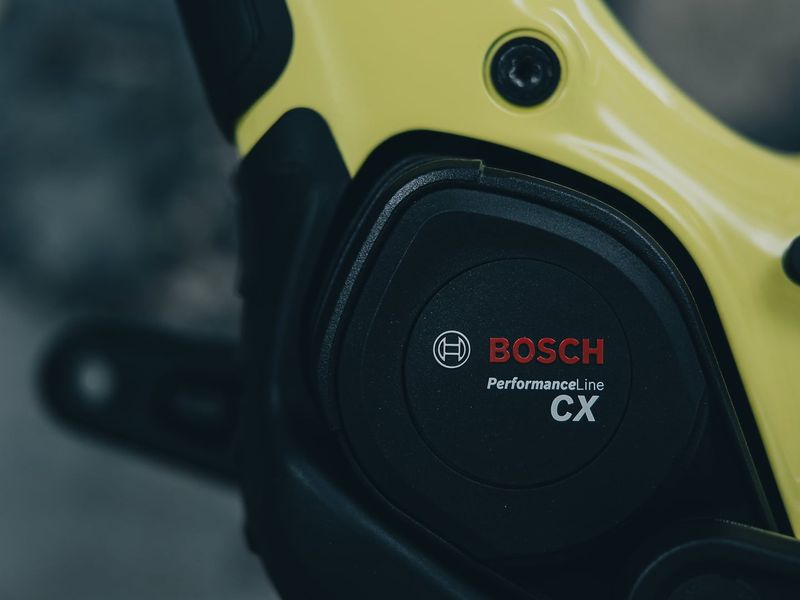

- Motor
- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Remote
- Bosch Purion 200 with Integrated Display
- Battery
- Bosch PowerTube 800
- Charger
- Bosch 2A
Drivetrain

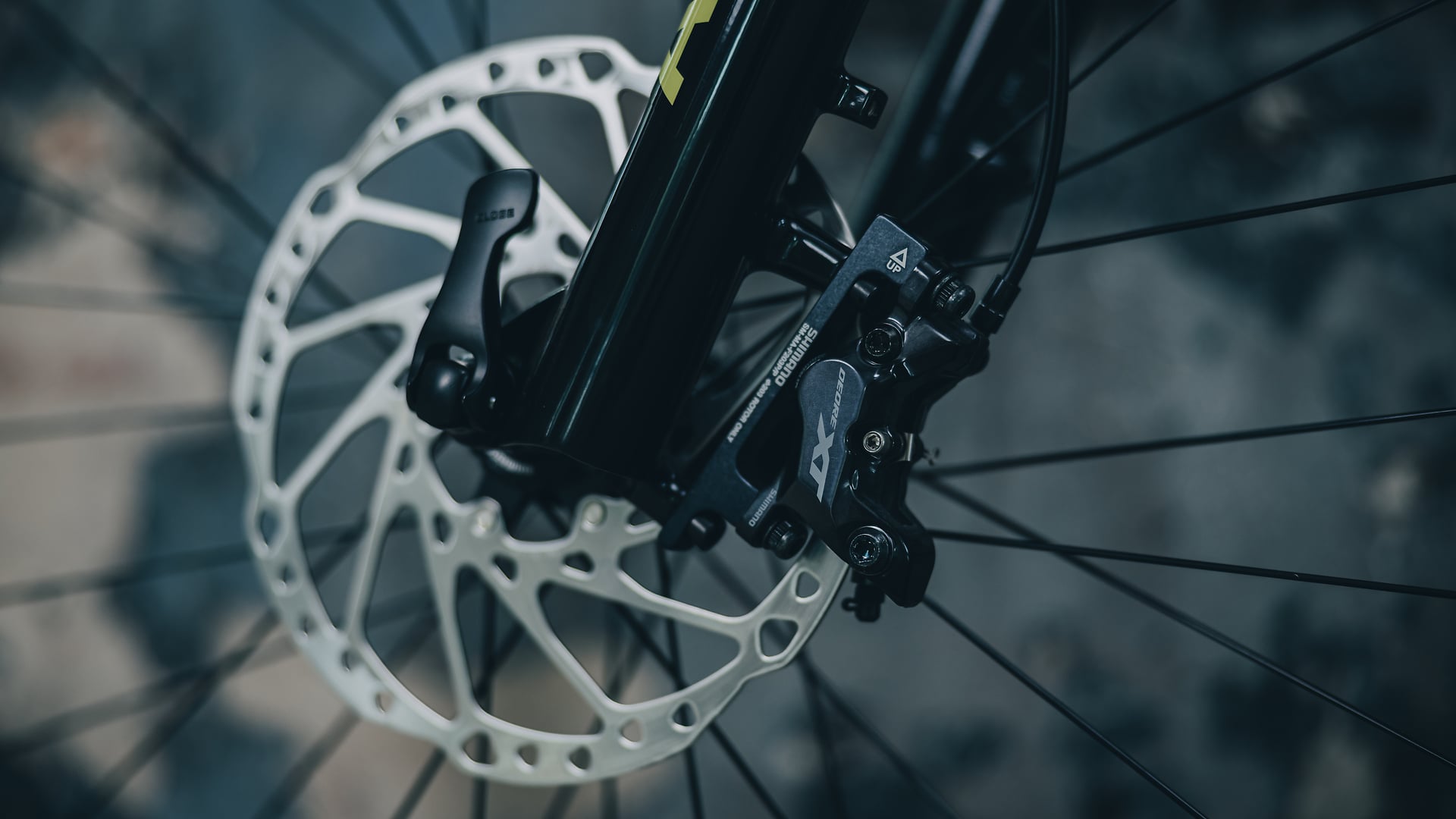

- Brakes

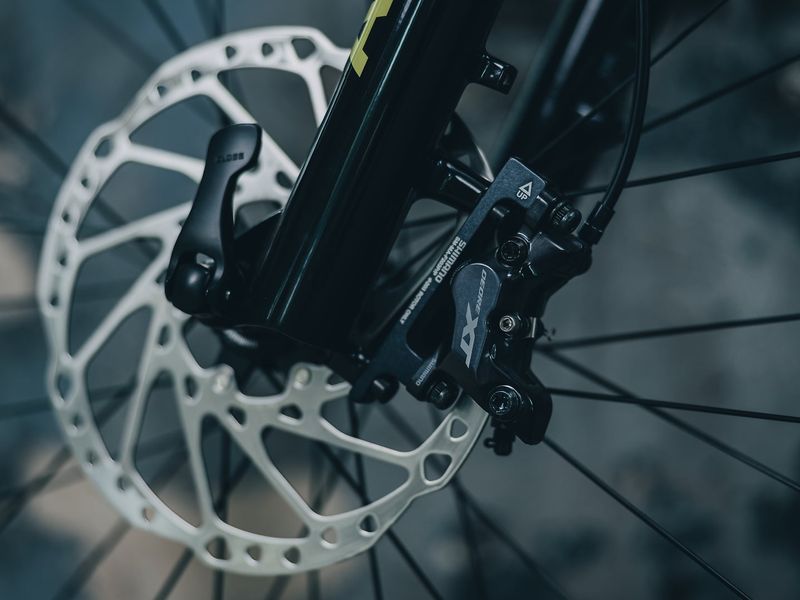

- Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
- Rear derailleur
- Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
- Shifter
- Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click
- Crankset
- ACID MTB Hybrid Pro, 38T
- Cassette
- Shimano Deore CS-M6200, 10-51T
- Chain
- KMC e12
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Tyres
- Schwalbe Smart Sam, Active, 2.6
Cockpit
- Headset
- Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
- Stem
- CUBE Performance Stem E-MTB 35, FPI-Link
- Handlebar
- CUBE Rise Trail Bar 35 VariGrip System
- Grips
- ACID Hybrid Perform VariGrip System
- Saddle
- ACID Sequence 160 Pro Bubble Foam
- Seatpost

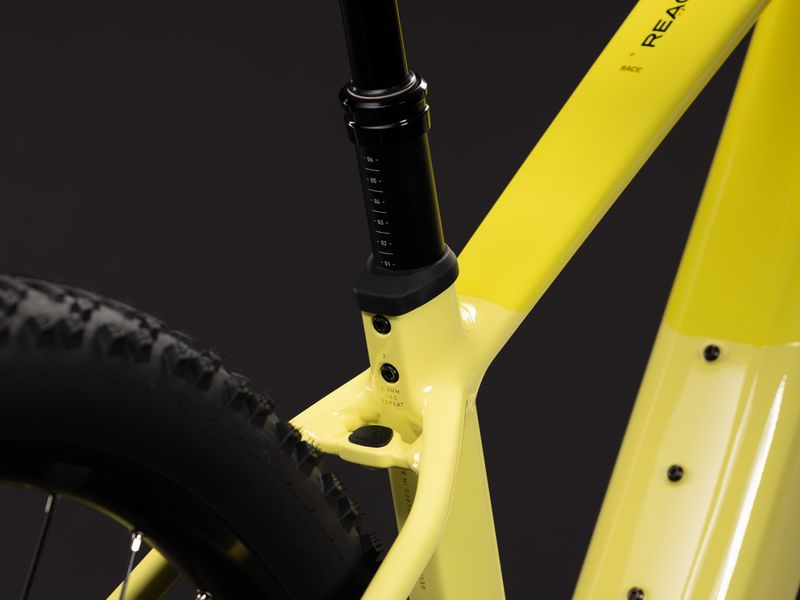

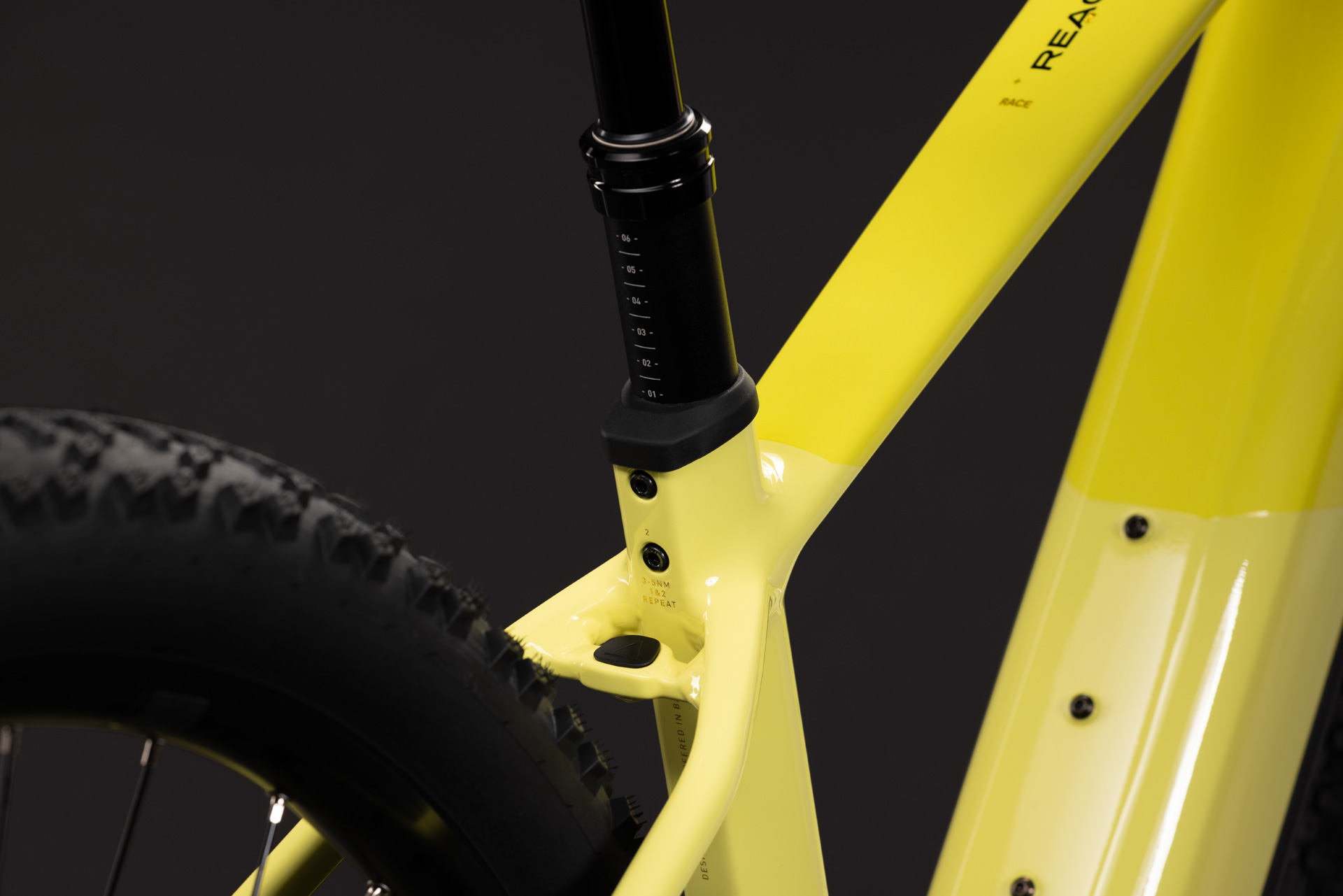

- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Reaction Hybrid geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Top tube (horizontal) | 587 mm | 607 mm | 627 mm | 647 mm | 667 mm |
| Seat angle | 74.5° | 74° | 74° | 74° | 74° |
| Head angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Chainstay | 456 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Head tube | 159 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Wheelbase | 1157 mm | 1176 mm | 1198 mm | 1218 mm | 1240 mm |
| BB offset (to hub axle) | 46 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover (-80 mm) | 755 mm | 778 mm | 782 mm | 787 mm | 824 mm |
| Reach | 409 mm | 420 mm | 437 mm | 455 mm | 471 mm |
| Stack | 646 mm | 653 mm | 662 mm | 674 mm | 685 mm |
Source: Cube.
Reaction Hybrid: builds compared
Reaction Hybrid range →| Reaction Hybrid Performance 720 | Reaction Hybrid ONE 720 | Reaction Hybrid Pro 800 | Reaction Hybrid Race 800 | Reaction Hybrid SLX 800 | Reaction Hybrid SLT 800 | |
|---|---|---|---|---|---|---|
| Price | €2,499 | €2,799 | €3,199 | €3,699 | €4,199 | €4,799 |
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour X34 NLO Coil, Tapered | SR Suntour XCM32 LO-R Air, Tapered | RockShox Recon Silver RL Air, Tapered | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper | Fox 36 Float AWL, 2-Position Sweep-Adjust RAIL Damper |
| Derailleur | Shimano Deore RD-M6200-SGS | Shimano Deore RD-M6200-SGS | Shimano XT RD-M8200-SGS | Shimano XT RD-M8200-SGS | Shimano XT Di2 RD-M8260-SGS | Shimano XT Di2 RD-M8260-SGS |
| Brakes | Shimano BR-MT200 | Shimano BR-MT200 | Shimano BR-MT420 | Shimano XT BR-M8120 | Shimano XT BR-M8120 | Shimano XT BR-M8120 |
| Display | — | — | — | — | Bosch Kiox 500 | Bosch Kiox 500 |
| Weight | 25.1 kg | 25.1 kg | 24.9 kg | 24.3 kg | 24 kg | 25 kg |
Reaction Hybrid Race 800: FAQ
How much does the Cube Reaction Hybrid Race 800 cost?
€3,699 (RRP Germany (UVP), VAT incl.). The Reaction Hybrid range runs from €2,499 (Reaction Hybrid Performance 720) to €4,799 (Reaction Hybrid SLT 800). Prices vary by country and dealer.
How much does the Cube Reaction Hybrid Race 800 weigh?
Cube quotes 24.3 kg. The lightest Reaction Hybrid build is the Reaction Hybrid SLX 800 at 24 kg.
What motor and battery does the Cube Reaction Hybrid Race 800 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube 800.
How much suspension travel does the Cube Reaction Hybrid Race 800 have?
120 mm at the fork, on 29" (S: 27.5") wheels.
What sizes does the Cube Reaction Hybrid Race 800 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Reaction Hybrid Race 800 and the Reaction Hybrid SLX 800?
They share the Reaction Hybrid frame platform and motor; the differences are in the parts — derailleur: Shimano XT RD-M8200-SGS vs Shimano XT Di2 RD-M8260-SGS; claimed weight: 24.3 kg vs 24 kg; price: €3,699 vs €4,199.
