ÖhlinsTTX22m.2 Coil
No EUR/GBP RRP published; official US store lists from USD 929.50
- Type
- Coil
- Damper
- TTX
- Adjustments
- 3 HSC / 16 LSC / rebound
- Mount
- Metric and trunnion
- Use
- Trail and downhill
Overview
Öhlins TTX22m.2 Coil: TTX coil shock for trail and downhill, metric and trunnion lengths, with refined end-stroke control and blue trail HSC valve.
The TTX22m.2 is Öhlins' coil shock for trail and downhill use, building on the original TTX22 used by professional gravity riders with refined end-stroke control and an extended adjustment range. Compact cylinder heads with a side-by-side reservoir widen frame compatibility.
An updated bump rubber and cup improve bottom-out and mid-to-end-stroke support. Stroke is adjusted with 2.5 mm washers, springs swap tool-free, and the blue trail HSC valve gives a wider range and better pedal support; a golden DH valve is also offered.
- Coil, TTX twin-tube damping
- 3-position HSC, 16-click LSC, rebound adjustment
- Tool-free spring and stroke changes
- Side-by-side reservoir for frame compatibility
- Metric, trunnion and trunnion piggyback versions

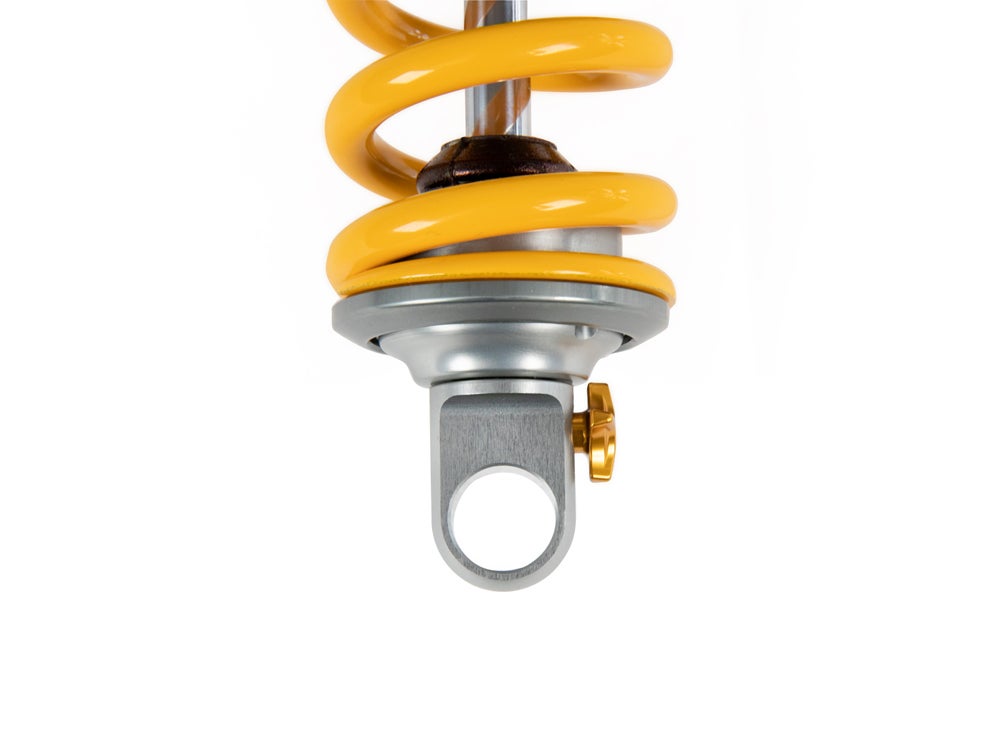

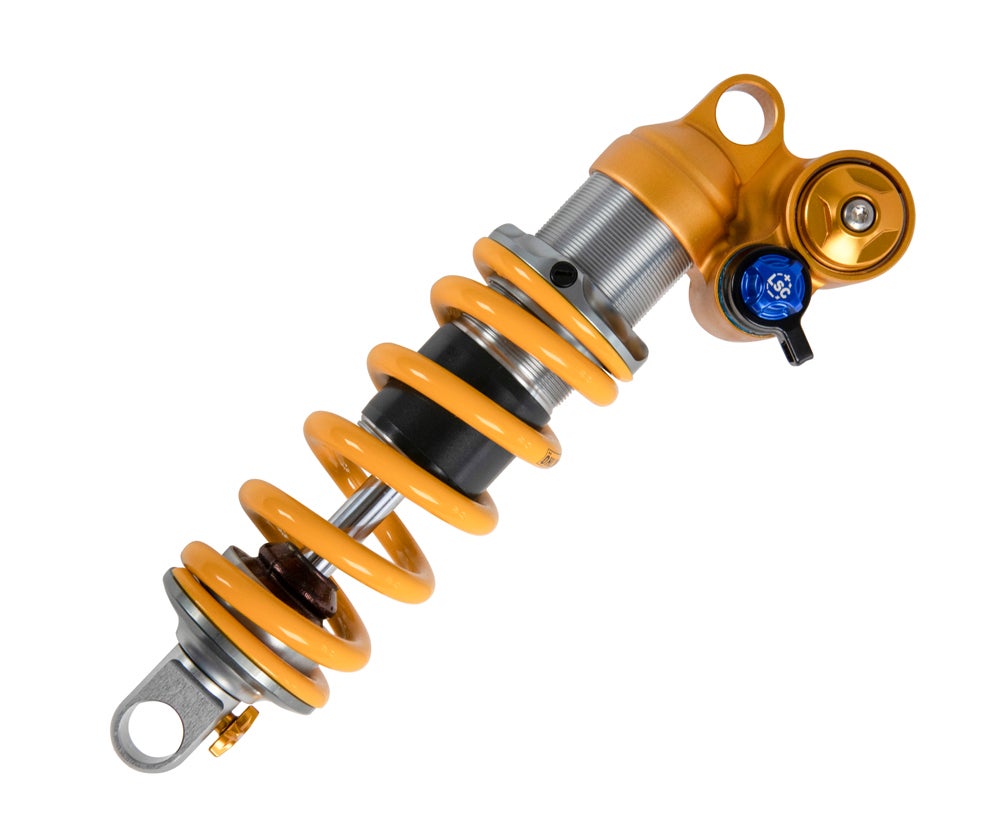

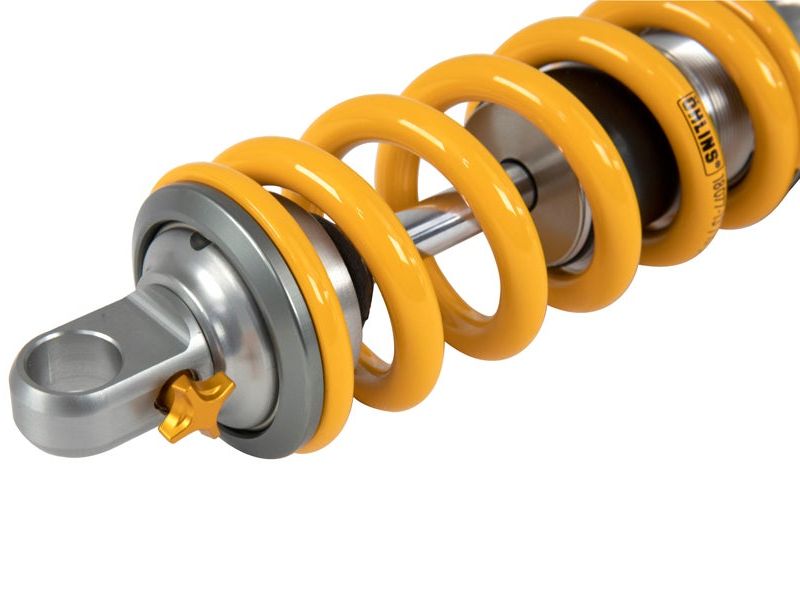

Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Specifically designed for trail and downhill use
- Feature
- Blue trail valve
- Feature
- Standard side-by-side cylinder head
- Feature
- Available in metric lengths/strokes
- Feature
- 210 x 55/52.5/50/47.5 mm
- Feature
- Stroke can be adjusted using the three 2.5 mm spacers included in the box.
- Feature
- Suitable for our lightweight springs with 4 N/mm (23 lb/in) increments
- Feature
- External, 3 level high-speed compression adjustment
- Feature
- External, 16 click low-speed compression adjustment rebound damping adjustment
- Feature
- External, 7 click rebound adjustment
- Available versions
- TTX22M.2 Coil 210x55; TTX22M.2 Coil 230x65; TTX22M.2 Coil 250x75; TTX22M.2 Coil TM 185x55; TTX22M.2 Coil TM 205x65; TTX22M.2 Coil TM 225x75; TTX22M.2 Coil TM PB 185x55; TTX22M.2 Coil TM PB 205x65; TTX22M.2 Coil TM PB 225x75
Damper
- Damper
- TTX
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 6
Sizes
- Eye-to-eye (listed variant)
- 210 mm
- Stroke
- 55 mm
- Stroke option 2
- 52.5 mm
- Stroke option 3
- 50 mm
- Stroke option 4
- 47.5 mm
Spring
- Spring type
- Coil
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
eMTBs that come with the Öhlins TTX22
Öhlins TTX22m.2 Coil: FAQ
Is the Öhlins TTX22m.2 Coil suitable for e-bikes?
Öhlins does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Öhlins TTX22m.2 Coil?
Type: Coil; Damper: TTX; Adjustments: 3 HSC / 16 LSC / rebound; Mount: Metric and trunnion; Use: Trail and downhill.
