ÖhlinsTTX2Air m.2
No EUR/GBP RRP published; official US store lists from USD 819.50
- Type
- Air, double-can
- Damper
- TTX
- Adjustments
- 3 HSC / 16 LSC / 7 rebound
- Max air pressure
- 325 psi
- Mount
- Metric and trunnion
Overview
Öhlins TTX2Air m.2: double-can TTX air shock for progressive linkages, metric and trunnion sizes, max 325 psi, remote-compatible.
The TTX2Air m.2 combines Öhlins' TTX twin-tube damping with a double-can, higher-volume air spring, aimed at bikes with more progressive linkage ratios. Larger positive and negative chambers and volume spacers allow wide adjustment of the spring curve.
The m.2 adds new seals and a bladder system for a more coil-like feel, an improved pedal platform, remote compatibility, a redesigned adjustment knob and spacer system, and stroke changes without removing the end-eye.
- Double-can air spring with larger positive/negative volumes
- TTX damper: 3 HSC / 16 LSC / 7 rebound
- Climb mode, remote-compatible
- Volume spacers included
- Metric and trunnion lengths

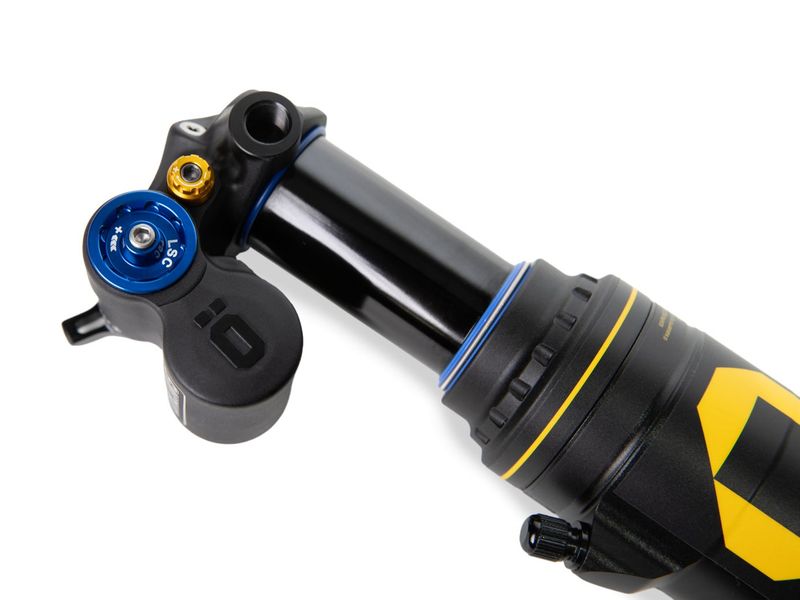

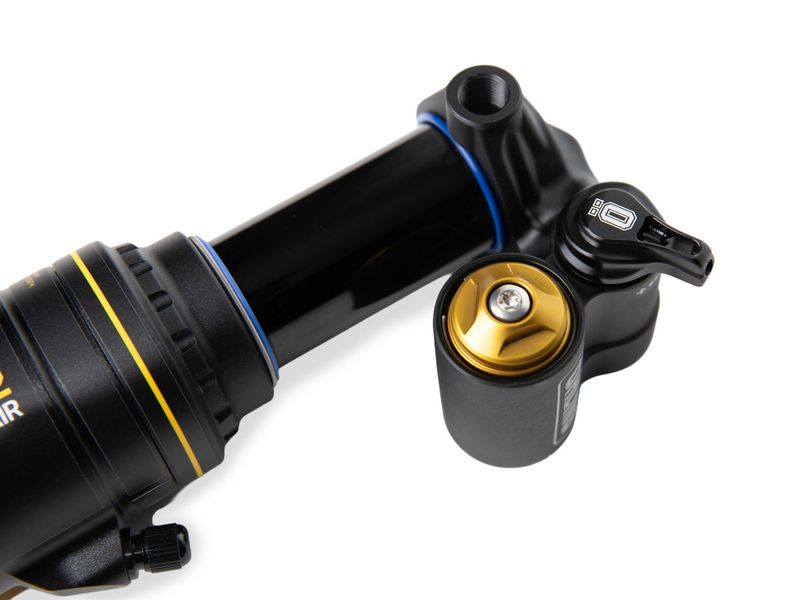

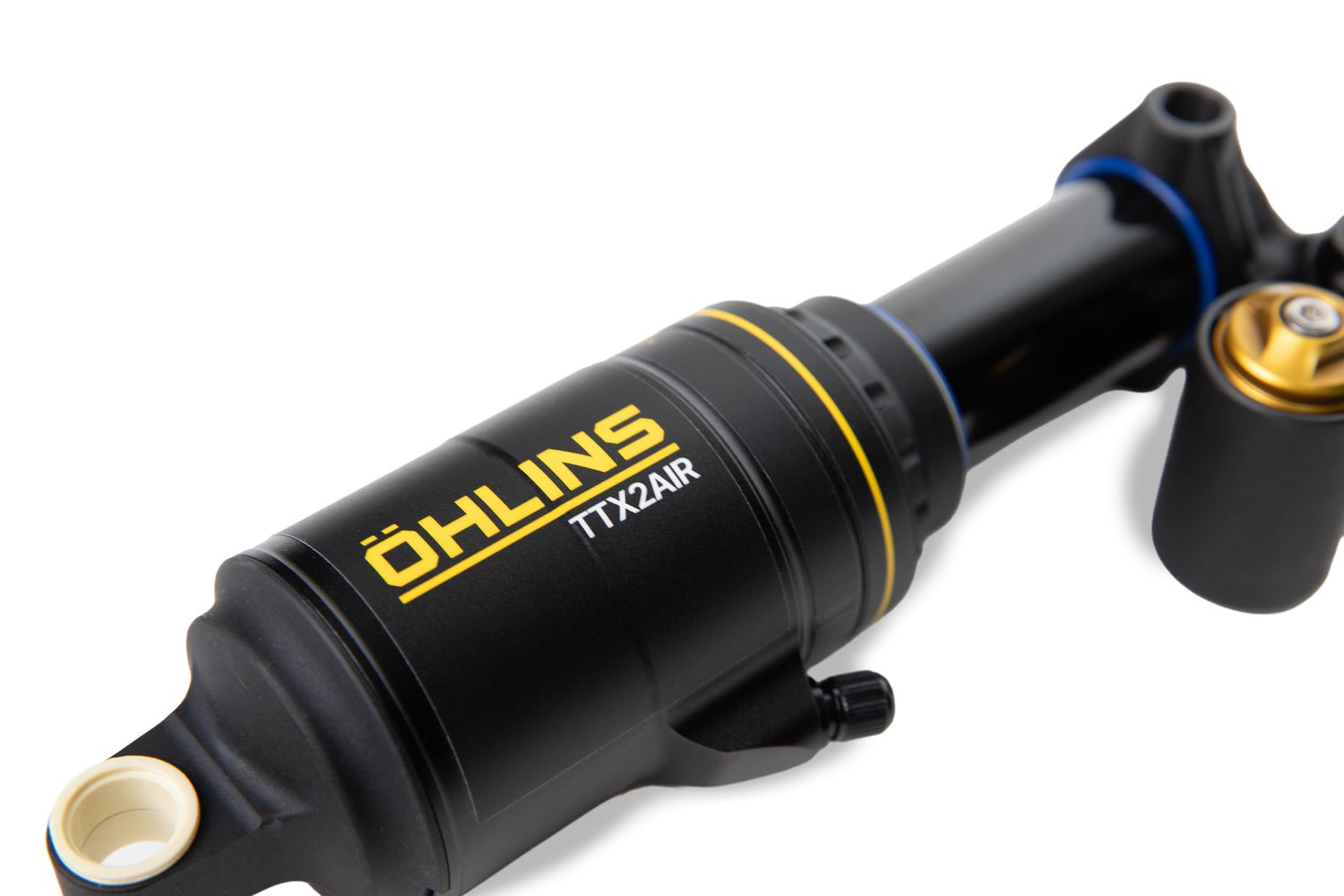

Gallery
Full specifications
General
- Feature
- Highly adjustable TTX compression valve technology
- Feature
- Double-can design with larger air volume in both positive and negative chamber
- Feature
- Adjustable HSC (high-speed compression) and LSC (low-speed compression)
- Feature
- Adjustable rebound damping
- Feature
- Climb mode
- Feature
- Race-proven setting bank, to suit any type of riding or linkage design
- Feature
- Air spring volume spacers included as standard in the shock kit
- Feature
- Available in trunnion metric lengths
- Feature
- Redesigned adjustment knob
- Feature
- Compatible with remote systems
- Feature
- Redesigned spacer system for easier adjustments
- Feature
- 185 x 55/52.5/50/47.5 mm
- Feature
- Maximum air pressure: 325 psi
- Feature
- Delivered with the longest stroke, plus the additional parts required to alter the stroke
- Available versions
- TTX2Air m.2 185x55; TTX2Air m.2 205x65; TTX2Air m.2 210x55; TTX2Air m.2 230x65; TTX2Air TM 185x55; TTX2Air TM 205x65; TTX2Air 190x45; TTX2Air 210x55; TTX2Air 230x65
Damper
- Damper
- TTX
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 7
Sizes
- Eye-to-eye (listed variant)
- 185 mm
- Stroke
- 55 mm
- Stroke option 2
- 52.5 mm
- Stroke option 3
- 50 mm
- Stroke option 4
- 47.5 mm
Spring
- Max air pressure
- 325 psi
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins TTX Air versions compared
| TTX1Air m.2 | TTX2Air m.2 | |
|---|---|---|
| Price | — | — |
| Type | Air, single-can | Air, double-can |
| Damper | TTX | TTX |
| Adjustments | 3 HSC / 16 LSC / 7 rebound | 3 HSC / 16 LSC / 7 rebound |
| Max air pressure | 300 psi | 325 psi |
| Mount | Metric and trunnion | Metric and trunnion |
| E-bike rated | Designed for trail bikes and eMTBs | — |
| Weight | 390 g | — |
Öhlins TTX2Air m.2: FAQ
Is the Öhlins TTX2Air m.2 suitable for e-bikes?
Öhlins does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Öhlins TTX2Air m.2?
Type: Air, double-can; Damper: TTX; Adjustments: 3 HSC / 16 LSC / 7 rebound; Max air pressure: 325 psi; Mount: Metric and trunnion.
What other versions of the Öhlins TTX Air are there?
TTX1Air m.2.
