ÖhlinsTTX1Air m.2
No EUR/GBP RRP published; official US store lists from USD 819.50
- Type
- Air, single-can
- Damper
- TTX
- Adjustments
- 3 HSC / 16 LSC / 7 rebound
- Max air pressure
- 300 psi
- Mount
- Metric and trunnion
- E-bike rated
- Designed for trail bikes and eMTBs
- Weight
- 390 g190 x 45 mm, claimed
Overview
Öhlins TTX1Air m.2: single-can TTX air shock for trail bikes and eMTBs, metric and trunnion sizes, remote-compatible, 390 g.
The TTX1Air m.2 is Öhlins' single-can air shock, designed for trail bikes and eMTBs with more linear suspension systems. It offers the trail-smoothing capability of the double-can TTX2Air in a slimmer, lighter package.
The m.2 adds new seals and a bladder system for a more coil-like feel, an improved pedal platform, remote compatibility (7.5 mm cable pull per click), a redesigned spacer system and simplified stroke adjustment without removing the end-eye.
- TTX damper with adjustable HSC, LSC and rebound
- Designed for trail bikes and eMTBs
- Climb mode, remote-compatible
- Single-can, compact end-eye
- 390 g (190 x 45 mm)

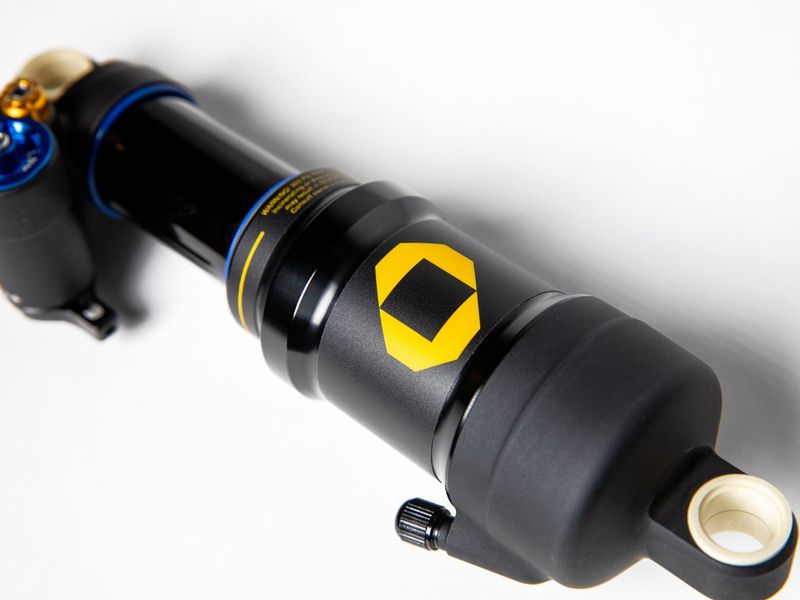

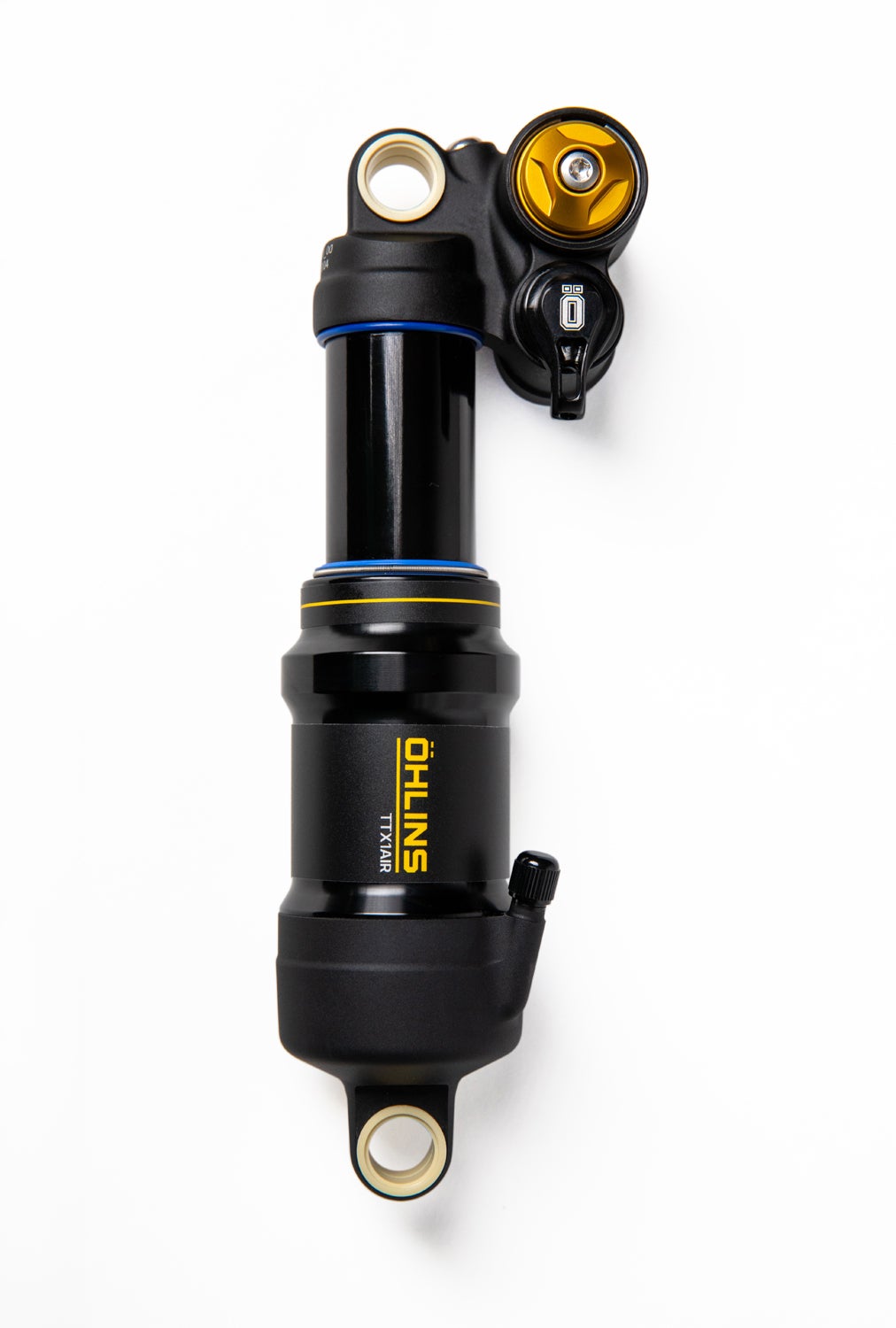

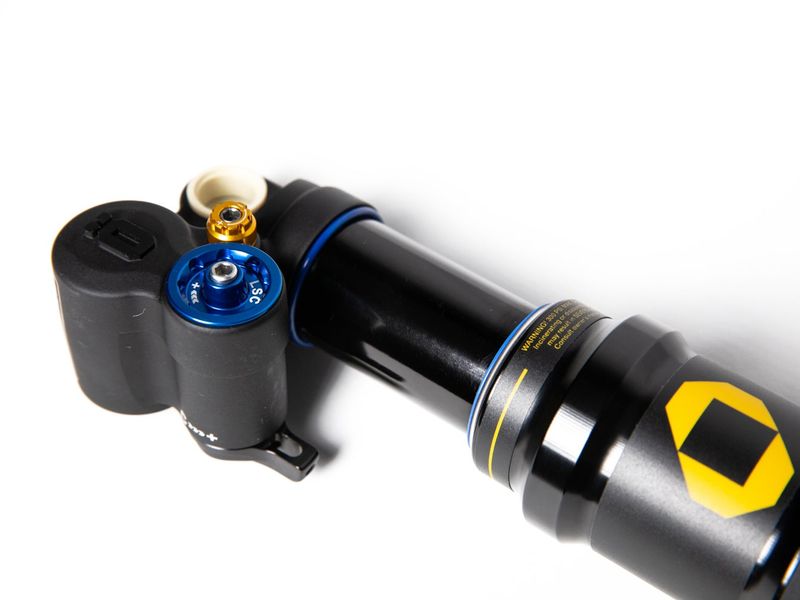

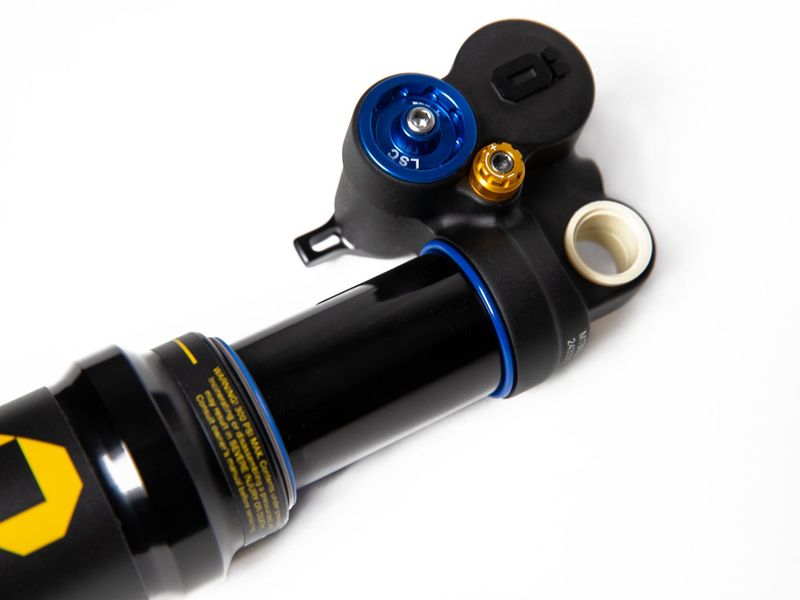

Gallery
Full specifications
General
- Feature
- Highly adjustable TTX compression valve technology
- Feature
- Single-can design optimized for linear linkage designs and tighter frame spaces
- Feature
- Adjustable HSC (high-speed compression) and LSC (low-speed compression)
- Feature
- Adjustable rebound damping
- Feature
- Compact end-eye design for better compatibility with a wider range of frame designs
- Feature
- Climb mode
- Feature
- Race-proven setting bank to suit any type of riding or linkage design
- Feature
- Redesigned adjustment knob
- Feature
- Compatible with remote systems
- Feature
- Redesigned spacer system for easier adjustments
- Feature
- 165 x 45/42.5/40/37.5 mm
- Feature
- Maximum air pressure: 300 psi
- Feature
- Delivered with the longest stroke, plus the additional parts required to alter the stroke
- Feature
- Weight: 390 grams (190 x 45 mm)
- Available versions
- TTX1Air m.2 165x45; TTX1Air m.2 185x55; TTX1Air m.2 190x45; TTX1Air m.2 210x55; TTX1Air TM 165x45; TTX1Air TM 185x55; TTX1Air TM 205x65; TTX1Air 190x45; TTX1Air 210x55; TTX1Air 230x65
Damper
- Damper
- TTX
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 7
Sizes
- Eye-to-eye (listed variant)
- 165 mm
- Stroke
- 45 mm
- Stroke option 2
- 42.5 mm
- Stroke option 3
- 40 mm
- Stroke option 4
- 37.5 mm
Spring
- Max air pressure
- 300 psi
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins TTX Air versions compared
| TTX1Air m.2 | TTX2Air m.2 | |
|---|---|---|
| Price | — | — |
| Type | Air, single-can | Air, double-can |
| Damper | TTX | TTX |
| Adjustments | 3 HSC / 16 LSC / 7 rebound | 3 HSC / 16 LSC / 7 rebound |
| Max air pressure | 300 psi | 325 psi |
| Mount | Metric and trunnion | Metric and trunnion |
| E-bike rated | Designed for trail bikes and eMTBs | — |
| Weight | 390 g | — |
Öhlins TTX1Air m.2: FAQ
How much does the Öhlins TTX1Air m.2 weigh?
Öhlins quotes 390 g (190 x 45 mm, claimed).
Is the Öhlins TTX1Air m.2 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins TTX1Air m.2?
Type: Air, single-can; Damper: TTX; Adjustments: 3 HSC / 16 LSC / 7 rebound; Max air pressure: 300 psi; Mount: Metric and trunnion; E-bike rated: Designed for trail bikes and eMTBs.
What other versions of the Öhlins TTX Air are there?
TTX2Air m.2.
