Fox38 Factory GRIP X2
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,369 (ridefox.com, excl. sales tax).
- Travel
- 160–180 mm
- Wheel size
- 29" / 27.5"
- Stanchions
- 38 mm
- Damper
- GRIP X2
- Spring
- FLOAT EVOL GlideCore
- E-bike rated
- No
- Weight
- 2,360 g29", F-S, 180 mm, GRIP X2, Kabolt X; starting weight, claimed
Overview
The FOX 38 Factory GRIP X2 is a 38 fork with 160–180 mm of travel for 29" / 27.5" wheels, using the GRIP X2 damper. US RRP $1,369.
The FOX 38 is FOX's long-travel single-crown fork for Enduro racing and aggressive riding, optimised for 160 to 180 mm of travel. FOX calls it "composure in the chaos" and positions it as the benchmark for single-crown confidence, performance and durability.
The current 38 uses the FLOAT EVOL GlideCore air spring, which FOX says substantially reduces friction and bind, together with the four-way adjustable GRIP X2 damper. An e-Optimized chassis version is offered for e-MTBs.
- 160, 170 or 180 mm travel
- 29" and 27.5" versions
- GRIP X2 damper
- FLOAT EVOL GlideCore air spring, Kashima coat
- Starting weight 2360 g

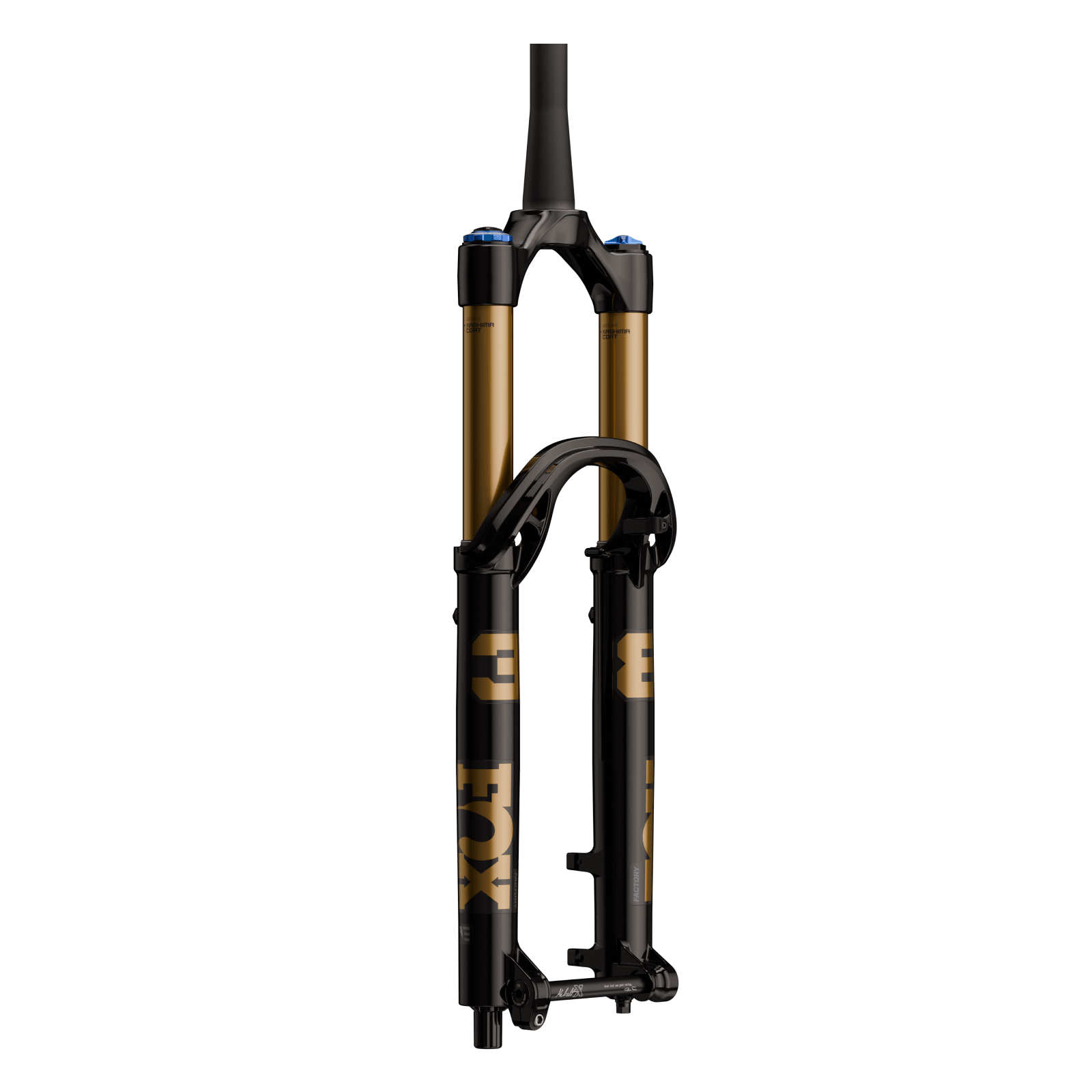

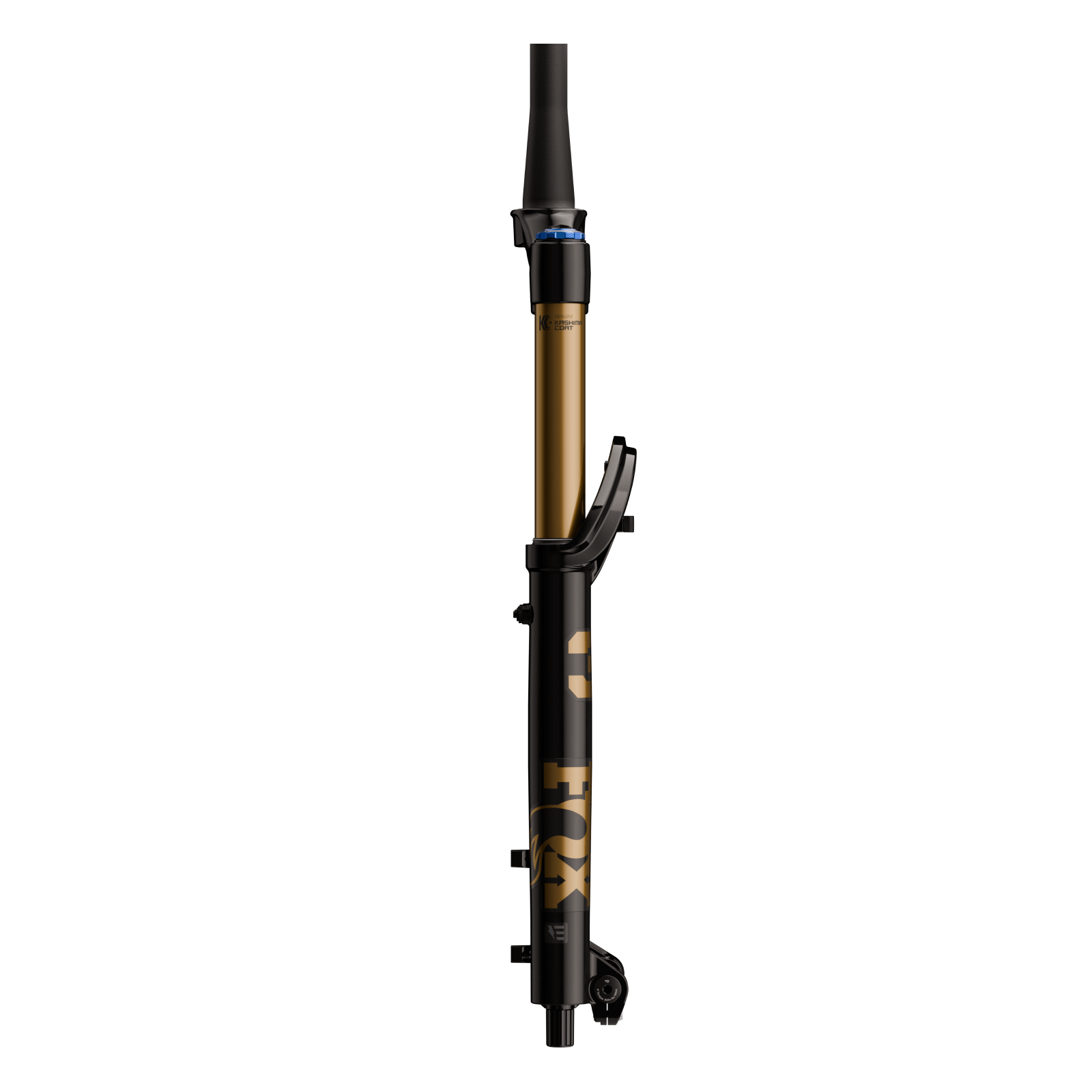

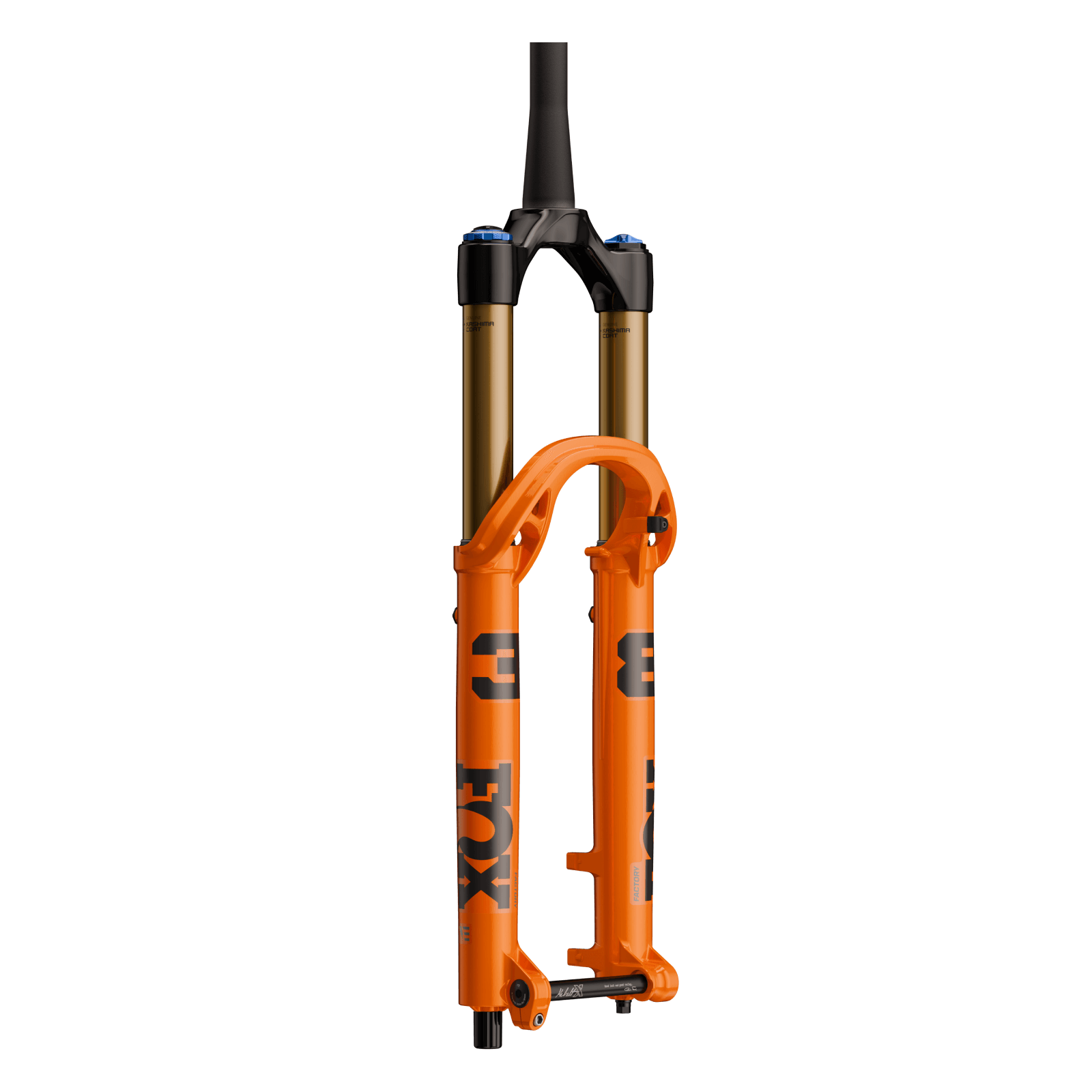

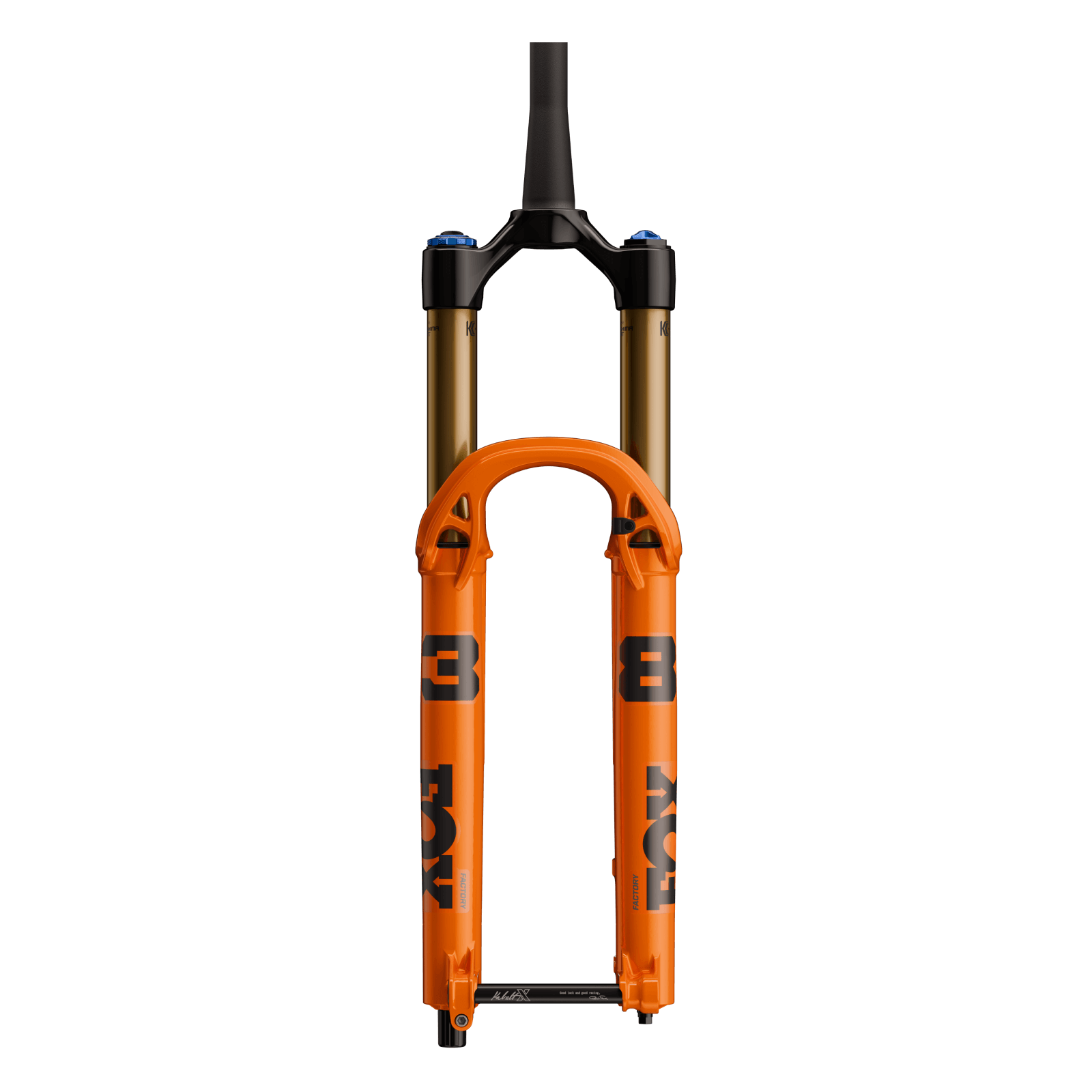

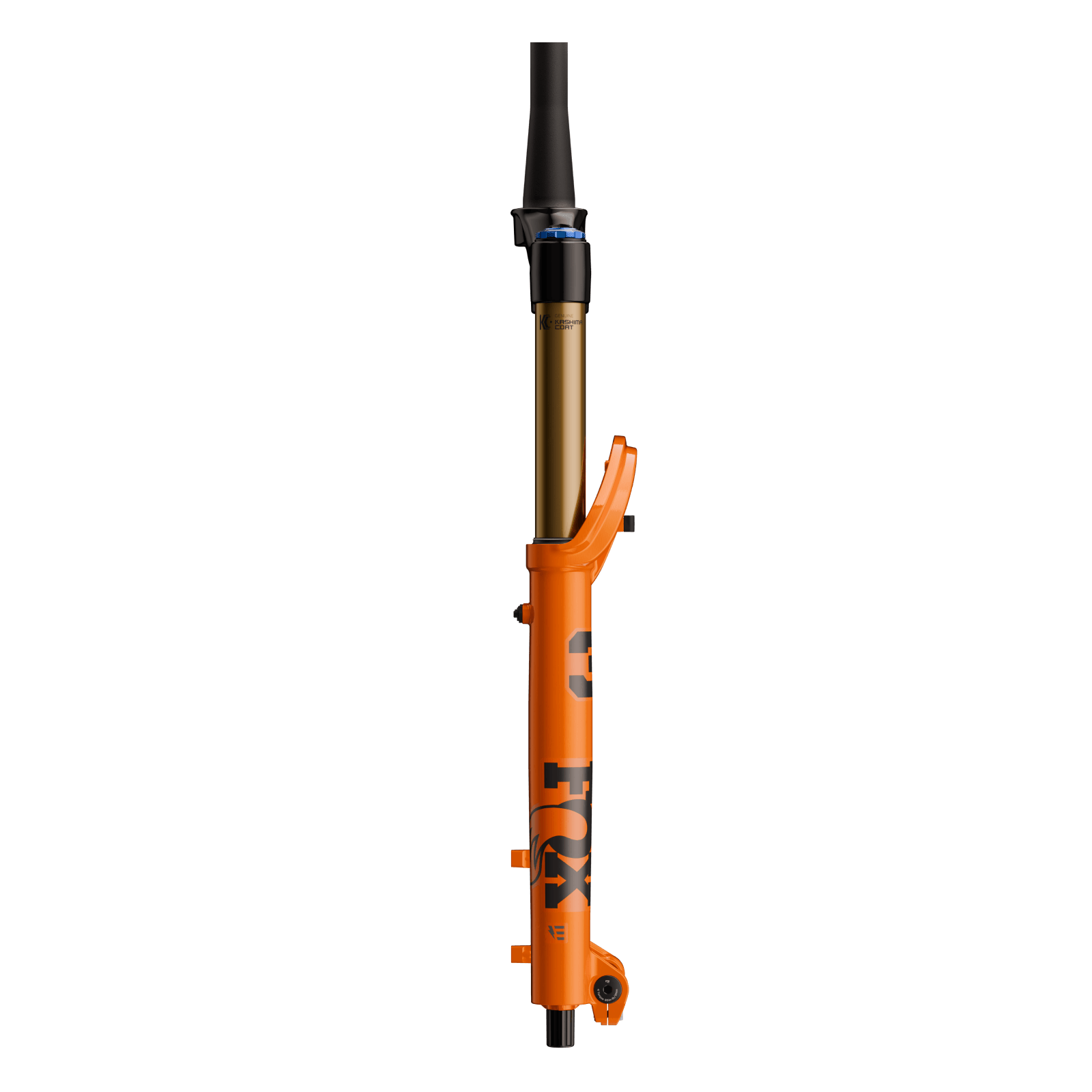

Gallery
Full specifications
General
- Part numbers
- 910-21-412, 910-21-414, 910-21-415, 910-21-416, 910-21-426
- Series
- Factory
- Starting weight
- 2360g (29, F-S, 180, Grip X2, Kabolt X)
- Colours
- Shiny Black / Shiny Orange
Chassis
- Chassis
- Standard
- Wheel size
- 29in / 27.5in
- Travel
- 160mm / 170mm / 180mm
- Bleeders
- Yes
- Floating axle
- No
Spring
- Air channels
- Yes
- Air spring
- FLOAT EVOL GlideCore
Compatibility
- Rotor size
- 200 direct Post Mount, Up to 230 compatible
- Mudguard mount
- Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
Damper
- Damper
- GRIP X2
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox 38 versions compared
| 38 Factory eMTB GRIP X2 | 38 Factory GRIP X2 | 38 Performance Elite GRIP X2 | |
|---|---|---|---|
| Price | — | — | — |
| Travel | 170 mm | 160–180 mm | 170 mm |
| Wheel size | 29" | 29" / 27.5" | 29" |
| Stanchions | 38 mm | 38 mm | 38 mm |
| Damper | GRIP X2 | GRIP X2 | GRIP X2 |
| Spring | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore |
| E-bike rated | Yes (e-Optimized chassis) | No | No |
| Weight | 2,360 g | 2,360 g | 2,360 g |
Fox 38 Factory GRIP X2: FAQ
How much does the Fox 38 Factory GRIP X2 weigh?
Fox quotes 2,360 g (29", F-S, 180 mm, GRIP X2, Kabolt X; starting weight, claimed).
Is the Fox 38 Factory GRIP X2 suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox 38 Factory GRIP X2?
Travel: 160–180 mm; Wheel size: 29" / 27.5"; Stanchions: 38 mm; Damper: GRIP X2; Spring: FLOAT EVOL GlideCore; E-bike rated: No.
What other versions of the Fox 38 are there?
38 Factory eMTB GRIP X2, 38 Performance Elite GRIP X2.
