Fox38 Factory eMTB GRIP X2
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,369 (ridefox.com, excl. sales tax).
- Travel
- 170 mm
- Wheel size
- 29"
- Stanchions
- 38 mm
- Damper
- GRIP X2
- Spring
- FLOAT EVOL GlideCore
- E-bike rated
- Yes (e-Optimized chassis)
- Weight
- 2,360 g29", F-S, 180 mm, GRIP X2, Kabolt X; starting weight, claimed
Overview
The FOX 38 Factory eMTB GRIP X2 is an e-Optimized 38 fork with 170 mm of travel for 29" wheels, using the GRIP X2 damper. US RRP $1,369.
The FOX 38 is FOX's long-travel single-crown fork for Enduro racing and aggressive riding, optimised for 160 to 180 mm of travel. FOX calls it "composure in the chaos" and positions it as the benchmark for single-crown confidence, performance and durability.
The current 38 uses the FLOAT EVOL GlideCore air spring, which FOX says substantially reduces friction and bind, together with the four-way adjustable GRIP X2 damper. An e-Optimized chassis version is offered for e-MTBs.
- e-Optimized 38 chassis for e-MTBs, 170 mm travel
- GRIP X2 damper with HSC/LSC/HSR/LSR adjustment
- FLOAT EVOL GlideCore air spring
- Kashima coat, Kabolt-X 110 axle, 44 mm rake
- Rotors up to 230 mm

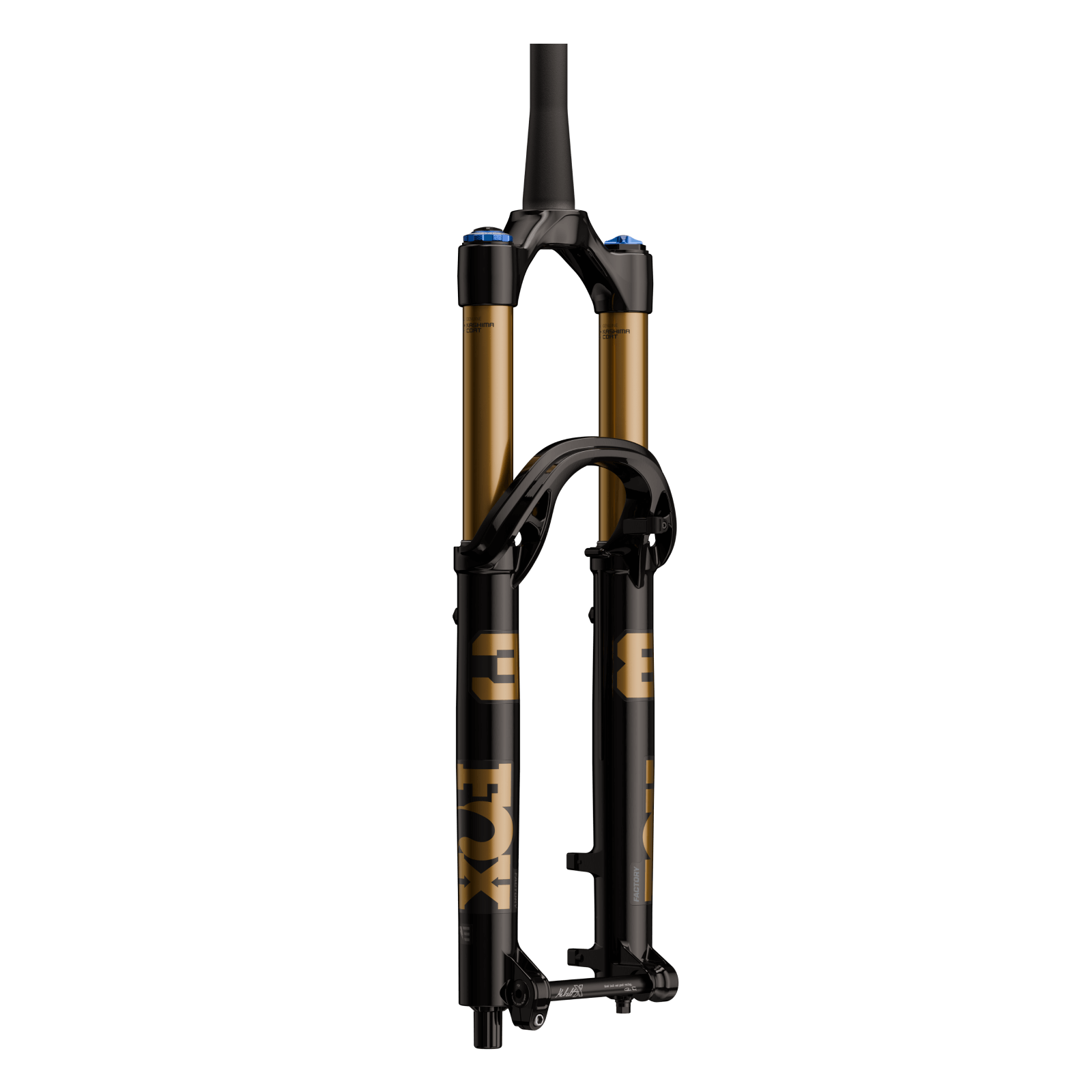

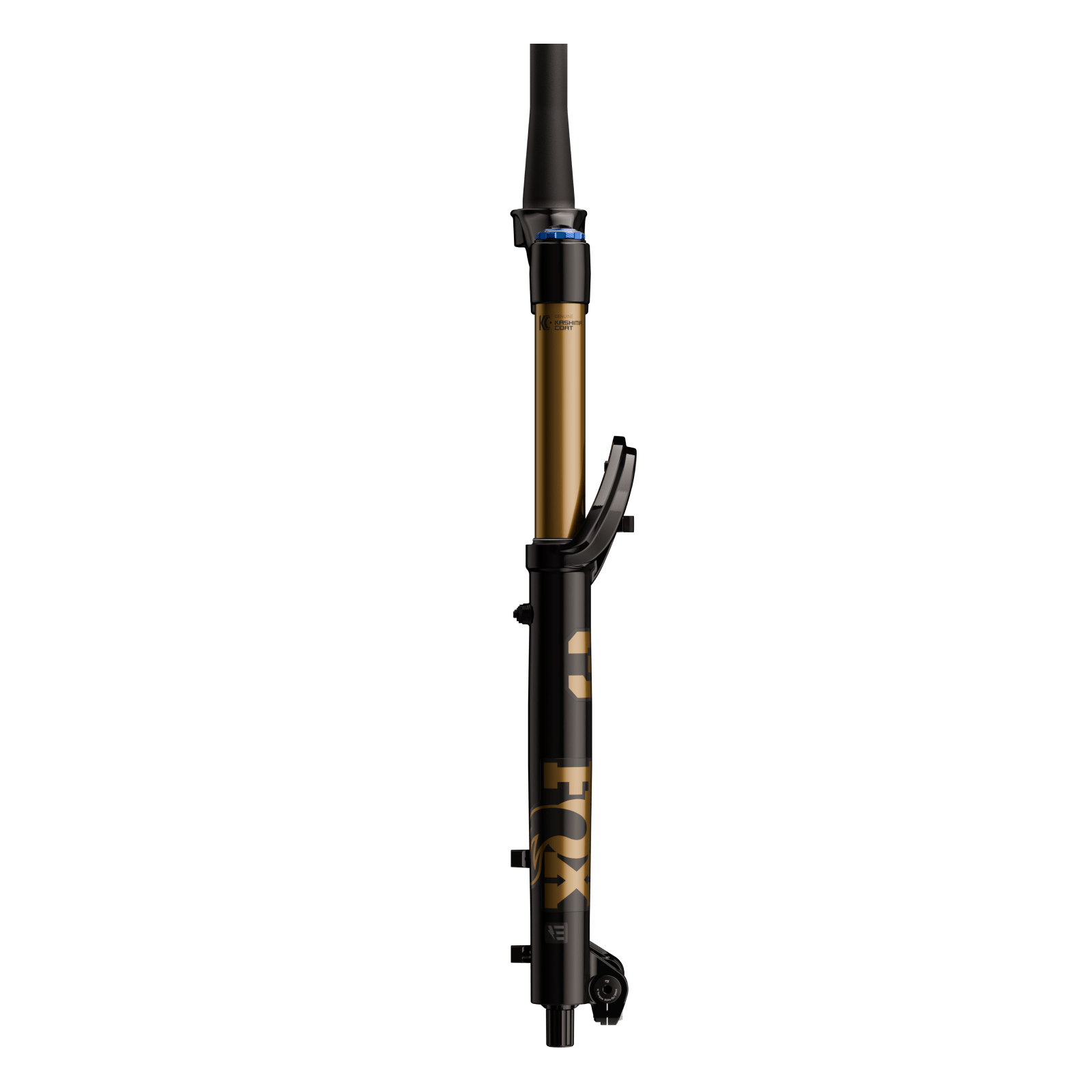

Gallery
Full specifications
General
- Part numbers
- 910-21-424
- Series
- Factory
- Starting weight
- 2360g (29, F-S, 180, Grip X2, Kabolt X)
Chassis
- Chassis
- e-Optimized
- Wheel size
- 29in
- Travel
- 170mm
- Axle
- Kabolt-X 110
- Rake
- 44mm
- Steerer
- 1.5 Tapered
- Upper tube finish
- Kashima
- Bleeders
- Yes
- Floating axle
- No
Damper
- Damper
- GRIP X2
- Damper controls
- HSC - LSC - HSR - LSR
Spring
- Air channels
- Yes
- Air spring
- FLOAT EVOL GlideCore
Compatibility
- Rotor size
- 200 direct Post Mount, Up to 230 compatible
- Mudguard mount
- Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox 38 versions compared
| 38 Factory eMTB GRIP X2 | 38 Factory GRIP X2 | 38 Performance Elite GRIP X2 | |
|---|---|---|---|
| Price | — | — | — |
| Travel | 170 mm | 160–180 mm | 170 mm |
| Wheel size | 29" | 29" / 27.5" | 29" |
| Stanchions | 38 mm | 38 mm | 38 mm |
| Damper | GRIP X2 | GRIP X2 | GRIP X2 |
| Spring | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore |
| E-bike rated | Yes (e-Optimized chassis) | No | No |
| Weight | 2,360 g | 2,360 g | 2,360 g |
Fox 38 Factory eMTB GRIP X2: FAQ
How much does the Fox 38 Factory eMTB GRIP X2 weigh?
Fox quotes 2,360 g (29", F-S, 180 mm, GRIP X2, Kabolt X; starting weight, claimed).
Is the Fox 38 Factory eMTB GRIP X2 suitable for e-bikes?
Yes — Fox lists it as e-bike rated or e-bike specific.
What are the key specs of the Fox 38 Factory eMTB GRIP X2?
Travel: 170 mm; Wheel size: 29"; Stanchions: 38 mm; Damper: GRIP X2; Spring: FLOAT EVOL GlideCore; E-bike rated: Yes (e-Optimized chassis).
What other versions of the Fox 38 are there?
38 Factory GRIP X2, 38 Performance Elite GRIP X2.
