Fox36 Factory GRIP X2
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,299 (ridefox.com, excl. sales tax).
- Travel
- 150 / 160 mm
- Wheel size
- 29"
- Stanchions
- 36 mm
- Damper
- GRIP X2
- Spring
- FLOAT EVOL GlideCore
- E-bike rated
- No
Overview
The FOX 36 Factory GRIP X2 is a 36 fork with 150 / 160 mm of travel for 29" wheels, using the GRIP X2 damper. US RRP $1,299.
The FOX 36 is FOX's Trail and All-Mountain single-crown fork. FOX describes the latest evolution as bringing "big fork energy" to the category, with greater steering stiffness and precision plus smoother travel that give it an Enduro feel without the extra weight.
Current 36 Factory and Performance Elite models use the FLOAT EVOL GlideCore air spring, Kabolt-X 110 axle, air channels and bleeders, and are offered with the Trail-focused GRIP X damper (updated to approach the ride feel of GRIP X2) or the gravity-ready GRIP X2. FOX also offers e-Optimized chassis versions for e-MTBs.
- 150 or 160 mm travel, 29"
- Gravity-ready GRIP X2 damper, 4-way adjustable
- FLOAT EVOL GlideCore air spring
- Kashima coat, Kabolt-X 110 axle
- 200 mm post mount, up to 230 mm rotors

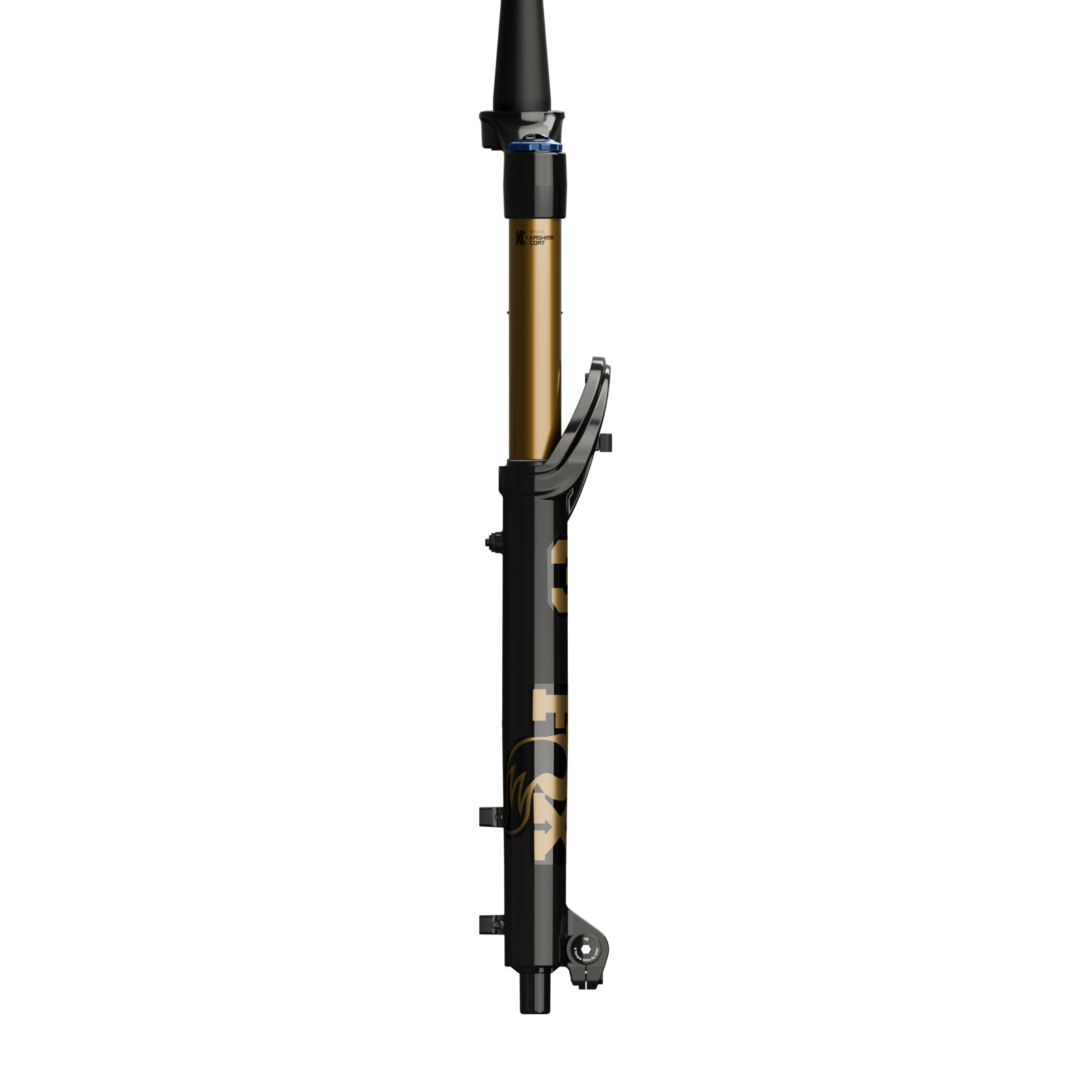

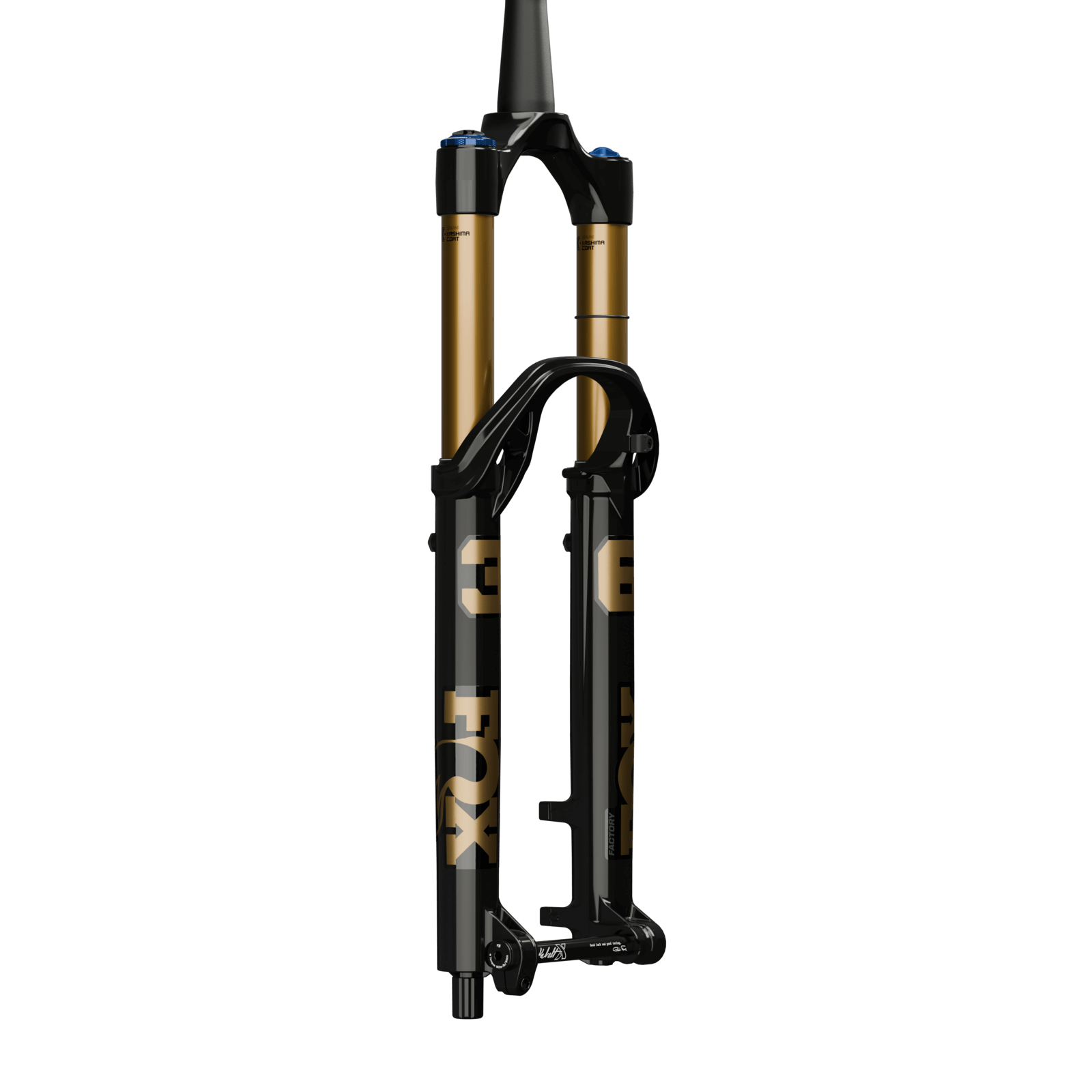

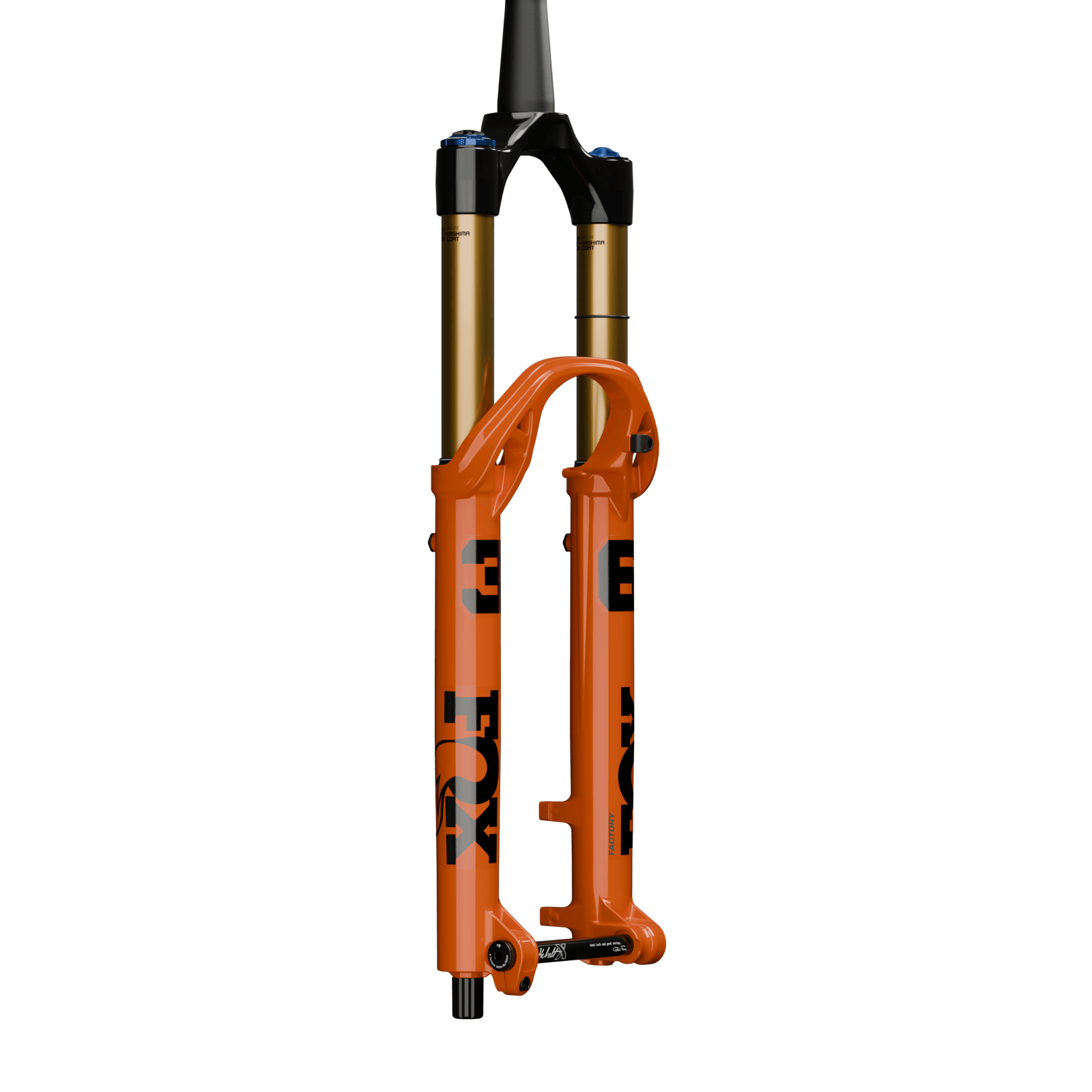

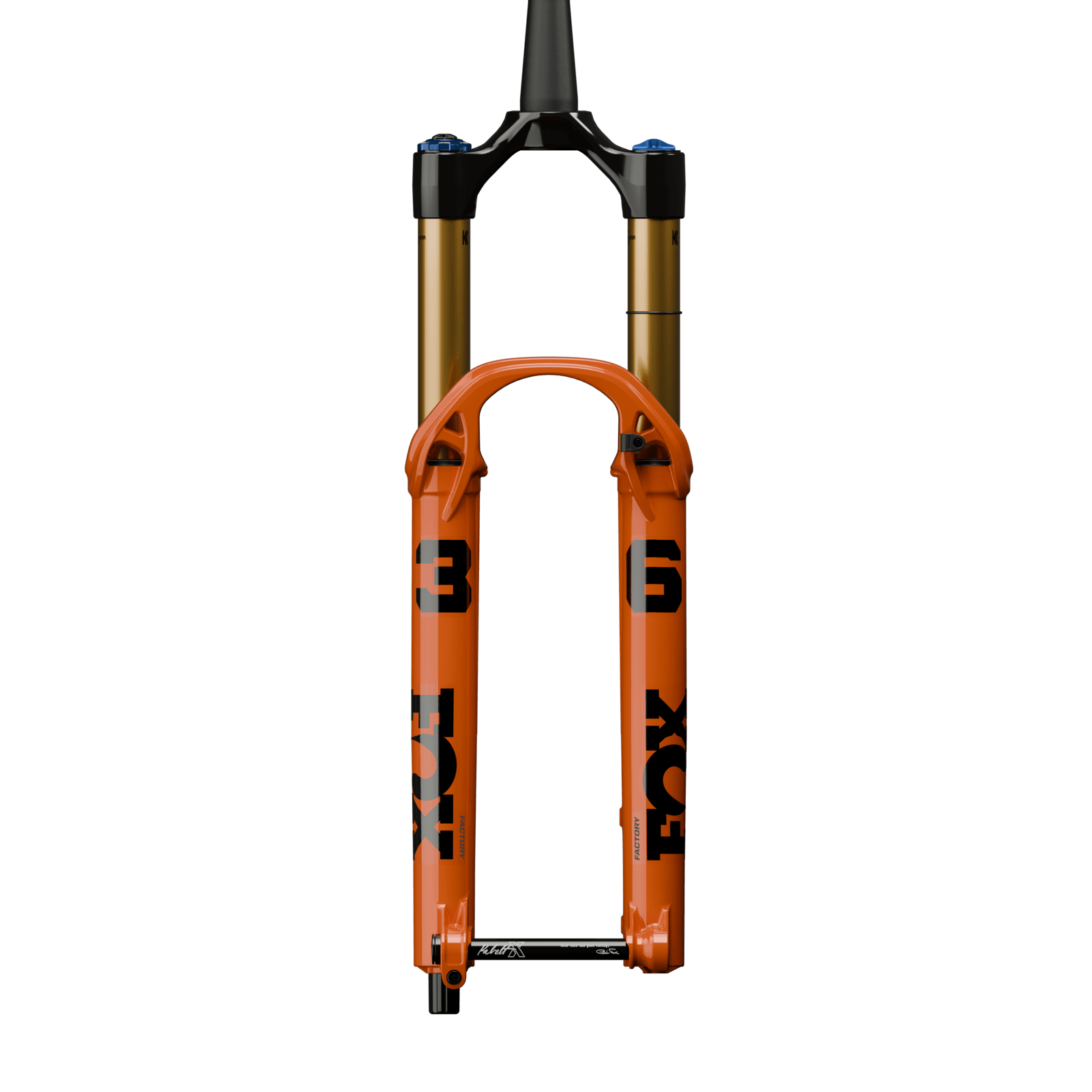

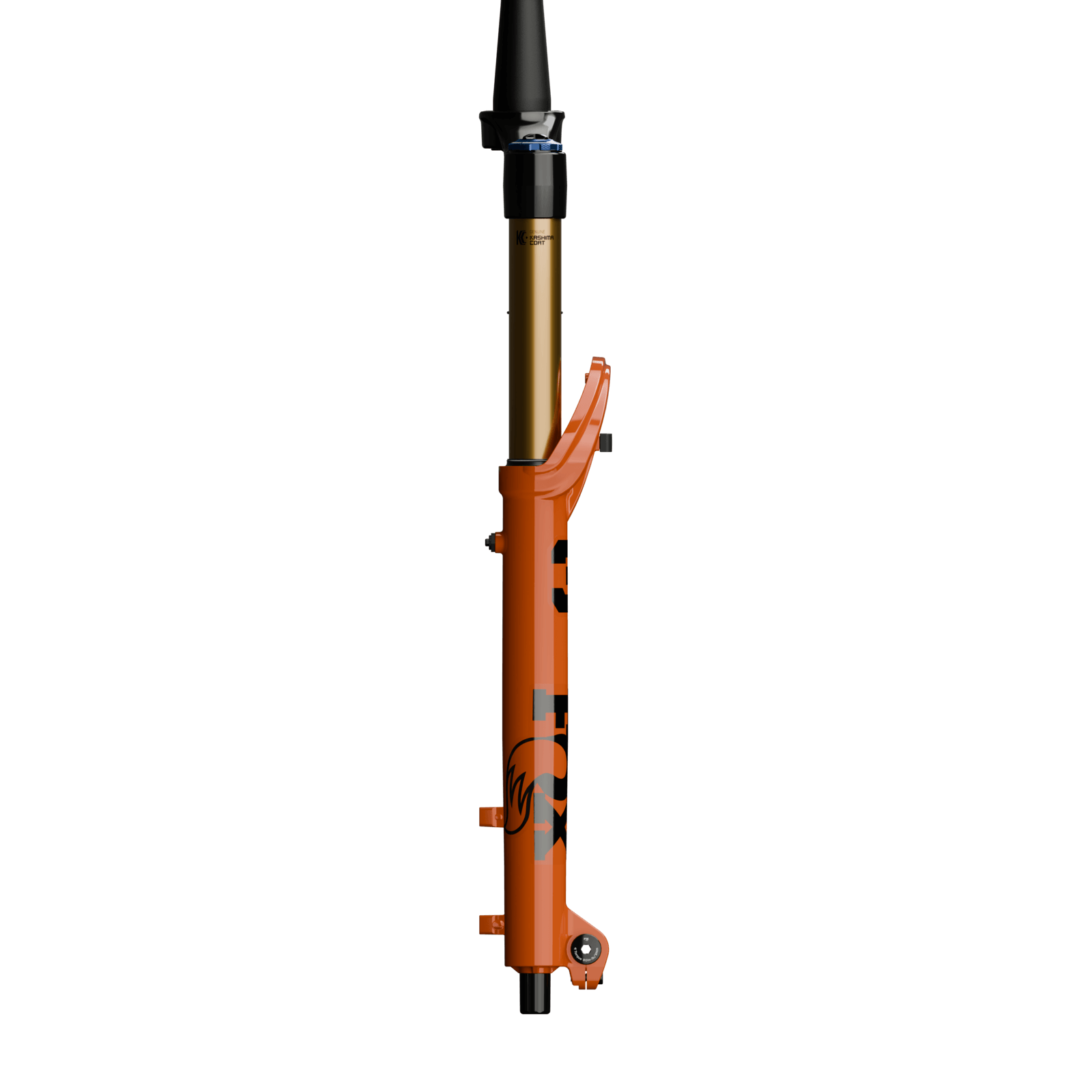

Gallery
Full specifications
General
- Part numbers
- 910-21-430, 910-21-432, 910-21-434
- Series
- Factory
- Colours
- Shiny Orange / Shiny Black
Chassis
- Chassis
- Standard
- Wheel size
- 29in
- Travel
- 150mm / 160mm
- Axle
- Kabolt-X 110
- Rake
- 44mm
- Steerer
- 1.5 Tapered
- Upper tube finish
- Kashima
- Bleeders
- Yes
- Floating axle
- No
Damper
- Damper
- GRIP X2
- Damper controls
- HSC - LSC - HSR - LSR
Spring
- Air channels
- Yes
- Air spring
- FLOAT EVOL GlideCore
Compatibility
- Rotor size
- 200 direct Post Mount, Up to 230 compatible
- Mudguard mount
- Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox 36 versions compared
| 36 Factory eMTB GRIP X | 36 Factory eMTB GRIP X2 | 36 Factory GRIP X | 36 Factory GRIP X2 | 36 Performance Elite GRIP X | 36 Performance GRIP | 36 SL Factory GRIP X | |
|---|---|---|---|---|---|---|---|
| Price | — | — | — | — | — | — | — |
| Travel | 160 mm | 160 mm | 150 / 160 mm | 150 / 160 mm | 160 mm | 160 mm | 130 / 140 mm |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29" | — |
| Stanchions | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Damper | GRIP X | GRIP X2 | GRIP X | GRIP X2 | GRIP X | GRIP | GRIP X |
| Spring | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL GlideCore | FLOAT EVOL | FLOAT EVOL GlideCore |
| E-bike rated | Yes (e-Optimized chassis) | Yes (e-Optimized chassis) | No | No | No | No | No |
| Weight | — | — | — | — | — | — | — |
Fox 36 Factory GRIP X2: FAQ
Is the Fox 36 Factory GRIP X2 suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox 36 Factory GRIP X2?
Travel: 150 / 160 mm; Wheel size: 29"; Stanchions: 36 mm; Damper: GRIP X2; Spring: FLOAT EVOL GlideCore; E-bike rated: No.
What other versions of the Fox 36 are there?
36 Factory eMTB GRIP X, 36 Factory eMTB GRIP X2, 36 Factory GRIP X, 36 Performance Elite GRIP X, 36 Performance GRIP, 36 SL Factory GRIP X.
