Fox40 Factory GRIP X2
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,999 (ridefox.com, excl. sales tax).
- Travel
- 203 mm
- Wheel size
- 29" / 27.5"
- Stanchions
- 40 mm
- Damper
- GRIP X2
- Spring
- FLOAT EVOL GlideCore
- E-bike rated
- No
- Weight
- 2,745 g27.5", F-S, 203 mm, GRIP X2; starting weight, claimed
Overview
The FOX 40 Factory GRIP X2 is a 40 fork with 203 mm of travel for 29" / 27.5" wheels, using the GRIP X2 damper. US RRP $1,999.
The FOX 40 is FOX's dual-crown downhill fork, proven on the World Cup Downhill circuit. It runs 203 mm of travel with a floating 20 mm Boost axle and is offered for 29" and 27.5" wheels.
The current 40 adds the FLOAT EVOL GlideCore air spring and a revised GRIP X2 damper, which FOX says offer more tunability and traction than ever before.
- 203 mm dual-crown downhill fork
- 29" and 27.5"
- Revised GRIP X2 damper, GlideCore air spring
- Floating 20TAx110 Boost axle
- Starting weight 2745 g
Gallery
Full specifications
General
- Part numbers
- 910-21-409, 910-21-410, 910-21-417
- Series
- Factory
- Starting weight
- 2745g (40, 27.5, F-S, 203, Grip X2)
- Colours
- Shiny Orange / Shiny Black
Chassis
- Chassis
- Standard
- Wheel size
- 29in / 27.5in
- Travel
- 203mm
- Axle
- 20TAx110 Boost
- Steerer
- 1.125 Straight
- Upper tube finish
- Kashima
- Bleeders
- Yes
- Floating axle
- Yes
Damper
- Damper
- GRIP X2
Spring
- Air channels
- Yes
- Air spring
- FLOAT EVOL GlideCore
Compatibility
- Rotor size
- 200 direct Post Mount, Up to 230 compatible
- Mudguard mount

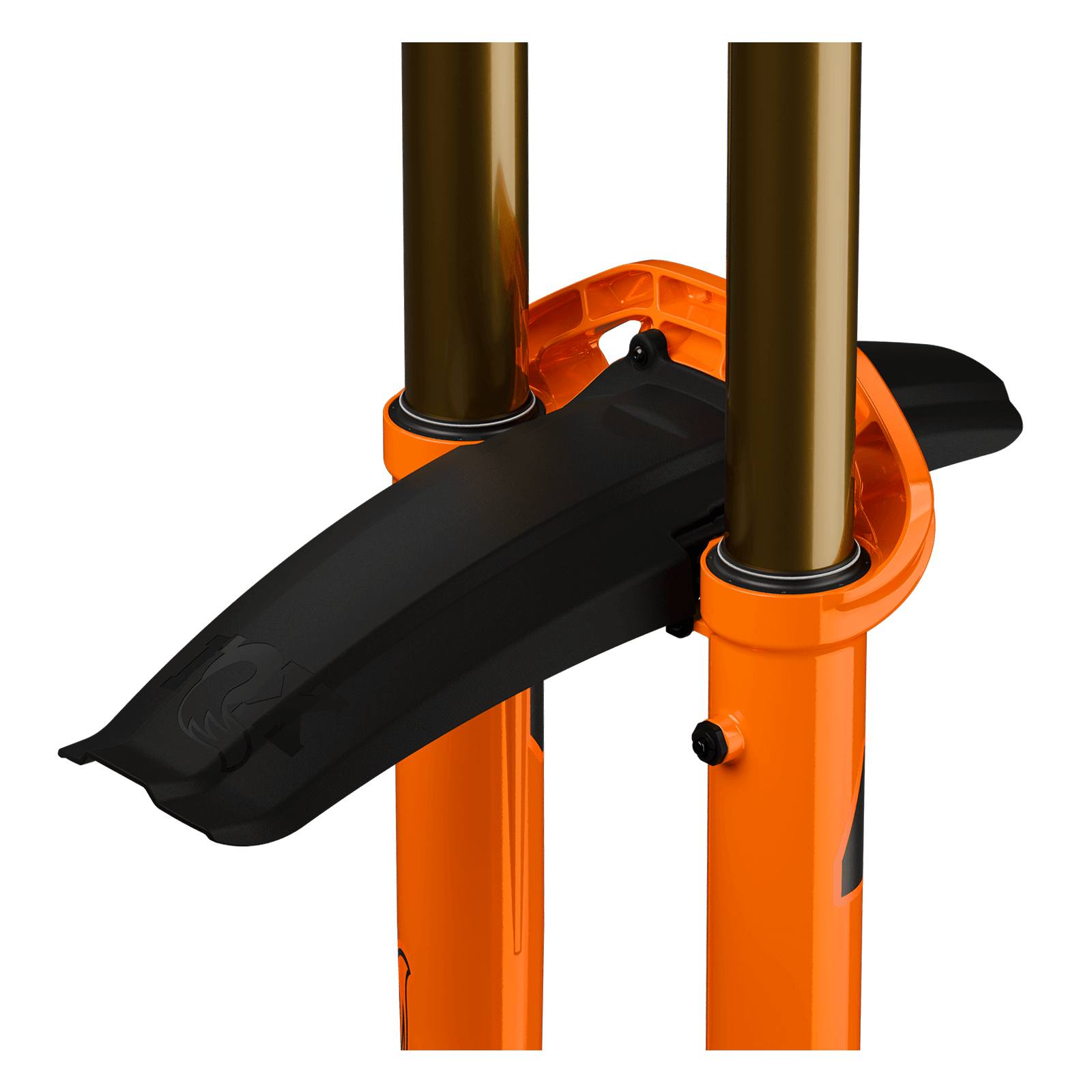

- Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox 40 Factory GRIP X2: FAQ
How much does the Fox 40 Factory GRIP X2 weigh?
Fox quotes 2,745 g (27.5", F-S, 203 mm, GRIP X2; starting weight, claimed).
Is the Fox 40 Factory GRIP X2 suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox 40 Factory GRIP X2?
Travel: 203 mm; Wheel size: 29" / 27.5"; Stanchions: 40 mm; Damper: GRIP X2; Spring: FLOAT EVOL GlideCore; E-bike rated: No.
