FormulaSelva R
No RRP published on rideformula.com
- Travel
- 140–180 mm (27.5"), 140–170 mm (29")
- Wheel size
- 27.5" / 29" / 27.5" Plus
- Stanchions
- 35 mm
- Spring
- 2Air (positive + negative chambers)
- Damper
- Drop-in cartridge, HSC/LSC + CTS
- Axle
- 15QR Boost (20QR optional)
- Weight
- 1,940 g27.5", standard version, claimed
Overview
The Selva R is Formula's most tunable 35 mm enduro fork with the 2Air dual air chamber system, Neopos included and up to 180 mm travel at a claimed 1,940 g.
The Selva is Formula's single-crown 35 mm trail and enduro fork family, built around the drop-in damping cartridge with Internal Floating Technology and the Compression Tuning System (CTS), whose interchangeable valves change the compression character of the fork.

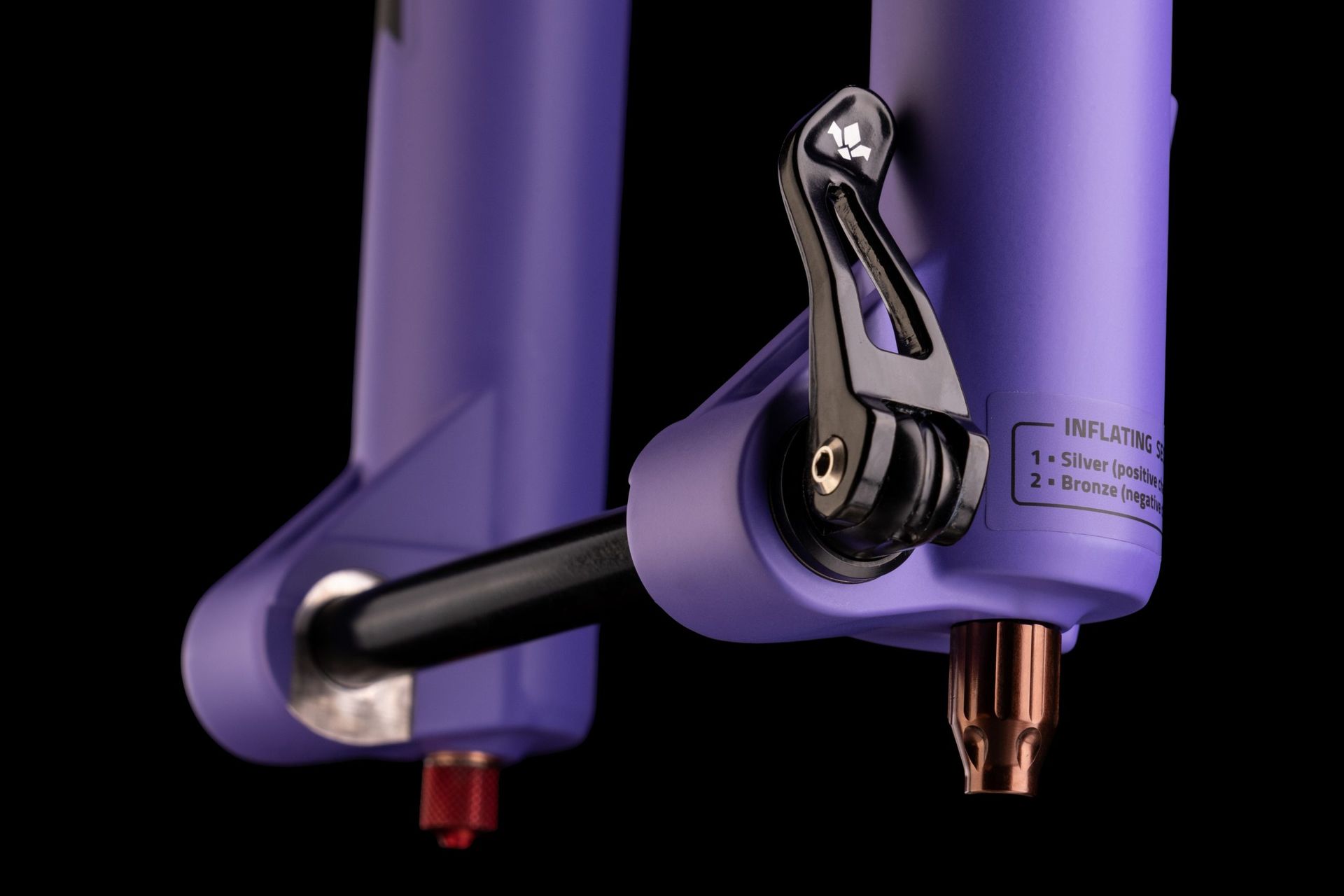

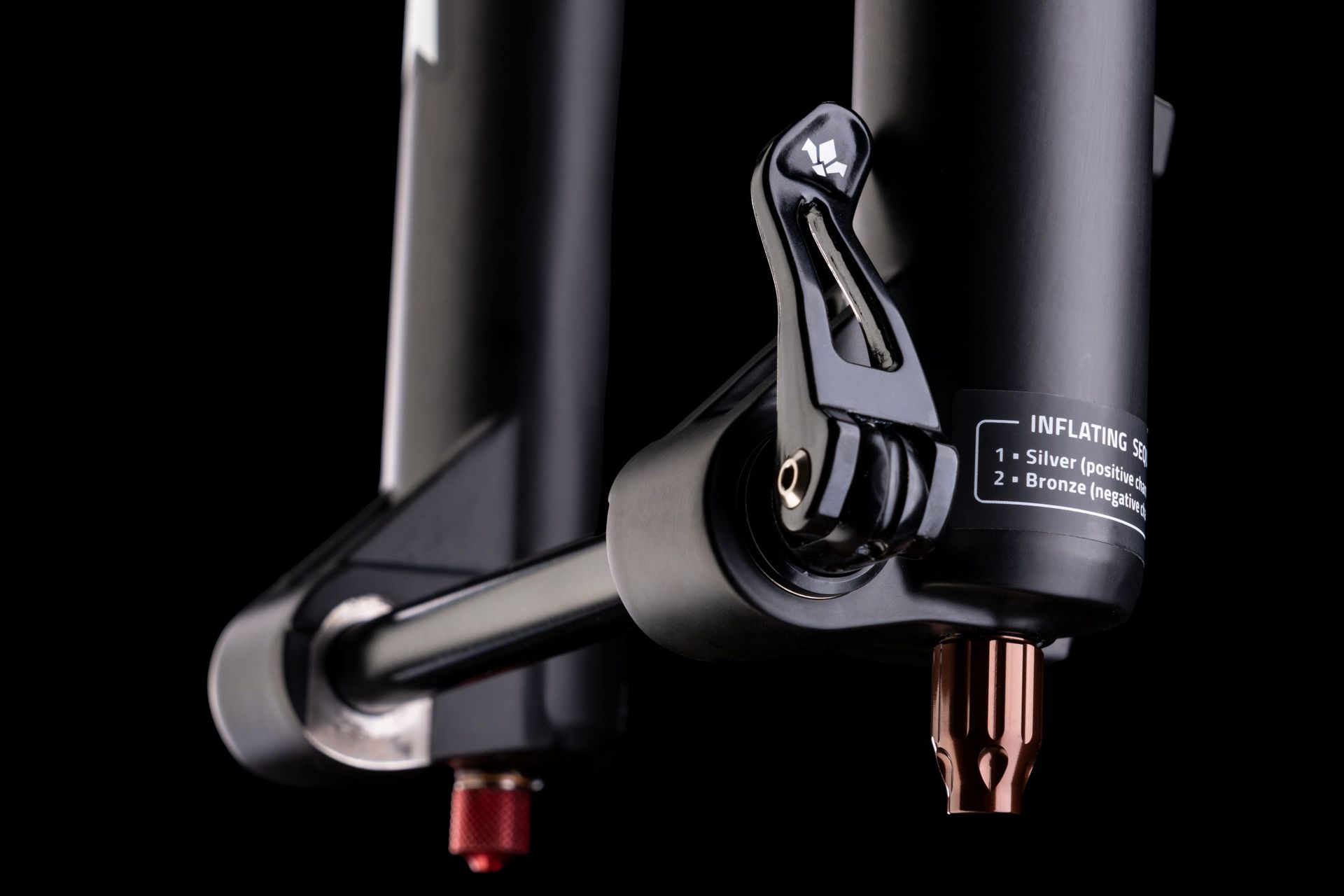

The Selva R is the most tunable version. Its 2Air system has separate positive (silver) and negative (bronze) air chambers, so the start of the stroke can be tuned independently, and a Neopos foam volume token comes fitted to refine the air spring further.
- 2Air system with separately adjustable positive and negative chambers
- Neopos included for mid-stroke support
- 140–180 mm internally adjustable travel (120–130 mm optional)

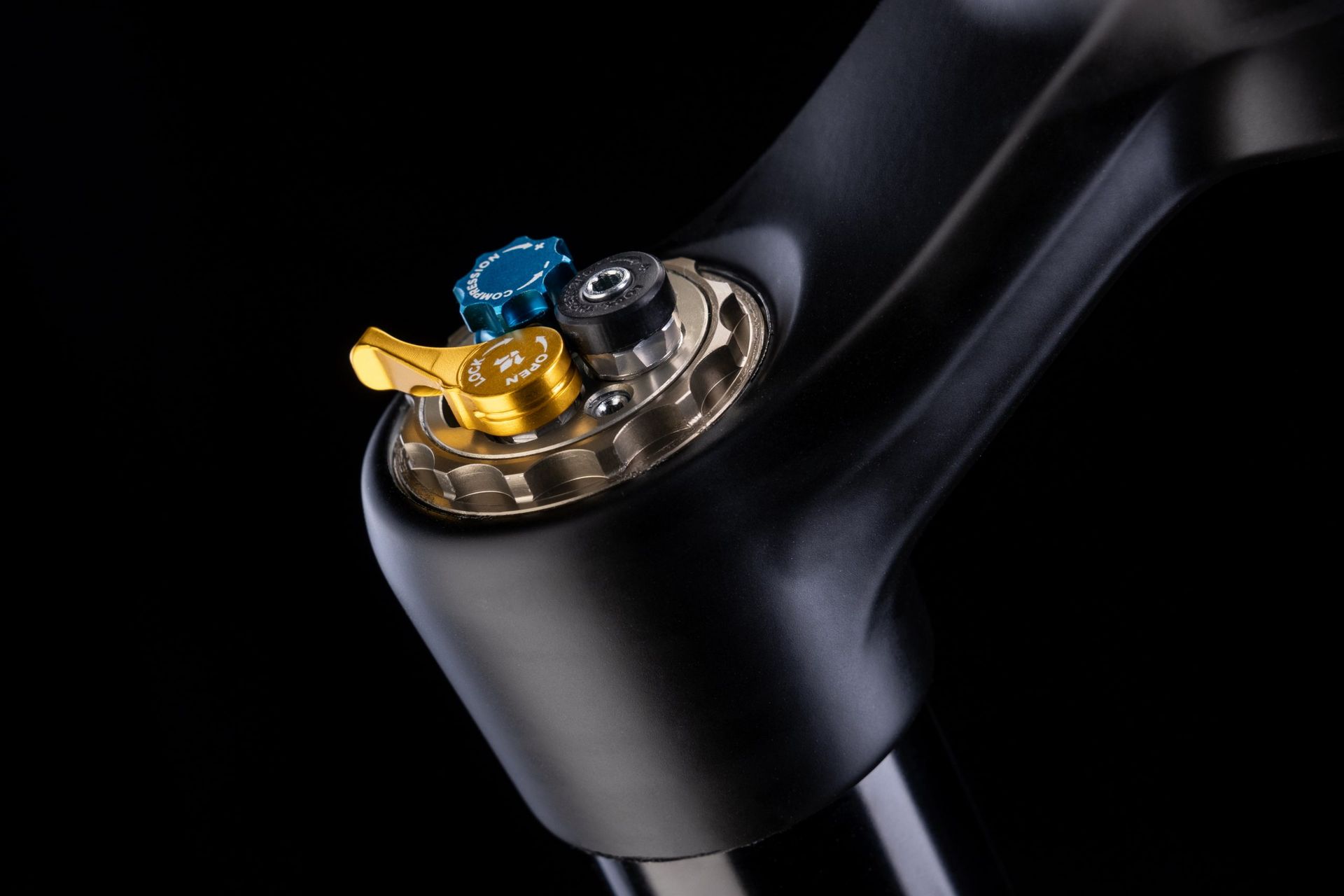

- HSC/LSC with 12 clicks plus CTS valves
- 15QR Boost standard, 20QR Boost optional

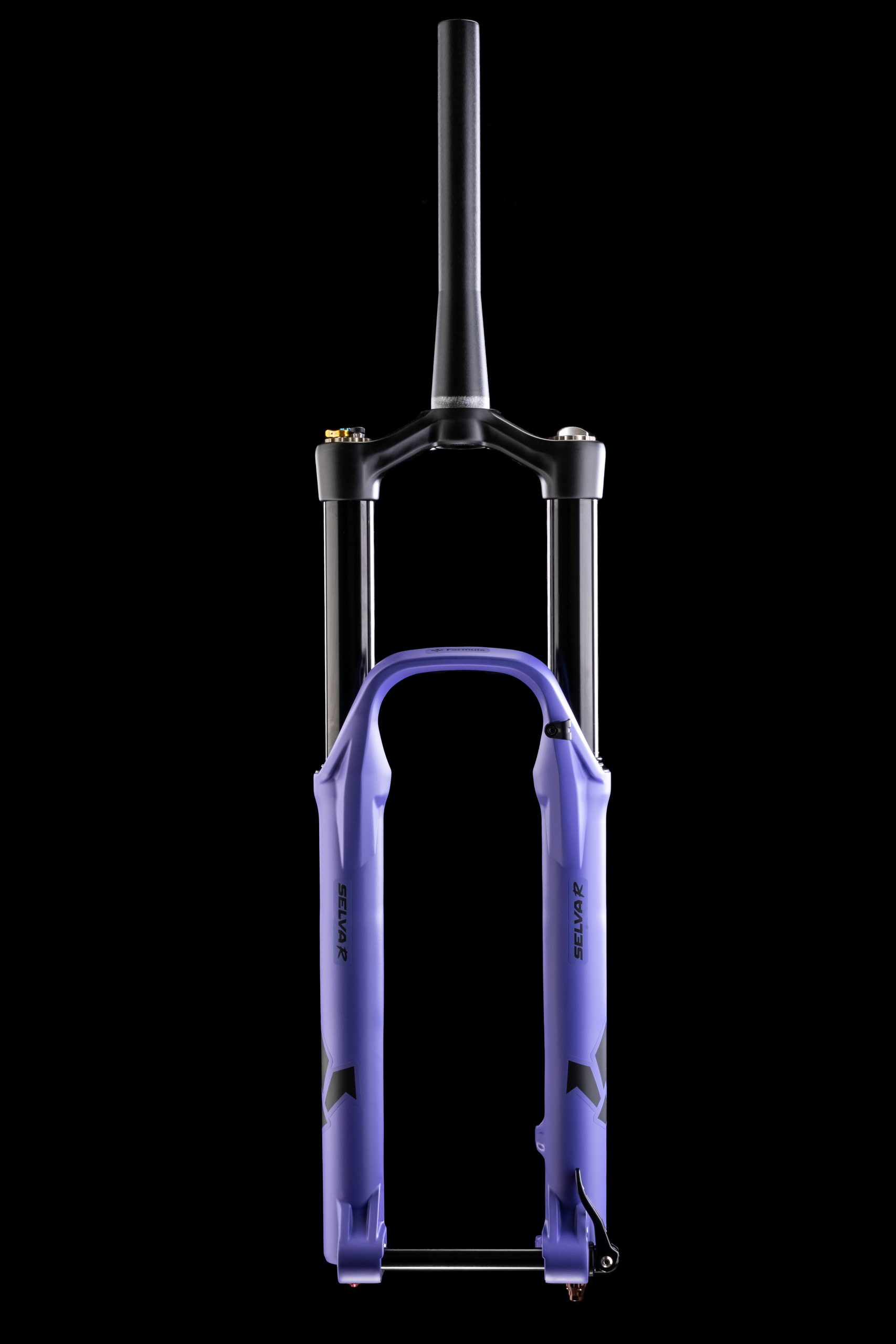

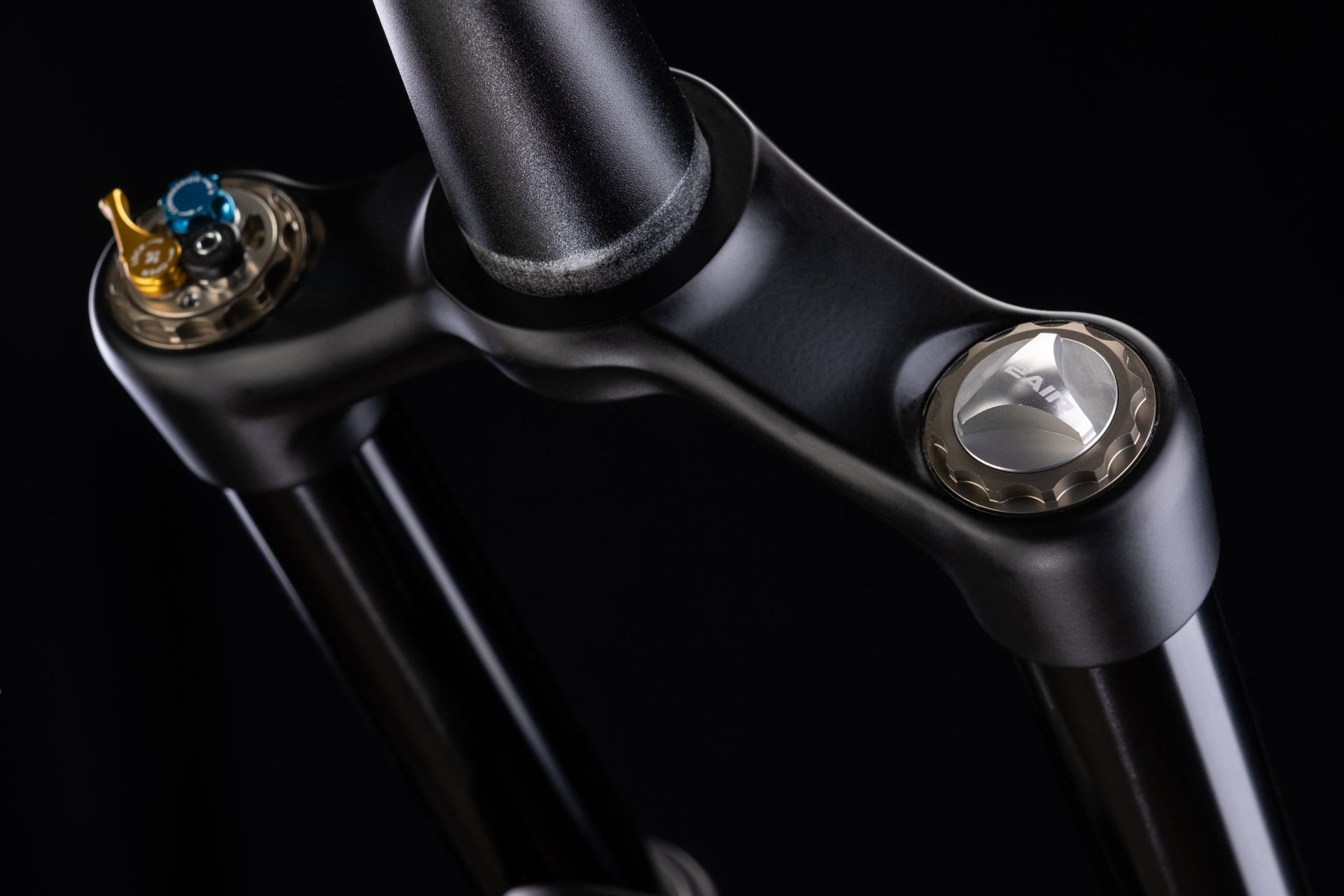

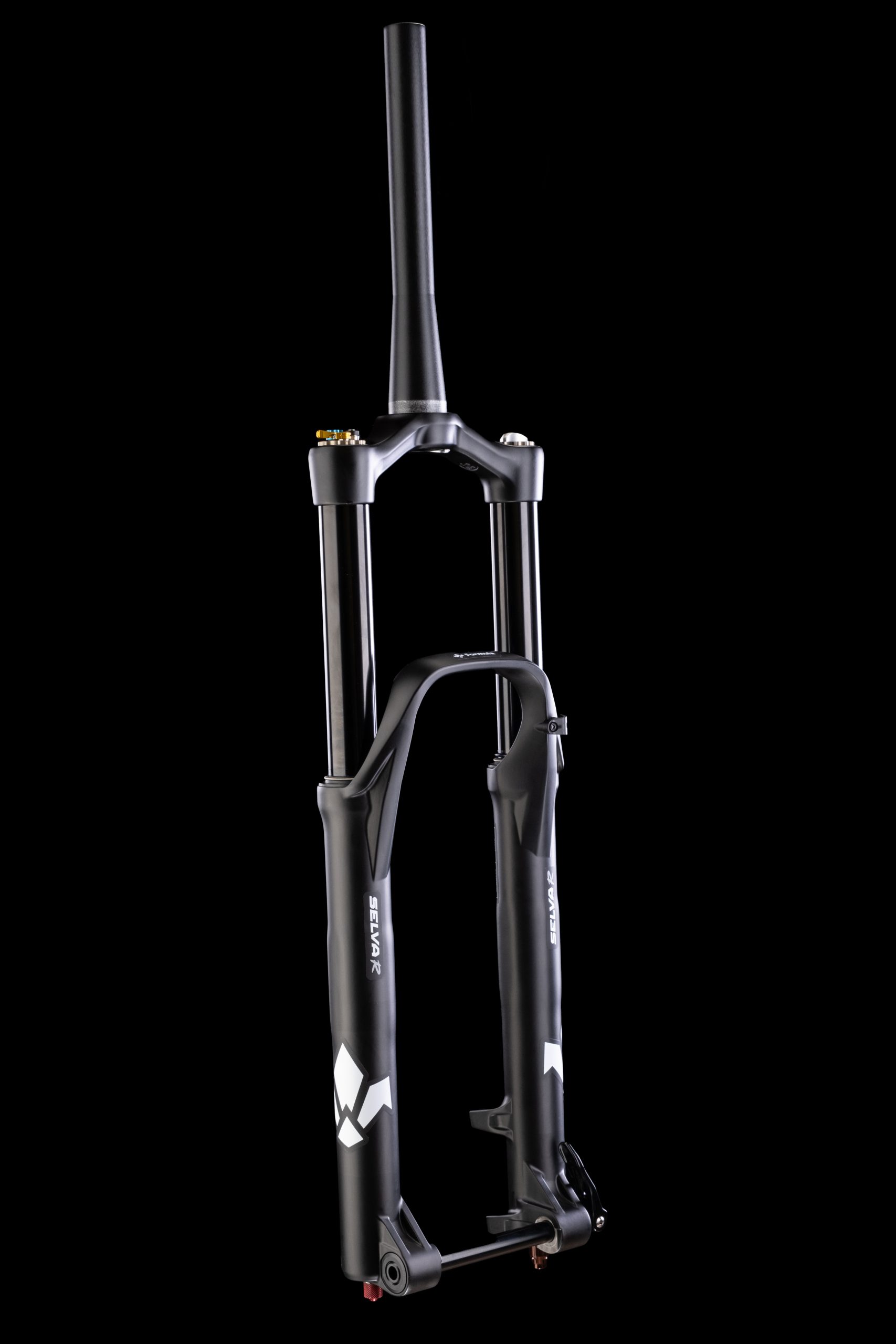

Gallery
Full specifications
Travel
- Standard
- 140-160mm (Internally Adjustable)
- Note
- (120-130mm OPTIONAL)
- Extended (27,5")
- 170-180mm (Internally Adjustable)
- Extended (29" / 27,5" Plus)
- 160-170mm (Internally Adjustable)
Geometry
- Axle to Crown (Standard) (27,5")
- 550mm +/- 5mm at 160mm of travel
- Axle to Crown (Standard) (29" / 27,5" Plus)
- 565mm +/- 5mm at 160mm of travel
- Axle to Crown (Extended) (27,5")
- 570mm +/- 5mm at 180mm of travel
- Axle to Crown (Extended) (29" / 27,5" Plus)
- 575mm +/- 5mm at 170mm of travel
- Fork Offset (Rake) (27,5")
- 37mm
- Fork Offset (Rake) (29" / 27,5" Plus)
- 43mm
- Max Rotor Size
- 220mm
Steerer Tube
- Size
- Tapered 1 1/8'' - 1.5''
- Color
- Black Anodized
Crown
- Color
- Black (Matt)
- Material
- Hollow Forged Aluminum
Lowers
- Color
- Black (matt) / Ultraviolet (matt)
- Dropout
- 15QR BOOST (Standard) / 20QR BOOST (Option)
- Axle
- Integrated Locking System (ILS): 15QR or 20QR
- Post Mount
- PM6 (160)
Stanchions
- Diameter (Ø)
- 35mm
- Material
- 7075 Aluminum
- Finish
- Hard Anodized Black
Adjustments
- Rebound
- 21 Click Adjustment
- Compression
- High and Low Speed 12 Click Adjustment
- Compression Tuning System
- Gold and Blue valves included (other valves optional)
- Air adjustments
- Silver (main), Bronze (sensitivity)
- Neopos
- Included
- Lockout
- Crown mounted
- Remote Cartridge Control
- Optional
Other Features
- Damping
- Drop-In Cartridge with Internal Floating Technology
- Spring type
- 2Air system
Weight
- Standard version (27,5")
- 1.940g
- Standard version (29" / 27,5" Plus)
- 1.980g
- Extended version (27,5")
- 1.940g
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Selva versions compared
| Selva V | Selva S | Selva R | Selva C | |
|---|---|---|---|---|
| Price | — | — | — | — |
| Travel | 160 / 170 / 180 mm | 120–180 mm (27.5"), 120–170 mm (29") | 140–180 mm (27.5"), 140–170 mm (29") | 160 / 170 mm |
| Stanchions | 35 mm | 35 mm | 35 mm | 35 mm |
| Spring | Dual-chamber V air spring | Low-progression air spring | 2Air (positive + negative chambers) | Steel coil, external preload |
| Damper | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS |
| Offset | 43 mm | — | — | — |
| Axle | 15x110 Boost | 15QR Boost (20QR optional) | 15QR Boost (20QR optional) | 15QR Boost (20QR optional) |
| Wheel size | — | 27.5" / 29" / 27.5" Plus | 27.5" / 29" / 27.5" Plus | 27.5" / 29" / 27.5" Plus |
| Weight | 2,030 g | 1,940 g | 1,940 g | 2,230 g |
| E-bike rated | — | — | — | — |
Formula Selva R: FAQ
How much does the Formula Selva R weigh?
Formula quotes 1,940 g (27.5", standard version, claimed).
Is the Formula Selva R suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Selva R?
Travel: 140–180 mm (27.5"), 140–170 mm (29"); Wheel size: 27.5" / 29" / 27.5" Plus; Stanchions: 35 mm; Spring: 2Air (positive + negative chambers); Damper: Drop-in cartridge, HSC/LSC + CTS; Axle: 15QR Boost (20QR optional).
What other versions of the Formula Selva are there?
Selva V, Selva S, Selva C.
