FormulaSelva V
No RRP published on rideformula.com
- Travel
- 160 / 170 / 180 mm
- Stanchions
- 35 mm
- Spring
- Dual-chamber V air spring
- Damper
- Drop-in cartridge, HSC/LSC + CTS
- Offset
- 43 mm
- Axle
- 15x110 Boost
- Weight
- 2,030 g170 mm, without ILS or fender, claimed
Overview
The Selva V is Formula's newest 35 mm single-crown enduro fork with the low-friction V air spring, 160–180 mm travel and a claimed 2,030 g.
The Selva is Formula's single-crown 35 mm trail and enduro fork family, built around the drop-in damping cartridge with Internal Floating Technology and the Compression Tuning System (CTS), whose interchangeable valves change the compression character of the fork.
The Selva V is the newest version, developed on the long, rocky trails near Formula's Tuscan factory. It adds the all-new V air spring with a floating piston and a concentric bypass valve that fills positive and negative chambers from one valve, plus redesigned lowers; Formula calls it the lowest-friction fork it has ever made.
- New V air spring with floating piston for lower friction
- Single valve fills positive and negative chambers
- 160/170/180 mm travel, 35 mm stanchions, 43 mm offset

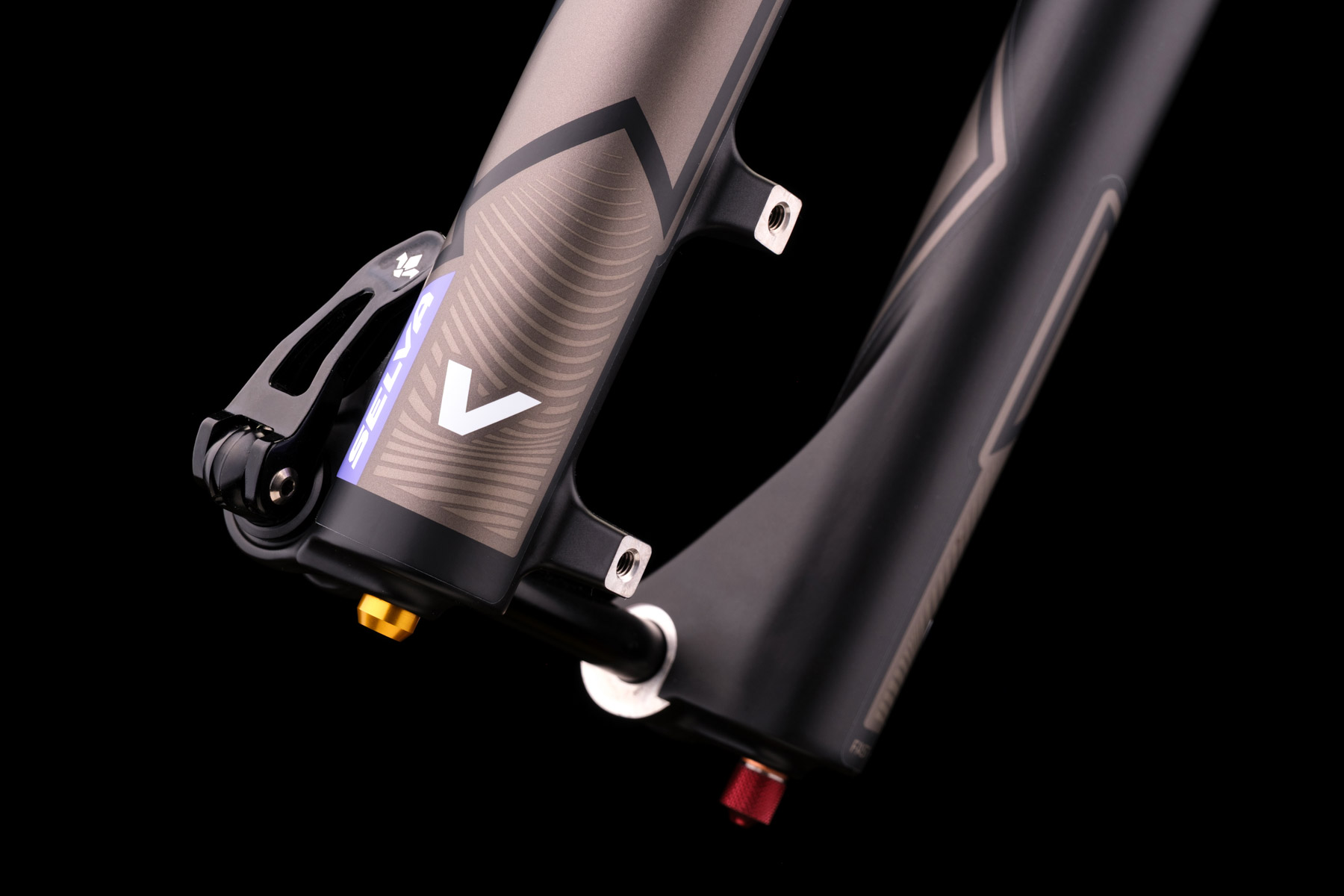

- PM7 (180) post mount, max 220 mm rotor

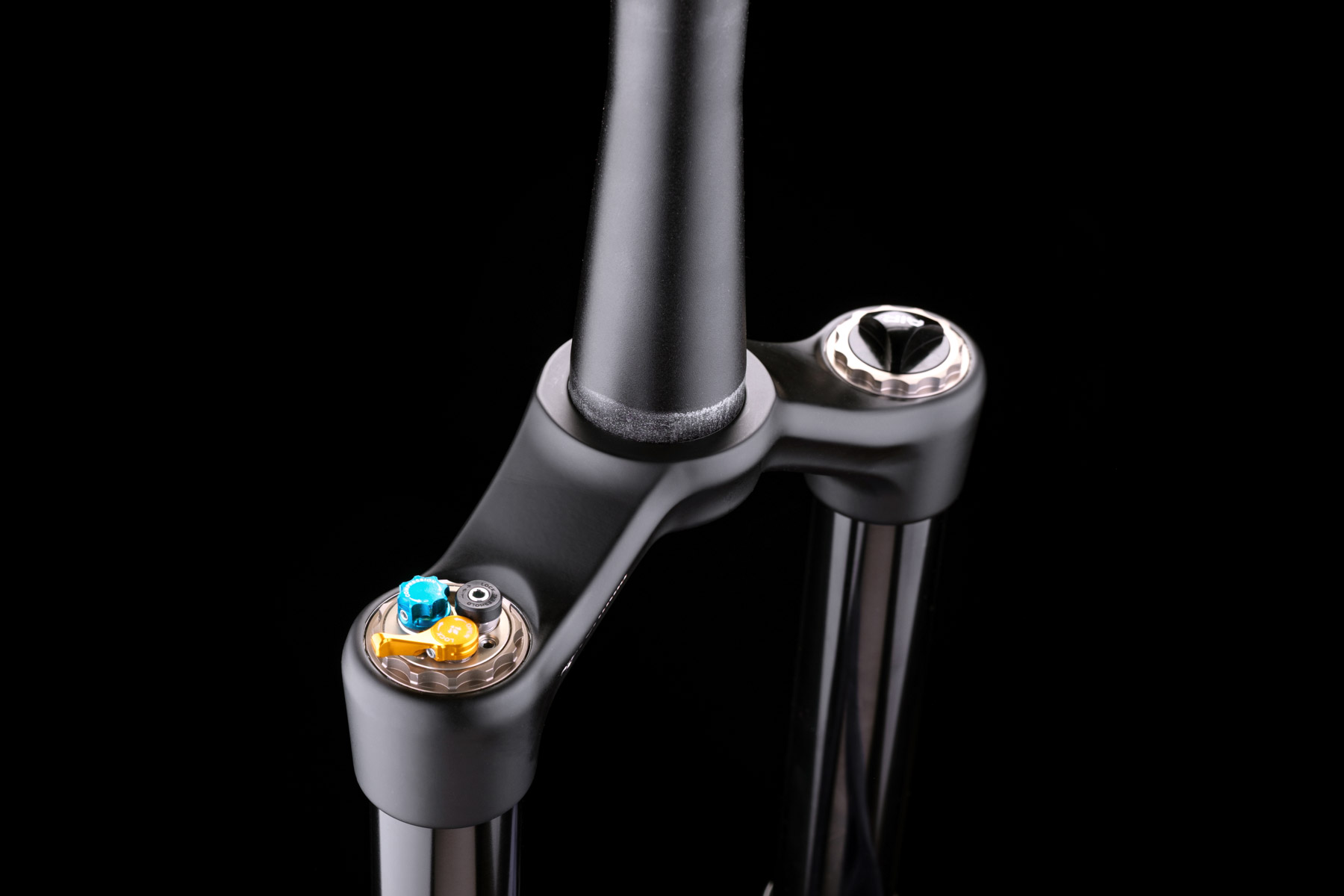

- HSC/LSC adjustment plus CTS valves (blue and gold included)
Gallery
Full specifications
Travel
- Standard
- 160/170/180mm
Geometry
- Axle to Crown (Extended)
- 583mm at 170mm of travel
- Fork Offset (Rake)
- 43mm
- Max Rotor Size
- 220mm
Steerer Tube
- Size
- Tapered 1 1/8'' - 1.5''
- Color
- Black Anodized
Crown
- Color
- Black (matt)
- Material
- Hollow Forged Aluminum
Lowers
- Color
- Black (matt) / Ultraviolet (matt)
- Dropout
- 15x110mm (BOOST)
- Axle
- Integrated Locking System (ILS): 15QR
- Post Mount
- PM7 (180)
Stanchions
- Diameter (Ø)
- 35mm
- Material
- 7075 Aluminum
- Finish
- Hard Anodized Black
Adjustments
- Rebound
- 19 Click Adjustment
- Compression
- High and Low Speed 12 click adjustment
- Compression Tuning System
- Blue and Gold valves included
- Neopos
- compatible with new dedicated supports
Other Features
- Damping
- Drop-In Cartridge with Internal Floating Technology
- Spring type
- Dual-chamber V air spring
Weight
- Standard version
- 2030g (170mm fork, no ILS or fender)
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Selva versions compared
| Selva V | Selva S | Selva R | Selva C | |
|---|---|---|---|---|
| Price | — | — | — | — |
| Travel | 160 / 170 / 180 mm | 120–180 mm (27.5"), 120–170 mm (29") | 140–180 mm (27.5"), 140–170 mm (29") | 160 / 170 mm |
| Stanchions | 35 mm | 35 mm | 35 mm | 35 mm |
| Spring | Dual-chamber V air spring | Low-progression air spring | 2Air (positive + negative chambers) | Steel coil, external preload |
| Damper | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS | Drop-in cartridge, HSC/LSC + CTS |
| Offset | 43 mm | — | — | — |
| Axle | 15x110 Boost | 15QR Boost (20QR optional) | 15QR Boost (20QR optional) | 15QR Boost (20QR optional) |
| Wheel size | — | 27.5" / 29" / 27.5" Plus | 27.5" / 29" / 27.5" Plus | 27.5" / 29" / 27.5" Plus |
| Weight | 2,030 g | 1,940 g | 1,940 g | 2,230 g |
| E-bike rated | — | — | — | — |
Formula Selva V: FAQ
How much does the Formula Selva V weigh?
Formula quotes 2,030 g (170 mm, without ILS or fender, claimed).
Is the Formula Selva V suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Selva V?
Travel: 160 / 170 / 180 mm; Stanchions: 35 mm; Spring: Dual-chamber V air spring; Damper: Drop-in cartridge, HSC/LSC + CTS; Offset: 43 mm; Axle: 15x110 Boost.
What other versions of the Formula Selva are there?
Selva S, Selva R, Selva C.
