FormulaBelva
No RRP published on rideformula.com
- Travel
- 170–180 mm
- Stanchions
- 35 mm
- Crown
- Dual crown
- Spring
- Air
- Damper
- Drop-in cartridge, HSC/LSC + CTS
- Axle
- 15QR Boost
- Weight
- 2,370 gStandard version, claimed
Overview

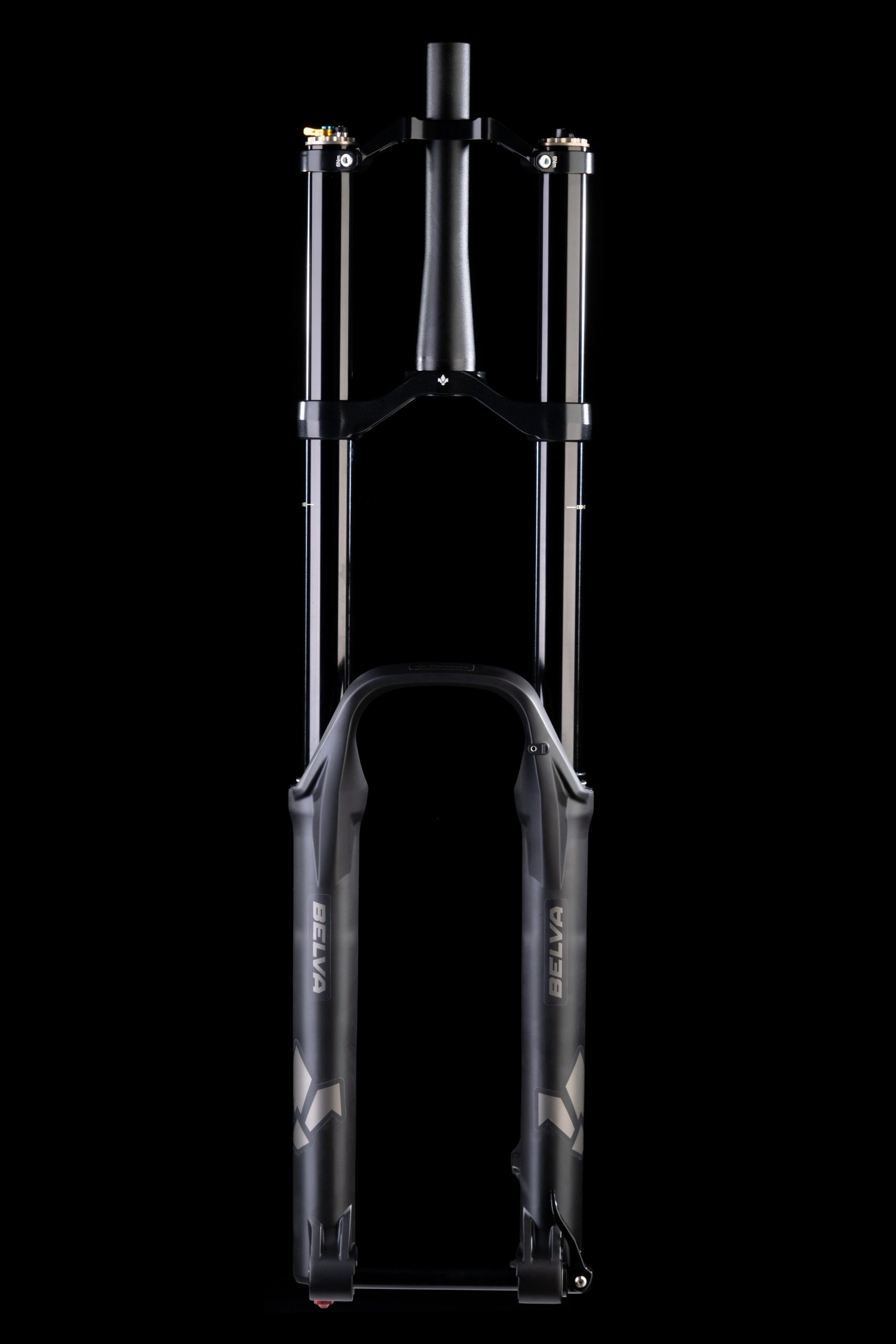

The Belva is Formula's dual-crown enduro fork with 170–180 mm travel, 35 mm stanchions and a claimed weight of 2,370 g.

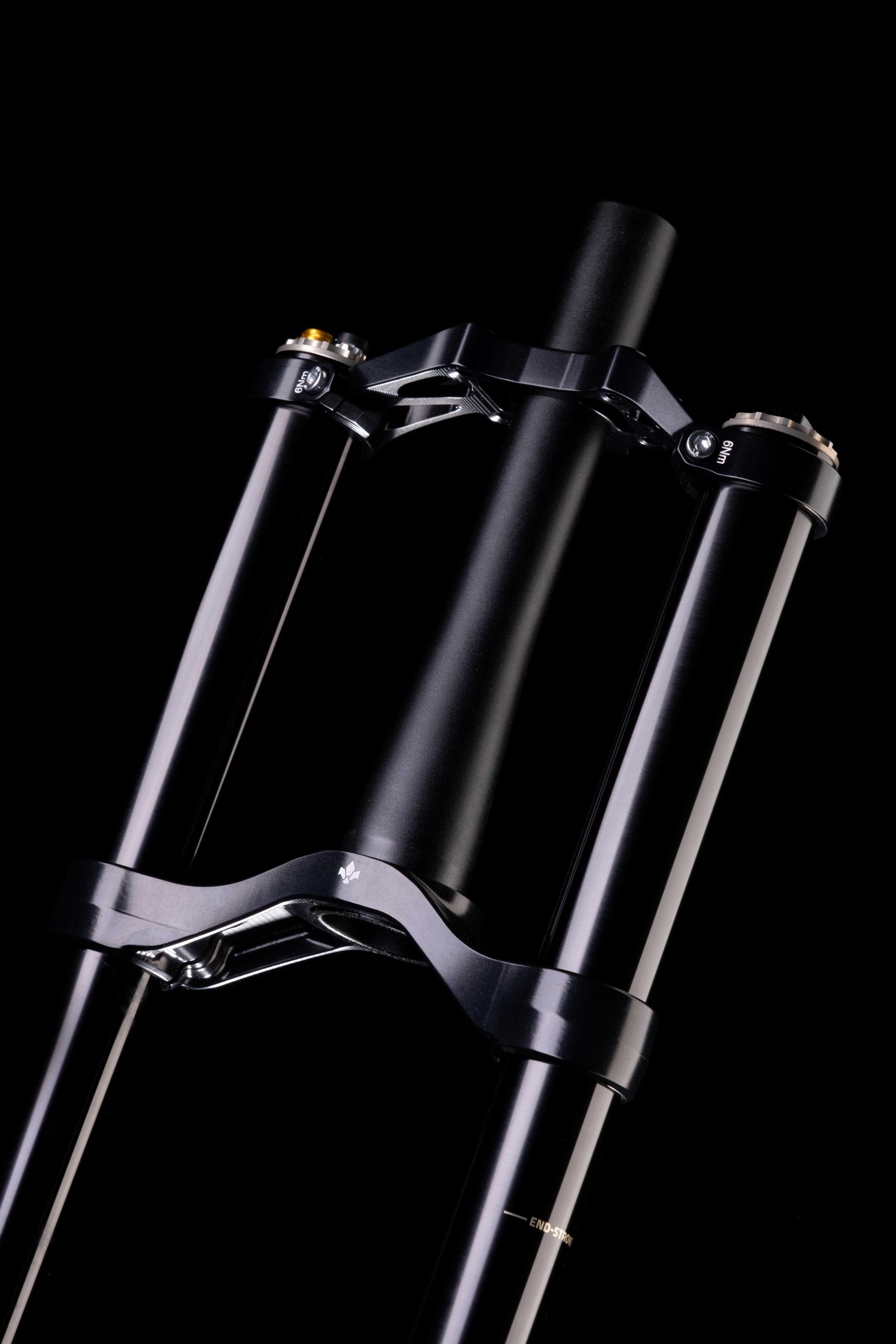

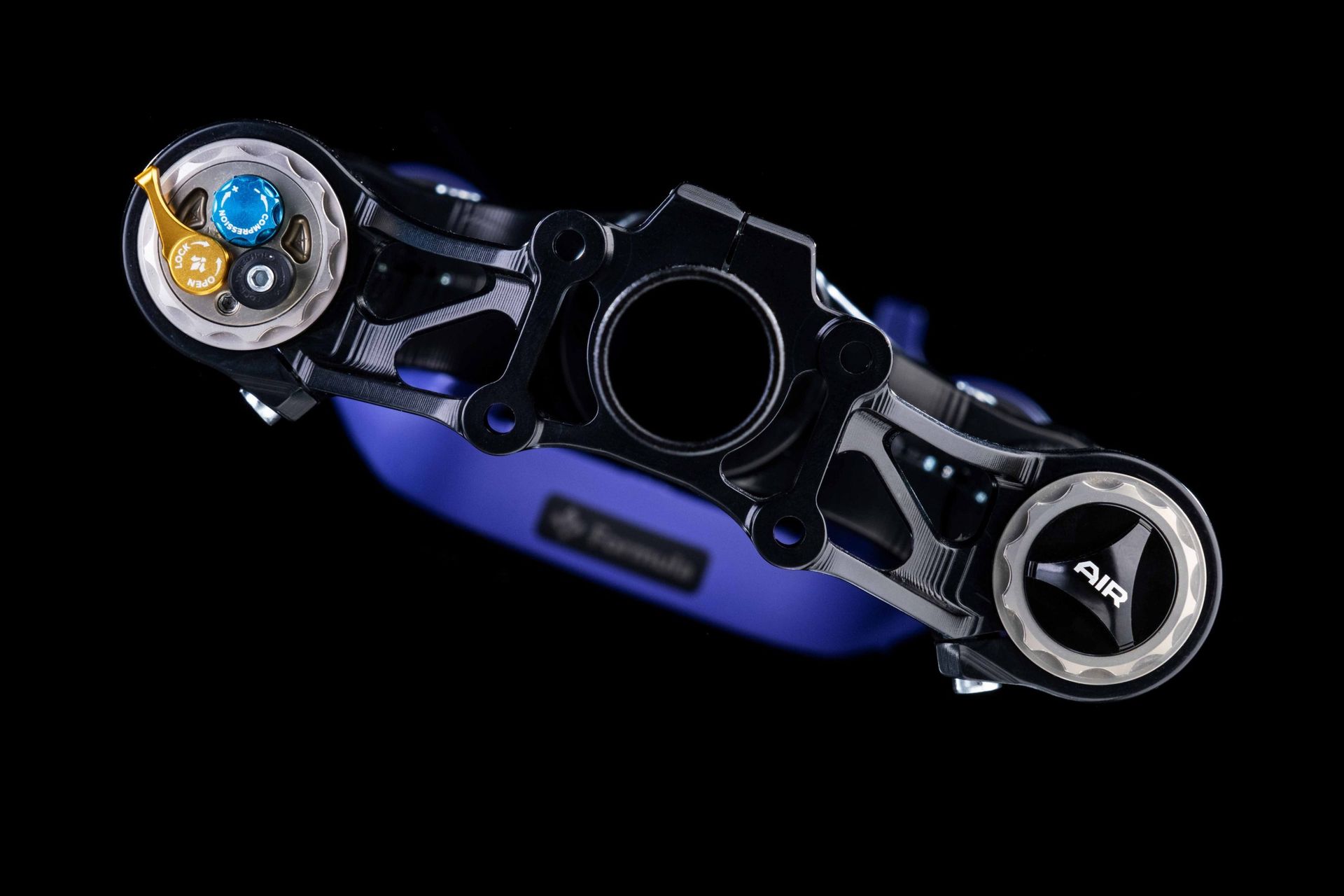

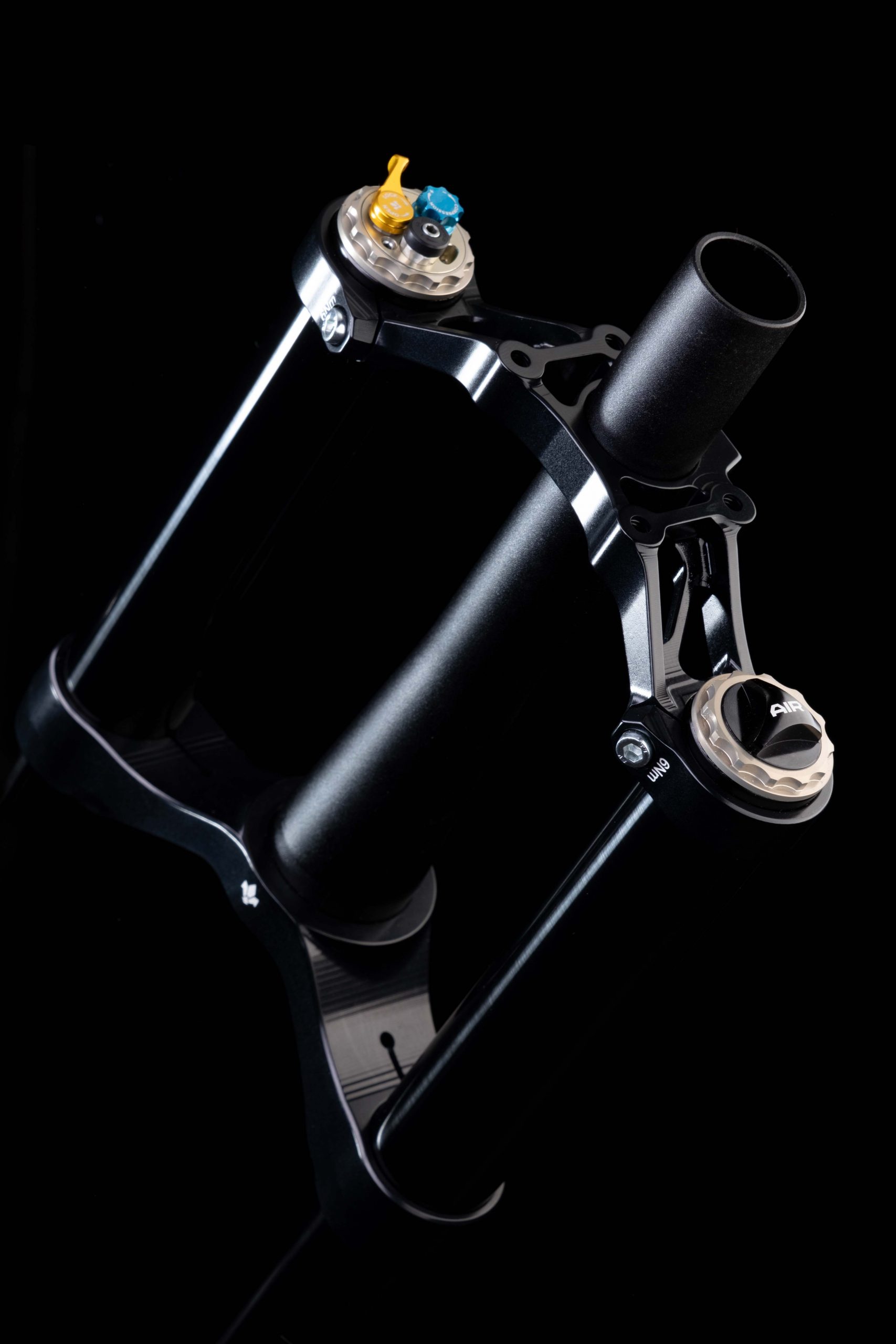

The Belva is Formula's dual-crown enduro fork. Formula's engineers chose a dual-crown design as the best way to build a stiffer long-travel fork, using custom CNC crowns, 35 mm stanchions, a 43 mm offset, a tapered steerer and a 15 mm axle rather than a rebadged downhill chassis.
It uses the proven Selva lowers so the fork can still flex where needed, and Formula says its 2,370 g weight is comparable to a 38 mm single-crown fork while being much stiffer. Damping is the familiar drop-in cartridge with CTS valves.
- Dual-crown enduro fork with 170–180 mm travel
- Claimed 2,370 g, comparable to a 38 mm single crown
- 35 mm stanchions, 43 mm offset, 15QR Boost axle
- HSC/LSC with 12 clicks plus CTS valves

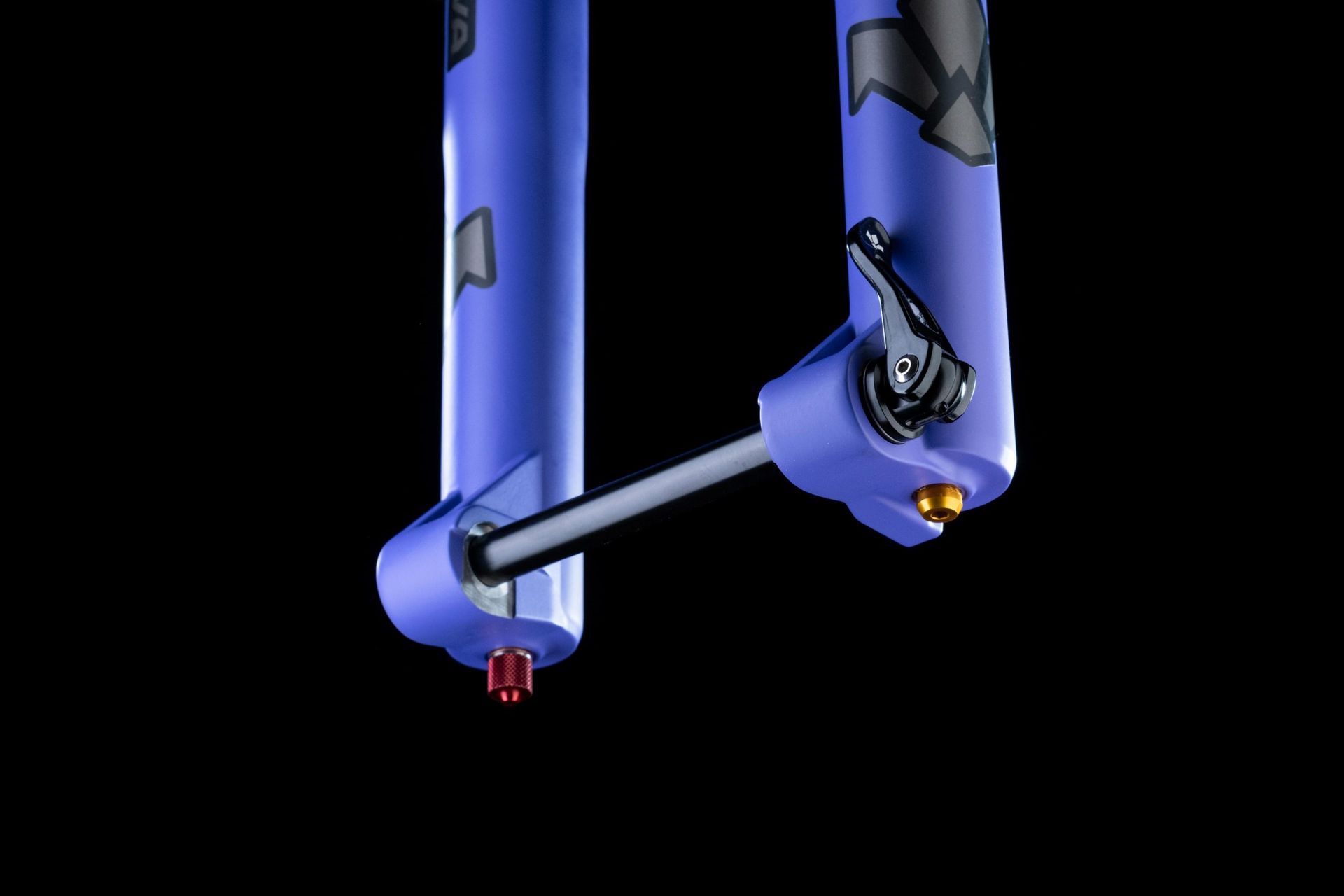

- Uses the Selva lowers for controlled flex
Gallery
Full specifications
Travel
- Standard
- 170-180mm
Geometry
- Axle to Crown
- 575mm-585mm at 170mm of travel
- Axle to Crown
- 585mm-595mm at 180mm of travel
- Fork Offset (Rake)
- 43mm
- Max Rotor Size
- 220mm
Steerer Tube
- Size
- Tapered 1.5”
- Color
- Black Anodized
Crown
- Color
- Black
- Material
- Hollow Forged Aluminum
Lowers
- Color
- Black (matt) / Ultraviolet (matt)
- Dropout
- 15QR BOOST
- Axle
- Integrated Locking System (ILS): 15QR
- Post Mount
- PM6 (160)
Stanchions
- Diameter (Ø)
- 35mm
- Material
- 7075 Aluminum
- Finish
- Hard Anodized Black
Adjustments
- Rebound
- 18 Click Adjustment
- Compression
- High and Low Speed 12 Click Adjustment
- Compression Tuning System
- Gold and Blue valves included (other valves optional)
- Neopos
- Optional
- Lockout
- Crown mounted
- Remote Cartridge Control
- Optional
Other Features
- Damping
- Drop-In Cartridge with Internal Floating Technology
- Spring type
- Air spring
- Negative spring
- Steel (triple coil technology)
Weight
- Standard version
- 2.370g
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Belva: FAQ
How much does the Formula Belva weigh?
Formula quotes 2,370 g (Standard version, claimed).
Is the Formula Belva suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Belva?
Travel: 170–180 mm; Stanchions: 35 mm; Crown: Dual crown; Spring: Air; Damper: Drop-in cartridge, HSC/LSC + CTS; Axle: 15QR Boost.
