FormulaNero R
No RRP published on rideformula.com
- Travel
- 200 mm
- Wheel size
- 27.5" / 29"
- Stanchions
- 35 mm
- Spring
- 3Air system
- Damper
- Drop-in cartridge, HSC/LSC/rebound
- Axle
- 20QR Boost
- Weight
- 2,620 gStandard, claimed
Overview

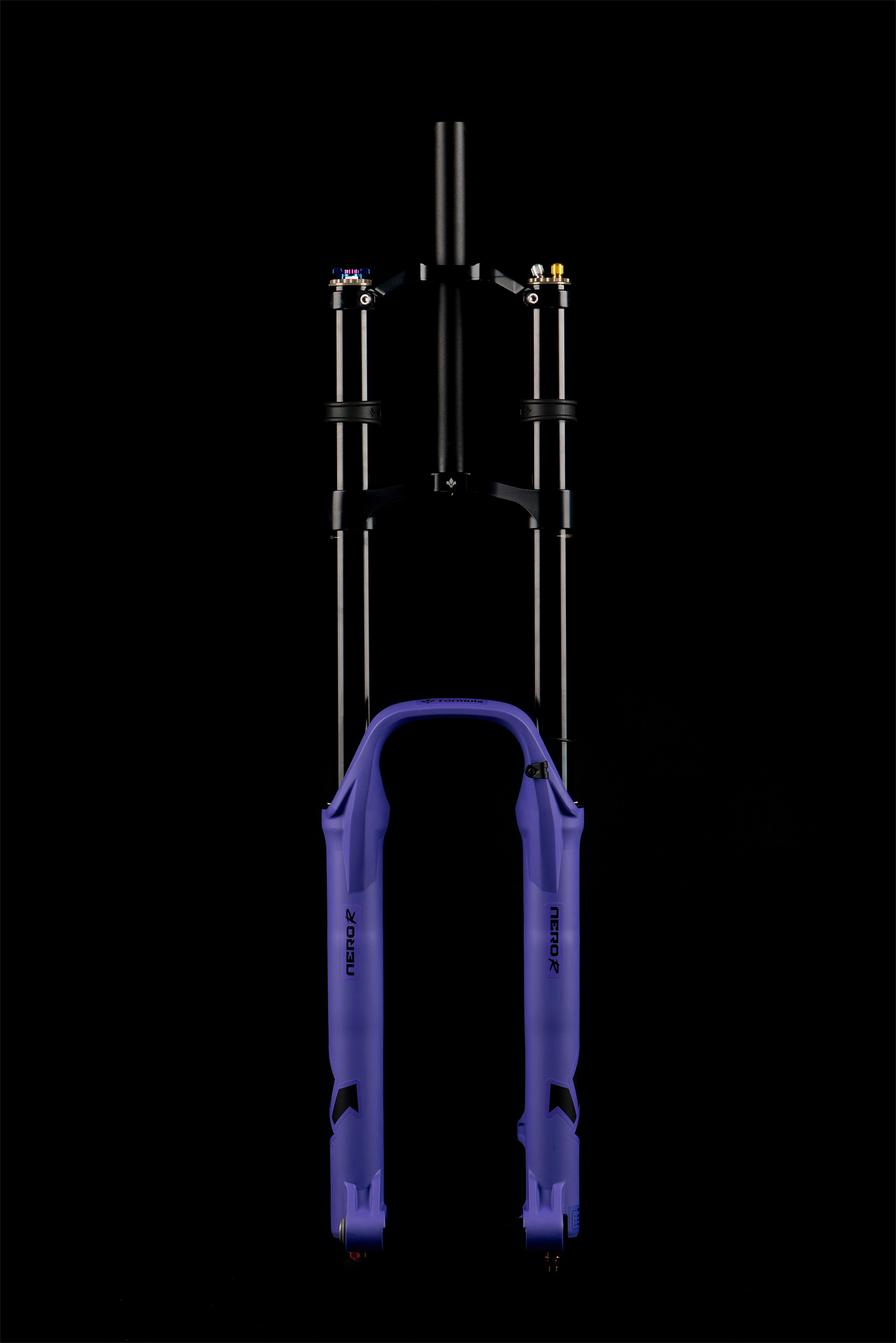

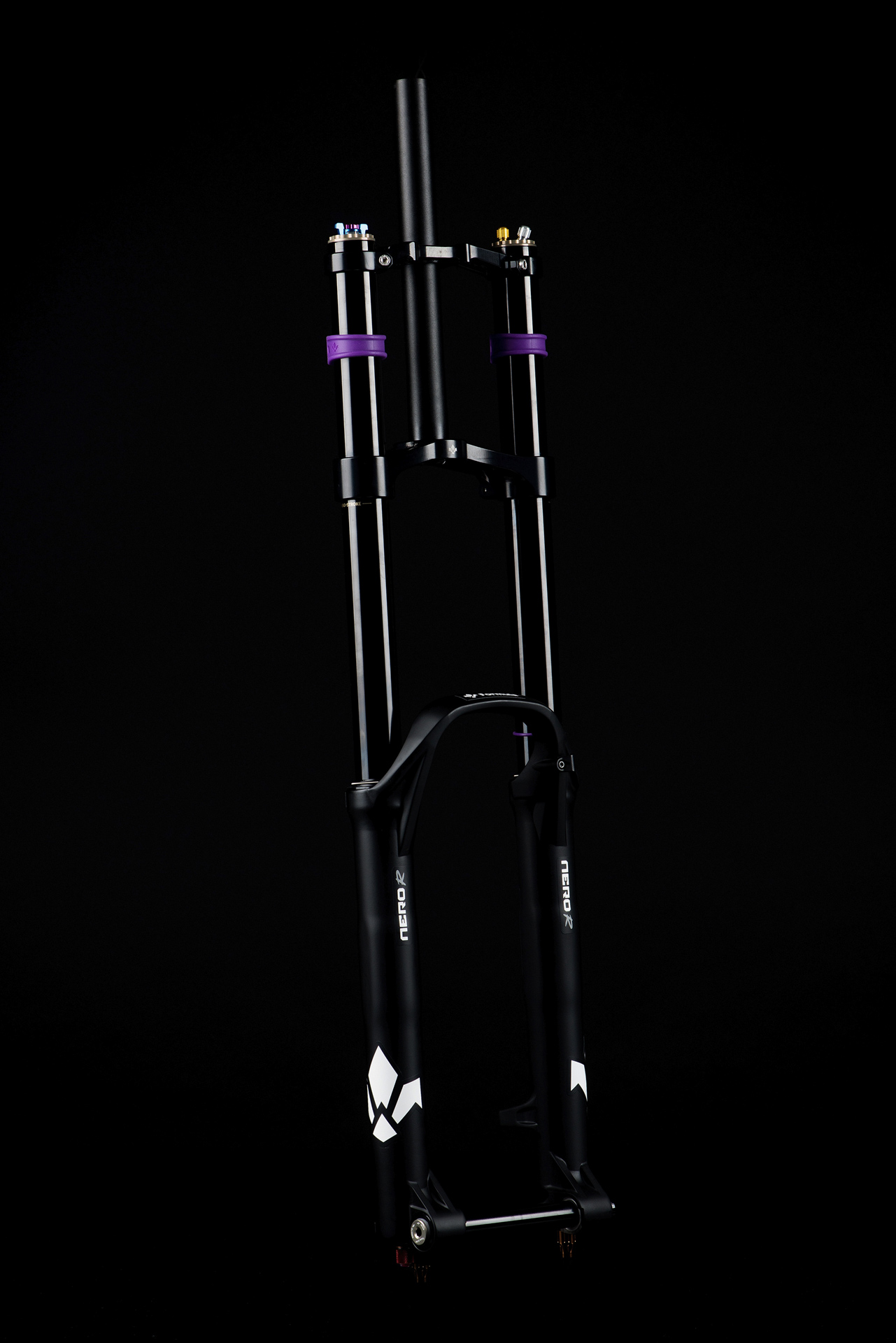

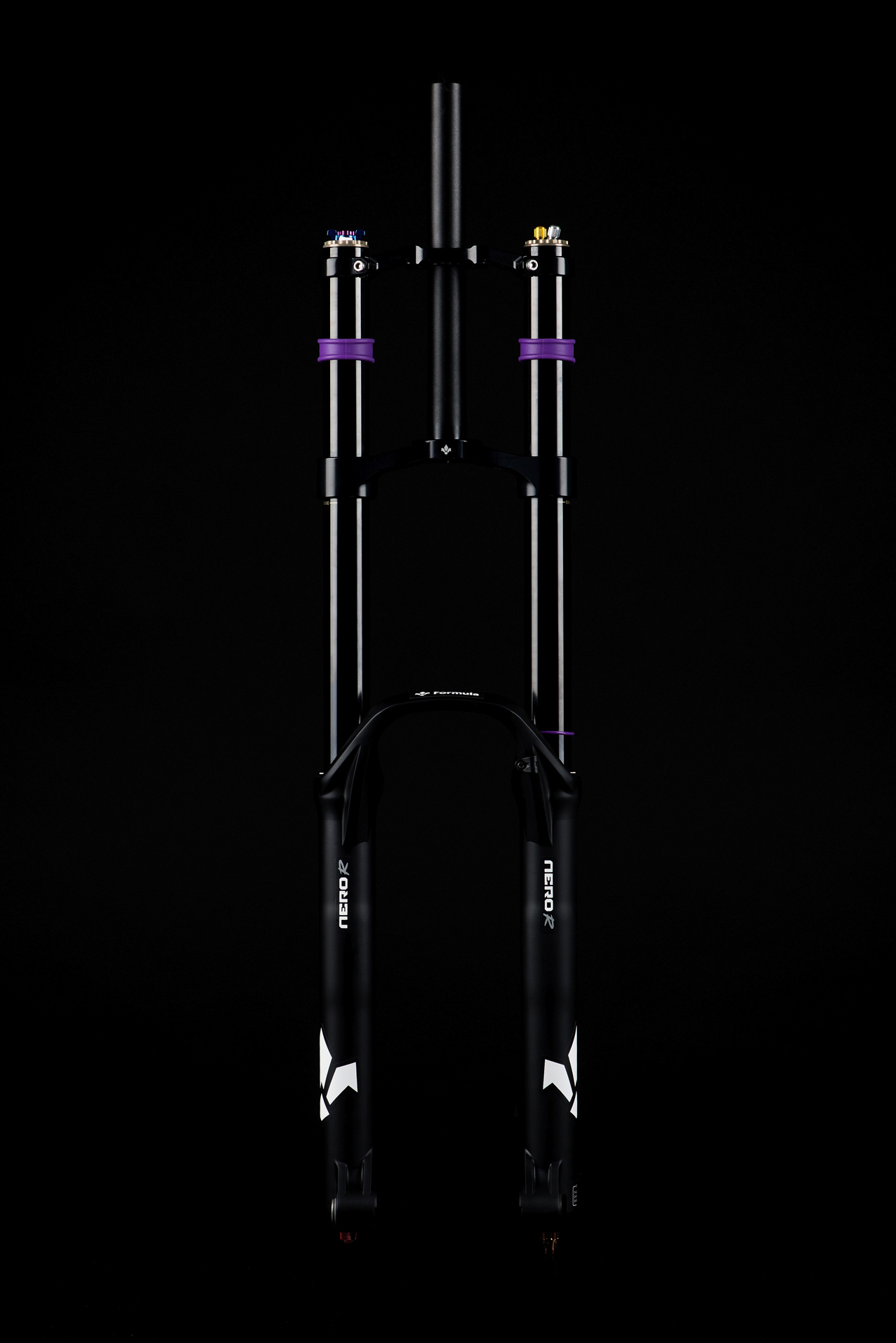

The Nero R is Formula's 200 mm air-sprung dual-crown downhill fork with the 3Air system and a claimed 2,620 g.

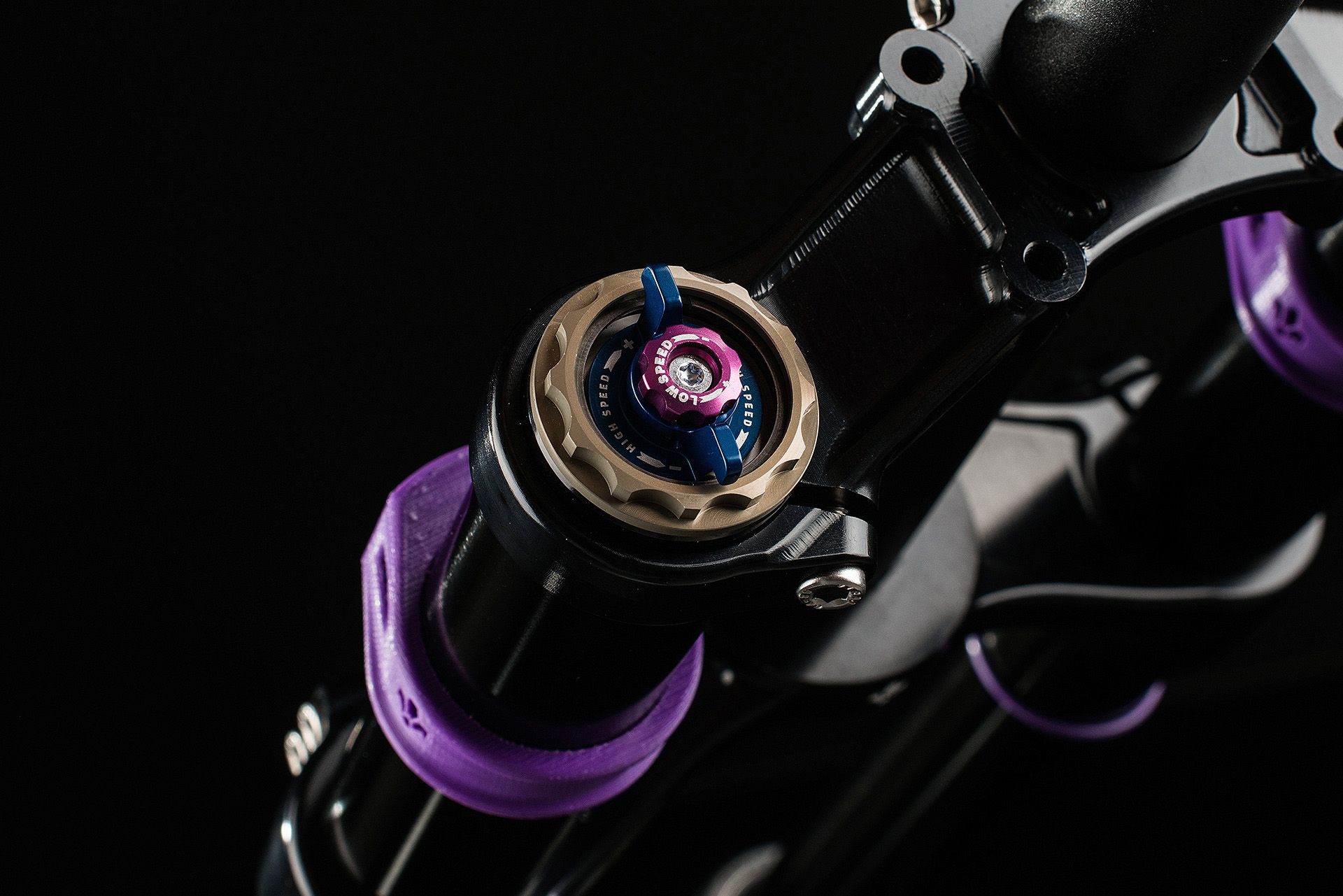

Nero is Formula's dual-crown downhill fork line with 200 mm travel, 35 mm stanchions, 20 mm Boost dropouts and a sealed drop-in damper with high- and low-speed compression and rebound adjustment.

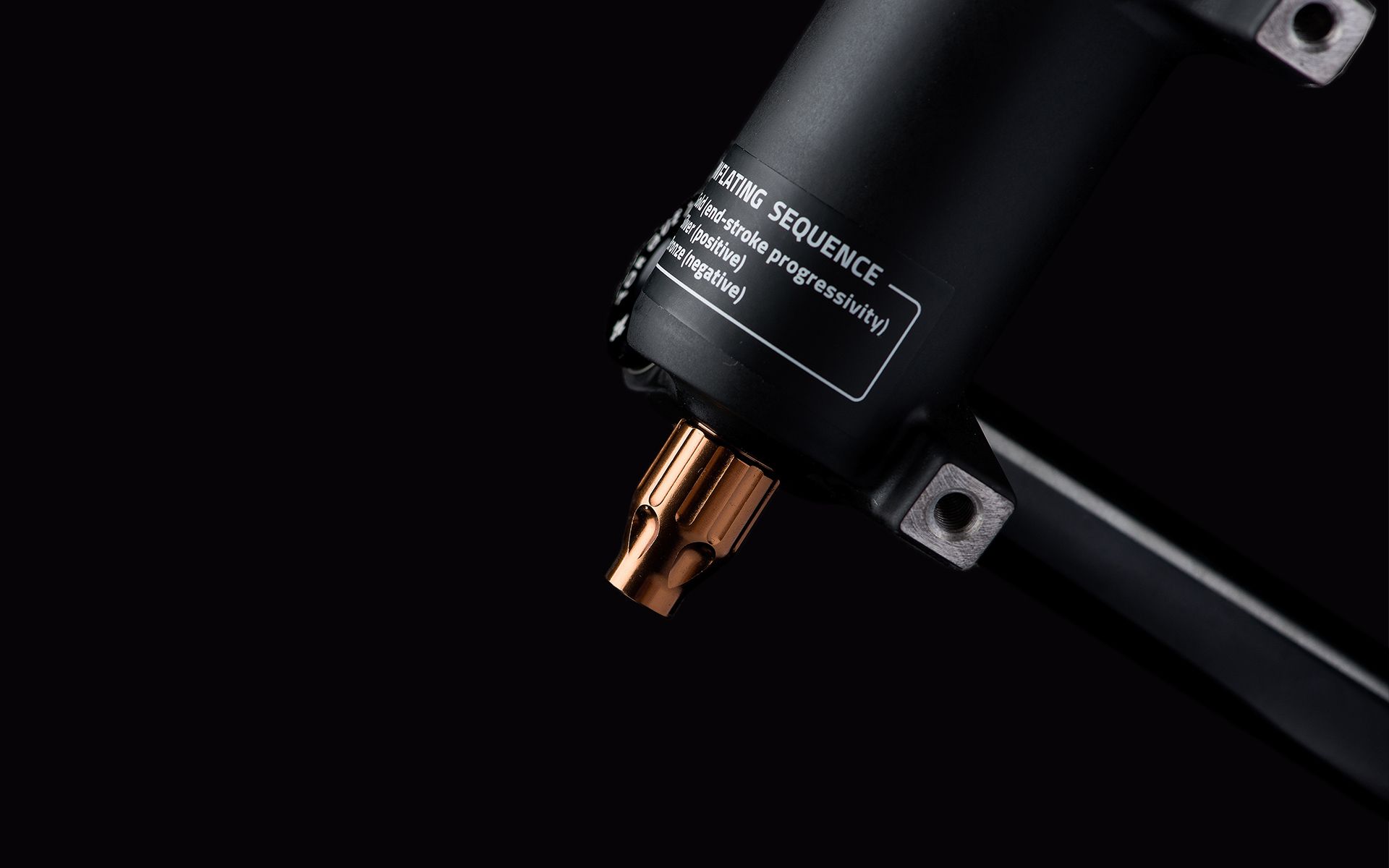

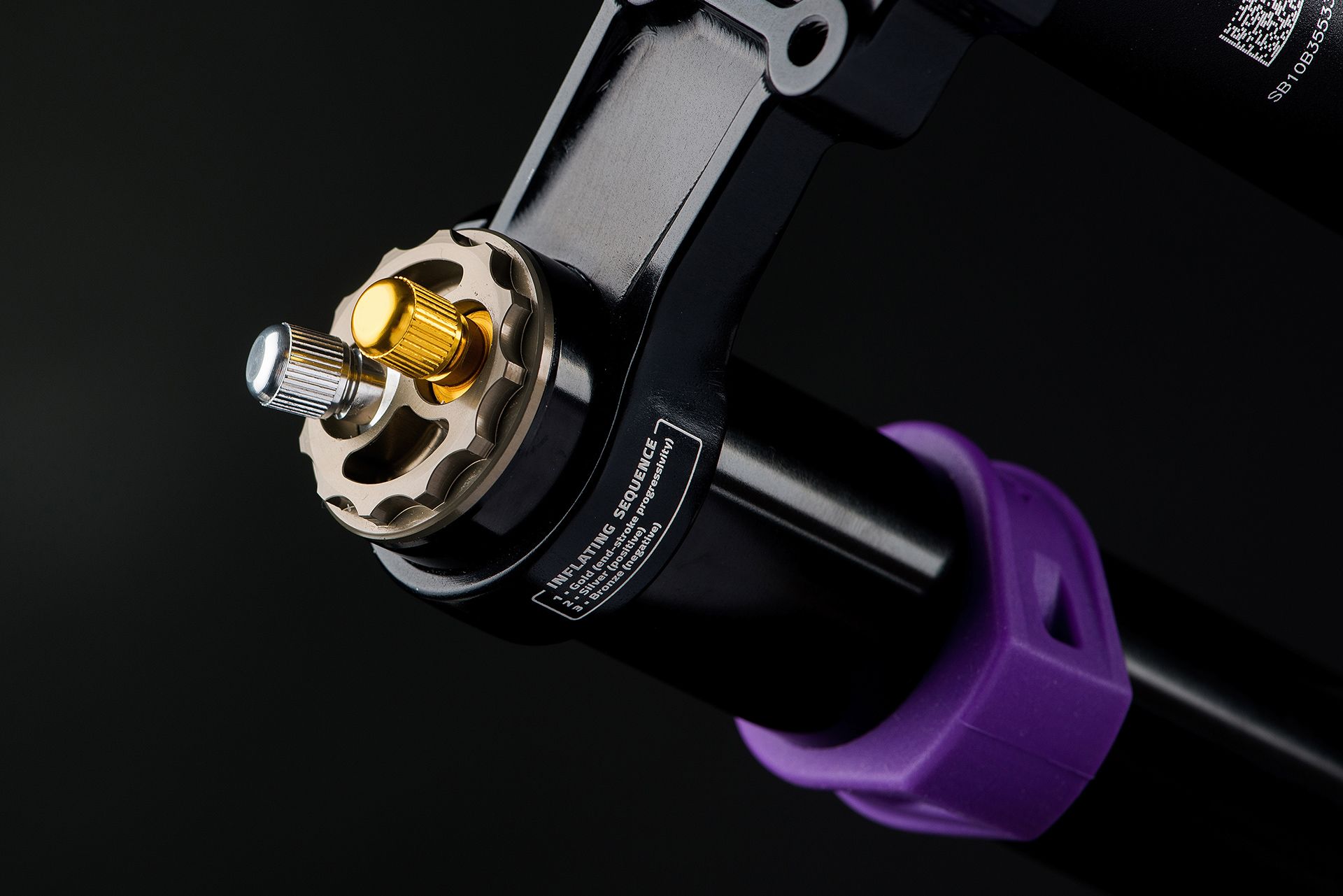

The Nero R is the air-sprung version. Its 3Air system uses three air chambers working together (positive, negative and end-stroke progressivity), so the spring curve can be adjusted on the bike without tools or volume spacers; Neopos are included.
- 3Air system: main, sensitivity and progressivity chambers
- 200 mm travel (180/190 mm optional on 29")
- HSC 20 clicks, LSC 12 clicks, rebound 21 clicks
- Offset 50 or 56 mm, 20QR Boost
- Neopos included
Gallery
Full specifications
Travel
- Standard
- 200mm
- Optional (29")
- 180mm and 190mm
Geometry
- Axle to crown (27,5")
- 580mm +/- 5mm at 200mm of travel
- Axle to crown (29")
- 593mm +/- 5mm at 200mm of travel
- Fork Offset (Rake)
- 50mm or 56mm
- Max Rotor Size (27,5")
- 220mm
- Max Rotor Size (29")
- 203mm
Steerer Tube
- Size
- 1 1/8” Straight or Tapered 1.5” (optional)
- Color
- Black Anodized
Crown
- Color
- Matte Black
- Material
- Hollow Forged Aluminum
Lowers
- Dropout
- 20QR BOOST
- Axle
- FIRM Locking System
- Color
- Black (matt) or Ultraviolet (matt)
- Post Mount
- PM6 (160)
Stanchions
- Diameter (Ø)
- 35mm
- Material
- 7075 aluminum
- Finish
- Hard anodized black
Adjustments
- Rebound
- 21 Click adjustment
- Compression LS
- 12 Click adjustment
- Compression HS
- 20 Click adjustment
- Air adjustments
- Progressivity (Gold), Main (Silver), Sensitivity (Bronze)
- Neopos
- Included
Other Features
- Damping
- Drop-In Cartridge with Internal Floating Technology
- Spring type
- 3Air system
Weight
- Standard
- 2.620g
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Nero versions compared
| Nero R | Nero C | |
|---|---|---|
| Price | — | — |
| Travel | 200 mm | 200 mm |
| Wheel size | 27.5" / 29" | 27.5" / 29" |
| Stanchions | 35 mm | 35 mm |
| Spring | 3Air system | Coil, tool-free preload |
| Damper | Drop-in cartridge, HSC/LSC/rebound | Drop-in cartridge, HSC/LSC/rebound |
| Axle | 20QR Boost | 20QR Boost |
| Weight | 2,620 g | 2,850 g |
| E-bike rated | — | — |
Formula Nero R: FAQ
How much does the Formula Nero R weigh?
Formula quotes 2,620 g (Standard, claimed).
Is the Formula Nero R suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Nero R?
Travel: 200 mm; Wheel size: 27.5" / 29"; Stanchions: 35 mm; Spring: 3Air system; Damper: Drop-in cartridge, HSC/LSC/rebound; Axle: 20QR Boost.
What other versions of the Formula Nero are there?
Nero C.
