MegamoFlame AL 03
- Motor
- Bosch Performance Line CX100 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, removable; PowerMore 250 Wh range extender optional
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Megamo Flame AL 03 (€6,999) is the top build of the Flame AL: Bosch Performance Line CX (100 Nm) with 800 Wh, FOX 38 Float Factory fork, FOX Float X Factory shock, Shimano XT M8100 and Shimano XT brakes.
The Flame AL is the aluminium version of Megamo's Flame e-enduro bike: a Horst-link frame with 160 mm of rear travel, 150-170 mm forks depending on build, a horizontally mounted shock, 29-inch wheels (mullet compatible) and ASTM Category 5 rating.
All builds use the Bosch Performance Line CX with an 800 Wh PowerTube battery, expandable with a 250 Wh PowerMore range extender. The motor mount is squeeze-cast and the down tube extruded; Megamo states a 150 kg maximum load. Sizes are S, M and L.
- Aluminium Horst-link frame, 160 mm
- Bosch Performance Line CX
- 800 Wh PowerTube, PowerMore-ready
- 29-inch, mullet compatible

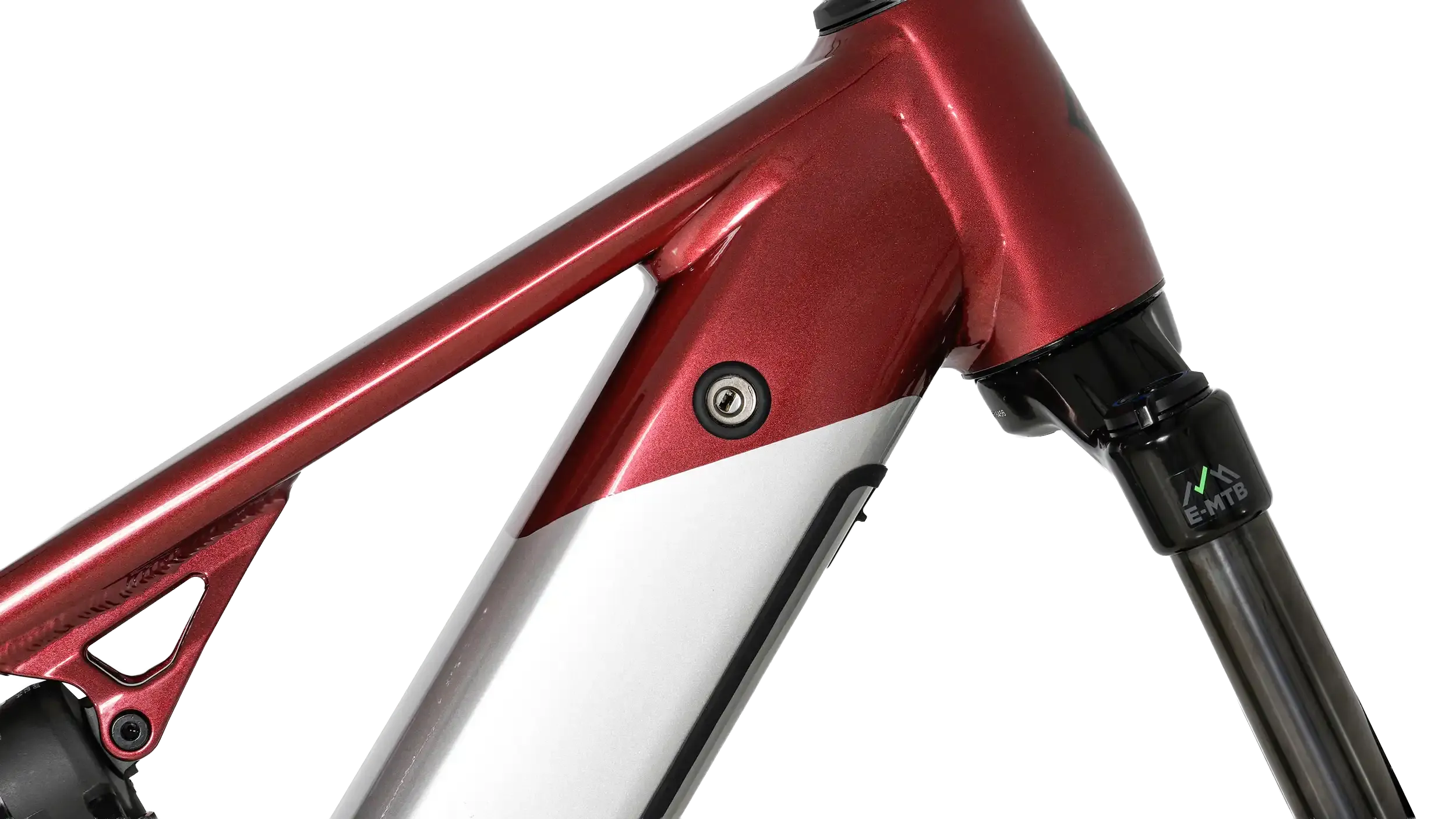

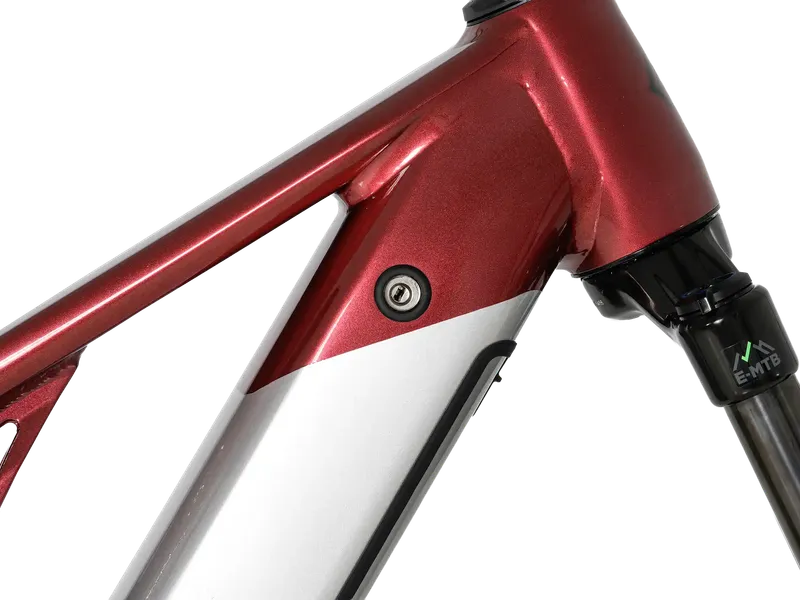

Gallery
Photos: Megamo
Full specifications
Frame & suspension
- Frame
- Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm
- Fork
- FOX 38 Float Factory E-Bike Optimized, 170 mm Travel, Grip X2, High Speed Compression, Low Speed Compression, High Speed Rebound, Low Speed Rebound, Kabolt Axle 110, 1.5 Tapered, 44mm offset
- Rear shock
- FOX Float X Factory, 230x60 mm, Evol LV + 2 Position Adjust
- Headset
- Acros AZX-589 ZS56 blocklock 150º
E-system
- Motor
- Bosch Performance Line CX, 5gen BDU384Y, Smart System / 120Nm 750W
- Battery
- Bosch PowerTube 800
- Display
- Bosch Purion 200
Drivetrain
- Rear derailleur
- Shimano XT M8100, Shadow Plus 12-Speed
- Shifters
- Shimano XT 8100, 12-Speed
- Crankset
- FSA Bosch Chainring 34T CL55 12-Speed, Crankset 320 165mm
- Cassette
- Shimano XT M8100, 10-51T
Brakes
- Brakes
- Shimano XT Hydraulic Disc Brakes with 4 pistons 203/203 (from key features)
Wheels & tyres
- Tyres
- Maxxis 29 x 2.5 Assegai front, 29 x 2.4 Minion DHR II rear
- Hubs
- DT Swiss 370 Ratchet LN 18, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST
- Wheelset
- DT Swiss HXC 1900 SPLINE, 30mm Tubeless ready Aluminium rim
Cockpit
- Stem
- Satori Ursa, 35 x 35 mm
- Seatpost
- Fox Transfer Kashima 31,6 mm telescopic seat post, remote adjustment S size 120 mm Drop / M size 150 mm Drop / L size 180 mm Drop
- Saddle
- Selle San Marco GrouND Short Open-fit Titanium
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Flame AL geometry
| Size | S | M | L |
|---|---|---|---|
| ATop tube | 590 mm | 610 mm | 645 mm |
| BChainstay | 460 mm | 460 mm | 460 mm |
| CSeat tube | 410 mm | 435 mm | 470 mm |
| DHead tube | 110 mm | 120 mm | 140 mm |
| EReach | 435 mm | 453 mm | 484 mm |
| FStack | 620 mm | 629 mm | 647 mm |
| GBB drop | 28 mm | 28 mm | 28 mm |
| HHead angle | 65° | 65° | 65° |
| ISeat angle | 76° | 76° | 76° |
| JWheelbase | 1219 mm | 1241 mm | 1280 mm |
| KStandover height | 783 mm | 783 mm | 783 mm |
Source: Megamo.
Flame AL: builds compared
Flame AL range →| Flame AL 10 | Flame AL 08 | Flame AL 05 | Flame AL 03 | |
|---|---|---|---|---|
| Price | €4,999 | €5,499 | €6,099 | €6,999 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | ROCK SHOX 35 Psylo Silver RC, 150mm Travel | FOX 36 Float AWL HD Sport, 160 mm Travel | FOX 36 Float Performance E-Bike Optimized, 160mm Travel | FOX 38 Float Factory E-Bike Optimized, 170 mm Travel |
| Shock | ROCK SHOX Deluxe Select | FOX Float Rhythm | FOX Float Performance | FOX Float X Factory |
| Derailleur | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 |
| Brakes | Shimano MT520 Hydraulic Disc 4-Piston SM-RT30 203mm | Shimano XT BR-M8120 | Shimano XT BR-M8120 | Shimano XT Hydraulic Disc Brakes with 4 pistons 203/203 (from key features) |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 200 |
Flame AL 03: FAQ
How much does the Megamo Flame AL 03 cost?
€6,999 (RRP Spain (megamo.com, EN), VAT incl.). The Flame AL range runs from €4,999 (Flame AL 10) to €6,999 (Flame AL 03). Prices vary by country and dealer.
What motor and battery does the Megamo Flame AL 03 have?
Bosch Performance Line CX (100 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, removable; PowerMore 250 Wh range extender optional.
How much suspension travel does the Megamo Flame AL 03 have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Megamo Flame AL 03 come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Flame AL 03 and the Flame AL 05?
They share the Flame AL frame platform and motor; the differences are in the parts — fork: FOX 38 Float Factory E-Bike Optimized vs FOX 36 Float Performance E-Bike Optimized; shock: FOX Float X Factory vs FOX Float Performance; price: €6,999 vs €6,099.
