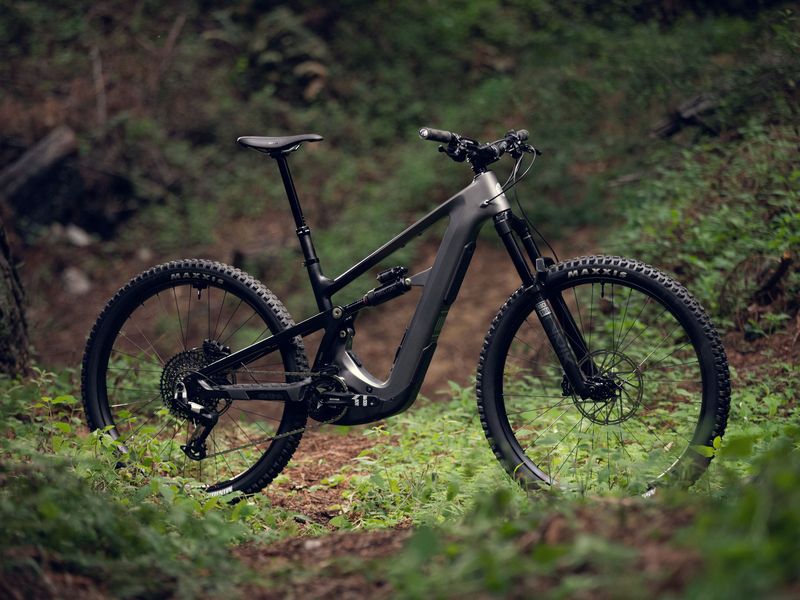

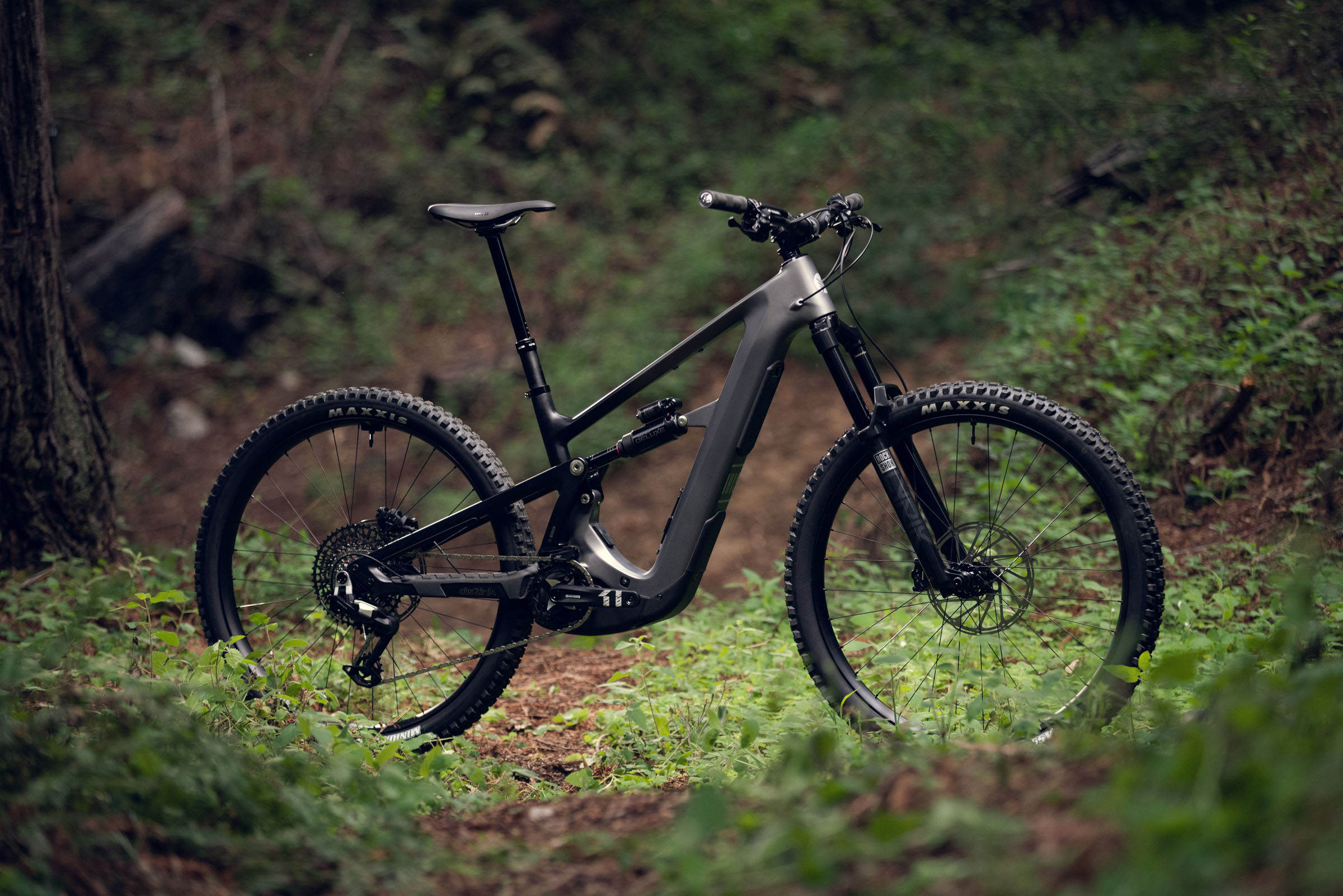

Ibis Oso TR 90 e-MTB, side view
Photo: Ibis
Full-power eMTBTrail
Oso TR range · 2 builds

IbisOso TR 90

$8,499US MSRP, excl. sales tax
Motor
Bosch Performance Line CX120 Nm
Battery
600 WhInternal; PowerMore 250 Wh range extender compatible (850 Wh)
Travel F / R
160 / 150 mm
Wheels
Mixed 29" / 27.5" (SM–MD), 29" (XM–XL)
Frame
Carbon
Weight
22.8 kgManufacturer figure for lightest complete build (size XM), incl. frame protection and tyre sealant

All Bosch Performance Line CX eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

The Oso TR 90 costs $8,499 and runs a RockShox Lyrik fork and Super Deluxe Select+ shock with SRAM Eagle 90 Transmission. From a claimed 22.77 kg (size XM).

The Oso TR 90 is one of 2 builds of the Ibis Oso TR. About the Oso TR range and all its builds →

Gallery

Photos: Ibis

Full specifications

Frame & suspension

Frame

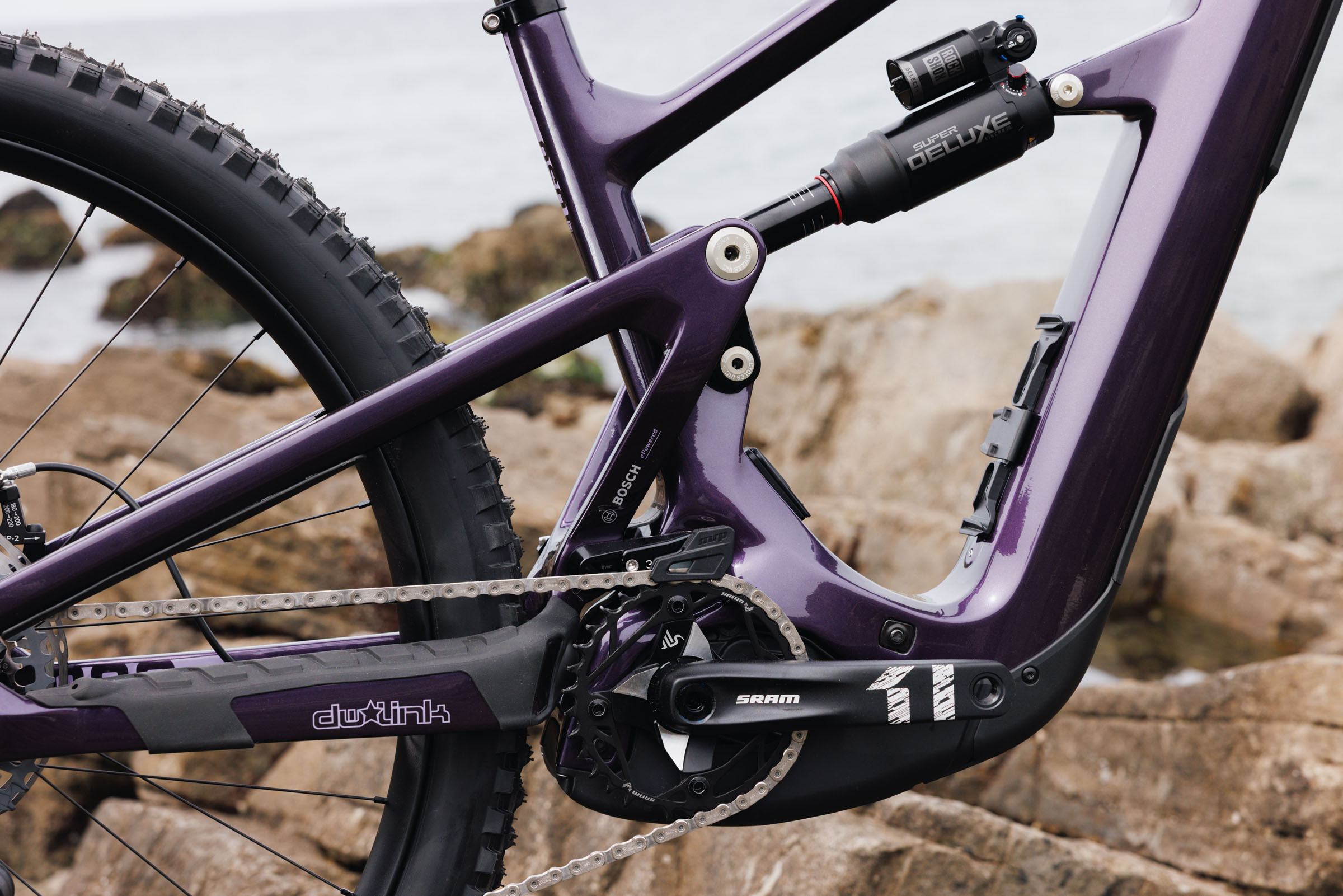

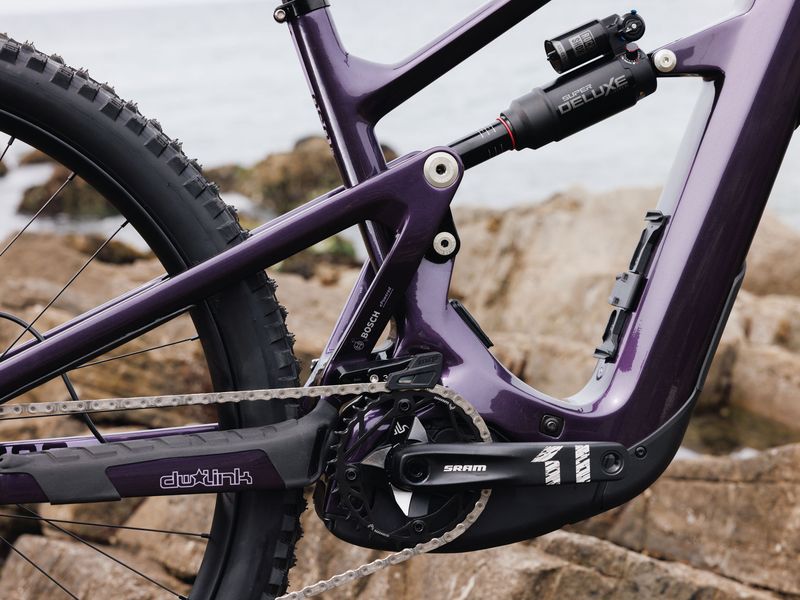

Carbon fiber, Oso V2 (Oso TR), dw-link, 150 mm
Fork
RockShox Lyrik, Base, 160mm
Rear shock

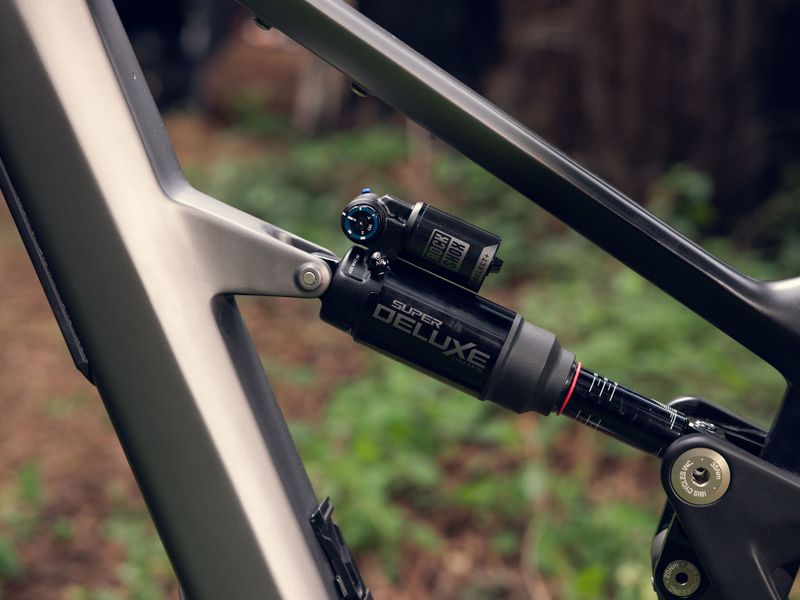

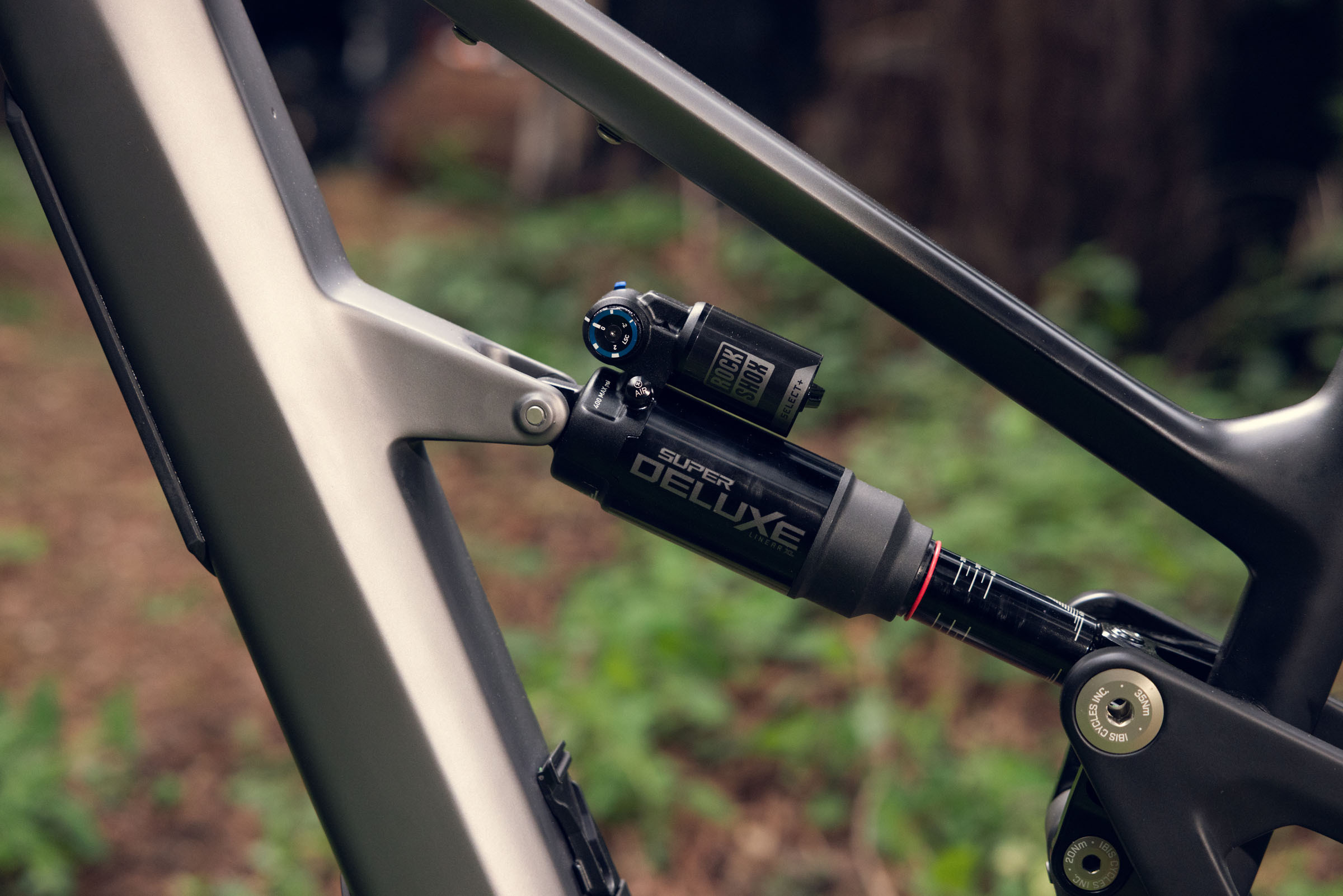

RockShox Super Deluxe, Select+, 230x60mm

E-system

Motor
Bosch Performance Line CX, Generation 5
Battery
Bosch 600 Wh internal; PowerMore 250 Wh range extender compatible (850 Wh total)

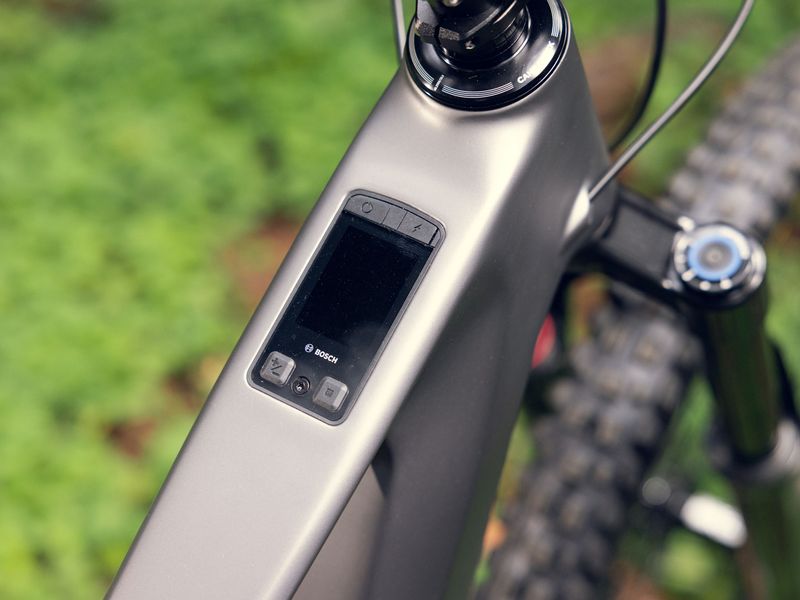

Display

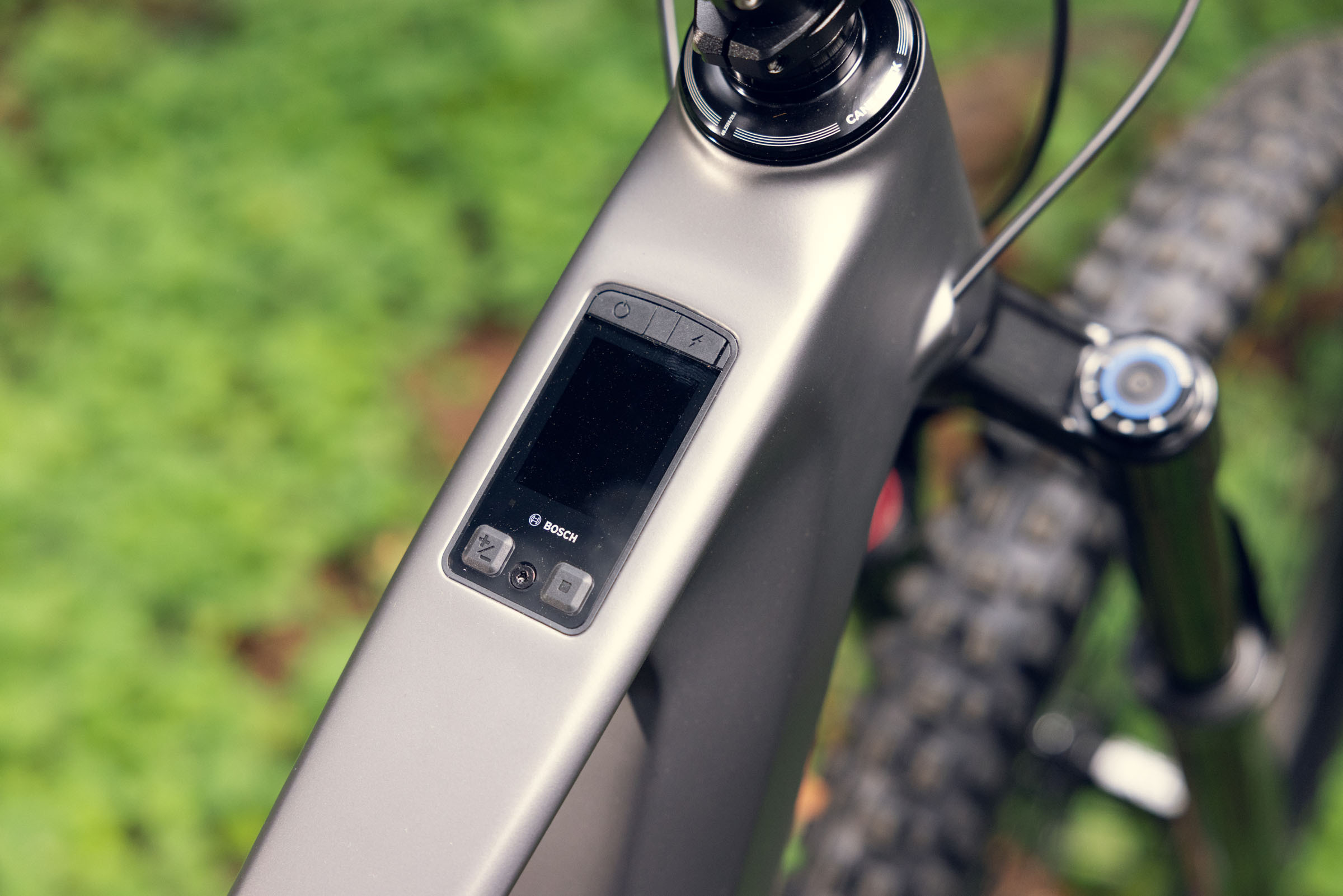

Bosch Kiox 400C, top-tube mounted
Charger
Bosch Smart System Charger

Drivetrain

Crankset
SRAM (SM-MD: SRAM 90, 155mm, 34T Steel Ring XM-XL: SRAM X1, 165mm, 34T Steel Ring)
Rear derailleur
SRAM Eagle 90 Transmission
Shifter
SRAM Eagle 90 Transmission

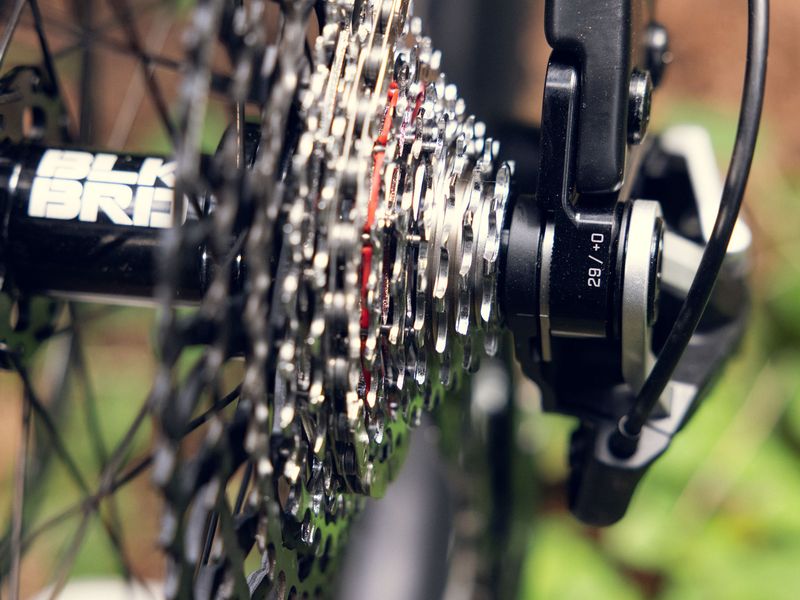

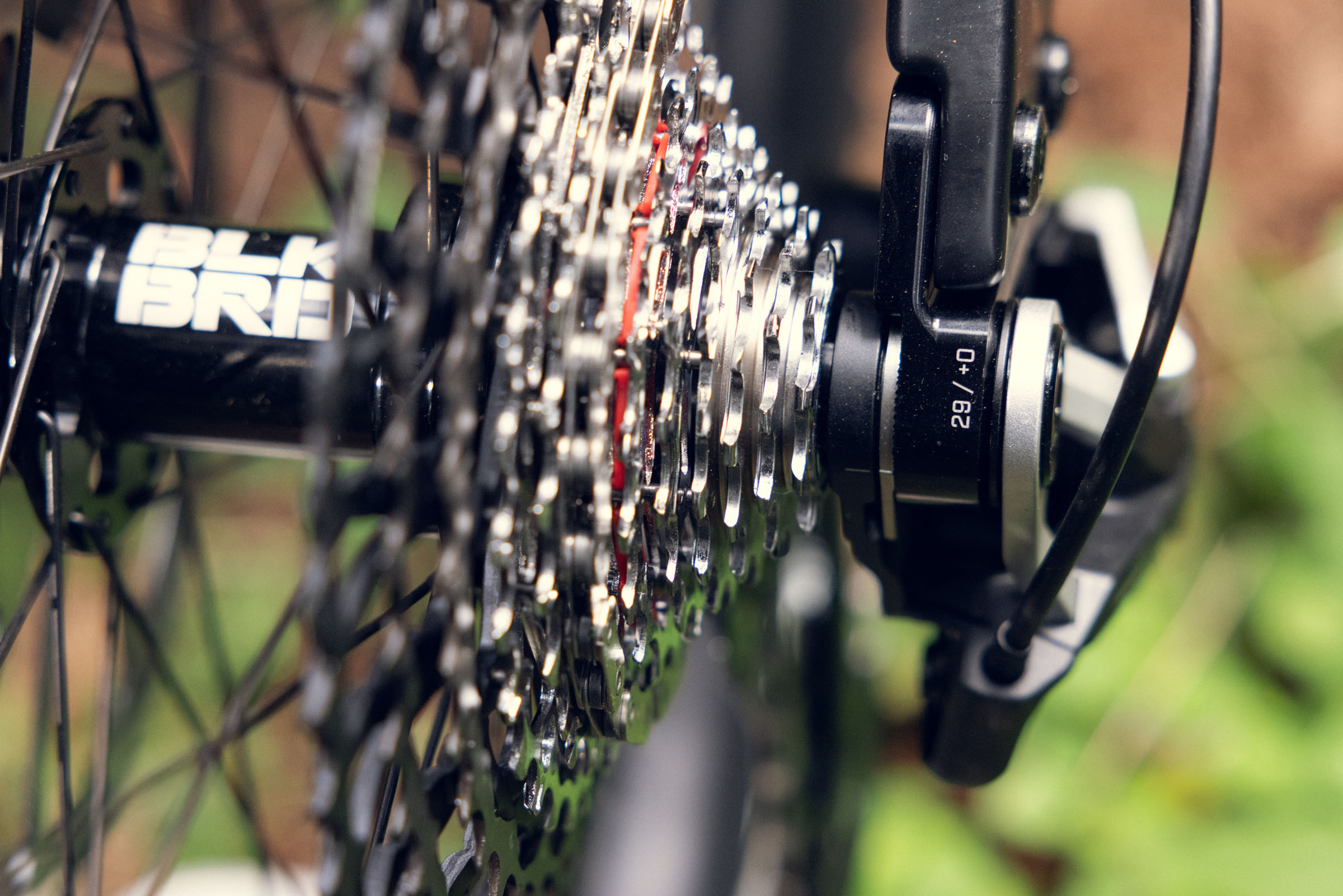

Cassette
SRAM XS 1275 Transmission, T-Type, 10-52T
Chain
SRAM GX Eagle Transmission, T-Type
Chain guide
MRP TR2 Top Guide

Brakes

Brakes
SRAM Maven Base
Rotors
SRAM Centerline 220mm, 6-Bolt

Wheels & tyres

Rims
Blackbird Send Alloy, 32H, Blackbird Hubs (SM-MD, F: Send I, 29 / R: Send II, 27.5; XM-XL, F: Send I, 29 / R: Send II, 29)
Front tire
Maxxis Assegai 29x2.5 EXO+
Rear tire
Maxxis DHR2, DD, MaxxTerra (SM-MD: 27.5x2.5; XM-XL: 29x2.5)

Cockpit

Headset
Cane Creek 50, ZS56/ZS56
Grips
Lizard Skins Strata Single Clamp
Handlebar
Blackbird 35 Aluminum Riser Bar 800mm
Stem
BLKBRD Stem (SM-MD: 35mm, XM-XL: 50mm)
Seatpost
KS Vantage Dropper, 34.9mm (SM, MD: 140-170mm; XM, XL: 180-210mm)
Saddle
WTB Silverado Fusion CrMo 142

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Oso TR geometry

SizeSMMDXMLGXL
Wheel Size27.5"27.5"29"29"29"
ASeat Tube381 mm381 mm405 mm432 mm450 mm
BTop Tube581 mm605 mm625 mm646 mm666 mm
CHead Tube99 mm109 mm121 mm136 mm152 mm
DChainstay440 mm440 mm455 mm455 mm455 mm
ESeat Tube Angle77°77°77.5°78°78.5°
FSaddle Height for Seat Tube Angle650 mm700 mm745 mm790 mm830 mm
GHead Tube Angle63.2°64°64°64°64°
HWheelbase1222 mm1241 mm1285 mm1315 mm1346 mm
IStack619 mm630 mm638 mm648 mm660 mm
JReach438 mm460 mm484 mm508 mm532 mm
KBB Drop34 mm31 mm28 mm25 mm22 mm
BB Height339 mm342 mm345 mm348 mm351 mm
LStandover697 mm708 mm736 mm747 mm763 mm
Dropper Post Length140–170 mm140–170 mm180–210 mm180–210 mm180–210 mm
Crank Length155 mm155 mm165 mm165 mm165 mm
Water Bottle Size22oz22oz26oz26oz26oz

Source: Ibis. Values with the stock fork; angle ranges/wheel sizes vary by size.

Oso TR: builds compared

Oso TR range →
Oso TR 90Oso TR GX AXS
Price$8,499$9,699
FrameCarbonCarbon
ForkRockShox Lyrik, BaseRockShox Lyrik, Ultimate
ShockRockShox Super DeluxeRockShox Super Deluxe
DerailleurSRAM Eagle 90 TransmissionSRAM GX Eagle Transmission
BrakesSRAM Maven BaseSRAM Maven
WheelsBlackbird Send Alloy, 32HBlackbird Send Alloy, 32H
DisplayBosch Kiox 400CBosch Kiox 400C
Weight22.8 kg22.8 kg

Oso TR 90: FAQ

What is the difference between the Oso TR 90 and the Oso TR GX AXS?

They share the Oso TR frame platform and motor; the differences are in the parts: derailleur: SRAM Eagle 90 Transmission vs SRAM GX Eagle Transmission; price: $8,499 vs $9,699.
