FocusSAM 9
- Motor
- Bosch Performance Line CX85 Nm (120 Nm via eBike Flow app update)
- Battery
- 600 WhBosch PowerTube; options: 600 Wh / 800 Wh; 250 Wh range extender compatible
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 26.3 kgManufacturer figure (size M, 600 Wh battery, without pedals)
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
€7,199 swaps to RockShox ZEB Ultimate and Vivid Ultimate suspension, SRAM Eagle 90 and Maven Silver brakes. At a claimed 26.3 kg it's slightly heavier than the SAM 8, but the suspension and brakes are a clear step up.
The SAM 9 is one of 2 builds of the Focus SAM. About the SAM range and all its builds →

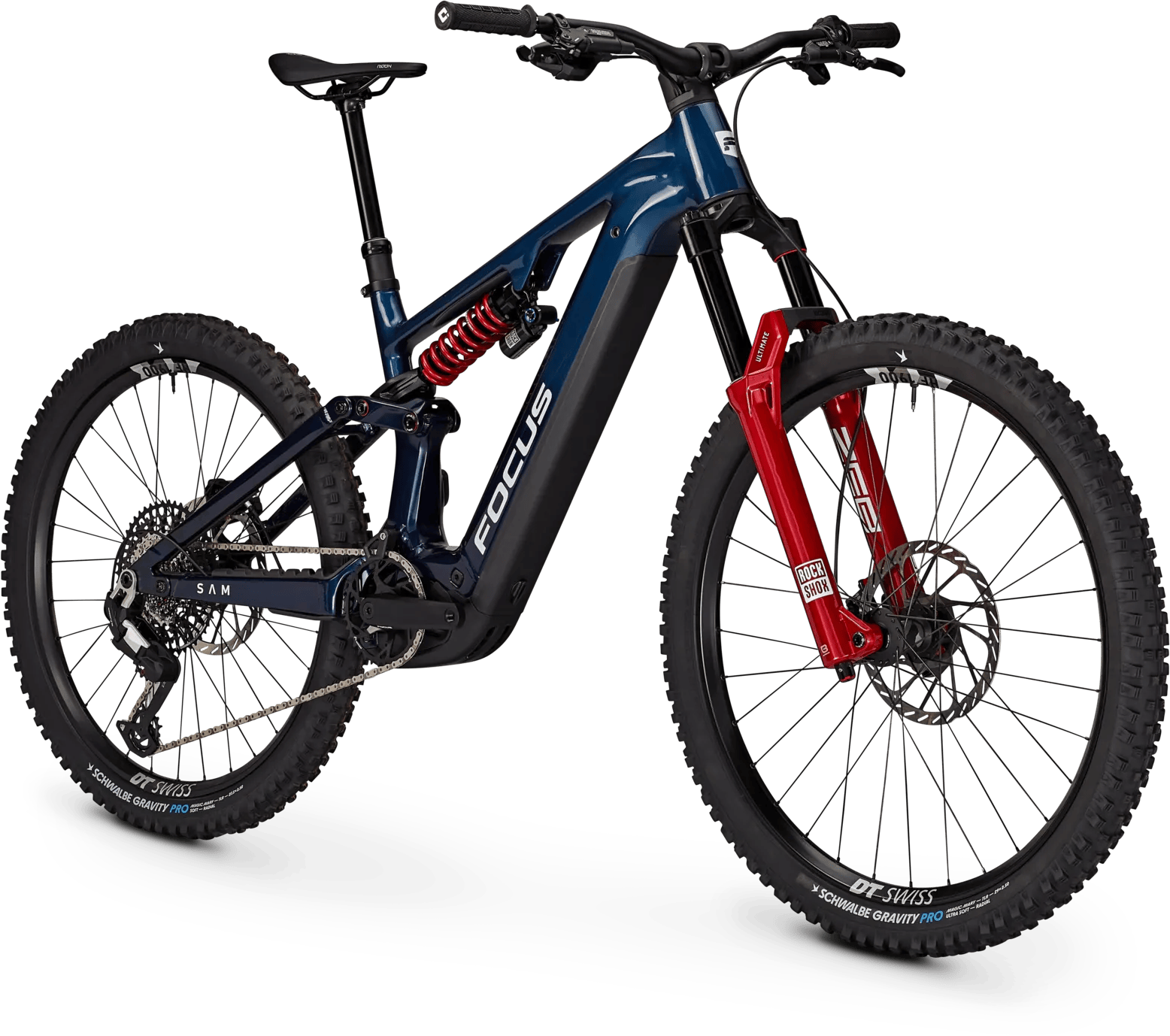

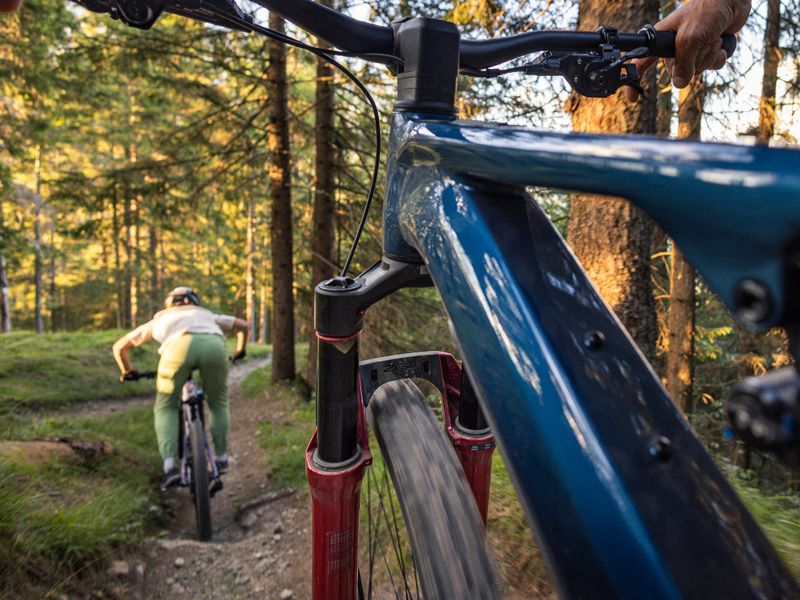

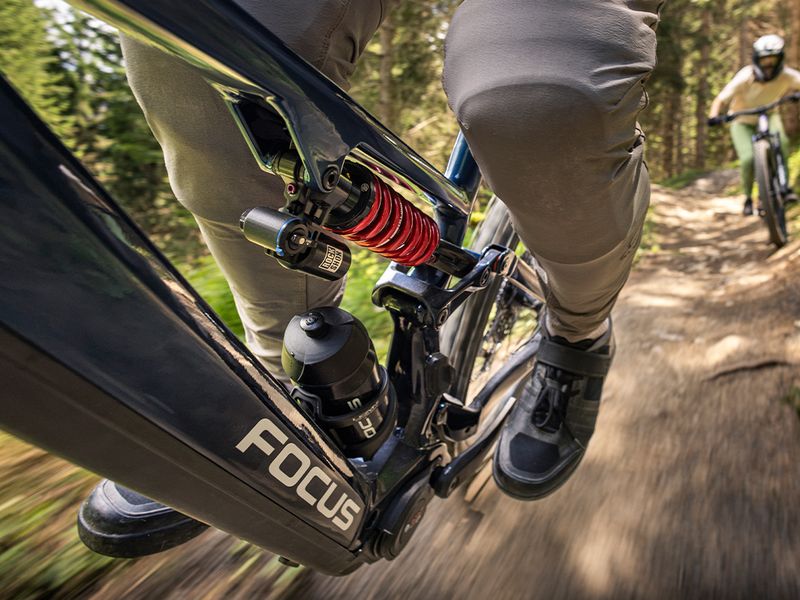

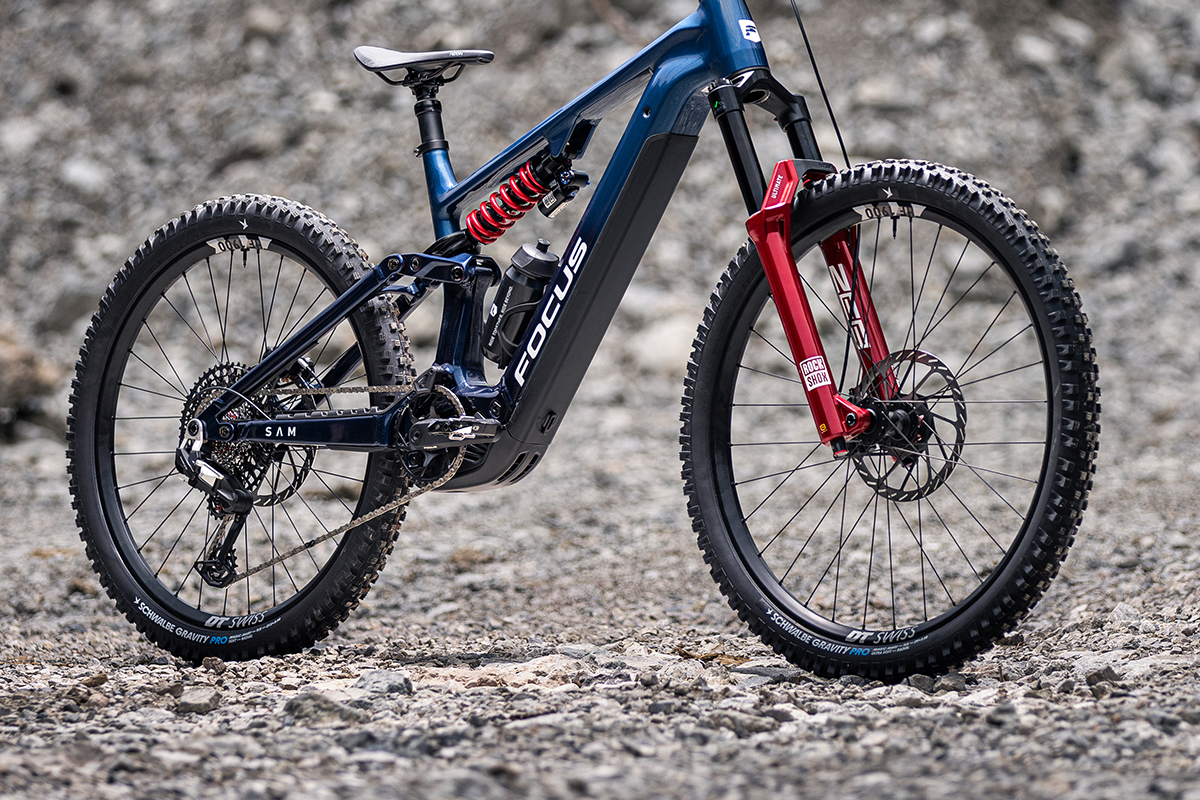

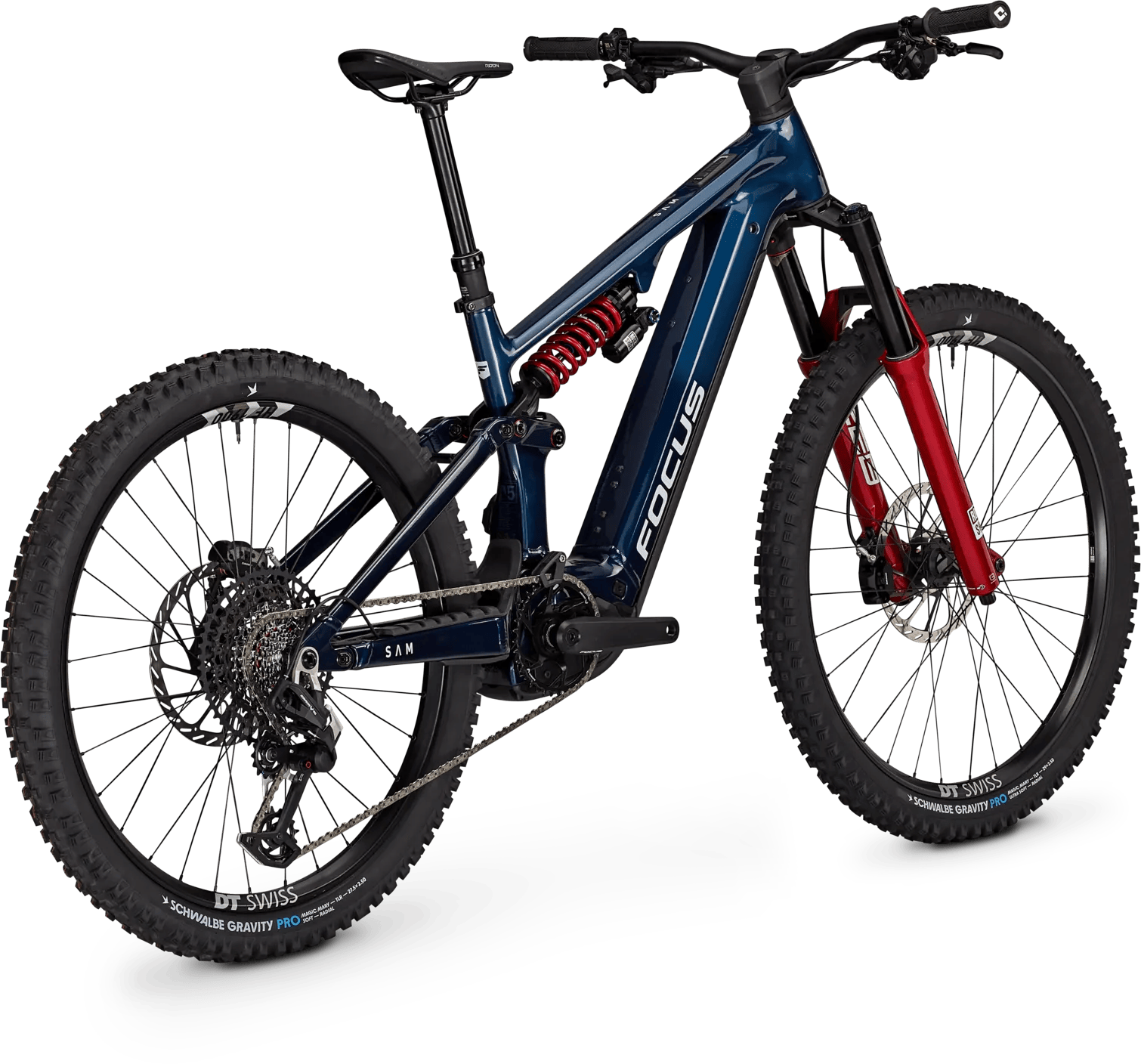

Gallery
Photos: Focus
Full specifications
Frame & suspension
- Frame
- 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
- Special features
- Geometry adjustment of head angle and chainstay length, Tool bag (excluding size S), Hidden AirTag or Chipolo holder
- Fork
- RockShox ZEB Ultimate, LinearXL, Charger 3.2 RC2 w/ ButterCups, 170 mm

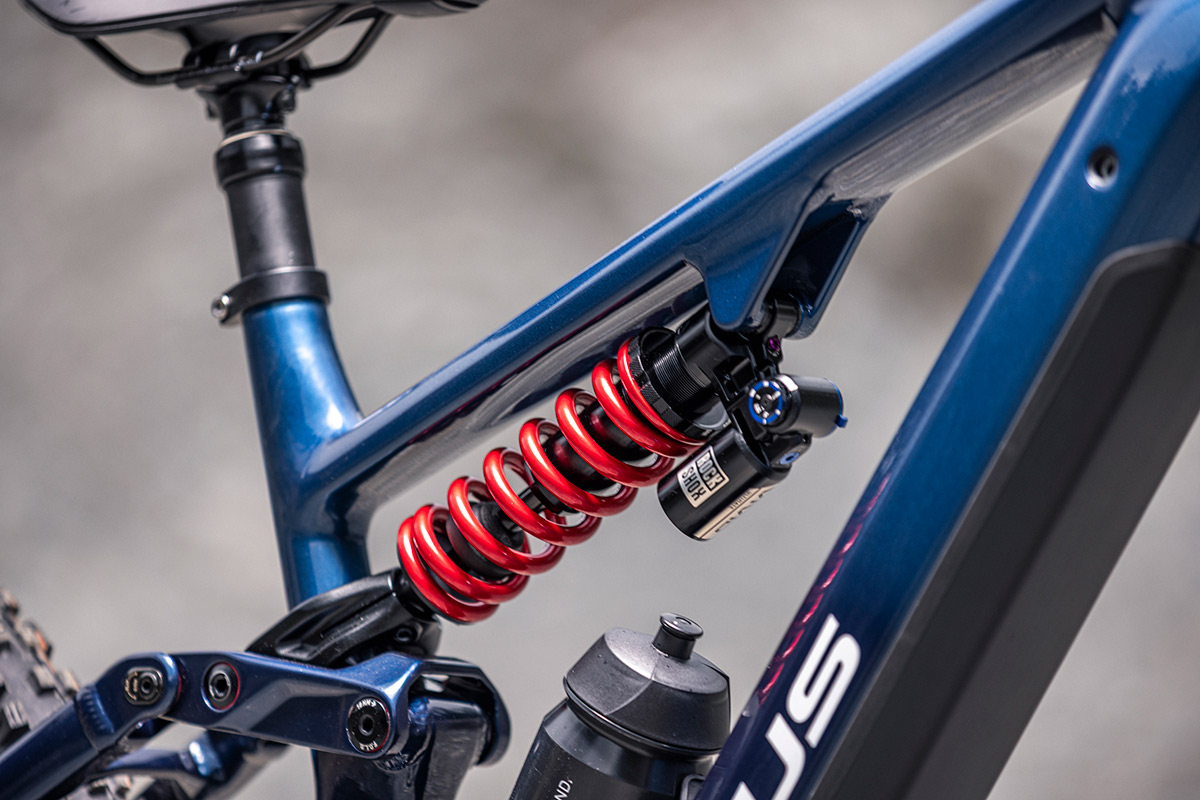

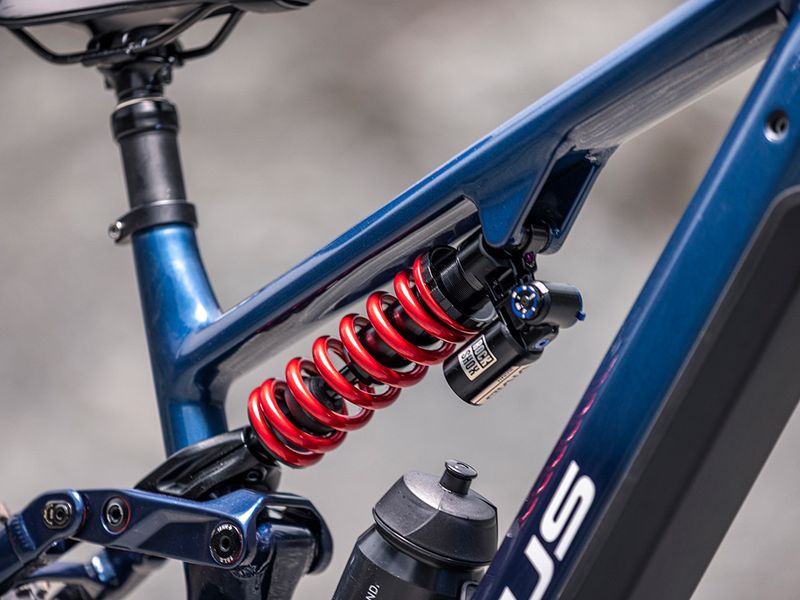

- Rear shock
- RockShox Vivid Ultimate, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
- Sizes
- S, M, L, XL
- Colours
- Blue, White
E-system
- Motor
- Bosch Performance Line CX, 85 NM, 120 NM update via Flow App
- Battery
- Bosch PowerTube Li-Ion (600 Wh) or Bosch PowerTube Li-Ion (800 Wh)
- Display
- Bosch Mini Remote + System Controller
Drivetrain
- Shifter
- SRAM Eagle 90
- Rear derailleur
- SRAM Eagle 90, 12-speed
- Cassette
- SRAM GX EAGLE Transmission, 10-52T
- Chain
- SRAM GX Eagle Transmission
- Crankset
- Samox, 160 mm
- Chainring
- SRAM T-Type, 36 T
Brakes
- Brakes

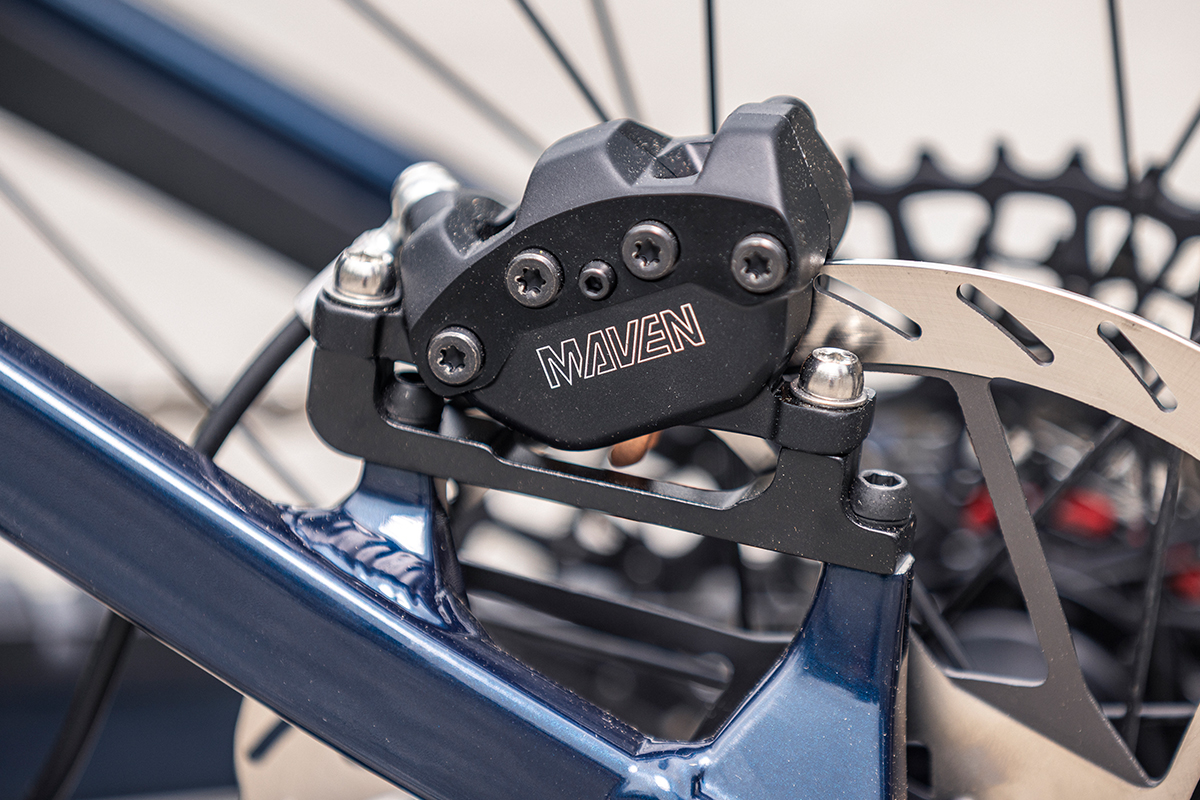

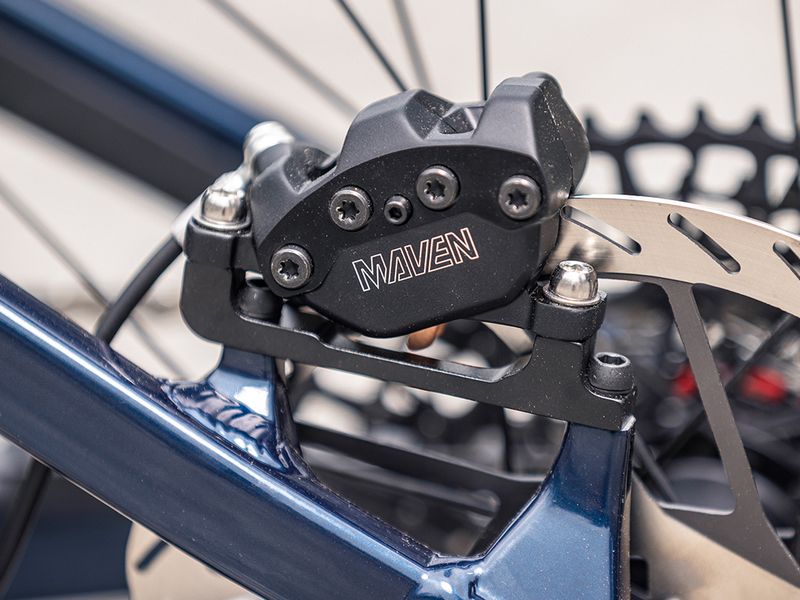

- SRAM Maven SLV, 4-piston (front and rear)
- Rotors
- SRAM HS2, front: 220 mm / rear: 220 mm
Wheels & tyres
- Wheelset
- DT Swiss HF 1900, alloy, front: 29", rear: 27,5"
- Tyres
- front: Schwalbe Magic Marry, Gravity Pro, Addix Ultra Soft, 29 x 2,5"; rear: Schwalbe Magic Marry, Gravity Pro, Addix Soft, 27,5 x 2,5"
Cockpit
- Handlebar
- OneUp Riser, width: 800 mm, rise: 35 mm
- Grips
- ODI Elite Pro
- Stem
- FOCUS C.I.S. 2.0, 40 mm
- Headset
- ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
- Saddle
- fi'zi:k Ridon X5
- Seatpost
- Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm
Other
- Weight
- 26.3 kg (600 Wh) / 27.3 kg (800 Wh) (size M, without pedals)
- Max system weight
- 150 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
SAM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Handlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm |
| Crank length | 160 mm | 160 mm | 160 mm | 160 mm |
| ASeat tube length | 390 mm | 420 mm | 440 mm | 460 mm |
| BTop tube length | 572 mm | 604 mm | 633 mm | 667 mm |
| CHead angle | 63.5° / 63.5° / 64.5° / 64.5° | 63.5° / 63.5° / 64.5° / 64.5° | 63.5° / 63.5° / 64.5° / 64.5° | 63.5° / 63.5° / 64.5° / 64.5° |
| DSeat angle | 77.5° | 77.5° | 77.5° | 77.5° |
| EChainstay length | 441 mm / 448 mm / 441 mm / 448 mm | 441 mm / 448 mm / 441 mm / 448 mm | 441 mm / 448 mm / 441 mm / 448 mm | 441 mm / 448 mm / 441 mm / 448 mm |
| FBottom bracket drop | 20 mm | 20 mm | 20 mm | 20 mm |
| GHead tube length | 110 mm | 120 mm | 130 mm | 150 mm |
| HFork length | 587 mm | 587 mm | 587 mm | 587 mm |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1223 mm / 1235 mm / 1216 mm / 1228 mm | 1258 mm / 1270 mm / 1251 mm / 1263 mm | 1287 mm / 1299 mm / 1280 mm / 1292 mm | 1326 mm / 1338 mm / 1319 mm / 1331 mm |
| KStack | 630 mm | 639 mm | 648 mm | 666 mm |
| LReach | 435 mm | 465 mm | 490 mm | 520 mm |
| MStandover height | 820 mm | 820 mm | 820 mm | 820 mm |
Where several values are given, they correspond to the positions: head angle slack, chainstay short / head angle slack, chainstay long / head angle steep, chainstay short / head angle steep, chainstay long. Source: Focus.
SAM: builds compared
SAM range →| SAM 8 | SAM 9 | |
|---|---|---|
| Price | €5,699 | €7,199 |
| Frame | Alloy | Alloy |
| Fork | FOX 38 Rhythm, Grip 2-Position | RockShox ZEB Ultimate, LinearXL |
| Shock | FOX DHX Performance | RockShox Vivid Ultimate |
| Derailleur | SRAM Eagle 70 | SRAM Eagle 90 |
| Brakes | TRP EVO Comp | SRAM Maven SLV |
| Wheels | front: WTB Sti30 TGH, alloy | — |
| Display | Bosch Mini Remote + System Controller | Bosch Mini Remote + System Controller |
| Weight | 26 kg | 26.3 kg |
SAM 9: FAQ
What is the difference between the SAM 9 and the SAM 8?
They share the SAM frame platform and motor; the differences are in the parts: fork: RockShox ZEB Ultimate vs FOX 38 Rhythm; shock: RockShox Vivid Ultimate vs FOX DHX Performance; derailleur: SRAM Eagle 90 vs SRAM Eagle 70; claimed weight: 26.3 kg vs 26 kg; price: €7,199 vs €5,699.
