DevinciE-Troy Lite Eagle 70 12s
- Motor
- Bosch Performance Line SX55-60 Nm; 600 W peak
- Battery
- 400 WhBosch CompactTube 400, integrated; PowerMore 250 range extender compatible
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 20.7 kgManufacturer figure (size M, approximate)

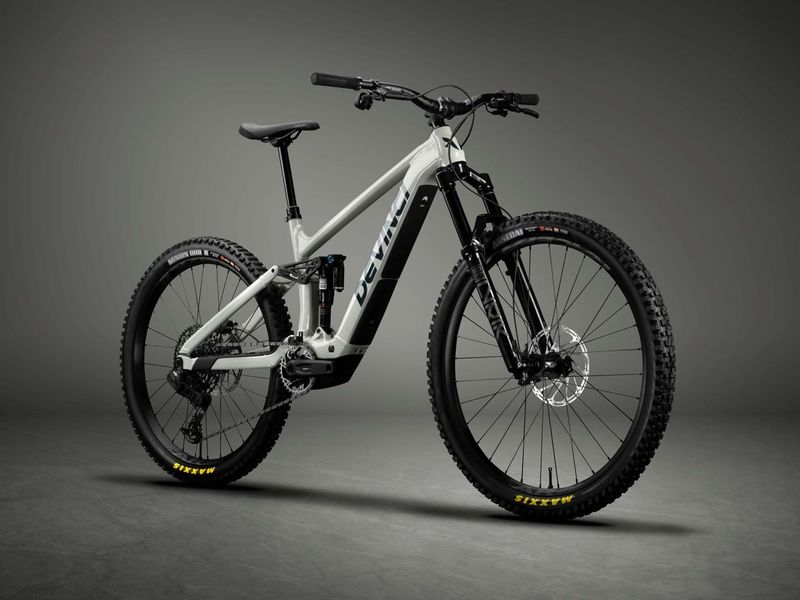

Overview
The Devinci E-Troy Lite Eagle 70 12s (US$6,499) is the entry build of the E-Troy Lite: Bosch Performance Line SX (55-60 Nm) with 400 Wh, RockShox Lyrik fork, Rockshox SuperDeluxe Base shock, SRAM Eagle 70 12s and SRAM DB8 brakes. Claimed weight is 20.7 kg.
The E-Troy Lite is Devinci's light trail e-MTB, built around a made-in-Canada Optimum G04 6061-T6 aluminium frame with Split Pivot suspension, 150 mm rear travel and a 160 mm fork on mixed wheels (29-inch front, 27.5-inch rear).
It uses the Bosch Performance Line SX drive unit with the Smart System and an integrated 400 Wh CompactTube battery that can be extended with a range extender. Devinci quotes around 20 kg for a size M complete bike, depending on build.
- Bosch Performance Line SX, 600 W peak
- 400 Wh CompactTube, range-extender compatible
- 150 mm rear / 160 mm fork, mixed wheels
- Made-in-Canada aluminium frame

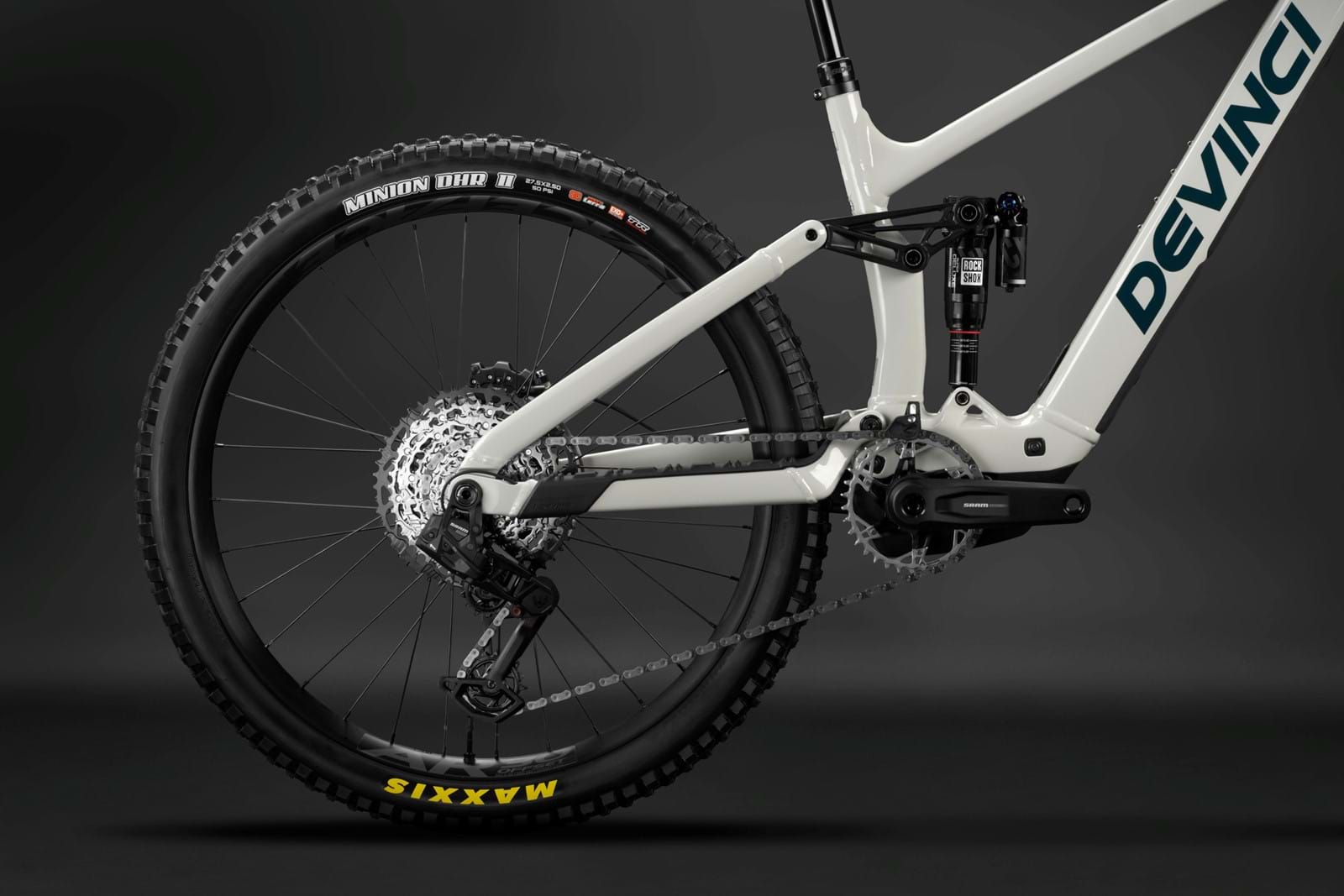

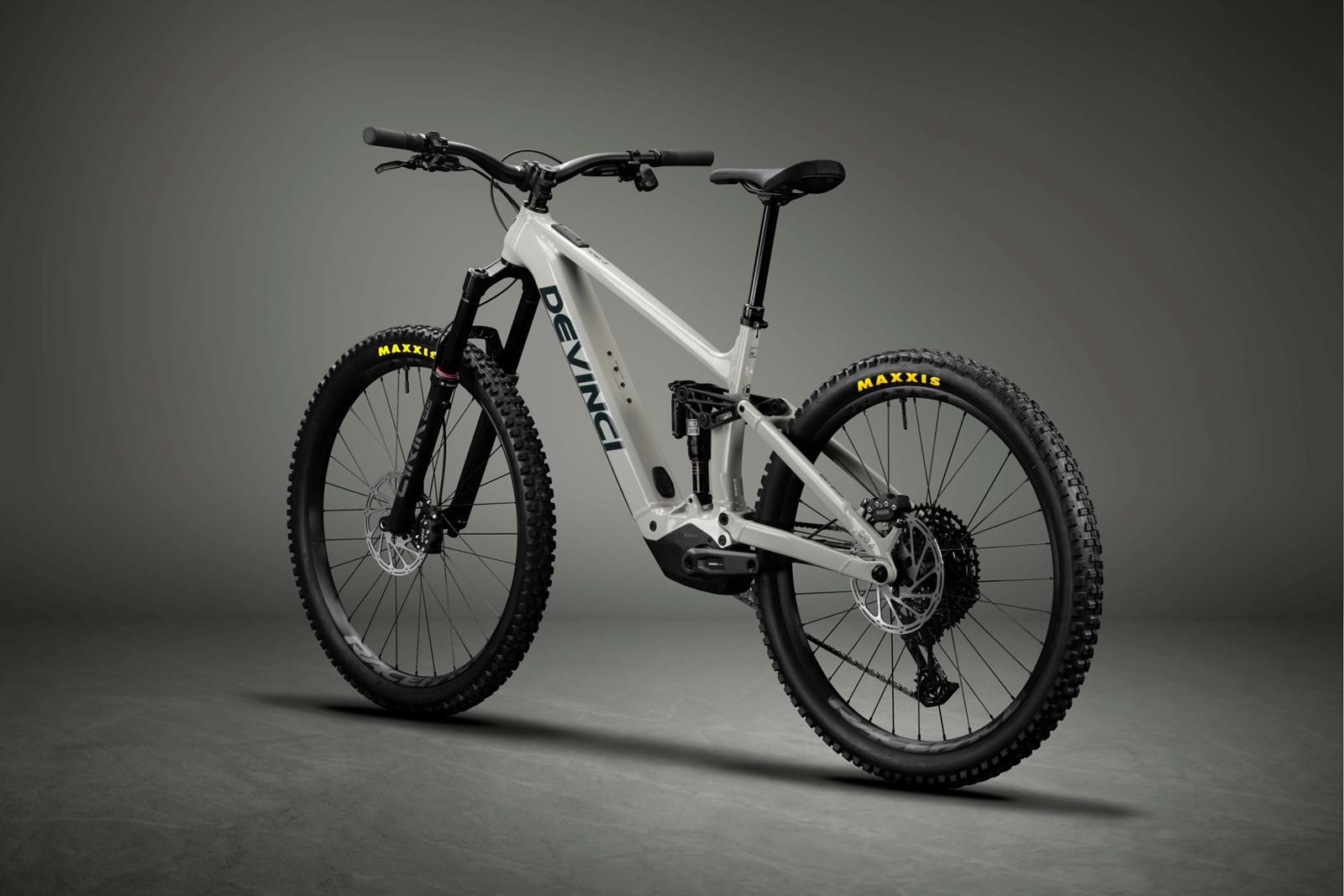

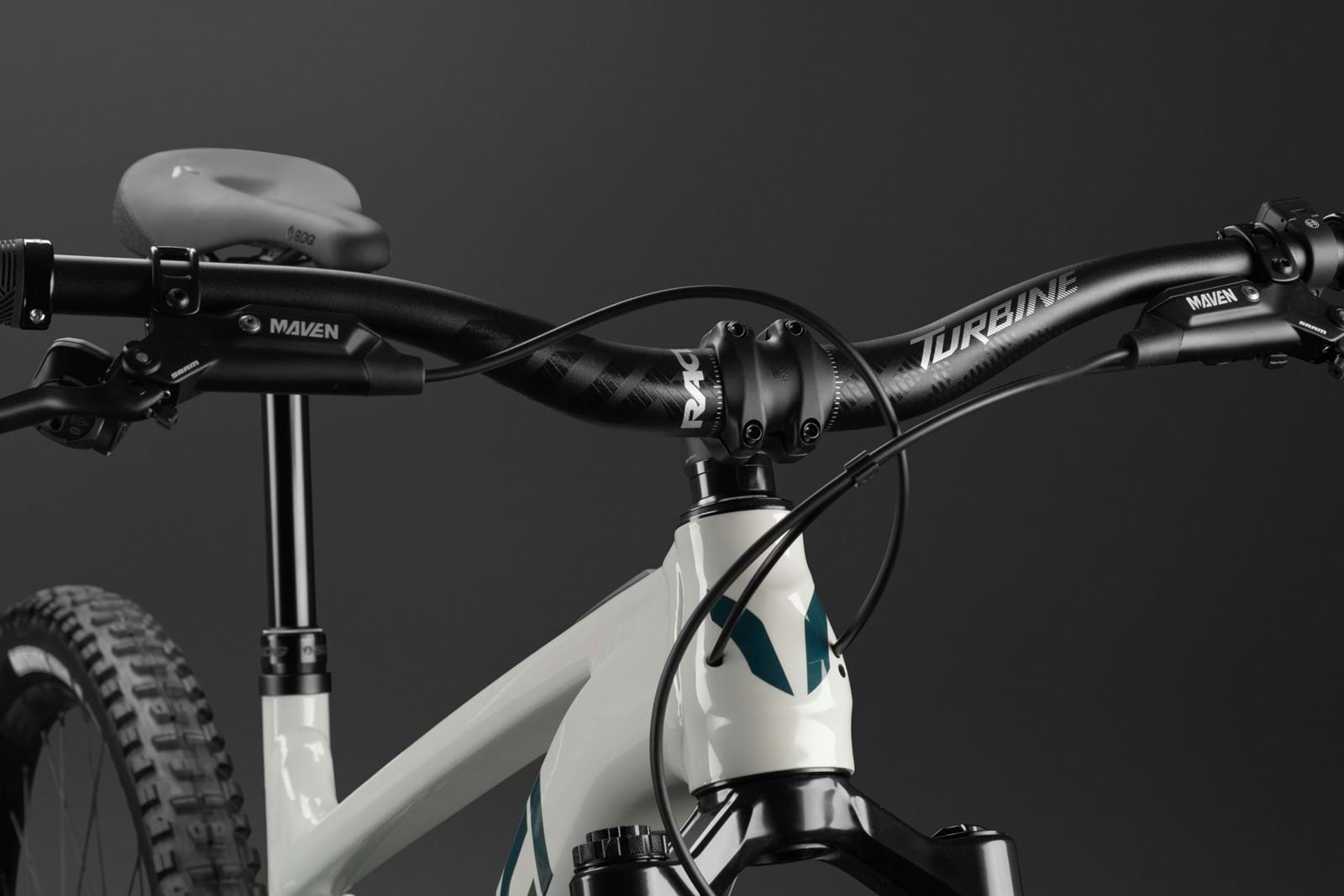

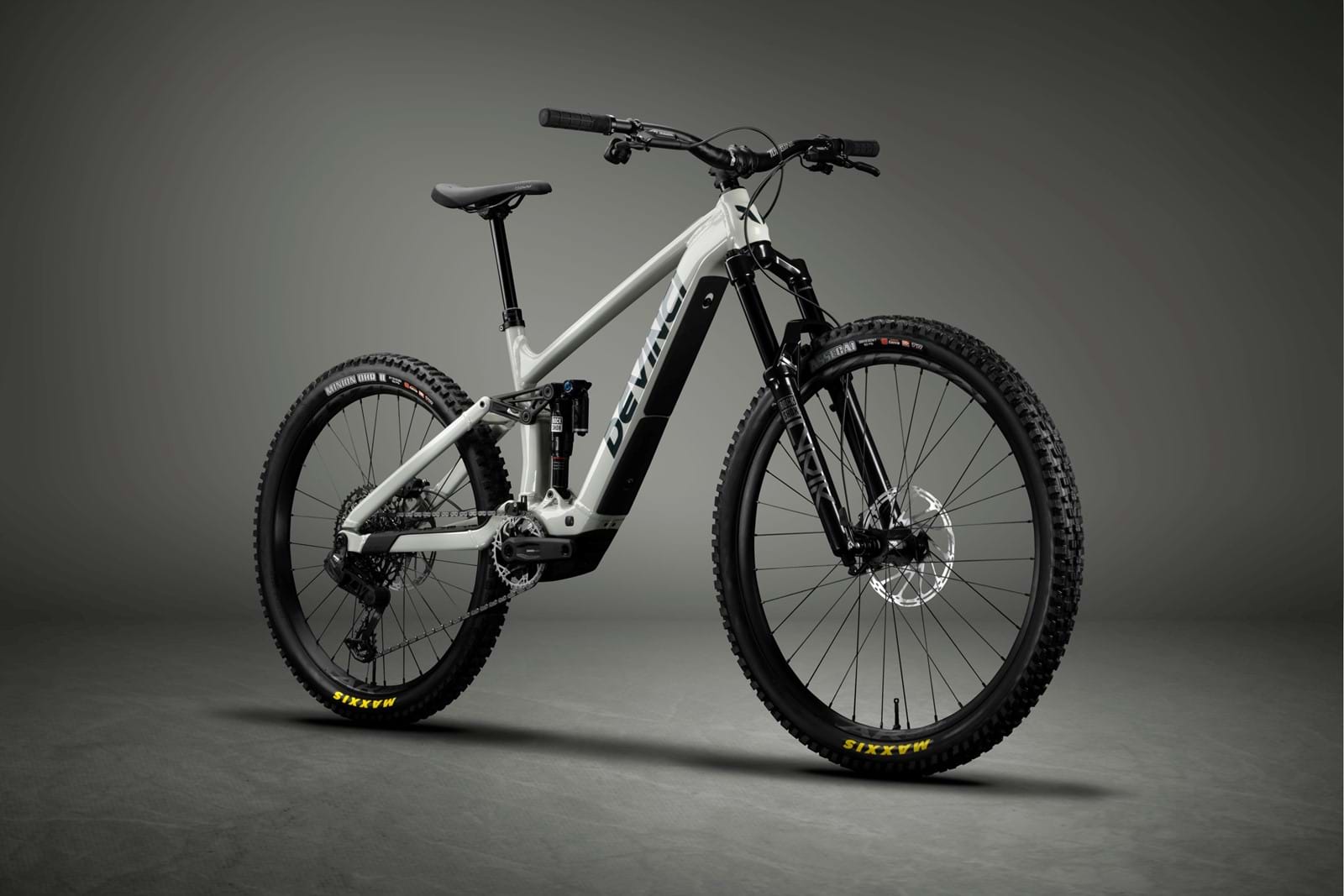

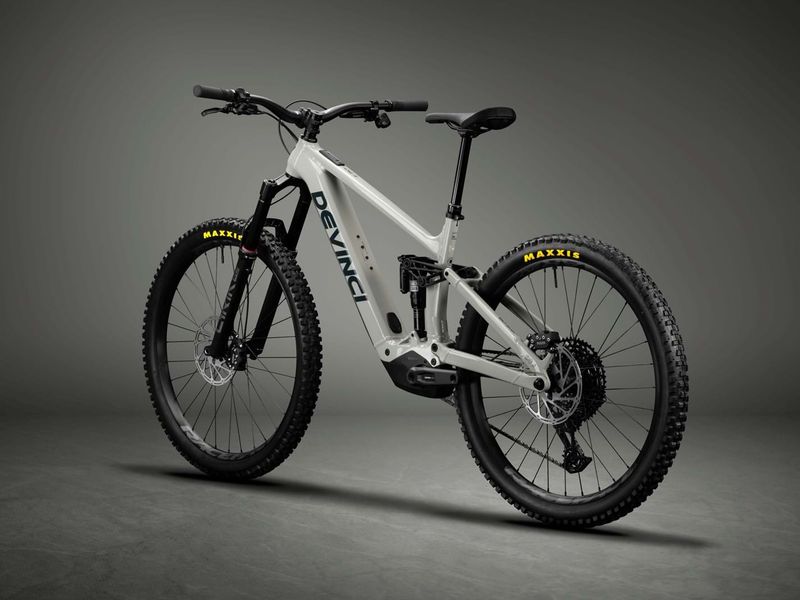

Gallery
Photos: Devinci
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- Aluminum Optimum G04 150mm
- Headset
- FSA Orbit | 1.5 | Zero Stack
- Seat Clamp
- Alloy CNC | 34.9mm
- Fork
- RockShox Lyrik | Rush RC | 160 | 44Offset
- Rear shock
- Rockshox SuperDeluxe Base | 185x55T
E-system
- Display

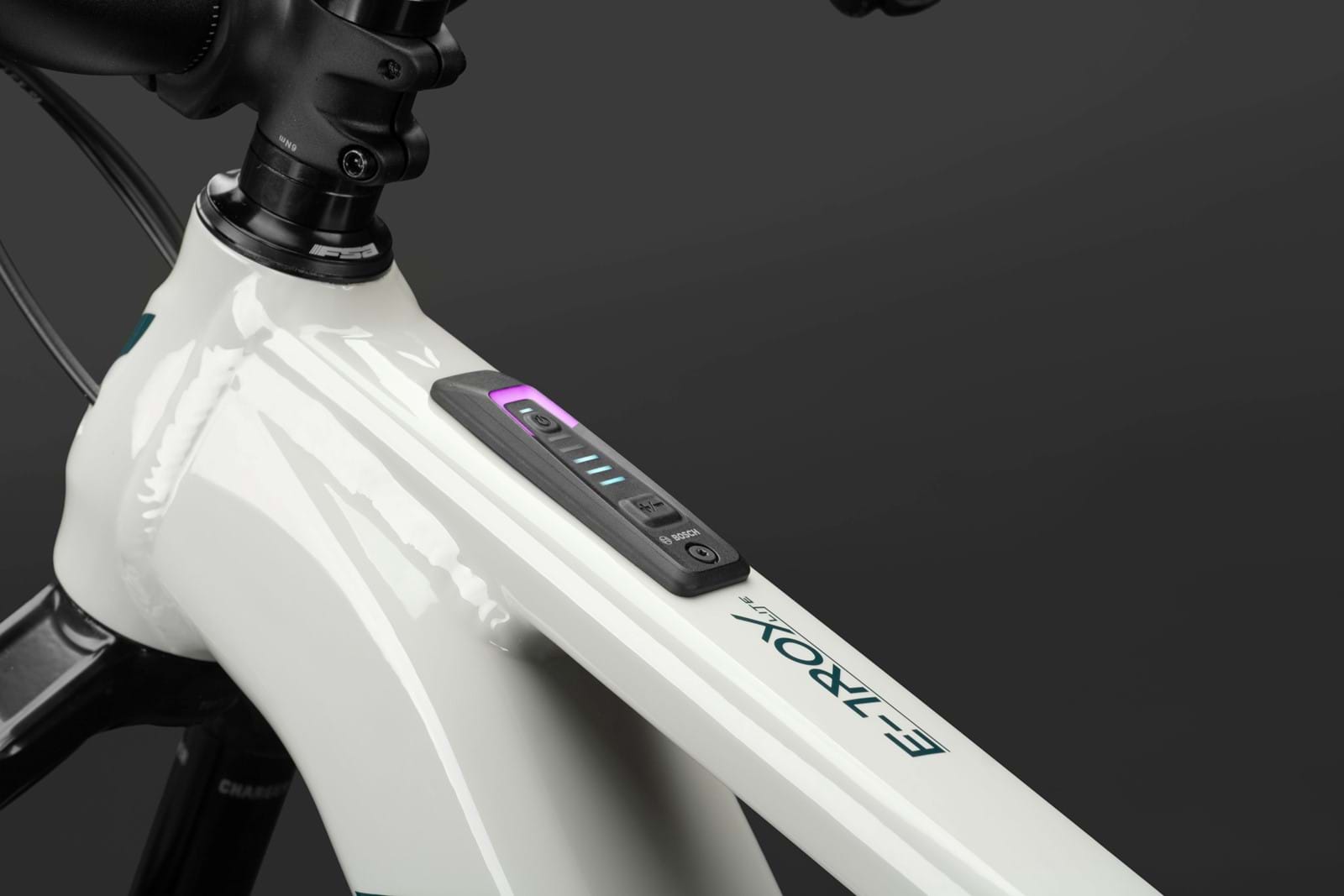

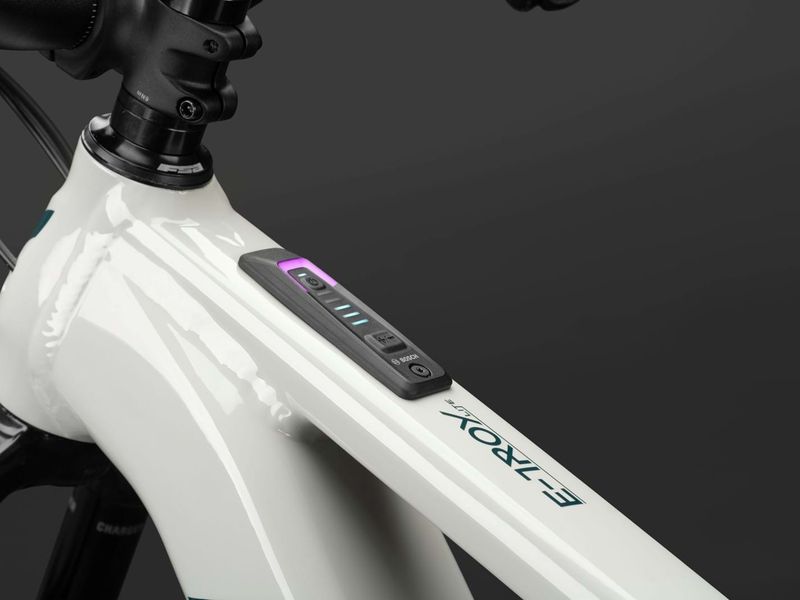

- BOSCH System controller BRC3100
- Motor
- Bosch Performance Line SX | 60NM | 600W
- Battery
- Bosch CompactTube 400 | 36V | 400 Wh

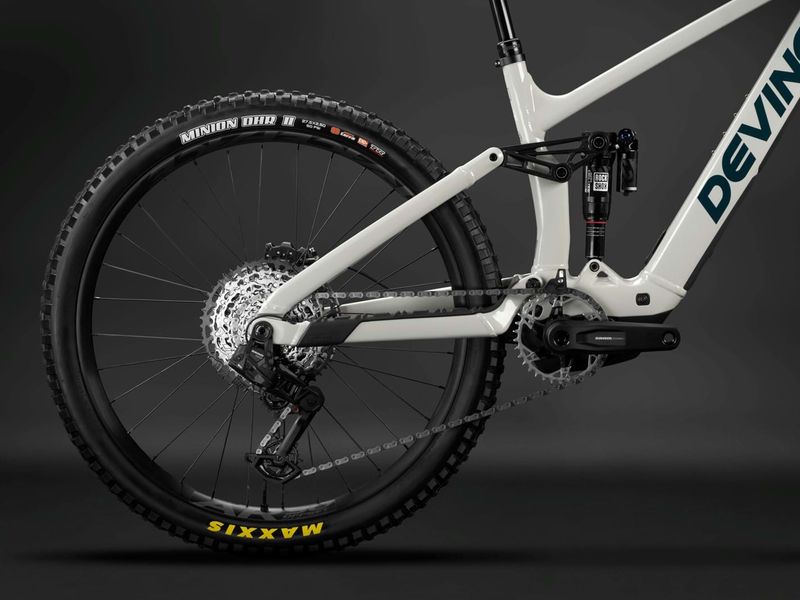

Drivetrain
- Rear derailleur
- SRAM Eagle 70 12s
- Rear Shifter
- SRAM Eagle 70 12s
- Crankarm
- SRAM Eagle70 | 160mm
- Chainring
- Sram Eagle Bosch EMTB | 34T
- Cassette
- SRAM XS1270 T-TYPE | 12s | 10-52T
- Chain
- SRAM Eagle 70
- Chain Guide
- Devinci Direct Mount
Brakes
- Front brake
- SRAM DB8
- Rear brake
- SRAM DB8
- Front Rotor
- SRAM Centerline | 220mm
- Rear Rotor
- SRAM Centerline | 200mm
Wheels & tyres
- Front rim
- V2 Comp 29 | 29mm inner | TR
- Front Hub
- Formula DC-611 | Sealed | 6bolts | TA 15x110mm
- Rear Hub
- Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
- Rear rim
- V2 Comp 27.5 | 29mm inner | TR
- Spokes
- Sapim Stainless 14G w/Nylok
- Front Tire
- Maxxis Assegai | 29x2.5WT | 3C | EXO+ | TR | MaxxGrip
- Rear Tire
- Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra

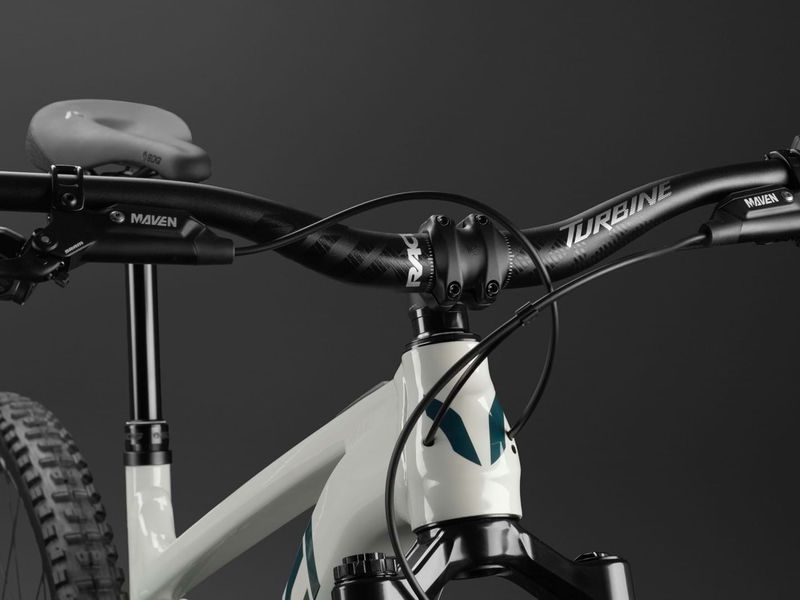

Cockpit
- Handlebar
- V2 Pro | B:35mm | R:30mm | W:800mm
- Stem
- V2 Pro | B:35mm | L:40mm | 0°
- Saddle
- SDG BELAIR Max eMTB
- Seatpost
- TranzX Dropper | 31.6mm
- Seatpost Lever
- TranzX
- Grips
- Devinci | w/lock-on
Other
- Rear tire clearance
- 27,5'' x 2.6”
- Rear hub spacing
- 12 x 148 Boost
- Max rear rotor size
- 220 mm
- Dropper post length
- S → 125 mm / M → 150 mm / L → 170 mm / XL → 200 mm
- Seatpost max insertion
- S → 225 mm / M → 250 mm / L → 275 mm / XL → 300 mm
- Headset
- Top ZS44 | Bottom ZS56
- Rear shock dimension
- Trunnion | 185 x 55 mm
- Fork dimensions
- Axle-to-Crown measurement 571 mm / Offset 44 mm
- Frame material
- 6061-T6 Aluminum | Optimum G04
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
E-Troy Lite geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube | 400 mm | 420 mm | 460 mm | 495 mm |
| BSeat tube angle | 77.9° | 77.8° | 77.6° | 77.5° |
| CHead tube angle | 63.6° | 63.6° | 63.6° | 63.6° |
| DTop tube | 572 mm | 594 mm | 618 mm | 641 mm |
| EReach | 441 mm | 461 mm | 481 mm | 501 mm |
| FChainstay | 438 mm | 438 mm | 438 mm | 438 mm |
| GWheelbase | 1216 mm | 1240 mm | 1264 mm | 1289 mm |
| HBB height | 346 mm | 346 mm | 346 mm | 346 mm |
| IStandover height | 740 mm | 740 mm | 740 mm | 740 mm |
| JStack | 608 mm | 617 mm | 626 mm | 635 mm |
| KHead tube | 95 mm | 105 mm | 115 mm | 125 mm |
| Rider height | 160-170 cm | 169-179 cm | 178-188 cm | 187-198 cm |
Source: Devinci.
E-Troy Lite: builds compared
E-Troy Lite range →| E-Troy Lite Eagle 70 12s | E-Troy Lite S1000 AXS 12s | E-Troy Lite GX AXS 12s | |
|---|---|---|---|
| Price | $6,499 | $7,699 | $8,499 |
| Frame | Alloy | Alloy | Alloy |
| Fork | RockShox Lyrik | Rush RC | 160 | 44Offset | RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset | Rockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black |
| Shock | Rockshox SuperDeluxe Base | 185x55T | Rockshox Super Deluxe Ultimate | 185x55 Trunnion | Rockshox Super Deluxe Ultimate | 185x55 Trunnion |
| Derailleur | SRAM Eagle 70 12s | SRAM S1000 Eagle AXS | T-Type | 12s | SRAM GX Eagle AXS | T-Type | 12s |
| Brakes | SRAM DB8 | SRAM Maven Base | SRAM Maven Silver |
| Display | BOSCH System controller BRC3100 | BOSCH System controller BRC3100 | BOSCH System controller BRC3100 |
| Weight | 20.7 kg | 20.5 kg | 20.1 kg |
E-Troy Lite Eagle 70 12s: FAQ
How much does the Devinci E-Troy Lite Eagle 70 12s cost?
$6,499 (US RRP (MSRP), excl. sales tax). The E-Troy Lite range runs from $6,499 (E-Troy Lite Eagle 70 12s) to $8,499 (E-Troy Lite GX AXS 12s). Prices vary by country and dealer.
How much does the Devinci E-Troy Lite Eagle 70 12s weigh?
Devinci quotes 20.7 kg. The lightest E-Troy Lite build is the E-Troy Lite GX AXS 12s at 20.1 kg.
What motor and battery does the Devinci E-Troy Lite Eagle 70 12s have?
Bosch Performance Line SX (55-60 Nm; 600 W peak). 400 Wh battery — bosch CompactTube 400, integrated; PowerMore 250 range extender compatible.
How much suspension travel does the Devinci E-Troy Lite Eagle 70 12s have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Devinci E-Troy Lite Eagle 70 12s come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the E-Troy Lite Eagle 70 12s and the E-Troy Lite S1000 AXS 12s?
They share the E-Troy Lite frame platform and motor; the differences are in the parts — fork: RockShox Lyrik | Rush RC | 160 | 44Offset vs RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset; shock: Rockshox SuperDeluxe Base | 185x55T vs Rockshox Super Deluxe Ultimate | 185x55 Trunnion; derailleur: SRAM Eagle 70 12s vs SRAM S1000 Eagle AXS | T-Type | 12s; brakes: SRAM DB8 vs SRAM Maven Base; claimed weight: 20.7 kg vs 20.5 kg; price: $6,499 vs $7,699.
