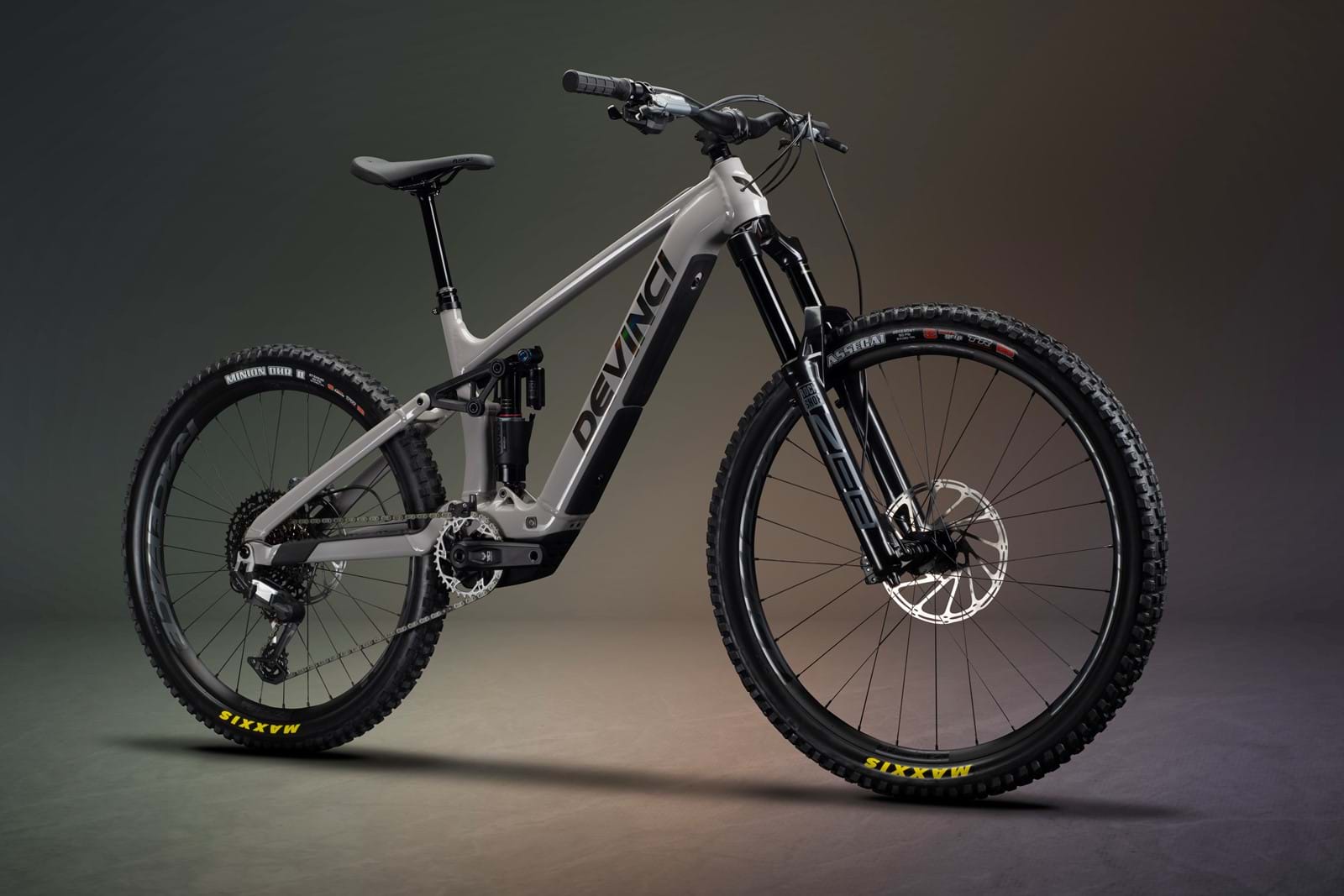

DevinciE-Spartan Lite Eagle 90 12s
- Motor
- Bosch Performance Line SX55-60 Nm; 600 W peak
- Battery
- 400 WhBosch CompactTube 400, integrated
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 21.7 kgManufacturer figure (size M, approximate)
Overview
The Devinci E-Spartan Lite Eagle 90 12s (US$7,899) is the entry build of the E-Spartan Lite: Bosch Performance Line SX (55-60 Nm) with 400 Wh, Rockshox Zeb Select 29 fork, Rockshox Vivid Select+ shock, SRAM Eagle 90 and SRAM Maven Bronze brakes. Claimed weight is 21.65 kg.
The E-Spartan Lite is Devinci's light-assist e-enduro bike: a made-in-Canada Optimum G04 6061-T6 aluminium frame with 165 mm of rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear).
It hides a Bosch Performance Line SX drive unit and a 400 Wh battery in the frame and comes with Devinci's lifetime frame warranty. Both builds use RockShox ZEB forks and Vivid shocks.
- Bosch Performance Line SX, 600 W peak
- 400 Wh integrated battery
- 165 mm rear / 170 mm fork, mixed wheels
- Made-in-Canada aluminium frame

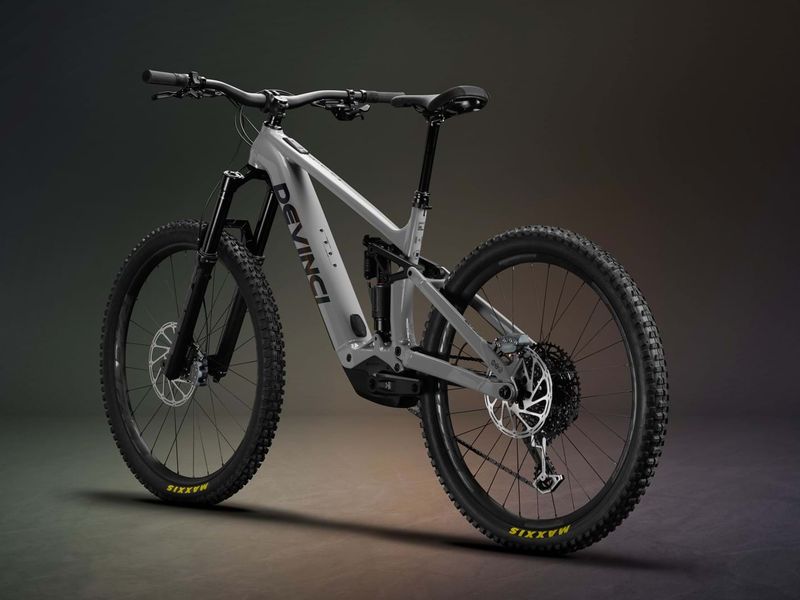

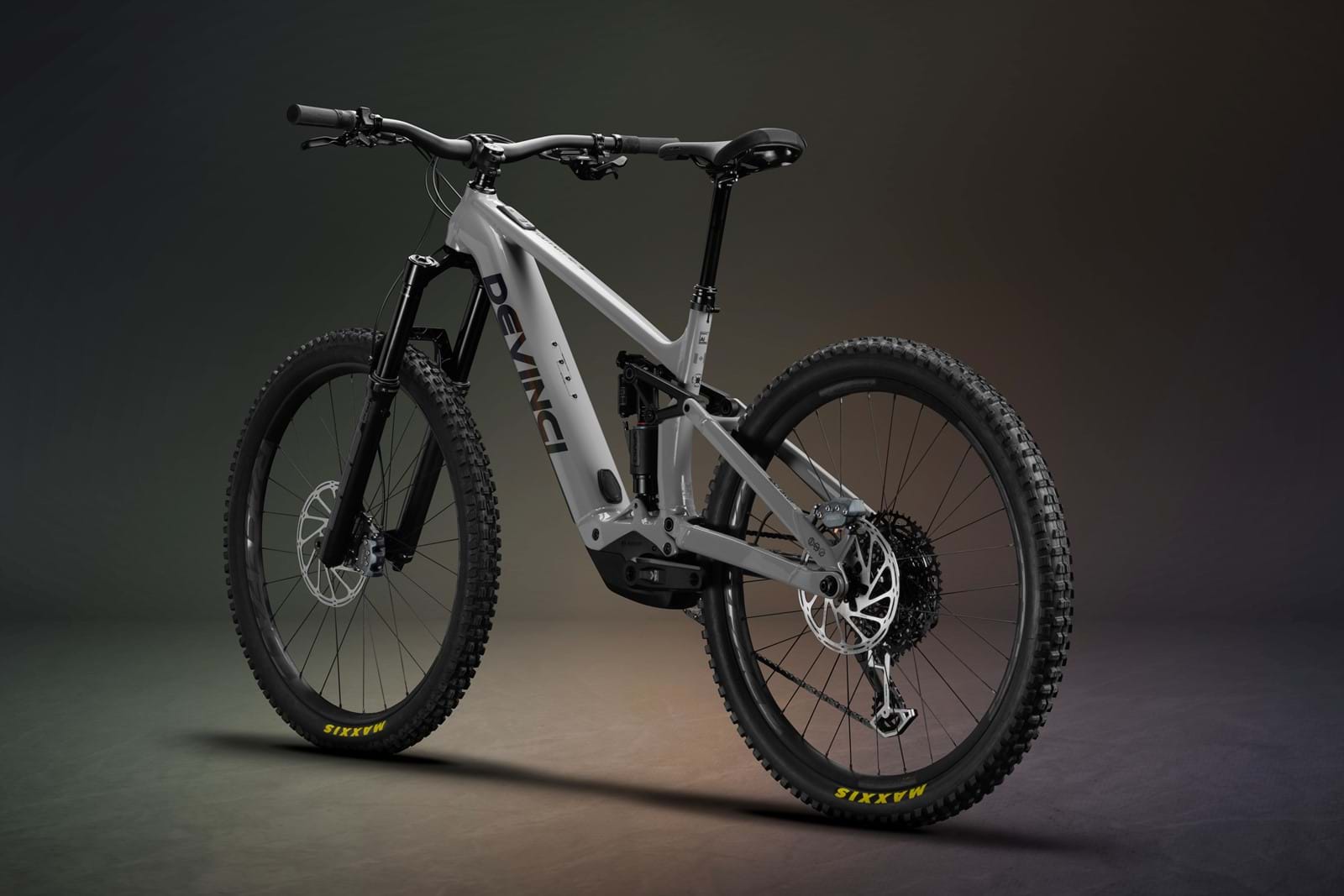

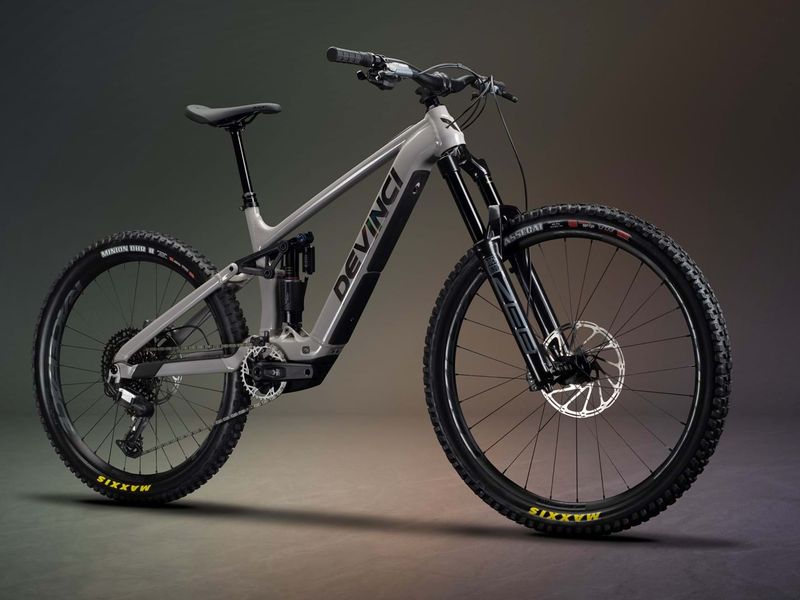

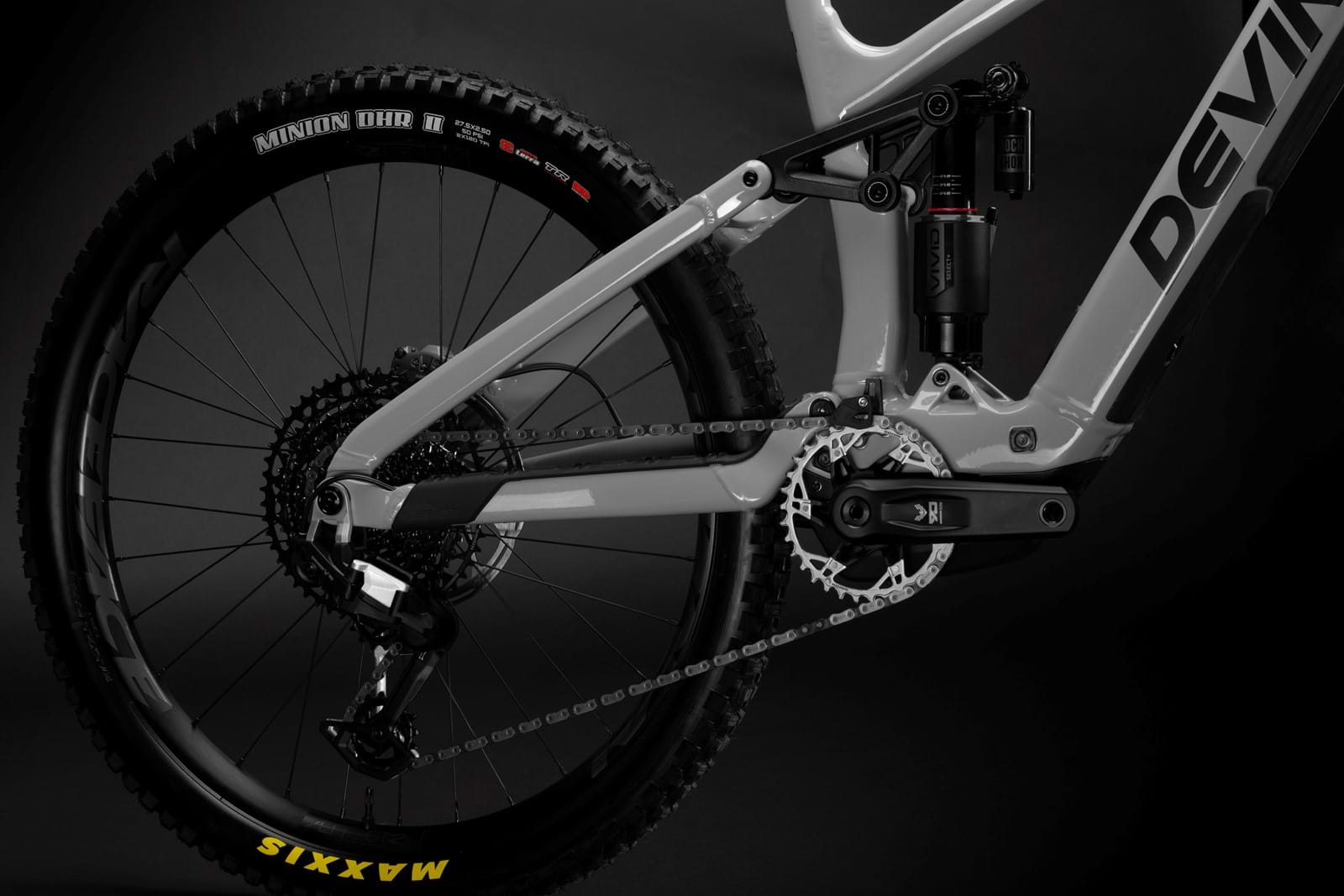

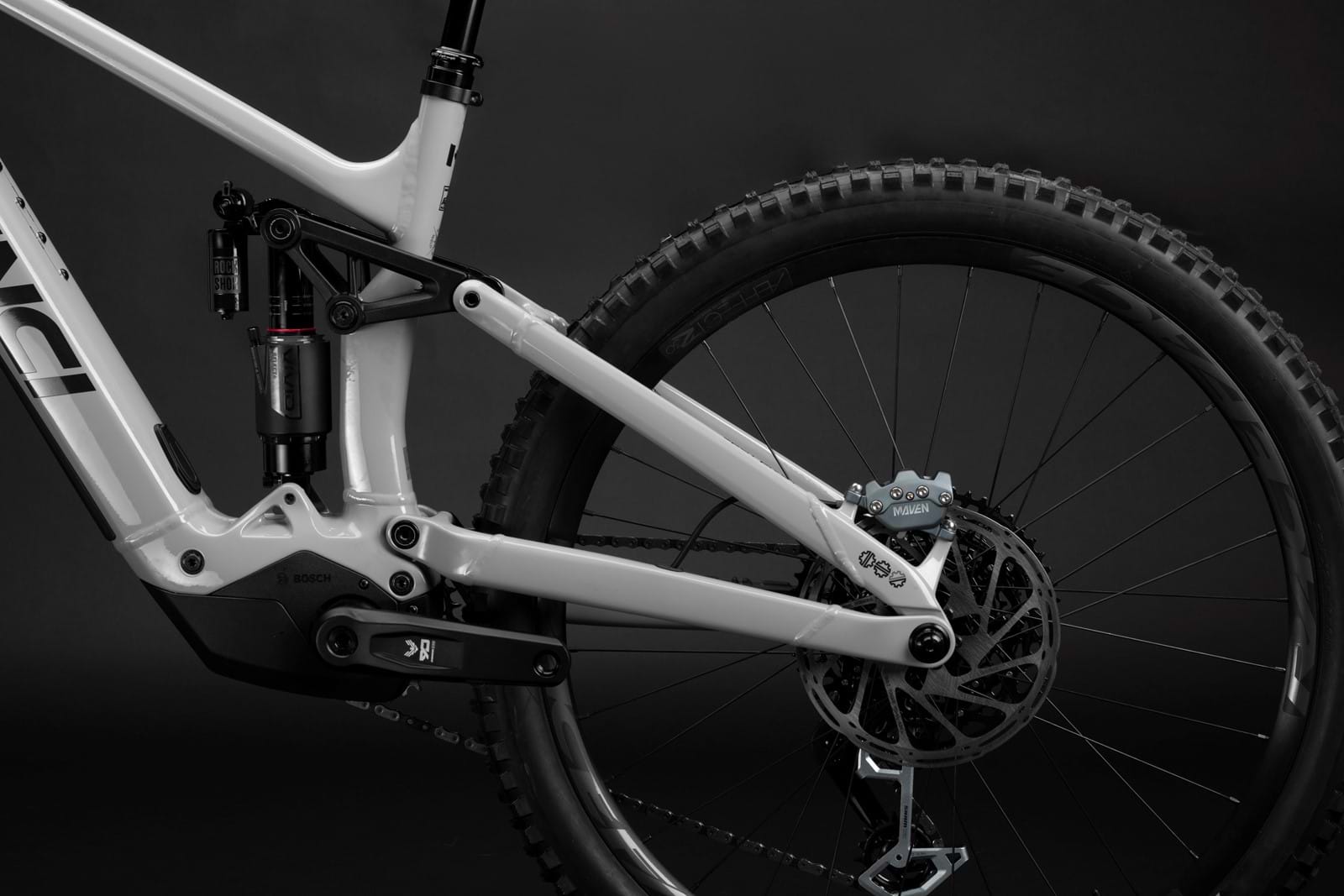

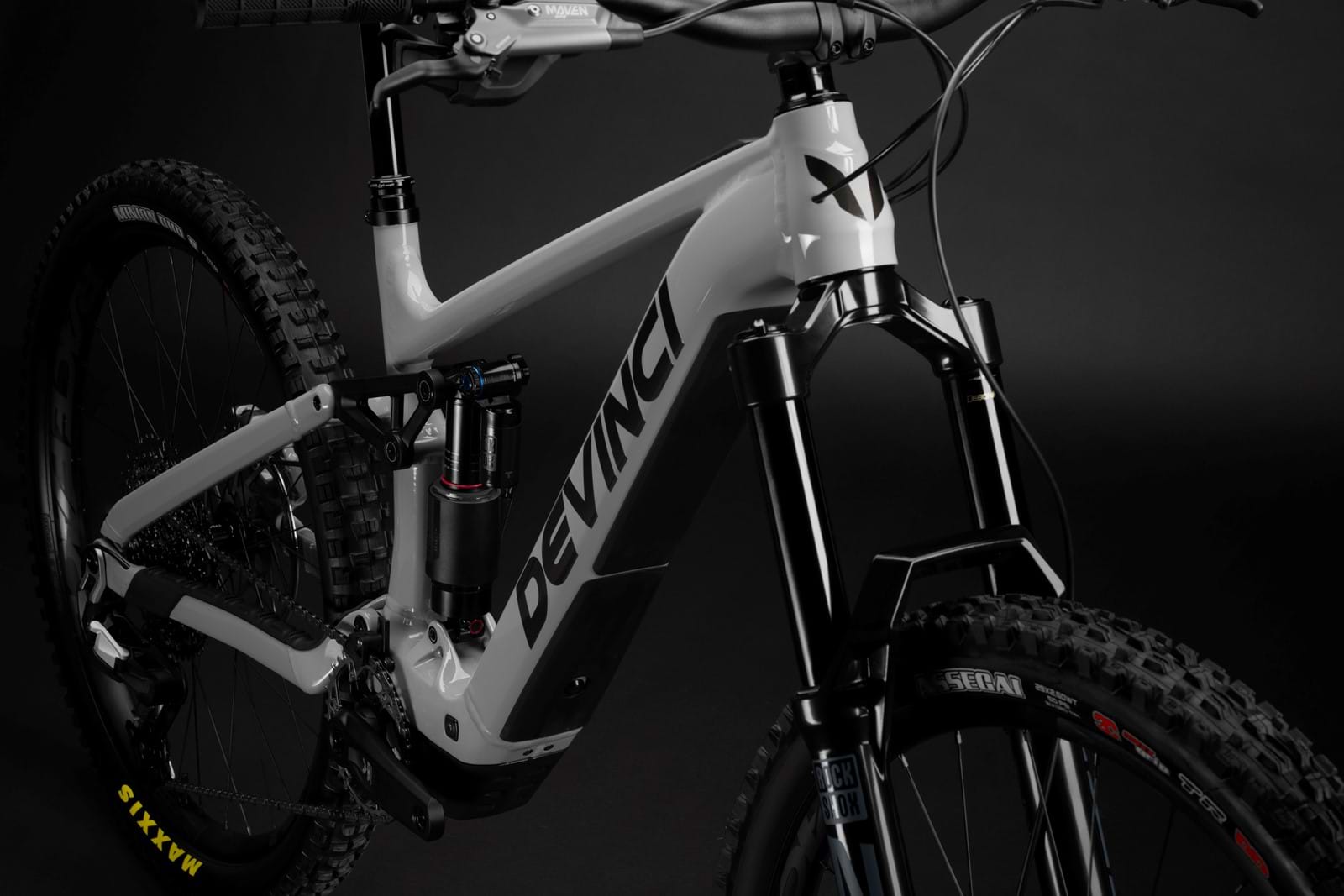

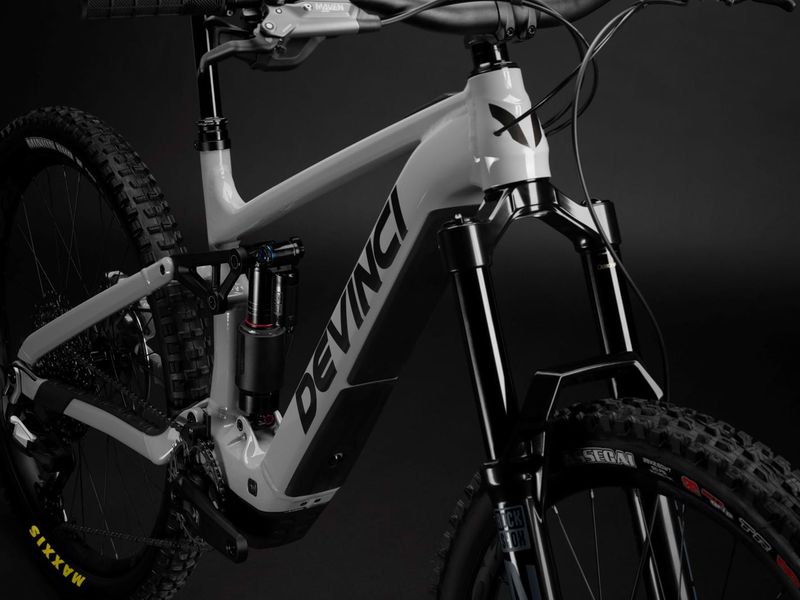

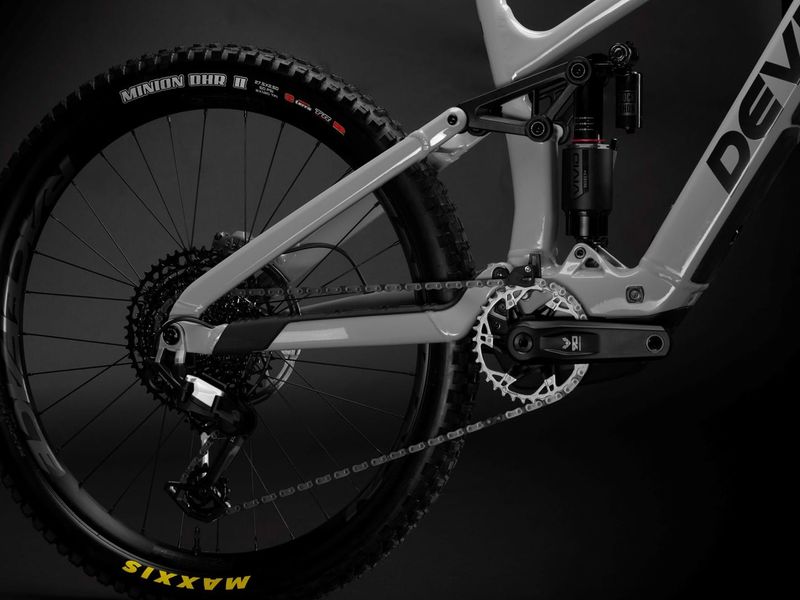

Gallery
Photos: Devinci
Full specifications
Frame & suspension
- Sizes
- M, L, XL
- Frame
- Aluminum Optimum G04 165mm
- Headset
- FSA Orbit | 1.5 | Zero Stack
- Seat Clamp
- Alloy CNC | 34.9mm
- Fork
- Rockshox Zeb Select 29 | DB | 170mm | 15x110 | 44 Offset

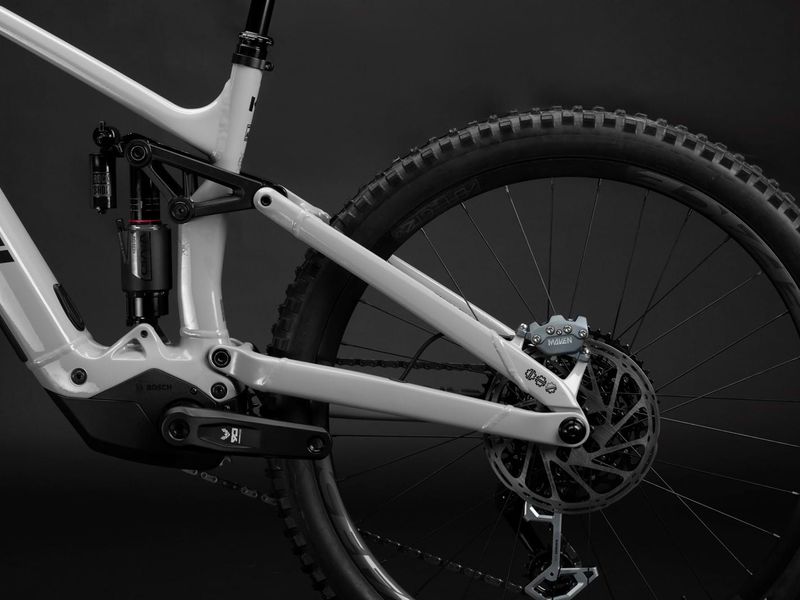

- Rear shock
- Rockshox Vivid Select+ | 205x65T
E-system
- Display
- BOSCH System controller BRC3100
- Motor
- Bosch Performance Line SX | 60NM | 600W
- Battery
- Bosch CompactTube 400 | 36V | 400 Wh
Drivetrain
- Rear derailleur
- SRAM Eagle 90 | 12s
- Rear Shifter
- SRAM Eagle 90 | 12s
- Crankarm
- SRAM Eagle 90 Bosch | 155mm
- Chainring
- Sram XX Eagle 34T Bosch EMTB
- Cassette
- SRAM XS1270 T-TYPE | 12s | 10-52T
- Chain
- SRAM Eagle 70
- Chain Guide
- Devinci Direct Mount
Brakes
- Front brake
- SRAM Maven Bronze
- Rear brake
- SRAM Maven Bronze
- Front Rotor
- SRAM Centerline | 220mm
- Rear Rotor
- SRAM Centerline | 200mm
Wheels & tyres
- Front Tire
- Maxxis Assegai | 29x2.5 | 3C | DD | TR | MaxxGrip
- Rear Tire
- Maxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra
- Front Wheel
- RaceFace Aeffect R30 | 29 | Boost110x15 | 30mm inner
- Rear Wheel
- RaceFace Aeffect R30 27.5 B148x12 HG | 30mm inner EMTB
Cockpit

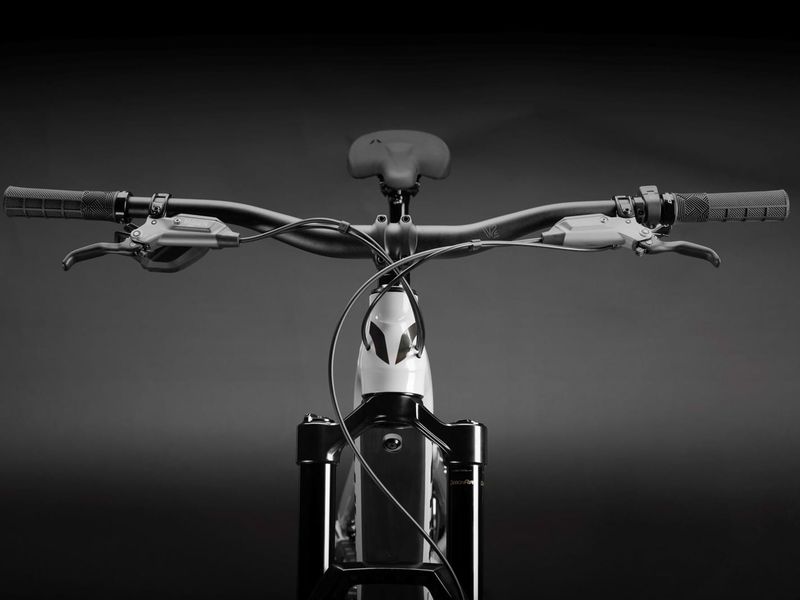

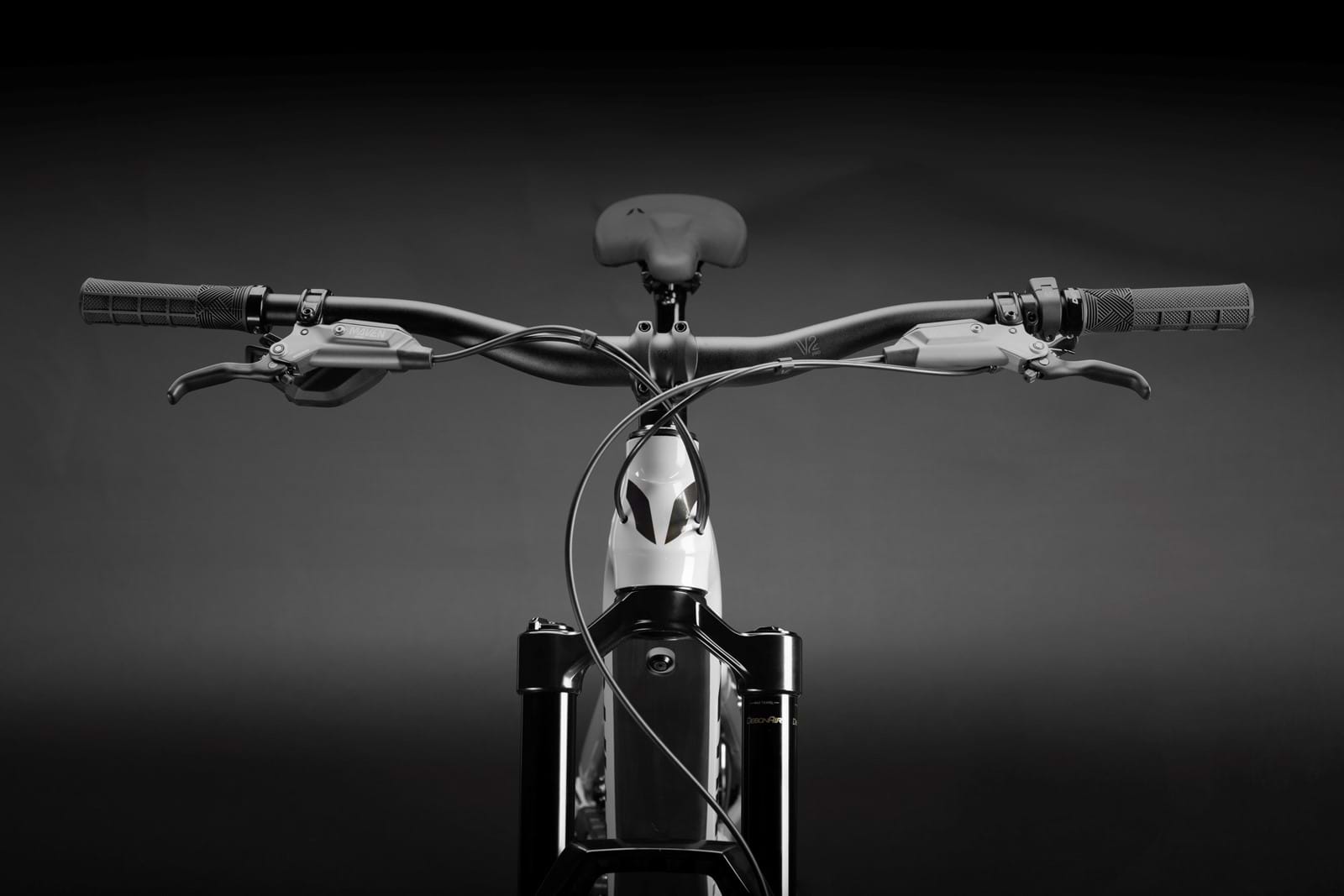

- Handlebar
- V2 Pro | B:35mm | R:30mm | W:800mm
- Stem
- V2 Pro | B:35mm | L:40mm | 0°
- Saddle
- SDG BELAIR Max eMTB
- Seatpost
- TranzX Dropper | 31.6mm
- Seatpost Lever
- TranzX
- Grips
- Devinci | w/lock-on
Other
- Rear tire clearance
- 27,5'' x 2.6”
- Rear hub spacing
- 12 x 148 Boost
- Max rear rotor size
- 220 mm
- Dropper post length
- M → 170 mm / L → 200 mm / XL → 230 mm
- Seatpost max insertion
- M → 270 mm / L → 300 mm / XL → 340 mm
- Headset
- Top ZS44 | Bottom ZS56
- Rear shock dimension
- Trunnion | 205 x 65 mm
- Fork dimensions
- Axle-to-Crown measurement 586 mm / Offset 44 mm
- Frame material
- Aluminium 6061-T6 | Optimum G04
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
E-Spartan Lite geometry
| Size | M | L | XL |
|---|---|---|---|
| ASeat tube | 420 mm | 460 mm | 495 mm |
| BSeat tube angle | 77.7° | 77.5° | 77.4° |
| CHead tube angle | 63.5° | 63.5° | 63.5° |
| DTop tube | 594 mm | 618 mm | 641 mm |
| EReach | 460 mm | 480 mm | 500 mm |
| FChainstay | 436 mm | 436 mm | 436 mm |
| GWheelbase | 1245 mm | 1269 mm | 1294 mm |
| HBB height | 355 mm | 355 mm | 355 mm |
| IStandover height | 745 mm | 745 mm | 745 mm |
| JStack | 618 mm | 627 mm | 636 mm |
| KHead tube | 105 mm | 115 mm | 125 mm |
| Rider height | 169-179 cm | 178-188 cm | 187-198 cm |
Source: Devinci.
E-Spartan Lite: builds compared
E-Spartan Lite range →| E-Spartan Lite Eagle 90 12s | E-Spartan Lite GX AXS 12s | |
|---|---|---|
| Price | $7,899 | $8,999 |
| Frame | Alloy | Alloy |
| Fork | Rockshox Zeb Select 29 | DB | 170mm | 15x110 | 44 Offset | Rockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset |
| Shock | Rockshox Vivid Select+ | 205x65T | Rockshox Vivid Ultimate | 205X65T |
| Derailleur | SRAM Eagle 90 | 12s | SRAM GX Eagle AXS | T-Type | 12s |
| Brakes | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | RaceFace Aeffect R30 | 29 | Boost110x15 | 30mm inner | — |
| Display | BOSCH System controller BRC3100 | BOSCH System controller BRC3100 |
| Weight | 21.7 kg | 21.5 kg |
E-Spartan Lite Eagle 90 12s: FAQ
How much does the Devinci E-Spartan Lite Eagle 90 12s cost?
$7,899 (US RRP (MSRP), excl. sales tax). The E-Spartan Lite range runs from $7,899 (E-Spartan Lite Eagle 90 12s) to $8,999 (E-Spartan Lite GX AXS 12s). Prices vary by country and dealer.
How much does the Devinci E-Spartan Lite Eagle 90 12s weigh?
Devinci quotes 21.7 kg. The lightest E-Spartan Lite build is the E-Spartan Lite GX AXS 12s at 21.5 kg.
What motor and battery does the Devinci E-Spartan Lite Eagle 90 12s have?
Bosch Performance Line SX (55-60 Nm; 600 W peak). 400 Wh battery — bosch CompactTube 400, integrated.
How much suspension travel does the Devinci E-Spartan Lite Eagle 90 12s have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Devinci E-Spartan Lite Eagle 90 12s come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the E-Spartan Lite Eagle 90 12s and the E-Spartan Lite GX AXS 12s?
They share the E-Spartan Lite frame platform and motor; the differences are in the parts — fork: Rockshox Zeb Select 29 | DB | 170mm | 15x110 | 44 Offset vs Rockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset; shock: Rockshox Vivid Select+ | 205x65T vs Rockshox Vivid Ultimate | 205X65T; derailleur: SRAM Eagle 90 | 12s vs SRAM GX Eagle AXS | T-Type | 12s; brakes: SRAM Maven Bronze vs SRAM Maven Silver; claimed weight: 21.7 kg vs 21.5 kg; price: $7,899 vs $8,999.
