CanyonTorque:ON CF 9
- Motor
- Shimano EP801
- Battery
- 800 WhRemovable aluminium-cased battery
- Travel F / R
- 180 / 175 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 25.3 kgSize M, manufacturer figure
Overview
The Torque:ON CF 9 (RRP €4,999) adds the Shimano EP801 motor, a Fox 38 Performance Elite GRIP X2 fork and Float X2 shock, SRAM S1000 Eagle AXS Transmission and Maven Silver brakes. Claimed weight is 25.26 kg.

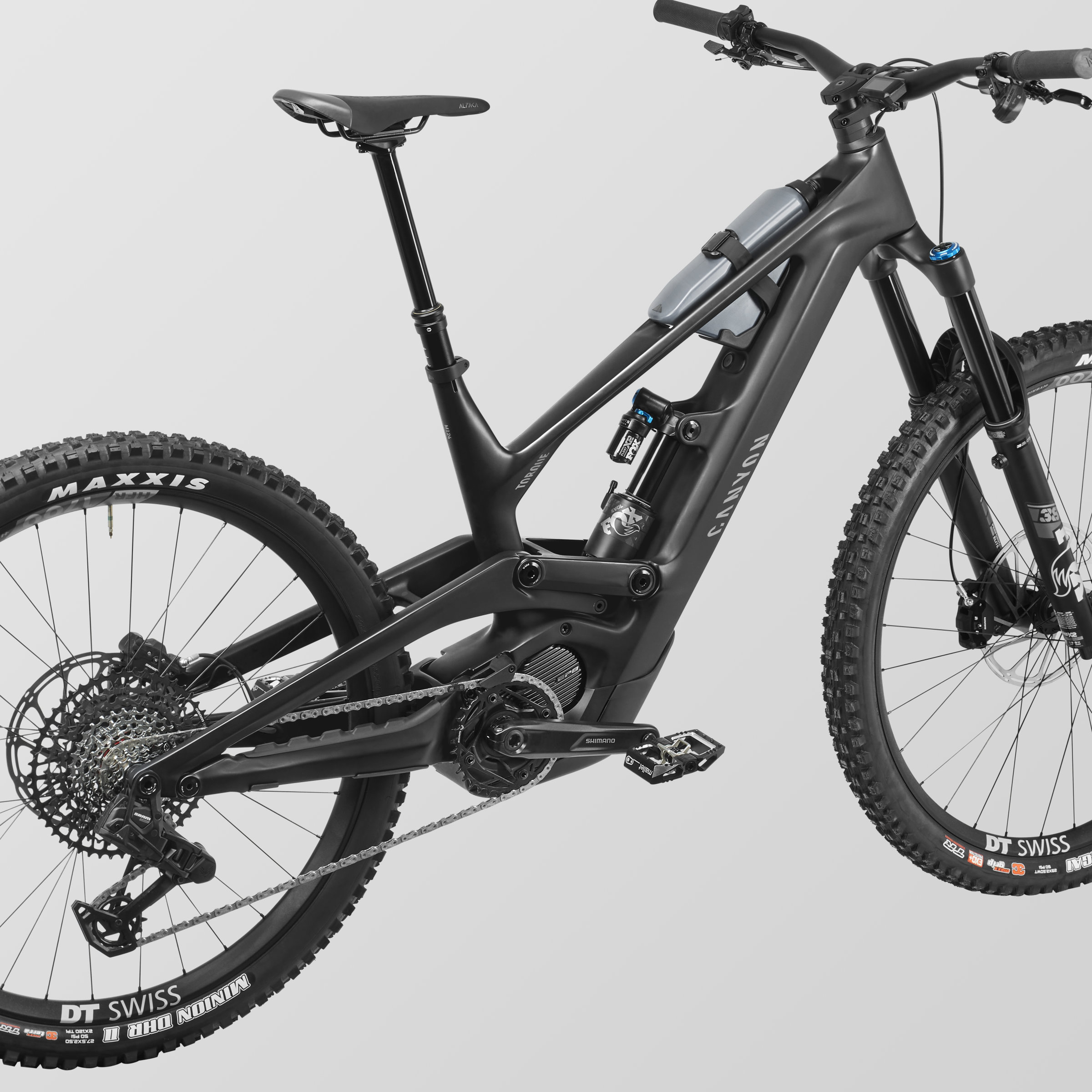

The Torque:ON is Canyon's long-travel gravity eMTB: a full-carbon frame with 175 mm of rear travel, a 180 mm fork and 29-inch wheels, with Shimano EP600 or EP801 power and a removable 800 Wh battery.
- 175 mm rear / 180 mm fork
- Shimano EP600 or EP801
- Removable 800 Wh battery
- Full-carbon frame, 29" wheels
Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Canyon Torque:ON CF — Axle dimension: 12x148 mm, Material: Carbon (CF)
- Rear Shock
- Fox Float X2 Performance — Fitting Length: 225X70, Rear Suspension Travel: 175
- Fork
- FOX 38 Performance Elite GRIP X2 — Stanchion Diameter: 38 mm, Travel: 180 mm, Offset: 44 mm
- Seatpost Clamp
- Canyon SC0001
E-system
- Motor
- Shimano EP801
- Battery
- SRAM Powerpack — Battery capacity: 800 Wh
- Battery
- Canyon BT010 — Battery capacity: 800 Wh
- Battery Charger
- Canyon Charger
Drivetrain
- Rear Derailleur
- SRAM S1000 Eagle AXS Transmission — Cage length: long
- Chainguard
- Canyon EP1189-01 Chain Guide Nut
- Chainguard
- Canyon GP0397-01 Chainguide
- Chainguard
- Canyon EP1539-01 Chain Guide
- Shift Lever
- SRAM AXS Pod
- Cassette
- SRAM XS-1275 — Number of sprockets: 12, Range: 10-52
- Crank
- Shimano Steps — Crank Length: 165,0, Chainring size: 34
- Chainring
- Shimano STEPS spider
- Chainring
- SRAM E-MTB chainring bolts
- Chainring
- Eagle Transmission E-MTB Chainring 104 BCD
- Chain
- SRAM GX Eagle Transmission
Brakes
- Brake
- SRAM Maven Silver — Number of pistons: 4
- Brake
- SRAM Maven Silver Stealth — Number of pistons: 4
- Brake Rotor
- SRAM Centerline
- Brake Rotor
- SRAM Centerline — Disc Size: 220 / 203
Wheels & tyres
- Front Wheel
- DT Swiss HFR1700 — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- DT Swiss HFR1700 — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- MAXXIS Assegai — Width: 2.5"
- Tyre
- MAXXIS Minion DHR II — Width: 2.5"
- Thru Axle
- Canyon Quixle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon:ON ST0031
- Grips
- Canyon Lock-On
- Saddle
- Fizik Gravita Alpaca X5
- Seatpost
- Iridium Dropper — Material: Aluminium (AL)
Other
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Torque:ON geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Body Height | ≤ 177 cm | 172 - 185 cm | 180 - 194 cm | ≥ 189 cm |
| ASeat Height | 648 - 778 mm | 693 - 813 mm | 737 - 858 mm | 762 - 883 mm |
| BSeat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| CTop Tube Length | 592 mm | 619 mm | 646 mm | 673 mm |
| DHead Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| EHead Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| FSeat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° |
| GChainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| HWheel Base | 1247 mm | 1276 mm | 1306 mm | 1335 mm |
| IStack | 639 mm | 648 mm | 657 mm | 666 mm |
| JReach | 450 mm | 475 mm | 500 mm | 525 mm |
| KStand-over Height | 738 mm | 745 mm | 765 mm | 777 mm |
| LBottom Bracket Offset | 32 mm | 32 mm | 32 mm | 32 mm |
| Stack+ | 756 mm | 774 mm | 783 mm | 792 mm |
| Reach+ | 434 mm | 460 mm | 485 mm | 510 mm |
Source: Canyon.
Torque:ON: builds compared
Torque:ON range →| Torque:ON CF 8 | Torque:ON CF 9 | |
|---|---|---|
| Price | €4,499 | €4,999 |
| Frame | Carbon | Carbon |
| Fork | RockShox ZEB | FOX 38 Performance Elite GRIP X2 |
| Shock | RockShox Vivid | Fox Float X2 Performance |
| Derailleur | Shimano Deore M6100 | SRAM S1000 Eagle AXS Transmission |
| Brakes | Shimano M6220 | SRAM Maven Silver |
| Wheels | Sunringle 309 Enduro Comp | DT Swiss HFR1700 |
| Weight | 25.1 kg | 25.3 kg |
Torque:ON CF 9: FAQ
How much does the Canyon Torque:ON CF 9 cost?
€4,999 (RRP Germany, VAT incl.). The Torque:ON range runs from €4,499 (Torque:ON CF 8) to €4,999 (Torque:ON CF 9). Prices vary by country and dealer.
How much does the Canyon Torque:ON CF 9 weigh?
Canyon quotes 25.3 kg. The lightest Torque:ON build is the Torque:ON CF 8 at 25.1 kg.
What motor and battery does the Canyon Torque:ON CF 9 have?
Shimano EP801. 800 Wh battery — removable aluminium-cased battery.
How much suspension travel does the Canyon Torque:ON CF 9 have?
180 mm at the fork and 175 mm at the rear, on 29" wheels.
What sizes does the Canyon Torque:ON CF 9 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Torque:ON CF 9 and the Torque:ON CF 8?
They share the Torque:ON frame platform; the differences are in the parts — fork: FOX 38 Performance Elite GRIP X2 vs RockShox ZEB; shock: Fox Float X2 Performance vs RockShox Vivid; derailleur: SRAM S1000 Eagle AXS Transmission vs Shimano Deore M6100; claimed weight: 25.3 kg vs 25.1 kg; price: €4,999 vs €4,499.
