CanyonGrand Canyon:ON AL 8
- Motor
- Bosch Performance Line CX85 Nm; 120 Nm with Bosch Performance Upgrade
- Battery
- 800 Wh600 Wh or 800 Wh Bosch PowerTube
- Travel F / R
- 120 / – mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 24.4 kgSize M, manufacturer figure

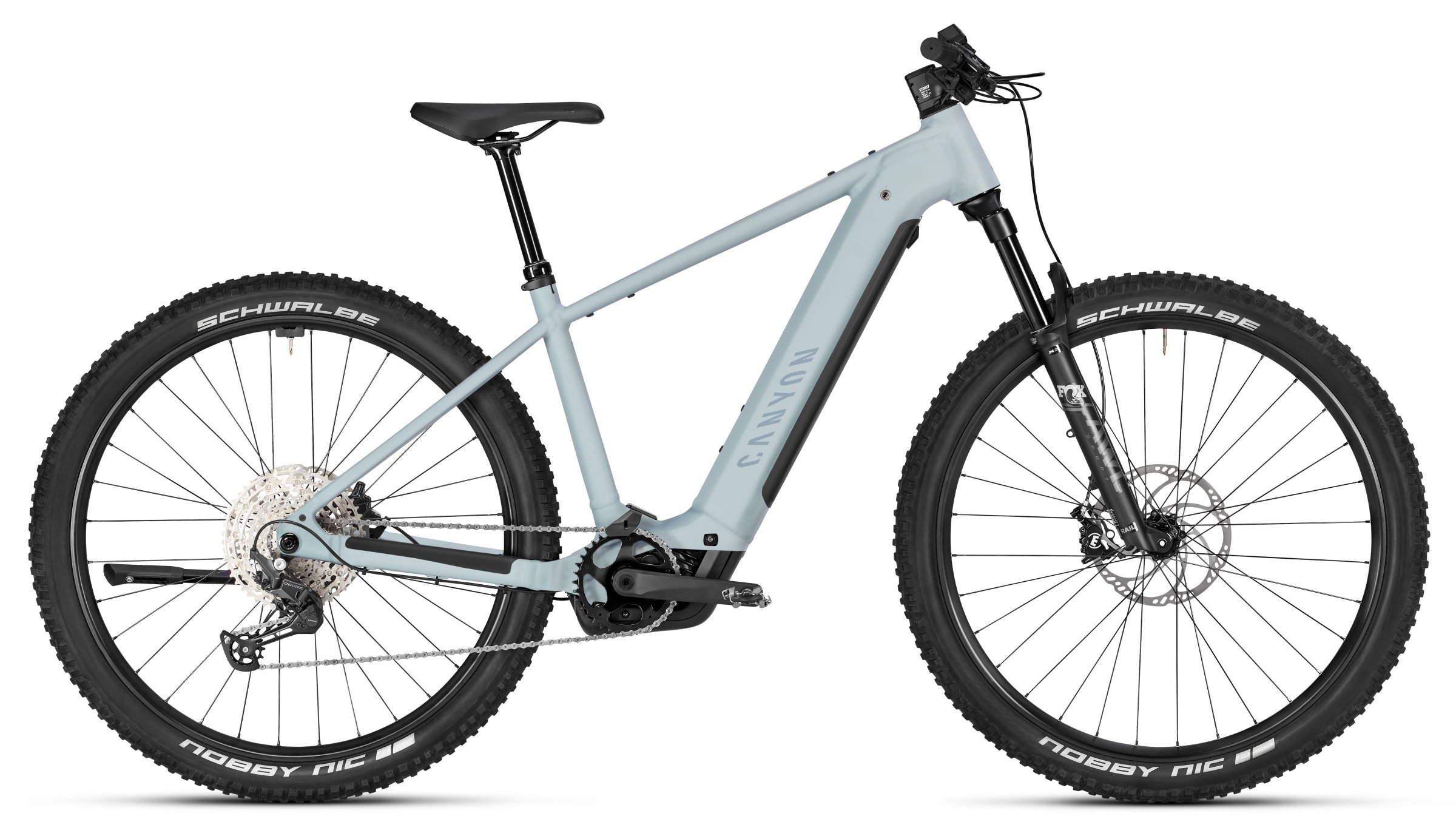

Overview
The Grand Canyon:ON AL 8 (from €3,499) upgrades to a 120 mm Fox 34 fork, Magura MT Thirty brakes and a dropper post, keeping the Bosch CX motor and 600/800 Wh battery options. Claimed weight is 24.38 kg.
The Grand Canyon:ON is Canyon's most affordable eMTB: an alloy hardtail with a 120 mm fork and 29-inch wheels, powered by the Bosch Performance Line CX motor and a 600 Wh or 800 Wh PowerTube battery.
- Alloy hardtail, 120 mm fork
- Bosch Performance Line CX
- 600 or 800 Wh battery
- From €2,799 (Germany)
Gallery
Photos: Canyon
Full specifications
Frame & suspension

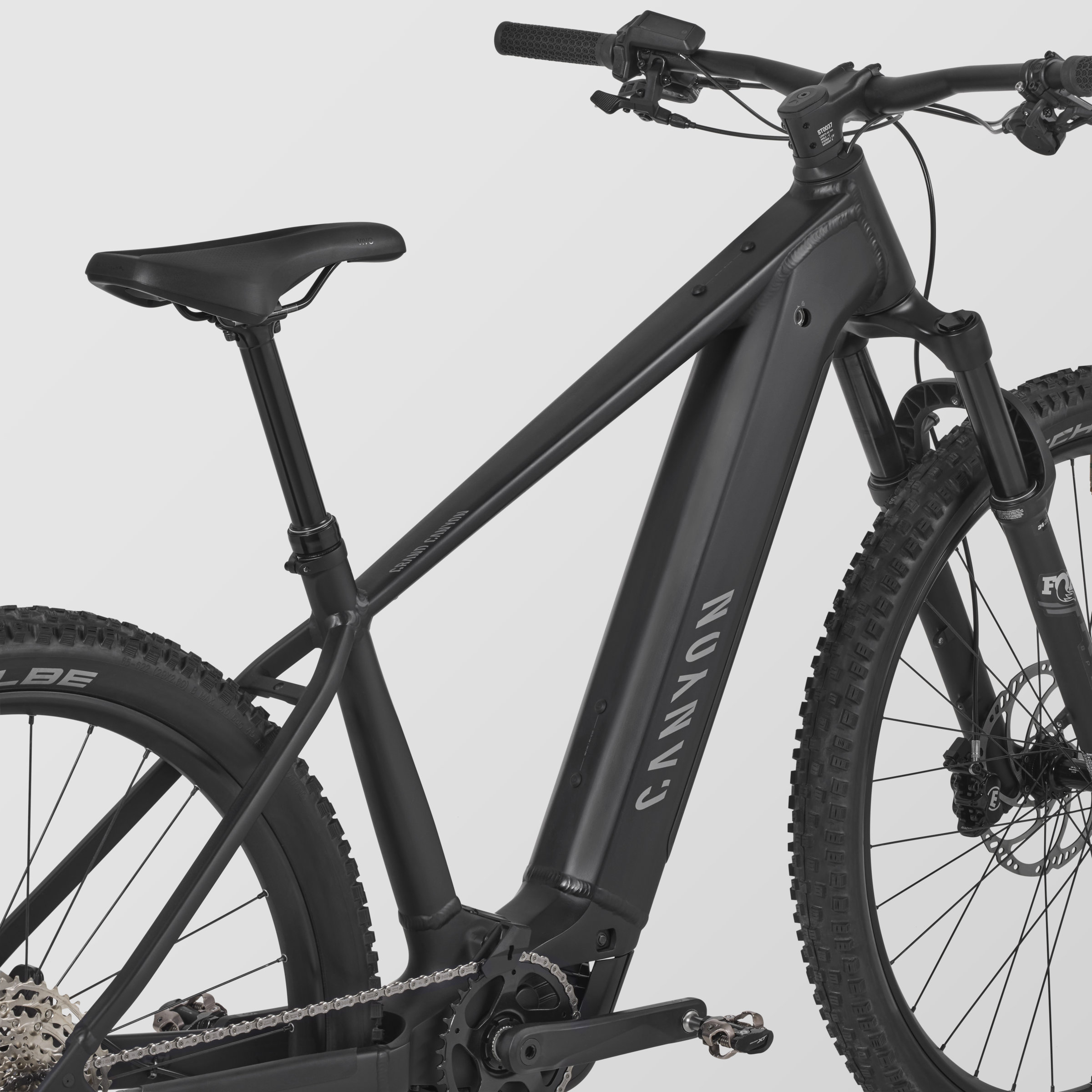

- Frame
- Canyon Grand Canyon:ON — Axle dimension: 12x148 mm, Material: Aluminium (AL)

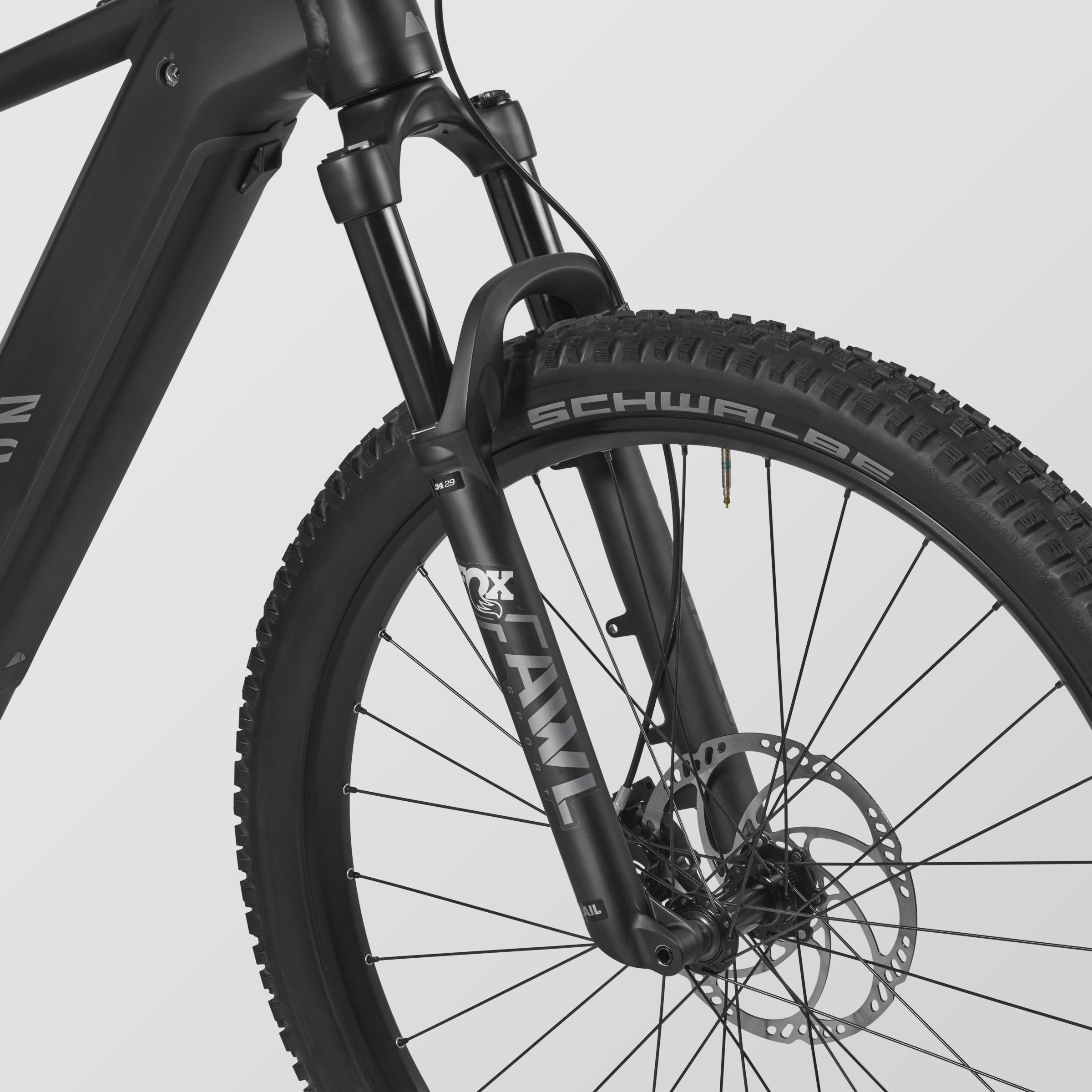

- Fork
- FOX 34 AWL — Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 120 mm, Offset: 51 mm
- Seatpost Clamp
- Canyon GP0446-01
E-system
- Motor
- Bosch Performance Line CX
- Battery
- Bosch PowerTube 600Wh — Battery capacity: 600 Wh / 800 Wh
- Battery
- Bosch PowerTube 800Wh — Battery capacity: 600 Wh / 800 Wh
- Display
- Bosch Purion 200 BRC3800
- Battery Charger
- Bosch 2A
Drivetrain
- Rear Derailleur
- Shimano Deore M6100, 12-Speed — Cage length: long
- Chainguard
- Canyon GP0480-01 slim
- Shift Lever
- Shimano Deore M6100, 12-Speed
- Cassette
- Shimano Deore M6100 — Number of sprockets: 12, Range: 10-51
- Crank
- FSA CK 220 — Crank Length: 170,0
- Chainring
- Samox EMS06
- Chain
- Shimano Deore M6100

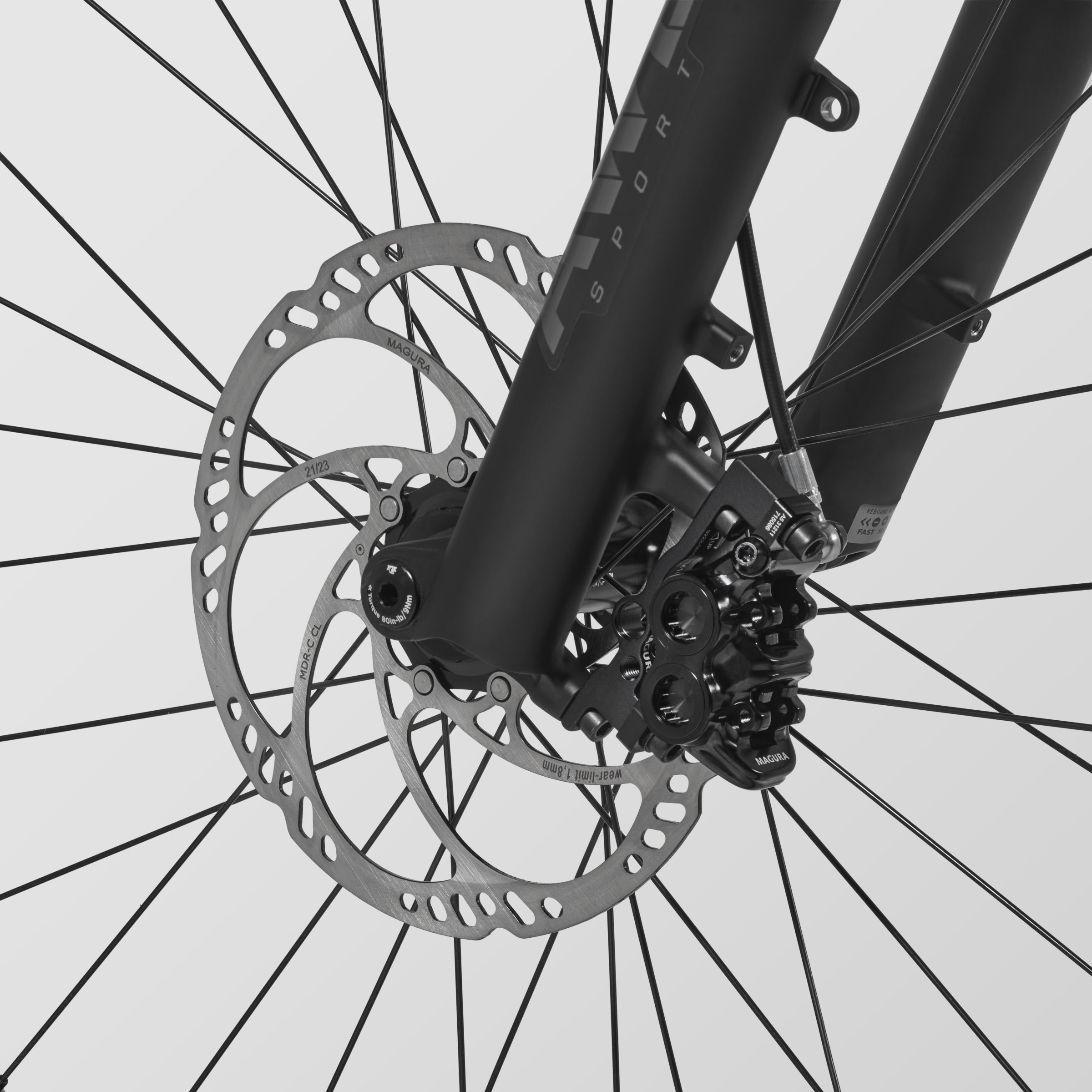

Brakes
- Brake
- Magura MT Thirty front brake — Number of pistons: 4
- Brake
- Magura MT Thirty rear brake — Number of pistons: 2
- Brake Rotor
- Magura MDR-C — Disc Size: 203 / 203
Wheels & tyres
- Front Wheel
- Alex Rims MD30 rim with Shimano TC500 front hub — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- Alex Rims MD30 rim with Shimano TC500 rear hub — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- Schwalbe Nobby Nic Performance 29" — Width: 2.6"
- Thru Axle
- Canyon GP0552 Rear Thru Axle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon Stem ST0037 — Material: Aluminium (AL), Stem Length: 60
- Handlebar
- Canyon HB0059-01 — Rise: 15 mm
- Grips
- Canyon Lock-On Grips
- Saddle
- Selle Royal Vivo Ergo
- Seatpost
- Canyon SP0081 — Material: Aluminium (AL)
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Grand Canyon:ON geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Body Height | ≤ 174 cm | 174 - 183 cm | 183 - 192 cm | ≥ 192 cm |
| ASeat Height | 662 - 841 mm | 687 - 866 mm | 727 - 906 mm | 767 - 946 mm |
| BSeat Tube Length | 415 mm | 440 mm | 480 mm | 520 mm |
| CTop Tube Length | 615 mm | 635 mm | 660 mm | 686 mm |
| DHead Tube Length | 130 mm | 130 mm | 150 mm | 175 mm |
| EHead Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| FSeat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| GChainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| HWheel Base | 1198 mm | 1218 mm | 1245 mm | 1275 mm |
| IStack | 662 mm | 662 mm | 680 mm | 703 mm |
| JReach | 419 mm | 439 mm | 458 mm | 478 mm |
| KStand-over Height | 805 mm | 811 mm | 842 mm | 868 mm |
| LBottom Bracket Offset | 59 mm | 59 mm | 59 mm | 59 mm |
Source: Canyon.
Grand Canyon:ON: builds compared
Grand Canyon:ON range →| Grand Canyon:ON AL 7 | Grand Canyon:ON AL 8 | |
|---|---|---|
| Price | €2,799 | €3,499 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCM34 Coil | FOX 34 AWL |
| Derailleur | Shimano Deore M6100 | Shimano Deore M6100 |
| Brakes | Shimano MT200 rear brake | Magura MT Thirty front brake |
| Wheels | Alex Rims MD30 rim with Shimano TC500 front hub | Alex Rims MD30 rim with Shimano TC500 front hub |
| Display | Bosch Purion 200 BRC3800 | Bosch Purion 200 BRC3800 |
| Weight | 25.2 kg | 24.4 kg |
Grand Canyon:ON AL 8: FAQ
How much does the Canyon Grand Canyon:ON AL 8 cost?
€3,499 (From; Germany, VAT incl. (depends on battery)). The Grand Canyon:ON range runs from €2,799 (Grand Canyon:ON AL 7) to €3,499 (Grand Canyon:ON AL 8). Prices vary by country and dealer.
How much does the Canyon Grand Canyon:ON AL 8 weigh?
Canyon quotes 24.4 kg. It is the lightest build of the Grand Canyon:ON.
What motor and battery does the Canyon Grand Canyon:ON AL 8 have?
Bosch Performance Line CX (85 Nm; 120 Nm with Bosch Performance Upgrade). 800 Wh battery — 600 Wh or 800 Wh Bosch PowerTube.
How much suspension travel does the Canyon Grand Canyon:ON AL 8 have?
120 mm at the fork, on 29" wheels.
What sizes does the Canyon Grand Canyon:ON AL 8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Grand Canyon:ON AL 8 and the Grand Canyon:ON AL 7?
They share the Grand Canyon:ON frame platform and motor; the differences are in the parts — fork: FOX 34 AWL vs SR Suntour XCM34 Coil; claimed weight: 24.4 kg vs 25.2 kg; price: €3,499 vs €2,799.
