Industry NineSector AL System
$1,399 US list price per wheelset (industrynine.com); EU store shows FX-converted prices only
- Wheel size
- 29"
- Inner width
- 28.5 mm
- Hub
- Hydra2 System, 870 points POE
- Rim
- Aluminum (6069 Hollow Bead)
- Spokes
- Industry Nine alloy System spokes
- Weight
- 1,779 g29" wheelset, Boost front and rear, claimed
Overview
Industry Nine Sector AL System: aluminum trail wheelset with Hydra2 System hubs (870 points POE), 28.5mm internal rim width, 29", 1779g (29" set). $1,399 per wheelset.
Built for trail riding, a Hollow Bead aluminum wheel system tuned for everyday reliability, balanced handling, and all-around performance. The Sector Aluminum is Industry Nine's trail wheel line in the 2026 "One Roof" lineup, built around extruded 6069 Hollow Bead aluminium rims and hubs machined in Asheville, NC. Every wheel line is offered on three build platforms: SYSTEM (Hydra2 System hub with I9 alloy System Spokes), CLASSIC (Hydra2 hub, Sapim J-bend spokes) and 1/1 (1/1 hub, Sapim J-bend spokes).
The SYSTEM build uses the Hydra2 System hub with 870 points of engagement (0.41°) and Industry Nine alloy System spokes. The rim has a 28.5mm internal width and comes in 29" with 28h & 32h drillings; wheels are built to order with 12x148 or 12x157 rear spacing, 6-bolt or Centerlock rotors and HG, Micro Spline or XD drivers.
- Hydra2 System hub: 870 points engagement, 0.41°
- Aluminum rim, 28.5mm internal width, 29"
- 1779g per 29" wheelset (claimed)
- Hand built to order in Asheville, NC; 12x157 rear spacing available
Gallery
Full specifications

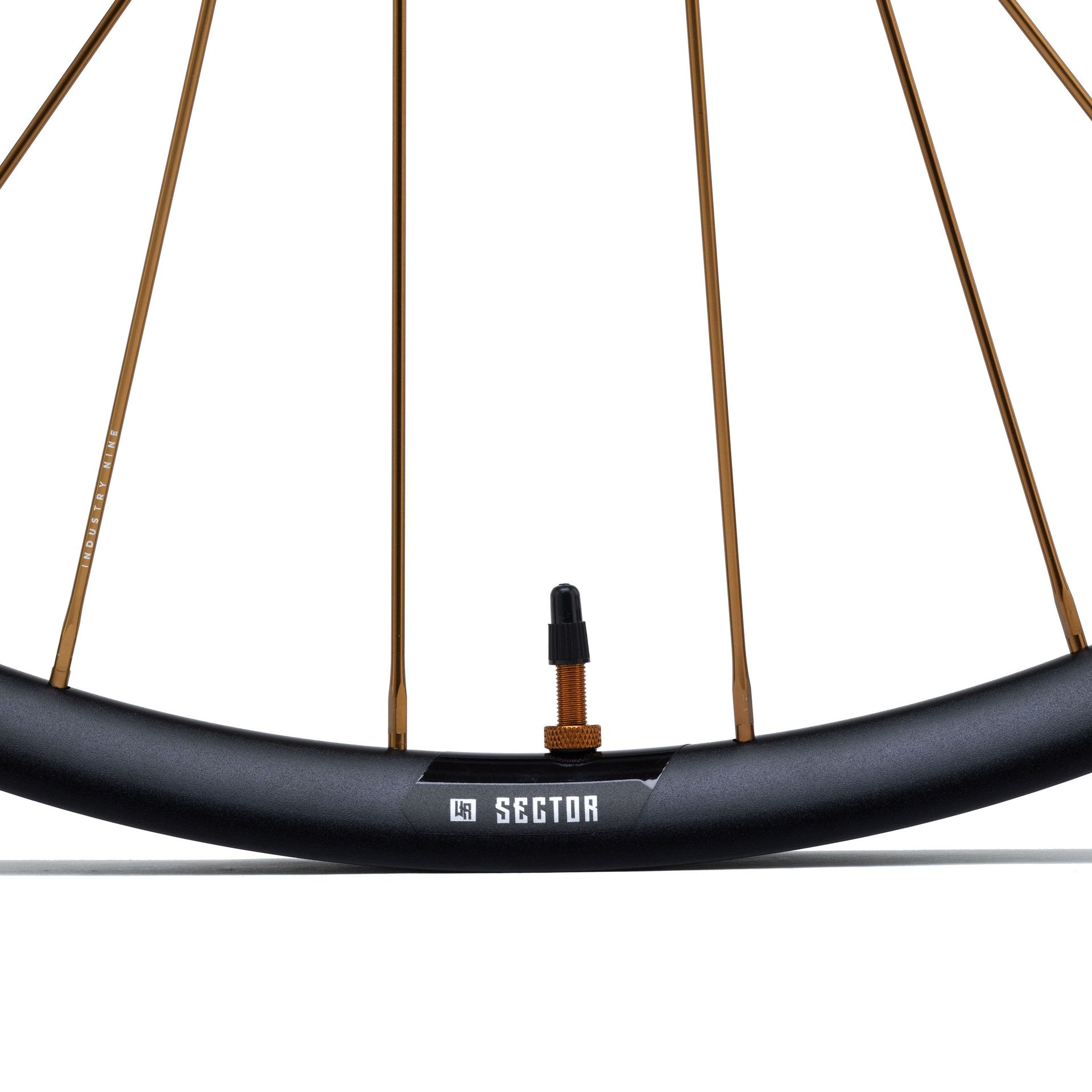

Rim
- Material
- Aluminum
- Size
- 29"
- Hole count
- 28h & 32h
- Internal width
- 28.5mm
- Rim depth
- 21.3mm
- ERD
- 598mm
- Rim weight
- 510g
General
- Build platform
- SYSTEM
- Hub / spoke colours
- Black, Bronze, Gold, Orange, Purple, Red, Silver

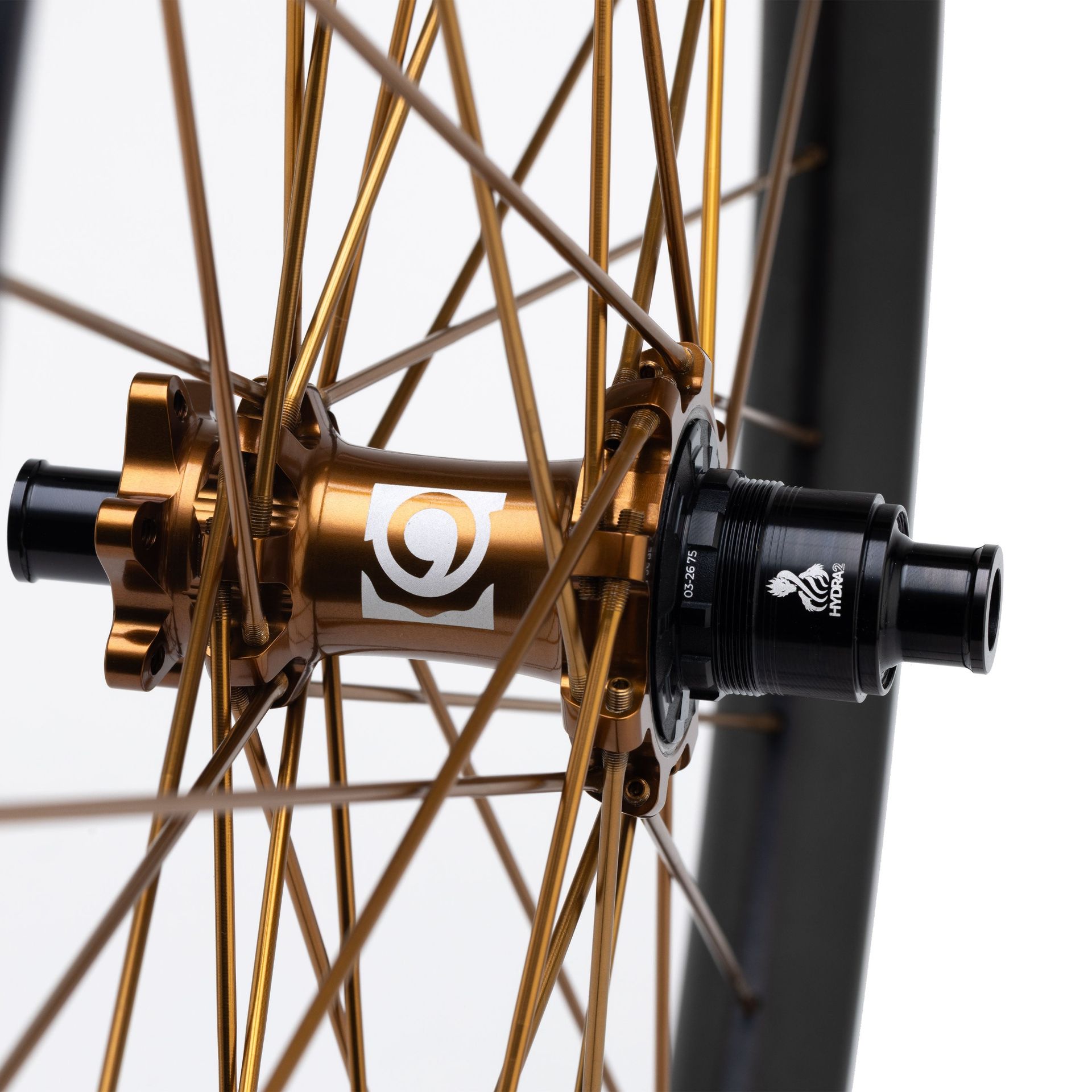

Hub
- Hub model
- Hydra2 System
- Points of engagement
- 870 points
- Engagement angle
- 0.41°
Spokes
- Spokes
- Industry Nine alloy System spokes
Compatibility
- Front spacing
- 15 x 110, 15 x 110 RS TC
- Rear spacing
- 12 x 148, 12 x 157
- Brake mount
- 6 Bolt, Centerlock
- Freehub driver
- HG, MS (Micro Spline), XD
Weight
- 29" Front
- 808g
- 29" Rear
- 971g
- 29" Wheelset
- 1779g
- Weight note
- Claimed; measured with Boost hubs front and rear
Manufacturer specification — Industry Nine. Specs and prices can change; check with the brand or your dealer.
Industry Nine Sector versions compared
| Sector CR System | Sector CR Classic | Sector CR 1/1 | Sector AL System | Sector AL Classic | Sector AL 1/1 | |
|---|---|---|---|---|---|---|
| Price | $2,199 | $1,799 | $1,549 | $1,399 | $999 | $799 |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29" |
| Inner width | 29 mm | 29 mm | 29 mm | 28.5 mm | 28.5 mm | 28.5 mm |
| Hub | Hydra2 System, 870 points POE | Hydra2 J-bend, 870 points POE | 1/1 J-bend (1/1 Mountain), 90 points POE | Hydra2 System, 870 points POE | Hydra2 J-bend, 870 points POE | 1/1 J-bend (1/1 Mountain), 90 points POE |
| Rim | Carbon (WR1 Convergence, hand-laid) | Carbon (WR1 Convergence, hand-laid) | Carbon (WR1 Convergence, hand-laid) | Aluminum (6069 Hollow Bead) | Aluminum (6069 Hollow Bead) | Aluminum (6069 Hollow Bead) |
| Spokes | Industry Nine alloy System spokes | Sapim J-bend (steel) spokes | Sapim J-bend (steel) spokes | Industry Nine alloy System spokes | Sapim J-bend (steel) spokes | Sapim J-bend (steel) spokes |
| Weight | 1,605 g | 1,697 g | 1,720 g | 1,779 g | 1,870 g | 1,893 g |
| E-bike rated | — | — | — | — | — | — |
Industry Nine Sector AL System: FAQ
How much does the Industry Nine Sector AL System cost?
$1,399 (US list price per wheelset (industrynine.com); EU store shows FX-converted prices only). Prices vary by country and retailer.
How much does the Industry Nine Sector AL System weigh?
Industry Nine quotes 1,779 g (29" wheelset, Boost front and rear, claimed).
Is the Industry Nine Sector AL System suitable for e-bikes?
Industry Nine does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Industry Nine Sector AL System?
Wheel size: 29"; Inner width: 28.5 mm; Hub: Hydra2 System, 870 points POE; Rim: Aluminum (6069 Hollow Bead); Spokes: Industry Nine alloy System spokes.
What other versions of the Industry Nine Sector are there?
Sector CR System ($2,199), Sector CR Classic ($1,799), Sector CR 1/1 ($1,549), Sector AL Classic ($999), Sector AL 1/1 ($799).
