Industry NineFuse CR System
$2,199 US list price per wheelset (industrynine.com); EU store shows FX-converted prices only
- Wheel size
- 29" / 27.5"
- Inner width
- 33 mm
- Hub
- Hydra2 System, 870 points POE
- Rim
- Carbon (WR1 Convergence, hand-laid)
- Spokes
- Industry Nine alloy System spokes
- E-bike specific
- Yes
- Weight
- 1,938 g29" wheelset, Boost front and rear, claimed
Overview
Industry Nine Fuse CR System: e-bike specific carbon eMTB wheelset with Hydra2 System hubs (870 points POE), 33mm internal rim width, 29" / 27.5", 1938g (29" set). $2,199 per wheelset.
Built for e-bike riding, a Convergence carbon wheel system designed to handle sustained torque, added weight, and repeated load. The Fuse Carbon is Industry Nine's e-bike wheel line in the 2026 "One Roof" lineup, built around hand-laid WR1 carbon rims made in Kamloops, BC and hubs machined in Asheville, NC. Every wheel line is offered on three build platforms: SYSTEM (Hydra2 System hub with I9 alloy System Spokes), CLASSIC (Hydra2 hub, Sapim J-bend spokes) and 1/1 (1/1 hub, Sapim J-bend spokes).
The SYSTEM build uses the Hydra2 System hub with 870 points of engagement (0.41°) and Industry Nine alloy System spokes. The rim has a 33mm internal width and comes in 29" / 27.5" with 28h & 32h drillings; wheels are built to order with 12x148 or 12x157 rear spacing, 6-bolt or Centerlock rotors and HG, Micro Spline or XD drivers. Industry Nine says Fuse "wasn't adapted for e-bike loads. It was engineered for them from the first version."
- E-bike specific: designed for sustained torque, added weight and repeated load

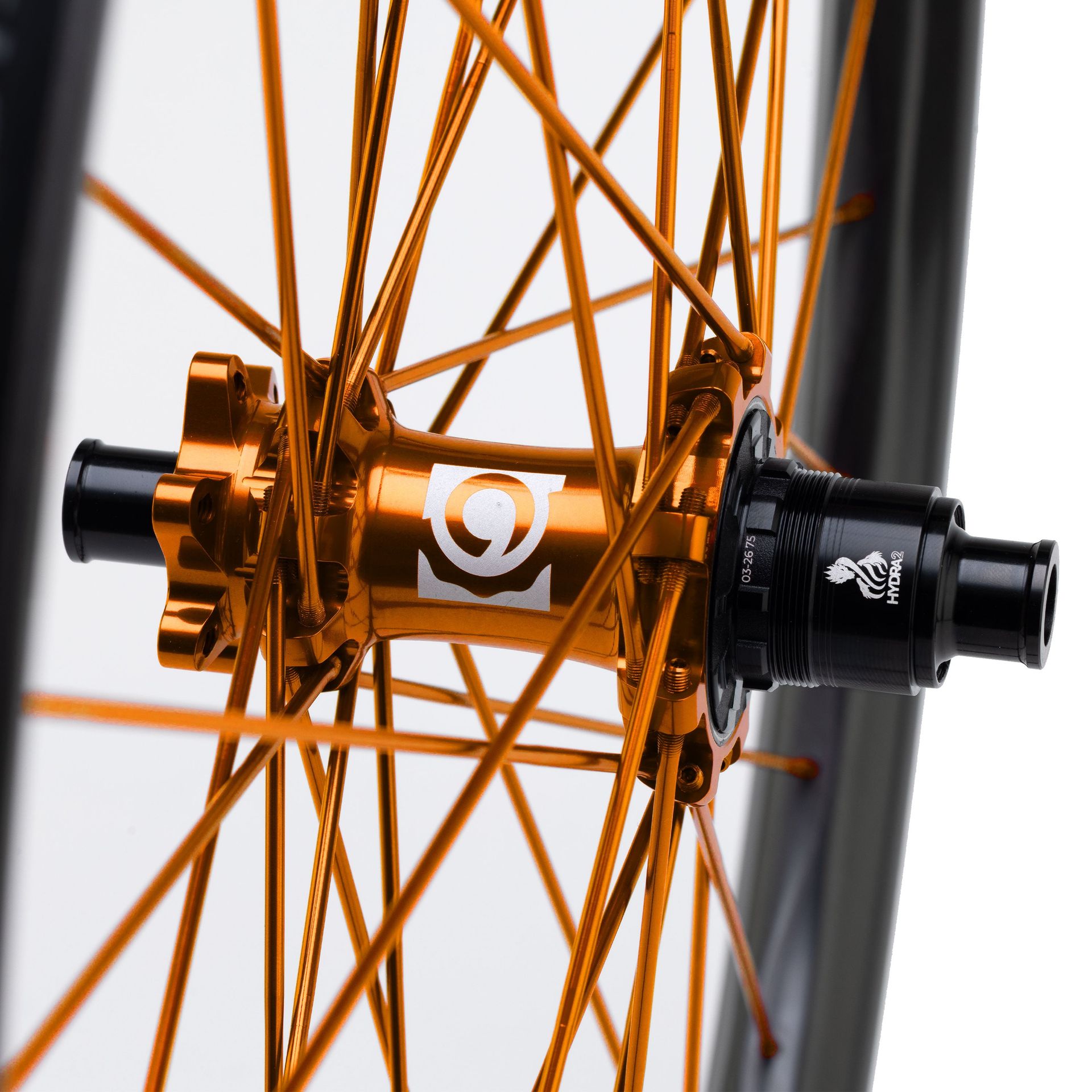

- Hydra2 System hub: 870 points engagement, 0.41°
- Carbon rim, 33mm internal width, 29" / 27.5"
- 1938g per 29" wheelset (claimed)
- Hand built to order in Asheville, NC; 12x157 rear spacing available
Gallery
Full specifications
Rim
- Material
- Carbon
- Size
- 27.5" & 29"
- Hole count
- 28h & 32h
- Internal width
- 33mm
- Rim depth
- 18mm (29") / 21mm (27.5")
- ERD
- 27.5": 562mm | 29": 604mm
- Rim weight
- 27.5": 566g (32h) | 29": 579g (28h & 32h)
General
- Intended use
- Enduro, aggressive trail, and technical riding
- Build platform
- SYSTEM
- Hub / spoke colours
- Black, Bronze, Gold, Orange, Purple, Red, Silver
Hub
- Hub model
- Hydra2 System
- Points of engagement
- 870 points
- Engagement angle
- 0.41°
Spokes
- Spokes
- Industry Nine alloy System spokes
Compatibility
- Front spacing
- 15 x 110, 15 x 110 (20mm Hub), 15 x 110 RS TC, 20 x 110 Boost
- Rear spacing
- 12 x 148, 12 x 157
- Brake mount
- 6 Bolt, Centerlock
- Freehub driver
- HG, MS (Micro Spline), XD
Weight
- 29" Front
- 897g
- 29" Rear
- 1041g
- 27.5" Front
- 871g
- 27.5" Rear
- 1015g
- 29" Wheelset
- 1938g
- 29" / 27.5" Wheelset
- 1912g
- 27.5" Wheelset
- 1886g
- Weight note
- Claimed; measured with Boost hubs front and rear
Manufacturer specification — Industry Nine. Specs and prices can change; check with the brand or your dealer.
Industry Nine Fuse versions compared
| Fuse CR System | Fuse CR Classic | Fuse CR 1/1 | |
|---|---|---|---|
| Price | $2,199 | $1,799 | $1,549 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 33 mm | 33 mm | 33 mm |
| Hub | Hydra2 System, 870 points POE | Hydra2 J-bend, 870 points POE | 1/1 J-bend (1/1 Mountain), 90 points POE |
| Rim | Carbon (WR1 Convergence, hand-laid) | Carbon (WR1 Convergence, hand-laid) | Carbon (WR1 Convergence, hand-laid) |
| Spokes | Industry Nine alloy System spokes | Sapim J-bend (steel) spokes | Sapim J-bend (steel) spokes |
| E-bike specific | Yes | Yes | Yes |
| Weight | 1,938 g | 2,043 g | 2,066 g |
Industry Nine Fuse CR System: FAQ
How much does the Industry Nine Fuse CR System cost?
$2,199 (US list price per wheelset (industrynine.com); EU store shows FX-converted prices only). Prices vary by country and retailer.
How much does the Industry Nine Fuse CR System weigh?
Industry Nine quotes 1,938 g (29" wheelset, Boost front and rear, claimed).
Is the Industry Nine Fuse CR System suitable for e-bikes?
Yes — Industry Nine lists it as e-bike rated or e-bike specific.
What are the key specs of the Industry Nine Fuse CR System?
Wheel size: 29" / 27.5"; Inner width: 33 mm; Hub: Hydra2 System, 870 points POE; Rim: Carbon (WR1 Convergence, hand-laid); Spokes: Industry Nine alloy System spokes; E-bike specific: Yes.
What other versions of the Industry Nine Fuse are there?
Fuse CR Classic ($1,799), Fuse CR 1/1 ($1,549).
