Cane CreekTigon
No EUR/GBP RRP published (canecreek.com sells in USD/Americas only); official US store price USD 699.99.
- Spring
- Coil + air (RAMP tube)
- Damping
- DB twin-tube, HSC/LSC/LSR
- Rear travel
- 130–160 mm
- Mounts
- Standard & Trunnion
- Weight
- 441 g (no spring)
- Weight
- 441 g210 mm, without spring, varies by size, claimed
Overview
Tigon is Cane Creek's air-charged coil shock for 130–160 mm trail and enduro bikes, 441 g (210, without spring); USD 699.99 in the US store.

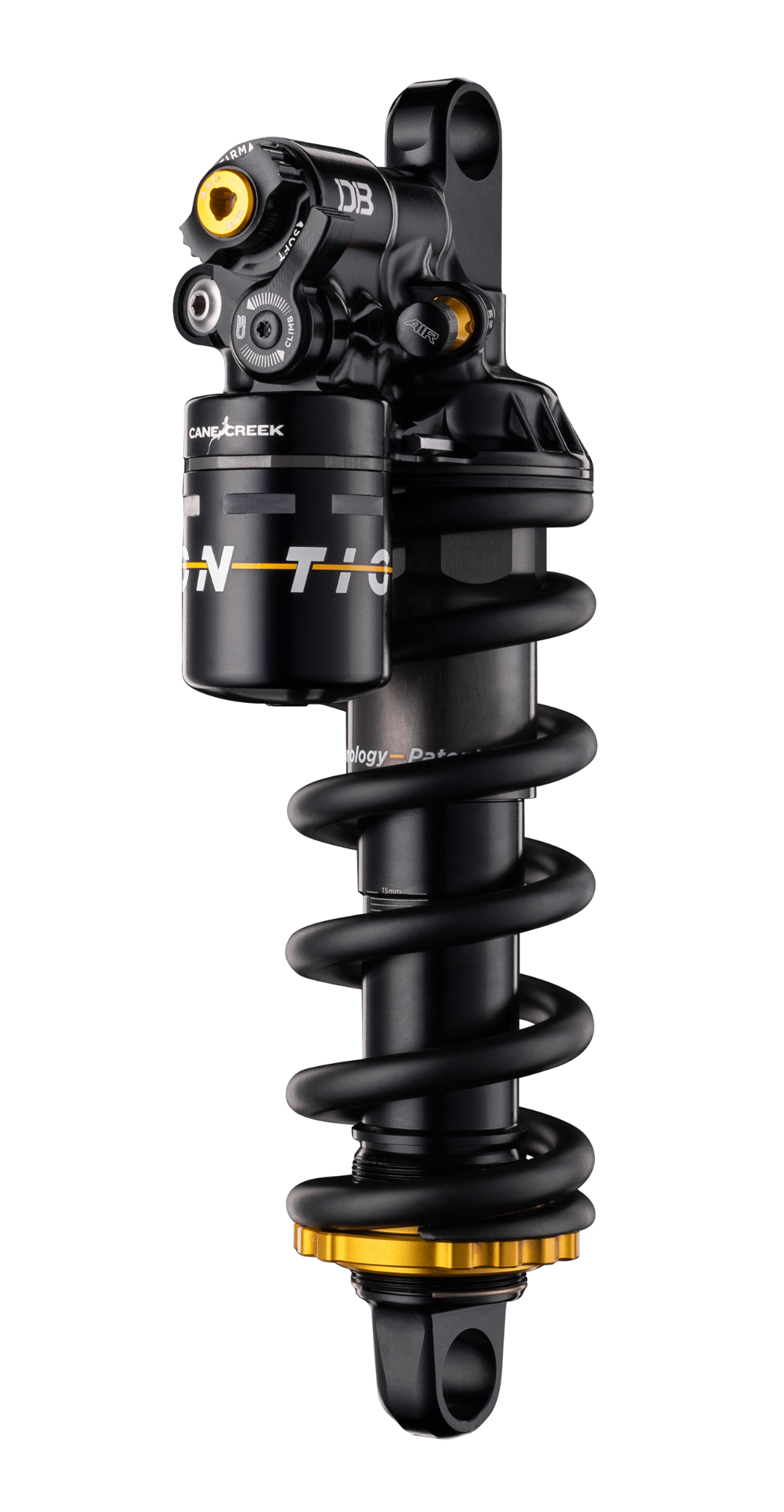

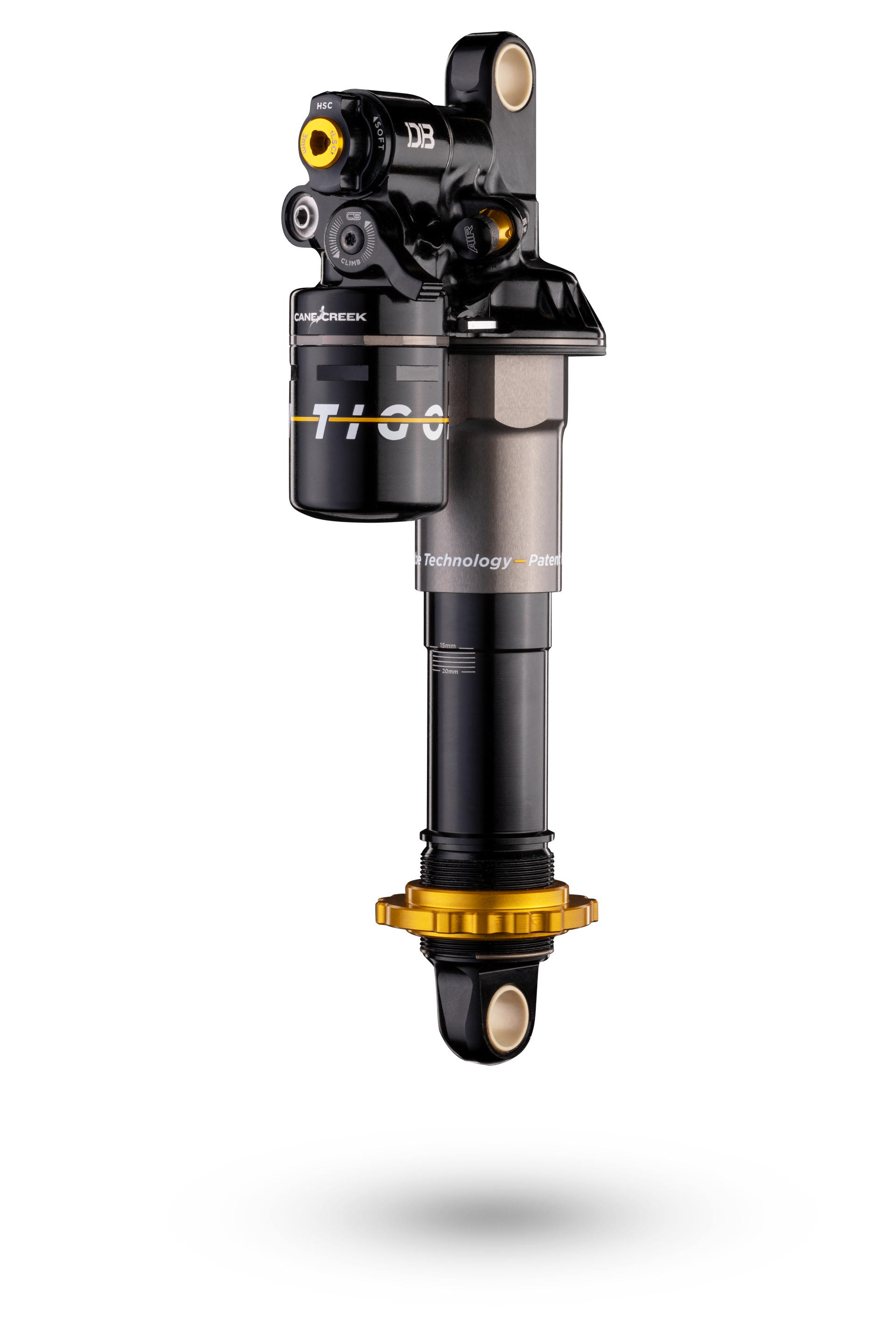

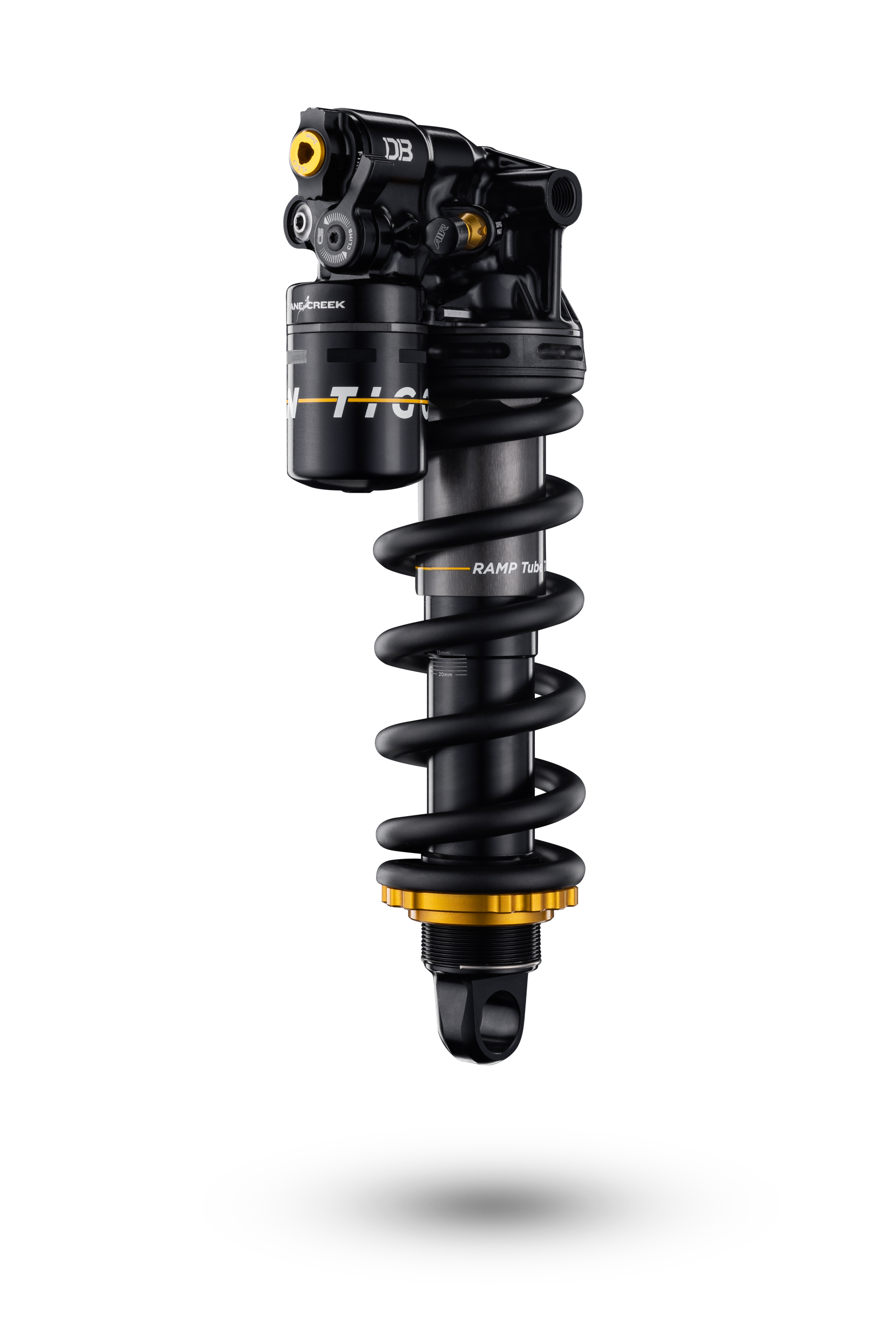

Tigon is Cane Creek's air-charged coil shock, which the brand calls the world's only shock combining coil sensitivity with progressive air support. It tracks and grips like a coil, while air in the RAMP tube adds big-hit and bottom-out support; removing air gives a plusher, more ground-hugging feel.
It is optimised for trail and enduro bikes with 130–160 mm rear travel and uses DB twin-tube damping with independent high- and low-speed compression, low-speed rebound and a two-position Climb Switch. Cane Creek says it is significantly stronger than a standard coil shock, suiting clevis/yoke-driven frames.
- Air-charged coil: coil feel with tunable air progression
- Optimised for 130–160 mm rear travel
- Independent HSC/LSC, LSR, 2-position Climb Switch
- 12.7 mm shaft, strong for clevis/yoke frames
- Linear VALT springs only
Gallery
Full specifications
Damper
- Damping
- DB Twin Tube Technology
- Adjustments
- RAMP tube, independent HSC & LSC, LSR, 2-position Climb Switch
- Shaft
- 12.7 mm (1/2")
Spring
- Spring compatibility
- Cane Creek linear-rate VALT springs only (no progressive or third-party springs)
Compatibility
- Sizes
- Standard: 210x50–55, 230x60–65; Trunnion: 185x50–55, 205x60–65
- Rear travel
- Optimised for 130–160 mm
General
- Weight
- 441 g (210, without spring, varies by size)
- Manufacturing
- Designed, tested and hand-assembled in Fletcher, NC
- Warranty
- Limited 2-year
Manufacturer specification — Cane Creek. Specs and prices can change; check with the brand or your dealer.
Cane Creek Tigon: FAQ
How much does the Cane Creek Tigon weigh?
Cane Creek quotes 441 g (210 mm, without spring, varies by size, claimed).
Is the Cane Creek Tigon suitable for e-bikes?
Cane Creek does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Cane Creek Tigon?
Spring: Coil + air (RAMP tube); Damping: DB twin-tube, HSC/LSC/LSR; Rear travel: 130–160 mm; Mounts: Standard & Trunnion; Weight: 441 g (no spring).
