Cane CreekDBcoil IL
No EUR/GBP RRP published (canecreek.com sells in USD/Americas only); official US store price USD 549.99.
- Spring
- Coil (VALT)
- Damping
- Twin-tube, HSC/HSR/LSC/LSR
- Rear travel
- 120–140 mm
- Mounts
- Standard & Trunnion
- Weight
- approx. 280 g (no spring)
- Weight
- 280 g210 mm, without spring, varies by size, claimed
Overview
Coil IL (DBcoil IL) is Cane Creek's compact inline coil shock for 120–140 mm bikes, approx. 280 g without spring; USD 549.99 in the US store.
The Coil IL (DBcoil IL) is what Cane Creek calls the world's most compact and lightweight fully adjustable coil shock, designed for bikes with 120–140 mm rear travel. It gives short-travel bikes more downhill capability and a plusher, more planted feel than small air shocks, with a progressive spring mimicking the end-stroke ramp of an air shock.
Damping is twin-tube with independent high- and low-speed compression and rebound plus a Climb Switch. Cane Creek does not recommend it for clevis-style suspension designs and states it is not compatible with Specialized Stumpjumper and Turbo Levo models.
- Lightest fully adjustable coil shock (approx. 280 g without spring)
- For bikes with 120–140 mm rear travel
- Twin-tube: HSC, HSR, LSC, LSR + Climb Switch
- Not recommended for clevis-driven frames; not for Turbo Levo

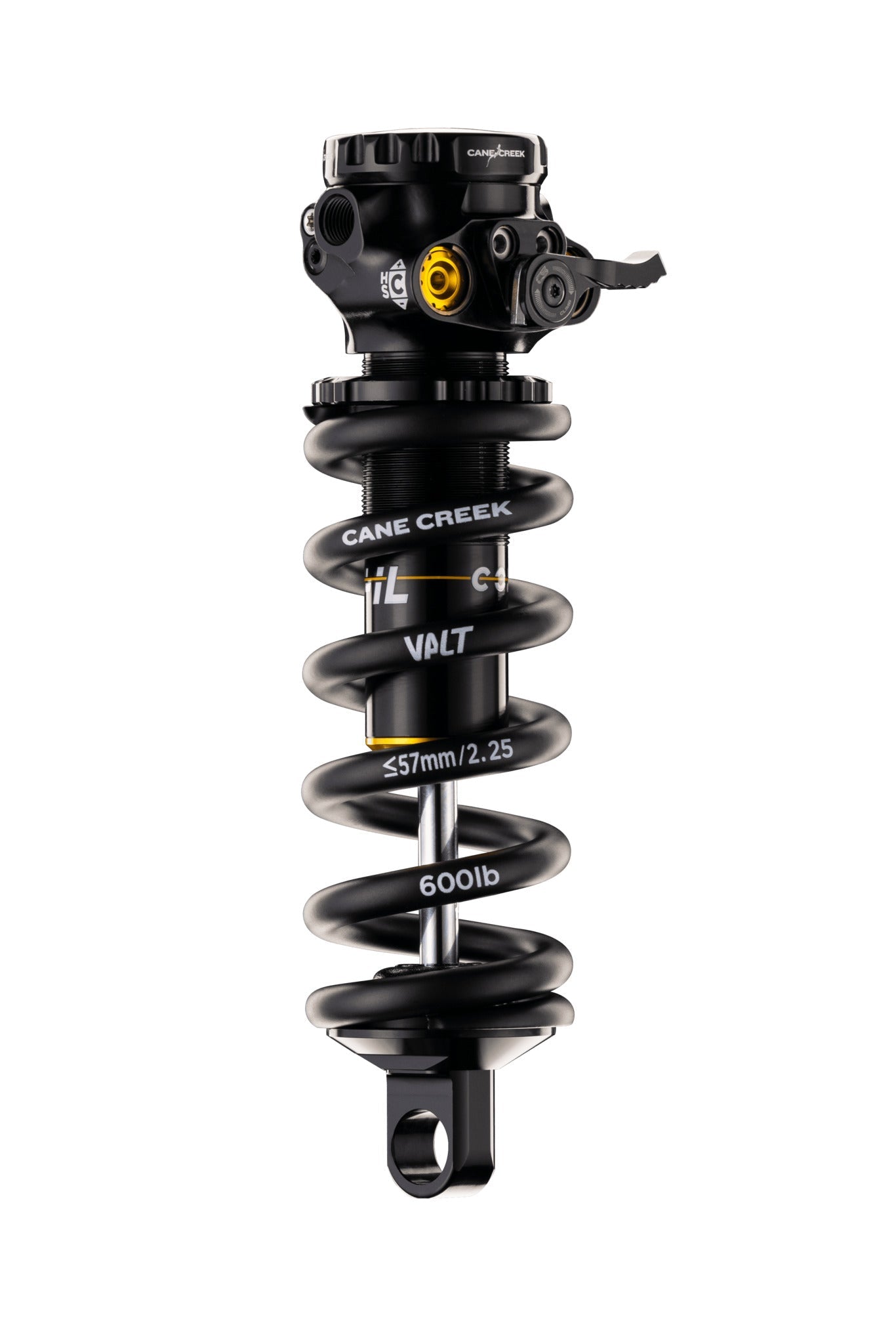

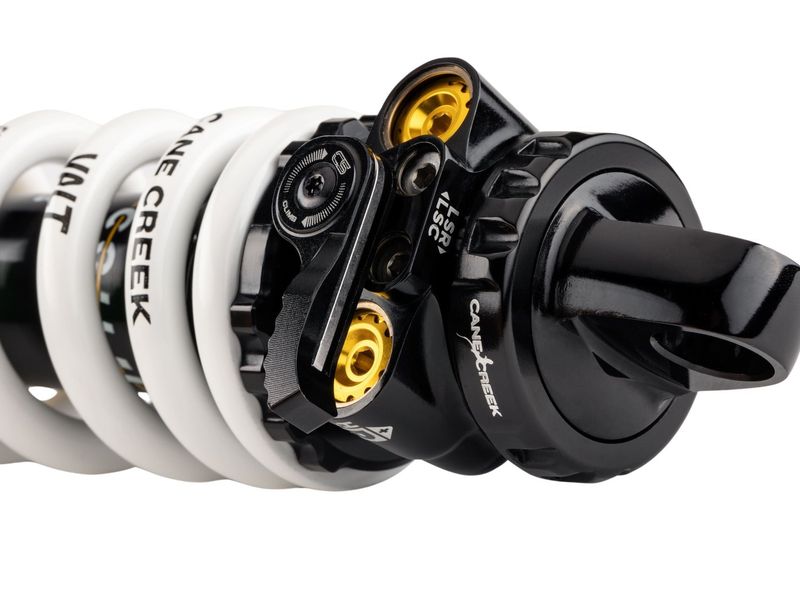

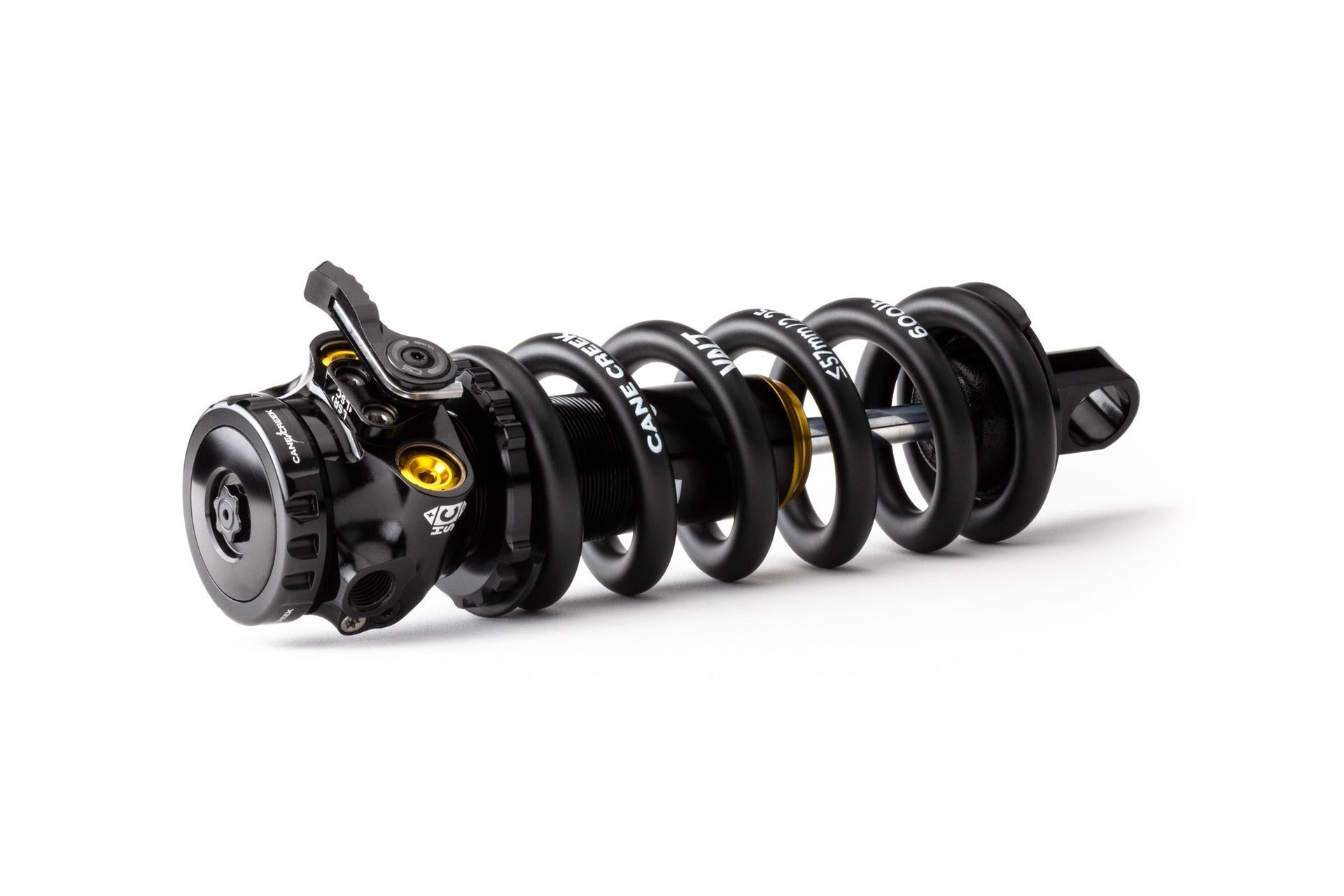

Gallery
Full specifications
Damper
- Damping
- Twin-tube independent compression and rebound, two high-speed and two low-speed circuits
- Adjustments
- HSC & HSR, LSC & LSR, Climb Switch
- Dimensions
- 50.5 mm valve body, 51 mm air spring
Compatibility
- Sizes
- Standard: 190x40–45, 210x50–55; Trunnion: 165x40–45, 185x50–55
- Notes
- Not recommended for clevis-style designs; not compatible with Specialized Stumpjumper & Turbo Levo
General
- Weight
- approx. 280 g (Coil, 210, without spring; varies by size)
- Manufacturing
- Hand assembled in Fletcher, NC
Manufacturer specification — Cane Creek. Specs and prices can change; check with the brand or your dealer.
Cane Creek IL versions compared
| DBair IL | DBcoil IL | |
|---|---|---|
| Price | — | — |
| Spring | Air | Coil (VALT) |
| Damping | Twin-tube, HSC/HSR/LSC/LSR | Twin-tube, HSC/HSR/LSC/LSR |
| Rear travel | 100–140 mm | 120–140 mm |
| Mounts | Standard & Trunnion | Standard & Trunnion |
| Weight | approx. 385 g | approx. 280 g (no spring) |
| Weight | 385 g | 280 g |
| E-bike rated | — | — |
Cane Creek DBcoil IL: FAQ
How much does the Cane Creek DBcoil IL weigh?
Cane Creek quotes 280 g (210 mm, without spring, varies by size, claimed).
Is the Cane Creek DBcoil IL suitable for e-bikes?
Cane Creek does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Cane Creek DBcoil IL?
Spring: Coil (VALT); Damping: Twin-tube, HSC/HSR/LSC/LSR; Rear travel: 120–140 mm; Mounts: Standard & Trunnion; Weight: approx. 280 g (no spring).
What other versions of the Cane Creek IL are there?
DBair IL.
