OneUpClip Pedals

€159.99 RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.; on sale from €127.99 at time of capture

Binding: SPD-compatible
Float: 5° (12° release)
Platform: 80 × 90 mm
Weight: 410 g / pair
Weight: 410 gpair with pins, claimed

Overview

OneUp's Clip Pedals are an SPD-compatible trail clipless pedal with an 80 × 90 mm pinned platform, weighing 410 g per pair. EU RRP is €159.99.

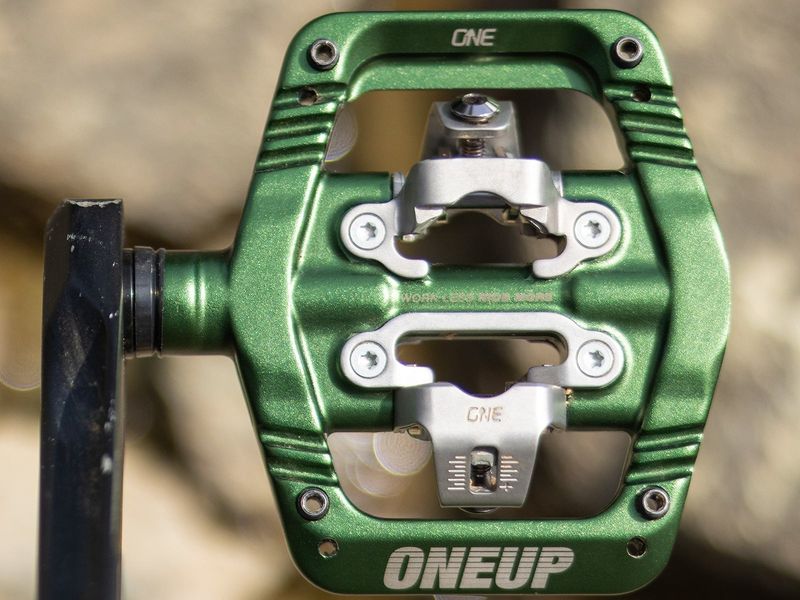

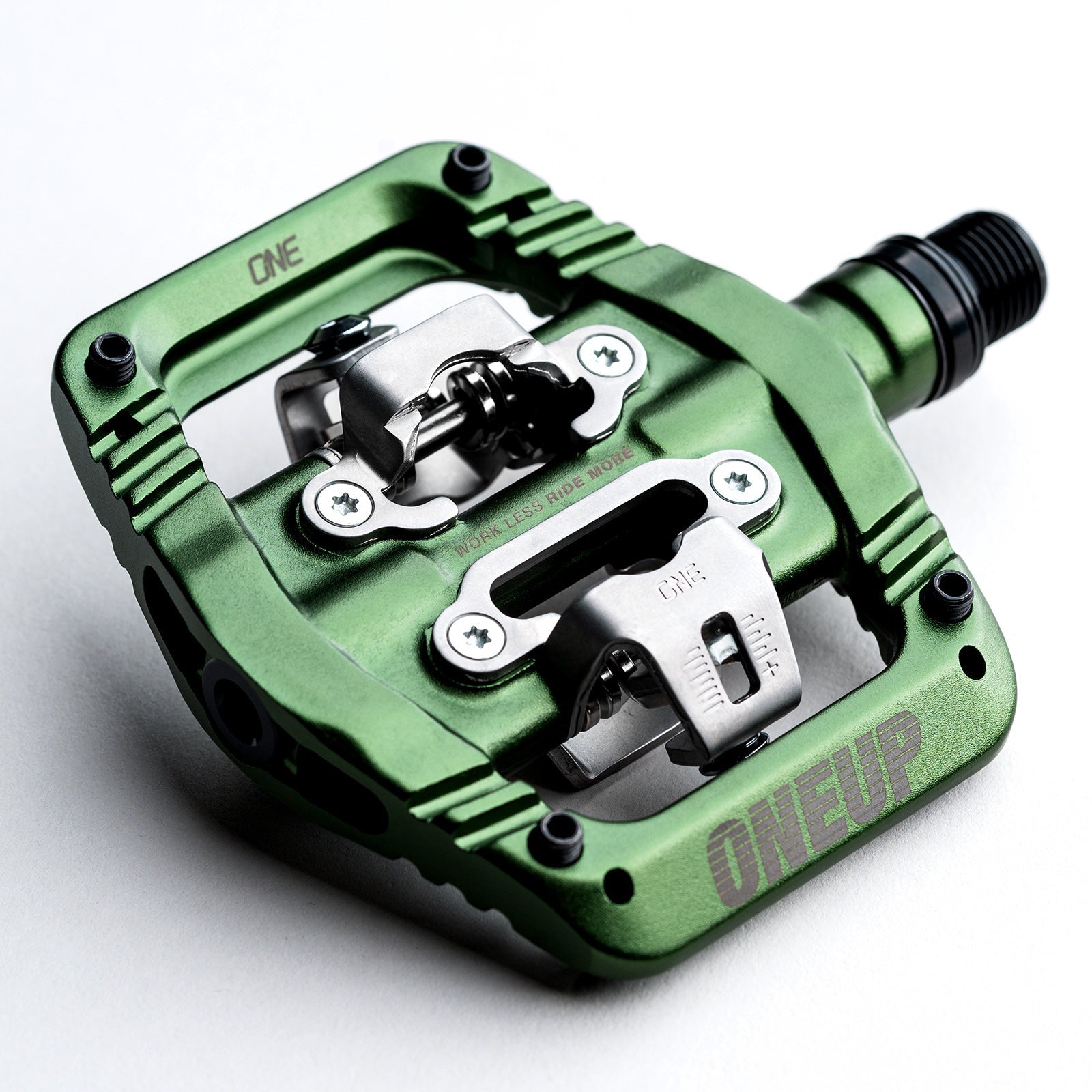

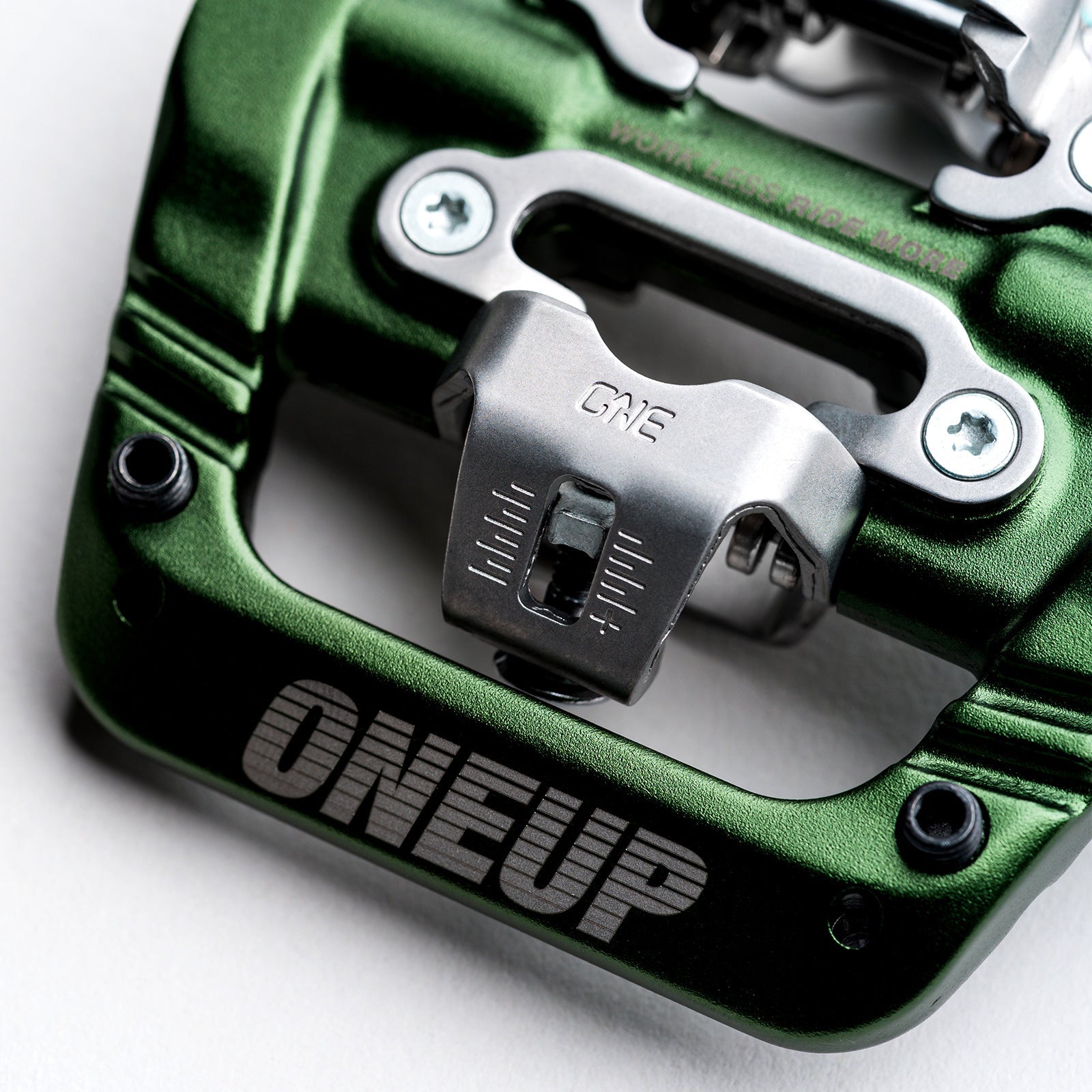

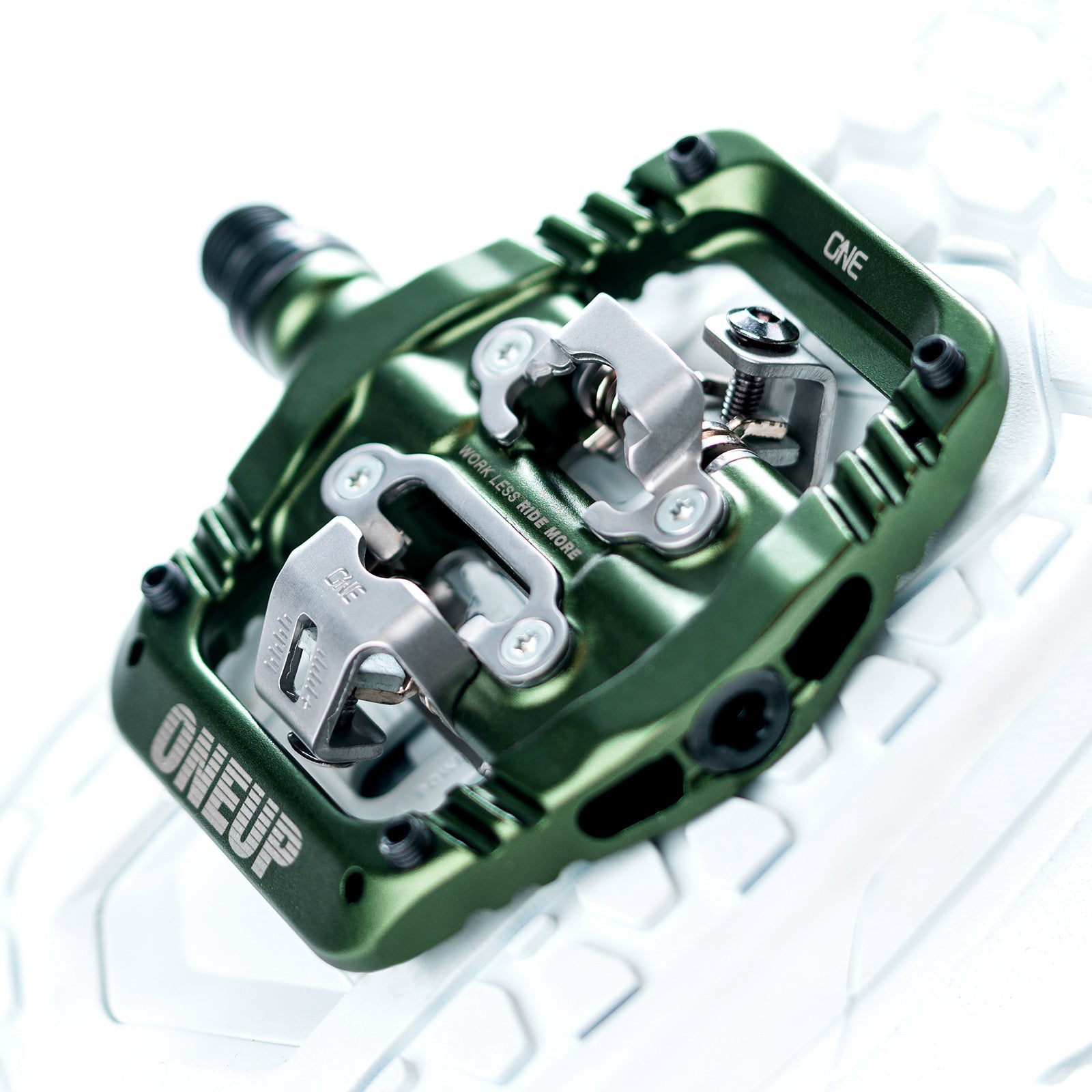

OneUp's Clip Pedals pair an SPD-compatible stainless steel binding with an 80 x 90 mm platform and removable hollow pins (four per side) for extra support. They offer 5° of float, a 12° release angle and wide-range tension adjustment with an indicator.

The axle runs on an inboard igus bushing and three outboard sealed bearings. A pair weighs a claimed 410 g, and OneUp cleats, cleat spacers and a pedal bearing nut tool are included.

SPD-compatible binding with 5° float
80 × 90 mm platform with removable hollow pins
igus bushing + 3 sealed cartridge bearings
Cleats, spacers and nut tool included
410 g per pair claimed

Gallery

Full specifications

General

Weight: 410g with pins (4 pins per side)
Thickness: 14.4mm (body), 26.8mm (binding)
Size: 80mm x 90mm (W x L)
Stance width: 57.5mm (center of clip to outside of crank face)
Float: 5° (12° release angle)
Cleats: SPD ™ Compatible (includes 1mm cleat spacers for shoe fit tuning)
Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings
Axle: Chromoly Steel with Black ED coating
Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole)
Colours: Black, Red, Green, Blue, Orange, Purple, Grey, Bronze

Manufacturer specification — OneUp. Specs and prices can change; check with the brand or your dealer.

OneUp Clip Pedals: FAQ

How much does the OneUp Clip Pedals cost?

€159.99 (RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.; on sale from €127.99 at time of capture). Prices vary by country and retailer.

How much does the OneUp Clip Pedals weigh?

OneUp quotes 410 g (pair with pins, claimed).

Is the OneUp Clip Pedals suitable for e-bikes?

OneUp does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.

What are the key specs of the OneUp Clip Pedals?

Binding: SPD-compatible; Float: 5° (12° release); Platform: 80 × 90 mm; Weight: 410 g / pair.
