OneUpCarbon E-Bar
€169.99 RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.
- Width
- 800 mm (min. trim 740 mm)
- Rise
- 35 mm
- Clamp
- 35 mm
- Sweep
- 8° back / 5° up
- E-bike
- Integrated ports for e-bike controls
- Weight
- 238 g800 mm, 35 mm rise, claimed
Overview
OneUp's Carbon E-Bar is an e-bike-specific 800 mm, 35 mm-rise carbon bar with integrated control-cable ports and a claimed 238 g. EU RRP is €169.99.

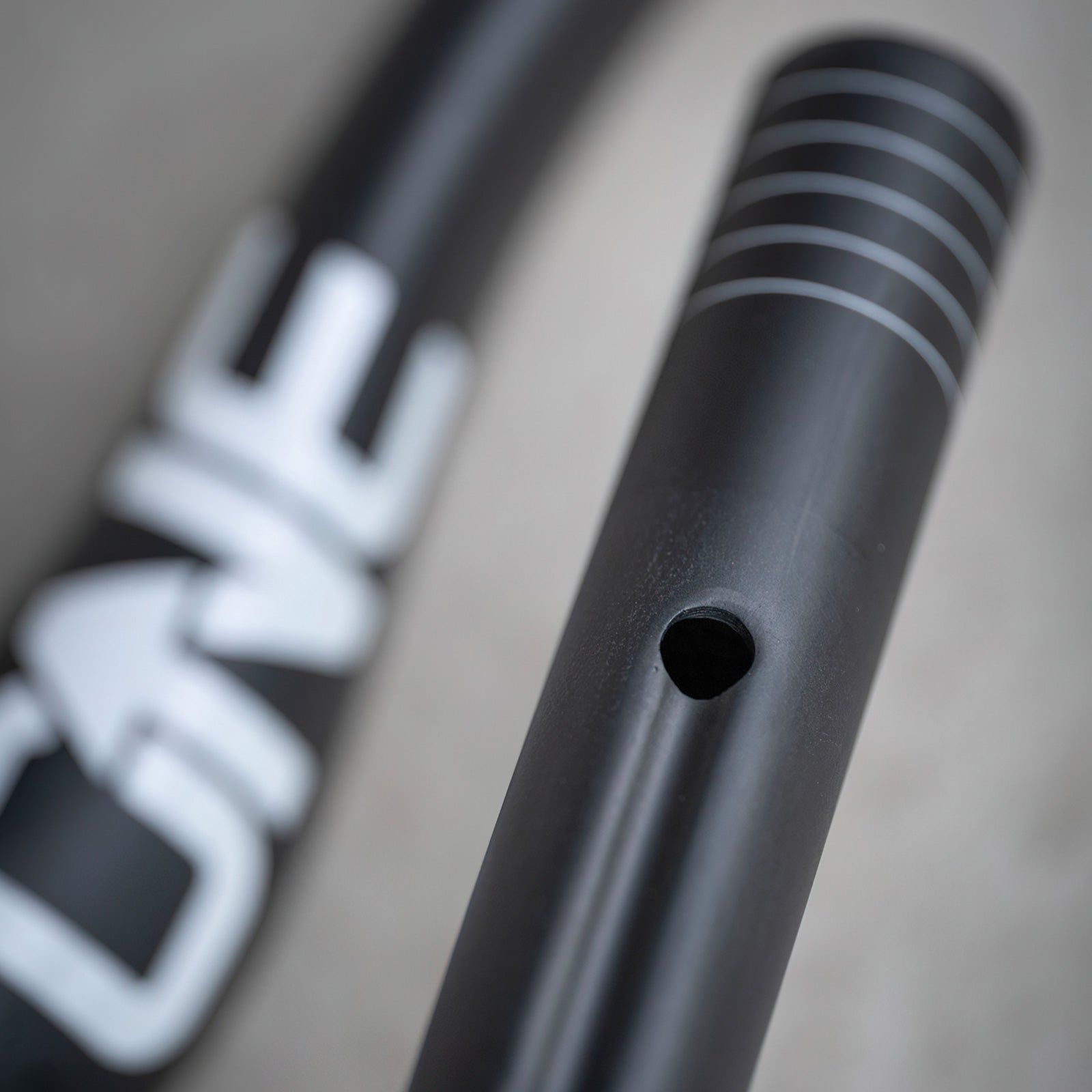

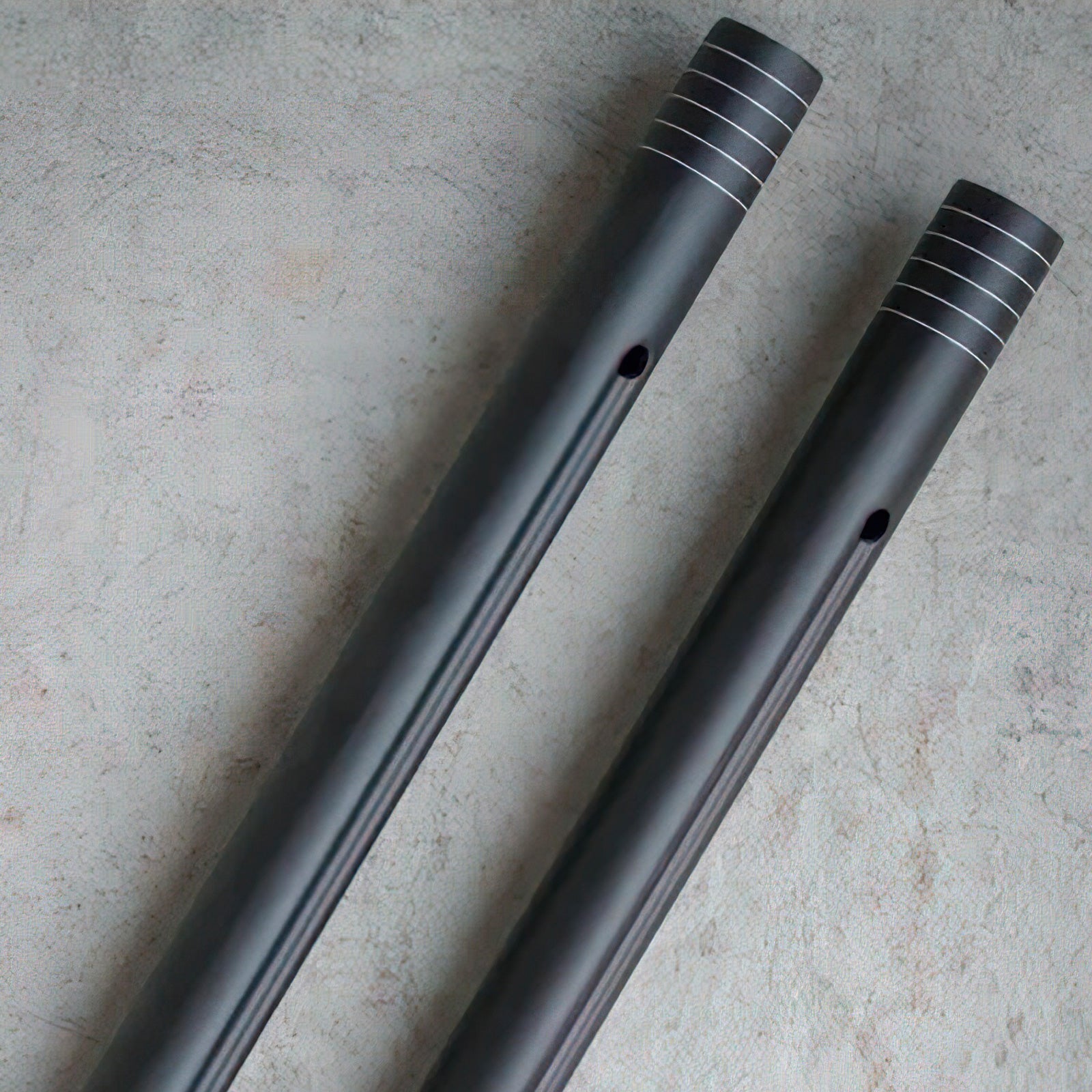

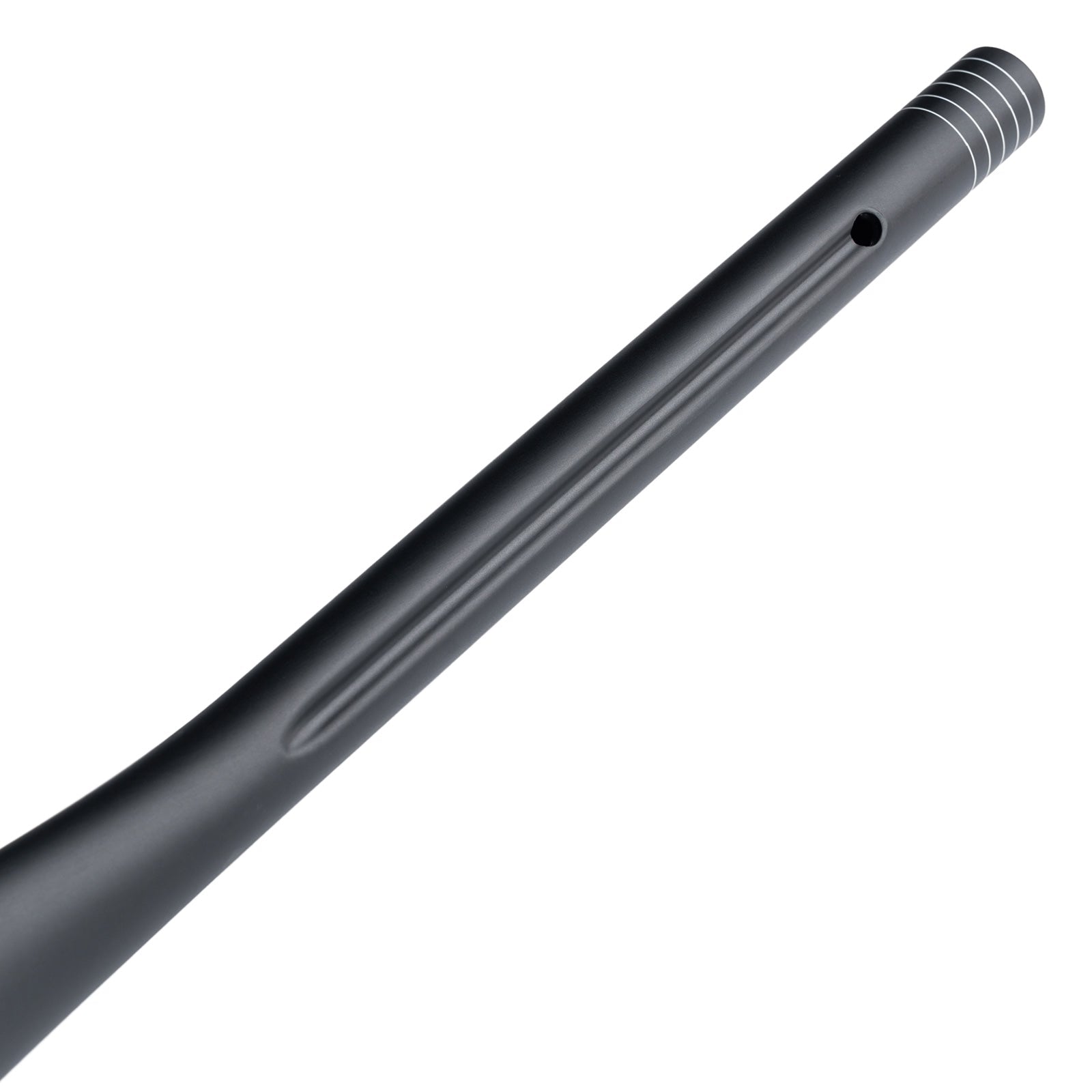

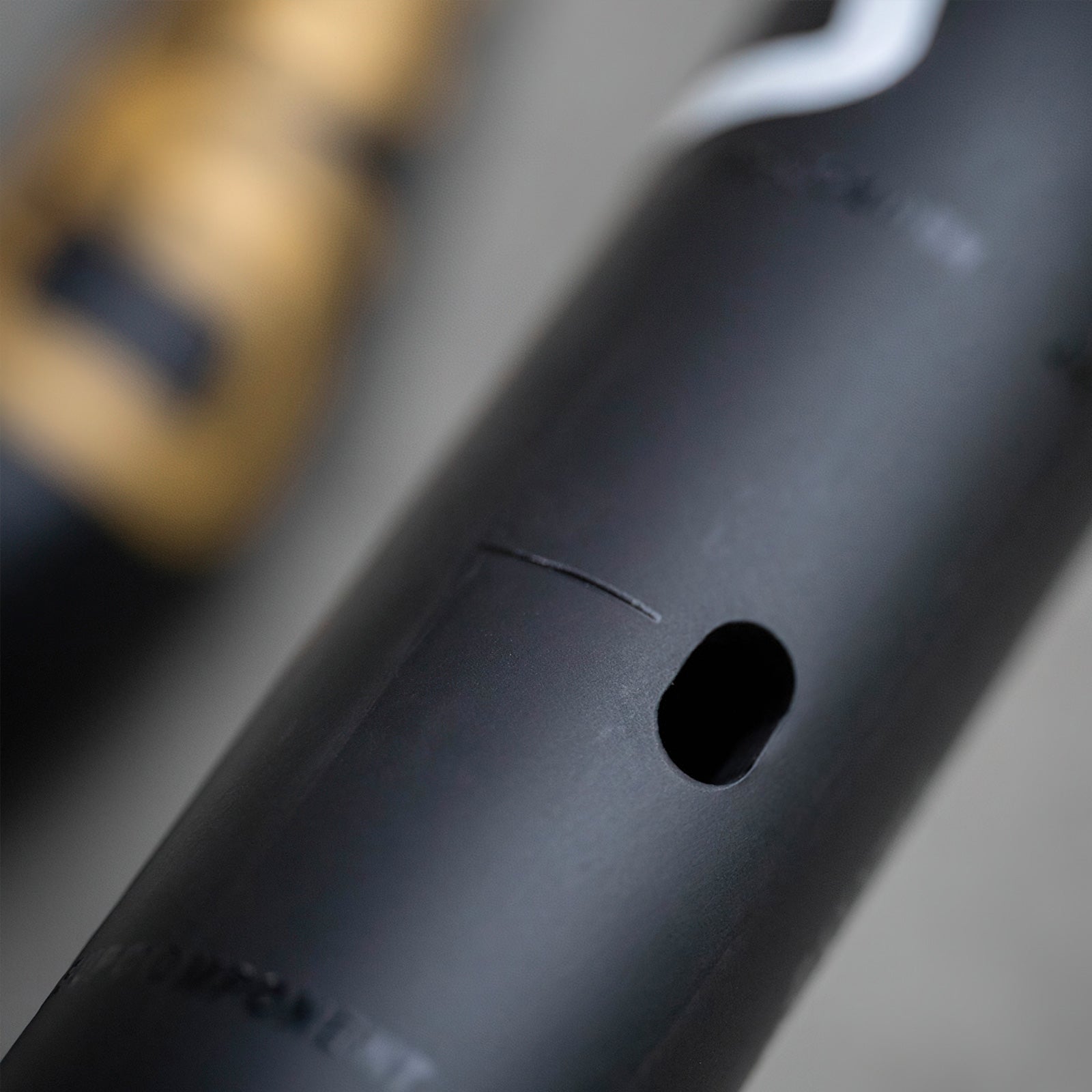

The Carbon E-Bar is OneUp's e-bike-specific carbon handlebar. OneUp says it is 20% more compliant than other brands' carbon bars, aimed at reducing fatigue on heavier, more demanding e-bikes, and it has integrated ports for routing e-bike control cables.
It is an 800 mm, 35 mm-clamp bar with 35 mm rise, 8° backsweep and 5° upsweep, and can be trimmed to 740 mm. The bar ships without decals so riders can choose a colour kit separately.
- E-bike specific with integrated ports for e-bike controls
- Claimed 20% more compliant than other carbon bars
- 800 mm wide, 35 mm rise, 35 mm clamp
- 238 g claimed weight
- Decal kits in six colours sold separately
Gallery
Full specifications
General
- Geometry
- 800mm Wide / 35mm Dia. / Sweep 8° Back 5° Up
- Weight
- 35mm Rise (238g)
- Max Stem Clamp Width
- 60mm
- Max Stem Clamp Torque
- 6Nm
- Max Lever Clamp Torque
- 5Nm
- Minimum Trim width
- 740mm
- Colour
- Black
- Decal kits
- Available in Red, Green, Blue, Orange, Purple & White
Manufacturer specification — OneUp. Specs and prices can change; check with the brand or your dealer.
OneUp Carbon Handlebar versions compared
| Carbon E-Bar | V2 Carbon Handlebar | |
|---|---|---|
| Price | €169.99 | €169.99 |
| Width | 800 mm (min. trim 740 mm) | 760 / 800 mm |
| Rise | 35 mm | 20 / 35 / 50 mm |
| Clamp | 35 mm | 35 mm |
| Sweep | 8° back / 5° up | 8° back / 5° up |
| E-bike | Integrated ports for e-bike controls | — |
| Weight | — | 220–265 g |
| Weight | 238 g | 235 g |
OneUp Carbon E-Bar: FAQ
How much does the OneUp Carbon E-Bar cost?
€169.99 (RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.). Prices vary by country and retailer.
How much does the OneUp Carbon E-Bar weigh?
OneUp quotes 238 g (800 mm, 35 mm rise, claimed).
Is the OneUp Carbon E-Bar suitable for e-bikes?
Yes — OneUp lists it as e-bike rated or e-bike specific.
What are the key specs of the OneUp Carbon E-Bar?
Width: 800 mm (min. trim 740 mm); Rise: 35 mm; Clamp: 35 mm; Sweep: 8° back / 5° up; E-bike: Integrated ports for e-bike controls.
What other versions of the OneUp Carbon Handlebar are there?
V2 Carbon Handlebar (€169.99).
