RotwildR.X750 Pro
- Motor
- Brose Drive S Mag90 Nm
- Battery
- 720 WhIPU750 Carbon
- Travel F / R
- 150 / 152 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 23.8 kgManufacturer figure (size M)
Overview
The Rotwild R.X750 Pro (€7,990) is the only build of the R.X750: Brose Drive S Mag (90 Nm) with 720 Wh, FOX 36 Float Factory Kashima fork, FOX Float X Factory Kashima shock, SHIMANO XT 8100 and SHIMANO XT 8120 brakes. Claimed weight is 23.8 kg.
The R.X750 is Rotwild's big-mountain e-MTB with a full carbon chassis, including an integrated carbon motor housing, the Brose Drive S Mag motor (up to 90 Nm) and the 720 Wh IPU750 battery with quick release and optional screw lock.
It runs mixed wheels (29-inch front, 27.5-inch rear) with a 150 mm fork and 152 mm of rear travel. It is offered as a single Pro build in S to XL at a claimed 23.8 kg.
- Brose Drive S Mag, up to 90 Nm
- 720 Wh IPU750, quick release
- 150 / 152 mm travel, mullet wheels
- Integrated carbon motor housing

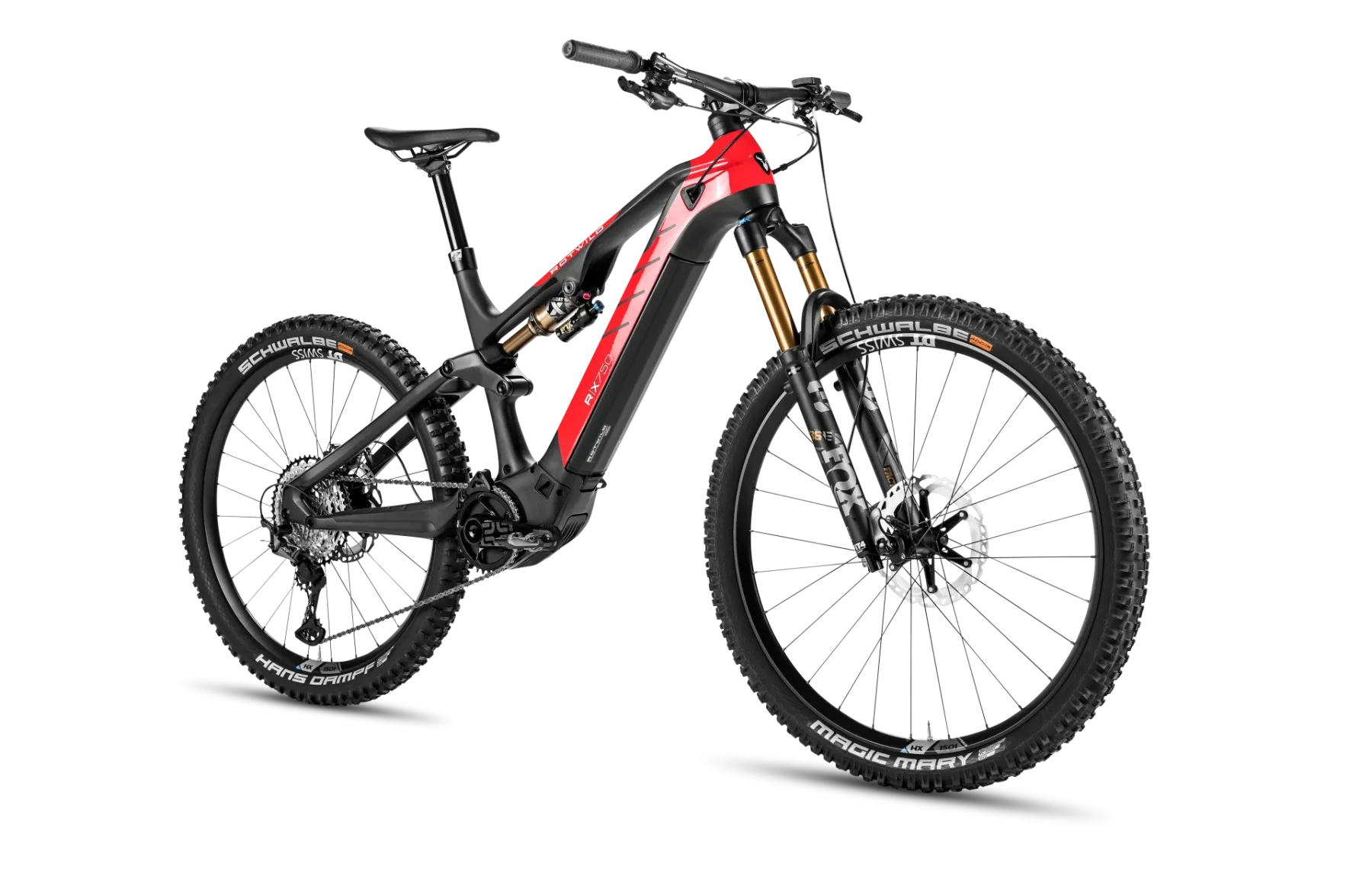

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- High Modulus Carbon, Carbon Linkage
- Rear shock
- FOX Float X Factory Kashima, 205 x 60 mm / 2-Pos Adjust
- Headset
- ACROS RW750 1.5
- Fork
- FOX 36 Float Factory Kashima, 150 mm / FIT4 3-POS Adjust / E-Bike+ / OD-Crown
- Colour
- Red
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- Brose Display Allround, Brose App / USB Spacer ready
- Motor
- brose Drive S Mag
- Battery
- IPU750 Carbon, 720 Wh / 36 V / 21.700 Cell / 3.500 g / Quick Release
- Charger
- ROTWILD - 4.5 A
Drivetrain
- Crankset
- e*thirteen Race Carbon, 165 mm (S, M) / 170 mm (L, XL)
- Chainring
- e*thirteen Direct Mount Chainring, 36 T.
- Chain guide
- ROTWILD SL750 2.0
- Shifter
- SHIMANO XT 8100, I-Spec EV
- Rear derailleur
- SHIMANO XT 8100, 12-Speed / SGS / Hyperglide+
- Chain
- SHIMANO HG 7100, 12-Speed
- Cassette
- SHIMANO CS 7100, 10-51 T. / 12-Speed
Brakes
- Front brake
- SHIMANO XT 8120, Fin Pad
- Front rotor
- SHIMANO RT-MT800, ICE / 203 mm
- Rear brake
- SHIMANO XT 8120, Fin Pad
- Rear rotor
- SHIMANO RT-EM810, ICE / 203 mm
Wheels & tyres
- Wheelset
- DT SWISS HX1501 SPLINE1 (30), Ratchet EXP OS 30 / 110-15/148-12 TAS / CL
- Front tyre
- SCHWALBE Magic Mary Evo, Super Ground / Soft / TLE / 29x2.4
- Rear tyre
- SCHWALBE Hans Dampf Evo, Super Trail / Soft / TLE / 27.5x2.6
Cockpit
- Handlebar
- ROTWILD B220 Carbon, Ø35 mm / 15 mm Rise / 780 mm Width / Carbon
- Stem
- ROTWILD S140 AL7075, Ø35 mm / 50 mm / Monkeylink Interface
- Seatpost
- 8PINS H01, Ø34.9 mm / 25 mm Offset / 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL)
- Saddle
- ERGON SM Pro
- Grips
- ERGON GD10, Slim Factory Frozen
Other
- Weight
- 23.8 kg (size M)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
R.X750 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| BTop Tube Length | 588 mm | 617 mm | 654 mm | 688 mm |
| CHead Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| DChain Stay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| EBB Height | 350 mm | 350 mm | 350 mm | 350 mm |
| FBB Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| GHead Tube Angle | 66° | 66° | 66° | 66° |
| HSeat Tube Angle | 74° | 74° | 74° | 74° |
| IReach | 405 mm | 437 mm | 468 mm | 500 mm |
| JStack | 610 mm | 617 mm | 637 mm | 648 mm |
| KWheel Base | 1172 mm | 1198 mm | 1236 mm | 1270 mm |
| LStandover | 750 mm | 750 mm | 750 mm | 750 mm |
Source: Rotwild.
R.X750 Pro: FAQ
How much does the Rotwild R.X750 Pro cost?
€7,990 (MSRP Germany, VAT incl.). Prices vary by country and dealer.
How much does the Rotwild R.X750 Pro weigh?
Rotwild quotes 23.8 kg.
What motor and battery does the Rotwild R.X750 Pro have?
Brose Drive S Mag (90 Nm). 720 Wh battery — iPU750 Carbon.
How much suspension travel does the Rotwild R.X750 Pro have?
150 mm at the fork and 152 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Rotwild R.X750 Pro come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
