RotwildR.X375 Pro
- Motor
- Shimano EP885 Nm
- Battery
- 360 WhIPU375 Carbon
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 19.5 kgManufacturer figure (size M)
Overview

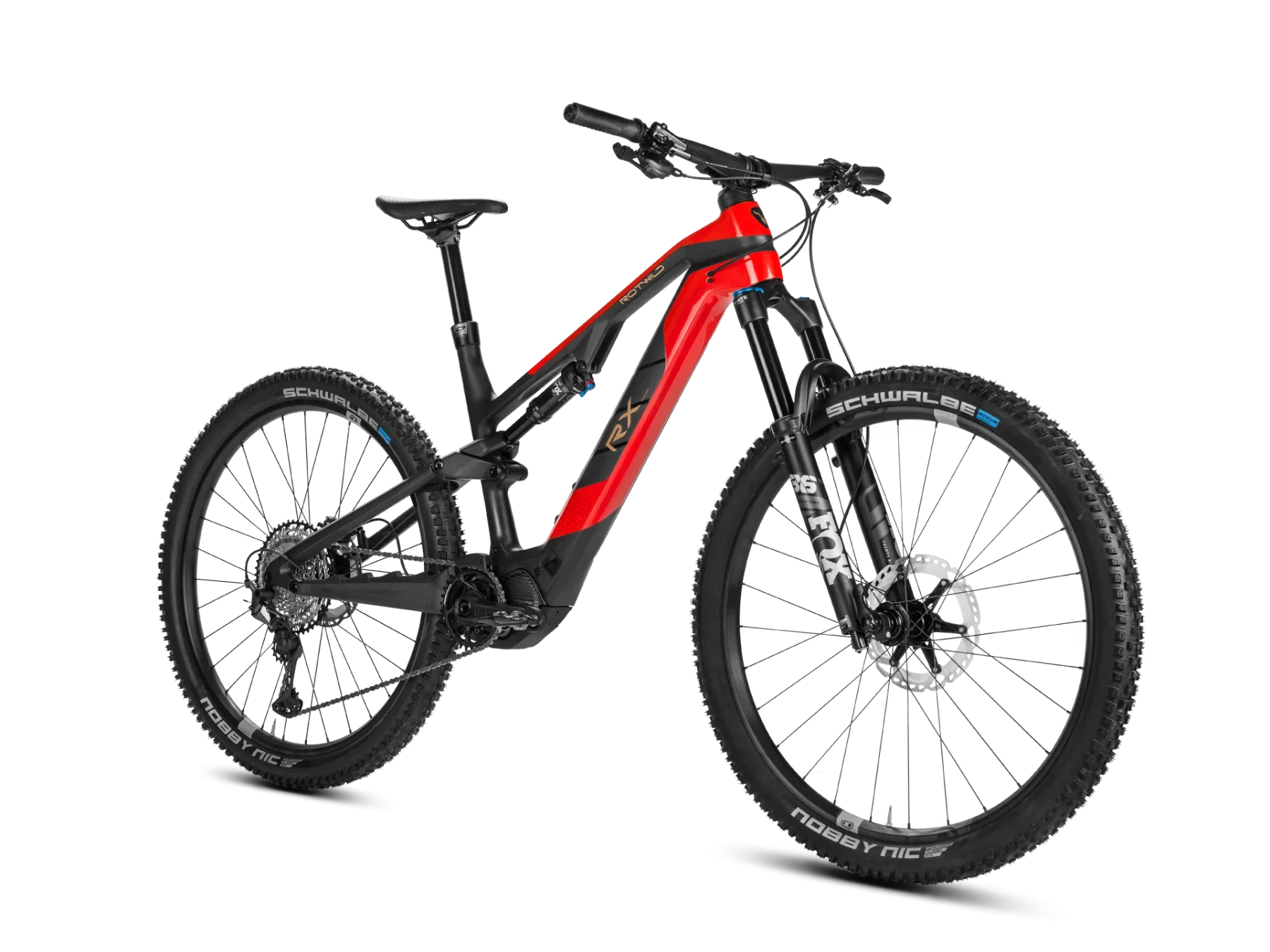

The Rotwild R.X375 Pro (€7,490) is a mid-range build of the R.X375: Shimano EP8 (85 Nm) with 360 Wh, FOX 36 Float Performance Elite fork, FOX Float DPS Performance shock, SHIMANO XT 8100 and SHIMANO XT 8120 brakes. Claimed weight is 19.5 kg.
The R.X375 is Rotwild's light carbon all-mountain e-MTB: a Shimano EP8 motor (85 Nm) paired with the compact, removable IPU375 battery (360 Wh, 1.9 kg, carbon housing), with carbon linkage and shock yoke.
It runs 29-inch wheels with a 150 mm fork and 140 mm of rear travel. It comes in S to XL; claimed weights range from 19.1 kg (Ultra) to 19.8 kg (Core).
- Shimano EP8, 85 Nm
- 360 Wh removable battery, 1.9 kg
- 150 / 140 mm travel, 29" wheels
- From 19.1 kg claimed
Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- High Modulus Carbon, Carbon Linkage
- Rear shock
- FOX Float DPS Performance, 210 x 50 mm / 3-POS
- Headset
- ACROS RW375 1.5
- Fork
- FOX 36 Float Performance Elite, 150 mm / Fit4 / 3-Pos Adjust
- Colour
- RED METALLIC
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- SHIMANO EM800
- Motor
- SHIMANO EP8, 85 Nm / max. 500 W
- Battery
- IPU375 Carbon, 360 Wh / 36 V / 21.700 Cell / 2.000 g / QR-Button
- Charger
- ROTWILD - 4.5 A
Drivetrain
- Crankset
- e*thirteen Plus, 160 mm (S) / 165 mm (M, L) / 170 mm (XL)
- Chainring
- e*thirteen Direct Mount Chainring, 34 T.
- Chain guide
- e*thirteen TRS
- Shifter
- SHIMANO XT 8100, I-Spec EV
- Rear derailleur
- SHIMANO XT 8100, 12-Speed / SGS / Hyperglide+
- Chain
- SHIMANO HG 7100, 12-Speed
- Cassette
- SHIMANO CS 7100, 10-51 T. / 12-Speed
Brakes
- Front brake
- SHIMANO XT 8120, Fin Pad
- Front rotor
- SHIMANO RT-MT800, ICE / 203 mm
- Rear brake
- SHIMANO XT 8120, Fin Pad
- Rear rotor
- SHIMANO RT-EM810, ICE / 180 mm
Wheels & tyres
- Front Wheel
- CRANKBROTHERS Synthesis Enduro I9, 31.5 mm Width / 110-15 mm / Centerlock
- Rear Wheel
- CRANKBROTHERS Synthesis Enduro I9, 29.5 mm Width / 148-12 mm / Centerlock
- Front tyre
- SCHWALBE Nobby Nic Evo, Super Ground / Soft / TLE / 29x2.4
- Rear tyre
- SCHWALBE Nobby Nic Evo, Super Ground / Speedgrip / TLE / 29x2.4
Cockpit
- Handlebar
- e*thirteen Plus, ∅ 35 mm / 20 mm Rise / 780 mm Width / AL7050
- Stem
- e*thirteen Plus 35, 50 mm Length / AL7050
- Seatpost
- 8PINS H01, Ø34.9 mm / 25 mm Offset / 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL)
- Saddle
- ERGON SM Pro
- Grips
- ERGON GD10, Slim Factory Frozen
Other
- Weight
- 19.5 kg (size M)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
R.X375 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 410 mm | 440 mm | 470 mm | 506 mm |
| BTop Tube Length | 590 mm | 610 mm | 640 mm | 667 mm |
| CHead Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| DChain Stay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| EBB Height | 345 mm | 345 mm | 345 mm | 345 mm |
| FBB Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| GHead Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| HSeat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| IReach | 430 mm | 450 mm | 475 mm | 500 mm |
| JStack | 618 mm | 620 mm | 636 mm | 645 mm |
| KWheel Base | 1184 mm | 1205 mm | 1237 mm | 1266 mm |
| LStandover | 730 mm | 730 mm | 730 mm | 730 mm |
Source: Rotwild.
R.X375: builds compared
R.X375 range →| R.X375 Core | R.X375 Pro | R.X375 Ultra | |
|---|---|---|---|
| Price | €6,490 | €7,490 | €8,990 |
| Frame | Carbon | Carbon | Carbon |
| Fork | FOX 36 Float Performance, 150 mm / Fit Grip 3-POS Micro Adjust/ E-Tuned | FOX 36 Float Performance Elite, 150 mm / Fit4 / 3-Pos Adjust | FOX 36 Float Factory Kashima, 150 mm / Fit4 / 3-Pos Adjust |
| Shock | FOX Float DPS Performance | FOX Float DPS Performance | FOX Float DPS Factory Kashima |
| Derailleur | SHIMANO XT 8100 | SHIMANO XT 8100 | SHIMANO XTR 9100 SGS |
| Brakes | MAGURA MT5 | SHIMANO XT 8120 | SHIMANO XTR 9120 |
| Wheels | CRANKBROTHERS Synthesis Enduro | CRANKBROTHERS Synthesis Enduro I9 | CRANKBROTHERS Synthesis Enduro I9 Carbon |
| Display | SHIMANO EM800 | SHIMANO EM800 | SHIMANO EM800 |
| Weight | 19.8 kg | 19.5 kg | 19.1 kg |
R.X375 Pro: FAQ
How much does the Rotwild R.X375 Pro cost?
€7,490 (MSRP Germany, VAT incl.). The R.X375 range runs from €6,490 (R.X375 Core) to €8,990 (R.X375 Ultra). Prices vary by country and dealer.
How much does the Rotwild R.X375 Pro weigh?
Rotwild quotes 19.5 kg. The lightest R.X375 build is the R.X375 Ultra at 19.1 kg.
What motor and battery does the Rotwild R.X375 Pro have?
Shimano EP8 (85 Nm). 360 Wh battery — iPU375 Carbon.
How much suspension travel does the Rotwild R.X375 Pro have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Rotwild R.X375 Pro come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the R.X375 Pro and the R.X375 Ultra?
They share the R.X375 frame platform and motor; the differences are in the parts — fork: FOX 36 Float Performance Elite vs FOX 36 Float Factory Kashima; shock: FOX Float DPS Performance vs FOX Float DPS Factory Kashima; derailleur: SHIMANO XT 8100 vs SHIMANO XTR 9100 SGS; brakes: SHIMANO XT 8120 vs SHIMANO XTR 9120; claimed weight: 19.5 kg vs 19.1 kg; price: €7,490 vs €8,990.
