RotwildR.E850 Ultra
- Motor
- Shimano EP80185 Nm
- Battery
- 820 WhIPU850 / IPU820 Carbon, Push+ quick release
- Travel F / R
- 170 / 148 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 22.1 kgManufacturer figure (size M)
All Shimano EP810 / EP801 / EP6 eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
€10,990 buys Fox Factory Kashima suspension and Shimano XT Di2 electronic shifting with XT four-piston brakes. The R.E850 Ultra weighs a claimed 22.1 kg, barely less than the Core, so you're paying for the parts rather than the scales.
The R.E850 Ultra is one of 2 builds of the Rotwild R.E850. About the R.E850 range and all its builds →

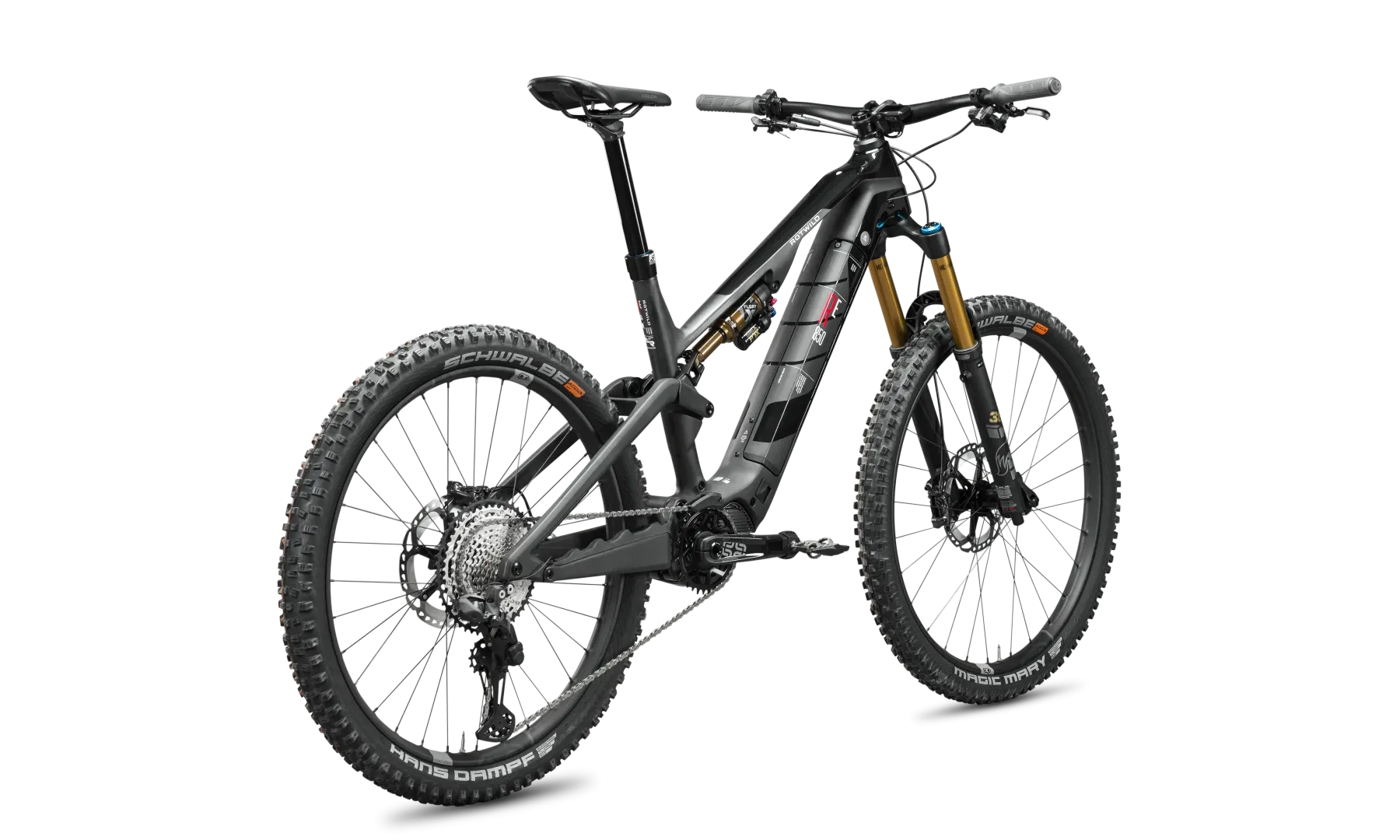

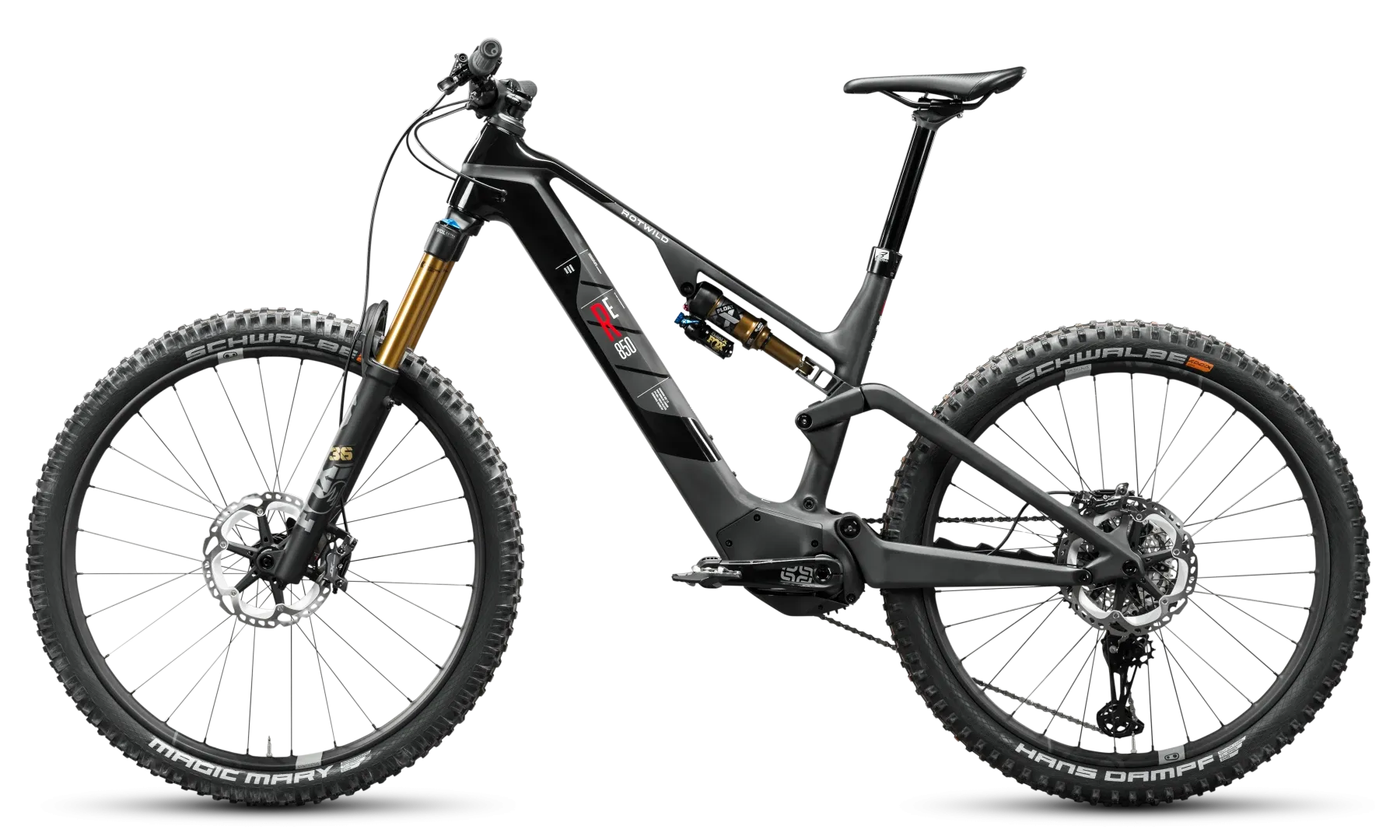

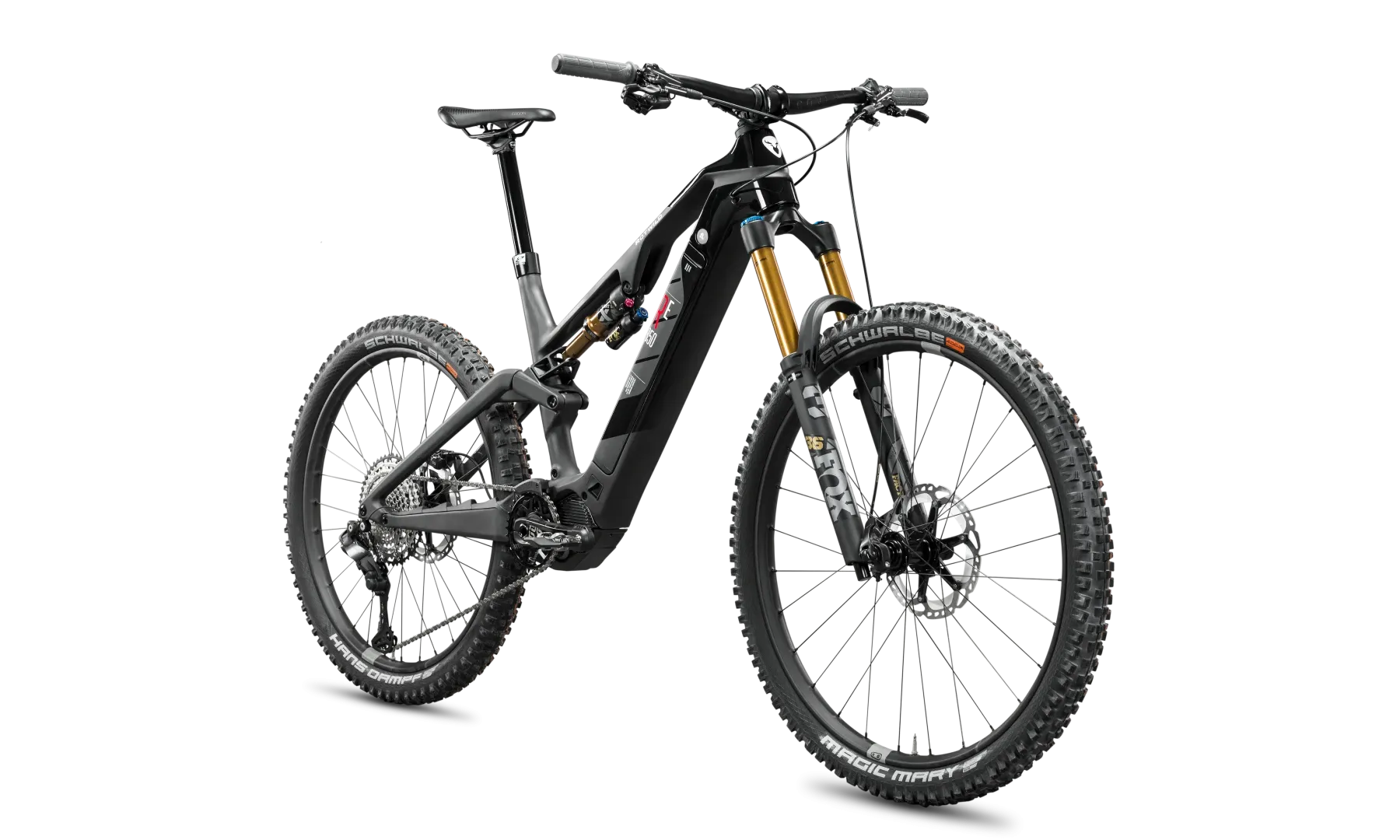

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- High Modulus Carbon, Carbon Linkage
- Rear shock
- FOX Float X Factory Kashima, 210 x 55 mm / 2-Pos Adjust
- Headset
- ACROS RW735 1.5
- Fork
- FOX 36 Float Factory Kashima, 170 mm / Grip2 / HSC/LSC / HSR/LSR
- Colour
- Black
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- SHIMANO EM800
- Motor
- SHIMANO EP801, 85 Nm / max. 600 W
- Battery
- IPU820 Carbon - Push+, 820 Wh / 36 V / 21.700 Cell / 3.560 g / QR-Button
- Charger
- ROTWILD - 4.5 A
Drivetrain
- Crankset
- e*thirteen Race Carbon, 160 mm (S) / 165 (M/L/XL)
- Chainring
- e*thirteen Direct Mount Chainring, 34 T.
- Chain guide
- e*thirteen Plus
- Shifter
- SHIMANO XT Di2 8150, I-Spec EV
- Rear derailleur
- SHIMANO XT Di2 8150 SGS
- Chain
- SHIMANO HG 7100, 12-Speed
- Cassette
- SHIMANO CS 7100, 10-51 T. / 12-Speed
Brakes
- Front brake
- SHIMANO XT 8120, Fin Pad
- Front rotor
- SHIMANO RT-MT800, ICE / 203 mm
- Rear brake
- SHIMANO XT 8120, Fin Pad
- Rear rotor
- SHIMANO RT-EM810, ICE / 203 mm
Wheels & tyres
- Front Wheel
- CRANKBROTHERS Synthesis Enduro I9 Carbon, 31.5 mm Width / 110-15 mm / 6-Bolt
- Rear Wheel
- CRANKBROTHERS Synthesis Enduro I9 Carbon, 29.5 mm Width / 148-12 mm / 6-Bolt
- Front tyre
- SCHWALBE Magic Mary Evo, Super Ground / Soft / TLE / 29x2.4
- Rear tyre
- SCHWALBE Hans Dampf Evo, Super Trail / Soft / TLE / 27.5x2.6
Cockpit
- Handlebar
- e*thirteen Race Carbon, 20 mm Rise / 780 mm Width
- Stem
- e*thirteen Plus 35, 50 mm Length
- Seatpost
- 8PINS H01, up to 200 mm (XL)
- Saddle
- ERGON SM Enduro Comp
- Grips
- ERGON GD10, Slim Factory Frozen
Other
- Weight
- 22.1 kg (size M)
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
R.E850 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 410 mm | 440 mm | 470 mm | 506 mm |
| BTop Tube Length | 600 mm | 621 mm | 650 mm | 678 mm |
| CHead Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| DChain Stay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| EBB Height | 353 mm | 353 mm | 353 mm | 353 mm |
| FBB Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| GHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| HSeat Tube Angle | 74° | 74° | 74° | 74° |
| IReach | 420 mm | 440 mm | 465 mm | 490 mm |
| JStack | 633 mm | 633 mm | 651 mm | 661 mm |
| KWheel Base | 1199 mm | 1219 mm | 1253 mm | 1282 mm |
| LStandover | 737 mm | 737 mm | 737 mm | 737 mm |
Source: Rotwild.
R.E850: builds compared
R.E850 range →| R.E850 Core | R.E850 Ultra | |
|---|---|---|
| Price | €8,990 | €10,990 |
| Frame | Carbon | Carbon |
| Fork | FOX 36 Float Performance, 170 mm / Grip / 3-Pos | FOX 36 Float Factory Kashima, 170 mm / Grip2 / HSC/LSC / HSR/LSR |
| Shock | FOX Float X Performance | FOX Float X Factory Kashima |
| Derailleur | SHIMANO XT 8100 SGS | SHIMANO XT Di2 8150 SGS |
| Brakes | MAGURA MT5 | SHIMANO XT 8120 |
| Wheels | CRANKBROTHERS Synthesis Enduro | CRANKBROTHERS Synthesis Enduro I9 Carbon |
| Display | SHIMANO EM800 | SHIMANO EM800 |
| Weight | 22.2 kg | 22.1 kg |
R.E850 Ultra: FAQ
What is the difference between the R.E850 Ultra and the R.E850 Core?
They share the R.E850 frame platform and motor; the differences are in the parts: fork: FOX 36 Float Factory Kashima vs FOX 36 Float Performance; shock: FOX Float X Factory Kashima vs FOX Float X Performance; derailleur: SHIMANO XT Di2 8150 SGS vs SHIMANO XT 8100 SGS; brakes: SHIMANO XT 8120 vs MAGURA MT5; claimed weight: 22.1 kg vs 22.2 kg; price: €10,990 vs €8,990.
