RotwildR.E375 Core
- Motor
- Shimano EP885 Nm
- Battery
- 360 WhIPU375 Carbon
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.4 kgManufacturer figure (size M)
Overview
The Rotwild R.E375 Core (€6,990) is the entry build of the R.E375: Shimano EP8 (85 Nm) with 360 Wh, FOX 36 Float Performance fork, FOX Float X Performance shock, SHIMANO XT 8100 and MAGURA MT5 brakes. Claimed weight is 20.4 kg.
The R.E375 is the enduro bike on Rotwild's 375 platform: a high-modulus carbon frame with carbon linkage, the Shimano EP8 motor (85 Nm) and the removable 360 Wh IPU375 battery.
It has 29-inch wheels, a 170 mm fork and 160 mm of rear travel, a 63.5° head angle and a 77° seat angle. It comes in M, L and XL; claimed weights are 19.6 kg (Ultra) and 20.4 kg (Core).
- Shimano EP8, 85 Nm
- 360 Wh removable battery
- 170 / 160 mm travel, 29" wheels
- 63.5° head angle

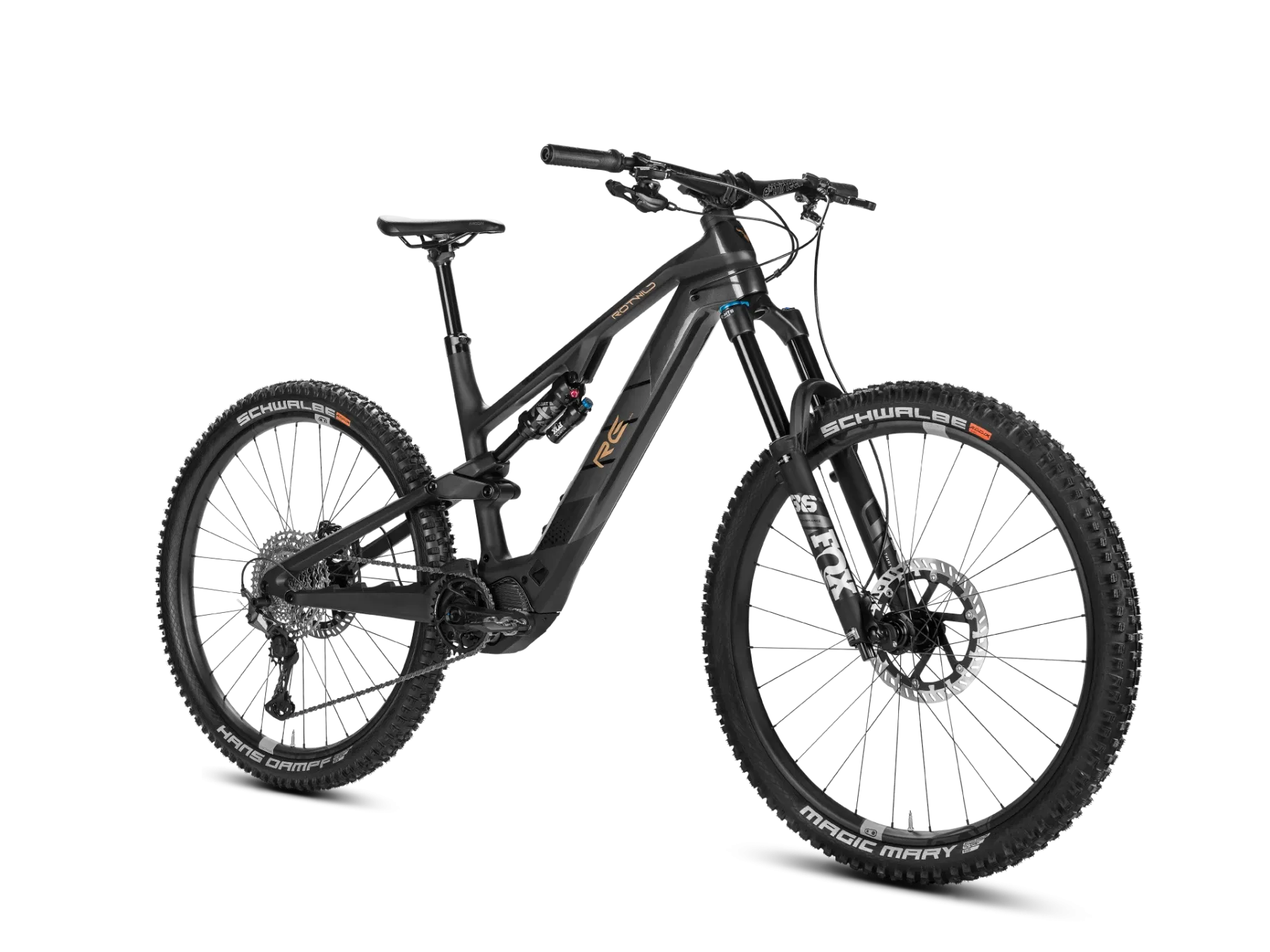

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- M, L, XL
- Frame
- High Modulus Carbon, Carbon Linkage
- Rear shock
- FOX Float X Performance, 230 x 60 mm / 2-Pos
- Headset
- ACROS RW375 1.5
- Fork
- FOX 36 Float Performance, 170 mm / Grip / 3-Pos
- Colour
- VOLCANO GREY METALLIC
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- SHIMANO EM800
- Motor
- SHIMANO EP8, 85 Nm / max. 500 W
- Battery
- IPU375 Carbon, 360 Wh / 36 V / 21.700 Cell / 2.000 g / QR-Button
- Charger
- ROTWILD - 4.5 A
Drivetrain
- Crankset
- e*thirteen Plus, 160 mm (M) / 165 mm (L, XL)
- Chainring
- e*thirteen Direct Mount Chainring, 34 T.
- Chain guide
- e*thirteen TRS
- Shifter
- SHIMANO XT 8100, I-Spec EV
- Rear derailleur
- SHIMANO XT 8100, 12-Speed / SGS / Hyperglide+
- Chain
- SHIMANO HG 7100, 12-Speed
- Cassette
- SHIMANO CS 6100, 10-51 T. / 12-Speed
Brakes
- Front brake
- MAGURA MT5, HC-W
- Front rotor
- MAGURA MDR-P, 203 mm
- Rear brake
- MAGURA MT5, HC-W Shiftmix
- Rear rotor
- MAGURA MDR-P, 203 mm
Wheels & tyres
- Front Wheel
- CRANKBROTHERS Synthesis Enduro, 31.5 mm Width / 110-15 mm / 6-Bolt
- Rear Wheel
- CRANKBROTHERS Synthesis Enduro, 29.5 mm Width / 148-12 mm / 6-Bolt
- Front tyre
- SCHWALBE Magic Mary Evo, Super Ground / Soft / TLE / 29x2.4
- Rear tyre
- SCHWALBE Hans Dampf Evo, Super Trail / Soft / TLE / 29x2.35
Cockpit
- Handlebar
- e*thirteen Plus, ∅ 35 mm / 20 mm Rise / 780 mm Width / AL7050
- Stem
- e*thirteen Plus 35, 50 mm Length / AL7050
- Seatpost
- 8PINS H01, ∅ 34.9 mm / Offset / up to 200 mm (XL)
- Saddle
- ERGON SM Enduro Comp
- Grips
- ERGON GD10, Slim Factory Frozen
Other
- Weight
- 20.4 kg (size M)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
R.E375 geometry
| Size | M | L | XL |
|---|---|---|---|
| ASeat Tube Length | 440 mm | 470 mm | 506 mm |
| BTop Tube Length | 604 mm | 632 mm | 655 mm |
| CHead Tube Length | 110 mm | 125 mm | 130 mm |
| DChain Stay Length | 445 mm | 445 mm | 445 mm |
| EBB Height | 350 mm | 350 mm | 350 mm |
| FBB Drop | 25 mm | 25 mm | 25 mm |
| GHead Tube Angle | 63.5° | 63.5° | 63.5° |
| HSeat Tube Angle | 77° | 77° | 77° |
| IReach | 460 mm | 482 mm | 510 mm |
| JStack | 625 mm | 636 mm | 641 mm |
| KWheel Base | 1253 mm | 1284 mm | 1311 mm |
| LStandover | 730 mm | 730 mm | 730 mm |
Source: Rotwild.
R.E375: builds compared
R.E375 range →| R.E375 Core | R.E375 Ultra | |
|---|---|---|
| Price | €6,990 | €8,990 |
| Frame | Carbon | Carbon |
| Fork | FOX 36 Float Performance, 170 mm / Grip / 3-Pos | FOX 36 Float Factory Kashima, 170 mm / Grip2 / HSC/LSC / HSR/LSR |
| Shock | FOX Float X Performance | FOX Float X Factory Kashima |
| Derailleur | SHIMANO XT 8100 | SHIMANO XT 8100 |
| Brakes | MAGURA MT5 | SHIMANO XT 8120 |
| Wheels | CRANKBROTHERS Synthesis Enduro | CRANKBROTHERS Synthesis Enduro I9 Carbon |
| Display | SHIMANO EM800 | SHIMANO EM800 |
| Weight | 20.4 kg | 19.6 kg |
R.E375 Core: FAQ
How much does the Rotwild R.E375 Core cost?
€6,990 (MSRP Germany, VAT incl.). The R.E375 range runs from €6,990 (R.E375 Core) to €8,990 (R.E375 Ultra). Prices vary by country and dealer.
How much does the Rotwild R.E375 Core weigh?
Rotwild quotes 20.4 kg. The lightest R.E375 build is the R.E375 Ultra at 19.6 kg.
What motor and battery does the Rotwild R.E375 Core have?
Shimano EP8 (85 Nm). 360 Wh battery — iPU375 Carbon.
How much suspension travel does the Rotwild R.E375 Core have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Rotwild R.E375 Core come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the R.E375 Core and the R.E375 Ultra?
They share the R.E375 frame platform and motor; the differences are in the parts — fork: FOX 36 Float Performance vs FOX 36 Float Factory Kashima; shock: FOX Float X Performance vs FOX Float X Factory Kashima; brakes: MAGURA MT5 vs SHIMANO XT 8120; claimed weight: 20.4 kg vs 19.6 kg; price: €6,990 vs €8,990.
